Open Access

A genetic algorithm-based weighted ensemble method for predicting transposon-derived piRNAs

BMC BioinformaticsBMC series – open, inclusive and trusted201617:329

https://doi.org/10.1186/s12859-016-1206-3

Received: 18 March 2016

Accepted: 24 August 2016

Published: 31 August 2016

Abstract

Background

Predicting piwi-interacting RNA (piRNA) is an important topic in the small non-coding RNAs, which provides clues for understanding the generation mechanism of gamete. To the best of our knowledge, several machine learning approaches have been proposed for the piRNA prediction, but there is still room for improvements.

Results

In this paper, we develop a genetic algorithm-based weighted ensemble method for predicting transposon-derived piRNAs. We construct datasets for three species: Human, Mouse and Drosophila. For each species, we compile the balanced dataset and imbalanced dataset, and thus obtain six datasets to build and evaluate prediction models. In the computational experiments, the genetic algorithm-based weighted ensemble method achieves 10-fold cross validation AUC of 0.932, 0.937 and 0.995 on the balanced Human dataset, Mouse dataset and Drosophila dataset, respectively, and achieves AUC of 0.935, 0.939 and 0.996 on the imbalanced datasets of three species. Further, we use the prediction models trained on the Mouse dataset to identify piRNAs of other species, and the models demonstrate the good performances in the cross-species prediction.

Conclusions

Compared with other state-of-the-art methods, our method can lead to better performances. In conclusion, the proposed method is promising for the transposon-derived piRNA prediction. The source codes and datasets are available in https://github.com/zw9977129/piRNAPredictor.

Keywords

piRNA Feature Genetic algorithm Ensemble learning

Background

Non-coding RNAs (ncRNAs) are defined as the important functional RNA molecules which are not translated into proteins [1, 2]. According to lengths, ncRNAs are classified into two types: long ncRNAs and short ncRNAs. Usually, long ncRNAs consists of more than 200 nucleotides [3, 4]. Short ncRNAs having 20 ~ 32 nt are defined as small ncRNAs, such as small interfering RNA (siRNA), microRNA (miRNA) and piwi-interacting RNA (piRNA) [5]. piRNA is a distinct class of small ncRNAs expressed in animal cells, especially in germline cells, and the length of piRNA sequences ranges from 26 to 32 in general [68]. Compared with miRNA, piRNA lacks conserved secondary structure motifs, and the presence of a 5’ uridine is usually observed in both vertebrates and invertebrates [5, 9, 10].

piRNAs play an important role in the transposon silencing [1115]. About nearly one-third of the fruit fly and one-half of human genomes are transposon elements. These transposons move within the genome and induce insertions, deletions, and mutations, which may cause the genome instability. piRNA pathway is an important genome defense mechanism to maintain genome integrity. Loaded into PIWI proteins, piRNAs serve as a guide to target the transposon transcripts by sequence complementarity with mismatches, and then the transposon transcripts will be cleaved and degraded, producing secondary piRNAs, which is called ping-pong cycle in fruit fly [1317]. Therefore, predicting transposon-derived piRNAs provides biological significance and insights into the piRNA pathway.

The wet method utilizes immunoprecipitation and deep sequencing to identify piRNAs [18]. Since piRNAs are diverse and non-conserved, wet methods are time-consuming and costly [5, 9, 10]. Since the development of information science, the piRNA prediction based on the known data becomes an alternative. As far as we know, several computational methods have been proposed for piRNA prediction. Betel et al. developed the position-specific usage method to recognize piRNAs [19]. Zhang et al. utilized a k-mer feature, and adopted support vector machine (SVM) to build the classifier (named piRNApredictor) for piRNA prediction [20]. Wang et al. proposed a method named Piano to predict piRNAs, by using piRNA-transposon interaction information and SVM [21]. These methods exploited different features of piRNAs, and build the prediction models by using machine learning methods.

Motivated by previous works, we attempt to differentiate transposon-derived piRNAs from non-piRNAs based on the sequential and physicochemical features. As far as we know, there are several critical issues for developing high-accuracy models. Firstly, the accuracy of models is highly dependent on the diversity of features. In order to achieve high-accuracy models, we should consider as many sequence-derived features as possible. Secondly, how to effectively combine various features for high-accuracy models is very challenging. In the previous work [22], we adopted the exhaustive search strategy to combine five sequence-derived features to predict piRNAs, and used the AUC scores of individual feature-based models as weights in the ensemble learning. However, the method can’t effectively integrate a great amount of features (NP-hard complexity: 2 N -1 combinations of features, N is the number of features), and the determination of weights is arbitrary.

In this paper, we develop a genetic algorithm-based weighted ensemble method (GA-WE) to effectively integrate twenty-three discriminative features for the piRNA prediction. Specifically, individual features-based models are constructed as base learners, and the weighted average of their outputs is adopted as the final scores in the stage of prediction. Genetic algorithm (GA) is to search for the optimal weights for the base learners. Moreover, the proposed method can determine the weights for each base learner in a self-tune manner.

We construct datasets for three species: Human, Mouse and Drosophila. For each species, we compile the balanced dataset and imbalanced dataset, and thus obtain six datasets to build and evaluate prediction models. In the 10-fold cross validation experiments, the GA-WE method achieves AUC of 0.932, 0.937 and 0.995 on the balanced Human dataset, Mouse dataset and Drosophila dataset, respectively, and achieves AUC of 0.935, 0.939 and 0.996 on the imbalanced datasets of three species. Further, we use the prediction models trained on the Mouse dataset to identify piRNAs of other species. The results demonstrate that the models can produce good performances in the cross-species prediction. Compared with other state-of-the-art methods, our method produces better performances as well as good robustness. Therefore, the proposed method is promising for the transposon-derived piRNA prediction.

Methods

Datasets

In this paper, we construct datasets for three species: Human, Mouse and Drosophila, and use them to build prediction models and make evaluations.

As shown in Table  1 , raw real piRNAs, raw non-piRNA ncRNAs and transposons are downloaded from NONCODE version 3.0 [23], UCSC Genome Browser [24] and NCBI Gene Expression Omnibus [18, 25]. NONCODE is an integrated knowledge database about non-coding RNAs [23]. The UCSC Genome Browser is an interactive website offering access to genome sequence data from a variety of vertebrate and invertebrate species, integrated with a large collection of aligned annotations [24]. The NCBI Gene Expression Omnibus is the largest fully public repository for high-throughput molecular abundance data, primarily gene expression data [18, 25].
Table 1

Raw data about three species

Species

Raw real piRNAs

Raw non-piRNA ncRNAs

Transposons

Human

32,152 (NONCODE v3.0)

59,003 (NONCODE v3.0)

4,679,772 (UCSC, hg38)

Mouse

75,814 (NONCODE v3.0)

43,855 (NONCODE v3.0)

3,660,356 (UCSC, mm10)

Drosophila

12,903 (NCBI, GSE9138)

102,655 (NONCODE v3.0)

37,326 (UCSC, dm6)

The datasets are compiled from the raw data (Table 1). By aligning raw real piRNAs to transposons with SeqMap (three mismatches at most) [26], the aligned real piRNAs are transposon-matched piRNAs, and they are adopted as the set of real piRNAs. The length of real piRNAs ranges from 16 to 35. To meet the length range of real piRNAs, we remove non-piRNA ncRNAs shorter than 16, and cut non-piRNA ncRNAs longer than 35 by simulating length distribution of real piRNAs. The cut sequences are then aligned to transposons, and the aligned ones are used as the set of pseudo piRNAs. The real piRNAs and the pseudo piRNAs for three species are shown in Table 2. In order to the build prediction models, we build the datasets based on real piRNAs and pseudo piRNAs. To avoid the data bias caused by different size of positive instances and negative instances, we construct both balanced datasets and imbalanced datasets for three species. For balanced datasets, all real piRNAs are adopted as positive instances, and we sample the same number of pseudo piRNAs as negative instances. For imbalanced datasets, we use all real piRNAs and pseudo piRNAs as positive instances and negative instances.
Table 2

Number of real piRNAs and pseudo piRNA

Species

Real piRNAs

Pseudo piRNA

Human

7,405

21,846

Mouse

13,998

40,712

Drosophila

9,214

22,855

Features of piRNAs

For prediction, we should explore informative features that can characterize piRNAs and convert variable-length piRNA sequences into fixed-length feature vectors. Here, we consider various potential features that are widely used in biological sequence prediction. Among these features, six features have been utilized for the piRNA prediction, while the rest are taken into account for the first time. These sequence-derived features are briefly introduced as follows.

Spectrum profile: k-spectrum profile, also named k-mer feature, is to count the occurrences of k-mers (k-length contiguous strings) in sequences (k ≥ 1), and its success has been proved by numerous bioinformatics applications [2730].

Mismatch profile: (k, m)-mismatch profile also counts the occurrences of k-mers, but allows max m (m < k) inexact matching, which is the penalization of spectrum profile [30, 31].

Subsequence profile: (k, w)-subsequence profile considers not only the contiguous k-mers but also the non- contiguous k-mers, and the penalty factor w (0 ≤ w ≤ 1) is used to penalize the gap of non-contiguous k-mers [30, 32].

Reverse compliment k-mer (k-RevcKmer): k-RevcKmer is a variant of the basic k-mer, in which the k-mers are not expected to be strand-specific [29, 33, 34].

Parallel correlation pseudo dinucleotide composition (PCPseDNC): PCPseDNC is proposed to avoid losing the physicochemical properties of dinucleotides. PCPseDNC of a sequence consists of two components, the first component represents the occurrences of different dinucleotides, while the other component reflects the physicochemical properties of dinucleotides [28, 29, 35].

Three features: parallel correlation pseudo trinucleotide composition (PCPseTNC), series correlation pseudo dinucleotide composition (SCPseDNC) and series correlation pseudo trinucleotide composition (SCPseTNC) are similar to the PCPseDNC. PCPseTNC considers the occurrences of trinucleotides and their physicochemical properties, and SCPseDNC and SCPseTNC consider series correlations of physicochemical properties of dinucleotides or trinucleotides [28, 29, 35, 36].

Sparse profile [37] and position-specific scoring matrix (PSSM) [3840] are usually generated from the fixed-length sequences. Here, we use a simple strategy to process the variable-length sequences, and obtain the features. We truncate the first d nucleotides of long sequences which lengths are more than d, and extend short sequences which lengths are less than d by adding the null character. Here, ‘E’ represent the null character, which are added to the short sequences to meet the length d. In this way, all variable-length sequences are converted into fixed-length sequences, and the fixed-length sequences consist of five letters {A, C, G, T, E}. For the sparse profile, by encoding each letter of sequence as a 5-bit vector with 4 bits set to zero and 1 bit set to one, the sparse profile of a sequence is obtained by merging the bit vector for its letters. For the PSSM feature, PSSM can be calculated on the fixed-length sequences consisted of five letters {A, C, G, T, E} [3840]. Given a new sequence, it is truncated or extended, and then is encoded by PSSM as the feature vector. The PSSM representation of sequence x = R 1 R 2 … R d is defined as:
$$ {f_d}^{PSSM}(x)=\left( score\;\left({R}_1\right),\; score\left({R}_2\right),\dots,\;score\left({R}_d\right)\right) $$
where
$$ score\left({R}_k\right)=\left\{\begin{array}{l}m\left({R}_k\right),\kern0.75em {R}_k\in \left\{A,C,G,T\right\}\\ {}0,\kern2.75em {R}_k=E\end{array}\right.,k=1,2,\dots, d $$
and m(R k ) represents the score of R k in the k-th column of PSSM, if R k  {A, C, G, T}, k = 1, 2, …, d.

Local structure-sequence triplet elements (LSSTE): LSSTE adopts the piRNA-transposon interaction information to extract 32 different triplet elements, which contain the structural information of transposon-piRNA alignment as well as the piRNA sequence information [21, 41, 42].

A total of twenty-three feature vectors are finally obtained, and they are summarized in Table 3.
Table 3

Twenty-three sequence-derived features

Index

Feature

Dimension

Parameter

Annotation

F1

1-Spectrum Profile

4

No Parameters

Used in [20]

F2

2-Spectrum Profile

16

No Parameters

Used in [20]

F3

3-Spectrum Profile

64

No Parameters

Used in [20]

F4

4-Spectrum Profile

256

No Parameters

Used in [20]

F5

5-Spectrum Profile

1024

No Parameters

Used in [20]

F6

(3, m)-mismatch profile

64

m: the max mismatches

New features

F7

(4, m)-mismatch profile

256

m: the max mismatches

New features

F8

(5, m)-mismatch profile

1024

m: the max mismatches

New features

F9

(3, w)-subsequence profile

64

w: penalty for the non-contiguous matching

New features

F10

(4, w)-subsequence profile

256

w: penalty for the non-contiguous matching

New features

F11

(5, w)-subsequence profile

1024

w: penalty for the non-contiguous matching

New features

F12

1-RevcKmer

2

No Parameters

New features

F13

2-RevcKmer

10

No Parameters

New features

F14

3-RevcKmer

32

No Parameters

New features

F15

4-RevcKmer

136

No Parameters

New features

F16

5-RevcKmer

528

No Parameters

New features

F17

PCPseDNC

16 + λ

λ: the highest counted rank of the correlation

New features

F18

PCPseTNC

64 + λ

λ: the highest counted rank of the correlation

New features

F19

SCPseDNC

16 + 6 × λ

λ: the highest counted rank of the correlation

New features

F20

SCPseTNC

64 + 12 × λ

λ: the highest counted rank of the correlation

New features

F21

Sparse Profile

5 × d

d: the fixed length of sequences

New features

F22

PSSM

d

d: the fixed length of sequences

New features

F23

LSSTE

32

No parameters

Used in [21]

The GA-based weighted ensemble method

In the view of information science, a variety of features can bring diverse information, and the combination of various features can lead to better performance than individual features [22, 4346]. Ensemble learning is a sophisticated feature combination technique widely used in bioinformatics. Its success has been proved by numerous bioinformatics applications, such as the prediction of B-cell epitopes [44] and the prediction of immunogenic T-cell epitopes [45].

To the best of our knowledge, there are two crucial issues for designing good ensemble systems, i.e. base learners and combination rules. First, the training sequences are encoded into different feature vectors, respectively, and multiple base learners are constructed on these feature vectors by using classification engines. We compare two most popular classification methods, random forest (RF) [47] and support vector machine (SVM) [48] (results are given in the section ‘Results and Discussion’), and finally adopt RF as the basic classification engine because of its high efficiency and high accuracy. Then, how to combine the outputs of base learners is crucial for the success of our ensemble system. Our ensemble learning adopts the weighted average of outputs from base learners as the final score. However, the determination of weights is difficult. In this paper, we develop a genetic algorithm (GA)-based weighted ensemble method, which can automatically determine the optimal weights and construct high-accuracy prediction models.

Given N features, we can construct N base learners: f 1, f 2, …, f N on training set. w 1, w 2, …, w N (∑ i = 1 N w i , 0 ≤ w i  ≤ 1, i = 1, 2, …, N) represent the corresponding weights. For a testing sequence x, f i (x)  [0, 1] represents the probability of predicting x as real piRNA, i = 1, 2, …, N, and the final predicted results of the weighted ensemble model is given as:
$$ F(x)={\displaystyle {\sum}_{i=1}^N{w}_i{f}_i(x)} $$

As discussed above, the optimal weights are very important for the weighted ensemble model. We consider the determination of weights as an optimization problem and adopt the genetic algorithm (GA) to search the optimal weights. GA is a search approach that simulates the process of natural selection. It can effectively search the interesting space and easily solve complex problems without requiring the prior knowledge about the space. Here, we use the adaptive genetic algorithm [49]. In the adaptive genetic algorithm, crossover probability and mutation probability are dynamically adjusted according to the fitness scores of chromosomes. The size of an initial population is 1000 chromosomes, and the iteration number is 500.

The flowchart of the GA-WE method is shown in Fig. 1. In each training-testing process, the dataset is split into the training set, the validation set and the testing set. In the GA optimization, a chromosome represents weights. For each chromosome (weights), the weighted ensemble model is constructed on the training set, and makes predictions for the validation set. The AUC score of the weighted ensemble model on the validation set is taken as the fitness of the chromosome. After randomly generating an initial population, the population is updated by three operators: selection, crossover and mutation, and the best individual with a chromosome will be obtained. Finally, the weighted ensemble model with the optimal weights is used to make predictions for the testing set.
Fig. 1

Flowchart of the GA-based weighted ensemble method

Results and discussion

Performance evaluation metrics

The proposed methods are evaluated by the 10-fold cross validation (10-CV). In the 10-CV, a dataset is randomly split into 10 subsets with equal size. For each round of 10-CV, 8 subsets are used as the training set, 1 subset is used as the validation set and the rest one is considered as the testing set. Prediction models are constructed on the training set, and the parameters or optimal weights of models are determined on the validation set. Finally, optimized prediction models are adopted to predict the testing set. This processing is repeated until all subsets are ever used for testing.

Here, we adopt several metrics to assess the performances of prediction models, including the accuracy (ACC), sensitivity (SN), specificity (SP) and the AUC score (the area under the ROC curve). These metrics are defined as:
$$ SN=\frac{TP}{TP+FN} $$
$$ SP=\frac{TN}{TN+FP} $$
$$ ACC=\frac{TP+TN}{TP+TN+FP+FN} $$

Where TP, FP, TN and FN are the numbers of true positives, false positives, true negatives and false negatives, respectively. The ROC curve is plotted by using the false positive rate (1-specificity) against the true positive rate (sensitivity) for different cutoff thresholds. Here, we consider the AUC as the primary metric, for it assesses the performance regardless of any threshold.

Parameters of various features

As shown in Table 3, we consider twenty-three sequence-derived features to develop prediction models. Since subsequence profile, PCPseDNC, PCPseTNC, SCPseDNC, SCPseTNC, sparse profile and PSSM have parameters, we discuss how to determine the parameters based on the balanced Human dataset, and use them in the following studies. Considering the parameter λ and d refer to the length of piRNAs, we analyze the length distribution of piRNAs in three species (Human, Mouse and Drosophila). As shown in Fig. 2, the length of piRNAs ranges from 16 to 35, and reaches the peak at 30 for Human and Mouse, and 25 for Drosophila. Here, the impacts of parameters are evaluated according to the 10-CV performances of corresponding models.
Fig. 2

The length distribution of piRNAs in three species (Human, Mouse and Drosophila)

In the mismatch profile, the parameter m represents the max mismatches. Here, we assume that m does not exceed one third of length of k-mers. Therefore, (3, 1)-mismatch profile, (4, 1)-mismatch profile and (5, 1)-mismatch profile are used.

In the subsequence profile, the parameter w represents the gap penalty of non-contiguous k-mers. As shown in Fig. 3 (a), w = 1 produces the best AUC scores for (3, w)-subsequence profile, (4, w)- subsequence profile and (5, w)-subsequence profile. Therefore, (3, 1)-subsequence profile, (4, 1)-subsequence profile and (5, 1)-subsequence profile are finally adopted in the following study.
Fig. 3

a AUC scores of the (k, w)-subsequence profile-based models with the variation of parameter w on balanced Human dataset; b AUC scores of the PCPseDNC, PCPseTNC, SCPseDNC and SCPseTNC-based models with the variation of the parameter λ on balanced Human dataset; c AUC scores of the sparse profile and PSSM-based models with the variation of the parameter d on balanced Human dataset

In the PCPseDNC, PCPseTNC, SCPseDNC and SCPseTNC, the parameter λ represents the highest counted rank of the correlation, 1 ≤ λ ≤ L − 2 (for the PCPseDNC and SCPseDNC); 1 ≤ λ ≤ L − 3 (for the PCPseTNC and SCPseTNC) [28, 29, 35, 36]. L is the length of shortest piRNA sequences, and is 16 according to Fig. 2. To test the impact of the parameter λ on the four features, we construct the prediction models by using different values. As shown in Fig. 3 (b). λ = 1 leads to the best AUC scores for PCPseDNC, PCPseTNC, SCPseDNC and SCPseTNC. Therefore, the best parameters are adopted for the final prediction models.

In the sparse profile and PSSM, the parameter d represents the fixed length of sequences. As show in Fig. 2, the lengths of piRNAs range from 16 to 35. Therefore, the prediction models are constructed based on different lengths. As shown in Fig. 3 (c), d = 35 produces the best AUC scores for the sparse profile and PSSM feature. Therefore, we set the parameter d as 35 for the sparse profile feature and the PSSM feature.

Evaluation of various features

After discussing feature parameters, we compare the capabilities of various features for the piRNA prediction. Here, individual feature-based models are constructed on balanced Human dataset and imbalanced Human dataset by using classification engines, and the performances of these models are evaluated by 10-CV.

To test different classifiers, we respectively adopt the random forest (RF) and support vector machine (SVM) to build the individual feature-based prediction models. Here, we use the python package “scikit-learn” to implement RF and SVM, and default values are adopted for parameters. The results demonstrate that RF can produce better performances in most cases (13 out of the 23 individual feature-based models). Moreover, RF runs much faster than SVM, and it is very important for implementing the following experiments. Results of RF models and SVM models are provided in the Additional files 1 and 2. For these reasons, RF is adopted in the following study.

To test the impacts of the ratio of positive instances versus negative instances, we build the individual feature-based prediction models based on the balanced human datasets and the imbalanced human dataset. As shown in Table 4 and Table 5, the prediction models produce similar results on the balanced dataset and imbalanced dataset, indicating that they are robust to the different datasets. The performances of individual feature-based models help to rank the importance of features. According to Table 4 and Table 5, the sparse profile yields the best results among these features, and the performance of LSSTE is much poorer than that of other features. Therefore, we adopt features indexed from F1 to F22 (“F1 ~ F22”) for the final ensemble models.
Table 4

The performances of individual feature-based models on balanced Human dataset

Index

Feature

AUC

ACC

SN

SP

F1

1-Spectrum Profile

0.754

0.690

0.731

0.649

F2

2-Spectrum Profile

0.841

0.756

0.780

0.732

F3

3-Spectrum Profile

0.839

0.750

0.747

0.754

F4

4-Spectrum Profile

0.829

0.740

0.732

0.748

F5

5-Spectrum Profile

0.802

0.718

0.681

0.755

F6

(3,1)-Mismatch Profile

0.862

0.772

0.819

0.725

F7

(4,1)-Mismatch Profile

0.854

0.761

0.788

0.734

F8

(5,1)-Mismatch Profile

0.842

0.750

0.754

0.747

F9

(3,1)-Subsequence Profile

0.850

0.767

0.809

0.725

F10

(4,1)-Subsequence Profile

0.866

0.782

0.821

0.743

F11

(5,1)-Subsequence Profile

0.875

0.791

0.829

0.754

F12

1-RevcKmer

0.746

0.699

0.889

0.509

F13

2-RevcKmer

0.803

0.724

0.774

0.673

F14

3-RevcKmer

0.818

0.732

0.765

0.698

F15

4-RevcKmer

0.808

0.718

0.717

0.718

F16

5-RevcKmer

0.791

0.702

0.658

0.746

F17

PCPseDNC

0.836

0.757

0.776

0.738

F18

PCPseTNC

0.849

0.765

0.787

0.742

F19

SCPseDNC

0.833

0.754

0.770

0.739

F20

SCPseTNC

0.832

0.751

0.777

0.725

F21

Sparse Profile

0.904

0.819

0.815

0.824

F22

PSSM

0.880

0.807

0.815

0.799

F23

LSSTE

0.688

0.631

0.664

0.598

Table 5

The performances of individual feature-based models on imbalanced Human dataset

Index

Feature

AUC

ACC

SN

SP

F1

1-Spectrum Profile

0.748

0.739

0.398

0.854

F2

2-Spectrum Profile

0.841

0.808

0.416

0.940

F3

3-Spectrum Profile

0.850

0.814

0.321

0.982

F4

4-Spectrum Profile

0.844

0.811

0.284

0.989

F5

5-Spectrum Profile

0.836

0.813

0.305

0.986

F6

(3,1)-Mismatch Profile

0.867

0.824

0.427

0.959

F7

(4,1)-Mismatch Profile

0.856

0.814

0.328

0.979

F8

(5,1)-Mismatch Profile

0.851

0.810

0.277

0.991

F9

(3,1)-Subsequence Profile

0.850

0.808

0.443

0.932

F10

(4,1)-Subsequence Profile

0.864

0.822

0.473

0.940

F11

(5,1)-Subsequence Profile

0.871

0.829

0.492

0.944

F12

1-RevcKmer

0.745

0.746

0.005

0.997

F13

2-RevcKmer

0.803

0.778

0.411

0.902

F14

3-RevcKmer

0.823

0.800

0.265

0.981

F15

4-RevcKmer

0.823

0.803

0.241

0.993

F16

5-RevcKmer

0.818

0.806

0.255

0.992

F17

PCPseDNC

0.841

0.806

0.374

0.952

F18

PCPseTNC

0.857

0.813

0.337

0.975

F19

SCPseDNC

0.836

0.803

0.346

0.958

F20

SCPseTNC

0.842

0.808

0.312

0.977

F21

Sparse Profile

0.905

0.856

0.634

0.932

F22

PSSM

0.882

0.832

0.584

0.916

F23

LSSTE

0.688

0.766

0.175

0.966

Performances of GA-based weighted ensemble method

The GA-based weighted ensemble (GA-WE) method integrates sequence-derived features and constructs high-accuracy prediction models. We evaluate the performances of the GA-WE model on the datasets of three species. Moreover, we carry out the cross-species prediction, in which we build prediction models on Mouse species, and make prediction for other species.

Results of GA-WE models on three species

As show in Table 6, the GA-WE models achieve AUC of 0.932, accuracy of 0.839, sensitivity of 0.858 and specificity of 0.820 on the balanced Human dataset. Compared with the best individual features-based model (the sparse profile-based model), the GA-WE model improves AUC of >3%, indicating the GA-WE model can effectively combine various features to enhance performances. The proposed method also performs accurate prediction on balanced Mouse dataset, achieving AUC of 0.937. Compared with the piRNA prediction on mammalian: Human and Mouse, the prediction on Drosophila is much better, achieving AUC of 0.995. Similarly, the GA-WE model performs high-accuracy prediction on the imbalanced datasets of the three species, achieves AUC of 0.935, 0.939 and 0.996, respectively, which demonstrates that the GA-WE model has not only high accuracy but also good robustness.
Table 6

The performances of the GA-WE model on three species (Human, Mouse and Drosophila)

Dataset

Species

AUC

ACC

SN

SP

Balanced

Human

0.932

0.839

0.858

0.820

Mouse

0.937

0.838

0.824

0.852

Drosophila

0.995

0.959

0.951

0.966

Imbalanced

Human

0.935

0.869

0.687

0.931

Mouse

0.939

0.889

0.745

0.939

Drosophila

0.996

0.958

0.897

0.983

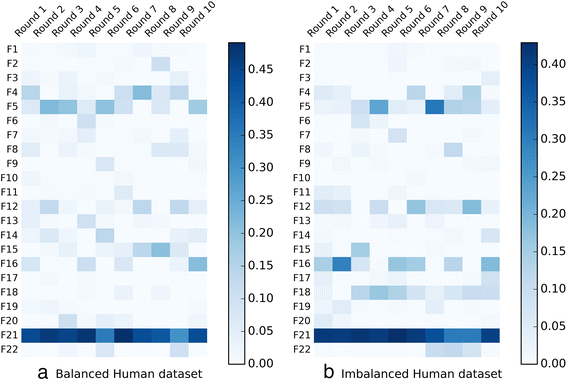

Further, we investigate the optimal weights for the GA-WE model in each fold of 10-CV. Taking Human dataset as an example, the optimal weights of “F1 ~ F22” for the GA-WE model are visualized by the heat map (Fig. 4). We can draw several conclusions from the results. Firstly, different features have different weights in each fold of 10-CV, and the optimal weights can lead to the best ensemble model. Secondly, optimal weights reflect the contributions of the corresponding features for the ensemble model, and the feature having the best performances for piRNA prediction always makes the greatest contribution to the ensemble model. For example, the sparse profile (F21) performs the highest contribution to the ensemble model in each fold of 10-CV, for the sparse profile has the best predictive ability among all features. Thirdly, the optimal weights for the ensemble model depend on the training set, and determining the optimal weights is necessary for building high-accuracy models.
Fig. 4

Optimal weights for the GA-WE model in each fold of 10-CV

Results of cross-species prediction

Considering that Mouse instances are more than Human instances and Drosophila instances, we construct the GA-WE model on Mouse dataset, and make predictions for Human dataset and Drosophila dataset.

As shown in Table 7, the GA-WE model trained with Mouse dataset achieves AUC of 0.863 and 0.687 on the balanced Human and Drosophila datasets, and achieves AUC of 0.868 and 0.746 on the imbalanced datasets of the two species. Compared with the experiments on a same species, the cross-species experiments produce lower scores, indicating that piRNAs derived from different species may have different patterns. Moreover, the results on Human dataset are better than the results on Drosophila dataset, and the possible reason is that the length distribution of Mouse piRNAs is similar to that of Human piRNAs, and is different from that of Drosophila piRNAs (shown in Fig. 2). Therefore, we’d better train models and make predictions based on a same species.
Table 7

The performances of cross-species prediction

Dataset

Species

AUC

ACC

SN

SP

Balanced

Human

0.863

0.788

0.796

0.781

Drosophila

0.687

0.668

0.639

0.698

Imbalanced

Human

0.868

0.811

0.425

0.942

Drosophila

0.746

0.774

0.370

0.936

Comparison with other state-of-the-art methods

Here, three latest methods: piRNApredictor [20], Piano [21] and our previous work [22] are adopted as the benchmark methods, for they build prediction models based on machine learning methods. piRNApredictor used k-mer feature (i.e, spectrum profile), k = 1, 2, 3, 4, 5, and Piano used the LSSTE feature. piRNApredictor and Piano adopted the support vector machine (SVM) to construct prediction models. Our previous work adopted the exhaustive search strategy to combine five sequence-derived features to predict piRNAs. We implement piRNApredictor obtain the results. Since the source codes of Piano are available at http://ento.njau.edu.cn/Piano.html, we can run the program on the benchmark datasets. The proposed methods and three benchmark methods are evaluated on six benchmark datasets by using 10-CV.

As shown in Table 8, our previous work, piRNApredictor and Piano achieve AUC of 0.920, 0.894 and 0.592 on the balanced Human dataset, respectively. Our GA-WE model produces AUC of 0.932 on the dataset. The proposed method also yields much better performances than piRNApredictor and Piano on the balanced Mouse dataset and balanced Drosophila dataset. There are several reasons for the superior performances of our method. Firstly, various useful features can guarantee the diversity for the GA-WE model. Secondly, the GA-WE model automatically determines the optimal weights on validation set.
Table 8

Performances of GA-WE and the state-of-the-art methods on three species

Dataset

Species

Method

AUC

ACC

SN

SP

Balanced

Human

Piano

0.592

0.560

0.855

0.265

piRNApredictor

0.894

0.812

0.859

0.764

Ensemble Learning

0.920

0.807

0.815

0.800

GA-WE

0.932

0.839

0.858

0.820

Mouse

Piano

0.445

0.5365

0.837

0.236

piRNApredictor

0.892

0.819

0.862

0.776

Ensemble Learning

0.924

0.810

0.863

0.756

GA-WE

0.937

0.838

0.826

0.850

Drosophila

Piano

0.741

0.692

0.836

0.547

piRNApredictor

0.983

0.952

0.927

0.977

Ensemble Learning

0.994

0.958

0.952

0.965

GA-WE

0.995

0.959

0.949

0.966

Imbalanced

Human

Piano

0.449

0.747

0.000

1.000

piRNApredictor

0.905

0.847

0.548

0.949

Ensemble Learning

0.922

0.836

0.589

0.919

GA-WE

0.935

0.869

0.687

0.931

Mouse

Piano

0.441

0.744

0.000

1.000

piRNApredictor

0.892

0.848

0.568

0.944

Ensemble Learning

0.928

0.849

0.586

0.940

GA-WE

0.939

0.889

0.745

0.939

Drosophila

Piano

0.804

0.712

0.000

1.000

piRNApredictor

0.982

0.961

0.902

0.985

Ensemble Learning

0.995

0.965

0.920

0.984

GA-WE

0.996

0.964

0.940

0.973

Further, we compare the capabilities of the GA-WE method with the state-of-the-art methods in the cross-species prediction. All models are constructed on Mouse dataset, and make predictions for Human and Drosophila dataset. As shown in Table 9, our GA-WE model trained with Mouse dataset performs better than the state-of-the-art methods on the Human datasets, but performs worse than piRNApredictor on the Drosophila dataset. Moreover, the performances on Human dataset are always better than that on Drosophila dataset regardless of any method, and the possible reason is that the length distribution of Mouse piRNAs is similar to that of Human piRNAs, and is different from that of Drosophila piRNAs (shown in Fig. 2). In general, our method can produce satisfying results in the cross-species prediction.
Table 9

Performances of GA-WE and the state-of-the-art methods in the cross-species prediction

Dataset

Species

Method

AUC

ACC

SN

SP

Balanced

Human

Piano

0.431

0.558

0.878

0.238

piRNApredictor

0.850

0.783

0.781

0.784

Ensemble Learning

0.845

0.774

0.764

0.784

GA-WE

0.863

0.788

0.796

0.781

Drosophila

Piano

0.367

0.587

0.905

0.270

piRNApredictor

0.728

0.650

0.630

0.669

Ensemble Learning

0.682

0.628

0.512

0.745

GA-WE

0.687

0.668

0.639

0.698

Imbalanced

Human

Piano

0.426

0.747

0.000

1.000

piRNApredictor

0.856

0.823

0.507

0.931

Ensemble Learning

0.856

0.783

0.300

0.946

GA-WE

0.868

0.811

0.425

0.942

Drosophila

Piano

0.369

0.713

0.000

1.000

piRNApredictor

0.783

0.773

0.422

0.915

Ensemble Learning

0.750

0.736

0.275

0.921

GA-WE

0.746

0.774

0.370

0.936

Conclusions

In this paper, we develop the GA-based weighted ensemble method, which can automatically determine the importance of different information resources and produce high-accuracy performances. We compile the Human, Mouse and Drosophila datasets from NONCODE version 3.0, UCSC Genome Browser and NCBI Gene Expression Omnibus. In the computational experiments, the GA-based weighted ensemble method achieves AUC of >93% by 10-CV. Compared with other state-of-the-art methods, our method produces better performances as well as good robustness. In conclusion, the proposed method is promising for transposon-derived piRNA prediction. The source codes and datasets are available in https://github.com/zw9977129/piRNAPredictor.

Abbreviations

“F1~F22”:

The features indexed from F1 to F22

10-CV:

10-fold cross validation

ACC:

Accuracy

AUC:

Area under ROC curve

GA:

Genetic algorithm

GA-WE:

Genetic algorithm-based weighted ensemble

LSSTE:

Local structure-sequence triplet elements

PCPseDNC:

Parallel correlation pseudo dinucleotide composition

PCPseTNC:

Parallel correlation pseudo trinucleotide composition

PSSM:

Position-specific scoring matrix

RF:

Random forest

SCPseDNC:

Series correlation pseudo dinucleotide composition

SCPseTNC:

Series correlation pseudo trinucleotide composition

SN:

Sensitivity

SP:

Specificity

SVM:

Support vector machine

Declarations

Acknowledgements

The authors thank Dr. Fei Li and Dr. Kai Wang for the codes of Piano.

Funding

The National Natural Science Foundation of China (61103126, 61271337, 61402340 and 61572368), Shenzhen Development Foundation (JCYJ20130401160028781) and Natural Science Foundation of Hubei Province of China (2014CFB194) support this work. These funding has no role in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Availability of data and materials

The datasets and source codes are available in https://github.com/zw9977129/piRNAPredictor.

Authors’ contribution

WZ, DL and LL designed the study. LL implemented the algorithm. LL and WZ drafted the manuscript. FL (Fei) and FL (Feng) helped to prepare the data and draft the manuscript. All authors have read and approved the final version of the manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
School of Mathematics and Statistics, Wuhan University
(2)
State Key Lab of Software Engineering, Wuhan University
(3)
School of Computer, Wuhan University
(4)
International School of Software, Wuhan University

References

  1. Jean-Michel C. Fewer genes, more noncoding RNA. Science. 2005;309(5740):1529–30.View ArticleGoogle Scholar
  2. Mattick JS. The functional genomics of noncoding RNA. Science. 2005;309(5740):1527–8.View ArticlePubMedGoogle Scholar
  3. Chaoyong X, Jiao Y, Hui L, Ming L, Guoguang Z, Dechao B, Weimin Z, Wei W, Runsheng C, Yi Z. NONCODEv4: exploring the world of long non-coding RNA genes. Nucleic Acids Res. 2014;42(D1):D98–103.View ArticleGoogle Scholar
  4. Huang Y, Liu N, Wang JP, Wang YQ, Yu XL, Wang ZB, Cheng XC, Zou Q. Regulatory long non-coding RNA and its functions. J Physiol Biochem. 2012;68(4):611–8.View ArticlePubMedGoogle Scholar
  5. Meenakshisundaram K, Carmen L, Michela B, Diego DB, Gabriella M, Rosaria V. Existence of snoRNA, microRNA, piRNA characteristics in a novel non-coding RNA: x-ncRNA and its biological implication in Homo sapiens. J Bioinformatics Seq Anal. 2009;1(2):31–40.Google Scholar
  6. Alexei A, Dimos G, Sébastien P, Mariana LQ, Pablo L, Nicola I, Patricia M, Brownstein MJ, Satomi KM, Toru N. A novel class of small RNAs bind to MILI protein in mouse testes. Nature. 2006;442(7099):203–7.Google Scholar
  7. Lau NC, Seto AG, Jinkuk K, Satomi KM, Toru N, Bartel DP, Kingston RE. Characterization of the piRNA Complex from rat testes. Science. 2006;313(5785):363–7.View ArticlePubMedGoogle Scholar
  8. Grivna ST, Ergin B, Zhong W, Haifan L. A novel class of small RNAs in mouse spermatogenic cells. Genes Dev. 2006;20(13):1709–14.View ArticlePubMedPubMed CentralGoogle Scholar
  9. Seto AG, Kingston RE, Lau NC. The coming of age for Piwi proteins. Mol Cell. 2007;26(5):603–9.View ArticlePubMedGoogle Scholar
  10. Ruby JG, Jan C, Player C, Axtell MJ, Lee W, Nusbaum C, Ge H, Bartel DP. Large-scale sequencing reveals 21U-RNAs and additional Micro-RNAs and endogenous siRNAs in C. elegans. Cell. 2007;127(6):1193–207.View ArticleGoogle Scholar
  11. Cox DN, Chao A, Baker J, Chang L, Qiao D, Lin H. A novel class of evolutionarily conserved genes defined by piwi are essential for stem cell self-renewal. Genes Dev. 1998;12(23):3715–27.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Klattenhoff C, Theurkauf W. Biogenesis and germline functions of piRNAs. Development. 2008;135(1):3–9.View ArticlePubMedGoogle Scholar
  13. Brennecke BJ, Aravin A, Stark A, Dus M, Kellis M, Sachidanandam R, Hannon G. Discrete small RNA-Generating Loci as master regulators of transposon activity in drosophila. Cell. 2007;128(6):1089–103.View ArticlePubMedGoogle Scholar
  14. Thomson T, Lin H. The biogenesis and function of PIWI proteins and piRNAs: progress and prospect. Annu Rev Cell Dev Biol. 2009;25(1):355–76.View ArticlePubMedPubMed CentralGoogle Scholar
  15. Houwing S, Kamminga LM, Berezikov E, Cronembold D, Girard A, Elst HVD, Filippov DV, Blaser H, Raz E, Moens CB. A role for Piwi and piRNAs in germ cell maintenance and transposon silencing in Zebrafish. Cell. 2007;129(1):69–82.View ArticlePubMedGoogle Scholar
  16. Das PP, Bagijn MP, Goldstein LD, Woolford JR, Lehrbach NJ, Sapetschnig A, Buhecha HR, Gilchrist MJ, Howe KL, Stark R. Piwi and piRNAs act upstream of an endogenous siRNA pathway to suppress Tc3 transposon mobility in the caenorhabditis elegans germline. Mol Cell. 2008;31(1):79–90.View ArticlePubMedPubMed CentralGoogle Scholar
  17. Nicolas R, Lau NC, Sudha B, Zhigang J, Katsutomo O, Satomi KM, Blower MD, Lai EC. A broadly conserved pathway generates 3′UTR-directed primary piRNAs. Curr Biol. 2009;19(24):2066–76.View ArticleGoogle Scholar
  18. Hang Y, Haifan L. An epigenetic activation role of Piwi and a Piwi-associated piRNA in Drosophila melanogaster. Nature. 2007;450(7167):304–8.View ArticleGoogle Scholar
  19. Betel D, Sheridan R, Marks DS, Sander C. Computational analysis of mouse piRNA sequence and biogenesis. Plos Computational Biology. 2007;3(11):e222.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Zhang Y, Wang X, Kang L. A k-mer scheme to predict piRNAs and characterize locust piRNAs. Bioinformatics. 2011;27(6):771–6.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Wang K, Liang C, Liu J, Xiao H, Huang S, Xu J, Li F. Prediction of piRNAs using transposon interaction and a support vector machine. BMC Bioinformatics. 2014;15(1):1–8.View ArticleGoogle Scholar
  22. Luo L, Li D, Zhang W, Tu S, Zhu X, Tian G. Accurate prediction of transposon-derived piRNAs by integrating various sequential and physicochemical features. PLoS One. 2016;11(4):e0153268.View ArticlePubMedPubMed CentralGoogle Scholar
  23. Bu D, Yu K, Sun S, Xie C, Skogerbø G, Miao R, Hui X, Qi L, Luo H, Zhao G. NONCODE v3.0: integrative annotation of long noncoding RNAs. Nucleic Acids Res. 2012;40(D1):D210–5.View ArticlePubMedGoogle Scholar
  24. Karolchik D, Barber G, Casper J, et al. The UCSC genome browser database: 2014 update. Nucleic Acids Res. 2014;42 suppl 1:D590–8.Google Scholar
  25. Barrett T, Suzek TO, Troup DB, et al. NCBI GEO: mining millions of expression profiles—database and tools. Nucleic Acids Res. 2005;33(D1):D562–6.PubMedGoogle Scholar
  26. Jiang H, Wong WH. SeqMap: mapping massive amount of oligonucleotides to the genome. Bioinformatics. 2008;24(20):2395–6.View ArticlePubMedPubMed CentralGoogle Scholar
  27. Leslie C, Eskin E, Noble WS. The spectrum kernel: a string kernel for SVM protein classification. Biocomputing. 2002;7:564–75.Google Scholar
  28. Liu B, Liu FL, Wang XL, Chen JJ, Fang LY, Chou KC. Pse-in-One: A web server for generating various modes of pseudo components of DNA, RNA, and protein sequences. Nucleic Acids Res. 2015;43(W1):W65–71.View ArticlePubMedPubMed CentralGoogle Scholar
  29. Liu B, Liu FL, Fang LY, Wang XL, Chou KC. repDNA: a Python package to generate various modes of feature vectors for DNA sequences by incorporating user-defined physicochemical properties and sequence-order effects. Bioinformatics. 2015;31(8):1307–9.View ArticlePubMedGoogle Scholar
  30. El-Manzalawy Y, Dobbs D, Honavar V. Predicting flexible length linear B-cell epitopes. Computational Syst Bioinformatics. 2008;7:121–32.View ArticleGoogle Scholar
  31. Leslie CS, Eskin E, Cohen A, Weston J, Noble WS. Mismatch string kernels for discriminative protein classification. Bioinformatics. 2004;20(4):467–76.View ArticlePubMedGoogle Scholar
  32. Lodhi H, Saunders C, Shawe-Taylor J, Cristianini N, Watkins C. Text classification using string kernels. J Mach Learn Res. 2002;2(3):563–9.Google Scholar
  33. Noble WS, Kuehn S, Thurman R, Yu M, Stamatoyannopoulos J. Predicting the in vivo signature of human gene regulatory sequences. Bioinformatics. 2005;21 suppl 1:i338–43.View ArticlePubMedGoogle Scholar
  34. Gupta S, Dennis J, Thurman RE, Kingston R, Stamatoyannopoulos JA, Noble WS. Predicting human nucleosome occupancy from primary sequence. Plos Computational Biology. 2008;4(8):e1000134.View ArticlePubMedPubMed CentralGoogle Scholar
  35. Chen W, Lei T, Jin D, et al. PseKNC: A flexible web server for generating pseudo K-tuple nucleotide composition. Anal Biochem. 2014;456(1):53–60.View ArticlePubMedGoogle Scholar
  36. Qiu WR, Xiao X, Chou KC. iRSpot-TNCPseAAC: identify recombination spots with trinucleotide composition and pseudo amino acid components. Int J Mol Sci. 2014;15(2):1746–66.View ArticlePubMedPubMed CentralGoogle Scholar
  37. Zhang W, Xiong Y, Zhao M, et al. Prediction of conformational B-cell epitopes from 3D structures by random forests with a distance-based feature. BMC Bioinformatics. 2011;12(2):341.View ArticlePubMedPubMed CentralGoogle Scholar
  38. Stormo GD. DNA binding sites: representation and discovery. Bioinformatics. 2000;16(1):16–23.View ArticlePubMedGoogle Scholar
  39. Sinha S. On counting position weight matrix matches in a sequence, with application to discriminative motif finding. Bioinformatics. 2006;22(14):e454–63.View ArticlePubMedGoogle Scholar
  40. Xia X. Position weight matrix, Gibbs sampler, and the associated significance tests in Motif characterization and prediction. Scientifica. 2012;917540–917555.Google Scholar
  41. Xue C, Fei L, Tao H, Liu GP, Li Y, Zhang X. Classification of real and pseudo microRNA precursors using local structure-sequence features and support vector machine. BMC Bioinformatics. 2005;6(2):1–7.Google Scholar
  42. Tafer H, Hofacker IL. RNAplex: a fast tool for RNA-RNA interaction search. Bioinformatics. 2008;24(22):2657–63.View ArticlePubMedGoogle Scholar
  43. Hu X, Mamitsuka H, Zhu S. Ensemble approaches for improving HLA class I-peptide binding prediction. J Immunol Methods. 2011;374(1-2):47–52.View ArticlePubMedGoogle Scholar
  44. Zhang W, Niu Y, Xiong Y, Zhao M, Yu R, Liu J. Computational prediction of conformational B-Cell Epitopes from antigen primary structures by ensemble learning. PLoS One. 2012;7(8):e43575.View ArticlePubMedPubMed CentralGoogle Scholar
  45. Zhang W, Niu Y, Zou H, Luo L, Liu Q, Wu W. Accurate prediction of immunogenic T-Cell epitopes from epitope sequences using the genetic algorithm-based ensemble learning. PLoS One. 2015;10(5):e0128194.View ArticlePubMedPubMed CentralGoogle Scholar
  46. Zhang W, Liu J, Xiong Y, Ke M, Zhang K. Predicting immunogenic T-cell epitopes by combining various sequence-derived features. In IEEE International Conference on Bioinformatics and Biomedicine. Shanghai: IEEE Computer Society; 2013. p. 4–9.Google Scholar
  47. Breiman L. Random forests. Machine Learning. 2001;45:5–32.View ArticleGoogle Scholar
  48. Cortes C, Vapnik V. Support-vector networks. Mach Learn. 1995;20(3):273–97.Google Scholar
  49. Srinivas M, Patnaik LM. Adaptive probabilities of crossover and mutation in genetic algorithms. IEEE Trans Syst Man Cybern. 1994;24(4):656–67.View ArticleGoogle Scholar

Copyright

© The Author(s). 2016

Advertisement
