Handling missing rows in multiomics data integration: multiple imputation in multiple factor analysis framework
BMC Bioinformatics volume 17, Article number: 402 (2016)
Abstract
Background
In omics data integration studies, it is common, for a variety of reasons, for some individuals to not be present in all data tables. Missing row values are challenging to deal with because most statistical methods cannot be directly applied to incomplete datasets. To overcome this issue, we propose a multiple imputation (MI) approach in a multivariate framework. In this study, we focus on multiple factor analysis (MFA) as a tool to compare and integrate multiple layers of information. MI involves filling the missing rows with plausible values, resulting in M completed datasets. MFA is then applied to each completed dataset to produce M different configurations (the matrices of coordinates of individuals). Finally, the M configurations are combined to yield a single consensus solution.
Results
We assessed the performance of our method, named MIMFA, on two real omics datasets. Incomplete artificial datasets with different patterns of missingness were created from these data. The MIMFA results were compared with two other approaches i.e., regularized iterative MFA (RIMFA) and mean variable imputation (MVIMFA). For each configuration resulting from these three strategies, the suitability of the solution was determined against the true MFA configuration obtained from the original data and a comprehensive graphical comparison showing how the MI, RI or MVIMFA configurations diverge from the true configuration was produced. Two approaches i.e., confidence ellipses and convex hulls, to visualize and assess the uncertainty due to missing values were also described. We showed how the areas of ellipses and convex hulls increased with the number of missing individuals. A free and easytouse code was proposed to implement the MIMFA method in the R statistical environment.
Conclusions
We believe that MIMFA provides a useful and attractive method for estimating the coordinates of individuals on the first MFA components despite missing rows. MIMFA configurations were close to the true configuration even when many individuals were missing in several data tables. This method takes into account the uncertainty of MIMFA configurations induced by the missing rows, thereby allowing the reliability of the results to be evaluated.
Background
Due to the increase in available data information [1], integrating large amounts of heterogeneous data is currently one of the major challenges in systems biology. Biological data integration provides scientists with a deeper insight into complex biological processes. However, when dealing with multiple data tables, the presence of missing values is a common situation for a variety of reasons. In omics data integration studies, it is common for some individuals to not be present in all data tables, resulting in a specific missing data pattern for multiple tables, as shown in Fig. 1. For instance, in clinical studies, this can occur when a patient forgets to fill out a form. It also can be attributable to the study design if individual data are expensive or difficult to measure.
Missing row values for a table of variables are challenging to handle because most statistical methods cannot be directly applied to incomplete datasets. In the multiple multivariate framework, several approaches have already been proposed to deal with missing row values [2]. The only methods widely available for analyzing incomplete data focus on removal of the missing rows, either by ignoring subjects with incomplete information or by replacing the missing items with plausible values (e.g., means of the observed cases). In multivariate statistical analysis, case deletion procedures can be very inefficient, discarding an unacceptably high proportion of subjects because even if the pertable rates of missing rows are low, only a few subjects may have complete data for all tables. In addition, casedeletion procedures may bias the results if the remaining subjects providing the complete data are unrepresentative of the entire sample [3, 4]. On the other hand, simple mean substitution can seriously distort the marginal and joint distribution of the variables [5] and be an issue because many statistical methods rely on estimation of the variancecovariance matrix.
Recently, two approaches have been proposed to deal with missing row values in multiple multivariate analysis. The first method, introduced by Van de Velden and Bijmolt (2006) [6], was developed in the context of generalized canonical correlation analysis. Its application in the omics framework is often limited by the size, noise and multicollinearity of the data [7, 8]. The second method, described in Husson and Josse (2013) [9], was developed in the context of multiple factor analysis (MFA). This method, designated regularized iterative MFA (RIMFA), was derived from a method available in principal component analysis (PCA) and consists of alternating the estimation of axes and components, and the estimation of missing values [10, 11]. Here we consider an alternative method, involving a multiple imputation approach adapted to the MFA framework, and called MIMFA.
Multiple imputation (MI) was proposed by Rubin (1987) [3] in order to estimate both the parameters of interest and their variability in a data missingness framework. It relies on the principle that a single value cannot reflect the uncertainty of the estimation of a missing value. First, MI is used to generate plausible synthetic data values, called imputations, for missing values in the data. This step results in a number (M) of imputed datasets in which the missing data are replaced by random draws of plausible values according to a specific statistical model. The second step consists of analyzing each imputed dataset using a statistical method that estimates the parameters of interest. This step results in M analyses (instead of just one) which differ only because the imputations differ. Finally, MI combines all the results together to obtain a single consensus estimate, thereby combining variation within and across the M imputed datasets. Under fairly liberal conditions, this last step results in statistically valid estimates that properly reflect sampling variability.
The major challenge in MI involves generating possible values for each missing observation. Statistically advanced imputation procedures can therefore be used for this. Two general approaches are often used for imputing multivariate data: joint modeling (JM) [12] and fully conditional specification (FCS), also known as multivariate imputation by chained equations (MICE) [13, 14]. JM involves specifying a multivariate distribution for the missing data and drawing imputations from their conditional distributions by Markov chain Monte Carlo (MCMC) techniques. FCS specifies the multivariate imputation model on a variablebyvariable basis using a set of conditional models, one for each incomplete variable.
The key issue in JM is appropriate specification of the multivariate distribution. A multivariate normal model has often been used as it is computationally tractable (because only the mean vector and the variancecovariance matrix need to be estimated). This model has even been used when some of the variables are not Gaussian. However, the main weakness of JM is that it can only be applied when the imputation involves a small number of variables. This is not very common in omics datasets that are often composed of tens of thousands of variables, or more. FCS allows greater flexibility than JM in creating multivariate models. Indeed, FCS can use specialized imputation models by separately defining the conditional densities for each variable, even if this can require a considerable amount of work. When the number of variables is large, it is often impractical and too computerintensive to test and develop the best models for each variable. As an alternative to the JM and FCS approaches, we propose using the hotdeck imputation approach [5]. This approach is a nonparametric imputation method that resolves the most important limitation of the JM and FCS approaches as it can be applied to data tables containing more than just a few variables.
When using the MI method, special attention must be given to the process that gave rise to the missing data, referred to as the missing data mechanism. Most methods for generating multiple imputations, fully, semi and nonparametric methods, assume that the mechanism responsible for missing data is ignorable [5, 15]. Briefly, if the missing data mechanism is ignorable, then the analysis can focus on the observed values rather that also having to model the process that resulted in certain values being observed and certain values being missing. If the assumption of an ignorable missingdata mechanism is valid, then statistical methods that rely on that assumption can be expected to produce results with minimal bias. One way that the missingdata mechanism can be viewed as ignorable is if the missing data are missing completely at random (MCAR). For data to be MCAR, there must not be any systematic differences between the cases that have missing items and the cases that are fully observed. In microarray experiments, technical failure, low signaltonoise ratio and measurement errors can for instance be considered as sources of MCAR patterns. The missingdata mechanism can also be viewed as ignorable under the less restrictive missing at random (MAR) scenario, which allows missingness to depend on observed variables but not on unobserved variables. Latestage cancer patients, as compared to earlystage cancer patients, unfortunately have more chance of dropping out of followup studies, which may result in a MAR pattern in a clinical data table. When the ignorability assumption does not hold, the imputation needs to be drawn from the posterior distribution of the missing data given the complete data and the missingness mechanism. Nonignorable missing data occurs frequently in massspectrometrybased experiments. Measures too close to the limit of detection of the instrument are censored, resulting in a higher rate of missing values. The probability of being missing is, in this particular case, directly dependent on the intensity value. In this paper, we decided to focus on models with ignorable missingdata mechanisms.
Methods
Mathematical basis of multiple factor analysis (MFA)
MFA [16] is devoted to the simultaneous exploration of multiple data tables where the same individuals are described by several tables of variables. In MFA, the number and the type of variables (quantitative or categorical) may vary from one table to another, but within each table the nature of the variables is the same. Here we focus on quantitative variables. The aims of MFA are similar to those of PCA, namely to study the similarities between individuals from a multidimensional point of view, to analyze the relationships between variables and characterize individuals based on these relationships. However, beyond these conventional uses, MFA can also be used to study the links between tables of variables and to compare the information contributed by each table.
MFA analyzes a set of J data tables K _{1},…,K _{ J }, where each K _{ j } corresponds to a table of quantitative variables measured on the same I individuals (for a schematic overview of MFA see Additional file 1: Figure S1). The core of MFA is a PCA in which weights are assigned to variables. More formally, the matrix of variancecovariance associated with each data table K _{ j } is decomposed by PCA and its largest eigenvalue \({\lambda _{1}^{j}}\) is derived. Then, each variable belonging to K _{ j } is weighted by \(1/\sqrt {{\lambda _{1}^{j}}}\). Finally, a global PCA is performed on the merged and weighted data table K=[K _{1},…,K _{ J }] to obtain the configuration F (the scores matrix or principal components). The main reason for the weighting step is to remove from each table all information related to its own dimensionality or variance. Therefore, no single table can dominate the first dimension of the global analysis.
MFA provides the same graphical representations as PCA (i.e., representation of individuals and variables) but also, due to the table structure, specific representations such as the table representation and the superimposed representation are available [16].
The multiple imputation multiple factor analysis approach (MIMFA)
To deal with multiple tables with missing rows, we propose the MIMFA approach, a multiple imputation (MI) adapted to the framework of MFA. The aim of our method is not to get the best possible estimations of the missing values, but to replace them with plausible values in order to provide estimates of the MFA configurations. According to MI methodology, the MIMFA approach is carried out by performing the following three steps:

1. Imputation: generate M different imputed datasets K ^{(1)},…,K ^{(m)},…,K ^{(M)} of K.

2. MFA analysis: perform an MFA on each K ^{(m)} imputed dataset leading to M different configurations F _{1},…,F _{ m },…,F _{ M }.

3. Combination: find a consensus configuration between all F _{1},…,F _{ M } configurations.
These steps are outlined in Fig. 2 and described in detail in the following sections.
Generating imputed data: multiple hotdeck imputation
Hotdeck imputation involves replacing missing values of one or more variables with available values from a similar unit [17]. The observation from which these available values are taken for imputation is called the donor and the observation with the missing value, which receives the donor’s value, is the recipient. The donor can be randomly selected from a set of potential donors, called the donor pool. Selection of a suitable donor pool is not an easy task and is beyond the scope of this article [18, 19]. The general principle is to choose donor units that are as close as possible to the recipient with respect to some affinity score. Affinity is defined in terms of the degree to which each potential donor matches the recipient’s values across all variables other than the one being imputed. Intuitively, in the framework of stratified multiple omics tables, the donor pool can be formed of available individuals belonging to the same stratum (e.g. cancerous cell line, treatment, etc.) and the same omics table as the recipient.
Multiple hot decking differs from other forms of hot decking by using several donors for a single recipient [20]. Multiple hotdeck imputation proceeds as follows. Let K=[K _{1},…,K _{ J }] be the merged data table containing missing rows with strata s=1,…,S, then carry out the following steps (see Fig. 2, hotdeck imputation step):
Step 1. Create donor pools by taking donors belonging to the same stratum s and the same table K _{ j } as the recipient. Recipients within the same stratum have the same donor pool. Suppose always that there is a large enough number of donors for recipients in each stratum.
Step 2. For each recipient in K _{ j }, impute the missing individual by drawing randomly with replacement a donor from the corresponding donor pool. Repeat this procedure until all missing individuals in the J tables have been imputed.
Step 3. Repeat Step 2 until M different imputed datasets K ^{(1)},…,K ^{(M)} of K are obtained.
By conducting the imputations in this way, it is reasonable to assume that the withinunit betweenvariables multivariate relationships are preserved.
The combination procedure: the STATIS method
The question that arises after using MI in an MFA framework is how should all the configurations resulting from the analyses be combined to obtain a single unique estimate of the consensus configuration? While averaging is an appropriate combination procedure in many other statistical techniques, it is not recommended for MFA due to possible reflection, dilation or rotation of the different configurations with respect to each other [21]. Here we consider an alternative approach by implementing the STATIS method which provides a compromise configuration balancing all configurations.
The STATIS method [22] (which stands for Structuration des Tableaux à Trois Indices de la Statistique in French) is a generalization of PCA used to simultaneously study several tables of variables collected on the same individuals. The goal of this method is to analyze the structure of the individual tables (i.e., the relation between the individual tables) and to derive from this structure an optimal set of weights for computing a common configuration of the observations. The solution obtained, called the compromise, is the configuration agrees the most with all other configurations. An overview of the STATIS method is presented in Additional file 1: Figure S2.
STATIS analyzes a set of N tables X _{1},…,X _{ N }, where each X _{ n } is a table of quantitative variables measured on the same individuals. The first stage of STATIS consists of calculating a matrix of crossproducts between individuals for each table \(\boldsymbol {W}_{\!\!n} = \boldsymbol {X}_{\!n} \boldsymbol {X}_{\!n}^{T}\) (A ^{T} means the transpose of a vector or a matrix A) reflecting the similarities between individuals within this table. The use of matrices W _{ n } instead of X _{ n } simplifies the computation because it obviates the determination of rotations when matching the X _{ n }. The basic idea in STATIS is then to find a compromise space \(\boldsymbol {W_{\!c}} = \sum _{n=1}^{N} \alpha _{n} \boldsymbol {W}_{\!\!n}\) that globally balances these crossproduct matrices by choosing a suitable optimal set of weights α _{1},…,α _{ N }. These weights are obtained from the PCA of the matrix R whose generic term R _{ j k } gives the cosine between tables (also known as the RVcoefficient [23]) defined as:
where the trace is the sum of the main diagonal elements of a square matrix. The first eigenvector obtained from the PCA of R represents the “agreement between tables”. Its elements are normalized in such a way that their sum is equal to 1 and used as weights α _{ n } in order to define W _{ c }. Tables with larger values of α _{ n } are more similar to the other tables and therefore will have a larger weight, while the weight of the “outlier tables” will be closer to zero with respect to the other weights. The principal components from the PCA of W _{ c } then gives the coordinates of the individuals in the compromise space, called the compromise configuration.
Implementation of MIMFA
The MIMFA algorithm can be summarized as follows (see Fig. 2):
Step 0. Start with an observed, incomplete dataset K. Define the number of imputations M and the dimensionality d of the compromise configuration.
Step 1. Perform multiple hotdeck imputation. For m=1,…,M:

Obtain an imputed version K ^{(m)} of K, such that, \(\boldsymbol {K}^{(m)}\neq \boldsymbol {K}^{(m')}\phantom {\dot {i}\!}\) for m≠m ^{′}. The imputed datasets are identical for the nonmissing data entries, but differ for the imputed values. The imputed version of the data is obtained by using the hotdeck imputation approach.

Perform an MFA using d components on the imputed dataset K ^{(m)} to obtain the configuration F _{ m }.
Step 2. Perform a STATIS on the set of configurations F _{1},…,F _{ M } to obtain F _{ c }, the compromise configuration.
Note that the number of dimensions d used in the algorithm has to be chosen a priori. However, the number of dimensions does not affect the estimation of the imputed values and the estimation of the compromise configuration. Moreover, for given K ^{(1)},…,K ^{(M)} imputed datasets, solutions provided by the algorithms are nested (the solution with d dimensions is included in the solution with d+1 dimensions). Since the core of MIMFA is a weighted PCA, the strategies suggested to choose the number of components in PCA can be adapted to MIMFA, but work needs to be done to validate the quality of these extensions.
How many imputations?
When using MI, one of the uncertainties concerns the number M of imputed datasets needed to obtain satisfactory results. The number of imputed datasets in MI depends to a large extent on the proportion of missing data. The greater the missingness, the larger the number of imputations needed to obtain stable results. However, in multiple hotdeck imputation, the number of imputed datasets is limited by the size of the donor pools. In any case, the total number of possible imputations M _{ total } can be calculated before applying the imputation approach (see Additional file 2). If M _{ total } is small (M _{ total }≤50), then M=M _{ total } can be used in MIMFA. The appropriate number of imputations can be informally determined by carrying out MIMFA on N replicate sets of M _{ l } imputations for l=0,1,2,…, with M _{0}<M _{1}<M _{2}<⋯<M _{ total }, until the estimate compromise configurations are stabilized. More precisely, this approach can be carried out by applying the following steps:
Step 0. Start with an observed, incomplete dataset K. Define the number of imputations M _{ l } with M _{0}<M _{1}<M _{2}<⋯<M _{ total } and the number N of replicate sets of M _{ l } imputations.
Step 1. Create collections \(\mathcal {I}_{n}^{M_{l}}\), n=1,…,N, each one containing M _{ l } different imputed datasets of K, such that, \(\mathcal {I}_{n}^{M_{l}}\neq \mathcal {I}_{n'}^{M_{l}}\), for n≠n ^{′} and \(\mathcal {I}_{n}^{M_{l1}}\subset \mathcal {I}_{n}^{M_{l}}\) for M _{0}<M _{1}<M _{2}<⋯<M _{ total }.
Step 2. For n=1,…,N, perform an MIMFA using \(\mathcal {I}_{n}^{M_{0}}\), to obtain N different compromise configurations \(\boldsymbol {F_{\!c}}_{1}^{\!M_{0}},\dots,\boldsymbol {F_{\!c}}_{N}^{\!M_{0}}\).
Step 3. Let l=1.
For n=1,…,N,

perform an MIMFA using the collection \(\mathcal {I}_{n}^{M_{l}}\), to obtain a compromise configuration \(\boldsymbol {F_{\!c}}_{n}^{\!M_{l}}\);

calculate \(r_{n}^{\,l}=r(\boldsymbol {F_{\!c}}_{n}^{\!M_{l}},\,\boldsymbol {F_{\!c}}_{n}^{\!M_{l1}})\), a measure of the distance or correlation between configurations (for example the RV coefficient [23]).
Step 4. Calculate \(\overline {r}^{\,l}=\frac {1}{N}\sum _{n=1}^{N} r_{n}^{\,l}\) (or \(\sigma (\overline {r}^{\,l})\) the standard error of \(\overline {r}^{\,l}\)).
Step 5. Repeat steps 3 to 4 for l=2,3,… until the differences between two subsequent \(\overline {r}^{\,l}\) (or \(\sigma (\overline {r}^{\,l})\)) become smaller than a certain convergence criterion.
Uncertainty of MIMFA solutions
In an MIMFA framework, after estimating the configurations from the imputed datasets, a new source of variability due to missing values can be taken into account. Here we describe two approaches to visualize the uncertainty of the estimated MFA configurations attributable to missing row values. First, an individual plot for all estimated MFA configurations is constructed. The individual plot is obtained by projecting each estimated MFA configuration onto the compromise configuration (named the trajectories by Lavit [22]). Each individual is represented by M points, each corresponding to one of the M MFA configurations. Confidence ellipses and convex hulls can then be constructed for the M configurations for each individual. The computed convex hull results in a polygon containing all M solutions. All individuals have confidence areas, even those without missing values. Indeed, even if only the estimation of missing values is the only change, this will have a possible impact on all MFA parameters. Therefore, the area of such an ellipse (or convex hull) provides an insight into the uncertainty of the estimated configuration. The larger the area of an ellipse (convex hull), the more uncertain the exact location of the individual. Thus, when the area of an ellipse is large, the scientist should remain really careful regarding its interpretation.
Performance of the method
We conducted two case studies to assess the performance of our method. Instead of using theoretical distributions to generate simulated data, our studies were based on two real datasets, denoted as the original datasets. Subsequently, specific patterns of missingness were created in these datasets as illustrated in Fig. 1, resulting in what we called the incomplete datasets. This approach was used in order to more closely mirror situations that may occur in the omics context. Next, missing row values were estimated and the resulting complete datasets were referred to the imputed datasets.
We then compared our MIMFA method to the RIMFA approach [9] and the mean variable imputation MFA (MVIMFA) method, in which the missing values are simply replaced by the mean of each variable after which an MFA is performed on the imputed dataset. This latter approach was considered as the common base for comparing the MIMFA and RIMFA methods. For each configuration obtained using MI, RI and MVIMFA, the similarity between the configuration solution and the true configuration (based on an MFA using the original dataset) was assessed from the RV coefficient [23]. The RV coefficient, which ranges from zero to one, can be interpreted as a correlation coefficient between two matrices, which allows the relative positions of objects to be compared from one configuration to another.
We also provide comprehensive graphical comparisons of the true vs. the MI, RI or MVI MFA configurations. The individuals from both configurations are drawn in a same plot and connected by an arrow, the length of which indicates the divergence between the two configurations.
Implementation of the analyses
All analyses were performed using the R computing environment [24]. MFA was performed using the MFA function of the FactoMineR R package [25]. The statis function of the ade4 R package [26] was used to determine the compromise configuration. The RIMFA method is implemented in the imputeMFA function available in the missMDA R package [27]. Note that the number of components ncp used to predict the missing entries in the imputeMFA function has to be chosen a priori. This choice is crucial and difficult [9]. As the true configuration was known in our case, the number of components ncp was chosen to minimize the RV coefficient between the true and the imputeMFA configurations.
The appropriateness of the results from MI, RI and MVI MFA was then determined by comparing the configurations resulting from these three strategies with the true MFA configuration. Due to a possible lack of alignment (order change, sign reversal of the components and rotation) between two configurations (the true vs. the MI, RI or MVI MFA configuration), it was necessary to align them before being compared. Ordinary Procrustes Analysis [28] was used to align these configurations prior to their comparison.
Datasets
Liver toxicity
The datasets originated from a liver toxicity study [29] in which 64 male rats of the inbred Fisher F344/N strain were exposed to toxic doses of acetaminophen (paracetamol) in a controlled experiment. Necropsies were performed 6, 18, 24 and 48 h after exposure and mRNA was extracted. The data consisted of the expression of 3,116 genes and 10 clinical variables considered to be markers of liver injury. The 64 subjects (rats) were crossclassified in eight strata (or treatments) according to two factors:

exposure time: 6, 18, 24 and 48 h;

toxic doses of acetaminophen: high (1500 mg/kg or 2000 mg/kg) or low (50 mg/kg or 150 mg/kg).
Eight subjects per stratum were included. These datasets were downloaded from the mixOmics R package [30].
NCI60 data
The NCI60 dataset contained transcriptomic [31] and proteomic [32] tables for a collection of 60 cell lines from the National Cancer Institute (NCI60). The NCI60 panel included cell lines derived from various cancer types: colon (7 cell lines), renal (8), ovarian (6), breast (8), prostate (2), lung (9) and central nervous system (6), as well as leukemia (6) and melanoma (8). The gene expression profiles used here were generated using an Agilent platform [31] and downloaded from Cellminer [33]. Data were log_{2}transformed. To facilitate data interpretation and computation, the transcriptomic data were filtered to exclude probes that did not map to an official HUGO gene symbol and to retain only the probe with the highest average value when multiple probes mapped to the same gene, as previously described in [34]. Gene invariants across all 60 cell lines, corresponding to genes without any effect between cancer types, were also removed. Filtering produced a dataset of 1,433 genes. The NCI60 proteome table was also downloaded from Cellminer [33]. Proteomic data were obtained using highdensity reversephase lysate microarrays [32]. Data were log_{2}transformed and protein abundance levels were available for 162 proteins [32].
Results
Liver toxicity data analysis
A specific pattern of missing values was created as illustrated in Fig. 1. To obtain an incomplete dataset, three individuals per stratum were randomly removed from the transcriptomic table. For this specific pattern, there were 3×8=24 missing individuals. MIMFA was then performed on the incomplete dataset using M=30 imputed datasets. RIMFA, and MVIMFA were also performed. Figure 3 shows the divergence of the MI, RI and MVIMFA configurations from the true configuration. As can be seen, the configuration obtained with MIMFA was very close to the true configuration (Fig. 3, top right). This result was confirmed by the high RV coefficient (0.96 for the first two dimensions). The configurations obtained with RIMFA and MVIMFA were more distorted and less close to the true configuration with RV coefficients of 0.77 and 0.84 respectively (Fig. 3, bottom).
The number M of imputed datasets in MIMFA for the above incomplete liver toxicity data was determined as described in the How many imputations section. Collections of size N=30 were generated for each of the following numbers of imputations: M _{ l }=10 l, for l=1,…,10. The stability of the estimated MIMFA configurations was then determined by calculating the RV coefficient between the configurations obtained using M _{ l } and M _{ l+1} imputations (see Fig. 4, left). As the true configuration was known, we also described the stability of the estimated MIMFA configurations by calculating the RV coefficients between the true configuration and those obtained using M _{ l } imputations (see Fig. 4, right). Although the missing information is substantial, Fig. 4 shows that only a slight increase in precision was obtained by using more than 30 imputations.
MIMFA was also applied to different scenarios of missingness. First, MFA was performed on the original dataset to obtain the true configuration. Secondly, individuals were randomly removed from each stratum in the original transcriptomic table. For this, three scenarios were considered for the number of missing rows (i.e. low, medium and high), in which there were respectively one, two and three missing rows per stratum. The total number of missing rows per scenario was therefore 8, 16 and 24 respectively. Thirdly, for each missingness scenario, 50 incomplete datasets were randomly chosen for analysis.
As previously, MIMFA was performed on each incomplete dataset using M=30 imputed datasets. RIMFA, as well as MVIMFA, were also computed. The RV coefficients between the true configuration and the configurations obtained using each method (for the first two dimensions) were then calculated. Figure 5 shows the mean of the RV coefficients for the 50 twodimensional configurations as a function of the missingness scenario for each method. Note that the average results using MIMFA were always better than with RIMFA or MVIMFA, whatever the scenario. The RV coefficients between the true configuration and the MIMFA configuration were close to one and remained satisfactory even when the number of missing row values was high, and the results obtained with the RIMFA and MVIMFA decreased significantly.
The performance of the MIMFA procedure was then further investigated for more complex scenarios of missingness. More precisely, missing row values were inserted into each stratum (e.g. high6h treatment) of the original dataset (including both transcriptomic and clinical tables) according to the scenarios illustrated in Table 1.
Twenty incomplete datasets were then selected at random from each stratum (treatment) and each scenario. All analyses (MIMFA, RIMFA and MVIMFA) and the calculation of the RV coefficient were performed in the same way as previously described. Figure 6 (and Additional file 1: Figure S3) shows the means of RV coefficients for the twodimensional configurations as a function of the scenarios for each method.
For almost all the scenarios, the average results obtained with MIMFA were better than with the other methods. As the number of missing row values increased (Fig. 6 and Additional file 1: Figure S3), the results obtained with the RIMFA and MVIMFA algorithms worsened rapidly, especially when the dimension increased, whereas the results with the MIMFA approach were still satisfactory.
NCI60 data analysis
To confirm the performance of our method, MIMFA was also performed on the NCI60 dataset. A pattern of missing values was created as illustrated in Table 2. One or two individuals were removed per table for all types of cancer cell lines, except for the prostate cancer line (which only had two individuals). This specific pattern would reflect a study in which a lot of rows were missing.
To compare the MFA configurations, one incomplete dataset was chosen from a large range of possibilities of incomplete datasets (6×10^{14}) according to the scenario of missingness illustrated in Table 2. We then computed our MIMFA method on this incomplete dataset by using M=50 imputed datasets. As with the liver toxicity data, RIMFA and MVIMFA were also performed. We chose M=50 in order to achieve stable results. Figure 7 shows the divergence of the MI, RI and MVIMFA configurations from the true configuration. For this specific example, the MIMFA configuration was closest to the true configuration (Fig. 7, topright) with a RV coefficient of 0.97, whereas the configurations obtained with RIMFA and MVIMFA were more distorted with RV coefficients of 0.94 and 0.87 respectively (Fig. 7, bottom).

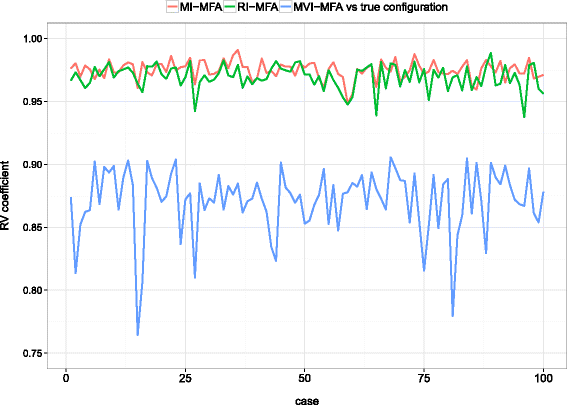

To broaden the scope of assessment to more than a single case, 100 possible cases of incomplete datasets were chosen at random among the 6×10^{14} possibilities according to the specific missingness scenario shown in Table 2. For each incomplete dataset, MIMFA was performed using M=50 imputed datasets. RIMFA and MVIMFA were also computed. Figure 8 shows the RV coefficient for the twodimensional configurations as a function of each case. The results obtained with MIMFA and RIMFA were similar, with RV coefficients of approx. 0.97, whereas the results obtained with MVIMFA were much further from the true configuration. Thus, even with complex patterns of missingness, the MIMFA approach still provided satisfactory results, as did RIMFA in this case. However, unlike RIMFA, MIMFA took into account the variability of missing row values, as demonstrated in the following section.
Why is it essential to evaluate uncertainty?
This question was addressed through an example using the NCI60 dataset. A specific pattern of missing values was created. The missing rows were randomly introduced for four melanoma and two leukemia cancer lines in the transcriptomic table. The six inserted missing rows represented 10 % of the total number of individuals. The missing rows were inserted for specific groups of individuals that contributed substantially to the construction of the first two dimensions of the MFA on the original dataset (see Fig. 7, top left). MIMFA was performed on the incomplete dataset using M=50 imputed datasets. Confidence ellipses and convex hulls were then computed from the 50 configurations projected on the compromise configuration. Figure 9 (top) shows the uncertainty due to missing rows around individuals on the compromise configuration. The use of different imputed individuals in each dataset implied slightly different configurations. Consequently, since the configurations changed, the positions of all the individuals also changed and thus all the individuals had confidence areas, even individuals not being imputed (Fig. 9, individuals represented by filled circles). However, the greatest uncertainty occurred around the imputed individuals (Fig. 9, empty circles).
In order to highlight the importance of the uncertainty of MIMFA configurations induced by missing rows, additional rows were removed from the transcriptomic table resulting in 30 % missing rows. We then carried out MIMFA on the incomplete dataset using M=50 imputed datasets. Figure 9 (bottom) shows the impact of the missing rows around individuals on the compromise configuration. As expected, the size of the ellipses (and convex hulls) of the additional missing individuals was increased. However, the size of the ellipses and convex hulls was not excessive even when 30 % of the rows were missing from the transcriptomic table.
Discussion
In the present paper, we propose a MI approach to handle missing row values in an MFA framework and therefore resolve one of the major issues associated with multiple omics data tables. The proposed method, which we called MIMFA, provides point estimates of MFA configurations with a notion of uncertainty due to the missing values. The aim of our method was not to obtain the best possible estimates for the missing values, but to replace them so as to be able to estimate MFA configurations.
The MIMFA method generates M imputed datasets from an MFA model, where multiple hotdeck imputation is used to fill in the missing values. The hotdeck approach resolves the most important limitation of other modelbased techniques (such as JM and FCS) in that it can be applied to large datasets. Furthermore, other major advantages of this method are that: (1) it is not necessary to define an explicit model for the distribution of the missing values, (2) imputations tend to be realistic since they are based on observed values, and (3) it is flexible in the sense that it can preserve complex withinunit and betweenvariable associations. However, a weakness is that it requires good donorrecipient matches that reflect the available covariate information. Finding such good matches is not an easy task and is beyond the scope of this article [18, 19]. In an ideal framework of stratified multiple omics data tables, donor pools would consist of the available individuals belonging to the same stratum and the same omics table as the recipient. A potential shortcoming of the method is that the donor pools might contain too few donor observations and thus introduce a risk of bias on the MFA results. Likewise, if the overall sample size is very small, then typically there are also too few potential donors. However, all imputation techniques are challenged by small sample sizes since these reduce the availability of information required to create suitable conditional statements [19].
An important aspect of our strategy is the choice of the number M of imputed datasets. As shown in the two case studies, we think that this number should be a good compromise between the need to obtain stable estimates and to avoid computation bottlenecks.
The STATIS method was proposed to combine the results of MIMFA. As the core of MFA is a PCA, combining the results from MFA is the same as combining the results from PCA. Several procedures have previously been proposed to combine results from PCA such as the Mean Varimax Method (MVM) or Mean Correlation Matrix (MCM) approaches (as discussed in [35]). However, Van Ginkel and Kroonenberg [10, 35] demonstrated that Generalized Procrustes Analysis (GPA) was more suited to this purpose. GPA fits the PCA configurations obtained from the imputed datasets to a single fixed reference configuration to produce the final solution, the centroid configuration (the mean of all transformed solutions). One advantage of STATIS, as compared to MVM and MCM, is that it automatically corrects for possible reflection, dilation or rotation of the different configurations. Additionally, and contrary to the GPA procedure, the STATIS algorithm is very computertime efficient since it is a noniterative process. Another appealing feature of STATIS is its robust properties. As this algorithm includes weights proportional to the agreement between configurations, the results do not seem to be affected by the presence of large outliers.
Two approaches have been proposed to visualize the uncertainty of the estimated MFA configurations due to missing row values: confidence ellipses and convex hulls. These graphical representations provide scientists with considerable guidance when interpreting the significance of MFA results in a missing data framework. Indeed, ellipses and convex hull areas offer great assistance by either supporting the MFA results if they are small or suggesting that caution be exercised otherwise. It should be noted that RIMFA (or MVIMFA) also provides a configuration of individuals whatever the missingness pattern; however, there is no way of knowing if the results obtained are plausible and if the user can interpret the results without making any mistakes.
We have illustrated our approach by applying it to two real case studies using the liver toxicity and NCI60 datasets. Incomplete artificial datasets with different patterns of missingness were created within these datasets. The configurations resulting from MI, RI and MVIMFA were compared with the MFA configurations of the corresponding original population (the true configuration). Performance of the methods was assessed by considering the RV coefficient with respect to the true configuration.
In the liver toxicity study, the performances of the methods were compared in two different missingness settings. First the number of missing rows in each stratum of the transcriptomic table was chosen to be low (1 row), medium (2) or high (3). Secondly, seven scenarios were created by inserting missing rows in the original dataset which included both transcriptomic and clinical tables. The overall results showed that MIMFA clearly outperformed the RIMFA and MVIMFA approaches in nearly all settings.
In the NCI60 study, we illustrated the performance of our method on complex patterns of missingness where substantial numbers of rows were missing from both tables of the NCI60 dataset. As previously, this study showed that MIMFA clearly performed better than MVIMFA. We also demonstrated that RIMFA performed better than MVIMFA. The differences between MIMFA and RIMFA were small, but on average slightly in favor of our method. As the purpose of this study was also to illustrate the uncertainty of MIMFA configurations induced by missing rows, we demonstrated how the areas of the confidence ellipses and convex hulls got larger as the number of missing rows increased.
Conclusion
We propose here a new method, MIMFA, an extension of MFA, designed to deal with multiple tables with missing row values. MIMFA is a useful and attractive method to estimate the coordinates of individuals for MFA configurations despite the missing rows. The study cases showed that the other proposed methods either encountered serious problems or were unable to adequately assess the accuracy due to missing data. The configurations obtained with our method were closer to the true configuration even when a significant number of individuals were missing, and thus provided better results. Moreover, the uncertainty due to the missing rows could be visualized on the compromise configuration. The software for our MIMFA method is available in an easytouse code for the R statistical environment.
Abbreviations
 FCS:

Fully conditional specification
 JM:

Joint modeling
 MAR:

Missing at random
 MCAR:

Missing completely at random
 MFA:

Multiple factor analysis
 MI:

Multiple imputation
 MICE:

Multivariate imputation by chained equations
 MIMFA:

Multiple imputation multiple factor analysis
 MVIMFA:

Mean variable imputation multiple factor analysis
 PCA:

Principal component analysis
 RIMFA:

Regularized iterative multiple factor analysis
 STATIS:

Structuration des tableaux à trois indices de la statistique (in French)
References
 1
GomezCabrero D, Abugessaisa I, Maier D, Teschendorff A, Merkenschlager M, Gisel A, Ballestar E, BongcamRudloff E, Conesa A, Tegner J. Data integration in the era of omics: Current and future challenges. BMC Syst Biol. 2014; 8(Suppl 2):1.
 2
Pigott TD. A review of methods for missing data. Educ Res Eval. 2001; 7(4):353–83.
 3
Rubin DB. Multiple Imputation for NonResponse in Surveys. Hoboken: WileyInterscience; 2004.
 4
Nakagawa S, Freckleton RP. Missing inaction: the dangers of ignoring missing data. Trends Ecol Evol. 2008; 23:592–6.
 5
Little RJA, Rubin DB. Statistical Analysis with Missing Data, 2nd edn. Hoboken: Wiley; 2002.
 6
van de Velden M, Bijmolt THA. Generalized canonical correlation analysis of matrices with missing rows: a simulation study. Psychometrika. 2006; 71(2):323–31.
 7
González I, Déjean S, Martin PGP, Gonçalves O, Besse P, Baccini A. Highlighting relationships between heterogeneous biological data through graphical displays based on regularized canonical correlation analysis. J Biol Syst. 2009; 17(02):173–99.
 8
Tenenhaus A, Tenenhaus M. Regularized generalized canonical correlation analysis for multiblock or multigroup data analysis. Eur J Oper Res. 2014; 238(2):391–403.
 9
Husson F, Josse J. Handling missing values in multiple factor analysis. Food Qual Prefer. 2013; 30(2):77–85.
 10
Josse J, Pagès J, Husson F. Multiple imputation in principal component analysis. Adv Data Anal Classif. 2011; 5(3):231–46.
 11
Josse J, Husson F. Missing values in exploratory multivariate data analysis methods. Journal de la SFdS. 2012; 153(2):79–99.
 12
Schafer JL. Analysis of Incomplete Multivariate Data, 1st edn. Chapman & Hall: CRC Press, Taylor & Francis Group; 1997.
 13
van Buuren S, Brand JPL, GroothuisOudshoorn CGM, Rubin DB. Fully conditional specification in multivariate imputation. J Stat Comput Simul. 2006; 76(12):1049–64.
 14
van Buuren S. Multiple imputation of discrete and continuous data by fully conditional specification. Stat Methods Med Res. 2007; 16:219–42.
 15
Rubin DB. Inference and missing data. Biometrika. 1976; 63:581–92.
 16
Escofier B, Pagès J. Multiple factor analysis (AFMULT package). Comput Stat Data Anal. 1994; 18(1):121–40.
 17
Kalton G, Kasprzyk D. The treatment of missing survey data. Survey Methodol. 1986; 12:1–16.
 18
Andridge RR, Little RJA. A review of hot deck imputation for survey nonresponse. Int Stat Rev. 2010; 78(1):40–64.
 19
Cranmer SJ, Gill J. We have to be discrete about this: A nonparametric imputation technique for missing categorical data. British J Polit Sci. 2013; 43(02):425–49.
 20
Reilly M. Data analysis using hot deck multiple imputation. J Royal Stat Soc. 1993; 42(3):307–13.
 21
Milan L, Whittaker J. Application of the parametric bootstrap to models that incorporate a singular value decomposition. J Royal Stat Soc; 44(1):31–49. 1995.
 22
Lavit C, Escoufier Y, Sabatier R, Traissac P. The ACT (STATIS method). Comput Stat Data Anal. 1994; 18(1):97–119.
 23
Robert P, Escoufier Y. A unifying tool for linear multivariate statistical methods: The RV coefficient. J Royal Stat Soc. 1976; 25(3):257–65.
 24
Team RC. R: A Language and Environment for Statistical Computing. Vienna: R Foundation for Statistical Computing; 2015. R Foundation for Statistical Computing.
 25
Lê S, Josse J, Husson F. FactoMineR: An R package for multivariate analysis. J Stat Softw. 2008; 25(1):1–18.
 26
Dray S, Dufour AB, Chessel D. The ade4 packageII: Twotable and Ktable methods. R News. 2007; 7(2):47–52.
 27
Husson F, Josse J. missMDA: Handling Missing Values With/in Multivariate Data Analysis (Principal Component Methods). 2014. R package version 1.7.3. https://CRAN.rproject.org/web/packages/missMDA/missMDA.pdf.
 28
Goodall C. Procrustes methods in the statistical analysis of shape. J Royal Stat Soc Series B (Methodol). 1991; 53(2):285–339.
 29
Bushel PR, Wolfinger RD, Gibson G. Simultaneous clustering of gene expression data with clinical chemistry and pathological evaluations reveals phenotypic prototypes. BMC Syst Biol. 2007;1(15).
 30
Lê Cao KA, González I, Déjean S, Rohart F, Benoit Gautier B, Monget P, Coquery J, Yao F, Liquet B. mixOmics: Omics Data Integration Project. 2015. R package version 5.04. http://CRAN.Rproject.org/package=mixOmics.
 31
Liu H, D’Andrade P, FulmerSmentek S, Lorenzi P, Kohn KW, Weinstein JN, Pommier Y, Reinhold WC. mRNA and microRNA expression profiles of the NCI60 integrated with drug activities. Mol Cancer Ther. 2010; 9(5):1080–91.
 32
Nishizuka S, Charboneau L, Young L, Major S, Reinhold WC, Waltham M, KourosMehr H, Bussey KJ, Lee JK, Espina V, Munson PJ, Petricoin E, Liotta LA, Weinstein JN. Proteomic profiling of the NCI60 cancer cell lines using new highdensity reversephase lysate microarrays. Proc Natl Acad Sci USA. 2003; 100(24):14229–34.
 33
Reinhold WC, Sunshine M, Liu H, Varma S, Kohn KW, Morris J, Doroshow J, Pommier Y. CellMiner: A webbased suite of genomic and pharmacologic tools to explore transcript and drug patterns in the NCI60 cell line set. Cancer Res. 2012; 72(14):3499–511.
 34
Meng C, Kuster B, Culhane A, Gholami AM. A multivariate approach to the integration of multiomics datasets. BMC Bioinforma. 2014; 15(1):162.
 35
van Ginkel JR, Kroonenberg PM. Using generalized procrustes analysis for multiple imputation in principal component analysis. J Classif. 2014; 31(2):242–69.
Acknowledgements
VV is a PhD fellow supported by the INRA GA (Génétique Animale), the INRA PHASE (Physiologie Animale et Systèmes d’Élevage) and the région LanguedocRoussillon MidiPyrénées. The authors would like to thank Helen MundutéguyHutchings and Diana Goodfellow for the English revision. The authors thank the reviewers and the editors for their useful comments and suggestions that helped improve the quality of this paper.
Funding
VV is a PhD fellow supported by the INRA GA (Géétique Animale), the INRA PHASE (Physiologie Animale et Systèmes d’Élevage) and the Région LanguedocRoussillon MidiPyrénées.
Availability of data and materials
The liver toxicity data can be accessed from the mixOmics R package [30] (https://cran.rproject.org/web/packages/mixOmics). The NCI60 data can be downloaded from the Cellminer [33] at https://discover.nci.nih.gov/cellminer/loadDownload.do. The methods introduced here are implemented using the R computing environment [24]. The code, reference manual and examples are freely available as Additional file 3.
Authors’ contributions
IG supervised the study. MSC, LL and PB contributed important ideas to the study. IG and VV implemented the method, carried out the simulation studies and data analysis. IG and VV drafted the manuscript. All authors read and approved the final manuscript.
Competing interests
The authors declare that they have no competing interests.
Consent for publication
Not applicable.
Ethics approval and consent to participate
Not applicable. The liver toxicity data set were already published in [29]. The NCI60 (National Cancer Institute) transcriptome data were published in [31] and the NCI60 proteome data were published in [32].
