VennDiagramWeb: a web application for the generation of highly customizable Venn and Euler diagrams

  • Felix Lam†1,
  • Christopher M. Lalansingh†1,
  • Holly E. Babaran†1,
  • Zhiyuan Wang1,
  • Stephenie D. Prokopec1,
  • Natalie S. Fox1, 2 and
  • Paul C. Boutros1, 2, 3Email author
†Contributed equally
BMC BioinformaticsBMC series – open, inclusive and trusted201617:401

https://doi.org/10.1186/s12859-016-1281-5

©  The Author(s). 2016

Received: 23 July 2016

Accepted: 26 September 2016

Published: 3 October 2016

Abstract

Background

Visualization of data generated by high-throughput, high-dimensionality experiments is rapidly becoming a rate-limiting step in computational biology. There is an ongoing need to quickly develop high-quality visualizations that can be easily customized or incorporated into automated pipelines. This often requires an interface for manual plot modification, rapid cycles of tweaking visualization parameters, and the generation of graphics code. To facilitate this process for the generation of highly-customizable, high-resolution Venn and Euler diagrams, we introduce VennDiagramWeb: a web application for the widely used VennDiagram R package. VennDiagramWeb is hosted at http://venndiagram.res.oicr.on.ca/.

Results

VennDiagramWeb allows real-time modification of Venn and Euler diagrams, with parameter setting through a web interface and immediate visualization of results. It allows customization of essentially all aspects of figures, but also supports integration into computational pipelines via download of R code. Users can upload data and download figures in a range of formats, and there is exhaustive support documentation.

Conclusions

VennDiagramWeb allows the easy creation of Venn and Euler diagrams for computational biologists, and indeed many other fields. Its ability to support real-time graphics changes that are linked to downloadable code that can be integrated into automated pipelines will greatly facilitate the improved visualization of complex datasets. For application support please contact Paul.Boutros@oicr.on.ca.

Keywords

Venn DiagramData VisualizationComputational PipelineGraphic OverlayEuler Diagram

Background

Data visualization is a growing and important area of computational biology that demands high quality images which highlight the critical aspects of data. To elucidate all essential features of the data, one must perform a wide range of adjustments to various aspects of the plot, which can be a time-consuming process. Having fine-grained control over the parameters which define colours, fonts, label placements, element sizes, overall resolution, etc. leads to more effective plots which can convey necessary details in a publication-ready manner.

Pipelines facilitate automated, robust and reproducible data generation and analysis. Plotting is an important tool for both validation and reporting of results. Incorporating effective plots into these pipelines requires code that has been written specifically for each plot, as there is no single approach which can be applied to varied datasets. As a result, bioinformaticians often engage in long cycles of sequentially modifying plotting code, executing it, and observing the ultimate figure, until an optimum is reached. This process is inefficient and time-consuming.

Venn and Euler diagrams are used frequently in computational biology to visualize the interactions between multiple sets of data. In genomics especially, a common assay is to compare gene lists occurring from separate analyses [1], such as contrasting lists of differentially abundant RNAs following drug treatments or lists of mutated genes across disease types. Venn diagrams are typically depicted as partially intersecting circles or other closed curves such that there are 2n separated regions as depicted by overlapping closed curves [2]. While Venn diagrams always depict all 2n possible regions, Euler diagrams can omit regions under which there are zero values in that region’s subset. This allows Euler diagrams to be less visually complex, by depicting only a subset of all possible regions [3]. VennDiagramWeb facilitates the creation of both Venn and Euler diagrams, using the argument euler.d and scaled (both default TRUE). By default, VennDiagramWeb will create an Euler diagram where possible, displaying only regions containing one or more values. Users can force Venn diagrams only by setting both euler.d = FALSE and scaled = FALSE (Fig. 1).
Fig. 1

Euler and Venn diagrams produced by VennDiagramWeb each depicting three sets: x1 = {7,8}, x2 = {4,6,7}, x3 = {4,7,8,10}. a. An Euler diagram, produced with euler.d = TRUE and scaled = TRUE. b. A Venn diagram, produced with euler.d = FALSE and scaled = FALSE

The R statistical programming language has widespread use in the bioinformatics field, and so we developed VennDiagram to generate plots in this language [4]. The initial release has proven to be robust and useful, and has garnered 186 citations. As of June 8, 2016 the package has been downloaded from the Comprehensive R Archive Network (CRAN) over 75,000 times since its release in March 2011. Over half of these (>40,000) occurred in 2015 alone, highlighting growing popularity [5].

We believe a graphic user interface for VennDiagram could bring the package to a wider audience and enhance workflows for pipeline developers by providing a real-time framework for plotting optimization. There are many existing web interfaces for creating Venn diagrams, including Venny [6], BioVenn [7], GeneVenn [8], and those from the CRP-Sante Microarray Centre [9] and the Universiteit Gent [10]. These tools perform the necessities of creating a Venn diagram, but are missing many features required to create completely customized publication-quality plots, and have no means of exporting code for integration in large scale analysis pipelines.

Implementation

Our first step was to improve upon the existing VennDiagram R package [4]. A series of changes were made to enhance code quality, including significant refactoring and documentation and exposure of several helper functions. Major feature additions included the ability to create quintuple Venn diagrams. These are highly complex figures, but maintain symmetry and are still easily interpretable (Fig. 2). A parameter to allow users to set a scale by which the areas and labels of the categories will be adjusted to was added. The ability to display proportions of the total population contained within the areas as percentages was also introduced. Many users requested a feature to display a text table of the partitions of the Venn diagram, which is now supported by the package. Users can also now specify an argument which will force the Venn diagram to only consider unique elements in each category when tabulating the sets. In order to have more comprehensive logging which can be integrated with other pipelines which may wrap the Venn diagram code, we now use Futile Logger to log the parameters and sets of the Venn diagrams that are generated at runtime [11]. Finally, users can now choose file types of tiff, png or svg, and can alternatively choose to not output a file, but instead output a list of R graphical objects which compose the entirety of the plot. The user can then modify and re-render the plot as desired.
Fig. 2

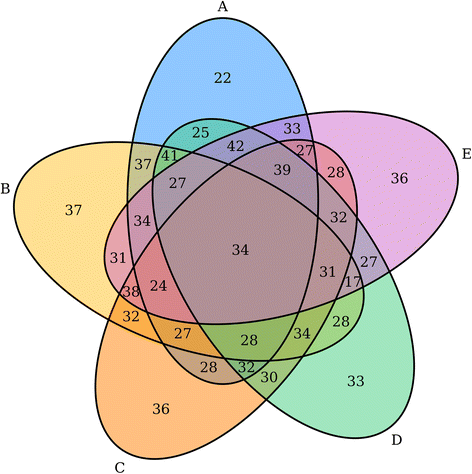

A quintuple set Venn diagram

VennDiagramWeb was written using the R statistical programming language and leverages the VennDiagram R package [4]. It uses the web application server Shiny to create a robust graphical user interface which can execute R code on data and parameters dynamically as they change [12]. Using the Shiny web application server enabled us to create a solution that is composed nearly purely of R from end to end. Using a single language allows for very tight integration of security and error handling functionality. We are able to parse any inputs provided by the user and, using functionality built into the language, inspect those inputs to ensure there is no attempt to inject malicious code. The architecture of the web application is based around the code for the user interface and the code for the server. The user interface is defined by a series of widgets which accept the parameters and data files from the user, and display the rendered plot reactively as elements are changed. The server handles all arguments and data, ensures that they are safe and valid, and performs generation of figures.

Results

User interface

VennDiagramWeb is a graphical user interface for the venn.diagram function [13]. The application starts with a simple example loaded (Fig. 3). Users can also choose to load an example configuration using the drop-down menu in the top right area of the sidebar. Users can modify the parameters of the venn.diagram function using the sidebar, and the resultant plot is generated instantly in the center panel (Fig. 4). The parameters for venn.diagram are divided into eleven sections, allowing the user to quickly find parameters of interest. If the user is familiar with the R package VennDiagram, they can also search for a parameter by name. At the bottom of the sidebar, the user can download the plot displayed as an image. On the bottom bar, the user can choose the datasets plotted, preview the datasets and data partitions, view the R code used to generate the plot, and access proper citation information for VennDiagramWeb.
Fig. 3

The VennDiagramWeb user interface

Fig. 4

A Venn diagram generated using VennDiagramWeb, annotated to indicate the parameters corresponding to features of the plot. The panels in green highlight the parameters of the tool, showing with arrows what elements of the Venn diagram are directly affected. All green elements are not generated as part of the Venn diagram

Features

VennDiagramWeb is meant to integrate seamlessly into scientific plot generation workflows. To this end we have included several key features: data file uploads, access to underlying R code, image downloads, and multiple workspaces.

Data file uploads

Users can upload up to five data files, up to 2 megabytes each, for use in generating their diagrams, which is quite large for Venn diagrams. These datasets are made available to the editor as dataframes titled data1, data2, etc. through to data5. This feature is found in the first tab on the bottom bar. The file uploading system is designed to accept tables output by R using the write.table function, but can accept any simple text table format, such as csv, tsv, and txt. Some options are available for file format customization, generally pertaining to the options of write.table. These options allow the user to specify the column separator, the presence of headers and/or row names, and whether or not values are contained in quotes. The user is able to preview the first four lines of the datasets available. As an example, we have provided sample data for the reader to upload (Additional file 1) and visualize (Additional file 2) [14].

R code access

As VennDiagramWeb is a graphic overlay for the R package VennDiagram, the user can access the generated R code to reproduce the plot as it appears on screen. This is useful because it allows the user to rapidly prototype the appearance of their desired Venn diagram, and then download the corresponding code for integration into their own pipelines. It is also a necessary feature because though a web application is user-friendly, many users may wish to avoid uploading their data to an external website, or may be restricted from doing so by privacy laws [15]. For this reason, users can experiment with VennDiagramWeb for diagram formatting and customization on toy datasets, and then download the resulting code for use with their real data.

Image downloads

VennDiagramWeb allows users to download publication-quality images of the Venn diagram displayed on screen. Users can choose the image format as tiff, png or svg, as well as resolution and physical size in inches.

Multiple workspaces

The web application has an interface for creating and switching between tabs. This allows users to create several different plots simultaneously. Each workspace tab is distinct and does not share data or parameters to avoid unintentional effects on diagrams which are being generated concurrently.

Discussion

Benefits

The datasets analyzed in biology and particularly in genomics can be enormous in scope and complexity, and we can only expect them to grow [16]. The rise of big data has lead to increasing attention to the field of data visualization [17]. As our datasets increase in size and our analyses increase in complexity, data visualization becomes crucial in allowing us to gain insight, see patterns and elucidate further areas of study in our experiments [17–19]. These visualizations have to be meaningful representations of the data [18]. Unsurprisingly, the figures we use to communicate our insights can become more convoluted with bigger and more complex data and, if poorly designed, risk confusing what they were meant to make clear. Indeed, the difficulty of achieving visual clarity in a diagram often increases in tandem with the necessity to do so.

Despite the growing importance of data visualization, the scientific community faces technical challenges in creating figures that are meaningful and clear. Complex analyses and their visualizations can represent significant time and effort, and require programming skills the scientific community often lacks [20]. A paper with poorly designed figures could be significantly hampered: if a reader cannot grasp the key insights a figure is meant to convey, then the significance of the paper might be lost, or it may not be published at all, with obvious detriments to the field. There is a clear incentive to generate useful plots, and there is also a clear need for easier and more time-efficient methods to generate them. To this end, we are creating tools that improve both the quality of plots and the speed at which they can be created.

In genomics, a common analysis performed in experiments is list comparison. The Venn Diagram is a popular plot type for list comparison, providing a simple visualization of several possibly unrelated lists [1]. The manual generation of these plots can be difficult. Spatial organization and colour choice of the groups and their overlapping sections such that they are both clear and aesthetically pleasing is important but nontrivial [21]. The VennDiagram R package addresses this issue. It is commonly in use [5], but we believe a simple graphical user interface for the package will bring it to an even wider audience, particularly to scientists who do not have strong skills in R.

Comparison to existing tools

As with VennDiagram, VennDiagramWeb offers many features that existing tools lack (Table 1). In addition to the advantages VennDiagram holds over other methods [4], VennDiagramWeb is the only web application we found that allows for tiff downloads, R code download, and multiple workspaces.
Table 1

A comparison of features of VennDiagramWeb to other popular web applications used to generate Venn Diagrams

Category

Parameter

VennDiagram (Initial Release)

VennDiagramWeb

Venny [3]

BioVenn [4]

GeneVenn [5]

CRP-Sante Microarray Centre Venn Diagram [6]

VIB/UGent Calculate and draw custom Venn diagrams [7]

General

Interative Interface



X

X

X

X

X

X



Data File Upload

N/A

X



X

X



X



Multiple Workspaces

N/A

X




R Code Generation

N/A

X



Circle Options

Colour

X

X



X

X




Fill Alpha

X

X




Border Style

X

X




Border Width

X

X




Border Colour

X

X



Category Labels

Content

X

X



X




Colour

X

X



X




Font

X

X



X

X




Size

X

X



X

X




Style

X

X




Location

X

X



X (SVG only)




Position

X

X



X (SVG only)




Distance

X

X



X (SVG only)




Justification

X

X



Area Labels

Colour

X

X



X




Font

X

X

X

X

X




Size

X

X

X

X

X




Style

X

X



Titles

Main title

X

X



X

X




Subtitle

X

X



X




Position

X

X



X (SVG only)




Colour

X

X



X




Font

X

X



X




Size

X

X



X




Style

X

X




Justification

X

X



File Options

Output type

TIFF

TIFF/SVG/PNG

PNG

SVG/PNG

PNG

PNG

SVG/PNG



Figure resolution

X

X



X




Built-in gene ID recognition



X



Miscellaneous

Maximum sets

4

5

4

3

3

3

3



Shapes used

Circles/Ellipses

Circles/Ellipses

Circles/Ellipses

Circles

Circles

Circles

Circles/Ellipses/other curved shapes



Scaling



Xb



Xa




Euler diagrams

X

X



X




Margin size



X




Rotation



X




Two-set external lines



X




Other set-specific parameters



X




Partition display



X

X

X

X

X

X

aUses inaccurate 3-set scaling with circles

bEuler diagrams only. 3-set scaling only when mathematically possible [4]

Conclusions

VennDiagramWeb provides a unique way to integrate and optimize R code for data-visualization with web-based real-time manual optimization with computational pipelines. It will be a key resource for the field. For application support please contact Paul.Boutros@oicr.on.ca.

Abbreviations

CRAN:

Comprehensive R Archive Network

Declarations

Acknowledgements

The authors thank all members of the Boutros Lab for excellent technical assistance and support, as well as Hanbo Chen for developing the original VennDiagram package.

Funding

This study was conducted with the support of the Ontario Institute for Cancer Research to PCB through funding provided by the Government of Ontario. Dr. Boutros was supported by a Terry Fox Research Institute New Investigator Award and a CIHR New Investigator Award. This work was supported by Prostate Cancer Canada and is proudly funded by the Movember Foundation - Grant #RS2014-01. This work was supported by an NSERC Discovery Grant to PCB. NSF was supported by the CIHR Canadian Graduate Scholarship – Master’s, the Medical Biophysics Excellence University of Toronto Fund Scholarship and the University of Toronto Geoff Lockwood and Kevin Graham Medical Biophysics Graduate Scholarship.

Availability of data and materials

VennDiagramWeb can be accessed with internet browsers Firefox and Chrome at http://venndiagram.oicr.on.ca. The base package VennDiagram can be downloaded from https://cran.r-project.org/web/packages/VennDiagram/index.html. No datasets were generated or used during the development of VennDiagramWeb.

Authors’ contributions

FL implemented the first version of the Shiny web application. CML and HEB iterated on that code to make the software more stable and robust. ZW refactored the original VennDiagram package, fixed bugs and added features. SDP wrote proof-of-concept code that led to significant changes in the method of rendering diagrams reactively. NSF tested and provided bug reports and feature requests which resulted in a more user-friendly interface. PCB supervised the development of the web application. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Informatics and Biocomputing Program, Ontario Institute for Cancer Research, Toronto, Canada
(2)
Department of Medical Biophysics, University of Toronto, Toronto, Canada
(3)
Department of Pharmacology & Toxicology, University of Toronto, Toronto, Canada

References

  1. Bardou P, et al. jvenn: an interactive Venn diagram viewer. BMC Bioinformatics. 2014Google Scholar
  2. Weisstein, Eric W. Venn Diagram. From MathWorld--A Wolfram Web Resource. http://mathworld.wolfram.com/VennDiagram.html. Accessed 22 Aug 2016.
  3. Rodger P. Venn Diagrams, Euler Diagrams and Leibniz. Euler Diagrams 2004: Brighton, UK: September 22–23. https://www.cs.kent.ac.uk/events/conf/2004/euler/eulerdiagrams.html. Accessed 22 Aug 2016
  4. Chen H, et al. VennDiagram: a package for the generation of highly-customizable Venn and Euler diagrams in R. BMC Bioinformatics. 2011. doi:10.1186/1471-2105-12-35.Google Scholar
  5. Csárdi G, et al. cranlogs. In: metacran: Tools for a better CRAN experience. GitHub. https://github.com/metacran/cranlogs. Accessed 8 Jun. 2016.
  6. Oliveros JC. Venny. An interactive tool for comparing lists with Venn’s diagrams. 2007–2015. http://bioinfogp.cnb.csic.es/tools/venny/index.html. Accessed 8 June 2016.
  7. Hulsen et al. BioVenn – a web application for the comparison and visualization of biological lists using area-proportional Venn diagrams. BMC Genomics. 2008. http://www.cmbi.ru.nl/cdd/biovenn/. Accessed 8 June 2016.
  8. Pirooznia et al. GeneVenn - A web application for comparing gene lists using Venn diagrams. Bioinformation. 2007. http://genevenn.sourceforge.net/. Accessed 8 June 2016.
  9. Microarray Center, Venn Diagram. Centre de Recherche Public Santé. http://www.bioinformatics.lu/venn.php. Accessed 8 June 2016.
  10. VIB / UGent. Calculate and draw custom Venn diagrams. Bioinformatics & Evolutionary Genomics. http://bioinformatics.psb.ugent.be/webtools/Venn/. Accessed 8 June 2016.
  11. Brian Lee Yung Rowe. futile.logger: A Logging Utility for R. CRAN. 2015. https://cran.r-project.org/web/packages/futile.logger/index.html. Accessed 8 June 2016.
  12. RStudio. Shiny. http://shiny.rstudio.com/. Accessed 8 June 2016.
  13. Chen H. Package ‘VennDiagram’. CRAN. 2016. https://cran.r-project.org/web/packages/VennDiagram/VennDiagram.pdf. Accessed 8 June 2016.
  14. Sun RX, et al. Cross-species transcriptomic analysis elucidates constitutive aryl hydrocarbon receptor activity. BMC Genomics. 2014. doi:10.1186/1471-2164-15-1053.Google Scholar
  15. United States. Cong. Health Insurance Portability and Accountability Act of 1996. U.S. Government Publishing Office; 1996. publ191.104Google Scholar
  16. Stephens ZD, et al. Big Data: Astronomical or Genomical?. PLOS Biology. 2015. http://dx.doi.org/10.1371/journal.pbio.1002195.Google Scholar
  17. Sridharan M. Data Visualization-- The Rosetta Stone of Data Science. In: icrunchdata News. icrunchdata News. 2015. https://icrunchdatanews.com/data-visualization-rosetta-stone-data-science/. Accessed 8 June 2016.
  18. Wong B. Data Visualization Initiative. In: Broad Institute. Broad Institute. https://www.broadinstitute.org/vis. Accessed 8 June 2016.
  19. Sharp Sight Labs. Why you should start by learning data visualization and manipulation. In: Sharp Sight Labs. Sharp Sight Labs. 2015. http://www.sharpsightlabs.com/start-with-data-visualization-manipulation/. Accessed 8 June 2016.
  20. Merali Z. Computational science: …Error …why scientific programming does not compute. Nature. 2010. doi:10.1038/467775a.Google Scholar
  21. Ruskey F, et al. The Search for Simple Symmetric Venn Diagrams. In: Notices of the AMS. American Mathematical Society. 2006. http://www.ams.org/notices/200611/ea-wagon.pdf. Accessed 8 June 2016.Google Scholar

Copyright

© The Author(s). 2016
