DisBind: A database of classified functional binding sites in disordered and structured regions of intrinsically disordered proteins

BMC BioinformaticsBMC series – open, inclusive and trusted201718:206

https://doi.org/10.1186/s12859-017-1620-1

©  The Author(s). 2017

  • Received: 25 August 2016
  • Accepted: 31 March 2017
  • Published:

Abstract

Background

Intrinsically unstructured or disordered proteins function via interacting with other molecules. Annotation of these binding sites is the first step for mapping functional impact of genetic variants in coding regions of human and other genomes, considering that a significant portion of eukaryotic genomes code for intrinsically disordered regions in proteins.

Results

DisBind (available at http://biophy.dzu.edu.cn/DisBind) is a collection of experimentally supported binding sites in intrinsically disordered proteins and proteins with both structured and disordered regions. There are a total of 226 IDPs with functional site annotations. These IDPs contain 465 structured regions (ORs) and 428 IDRs according to annotation by DisProt. The database contains a total of 4232 binding residues (from UniProt and PDB structures) in which 2836 residues are in ORs and 1396 in IDRs. These binding sites are classified according to their interacting partners including proteins, RNA, DNA, metal ions and others with 2984, 258, 383, 350, and 262 annotated binding sites, respectively. Each entry contains site-specific annotations (structured regions, intrinsically disordered regions, and functional binding regions) that are experimentally supported according to PDB structures or annotations from UniProt.

Conclusion

The searchable DisBind provides a reliable data resource for functional classification of intrinsically disordered proteins at the residue level.

Keywords

  • Intrinsic disorder
  • Database
  • Function classification
  • Protein disorder prediction
  • Protein function
  • Binding site

Background

More and more proteins are shown to be partially or wholly unstructured or intrinsically disordered [1, 2]. These intrinsically disordered proteins (IDPs) or regions (IDRs) in a protein have a wide variety of functions ranging from molecular recognition, molecular assembly, protein modification to entropic chain activities [3]. Flexible disordered regions offer many unique advantages such as facilitating multiple binding partners, enabling posttranslational modifications and preventing aggregations [4]. Some of IDPs implicated in human diseases are attractive targets for drug discovery [5].

Recognizing the importance of IDPs, several databases have been built. DisProt is the first curated database that contains a collection of experimentally verified IDPs and IDRs [6]. The latest release contains a total of 694 proteins with 1539 disordered regions (a just published newer release expands to more than 800 entries [7] and we will update ours in the next version). D2P2, on the other hand, consists of computationally predicted IDPs from 1765 proteomes from 1256 distinct species [8]. Both computational and experimental annotations were used in MobiDB to annotate >500,000 disordered proteins [9]. Computational annotations relied on a consensus of predictors including IUPRED [10] and ESpritz [11]. Its most recent version [12] further linked to information from post-translational modification in universal protein resource (UniProt) [13] and STRING protein-protein interactions [14]. IDEAL [15] was a database incorporating functional with structural/disorder annotations for 582 IDPs (as of the latest release on 12/Jun/2015) by manually integrating protein data bank (PDB) [16], UniProt [13] and DisProt databases [6]. It has been focused on interaction network of IDPs with induced folding sites annotated in disordered regions.

Here we have compiled a database, DisBind (Disorder Binding sites), which is dedicated to classification of functional binding sites of IDPs and proteins with both intrinsically disordered and structured regions from the DisProt database, regardless if IDPs have or do not have experimentally determined structures by induced folding. Residue-level binding sites are important first step for understanding the functional impacts of genetic variants in coding regions of human and other genomes, considering that a significant portion of eukaryotic genomes code for intrinsically disordered regions in proteins [17]. We categorize binding sites into eight categories according to their binding partners: DNA, RNA, proteins, cofactor/heme, metal ions, substrate/ligand, ATP/GTP, and others. Although some categories only have a few sites, we include them in the database for completeness. This database provides a classification of functional binding sites in IDPs annotated according to experimentally supported evidences. As a comparison, IDEAL does not contain binding sites from metals and ligands. DisProt does not contain binding site information. For completeness, both structured and disordered regions of an intrinsically disordered protein are annotated. Most disordered regions with annotated binding sites do not have known structures. Some disordered regions, however, have experimentally-determined structures when they are in complex with their interaction partners (binding induced folding or conformational selections). For those special cases, we annotated secondary structure motifs involved in binding regions which can provide a basis for initial understanding of binding mechanisms.

Construction and content

We obtained all annotated IDRs and IDPs from the recent version of DisProt database (v6.02). The binding sites for those IDPs are either retrieved from the annotation of specific binding sites in UniProt and/or derived from the high-resolution complex structures (resolution better than 3.5 Å) in PDB. Most binding sites from UniProt are ion binding sites whereas binding sites from PDB structures are mainly IDP-RNA, IDP-DNA and IDP-protein interactions. For IDPs in a complex structure, binding residues in IDPs are determined by a cutoff distance of 3.5 Å between any atoms of an IDP and its binding partner as with previous studies [18, 19]. Binding partners are classified into 8 categories: DNA, RNA, proteins, cofactor/heme,metal ions, substrate/ligand, ATP/GTP, and others. The secondary structure information of binding residues were also obtained from PDB based on the DSSP (Dictionary of protein secondary structure) assignment [20]. Eight secondary structure groups are combined into three classes i.e. α-helix (H, G, I), β-sheet (B, E) and coil (T, S, D). We note that the link to DSSP only exists for those IDPs with three-dimensional structural regions determined. If the same IDP binds with different proteins associated with different PDB structures, they were annotated separately.

Utility and Discussion

Current version of DisBind contains 226 IDPs with functional site annotations. These IDPs contain 465 structured regions (ORs) and 428 IDRs according to annotation by DisProt. For completeness, both structured and unstructured regions are annotated. The database contains a total of 4232 binding residues (from UniProt and PDB structures) in which 2836 residues are in ORs and 1396 in IDRs. In Table 1, these binding residues are further classified according to their binding partners. The largest subset of DisBind involves with binding to proteins with 772 binding residues in disordered regions. This followed by 189, 55, and 69 residues in disordered regions that interact with RNA and DNA, and metal ions, respectively. Only a few binding sites are located for the remaining functional categories.
Table 1

The number of residues and binding residues of IDPs and IDRs according to binding partners of IDPs in DisBind

Category

# IDPsa

# all Residues

# Residues in IDRs

# Binding Residues

IDPsb

IDRs

ORs

Helixc

Sheetc

IDPs

IDRs

ORs

ALL

226

166235

29908

136327

1705

439

4232

1396

2836

Protein

127

57586

12822

44764

1299

244

2984

1070

1914

RNA

12

6040

1286

4754

106

131

258

189

69

DNA

32

12092

2853

9239

301

64

383

55

328

Metal

81

40351

6242

34109

-

-

350

69

281

Cofactor

12

6825

1193

5632

-

-

41

2

39

Substrate

32

5791

1014

4777

-

-

61

2

59

ATP/GTP

32

14695

2475

12220

-

-

37

1

36

Others

44

22855

2023

20832

-

-

123

8

115

aSome IDPs can bind to different partners. b# of residues or binding residues in IDPs refer to all residues or all binding residues regardless if they are in structured, unstructured, or unannotated regions. c# of helical or sheet residues in IDRs

Please note that IDPs may contain both structured regions and IDRs as well as un-annotated regions

Figure 1 shows the top page of DisBind which consists of seven parts: ‘Home’, ‘Classification’ , ‘Browse’, ‘Search’, ‘Blast’,‘Download’ and ‘Help’. Under the ‘Classification’ option, the collected items can be retrieved according to their partners (i.e., DNA, RNA, protein, cofactor/heme, metal ions, substrate/ligand, ATP/GTP and others). All items collected in DisBind numbered from N00001 to N00226 can be also retrieved by clicking ‘Browse’ option. Alternatively, a user can obtain the collected information by inputting any keywords by the ‘Search’ option or protein sequences by the ‘Blast’ option. In addition, all of binding sites along with their secondary structures can be downloaded in the fasta format. ‘Help” page contains detailed explanation of each page and meaning of color codes.
Fig. 1
Fig. 1

The front page of DisBind database

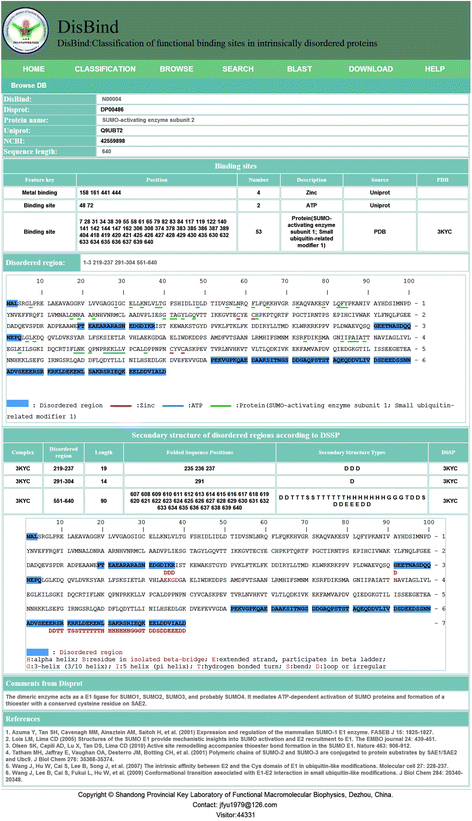

The information stored for each IDP has five parts as demonstrated in Fig. 2 by using N00004 as an example. Part I provides the basic information such as identification numbers from DisBind, DisProt, UniProt, and NCBI along with the protein name and its sequence length. Part II contains specific binding sites and corresponding binding partners according to UniProt annotations and/or the PDB complex structure along with PDB ID #. A click on the PDB ID# will directly link to the protein databank for structural visualization. These sites along with annotated disordered regions by DisProt are highlighted in the sequence. The secondary structure in disordered regions is shown along with sequence presented in Part III. Parts IV and V contains comments from DisProt regarding the disordered protein and corresponding references on functional annotations, respectively.
Fig. 2
Fig. 2

Information collected for each IDP as demonstrated for IDP N00004

Conclusion

DisBind is a database dedicated to residue-level classification of functional binding sites in disordered and structured regions of intrinsically disordered proteins. This database compiled information from the structural database (protein databank), the database of experimentally validated disordered proteins (DisProt), and the comprehensive protein sequence and functional database (UniProt). The database is fully searchable and freely accessible. In the next version of the dataset, we will significantly expand the dataset by including disordered proteins (>17000) that are indirectly supported by X-ray crystallography and Nuclear Magnetic resonance collected in MobiDB [12]. Moreover, we plan to incorporate predicted regions using existing techniques such as IUPRED [10] and ESpritz [11] as well as recently accurate developed techniques such as SPOT-Disorder [21]. This large dataset should provide an ultimate resource for functional site classifications in IDPs.

Availability and requirements

Database homepage: http://biophy.dzu.edu.cn/DisBind. These data are freely available without restrictions for use by academics.

Abbreviations

DisBind:

Database of Disordered protein Binding Sites

DisProt:

Database of Protein Disorder

IDPs:

Intrinsically Disordered Proteins

NCBI:

National Center for Biotechnology Information

PDB:

Protein databank

UniProt:

Universal Protein Resource

Declarations

Acknowledgements

Not applicable.

Funding

This work was supported by the Taishan Scholars Program and Natural Science Foundation (ZR2016JL027) of Shandong province of China, National Natural Science Foundation of China (61271378, 61302186, 61540025), and National Health and Medical Research Council (1059775 and 1083450) of Australia to YZ. The authors thank the Australian Research Council grant LE150100161 for infrastructure support. Funding agencies did not play any role in the design or conclusion of this study.

Authors’ contributions

JY, YZ and JW designed the project and drafted the manuscript. JY, XD, CW, YS, HW, YC, FZ collected the data, wrote the code and performed the analysis. All participated in finalizing and approved the manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Shandong Provincial Key Laboratory of Biophysics, Institute of Biophysics, Dezhou University, Dezhou, 253023, China
(2)
College of Physics and Electronic Information, Dezhou University, Dezhou, 253023, China
(3)
Institute for Glycomics and School of Information and Communication Technology, Griffith University, Parklands Dr, Southport, QLD, 4222, Australia

References

  1. Ward JJ, Sodhi JS, McGuffin LJ, Buxton BF, Jones DT. Prediction and functional analysis of native disorder in proteins from the three kingdoms of life. J Mol Biol. 2004;337(3):635–45.View ArticlePubMedGoogle Scholar
  2. Xue B, Dunker AK, Uversky VN. Orderly order in protein intrinsic disorder distribution: disorder in 3500 proteomes from viruses and the three domains of life. J Biomol Struct Dyn. 2012;30(2):137–49.View ArticlePubMedGoogle Scholar
  3. Dunker AK, Silman I, Uversky VN, Sussman JL. Function and structure of inherently disordered proteins. Curr Opin Struc Biol. 2008;18(6):756–64.View ArticleGoogle Scholar
  4. Liu ZR, Huang YQ. Advantages of proteins being disordered. Protein Sci. 2014;23(5):539–50.View ArticlePubMedPubMed CentralGoogle Scholar
  5. Cheng Y, LeGall T, Oldfield CJ, Mueller JP, Van YY, Romero P, Cortese MS, Uversky VN, Dunker AK. Rational drug design via intrinsically disordered protein. Trends Biotechnol. 2006;24(10):435–42.View ArticlePubMedGoogle Scholar
  6. Vucetic S, Obradovic Z, Vacic V, Radivojac P, Peng K, Iakoucheva LM, Cortese MS, Lawson JD, Brown CJ, Sikes JG, et al. DisProt: a database of protein disorder. Bioinformatics. 2005;21(1):137–40.View ArticlePubMedGoogle Scholar
  7. Piovesan D, Tabaro F, Micetic I, Necci M, Quaglia F, Oldfield CJ, Aspromonte MC, Davey NE, Davidovic R, Dosztanyi Z, et al. DisProt 7.0: a major update of the database of disordered proteins. Nucleic Acids Res. 2017;45(D1):D1123–4.View ArticlePubMedGoogle Scholar
  8. Oates ME, Romero P, Ishida T, Ghalwash M, Mizianty MJ, Xue B, Dosztanyi Z, Uversky VN, Obradovic Z, Kurgan L, et al. D(2)P(2): database of disordered protein predictions. Nucleic Acids Res. 2013;41(Database issue):D508–516.View ArticlePubMedGoogle Scholar
  9. Di Domenico T, Walsh I, Martin AJ, Tosatto SC. MobiDB: a comprehensive database of intrinsic protein disorder annotations. Bioinformatics. 2012;28(15):2080–1.View ArticlePubMedGoogle Scholar
  10. Dosztanyi Z, Csizmok V, Tompa P, Simon I. The pairwise energy content estimated from amino acid composition discriminates between folded and intrinsically unstructured proteins. J Mol Biol. 2005;347(4):827–39.View ArticlePubMedGoogle Scholar
  11. Walsh I, Martin AJ, Di Domenico T, Tosatto SC. ESpritz: accurate and fast prediction of protein disorder. Bioinformatics. 2012;28(4):503–9.View ArticlePubMedGoogle Scholar
  12. Potenza E, Di Domenico T, Walsh I, Tosatto SC. MobiDB 2.0: an improved database of intrinsically disordered and mobile proteins. Nucleic Acids Res. 2015;43(Database issue):D315–320.View ArticlePubMedGoogle Scholar
  13. UniProt C. UniProt: a hub for protein information. Nucleic Acids Res. 2015;43(Database issue):D204–212.Google Scholar
  14. Szklarczyk D, Franceschini A, Wyder S, Forslund K, Heller D, Huerta-Cepas J, Simonovic M, Roth A, Santos A, Tsafou KP, et al. STRING v10: protein-protein interaction networks, integrated over the tree of life. Nucleic Acids Res. 2015;43(Database issue):D447–452.View ArticlePubMedGoogle Scholar
  15. Fukuchi S, Sakamoto S, Nobe Y, Murakami SD, Amemiya T, Hosoda K, Koike R, Hiroaki H, Ota M. IDEAL: Intrinsically Disordered proteins with Extensive Annotations and Literature. Nucleic Acids Res. 2012;40(1):D507–511.View ArticlePubMedGoogle Scholar
  16. Rose PW, Beran B, Bi CX, Bluhm WF, Dimitropoulos D, Goodsell DS, Prlic A, Quesada M, Quinn GB, Westbrook JD, et al. The RCSB Protein Data Bank: redesigned web site and web services. Nucleic Acids Res. 2011;39:D392–401.View ArticlePubMedGoogle Scholar
  17. Dunker AK, Obradovic Z, Romero P, Garner EC, Brown CJ. Intrinsic protein disorder in complete genomes. Genome Inform Workshop Genome Inform. 2000;11:161–71.Google Scholar
  18. Wang LJ, Brown SJ. BindN: a web-based tool for efficient prediction of DNA and RNA binding sites in amino acid sequences. Nucleic Acids Res. 2006;34:W243–8.View ArticlePubMedPubMed CentralGoogle Scholar
  19. Si JN, Zhang ZM, Lin BY, Schroeder M, Huang BD. MetaDBSite: a meta approach to improve protein DNA-binding sites prediction. BMC Syst Biol. 2011;5:S7.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Kabsch W, Sander C. Dictionary of protein secondary structure: pattern recognition of hydrogen-bonded and geometrical features. Biopolymers. 1983;22(12):2577–637.View ArticlePubMedGoogle Scholar
  21. Hanson J, Yang Y, Paliwal K, Zhou Y: Improving protein disorder prediction by deep bidirectional long short-term memory recurrent neural networks. Bioinformatics 2017:in press.Google Scholar
