Thresher: determining the number of clusters while removing outliers

  • Min Wang1, 2,
  • Zachary B. Abrams1,
  • Steven M. Kornblau3 and
  • Kevin R. Coombes1Email author
BMC BioinformaticsBMC series – open, inclusive and trusted201819:9

https://doi.org/10.1186/s12859-017-1998-9

Received: 7 April 2017

Accepted: 13 December 2017

Published: 8 January 2018

Abstract

Background

Cluster analysis is the most common unsupervised method for finding hidden groups in data. Clustering presents two main challenges: (1) finding the optimal number of clusters, and (2) removing “outliers” among the objects being clustered. Few clustering algorithms currently deal directly with the outlier problem. Furthermore, existing methods for identifying the number of clusters still have some drawbacks. Thus, there is a need for a better algorithm to tackle both challenges.

Results

We present a new approach, implemented in an R package called Thresher, to cluster objects in general datasets. Thresher combines ideas from principal component analysis, outlier filtering, and von Mises-Fisher mixture models in order to select the optimal number of clusters. We performed a large Monte Carlo simulation study to compare Thresher with other methods for detecting outliers and determining the number of clusters. We found that Thresher had good sensitivity and specificity for detecting and removing outliers. We also found that Thresher is the best method for estimating the optimal number of clusters when the number of objects being clustered is smaller than the number of variables used for clustering. Finally, we applied Thresher and eleven other methods to 25 sets of breast cancer data downloaded from the Gene Expression Omnibus; only Thresher consistently estimated the number of clusters to lie in the range of 4–7 that is consistent with the literature.

Conclusions

Thresher is effective at automatically detecting and removing outliers. By thus cleaning the data, it produces better estimates of the optimal number of clusters when there are more variables than objects. When we applied Thresher to a variety of breast cancer datasets, it produced estimates that were both self-consistent and consistent with the literature. We expect Thresher to be useful for studying a wide variety of biological datasets.

Keywords

ClusteringNumber of clustersvon Mises-Fisher mixture model NbClust SCOD Gap statisticsSilhouette width

Background

Cluster analysis is the most common unsupervised learning method; it is used to find hidden patterns or groups in unlabeled data. Clustering presents two main challenges. First, one must find the optimal number of clusters. For example, in partitioning algorithms such as K-means or Partitioning Around Medoids (PAM), the number of clusters must be prespecified before applying the algorithm [13]. This number depends on existing knowledge of the data and on domain knowledge about what a good and appropriate clustering looks like. The mixture-model based clustering of genes or samples in bioinformatics data sets implemented in EMMIX-GENE also requires prescpecifying the number of groups [4]. Other implementations of mixture models, such as the mclust package in R [5], determine the number of clusters by using the Bayesian Information Criterion to select the best among a set of differently parameterized models. Second, the existence of “outliers” among the objects to cluster can obscure the true structure. At present, very few clustering algorithms deal directly with the outlier problem. Most of these algorithms require users to prespecify both the number k of clusters and the number (or fraction α) of data points that should be detected as outliers and removed. Examples of such algorithms include trimmed K-means [6], TCLUST [7], the “spurious-outliers model” [8], and k-means [9]. FLO, a refinement of k-means based on Lagrangian relaxation, can discover k from the data but still requires the user to specify [10]. The only existing method we know about that can discover both the number of clusters and the number of outliers from the data is Simultaneous Clustering and Outlier Detection (SCOD) [11]. There is a need for more and better algorithms that can tackle these two challenges in partitioning the objects.

Three popular methods to identify the correct number of clusters are (1) the elbow method, (2) the mean silhouette width [12], and (3) the gap statistic [13]. The elbow method varies the number k of clusters and computes the total within-cluster sum of squares (SS-within) for each k. One plots SS-within versus k and selects the location of an elbow or bend to determine the number of clusters. This method is both graphical and subjective; one disadvantage is that it relies solely on a global clustering characteristic. The silhouette method shows which objects lie well within a cluster and which are merely somewhere in between clusters. The mean silhouette width measures the overall quality of clustering; it shares the same disadvantages as the elbow method. The gap statistic compares the change in within-cluster dispersion to that expected under an appropriate null distribution. The optimal k should occur where the gap—the amount by which the observed value falls below the expected value—is largest. However, the gap statistics may have many local maxima of similar size, introducing potential ambiguities. Another drawback of the gap statistic is that its performance is not as good at identifying clusters when data are not well separated. In addition to these methods, many other approaches have been developed to estimate the number of clusters. A wide variety of methods are reviewed by Charrad et al. (2014) and included in an R package, NbClust [14]. However, none of these methods can detect outliers.

For biological datasets containing both samples (or patients) and features (usually genes or proteins), either the samples or the features may be the objects of interest to be clustered. Sometimes, both samples and features are clustered and displayed along with a heatmap [15]. Outliers are interpreted differently depending on what we are clustering. We view outliers among the genes or proteins as “noise” that makes no useful contribution to understanding the biological processes active in the data set. Outliers among patient samples may represent either low quality samples or “contaminated” samples, such as samples of solid tumor that are intermixed with large quantities of normal stroma. However, they may also represent rare subtypes that are present in the current data set at such low numbers that they cannot be reliably identified as a separate group.

To avoid confusion, in the rest of this paper, we will refer to the things to be clustered as objects and to the things used to cluster them as variables. Many algorithms have been developed in the context of clustering large number of objects using relatively few variables. However, there are two other important scenarios: (1) clustering patients using the expression of many genes in a typical microarray dataset, or (2) clustering a few genes or proteins, say from a single pathway, using their expression values for many patients. The performance of clustering methods that estimate the optimal number of clusters hasn’t yet been assessed extensively for these two scenarios.

In this paper, we propose a novel approach, called Thresher, that combines principal components analysis (PCA), outlier filtering, and a von Mises-Fisher mixture model. Thresher views “separating the wheat from the chaff”, where “wheat” are the good objects and “chaff” are the outliers, as essential to perform better clustering. PCA is used both for dimension reduction (which should be particularly valuable in biological applications where there are more variables than objects to cluster) and to detect outliers; a key innovation of Thresher is the idea of identifying outliers based on the strength of their contribution to PCA. In our approach, objects are first mapped to loading vectors in PC space; those that survive outlier removal are further mapped to a unit hypersphere for clustering using the mixture model. This step is also motivated by modern biological applications where correlation is viewed as the primary measure of similarity; we hypothesize that correlated objects should point in the same direction in PC space.

This article is organized as follows. Different methods to compute the number of clusters are briefly reviewed in “Methods”. In “Simulations” we perform Monte Carlo simulations to compare the performance of the Thresher algorithm to existing methods. In “Breast cancer subtypes” we apply Thresher to a wide variety of breast cancer data sets in order to estimate the number of subtypes. Finally, we conclude the paper and make several remarks in “Discussion and conclusion”. Two simple examples to illustrate the implementation and usage of the Thresher package are provided in Additional file 1.

Methods

All simulations and computations were performed using version 3.4.0 of the R statistical software environment [16] with version 0.11.0 of the Thresher package, which we have developed, and version 3.0 of the NbClust package.

In this section, we briefly review and describe the methods that are used to estimate the number of clusters for the objects contained in a generic dataset.

Indices of clustering validity in the NbClust package

As described in “Background”, Rousseeuw (1987) developed the mean silhouette method, and Tibshirani, Walther, and Hastie (2001) proposed the gap statistic to compute the optimal number of clusters [12, 13]. Prior to those developments, Milligan and Cooper (1985) used Monte Carlo simulations to evaluate thirty stopping rules to determine the number of clusters [17]. Thirteen of these stopping rules are implemented in either the Statistical Analysis System (SAS) cluster function or in R packages: cclust (Dimitriadou, 2014) and clusterSim (Walesiak and Dudek, 2014) [18, 19]. Furthermore, various methods based on relative criteria, which consists in the evaluation of a clustering structure by comparing it with other clustering schemes, have been proposed by Dunn (1974), Lebart, Morineau, and Piron (2000), Halkidi, Vazirgiannis, and Batistakis (2000), and Halkidi and Vazirgiannis (2001) [2023].

Charrad and colleagues reviewed a wide variety of indices of cluster validity, including the ones mentioned above [14]. They developed an R package, NbClust, that aimed to gather all indices previously available in SAS or R packages together in a single package. They also included indices that were not implemented anywhere else in order to provide a more complete list. At present, the NbClust package includes 30 indices. More details on the definition and interpretation of the 30 indices can be found at Charrad et al. (2014) [14].

Thresher

Here we describe the Thresher method, which consists of three main steps: principal component analysis with determination of the number of principal components (PCs), outlier filtering, and the von-Mises Fisher mixture model for computing the number of clusters.
  1. 1.
    Number of Principal Components. When clustering a small number of objects with a large number of variables, dimension reduction techniques like PCA are useful. PCA retains much of the internal structure of the data, including outliers and grouping of objects, in a way that “best” preserves the variation present in the data. Data reduction is achieved by selecting the optimal number of PCs to separate signal from noise. After standardizing the data, we compute the optimal number D of significant PCs using an automated adaptation of a graphical Bayesian model first described by Auer and Gervini [24]. In order to apply their model, one must decide, while looking at the graph of a step function, what constitutes a significantly large step length. We have tested multiple criteria to solve this problem. Based on a set of simulations [25], the best criteria for separating the steps into “short” and “long” subsets are:
    1. (a)

      Twice Mean. Use twice the mean of the set of step lengths as a cutoff to separate the long and short steps.


    2. (b)

      Change Point (CPT). Use the cpt.mean function from the changepoint R package to detect the first change point in the sequence of sorted step lengths.



    We have automated this process in an R package, PCDimension [25].


  2. 2.

    Outlier detection. Our method to detect outliers relies on the PCA computed in the previous step. A key point is that the principal component dimension D is the same for a matrix and its transpose; what changes is whether we view the objects to be clustered in terms of their projected scores or in terms of the weight they contribute to the components. Our innovation is to do the latter. In this way, each object yields a D-dimensional “loading” vector. The length of this vector summarizes its overall contributions to any structure present in the data. We use the lengths to separate the objects into “good” (part of the signals that we want to detect) and “bad” (the outliers that we are trying to remove). Based on simulation results that will be described in “Simulations” section, the default criterion to identify an object as an outlier is that the length is less than 0.3.


  3. 3.

    Optimal number of clusters. After removing outliers, we use the Auer-Gervini model to recalculate the number D0 of PCs for the remaining good objects, which are viewed as vectors in D0-dimensional PC space. We hypothesize that the loading vectors associated to objects that should be grouped together will point in (roughly) the same direction. So, we use the directions of the loading vectors to map the objects onto a unit hypersphere. Next, in order to cluster points on the hypersphere, we use mixtures of von Mises-Fisher distributions [26]. To fit this mixture model, we use the implementation in version 0.1-2 of the movMF package [27]. Finally, to select the optimal number of groups, we compute the Bayesian Information Criterion (BIC) for each N in the range N=D0, D0+1, …, 2D0+1; the best number corresponds to the minimum BIC. The intuition driving the restriction on the range is that we must have at least one cluster of points on the hypersphere for each PC dimension. However, weight vectors that point in opposite directions (like strongly positively and negatively correlated genes) should be regarded as separate clusters, approximately doubling the potential number of clusters. The extra +1 for the number of clusters was introduced to conveniently handle the special case when D0=0 and there is only one cluster of objects.



Results

Simulations

By following Monte Carlo protocols, we want to explore how well the cutoff separates signal from noise in the outlier detection step. We also study the accuracy and robustness of the different algorithms described in “Methods” section on estimating the number of clusters.

Selecting a cutoff via simulation

In order to find a default cutoff to separate signal from noise, we simulated five different kinds of datasets. The simulated datasets can have either one or two true underlying signals (or clusters), and each signal can either be all positively correlated or can include roughly half positive and half negative correlation. We use the following algorithm:
  1. 1.

    Select a number of variables for each dataset from a normal distribution with mean 300 and standard deviation 60.


  2. 2.

    Select an even number of objects between 10 and 20.


  3. 3.

    Split the set of objects roughly in half to represent two groups.


  4. 4.

    Independently, split the objects in half to allow for positive and negative correlation.


  5. 5.

    Randomly choose a correlation coefficient from a normal distribution with mean 0.5 and standard deviation 0.1.


  6. 6.

    For each of the five kinds of correlation structures, simulate a dataset using the selected parameters.


  7. 7.

    Add two noise objects (from standard normal distributions) to each data set to represent outliers.


We repeated this procedure 500 times, producing a total of 2500 simulated datasets. For each simulated dataset, each object is mapped to a loading vector in PC space; let Δ be its length. To separate “good” signals from “bad”, we computed the true positive and false positive rates on the ROC curve corresponding to Δ (Table 1). The results in this table suggest that a cutoff anywhere between 0.30 and 0.35 is reasonable, yielding a false negative rate of about 5 in 1000 and a false positive rate about 4 in 1000. We propose using the smallest of these values, 0.30, as our default cutoff, since this will eventually retain as many true positives as possible.
Table 1

True positive and false positive rates for Δ between 0.20 and 0.60

Delta

False positive rate

True positive rate

0.20

0.0300

0.9954664

0.25

0.0108

0.9954143

0.26

0.0082

0.9953882

0.27

0.0074

0.9953882

0.28

0.0068

0.9953882

0.29

0.0056

0.9953882

0.30

0.0042

0.9953882

0.31

0.0040

0.9953622

0.32

0.0038

0.9953622

0.33

0.0038

0.9953361

0.34

0.0038

0.9953361

0.35

0.0038

0.9952840

0.40

0.0036

0.9949453

0.45

0.0036

0.9939812

0.50

0.0036

0.9904898

0.55

0.0036

0.9819698

0.60

0.0036

0.9554455

Simulated data types

Datasets are simulated from a variety of correlation structures. To explore the effects of different combinations of factors, including outliers, signed or unsigned signals, and uncorrelated variation, we use the 16 correlation matrices displayed in Fig. 1. For each correlation structure, we take the corresponding covariance matrix to be Σ=σ2corr(X) where σ2=1. For all 16 covariance matrices, we use the same marginal distribution–multivariate normal distribution. That is, we first randomly generate a mean vector μ, then sample the objects from multivariate normal distributed MVN(μ,Σ). The grouping of the objects is included in the correlation structures and those objects in different blocks are separated under Pearson distance, not necessarily under the traditional Euclidean distance. Matrix 1 contains only noise variables; it is a purely uncorrelated structure. Matrices 2 and 3 represent correlation structures with various homogeneous cross-correlation strengths (unsigned signals) 0.3 and 0.8. Matrices 4–10 are correlation matrices where between-group (0.3, 0.1, or 0) and within-group (0.8, or 0.3) correlations of variables are fixed. More details about them can be found in [28, 29]. Matrices 11–16 are correlation structures where negative cross-correlations (−0.8 or −0.3, signed signals) are considered within groups, and mixture of signed and unsigned signals are also included.
Figure 1
Fig. 1

The 16 correlation matrices considered in the simulation studies. Values of correlations are provided by the colorbar. Numbers in parentheses correspond to the known numbers of clusters

The number of objects for each simulated dataset is set to either 24 or 96. The range of 24 to 96 is chosen to represent small to moderately sized data sets. Similarly, we consider either 96 or 24 variables. A dataset with 24 variables is viewed as a small dataset; one with 96 variables, as moderate. The true number of groups (or clusters) is shown in parentheses in the plots in Fig. 1. By varying the number of objects and the number of clusters, we can investigate the effects of the number of “good” objects and the number of objects per group.

Empirical results and comparisons on outlier detection

The Thresher method is designed to separate “good” objects from “bad” ones; that is, it should be able to distinguish between true signal and (uncorrelated) noise in a generic dataset. To investigate its performance at identifying noise, we simulated 1000 sample datasets for each of the correlation structures 7–10 from Fig. 1. We use the definitions of sensitivity, specificity, false discovery rate (FDR) and the area under the curve (AUC) of the receiver operating characteristic (ROC) as described in Hastie et al. (2009) [30] and Lalkhen and McCluskey (2008) [31]. In particular, sensitivity is the fraction of truly “bad” objects that are called bad, and specificity is the fraction of truly “good” objects that are called good. We summarize the results for datasets 7–10 in Table 2.
Table 2

Summary statistics for detecting good and bad objects in datasets 7-10 from Thresher

Scenarios and datasets

96 variables, 24 objects

24 variables, 96 objects



Dataset 7

Dataset 8

Dataset 9

Dataset 10

Dataset 7

Dataset 8

Dataset 9

Dataset 10

Sensitivity

0.990

0.985

0.988

0.958

0.822

0.816

0.836

0.809

Specificity

0.606

0.552

1

0.999

0.688

0.655

1

0.917

FDR

0.427

0.458

0

0.001

0.399

0.426

0

0.047

AUC

0.798

0.768

0.994

0.978

0.755

0.735

0.918

0.863

Table 2 suggests that Thresher does a good job of identifying noise when there are 96 variables and 24 objects, while it performs moderately well when the datasets have 24 variables and 96 objects. The specificity statistics indicate that Thresher is able to select the true “good” objects, especially when the number of actual “good” objects is small. Furthermore, from the FDR values, we see that almost all the “noise” objects chosen by Thresher are truly “noise” in correlation structures 9 and 10, which contain a relatively large proportion of “noise” objects. For datasets 7 and 8 with a smaller fraction of “noise” objects, some “good” objects are incorrectly identified as “noise”. Their percentage is not negligible, especially when the datasets contain few variables and many objects. The AUC statistics for correlation matrices 9 and 10 are higher than those for correlation matrices 7 and 8, regardless of the relative numbers of variables and objects. That is, Thresher has higher accuracy for identifying both “good” and “bad” objects when there is a larger fraction of “bad” objects and a smaller number of clusters in the dataset. Finally, for any given correlation pattern, Thresher performs slightly better in datasets with more variables than objects, and slightly worse in datasets with fewer variables than objects.

Zemene et al. showed that their SCOD algorithm was more effective at detecting outliers than unified k-means on both real and synthetic datasets [11]. Here, we compare SCOD to Thresher on the synthetic datasets of “Simulated data types” section. The SCOD results are displayed in Table 3. By comparing Tables 2 and 3, we see that the sensitivity of Thresher is always substantially larger than that of SCOD. In other words, Thresher performs better at identifying noise than SCOD regardless of the correlation structure or the relative number of variables and objects. From the FDR values, we can tell that the proportion of true “noise” objects among those called “noise” by Thresher is higher than that from SCOD in datasets 9–10. The performance of both methods is less satisfactory for datasets 7–8 with a smaller fraction of “noise” objects. Finally, the AUC statistics from the SCOD algorithm are close to 0.5 for each correlation matrix, which suggests that Thresher produces more precise results for identifying both “good” and “bad” objects regardless of the correlation structures.
Table 3

Summary statistics for detecting good and bad objects in datasets 7-10 from SCOD algorithm

Scenarios and datasets

96 variables, 24 objects

24 variables, 96 objects



Dataset 7

Dataset 8

Dataset 9

Dataset 10

Dataset 7

Dataset 8

Dataset 9

Dataset 10

Sensitivity

0.337

0.344

0.327

0.328

0.225

0.228

0.223

0.217

Specificity

0.670

0.661

0.674

0.658

0.780

0.774

0.780

0.786

FDR

0.660

0.663

0.333

0.342

0.661

0.666

0.333

0.338

AUC

0.504

0.502

0.501

0.493

0.502

0.501

0.502

0.501

Number of clusters: comparing Thresher to existing methods

For each of the 16 correlation structures, we simulate 1000 sample datasets. Then we estimate the numbers of clusters using SCOD and all methods described in “Methods” section. For each index in the NbClust package, for two variants of Thresher, and for SCOD, we collect the estimated number of clusters for each sample dataset. We compute the average of the absolute differences between the estimated and true numbers of clusters over all 1000 simulated datasets. The results are presented in Figs. 2 and 3 and in Tables 4 and 5. For each method, we also compute the overall averages of the absolute differences (over all 16 correlation matrices) and report them in the last rows of these tables.
Figure 2
Fig. 2

Values of the absolute difference between the estimated values and the known number of clusters across the correlation matrices for 96 variables and 24 objects

Figure 3
Fig. 3

Values of the absolute difference between the estimated values and the known number of clusters across the correlation matrices for 24 variables and 96 objects

Table 4

Values of the absolute difference between the estimated and the known number of clusters across the correlation matrices for 96 variables and 24 objects

Methods

NbClust Top 10 Best Indices



Thresher




trcovw

tracew

ratkowsky

mcclain

ptbiserial

tau

sdindex

kl

ccc

hartigan

CPT

TwiceMean

SCOD

1

1.008

1.037

1.088

1.123

1.920

2.020

2.255

2.087

2.022

2.905

0.477

0.727

0.150

2

1.004

1.032

1.073

1.179

1.959

2.081

2.287

2.258

2.363

3.048

0.114

0.119

0.153

3

1.008

1.031

1.065

1.135

1.858

2.041

2.193

2.099

2.763

2.902

0.135

0.130

0.165

4

0.811

0.968

0.921

0.904

0.635

0.559

0.551

1.023

1.263

0.941

0.438

0.408

1.887

5

0.965

0.978

0.918

0.888

0.598

0.524

0.516

1.058

1.940

0.846

0.192

0.150

1.882

6

0.822

0.960

0.917

0.897

0.613

0.522

0.516

1.082

1.558

1.016

0.423

0.438

1.897

7

0.064

0.034

0.082

0.112

0.906

1.068

1.239

1.163

1.307

1.954

0.618

0.776

0.890

8

0.068

0.021

0.075

0.108

0.946

1.078

1.255

1.199

1.177

1.857

0.760

0.802

0.914

9

1.05

1.029

1.082

1.126

1.882

2.045

2.215

2.153

1.975

2.933

0.422

0.401

0.163

10

1.011

1.025

1.072

1.130

1.981

2.080

2.262

2.129

2.011

2.932

0.502

0.611

0.179

11

0.571

0.024

0.069

0.123

0.900

1.084

1.239

1.114

0.021

1.906

0.109

0.104

0.918

12

0.104

0.038

0.081

0.101

0.919

1.088

1.225

1.148

0.450

1.901

0.115

0.120

0.913

13

1.664

1.956

1.902

1.897

1.147

0.983

0.852

1.392

1.971

0.767

0.582

0.576

2.930

14

1.938

1.969

1.925

1.893

1.184

0.997

0.857

1.463

2.201

0.793

0.105

0.092

2.884

15

0.810

0.960

0.902

0.892

0.614

0.531

0.512

1.020

1.025

0.914

1.354

1.328

1.910

16

0.958

0.964

0.896

0.906

0.635

0.549

0.537

1.017

1.586

0.912

0.277

0.278

1.897

Average

0.866

0.877

0.879

0.901

1.169

1.203

1.282

1.463

1.602

1.783

0.414

0.441

1.233

Bold values indicate the best results for row settings

Table 5

Values of the absolute difference between the estimated and the known number of clusters across the correlation matrices for 24 variables and 96 objects

Methods

NbClust Top 10 Best Indices



Thresher




tracew

mcclain

ratkowsky

trcovw

scott

silhouette

sdindex

kl

tau

ptbiserial

CPT

TwiceMean

SCOD

1

1.008

1.011

1.055

1.078

1.213

1.528

2.246

1.850

2.382

2.320

1.147

1.153

1.011

2

1.011

1.024

1.064

1.076

1.195

2.665

2.250

1.885

2.320

2.348

0.009

0.009

1.021

3

1.018

1.013

1.070

1.088

1.221

1.674

2.285

1.829

2.369

2.344

0.037

0.037

0.988

4

0.987

0.988

0.923

0.849

0.840

1.024

0.435

0.871

0.571

0.711

2.834

2.999

1.013

5

0.982

0.994

0.936

0.908

0.845

0.962

0.424

0.947

0.550

0.695

0.790

0.307

1.008

6

0.989

0.979

0.933

0.820

0.844

1.083

0.432

0.901

0.572

0.703

2.935

2.971

1.011

7

0.011

0.012

0.067

0.137

0.206

0.614

1.254

0.838

1.369

1.360

0.760

2.634

0.318

8

0.015

0.008

0.067

0.138

0.212

0.585

1.314

0.882

1.422

1.366

0.650

2.689

0.346

9

1.014

1.016

1.050

1.133

1.198

1.562

2.250

1.902

2.365

2.320

1.163

1.163

0.981

10

1.011

1.015

1.078

1.083

1.215

1.547

2.277

1.893

2.378

2.330

1.035

1.037

1.009

11

0.023

0.020

0.094

0.741

0.231

0.571

1.226

0.981

1.373

1.308

0.050

0.049

0.350

12

0.016

0.017

0.068

0.232

0.205

0.503

1.244

0.816

1.359

1.285

0.025

0.025

0.372

13

1.983

1.985

1.920

1.597

1.779

1.634

0.875

1.497

0.839

0.951

0.878

0.881

2.006

14

1.987

1.988

1.936

1.834

1.809

1.663

0.866

1.515

0.819

0.945

1.152

1.043

2.006

15

0.983

0.988

0.928

0.805

0.831

0.942

0.410

0.861

0.554

0.699

1.853

1.858

1.033

16

0.987

0.987

0.922

0.878

0.824

0.892

0.406

0.910

0.529

0.693

1.444

1.772

1.005

Average

0.877

0.878

0.882

0.900

0.917

1.216

1.262

1.274

1.361

1.399

1.048

1.289

0.967

Bold values indicate the best results for row settings

In Fig. 2 (and Table 4), we consider the scenario when the datasets contain 96 variables and 24 objects. We display the results for both Thresher variants and for the 10 best-performing indices in NbClust. In Fig. 3 (and Table 5), there are 24 variables and 96 objects for all the datasets. The results in the tables can help determine how well each method performs among all correlation structures and whether the proposed Thresher method is better than the indices in NbClust package on computing the number of clusters. The closer to zero the value in the tables is, the better the method will be for the corresponding correlation structure.

From Fig. 2 and Table 4, we see that Thresher, using either the CPT or the TwiceMean criterion, performs much better than the best 10 indices in the NbClust package across the correlation structures. It produces the most accurate estimates on average over the 16 possible correlation structures. In each row of the table, the smallest value, corresponding to the best method, is marked in bold. For 8 of the 16 correlation structures, one of the Thresher variants has the best performance. For correlation structures 7, 8, 11 and 12, either the TraceW index or the Cubic Clustering Criterion (CCC) index performs best. Even though the Trcovw index is not the best performer for any of the individual correlation structures, it produces the most accurate overall results among all 30 indices in the NbClust package.

Figure 3 and Table 5 suggest that Thresher, with either the CPT or TwiceMean criterion, performs slightly worse than the best 5 indices—Tracew, McClain, Ratkowsky, Trcovw and Scott—in the package NbClust, when averaged over all correlation structures with 24 variables and 96 objects. The Tracew index produces the best result on average; the overall performance of the McClain and Ratkowsky indices is similar to that of the Tracew index. As before, the smallest value corresponding to the best method in each row of the table is marked in bold. As we can see, either the Tracew or the McClain index performs the best for the correlation structures 1, 7, 8, 11 and 12. For datasets with correlation structures 4, 6 and 13–16, the Sindex index yields the most accurate estimates. However, for correlation structures 2, 3 and 5, one of the Thresher variants performs best. Even though Thresher performs slightly worse than the five best indices, it still outperforms the majority of the 30 indices in the NbClust package.

Moreover, the number of clusters computed by Thresher and SCOD for each scenario and dataset are provided and compared in Tables 4 and 5. From Table 4, one can see that Thresher gives us much more accurate estimates than SCOD does on average over all 16 correlation structures with 24 objects and 96 variables. More specifically, Thresher performs better than SCOD for all possible datasets except those with correlation structures 1, 9 and 10. For datasets with 96 objects and 24 variables as showed in Table 5, Thresher is slightly worse than SCOD in estimating the number of clusters when averaging over all 16 correlation structures. However, Thresher yields more precise estimates than SCOD does for all datasets except those with correlation structures 1, 4, 6–10, 15 and 16.

Running time

In addition to the comparisons of outlier detection and determination of number of clusters, we computed the average running time of the methods including the NbClust indices with top performance over all correlation matrices per data set (Table 6). All timings were carried out on a computer with an Intel®; Xeon®; CPU E5-2603 v2 @ 1.80 GHz processor running Windows®; 7.1. The table suggests that the computation time increases as the number of objects increases for Thresher, SCOD, and NbClust indices McClain, Ptbiserial, Tau, and Silhouette. From the table, we can see that SCOD uses the least time in computing the number of clusters when there are 24 objects and 96 variables in the dataset. For datasets with 96 objects and 24 variables, NbClust indices Trcovw, Tracew, CCC and Scott spend the least time. Thresher takes more time than most of the other algorithms tested, which is likely due to fitting multiple mixture models to select the optimal number of clusters.
Table 6

Average running time of the methods (Thresher, SCOD and the indices in NbClust with top performance) across correlation matrices (unit: seconds)

Rules

NbClust




trcovw

tracew

ratkowsky

mcclain

ptbiserial

tau

sdindex

kl

96 var., 24 obj.

0.09

0.09

0.116

0.029

0.029

0.077

0.291

0.275

24 var., 96 obj.

0.025

0.025

0.055

0.039

0.165

1.780

0.113

0.109

Rules

NbClust

Thresher

SCOD




ccc

hartigan

scott

silhouette

CPT

TwiceMean

SCOD



96 var., 24 obj.

0.088

0.169

0.092

0.027

0.25

0.271

0.009



24 var., 96 obj.

0.025

0.075

0.025

0.071

0.419

0.530

0.057



Breast cancer subtypes

One of the earliest and most significant accomplishments when applying clustering methods to transcriptomics datasets was the effort, led by Chuck Perou, to understand the biological subtypes of breast cancer. In a series of papers, his lab used the notion of an “intrinsic gene set” to uncover at least four to six subtypes [3235]. We decided to test whether Thresher or some other method can most reliably and reproducibly find these subtypes in multiple breast cancer datasets. All datasets were downloaded from the Gene Expression Omnibus (GEO; http://www.ncbi.nlm.nih.gov/geo/). We searched for datasets that contained the keyword phrases “breast cancer” and “subtypes”, that were classified as “expression profiling by array” on humans, and that contained between 50 and 300 samples. We then manually removed a dataset if the study was focused on specific subtypes of breast cancer, as this would not represent a typical distribution of the full cohort of breast cancer samples. After this step, we were left with 25 datasets. The primary microarray data are available in GEO under the following accession numbers: GSE1992, GSE2607, GSE2741, GSE3143, GSE4611, GSE10810, GSE10885, GSE12622, GSE19177, GSE19783, GSE20711, GSE21921, GSE22093, GSE29431, GSE37145, GSE39004, GSE40115, GSE43358, GSE45255, GSE45827, GSE46184, GSE50939, GSE53031, GSE56493, GSE60785.

To select the genes that best characterize the tumor subtypes, we rely on the intrinsic analysis performed by Sorlie et al. (2003) and Hu et al. (2006) [33, 34]. They compared “within class” to “across class” variation to identify genes that show low variability within replicates, but high variability across different tumors. Using a 105-tumor training set containing 26 replicate sample pairs, they derived an initial breast tumor gene list (the Intrinsic/UNC (The University of North Carolina at Chapel Hill) list) that contained 1300 genes [34]. They tested this list as a predictor of survival on tumors from three independent microarray studies, and focused on a subset of genes. In this way, they produced a new “intrinsic gene list” containing 306 genes that they used to perform hierarchical clustering. This new intrinsic gene list had an overlap of 108 genes with a previous breast tumor gene set (the Intrinsic/Stanford list) from Sorlie et al. (2003) [33]. They also showed that this new intrinsic gene list reflects the “intrinsic” and stable biological properties of breast tumors. It typically identifies distinct subtypes that have prognostic significance, even though no knowledge of outcome was used to derive this gene set [33, 34].

We used the new Intrinsic/UNC list to cluster samples in each of the 25 breast cancer data sets from GEO. In these datasets, the number of genes (variables) is always greater than the number of samples (objects). For this analysis, we used the 10 best indices from the NbClust package (corresponding to Fig. 2). The performance of these indices is compared to Thresher and SCOD for computing the number of clusters in the GEO datasets. We plot a histogram of the predicted cluster numbers across the 25 datasets for each method in Fig. 4. The results including the number of clusters and outliers for analyzing the breast cancer data sets via Thresher are also provided in Table 7.

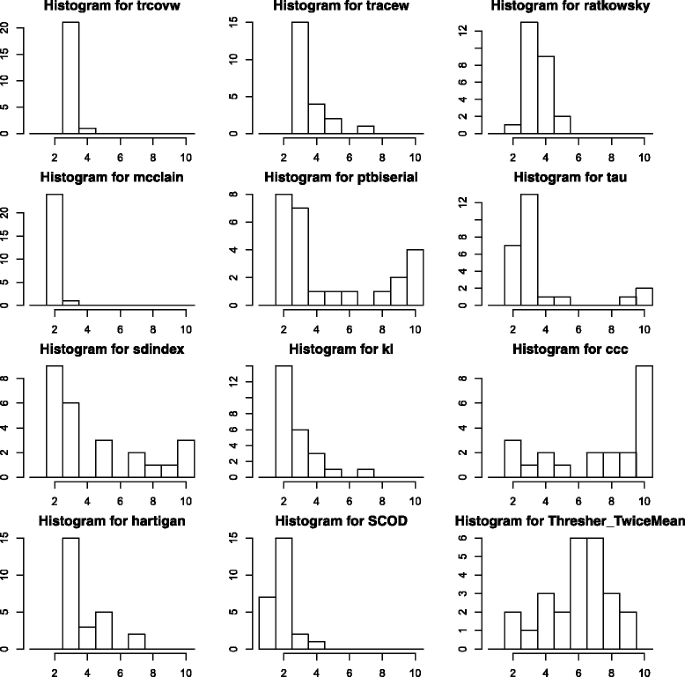

Figure 4
Fig. 4

Comparison of top NbClust indices with Thresher (TwiceMean) and SCOD on estimating the number of clusters from GEO breast cancer datasets

Table 7

Summary of the data and analysis in clustering breast cancer subtypes

Dataset

Sample #

Outlier #

Outlier percentage

Cluster #

GSE60785

55

10

18.18

2

GSE43358

57

5

8.77

3

GSE10810

58

0

0.00

6

GSE29431

66

2

3.03

9

GSE50939

71

1

1.41

2

GSE39004

72

9

12.50

4

GSE46184

74

8

10.81

4

GSE19177

75

2

2.67

4

GSE37145

76

0

0.00

7

GSE21921

85

3

3.53

6

GSE20711

90

18

20.00

7

GSE40115

92

1

1.09

5

GSE12622

103

0

0.00

7

GSE22093

103

3

2.91

5

GSE19783

115

1

0.87

8

GSE56493

120

6

5.00

6

GSE10885

125

4

3.20

7

GSE2607

126

3

2.38

7

GSE45255

139

10

7.19

8

GSE45827

155

9

5.81

6

GSE3143

158

6

3.80

7

GSE53031

167

10

5.99

6

GSE2741

169

7

4.14

6

GSE1992

170

8

4.71

8

GSE4611

218

23

10.55

9

Based on the literature [32, 3440], we believe that a reasonable and coherent estimate for the number of clusters in a representative sample of breast tumors ranges from 4 to 7. From the histograms in Fig. 4, one can see that the indices in the NbClust package either underestimate or overestimate the number of clusters to some extent. SCOD is very conservative; it tends to consistently underestimate the number of clusters. By contrast, the Thresher method with criterion “TwiceMean” produces more robust, consistent, and accurate estimates for the number of clusters in these datasets. Thresher is the only method that produces estimates on the number of clusters centered in the “consensus” range from 4 to 7.

Discussion and conclusion

In this paper, in order to solve both of the main challenges in clustering—selecting the optimal number of clusters and removing outlier objects—we propose a novel method called “Thresher”. For a generic dataset, Thresher can help select and filter out noise, estimate the optimal number of clusters for the remaining good objects, and finally perform grouping based on the von Mises-Fisher mixture model.

Unlike most other clustering methods, Thresher can reliably detect whether the objects of interest are “good” or “bad” (outliers). The results of our computational experiment (shown in Table 2) for datasets with correlation structures 7–10 show that Thresher does an excellent job at detecting outliers. In a head-to-head comparison with SCOD, the only previously published algorithm that can simultaneously determine the number of clusters and the number of outliers, Thresher was consistently better at outlier detection by every measure. (Compare the Thresher results above to the SCOD results in Table 3.)

We started this project by hypothesizing that removing outliers would improve the ability of Thresher to accurately estimate the number of clusters. To test that ability, we compared the performance of Thresher both to SCOD and to all 30 indices implemented in the NbClust package. Toward this end, we simulated datasets of different “shapes” (defined by the relative number of objects and variables) and different correlation structures. Critically, we found that changes in both the shape and the correlation structure lead to large differences in performance. Thresher is clearly best when there are more variables than objects to cluster. Its performance is solid (in the top six or seven of the 30 + algorithms tested) but not exceptional when there are more objects than variables.

Historically, most clustering algorithms have been developed and tested in the situation when there are more objects than variables. Many of the classic examples to test clustering algorithms simulate a large number of objects in only two or three dimensions. By contrast, modern applications of clustering in the “omics” settings common to molecular biology work in a context with many more variables than objects. In these kinds of settings, the “curse of dimensionality” suggests that objects are likely to be so scattered that everything looks like an outlier. Some of the key aspects of the Thresher method—the use of principal components for dimension reduction and the focus on identifying true outliers—were motivated by our desire to apply clustering in omics settings. Our findings show that Thresher will work better than the existing algoirthms in this context. They also suggest, however, that an opportunity still exists to develop and optimize better clustering algorithms for this challenging setting.

Correlation stuctures also have a significant impact on the perfomance of clustering algorithms. When clustering a dataset with fewer objects than variables, Thresher is either the best or second best method for correlation structures 1–6, 9–10, 13–14, and 16. (SCOD, the other method that detects and removes outliers, is best for correlations 1, 9, and 10.) These correlation structures are characterized by the presence of blocks of correlated objects, or a relatively large proportion of outliers, or more than one mixture of signed and unsigned signals. The indices Tracew, Trcovw, Ratkowsky and McClain produce better estimates for correlation structures 7–8 where there is a relative small proportion of outliers. For correlation structures 11–12 with only one mixture of signed and unsigned signals, Tracew, Ratkowsky, McClain and Thresher do well. Sdindex only gives us the best estimates for the number of clusters in datasets of correlation structure 15.

When there are more objects than variables, the Tracew index in the NbClust package produces the best estimates on average. Looking at the various correlation structures, we find that Tracew, McClain, and Ratkowsky perform well for correlation structures 1 and 7–12. In other words, they produce highly accurate results in estimating the number of clusters when the objects include some outliers or there is exactly one strong cluster containing a mixture of signed and unsigned signals. Thresher is the best for datasets of correlation structures 2, 3 and 5 whose objects have one big block or several uncorrelated blocks of weak within-group correlation. SCOD again has the best performance for correlation structures 9 and 10. The indices Sdindex and Tau perform best for correlation structures 4, 6 and 13–16 where there are several blocks of objects with high within-group correlation or more than one mixture of signed and unsigned signals.

The fact that correlation structures have a strong effect on the performance of clustering algorithms presents a challenge for users wanting to apply these algorithms. When we sit down to cluster a dataset, we already know if we have more objects or more variables, so we can choose our methods accordingly. But we do not know the true underlying correlation structure, and so we cannot use that information to guide our choice of algorithm. In this manuscript, we have dealt with that issue by computing the average performance over a range of different correlation structures. Based on those averages, we recommend using Thresher as the method of choice for determining the number of clusters whenever there are more variables than objects. When there are more objects than variables, Thresher still outperforms the majority of the 30 indices in the NbClust package. In this case, we expect Thresher to give reasonable answers, but with a reasonable chance that it will be off by about one.

We also applied Thresher to 25 breast cancer datasets downloaded from GEO in order to investigate the consistency and robustness of the number of clusters defined by the intrinsic gene list. To our knowledge, this is the most comprehensive study of the breast cancer subtypes defined by a single gene list across multiple data sets. The consensus answer in the literature for the “optimal” number of breast tumor subtypes ranges from 4 to 7. When applied to the GEO datasets, the best indices from the NbClust package either underestimate or overestimate the number of subtypes. Some of these methods always err in the same direction; others switch between overestimating in some datasets to underestimating in others. And SCOD always underestimates the number of clusters. Only the Thresher method produces estimates that are centered in the expected range of values. This analysis suggests that Thresher performs much better than the methods from NbClust when computing the optimal number of groups in real data derived from gene expression profiling experiments.

Abbreviations

AUC:

Area under the curve

BIC:

Bayesian information criterion

CCC:

Cubic clustering criterion

CPT:

Change point

FDR:

False discovery rate

GEO:

Gene expression Omnibus

PAM:

Partition around Medoids

PC:

Principal component

PCA:

Principal components analysis

ROC:

Receiver operating characteristic

SAS:

Statistical Analysis System

SS-within:

Within-cluster sum of squares

UNC:

The University of North Carolina at Chapel Hill

Declarations

Acknowledgments

We would like to thank the editors and the anonymous referees, for their valuable comments and feedback to this manuscript.

Funding

This project is supported in part by NIH/NLM grant T15 LM011270 and by NIH/NCI grants P30 CA016058, P50 CA168505, P50 CA070907, and R01 CA182905. Additional funding was provided by the Mathematical Biosciences Institute (MBI), which is supported by grant DMS-1440386 from the National Science Foundation.

Availability of data and materials

The Thresher R package is available from the web site for the Comprehensive R Archive Network (CRAN). Breast cancer datasets were downloaded from the Gene Expression Omnibus; their database identifiers are listed in “Breast cancer subtypes” section. All R code to perform the simulations and analyses in this paper is included in Additional file 2.

Authors’ contributions

MW performed the analysis and wrote the manuscript. ZBA and SMK participated in the analysis and helped to draft the manuscript. KRC wrote the R package Thresher, participated in the analysis, coordinated the study and helped to revise the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

All analyses in this paper were perfomed either on simulated data or on publicly available data from the Gene Expression Omnibus. No ethics committee approval is required.

Consent for publication

Not applicable. No images or videos of individuals are included in this publication.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver(http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Department of Biomedical Informatics, The Ohio State University, Columbus, USA
(2)
Mathematical Biosciences Institute, The Ohio State University, Columbus, USA
(3)
Department of Leukemia, The University of Texas M.D. Anderson Cancer Center, Houston, USA

References

  1. Kaufman L, Rousseeuw PJ. Partitioning Around Medoids (Program PAM). In: Finding Groups in Data: An Introduction to Cluster Analysis. Hoboken: Wiley. p. 1990.Google Scholar
  2. Lloyd SP. Least squares quantization in pcm. IEEE Trans Inf Theory. 1982; 28:129–37.View ArticleGoogle Scholar
  3. MacKay D. Information Theory, Inference and Learning Algorithms. Cambridge: Cambridge University Press; 2003.Google Scholar
  4. McLachlan GJ, Bean RW, Peel D. A mixture model-based approach to the clustering of microarray expression data. Bioinformatics. 2002; 18:413–22.View ArticlePubMedGoogle Scholar
  5. Fraley C, Raftery AE. Model-based methods of classification: Using the mclust software in chemometrics. J Statist Software. 2007; 18(6):1–13.View ArticleGoogle Scholar
  6. Garcia-Escudero AL, Gordaliza A, Matran C. Trimming tools in exploratory data analysis. J Comput Graph Stat. 2003; 12:434–49.View ArticleGoogle Scholar
  7. Garcia-Escudero AL, Gordaliza A, Matran C, Mayo-Iscar A. A general trimming approach to robust clustering analysis. Ann Stat. 2008; 36:1324–45.View ArticleGoogle Scholar
  8. Gallegos MT, Ritter G. A robust method for cluster analysis. Ann Stat. 2005; 33:347–80.View ArticleGoogle Scholar
  9. Chawla S, Gionis A. k-means: A unified approach to clustering and outlier detection In: Ghosh J, Obradovic Z, Dy J, Hamath C, Parthasarathy S, editors. Proceedings of the 2013 SIAM International Conference on Data Mining. Philadelphia, PA: Society for Industrial and Applied Mathematics;2013. p. 189–197. https://doi.org/10.1137/1.9781611972832.21.Google Scholar
  10. Ott L, Pang L, Ramos F, Chawla S. In: Ghahramani Z, Welling M, Cortes C, Lawrence ND, Weinberger KQ, (eds).On integrated clustering and outlier detection: Curran Associates, Inc.; 2014, pp. 1359–67.Google Scholar
  11. Zemene E, Tesfaye YT, Prati A, Pelillo M. Simultaneous clustering and outlier detection using dominant sets. In: 23rd International Conference on Pattern Recognition (ICPR 2016). New York, NY: IEEE;2016. p. 2325–2330. https://doi.org/10.1109/ICPR.2016.7899983.Google Scholar
  12. Rousseeuw PJ. Silhouettes: A graphical aid to the interpretation and validation of cluster analysis. J Comput Appl Math. 1987; 20:53–65.View ArticleGoogle Scholar
  13. Tibshirani R, Walther G, Hastie T. Estimating the number of clusters in a data set via the gap statistic. J Royal Statist Soc B. 2001; 63:411–23.View ArticleGoogle Scholar
  14. Charrad M, Ghazzali N, Boiteau V, Niknafs A. Nbclust: An r package for determining the relevant number of clusters in a data set. J Stat Softw. 2014; 61:1–36.View ArticleGoogle Scholar
  15. Eisen M, Spellman P, Brown P, Botstein D. Cluster analysis and display of genome-wide expression patterns. Proc Natl Acad Sci. 1998; 95:14863–8.View ArticlePubMedPubMed CentralGoogle Scholar
  16. R Core Team. R: A Language and Environment for Statistical Computing. Vienna: R Foundation for Statistical Computing; 2013. ISBN 3-900051-07-0. http://www.R-project.org/.Google Scholar
  17. Milligan GW, Cooper MC. An examination of procedures for determining the number of clusters in a data set. Psychometrika. 1985; 50:159–79.View ArticleGoogle Scholar
  18. Dimitriadou E. cclust: Convex clustering methods and clustering indexes, R package version 0.6-20; 2014. Online. https://cran.r-project.org/web/packages/cclust/cclust.pdf.
  19. Walesiak M, Dudek A. clusterSim: Searching for optimal clustering procedure for a data set, R package version 0.44-2; 2014. Online. https://cran.r-project.org/web/packages/clusterSim/clusterSim.pdf.
  20. Dunn J. Well separated clusters and optimal fuzzy partitions. J Cybern. 1974; 4:95–104.View ArticleGoogle Scholar
  21. Lebart L, Morineau A, Piron M. Satistique Exploratoire Multidimensionnelle. Paris: Dunod; 2000.Google Scholar
  22. Halkidi M, Vazirgiannis M, Batistakis Y. Quality scheme assessment in the clustering process In: Komorowski ZighedJanDjamelAand, Jan Zytkow, editors. Principles of Data Mining and Knowledge Discovery: 4th European Conference, PKDD 2000 Lyon, France, September 13–16, 2000 Proceedings. Berlin, Heidelberg: Springer Berlin Heidelberg: 2000. p. 265–76.Google Scholar
  23. Halkidi M, Vazirgiannis M. Clustering validity assessment: finding the optimal partitioning of a data set. In: Proceedings 2001 IEEE International Conference on Data Mining. San Jose, CA: IEEE;2001. p. 187–194. https://doi.org/10.1109/ICDM.2001.989517.Google Scholar
  24. Auer P, Gervini D. Choosing principal components: a new graphical method based on Bayesian model selection. Commun Stat Simul Comput. 2008; 37:962–77.View ArticleGoogle Scholar
  25. Wang M, Kornblau SM, Coombes KR. Decomposing the apoptosis pathway into biologically interpetable principal components. bioRxiv preprint 10.1101/237883. 2017. https://www.biorxiv.org/content/early/2017/12/21/237883.
  26. Banerjee A, Dhillon IS, Ghosh J, Sra S. Clustering on the unit hypersphere using von mises-fisher distributions. J Mach Learn Res. 2005; 6:1345–82.Google Scholar
  27. Kurt Hornik, Bettina Grün. movMF: An R package for fitting mixtures of von mises-fisher distributions. J Stat Softw. 2014; 58(10):1–31.Google Scholar
  28. Peres-Neto PR, Jackson DA, Somers KM. Giving meaningful interpretation to ordination axes: assessing loading significance in principal component analysis. Ecology. 2003; 84:2347–63.View ArticleGoogle Scholar
  29. Peres-Neto PR, Jackson DA, Somers KM. How many principal components? stopping rules for determining the number of non-trivial axes revisited. Comput Stat Data Anal. 2005; 49:974–97.View ArticleGoogle Scholar
  30. Hastie T, Tibshirani R, Friedman J. The Elements of Statistical Learning: Data Mining, Inference, and Prediction. New York: Springer; 2009.View ArticleGoogle Scholar
  31. Lalkhen AG, McCluskey A. Clinical tests: sensitivity and specificity. Contin Educ Anaesth Crit Care Pain. 2008; 8:221–3.View ArticleGoogle Scholar
  32. Sorlie T, Perou CM, Tibshirani R, Aas T, Geisler S, Johnsen H, et al.Gene expression patterns of breast carcinomas distinguish tumor subclasses with clinical implications. Proc Natl Acad Sci U S A. 2001; 98:10869–74.View ArticlePubMedPubMed CentralGoogle Scholar
  33. Sorlie T, Tibshirani R, Parker J, Hastie T, Marron JS, Nobel A, et al.Repeated observation of breast tumor subtypes in independent gene expression data sets. Proc Natl Acad Sci U S A. 2003; 100:8418–23.View ArticlePubMedPubMed CentralGoogle Scholar
  34. Hu Z, Fan C, Oh DS, Marron JS, He X, Qaqish BF, Livasy C, Carey LA, Reynolds E, Dressler L, Nobel A, Parker J, Ewend MG, Sawyer LR, Wu J, Liu Y, Nanda R, Tretiakova M, Orrico AR, Dreher D, Palazzo JP, Perreard L, Nelson E, Mone M, Hansen H, Mullins M, Quackenbush JF, Ellis MJ, Olopade OI, Bernard PS, Perou CM. The molecular portraits of breast tumors are conserved across microarray platforms. BMC Genomics. 2006; 7(1):96. https://doi.org/10.1186/1471-2164-7-96.View ArticlePubMedPubMed CentralGoogle Scholar
  35. Perreard L, Fan C, Quackenbush JF, Mullins M, Gauthier NP, Nelson E, et al.Classification and risk stratification of invasive breast carcinomas using a real-time quantitative rt-pcr assay. Breast Cancer Res. 2006; 8:R23.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Perou CM, Solie T, Eisen MB, van de Rijn M, Jeffrey SS, A ReesC, et al.Molecular portraits of human breast tumours. Nature. 2000; 406:747–52.View ArticlePubMedGoogle Scholar
  37. Sotiriou C, Neo S, McShane LM, Korn EL, Long PM, Jazaeri A, et al.Breast cancer classification and prognosis based on gene expression profiles from a population-based study. Proc Natl Acad Sci U S A. 2003; 100:10393–8.View ArticlePubMedPubMed CentralGoogle Scholar
  38. Waddell N, Cocciardi S, Johnson J, Healey S, Marsh A, Riley J, et al.Gene expression profiling of formalin-fixed, paraffin-embeddedfamilial breast tumours using the whole genome-dasl assay. J Pathol. 2010; 221:452–61.PubMedGoogle Scholar
  39. The Cancer Genome Atlas Network. Comprehensive molecular portraits of human breast tumours. Nature. 2012; 490:61–70.View ArticlePubMed CentralGoogle Scholar
  40. Tobin NP, Harrell JC, Lovrot J, Egyhazi Brage S, Frostvik Stolt M, Carlsson L, et al.Molecular subtype and tumor characteristics of breast cancer metastases as assessed by gene expression significantly influence patient post-relapse survival. Ann Oncol. 2015; 26:81–8.View ArticlePubMedGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
