A study on fast calling variants from next-generation sequencing data using decision tree

Contributed equally
BMC BioinformaticsBMC series – open, inclusive and trusted201819:145

https://doi.org/10.1186/s12859-018-2147-9

  • Received: 30 October 2017
  • Accepted: 3 April 2018
  • Published:

Abstract

Background

The rapid development of next-generation sequencing (NGS) technology has continuously been refreshing the throughput of sequencing data. However, due to the lack of a smart tool that is both fast and accurate, the analysis task for NGS data, especially those with low-coverage, remains challenging.

Results

We proposed a decision-tree based variant calling algorithm. Experiments on a set of real data indicate that our algorithm achieves high accuracy and sensitivity for SNVs and indels and shows good adaptability on low-coverage data. In particular, our algorithm is obviously faster than 3 widely used tools in our experiments.

Conclusions

We implemented our algorithm in a software named Fuwa and applied it together with 4 well-known variant callers, i.e., Platypus, GATK-UnifiedGenotyper, GATK-HaplotypeCaller and SAMtools, to three sequencing data sets of a well-studied sample NA12878, which were produced by whole-genome, whole-exome and low-coverage whole-genome sequencing technology respectively. We also conducted additional experiments on the WGS data of 4 newly released samples that have not been used to populate dbSNP.

Keywords

  • Next-generation sequencing
  • Variant calling
  • Decision tree

Background

Next-generation DNA sequencing (NGS) technologies have made great progress in both improving throughput and lowering cost in recent years. Today, NGS technology can finish a whole-genome sequencing task in a single day for merely one thousand dollars [1]. The massive data sets generated by NGS in research projects such as 1000 Genomes are counted in terabases [2], and it is predicted that in the next decade, approximately one hundred million to two billion human genomes will be sequenced [1]. Facing challenges from the explosive growth of sequencing data, faster and more efficient data analysis tools are required.

Variant calling is a key link in the NGS data analysis workflow. The quality of call sets directly affects downstream analysis such as disease-causing gene detection. To call variants from sequencing data, an aligner such as BWA should be used to map and align short reads generated by NGS platforms to the reference genome first; then, a variant caller is applied to the aligned results to produce high-quality variant calls as well as genotyping. Early on, tools such as MAQ [3] handled both steps. Since the SAM/BAM format [4] was developed in 2009, researchers were able to concentrate on developing better algorithms for variant calling, leaving out the mapping step. So far, many excellent variant callers have been springing up, including SAMtools [4], Genome Analysis Toolkit (GATK) [2] and Platypus [5].

Variant calling algorithms aim to address technical difficulties such as homopolymer errors, random mutations, insertions and deletions (indels), mis-alignments, and PCR bias. Generally, there are two paradigms [6]. The first paradigm is the Bayesian approach. This paradigm generates candidate variants directly from the results of independently mapping each read to the reference sequence, succeeded by using Bayesian methods to model sequencing errors and identify variants. This paradigm is very powerful for detecting SNVs but may get confused when aligning reads to the region beside candidate indels. The second paradigm is an assembly-based approach. This paradigm first performs de novo assembly of short reads within a fixed-length window to construct candidate haplotypes and then calculates their likelihoods comparing to the reference sequence. The candidate haplotype with the highest likelihood is regarded as the true sequence within that window, and variants contained by that haplotype will be called. This paradigm can address incorrect alignments surrounding indels as well as identify large indels, improving accuracy and recall compared to the first paradigm. However, because of the extremely high computational complexity and huge number of candidate haplotypes, this paradigm requires much a longer runtime. Among the most popular callers, SAMtools and GATK-UnifiedGenotyper [7] follow the first paradigm, while GATK-HaplotypeCaller follows the second paradigm. There is another method that combines the two paradigms, which can also be considered a Bayesian haplotype method, including FreeBayes, PyroHMMvar and Platypus.

However, there are two main shortcomings of the paradigms mentioned above: first, they are not fast enough (as will be shown in our experiments); second, they cannot easily adapt variations in input data type, such as low-pass sequencing data, because they have many default parameters that are difficult to adjust for non-experts. To find another way, some researchers have set their sights on machine learning, such as SNooPer [8], which is a random-forest-based somatic variant caller. SNooPer’s variant detection procedure involves two phases: in the training phase, it trains a random forest model from an orthogonally validated dataset; and in the calling phase, it generates candidate variants and calculates related features from inputted mpileup files and then applies the trained model to classification. As is known, the prediction ability of machine learning algorithms heavily depends on the size and representativeness of the training set. To ensure that machine learning algorithms work well, the training set must be carefully selected. The largest and most authoritative dataset of SNVs and indels is the single nucleotide polymorphism database (dbSNP) [9]. It is reported that over 90% of human genome SNVs and indels have been catalogued in dbSNP [7], so we have confidence in hypothesizing that an unreported variant should be somehow similar to those in dbSNP if it is a true positive and distinct if it is a false positive. Based on this hypothesis, we propose a new method that trains a decision tree from dbSNP and candidate variant set, merging the training and calling phases into one step so that the time cost can be significantly reduced, while other key indicators such as accuracy and recall also have satisfactory results in our experiments.

We have implemented our algorithm in a programme named “Fuwa”. Comparison with 4 currently popular variant callers indicates that when processing whole-genome sequencing data, Fuwa is obviously faster than its competitors, while other key performance indicators also improve or stay comparable, even for variants not in dbSNP. For processing exome-capture and low-pass sequencing data, Fuwa also shows its outstanding capability and flexibility for data type diversity.

Methods

Overview of Fuwa

Fuwa accepts single sample alignment data in Binary Sequence Alignment/Mapping (BAM) format and outputs calls for SNVs and short indels in Variant Call Format (VCF) [10]. As shown in Fig. 1, the workflow of Fuwa can be divided into three phases: candidate variants generating, decision-tree building, and variant calling. First, the programme generates candidate variant set by pile-up at each candidate variant locus marked by the CIGAR field. Each candidate variant is marked with a quality metric “qual” valuing 1 or 0 according to whether the candidate variant is in dbSNP. Then, a decision-tree model is trained using the feature vectors of candidate variants as the training set. After the model is trained, candidate variants with similar feature values are grouped into a same leaf node and are treated as a unit. For all the candidates in a leaf, if their average qual is higher than the threshold, they are called out; otherwise, they are identified as false positives. Finally, a simple and effective genotyper is applied.

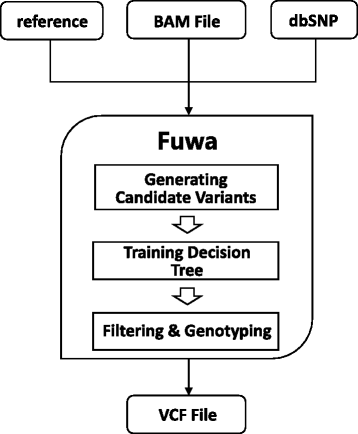

Fig. 1
Fig. 1

Workflow of Fuwa. Fuwa is designed to translate single BAM file into high quality variants calling output in VCF format. At first, aligner such as BWA maps reads to reference genome and provides BAM file to Fuwa. Then, at each locus of genome, candidate variants are generated from the CIGAR field of piled up reads covering that locus. Each candidate variant is assigned a 0/1 value named dbSNP quality (qual), according to whether it is included in dbSNP. Next, the candidate set is used to build a decision tree. After the tree is build, qual values of variants in the same leaf will be replaced with the average qual value of that leaf. Finally, Candidate variants with low qual (default threshold 0.8) are filtered out, while the rest are called and genotyped. Final call set is output in VCF format

Generating and labelling candidate variants

Fuwa walks through the whole-genome sequence, generating candidate variants at each locus. Designed for high sensitivity, Fuwa considers all 6 possible candidate variants (i.e., A, T, G, C, insertion, deletion), and only those with too low a proportion of read depth at their loci are excluded. Feature values of these candidates are also calculated. At the same time, the programme searches dbSNP and labels each candidate with dbSNP quality, or “qual” in short. Qual is set to 1 if the candidate exists in dbSNP and 0 if not. To improve search speed, Fuwa preloads dbSNP into RAM and transforms it into a hash table so that any searching can be finished in a constant time. After this step, all candidate variants are obtained and labelled.

To date, most common human variants have already been catalogued in dbSNP. The high coverage rate of SNVs and short indels qualifies dbSNP as a powerful benchmark in alignment result recalibration [7] and final call set quality assessment [5, 7, 11] as well as in training machine learning models.

Decision tree and feature selection

Classification and regression tree (CART) [12] is a widely used training algorithm of decision tree that can be applied to either classification or regression problems. It assumes the decision tree to be binary, and each non-leaf node is measured by a Boolean expression so that the input samples could be transferred into two branches: the left branch if the Boolean expression is “true” or the right branch otherwise. We chose CART because it is simple and fast, and the decision procedure can be easily understood.

Twelve features were selected to train the CART model, which were divided into four categories, shown as follows.

Category I. Read depth

Features under this category measure the absolute depth and depth ratio of reads that are “effective” to be a specific candidate variant. “Effective” means that the read shares the same base as the candidate variant at the candidate’s locus.

Feature 1: effective base depth

Effective Base Depth (EBD) is the sum of the depths of effective reads. For indel reads, the EBD equals the mapping quality, while for SNV reads, the EBD is the value of the mapping quality multiplied by the base quality.

Feature 2: effective base depth ratio

The EBD ratio, i.e., the EBD of one candidate variant divided by the sum of the EBDs of all candidate variants at that locus. If this indicator is very low, the related candidate variant tends to be a random error.

Feature 3: DeltaL

DeltaL is a statistic describing the difference between optimal and suboptimal genotypes. Fuwa first hypothesizes that the variant is true, so the reads covering this locus obey an almost ideal variant model: 0/1 or 1/1. The logarithms of likelihood under these two ideal models are calculated separately, and the bigger one is selected as L1. Then, Fuwa calculates the second likelihood logarithm, L2, under another hypothesis that the variant is false and that reads covering this locus follow the binomial distribution model. Thus, L1-L2, or DeltaL, is the logarithm of the ratio of the first and second likelihoods. If DeltaL is close to 0, which means the likelihoods of the ideal model and the binomial model are nearly equal, we empirically judged the variant to be false positive; otherwise, the variant tends to be true.

Category II. Base quality

This category focuses on the accuracy of a base sequenced by the sequencing machine, which has considerable impact on variant calling.

Feature 4: Sum of Base Quality (SumBQ)

This feature is the sum of the base quality of effective reads for one candidate variant. For indel reads, this value is set to 30 empirically.

Feature 5: Average Mapping Quality (AveBQ)

By dividing SumBQ by the number of effective reads, we obtain the average mapping quality.

Feature 6: Variance of Position (VarPos)

Here, “position” means the offset of the pile-up site from the 3′ end of a read. We use this statistic considering that, generally, sequencing quality declines towards the end of a read; thus, candidate variants that are close to the 3′ end are more likely to be sequencing errors.

Category III. Mapping/alignment quality

This category considers how well a read is mapped and aligned to its current locus. Mismatches lead to a higher possibility of false positives.

Feature 7: Average Mapping Quality (AveMQ)

The average of the mapping quality of effective reads at the candidate variant’s locus.

Feature 8: Worst Mapping Quality (WorMQ)

The worst mapping quality of all reads at the candidate variant’s locus.

Feature 9: Poor Mapping Quality Ratio (PoorMQR)

The ratio of reads with mapping quality lower than 15 at the candidate variant’s locus.

Feature 10: Average Alignment Score (AveAS)

The alignment score is a different metric than mapping quality, and its computing methods vary from aligner to aligner. Briefly speaking, the alignment score measures the similarity between a read and the reference genome, while mapping quality reflects the specificity that a read tends to be mapped to its current locus instead of other loci. AveAS is the average of the alignment scores of all reads at the candidate variant’s locus.

Category IV. Strand Bias

This category assumes that effective reads of true positives from positive and negative strands of DNA should be approximately equal.

Feature 11: Variance of Strands (VarStr)

Assuming that the numbers of effective reads from positive/negative strands obey the binomial distribution, the variance can be calculated through the formula D(n= np(1-p). If VarStr is small, it means that reads of the candidate variant cluster in one direction, suggesting a sequencing error or other false positive situations.

Feature 12: Bias of Strands (BiasStr)

BiasStr is a χ 2 value measuring the significance of correlation between “whether a read is effective” and the direction of strand that the read comes from. It is calculated by using a 2 × 2 contingency table (see Table 1):
$$ {x}^2=\frac{n{\left( ad- bc\right)}^2}{\left(a+b\right)\left(c+d\right)\left(a+c\right)\left(b+d\right)} $$
where n = a + b + c + d.
Table 1

Contingency table for calculating BiasStr

Strand Direction Effective

Positive

Negative

Yes

a

b

No

c

d

If BiasStr is too high, which means the effective reads of the candidate variant cluster in one strand, the candidate tends to be caused by sequencing error.

Modelling, calling and genotyping

When the training set is ready, Fuwa trains a decision tree using CART training algorithm. Once the tree is built, all candidate variants in each leaf node are assigned a new qual value, which is the mean qual of all candidate variants in that leaf node. Candidates with a qual higher than the threshold are reported as true variants in the final call set. The default threshold is set to 0.8 for SNPs and 0.6 for indels empirically.

Fuwa adopts a simple but effective genotyping strategy: if the effective depth of alternative reads is more than ten times the effective depth of reference reads, the genotype is considered homozygosity; otherwise, it is considered heterozygosity. This strategy is sufficient for most demands, and more precise (also slower) genotyping methods such as population-based genotyping can be applied if needed.

Results

Application 1: calling variants from whole-genome, exome-capture and low-coverage whole-genome sequencing data of NA12878

A well-studied sample, NA12878 (CEU cohort from Utah of northern and western European ancestry) from the 1000 Genomes Project [13], was analysed to evaluate the performance of Fuwa. We started from HiSeq WGS (75~ 86× 101-bp paired-end) data, exome-capture (average 210× 100-bp paired-end) data and low-coverage (~ 4×) whole-genome sequencing data, conducted read alignment with BWA (version 0.7.12), and applied preprocessing steps including duplicate removal, local realignment and base quality recalibration before the calling step. After the call sets were generated, we used the Axiom chip, high-quality haploid fosmid data and the NIST Genome in a Bottle integrated calls v0.2 (GIAB) [14] as benchmarks to evaluate these call sets. We compared Fuwa to 4 well-known DNA variant callers: SAMtools, GTAK-UnifiedGenotyper, GATK-HaplotypeCaller and Platypus, using all their latest version (SAMtools 1.3.1, GATK 3.7, and Platypus 0.8.1), default settings and applying their official “best practices”. We noticed that GATK 4 just released a beta version. In GATK 4, UnifiedGenotyper has been removed, while HaplotypeCaller for germline variants is directly inherited from GATK 3.7, and the experimental results of HaplotypeCaller from GATK 3.7 and GATK 4 are very close.

Calling variants from HiSeq whole-genome data

The experimental result indicates that Fuwa achieves fast speed and high precision in calling both SNVs and indels, with no obvious shortcomings (Table 2). The transition /transversion ratio of 2.03 is close to that in a previous study [15], which suggests good specificity for SNVs. Axiom SNP chip data offered strong support: Fuwa achieved the highest genotype concordance (99.32%) and lowest mono rate (0.04%). Although Fuwa called 3,820,377 SNVs, which was not as many as GATK-UnifiedGenotyper (4441130), GATK-HaplotypeCaller (4034309) or SAMtools (3959135), its recall against Axiom data (96.81%) and fosmid data (93.5%) is close to the three callers mentioned above.
Table 2

Comparison of four variant callers on whole-genome sequencing data



Whole genome



Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

SNPs

3,820,377

3,271,282

4,441,130

4,034,309

3,959,135

Ti/tv



2.03

2.13

1.84

1.94

2.01

Axiom

GT concordance (%)

99.32

98.29

97.3

98.52

99

Sensitivity (%)

96.81

94.34

97.41

97.16

96.88

Mono rate (%)

0.04

0.13

0.22

0.11

0.07

Fosmid

Recall (%)

93.5

90.7

95.03

94.56

93.79

GIAB

Recall (%)

98.41

89.34

98.65

98.44

97.89

Precision (%)

99.26

99.69

97.72

98.79

99.47

Indels

649,387

575,350

711,045

884,204

765,800

In-frame fraction



0.47

0.47

0.46

0.51

0.45

Fosmid

Recall (%)

68.04

75.69

64.31

72.25

60.59

GIAB

Recall (%)

87.48

69.49

89.74

94.7

80.98

Precision (%)

95.93

78.49

95.59

94.08

92.32

Runtime (real time, min)

127

233

1058

2545

1546

Ti/tv, transition/transversion rate; GT concordance, concordance of genotypes at Axiom-called loci; Sensitivity, ratio of non-reference calls at Axiom-called loci; Mono rate, fraction of monomorphic Axiom sites that are called as variants; In-frame fraction, fraction of indels (limited to coding regions) whose length are integer multiples of 3; Runtime, CPU minutes needed to process the input bam file; Recall = TP/(TP + FN); Precision = TP/(TP + FP); TP true positive, FN false negative, FP false positive

Using orthogonal technology such as Axiom and fosmid to estimate quality metrics has many limitations because microarray sites are not randomly distributed among the whole genome, as they only have genotype content with known common SNVs in regions that can be accessed by the technology. To overcome these limitations, we introduced the integrated call set of NA12878 from the Genome in a Bottle Consortium as benchmark, which combines 14 data sets from 5 sequencing technologies, 7 read mappers, and 3 variant callers: GATK-UnifiedGenotyper, GATK-HaplotypeCaller and Cortex. The source of the GIAB data suggests this benchmark in favour of GATK and may not be friendly to new callers. However, Fuwa still performs well: both recall and precision of GIAB are only slightly lower than the best values of corresponding metrics, further providing powerful evidence of Fuwa’s high sensitivity and accuracy on SNV calling in genome-wide data.

Indel calling is a more challenging task than SNV calling, but Fuwa can also perform well at this task. Frameshift indels in coding regions of DNA nearly always lead to the loss of function of proteins, so the frameshift fraction of indels is considered to be lower in coding regions than in non-coding regions. A previous study showed that approximately 50% of coding indels cause frameshift [16]. In the results of NA12878 whole-genome data calling, Fuwa called 649,387 indels with an in-frame fraction (fraction of indels that do not lead to frameshift) of 0.47, indicating high quality of the call set. Fuwa achieves the highest precision on GIAB (95.93%), while its recalls against fosmid data (68.4%, average 68.18%) and GIAB (87.48%, average 84.48%) are acceptable; from these data, we can estimate a low false-positive rate. Platypus achieved the highest fosmid recall (75.69%) with the smallest call set size (575350), which made it appear to have the highest precision, but indicators from GIAB showed the opposite result. We infer that this situation occurred because the fosmid chip only covers a small number of sites (1057) and the algorithm of Platypus may be more specific for these sites than other callers.

To evaluate Fuwa’s ability to call variants not in dbSNP, we excluded variants that are in dbSNP from Fuwa, Axiom, Fosmid, and the 1000 Genomes call sets, and then we recalculated the same metrics. The results are shown in Table 3. Specifically, Axiom called 299 non-reference sites, and Fuwa rediscovered 289 of them; Fosmid called 495 variants, and Fuwa rediscovered 315 of them; the 1000 Genomes confident call set contains 285,095 variants not in dbSNP, and Fuwa called 251,095 of them. We observed that Fuwa can still predict most variants, indicating that Fuwa has gained power to infer new variants through the model training process. Thus our basic assumption that, real variants not in dbSNP and variants in dbSNP should have similar characteristics for the 12 features, is supported.
Table 3

Comparison of Fuwa’s callsets on NA12878 WGS data before and after variants in dbSNP are removed



All

non-dbSNPs

Axiom

GT concordance(%)

99.32

100.00

Sensitivity(%)

96.81

96.66

Mono Rate(%)

0.04

0.00

Fosmid

Recall(%)

88.11

63.63

1KG confident call set

Recall(%)

95.31

88.07

Since calling rare variants is the challenging but yet important component, we specifically evaluated Fuwa’s ability to call rare variants. According to Table 4, we estimated that Fuwa’s sensitivities for variants with an allele frequency lower than 5% (73.21%), 1% (62.87%), 0.5% (60.26%) and 0.1% (63.08%) are very similar to those of Platypus, GATK and SAMtools (average 73.19%, 62.77%, 60.12% and 62.87%). Further study showed a high coincidence of the rare variants (AF ≤ 5%) callsets of the 4 callers, specifically over 99% rare variants called by Fuwa are also called by GATK, suggesting good specificity of Fuwa for calling rare variants.
Table 4

Comparison of four variant callers for calling rare variants

AF



benchmark

(high-conf)

Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

≤5%

count

282,869

207,098

201,577

210,190

209,119

207,187

ratio (%)

73.21

71.26

74.31

73.93

73.24

≤1%

count

128,661

80,895

78,908

81,758

81,417

80,956

ratio (%)

62.87

61.33

63.55

63.28

62.92

≤0.5%

count

92,309

55,630

54,280

56,137

55,928

55,646

ratio (%)

60.26

58.80

60.81

60.59

60.28

≤0.1%

count

37,563

23,695

23,112

23,863

23,795

23,688

ratio (%)

63.08

61.53

63.53

63.35

63.06

AF allele frequency

As for run time, Fuwa only spends approximately 2 h (127 min) on the calling process and reduces the CPU time cost by an order of magnitude when compared with GATK (UnifiedGenotyper 1058 min, HaplotypeCaller 2545 min) or SAMtools (1546 min) and by nearly half when compared with Platypus (233 min). The ultra-fast calling speed allows Fuwa to achieve high throughput.

Calling variants from exome-capture data

Exome-capture sequencing is more efficient and cost-effective than whole-genome sequencing because the time and monetary costs of exome-capture sequencing are much lower than those of whole genome sequencing, and most clinically explicable variants occur in coding regions. We called exome-capture data of NA12878, and then used SNP chips and GIAB integrated calling set to evaluate the sensitivity and accuracy of callers. The analysis results are shown in Table 5. Note that the computation of all the metrics in this table was limited in the coding regions.
Table 5

Comparison of four variant callers on whole-exome sequencing data



Whole exome



Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

SNPs

22,119

21,260

24,777

21,774

20,938

Ti/tv



2.65

2.97

2.36

2.59

2.7

Axiom

GT concordance (%)

96.82

92.83

90.83

95.65

97.15

Recall (%)

91.09

86.55

92.37

90.34

89.8

Mono rate (%)

0.1

0.28

0.37

0.16

0.08

Fosmid

Recall (%)

NA

NA

NA

NA

NA

GIAB

Recall (%)

87.59

77.39

87.02

86.37

86.78

Precision (%)

98.44

99.88

93.06

96.28

97.61

Indels

478

773

405

440

680

In-frame fraction



0.39

0.28

0.35

0.44

0.35

Fosmid

Recall (%)

NA

NA

NA

NA

NA

GIAB

Recall (%)

64.41

51.42

55.35

64.47

52.37

Precision (%)

92.79

68.87

91.71

96.4

78.24

Runtime (real time, min)

13.5

9.8

93.6

170.5

85.3

NA not available. Fosmid call set failed to act as a benchmark on exome data analysis results because it rarely covers sites of exome regions

As shown in Table 5, the overall results are quite similar to those of whole-genome data. Fuwa ranks first in SNV recall against GIAB (87.59%) and second in all other quality metrics, among which most are very close to the best values of the same rows: Axiom genotype concordance (0.33%), Axiom mono rate (0.02%), GIAB SNP precision (0.44%) and GIAB indel recall (0.06%), indicating good specificity for exome sequencing data. Again, Fuwa finished variant calling process at time cost of an order of magnitude less than that of GATK and six-sevenths less than that of SAMtools. Although Platypus ran somewhat (4 min) faster than Fuwa, it produced the worst results for half of the metrics. Overall, Fuwa achieves high speed with a well-balanced performance with regard to accuracy and recall, making it a good choice for exome-capture data analysis.

Calling variants from low-coverage sequencing data

Low-coverage data pose a great challenge for variant detection because there may not be enough reads at each locus for making the right judgement. To evaluate the 5 calling algorithms’ adaptation for such kind of data, we applied them to NA12878 low-coverage sequencing data (average ~ 4×). The results are shown in Table 6. Consequently, Fuwa’s performance is stable compared to experiments with WGS data and exome-capture sequencing data. Some callers encounter a much sharper reduction in some aspects of performance than others, such as Platypus for SNV recalls (12%~ 17% below average) and GATK-UnifiedGenotyper for indel discovery (4 indel metrics of GATK-UG rank last); these reductions do not occur with Fuwa. In contrast, Fuwa ranks first or second in 7 of 11 comparable items, while the performance on the remaining 4 items is higher or slightly lower than the average level.
Table 6

Comparison of four variant callers on low-coverage WGS data



Low coverage



Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

SNPs

3,023,581

2,233,580

3,121,470

2,494,546

2,846,019

Ti/tv



2.02

2.08

1.95

1.98

1.99

Axiom

GT concordance (%)

92.94

94.25

92.02

93.28

91.29

Recall (%)

75.88

57.74

77.22

62.89

72.58

Mono rate (%)

0.03

0.01

0.05

0.02

0.03

Fosmid

Recall (%)

77.68

59.62

78.45

65.59

73.87

GIAB

Recall (%)

79.09

51.32

66.87

66.99

75.78

Precision (%)

98.94

99.62

99.41

99.48

99.37

Indels

428,290

441,861

108,233

340,404

386,158

In-frame fraction



0.41

0.43

0.37

0.43

0.48

Fosmid

Recall (%)

42.75

42.45

12.75

33.73

35.88

GIAB

Recall (%)

59.33

46.62

16.77

48.5

52.69

Precision (%)

95.2

79.9

97.79

95.8

94.06

Runtime (real time, min)

37.7

24

138

427.8

312.3

To further measure Fuwa’s specificity for low-coverage data, we compared the overlap of call sets of WGS high-coverage and low-coverage data (Fig. 2) for each caller. The Venn diagrams in Fig. 2 indicate that the call sets of Fuwa have a significantly higher overlap ratio against the union set both for SNVs (76.82%) and indels (52.16%) than other callers. The Venn diagram of SAMtools SNV looks similar to that of Fuwa, but its overlap ratio is actually 71.43%, lower than that of Fuwa by 5.39%. For indel, the difference is even more obvious: the second-ranking overlap ratio, which is also from SAMtools, is 39.64%, dropping 12.52% below the value of Fuwa. The result supports that Fuwa has outstanding specificity for low-pass data.
Fig. 2
Fig. 2

Overlap between WGS high-coverage and low-coverage call sets

Application 2: calling variants from data which have not been used to populate dbSNP

Due to the fact that NA12878 has been well studied and almost all of its variants are in dbSNP, we conducted additional experiments on 4 other samples to further evaluate Fuwa’s performance under more general conditions. Three of these samples (NA24149, NA24143, and NA24385) are an Ashkenazim trio and the other one (NA24631) is a Chinese male. These samples are newly released by GIAB and have not been used to populate dbSNP. We used the high-confidence callsets of these samples provided by GIAB as benchmarks for estimating sensitivities of Fuwa and other callers. About 8% variants in these benchmarks are not in dbSNP. The analysis results are shown in Table 7. The results show that Fuwa is a top hunter for SNPs (highest recall 99.91%, highest precision 84.92%), while its ability for calling indels (highest recall 93.52%, highest precision 60.87%) stay comparable to other callers. Although Fuwa is somehow weaker in discovering more indels, its specificity for indel calling is often the highest.
Table 7

Comparison of SNP and indel calls on the WGS data of the Ashkenazim Trio and the Chinese sample for the four callers



benchmark

Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

a. NA24149

 Total

3,600,577

4,596,629

4,936,516

5,078,361

4,962,252

5,121,162

 SNP

3,062,103

3,773,197

3,741,864

4,222,373

4,073,476

4,052,727

 Indel

538,474

823,432

1,194,652

855,988

888,776

1,068,435

 SNP Recall(%)

99.64

94.10

99.88

99.88

99.55

 SNP Precision(%)

80.86

77.00

72.44

75.08

75.22

 Indel Recall(%)

91.99

97.26

95.51

96.66

80.30

 Indel Precision(%)

60.16

43.84

60.08

58.57

40.47

b. NA24143

 Total

3,638,487

4,683,584

5,047,869

5,185,325

5,069,960

5,231,986

 SNP

3,089,689

3,848,083

3,818,763

4,304,521

4,153,126

4,127,152

 Indel

548,798

835,501

1,229,106

880,804

916,834

1,104,834

 SNP Recall(%)

99.65

94.12

99.89

99.90

99.55

 SNP Precision(%)



80.01

76.15

71.70

74.32

74.53

 Indel Recall(%)

91.86

97.29

95.73

96.92

80.38

 Indel Precision(%)



60.34

43.44

59.64

58.01

39.92

c. NA24385

 Total

3,650,031

4,765,697

4,425,266

4,839,691

4,685,838

5,191,731

 SNP

3,101,709

3,942,411

3,452,047

3,987,637

3,803,199

4,123,595

 Indel

548,322

823,286

973,219

852,054

882,639

1,068,136

 SNP Recall(%)

99.91

88.60

99.88

99.92

99.67

 SNP Precision(%)



78.60

79.60

77.69

81.49

74.97

 Indel Recall(%)

91.39

90.14

95.98

98.21

81.96

 Indel Precision(%)



60.87

50.79

61.77

61.01

42.07

d. NA24631

 Total

3,655,030

4,599,648

4,935,176

4,987,136

4,871,278

4,667,766

 SNP

3,195,050

3,743,038

3,647,691

4,079,102

3,901,018

3,900,109

 Indel

459,980

856,610

1,287,485

908,034

970,260

767,657

 SNP Recall(%)

99.48

93.98

99.93

99.92

99.67

 SNP Precision(%)



84.92

82.32

78.27

81.84

81.65

 Indel Recall(%)

93.52

97.53

97.53

99.54

12.48

 Indel Precision(%)



50.22

34.84

49.41

47.19

7.48

We compared the ability of the four callers to call rare and novel variants as is shown in Tables 8 and 9. The results of calling variants from the four samples are all very similar, so for convenience we will take the data of Tables 8a and 9a respectively in the following. We still used high-confidence callsets provided by GIAB as benchmarks, and the values of allele frequencies were obtained from gnomAD. The results in Table 8a show that Fuwa discovered over 98.63% known rare variants of the high-confidence callsets, which is higher than Platypus (95.57%) and is very close to GATK (99.51%). Such results provided more evidence of Fuwa’s specificity for calling rare variants. Meanwhile, we noticed that Fuwa performed weaker than GATK and Platypus in calling variants that are not in gnomAD. Further study showed that Fuwa found about 95.4% non-gnomAD SNPs, which is close to GATK (about 96.2%). But indels are the majority of non-gnomAD variants (average ratio 89.5%) and Fuwa found only 87.8% of them. In Table 9 we compared the performance of the four calling programmes on non-dbSNP variants. The results showed that Fuwa has the highest precisions for both SNPs (78.03%) and indels (31.33%), a very high recall for SNPs (99.26%) and a higher recall for indels (78.23%) than SAMtools. Considering that more sensitive indel calling requires much more complex algorithms and Fuwa achieved such specificities and sensitivities at much higher speed than other callers (see below), we think the weaker performance of Fuwa on discovering novel indels are acceptable.
Table 8

Rare and novel variants called by each of the four callers from the WGS data of the Ashkenazim Trio and the Chinese sample

AF



benchmark

Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

a. NA24149

  ≤ 5%

Count

182,482

179,986

174,392

181,248

181,586

179,514

Recall (%)

98.63

95.57

99.32

99.51

98.37

  ≤ 1%

Count

72,585

71,636

69,736

72,098

72,090

71,434

Recall (%)

98.69

96.07

99.33

99.32

98.41

  ≤ 0.5%

Count

54,448

53,757

52,379

54,096

54,041

53,603

Recall (%)

98.73

96.20

99.35

99.25

98.45

  ≤ 0.1%

Count

32,831

32,473

31,607

32,637

32,567

32,402

Recall (%)

98.91

96.27

99.41

99.20

98.69

  = 0%

(novel)

Count

298,984

265,501

285,754

282,165

282,348

211,935

Recall(%)

88.80

95.58

94.37

94.44

70.89

b. NA24143

  ≤ 5%

Count

189,494

187,013

180,969

188,308

188,644

186,607

Recall (%)

98.69

95.50

99.37

99.55

98.48

  ≤ 1%

Count

74,701

73,773

71,681

74,253

74,215

73,646

Recall (%)

98.76

95.96

99.40

99.35

98.59

  ≤ 0.5%

Count

55,428

54,744

53,241

55,104

55,023

54,664

Recall (%)

98.77

96.05

99.42

99.27

98.62

  ≤ 0.1%

Count

33,113

32,711

31,816

32,918

32,831

32,705

Recall (%)

98.79

96.08

99.41

99.15

98.77

  = 0%

(novel)

Count

304,746

269,764

291,681

288,547

288,978

215,956

Recall(%)

88.52

95.71

94.68

94.83

70.86

c. NA24385

  ≤ 5%

Count

187,589

185,929

163,225

186,412

186,909

185,048

Recall (%)

99.12

87.01

99.37

99.64

98.65

  ≤ 1%

Count

74,132

73,539

64,827

73,693

73,720

73,241

Recall (%)

99.20

87.45

99.41

99.44

98.80

  ≤ 0.5%

Count

55,153

54,748

48,305

54,851

54,811

54,551

Recall (%)

99.27

87.58

99.45

99.38

98.91

  ≤ 0.1%

Count

32,722

32,516

28,673

32,547

32,487

32,443

Recall (%)

99.37

87.63

99.47

99.28

99.15

  = 0%

(novel)

Count

303,456

267,728

259,920

289,030

294,058

222,433

Recall(%)

88.23

85.65

95.25

96.90

73.30

d. NA24631

  ≤ 5%

Count

241,718

239,035

230,265

240,706

241,089

222,774

Recall (%)

98.89

95.26

99.58

99.74

92.16

  ≤ 1%

Count

112,774

111,568

108,087

112,284

112,308

104,437

Recall (%)

98.93

95.84

99.57

99.59

92.61

  ≤ 0.5%

Count

88,884

87,972

85,370

88,521

88,467

82,493

Recall (%)

98.97

96.05

99.59

99.53

92.81

  ≤ 0.1%

Count

47,358

46,889

45,557

47,135

47,045

44,078

Recall (%)

99.01

96.20

99.53

99.34

93.07

  = 0%

(novel)

Count

231,303

208,579

220,259

224,747

227,952

66,392

Recall(%)

90.18

95.23

97.17

98.55

28.70

AF, allele frequency; novel, the variant is not in gnomAD

Table 9

Recalls and precisions of the four callers for non-dbSNPs



benchmark

Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

a. NA24149

 non-dbSNPs

SNP

235,880

300,076

473,231

644,589

568,941

543,132

Indel

41,779

104,329

398,110

125,147

158,748

416,411

 non-dbSNPs in benchmark

SNP

235,880

234,135

230,167

235,362

235,506

234,330

Recall (%)

99.26

97.58

99.78

99.84

99.34

Precision(%)

78.03

48.64

36.51

41.39

43.14

Indel

41,779

32,682

37,472

34,926

38,036

29,766

Recall(%)

78.23

89.69

83.60

91.04

71.25

Precision (%)

31.33

9.41

27.91

23.96

7.15

b. NA24149

 non-dbSNPs

SNP

235,889

306,323

486,914

659,433

582,136

551,555

Indel

42,960

105,352

412,520

131,903

167,074

437,377

 non-dbSNPs in benchmark

SNP

235,889

233,881

230,076

235,251

235,477

234,184

Recall (%)

99.15

97.54

99.73

99.83

99.28

Precision(%)

76.35

47.25

35.67

40.45

42.46

Indel

42,960

33,262

38,642

36,128

39,354

30,455

Recall(%)

77.43

89.95

84.10

91.61

70.89

Precision (%)

31.57

9.37

27.39

23.55

6.96

c. NA24385

 non-dbSNPs

SNP

235,666

337,194

405,643

420,580

335,917

510,292

Indel

43,316

101,414

287,205

111,591

133,827

393,173

 non-dbSNPs in benchmark

SNP

235,666

234,975

216,620

235,010

235,227

234,147

Recall (%)

99.71

91.92

99.72

99.81

99.36

Precision(%)

69.69

53.40

55.88

70.03

45.88

Indel

43,316

32,730

32,728

36,766

40,921

31,719

Recall(%)

75.56

75.56

84.88

94.47

73.23

Precision (%)

32.27

11.40

32.95

30.58

8.07

d. NA24631

 non-dbSNPs

SNP

238,105

279,070

339,514

426,948

353,943

344,006

Indel

29,923

108,105

436,409

124,443

160,437

491,021

 non-dbSNPs in benchmark

SNP

238,105

236,336

232,361

237,545

237,664

236,804

Recall (%)

99.26

97.59

99.76

99.81

99.45

Precision(%)

84.69

68.44

55.64

67.15

68.84

Indel

29,923

22,869

26,652

26,007

28,970

6885

Recall(%)

76.43

89.07

86.91

96.82

23.01

Precision (%)

21.15

6.11

20.90

18.06

1.40

Finally, we compared the time, RAM and CPU costs of the four callers when calling NA24149 in Table 10 (the hardware and system environments for experiments are listed in Table 11). Fuwa finished the task in an hour and a half, while Platypus spent half a day, and the slowest caller, GATK-HC, ran two days and a half. Fuwa achieved such a high speed using only one CPU thread and no more than 1.6G RAM, saving much CPU and RAM resources compared to GATK. Moreover, when calling variants from NA24385 (BAM size 284GB after preprocessing), Fuwa finished in 3 h, but GATK predicted itself to run over 8 days, so we had to split the BAM file into 4 ones and ran 4 GATK processes to call them in parallel, each process with 8 threads. Even so GATK still fell behind Fuwa by about 10 h. With the fast increase of the size of single NGS data file, the advantages of Fuwa will be more prominent.
Table 10

Runtime comparison of the four calling programs using NA24149 WGS data as input



Fuwa

Platypus

GATK-UG

GATK-HC

SAMtools

Time(min)

96.97

796

1434.6

3617.4

3025.68

RAM max(M)

1638.4

3174.4

4710.4

6656

284

RAM average(M)

1299.85

1217.72

1092.03

1935.76

192.67

CPU max(%)

100

100

257.2

1336.1

100

CPU average(%)

98.9

98.57

104.23

112.21

98.85

Table 11

Hardware and system environments for the experiment

RAM

64GB

CPU

2 physical CPUs, each with 8 cores

CPU model

2.60GHz Intel(R) Xeon(R) CPU E5–2670

Logical Processor

32

OS

Ubuntu14.04.5 LTS x86_64

Java

version 1.8.0_121, Java(TM) SE Runtime Environment

Discussion

The following command line is a typical invocation of Fuwa:

fuwa -i sample.bam -d dbsnp141.gz -r reference/ -o sample.fuwa.

The input file dbsnp141.gz provides variants in dbSNP, and the input directory reference provides all the DNA reference sequences. To cut down the cost of I/O operations and the memory usage, we divided hs37d5.fa into multiple files according to chromosomes, and these files must be put in the same directory, i.e., the reference directory.

In a single run, besides the VCF file Fuwa also outputs a “tree” file that records all the nodes as well as their relevant decisions of the decision tree. Each node of the tree is written in a separate line. Below is an example of a node:

1395 0.91798 SumBQ> 329 VarPos> 118,520 AveBQ> 16.4222 AveMQ> 47.1515 \.

Depth> 87.9315 AveAS> 68.8356 Ratio> 0.818494 DeltaL>− 0.0100506 \.

AveAS> 93.4468 AveMQ> 69.9913 AveBQ> 23.6107 VarPos> 320,454 \.

AveAS> 123.286 AveMQ> 71.1475.

The first item is the number of candidate variants in this node. The second item is the qual value of this node. And the rest items of this line record the decision process that ends up with this node.

Conclusions

We proposed a decision-tree-based method Fuwa for fast calling variants. Although decision tree is not a very sophisticated algorithm, Fuwa is expected to achieve good performance with regard to accuracy, recall and speed simultaneously. The results of applying Fuwa to a well-studied sample from 1000 Genomes met our expectations on whole-genome sequencing data, whole-exome capture data and low-coverage data. Comparison between high-coverage and low-coverage WGS call sets demonstrates that Fuwa is capable of handling sequencing depth insufficiency, benefiting from the usage of dbSNP and the self-adaption property of machine learning algorithms. Further experiments on 4 samples that have not been used to populate dbSNP added more evidence to Fuwa’s specificity on calling common and rare variants, and the runtime records suggested that Fuwa is not only a fast caller, but also a resource-conserving programme, making Fuwa a competitive choice in processing NGS data that are getting larger every year.

One advantage of machine learning algorithms is that their working parameters do not rely on user settings. Among those popular callers such as SAMtools, there exist many parameters for setting thresholds. Although most parameters have default values that usually work fine, these values are mostly obtained empirically, and when applied to unusual data sets such as low-coverage sequencing data, they are not as useful as they are in common situations. In contrast, Fuwa can automatically learn to adapt to different datasets and keep performing well. We believe that Fuwa is a good choice for significantly improving the throughput of the NGS data analysis pipeline for both high-pass and low-coverage data.

Abbreviations

AveAS:

Average alignment score

AveBQ:

Average mapping quality

AveMQ:

Average mapping quality

BAM:

Binary sequence alignment/map format

BiasStr:

Bias of strands

CART:

Classification and regression tree

dbSNP:

The single nucleotide polymorphism database

EBD:

Effective base depth

GATK:

Genome analysis toolkit

GIAB:

Genome in a bottle

gnomAD:

The genome aggregation database

Indel:

Insertion and deletion

NGS:

Next-generation sequencing

PoorMQR:

Poor mapping quality ratio

SAM:

Sequence alignment/mapping format

SNP:

Single nucleotide polymorphism

SNV:

Single nucleotide variant

SumBQ:

Sum of base quality

VarPos:

Variance of position

VarStr:

Variance of strands

VCF:

Variant call format

WGS:

Whole-genome sequencing

WorMQ:

Worst mapping quality

Declarations

Funding

This work was supported by grants from the National Natural Science Foundation of China (61472086 and 31501067) and grants from the National Key Research and Development Program of China (2016YFC0902100).

Availability of data and materials

The Fuwa executable file and other necessary resources can be obtained from https://github.com/leegent/Fuwa.

Below are the detailed parameters for preprocessing raw BAM files and calling variants in the experiment.
  1. 1)

    BAM files preprocessing



Step 1. Marking Duplicates

java -jar ${gatkDir}/picard.jar MarkDuplicates \

TMP_DIR= /tmp

I=${raw_bam}

O=${sample}.dedup.bam \

M=marked_dup_metrics.txt

Step 2. Adding read groups

java -jar ${gatkDir}/picard.jar AddOrReplaceReadGroups \

TMP_DIR=/tmp

I=${sample}.dedup.bam \

O=${sample}.headed.bam \

RGID=b37ID RGLB=b37ID RGPL=illumina RGPU=b37PU RGSM=20

samtools index ${sample}.headed.bam

Step 3. Local realignment around indels

java -jar ${gatkDir}/GenomeAnalysisTK.jar -T RealignerTargetCreator \

-R ${refDir}/hs37d5.fa \

-I ${sample}.headed.bam \

-o ${sample}.realn.intervals \

-known ${refDir}/Mills_and_1000G_gold_standard.indels.b37.vcf \

-known ${refDir}/1000G_phase1.indels.b37.vcf

java -jar ${gatkDir}/GenomeAnalysisTK.jar -T IndelRealigner \

-R ${refDir}/hs37d5.fa \

-I ${sample}.headed.bam \

-o ${sample}.realn.bam \

-targetIntervals ${sample}.realn.intervals \

-known ${refDir}/Mills_and_1000G_gold_standard.indels.b37.vcf \

-known ${refDir}/1000G_phase1.indels.b37.vcf

Step 4. Base quality score recalibration

java -jar ${gatkDir}/GenomeAnalysisTK.jar -T BaseRecalibrator \

-R ${refDir}/hs37d5.fa \

-I ${sample}.realn.bam \

-o ${sample}.recalibration_report.grp \

-knownSites ${refDir}/dbsnp_138.b37.vcf \

-knownSites ${refDir}/Mills_and_1000G_gold_standard.indels.b37.vcf \

-knownSites ${refDir}/1000G_phase1.indels.b37.vcf

java -jar ${gatkDir}/GenomeAnalysisTK.jar -T PrintReads \

-R ${refDir}/hs37d5.fa \

-I ${sample}.realn.bam \

-o ${sample}.realn.recal.bam \

-BQSR ${sample}.recalibration_report.grp

Note:
  1. 1.

    The downloaded NA12878 WGS and exome-capture BAM files have already been preprocessed through the 4 steps above.


  2. 2.

    We applied the full preprocessing pipeline on NA12878 low-coverage WGS data, and before that we used BWA to convert the raw FASTQ into a BAM file.


  3. 3.

    We failed to apply marking duplicates to NA24149, NA24143, NA24385 and NA24631 because some information required by Picard doesn’t exist in the raw BAM files downloaded from GIAB. So we skipped the first preprocessing step and conducted the remaining 3 steps on those 4 samples.


  4. 4.

    To save time we split the NA24385 BAM file into 4 ones, then we preprocessed and called them in parallel. After variants calling we merged the VCF files from the same caller using BCFtools. We also split the NA24631 raw BAM file into 9 ones for parallel.


  5. 2)

    Variant calling



Fuwa

${fuwaDir}/fuwa -d ${fuwaDir}/dbsnp141.gz -r ${fuwaDir}/reference/ -i ${sample}.bam -o ${sample}.fuwa

Platypus

python ${platypusDir}/Platypus.py callVariants --bamFiles=${sample}.bam --refFile=${refDir}/hs37d5.fa --output=${sample}.platypus.vcf

GATK-HaplotypeCaller

java -jar ${gatkDir}/GenomeAnalysisTK.jar \

-R ${refDir}/hs37d5.fa \

-T HaplotypeCaller \

-I ${sample}.bam \

-o ${sample}.gatk.HC.vcf

GATK-UnifiedGenotyper

java -jar ${gatkDir}/GenomeAnalysisTK.jar \

-R ${refDir}/hs37d5.fa \

-T UnifiedGenotyper \

-I ${sample}.bam \

-o ${sample}.gatk.UG.vcf \

-glm BOTH \

-rf BadCigar

SAMtools

samtools mpileup -ugf ${refDir}/hs37d5.fa ${sample}.bam | bcftools call -vmO z -o ${sample}.samtools.vcf.gz

Note: we added “–nct 8” parameters when running GATK-HaplotypeCaller and GATK-UnifiedGenotyper on NA24385 and NA24631 BAM files.
  1. 3)

    URL list of data and benchmarks



NA12878 WGS BAM:

ftp://ftp.1000genomes.ebi.ac.uk/vol1/ftp/technical/working/20120117_ceu_trio_b37_decoy/CEUTrio.HiSeq.WGS.b37_decoy.NA12878.clean.dedup.recal.20120117.bam

NA12878 Exome-capture BAM:

ftp://ftp.1000genomes.ebi.ac.uk/vol1/ftp/technical/working/20120117_ceu_trio_b37_decoy/CEUTrio.HiSeq.WEx.b37_decoy.NA12878.clean.dedup.recal.20120117.bam

NA12878 Low-coverage WGS data FASTQ:

ftp://ftp.sra.ebi.ac.uk/vol1/fastq/SRR622/SRR622461/SRR622461.fastq.gz

Axiom Chip callsets:

ftp://ftp.ncbi.nih.gov/1000genomes/ftp/phase1/analysis_results/supporting/axiom_genotypes/ALL.wex.axiom.20120206.snps_and_indels.genotypes.vcf.gz

Fosmid Chip callsets:

ftp://ftp.1000genomes.ebi.ac.uk/vol1/ftp/technical/working/20120627_NA12878_fosmid_data/NA12878.fosmid.ABC12.cleaned.decoy.indel_snp.vcf.gz

NA24149 raw BAM:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/data/AshkenazimTrio/HG003_NA24149_father/NIST_Illumina_2x250bps/novoalign_bams/HG003.hs37d5.2x250.bam

NA24149 high-conf:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/release/AshkenazimTrio/HG003_NA24149_father/latest/GRCh37/HG003_GRCh37_GIAB_highconf_CG-IllFB-IllGATKHC-Ion-10X_CHROM1-22_v.3.3.2_highconf.vcf.gz

NA24143 raw BAM:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/data/AshkenazimTrio/HG004_NA24143_mother/NIST_Illumina_2x250bps/novoalign_bams/HG004.hs37d5.2x250.bam

NA24143 high-conf:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/release/AshkenazimTrio/HG004_NA24143_mother/latest/GRCh37/HG004_GRCh37_GIAB_highconf_CG-IllFB-IllGATKHC-Ion-10X_CHROM1-22_v.3.3.2_highconf.vcf.gz

NA24385 raw BAM:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/data/AshkenazimTrio/HG002_NA24385_son/NIST_Illumina_2x250bps/novoalign_bams/HG002.hs37d5.2x250.bam

NA24385 high-conf:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/release/AshkenazimTrio/HG002_NA24385_son/latest/GRCh37/HG002_GRCh37_GIAB_highconf_CG-IllFB-IllGATKHC-Ion-10X-SOLID_CHROM1-22_v.3.3.2_highconf_triophased.vcf.gz

NA24631 raw BAM:

ftp://ftp-trace.ncbi.nih.gov/giab/ftp/data/ChineseTrio/HG005_NA24631_son/HG005_NA24631_son_HiSeq_300x/NHGRI_Illumina300X_Chinesetrio_novoalign_bams/HG005.hs37d5.300x.bam

NA24631 high-conf:

ftp://ftp-trace.ncbi.nlm.nih.gov/giab/ftp/release/ChineseTrio/HG005_NA24631_son/latest/GRCh37/HG005_GRCh37_highconf_CG-IllFB-IllGATKHC-Ion-SOLID_CHROM1-22_v.3.3.2_highconf.vcf.gz

GnomAD:

https://storage.googleapis.com/gnomad-public/release/2.0.2/vcf/genomes/gnomad.genomes.r2.0.2.sites.chr1.vcf.bgz

(To get all the VCF files of the whole genome, replace chr1 with ch2, chr3…, chrX)

Authors’ contributions

YW developed Fuwa. ZL contributed code and algorithms, performed validation experiments and was a major contributor in writing the manuscript. FW initiated and led the project. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Shanghai Key Lab of Intelligent Information Processing, Shanghai, China
(2)
School of Computer Science and Technology, Fudan University, Shanghai, China
(3)
MOE Key Laboratory of Contemporary Anthropology and State Key Laboratory of Genetic Engineering, Collaborative Innovation Center of Genetics and Developmental Biology and School of Life Sciences, Fudan University, Shanghai, 200438, China

References

  1. Schmidt B, et al. Next-generation sequencing: big data meets high performance computing. Drug Discov Today. 2017;22(4):712-17.Google Scholar
  2. McKenna A, et al. The genome analysis toolkit: a MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010;20(9):1297–303.View ArticlePubMedPubMed CentralGoogle Scholar
  3. Li H, Ruan J, Durbin R. Mapping short DNA sequencing reads and calling variants using mapping quality scores. Genome Res. 2008;18(11):1851–8.View ArticlePubMedPubMed CentralGoogle Scholar
  4. Li H. The Sequence Alignment/Map format and SAMtools. Bioinformatics. 2009;25(16):2078–9.View ArticlePubMedPubMed CentralGoogle Scholar
  5. Rimmer A, et al. Integrating mapping-, assembly- and haplotype-based approaches for calling variants in clinical sequencing applications. Nat Genet. 2014;46(8):912–8.View ArticlePubMedPubMed CentralGoogle Scholar
  6. Albers CA, et al. Dindel: accurate indel calls from short-read data. Genome Res. 2011;21(6):961–73.View ArticlePubMedPubMed CentralGoogle Scholar
  7. DePristo MA, et al. A framework for variation discovery and genotyping using next-generation DNA sequencing data. Nat Genet. 2011;43(5):491–8.View ArticlePubMedPubMed CentralGoogle Scholar
  8. Spinella JF, Mehanna P, Vidal R, et al. SNooPer: a machine learning-based method for somatic variant identification from low-pass next-generation sequencing. BMC Genomics. 2016;17(1):912.View ArticlePubMedPubMed CentralGoogle Scholar
  9. Smigielski EM, et al. dbSNP: a database of single nucleotide polymorphisms. Nucleic Acids Res. 2000;28(1):352–5.View ArticlePubMedPubMed CentralGoogle Scholar
  10. Danecek P, et al. The variant call format and VCFtools. Bioinformatics. 2011;27(15):2156–8.View ArticlePubMedPubMed CentralGoogle Scholar
  11. Challis D, et al. An integrative variant analysis suite for whole exome next-generation sequencing data. BMC Bioinformatics. 2012;13:8.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Breiman L. et al. Classification and regression trees. Boca Raton: CRC press; 1984.Google Scholar
  13. Consortium GP. A map of human genome variation from population-scale sequencing. Nature. 2010;467(7319):1061–73.View ArticleGoogle Scholar
  14. Zook JM, et al. Integrating human sequence data sets provides a resource of benchmark SNP and indel genotype calls. Nat Biotechnol. 2014;32(3):246–51.View ArticlePubMedGoogle Scholar
  15. The Genomes Project Consortium. An integrated map of genetic variation from 1,092 human genomes. Nature. 2012;491(7422):56–65.View ArticleGoogle Scholar
  16. Mills RE, et al. Natural genetic variation caused by small insertions and deletions in the human genome. Genome Res. 2011;21(6):830–9.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2018

Advertisement
