Comparing the performance of selected variant callers using synthetic data and genome segmentation
© The Author(s). 2018
- Received: 1 August 2018
- Accepted: 19 October 2018
- Published: 19 November 2018
High-throughput sequencing has rapidly become an essential part of precision cancer medicine. But validating results obtained from analyzing and interpreting genomic data remains a rate-limiting factor. The gold standard, of course, remains manual validation by expert panels, which is not without its weaknesses, namely high costs in both funding and time as well as the necessarily selective nature of manual validation. But it may be possible to develop more economical, complementary means of validation. In this study we employed four synthetic data sets (variants with known mutations spiked into specific genomic locations) of increasing complexity to assess the sensitivity, specificity, and balanced accuracy of five open-source variant callers: FreeBayes v1.0, VarDict v11.5.1, MuTect v1.1.7, MuTect2, and MuSE v1.0rc. FreeBayes, VarDict, and MuTect were run in bcbio-next gen, and the results were integrated into a single Ensemble call set. The known mutations provided a level of “ground truth” against which we evaluated variant-caller performance. We further facilitated the comparison and evaluation by segmenting the whole genome into 10,000,000 base-pair fragments which yielded 316 segments.
Differences among the numbers of true positives were small among the callers, but the numbers of false positives varied much more when the tools were used to analyze sets one through three. Both FreeBayes and VarDict produced strikingly more false positives than did the others, although VarDict, somewhat paradoxically also produced the highest number of true positives. The Ensemble approach yielded results characterized by higher specificity and balanced accuracy and fewer false positives than did any of the five tools used alone. Sensitivity and specificity, however, declined for all five callers as the complexity of the data sets increased, but we did not uncover anything more than limited, weak correlations between caller performance and certain DNA structural features: gene density and guanine-cytosine content. Altogether, MuTect2 performed the best among the callers tested, followed by MuSE and MuTect.
Spiking data sets with specific mutations –single-nucleotide variations (SNVs), single-nucleotide polymorphisms (SNPs), or structural variations (SVs) in this study—at known locations in the genome provides an effective and economical way to compare data analyzed by variant callers with ground truth. The method constitutes a viable alternative to the prolonged, expensive, and noncomprehensive assessment by expert panels. It should be further developed and refined, as should other comparatively “lightweight” methods of assessing accuracy. Given that the scientific community has not yet established gold standards for validating NGS-related technologies such as variant callers, developing multiple alternative means for verifying variant-caller accuracy will eventually lead to the establishment of higher-quality standards than could be achieved by prematurely limiting the range of innovative methods explored by members of the community.
Next-generation sequencing (NGS) has begun to transform molecularly based precision cancer medicine into a clinical reality [1, 2]. Sequencing results already influence how physicians diagnose patients, perform prognostic evaluations, decide among therapeutic choices, and provide guidance on prevention strategies to cancer patients or people at risk of cancer development or recurrence. It is essential that such clinical decisions be based upon the valid identification of variations in the genetic makeup of individual patients .
A relatively large number of open-source informatics tools for identifying, or calling, genomic variants is now available to basic scientists and other researchers. Most often, these tools feature different algorithms, filtering strategies, and recommendations for use, which together lead to different outputs [4, 5]. However, the literature offers limited guidance for researchers attempting to efficiently select those tools which offer a level of certainty high enough to approach the standards of good clinical practice.
Many studies analyzing, comparing, and evaluating variant-caller performance have been reported [4, 6–15]. While analysis and comparison of selected variant callers has become more expeditious in some respects, determining validity, the correspondence between outputs and biological reality, has generally remained laborious. Validation, usually through Sanger sequencing, remains notably expensive and time-consuming; it also demands an array of laboratory and clinical resources. To generate large sets of “real” data, tumor samples must be taken from patients, then processed and sequenced. Verifying sequences requires expertise and time, usually in the form of panels of experts who manually compare variant-caller outputs with real sequencing data in the laboratory. Moreover, manual evaluations are necessarily limited to a small fraction of all detected variants [6, 9, 12]. As a result, assessing validity too often becomes a bottleneck, slowing assessment of variant callers and other high-throughput research technologies, as well as the translation of technologies such as these into clinical settings.
However, it may be possible to develop additional methods of validation that would be more practically suited to assessing not only the overall performance but also more precisely the specificity and sensitivity of variant callers. In this study, by using data sets with known mutations at specific sites, we explore the effectiveness of using synthetic data sets to provide a level of ground truth against which results can be validated. Our final results were obtained from analyzing, comparing, and evaluating the performance of five widely used open-source variant callers that identify single-nucleotide variants (SNVs).
The data used comprised three well-known synthetic sets originally created for the 2014 International Cancer Genome Consortium (ICG-C)-TCGA Dialogue for Reverse Engineering Assessments and Methods (DREAM) Somatic Mutation Calling Challenge plus a more complex set created more recently following the same method . The sets were created using a binary alignment map (BAM) file derived from a tumor cell line as the foundation. Mutated sequences were inserted at specific genomic locations, thus providing ground-truth indicators that can be rapidly verified.
Finally, by splitting the genome into 10 million nucleotide segments, we were also able to begin exploring the questions of (1) whether different callers might perform differently on different parts of the genome, specifically whether gene density (a measure of the number of genes per the number of base pairs) or guanine-cytosine (G-C) content (a marker of intergenic homopolymeric sequences) might affect results; and (2) whether tool performance might vary in the same or in different locations.
A summary of the complexity levels of the four synthetic data sets
SNV, structural variation (SV) (deletions, duplications, inversions)
SNV, SV (deletions, duplications, insertions, inversions)
SNV, SV (deletions, duplications, insertions, inversions) & INDEL
SNV, SV (deletions, duplications, inversions) & INDEL
Number of Somatic SNVs
Subclone variant allele frequencies (VAFs)
50%, 33%, 20%
50%, 35% (effectively 30% and 15% due to cellularity)
FreeBayes v1.0, a haplotype-based variant detector for small variations such as single-nucleotide polymorphisms (SNPs) and insertions or deletions (indels)
MuTect v1.1.7, a caller for detecting somatic point mutations in NGS data derived from cancer genomes
MuTect2, a variant detector for SNPs and indels that is part of the Genome Analysis Toolkit (GATK) v3.8–0
MuSE v1.0rc, a relatively new caller for somatic point mutations in paired tumor-normal samples
FreeBayes, VarDict, and MuTect were run in bcbio-nextgen, v1/0.6, an integrated Python package that provides a fully automated, distributed high-throughput sequence-analysis pipeline and, using a majority-vote approach, integrates the multiple VCF outputs listed above into a single Ensemble call set . MuTect2 and MuSE were run as standalone tools.
To ensure fair, nonbiased comparisons, every tool was used according to its recommended default parameters. The resulting VCF files were compared with the corresponding ground-truth file. Custom scripts were used for data processing, including batch processing and creating a summary of results. Since all five callers detected SNPs, the results are based only on SNP-calling performance. For the integrated approach, bcbio proved easy to configure and run, but it demands extensive resources, including computational power (CPUs) and, often, long stretches of time to run.
To run bcbio-nextgen, a human-readable configuration “YAML Ain’t Markup Language” (YAML) file was generated from a template provided with the tool but customized to a limited extent: calibration and realignment were turned off. A panel of normal VCF files was added to the background parameters. Variants that had passed through the filter and been recorded in the VCF file for each caller were extracted and put into a new VCF file for further analysis.
To run MuTect2, which usually requires a long time to complete, 336-interval Browser Extensible Data (BED) files between sequence-coverage gaps were created so that the tool could be run on paired samples in shorter segments in parallel. Variants that had passed through the filter were merged into a single VCF file for further analysis.
Two steps were necessary to run MuSE. For the first step, the “MuSE call” command was used to take the reference-genome FASTA file and BAM files to complete some pre-filtering steps and finish variant detection by applying the Markov substitution model. For the second step, the “MuSE sump” command was used to turn the output from step 1 into input and to retrieve a bgzip-compressed VCF file from DatabaseSNP. After completing these preliminary steps, MuSE computed tier-based cutoffs (PASS, Tiers 1 to 5) from a sample-specific error model and produced a VCF file. Finally, it extracted the variants that had passed through filters into a new VCF file for further analysis .
After variant calling, the VCF files produced by each caller were compared with their corresponding ground-truth files using the evaluator.py script , which was provided by the DREAM team referenced above. This script compares the two VCF files to produce true-positive and false-positive rates in relation to the total number of variants detected and the total number of variants in the ground-truth file. It also calculates sensitivity, specificity, and balanced accuracy (sensitivity + specificity)/2) from those numbers.

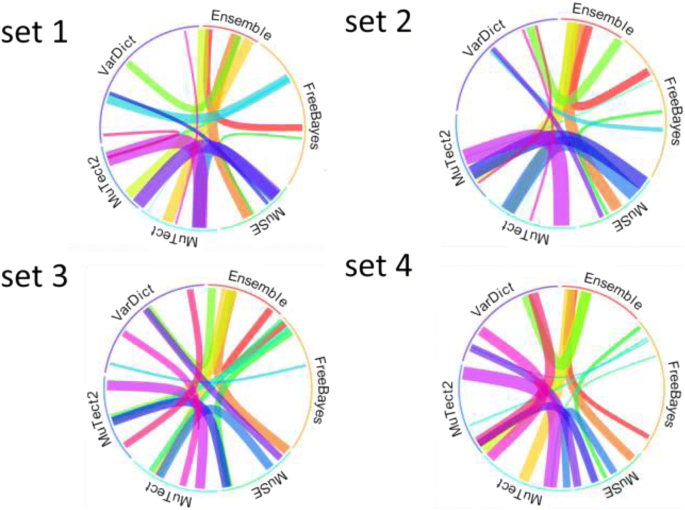

To demonstrate the extent of the similarities in the results produced by each caller, the open-source visualization tool OmicCircos was employed to reveal overlapping patterns of specific mutations identified by the callers despite the variability of their overall scores (see Fig. 2a and b below) . The bootstrap resampling algorithm was used to evaluate degrees of performance similarity between pairs of callers. N (the observed number of overlaps produced using selected pairs of callers) substitutions were randomly selected and used to resample each data set 10,000 times. Random overlapping numbers were calculated from the N substitutions for each selected pair. In Fig. 2a, the distance between the mean of expected overlapping and observed overlapping values measures the performance similarity between pairs of callers. The shorter the distance on the X axis, the greater the similarity between outputs. Greater similarity is also represented by wider connecting lines between tools in Fig. 2b.
Finally, both the ground-truth and results VCF files were split into 10,000,000 nucleotides to create 316 segments using an in-house perl script. Each segment was compared separately to the corresponding truth file using evaluator.py. To further investigate the effects of G-C content and gene density on caller performance, the G-C content in each segment was obtained using the “bedtools nuc” command, and the gene density of each was obtained using a custom R script.
The major advantage of using synthetic data sets is the precise control one can attain of the location and complexity of specific genomic mutations. As shown in Table 1, the four data sets we chose vary in type, in the number of spiked-in mutations, and in the degrees of cellularity and subclonality present, with increasing complexity from set 1 to set 4 resulting from different combinations of these four factors. The variation in data complexity presents different challenges to variant callers and gives us an opportunity to observe how well each caller handles the challenge.
The number of inserted “truth” SNPs in each data set and the numbers detected by each caller. The numbers listed in the first row next to “truth” indicate the number of inserted SNPs in the set
The Ensemble approach yielded results characterized by higher specificity and balanced accuracy and fewer false positives than did any of the five tools used alone, a not wholly unexpected outcome. Bcbio proved easy to configure and run, but it demands extensive resources, including computational power (CPUs) and, often, long stretches of run time. Further, its intermediate files are frequently quite large, placing extra demands on data acquisition, processing, and storage. In this study, running bcbio produced about one terabyte of intermediate files for each pair of samples.
The graph reflects the diminishing accuracy of caller performance when the tools were exposed to increasing levels of data complexity. Every caller and Ensemble produced their most problematic results when run on data set 4, the most complex set of the four. Regarding the three less-complex sets, sensitivity scores were similar among the tools, but it should be noted again that specificity scores were markedly lower for FreeBayes and VarDict. In consequence, their overall balanced-accuracy scores suffered in comparison to those of the other tools. At the opposite end of the spectrum, Ensemble produced the best scores in most cases, providing support for the observation that integrating calls produced by multiple callers tends to lead to better results.
Similarity among outputs
In Fig. 2a. The distance between the mean of expected overlapping and observed overlapping values (red bar in 2a) provides a measure of the performance similarity between two callers. The shorter the distance, the greater the similarity between two callers. The similarity between callers is represented by the varying widths of the connecting lines in Fig. 2b, the wider the line, the more similar between the two connected callers.
Correlations with sequence structure

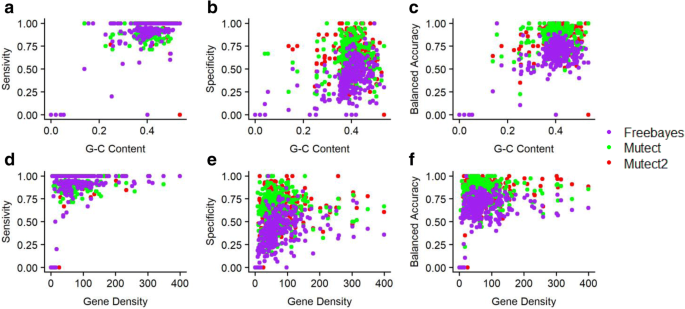

To determine whether there might be any relationship between SNPs and G-C content or gene density, we split the genome into 10,000,000 base-pair fragments that yielded a total of 316 segments. SNPs detected in each segment were compared with SNPs in the corresponding segment in the truth file.
No significant differences were found for correlations between sensitivity, specificity and balanced accuracy with G-C content. Nor was any correlation observed between these factors and gene density. Most segments had a G-C content of about 40%, and gene density was below 100. We did not find any relationship between either G-C content or gene density and detected mutations. This result is not surprising since we used synthetic data in which mutations were inserted randomly. This question merits further investigation to determine whether such a relation exists in real data.
We used four synthetic dream-challenge data sets  annotated with ground truth for this study. By using synthetic data sets, we had better control of the number and location of genomic mutations as well as better control of data complexity. By including known mutation sites, we resolved the difficulty of lacking ground truth against which to compare mutation callers. Using known sites also allowed us to overcome certain disadvantages inherent in commonly used manual validation procedures [5–7, 29], including time, cost, and most significantly, lack of comprehensiveness. Of particular importance, the inclusion of ground truth enabled us to more accurately estimate true and false negatives.
MuTect2 and MuTect performed comparably. The performance of MuSE was in line with that of MuTect and MuTect2. MuTect2, MuTect, and MuSE proved to be the top three performers in this study. MuSE is a relatively new SNP-detection tool that has not yet been extensively evaluated. We found that it runs relatively fast, especially when running chromosome after chromosome or segment by segment. The performance of FreeBayes was more ambiguous. The caller achieved better sensitivity scores than did MuTect or MutTect2. But this was compromised by much lower specificity scores, and thus, a lower balanced-accuracy score (c.f.).
In general, researchers have found that MuTect and MuTect2 are among the best tools for detecting true positives and controlling for false positives [3, 9]. Although FreeBayes and VarDict did not perform very well in this study, especially in controlling false positives, they may yield better results in other studies . There are different sequencing properties at individual variant sites that challenge a given caller’s ability to detect mutations accurately, including read depth, read quality, strand bias, and varying allele fractions, among others. In this study, the data sets we used vary in cellularity and variant allele fractions. The results show that all callers performed comparably well in detecting true positives at low levels of complexity. The major difference in performance is the ability to minimize false positives, which Mutect2, Mutect and MuSE handled much better than did FreeBayes and VarDict. The increase in data complexity made it harder for all callers to detect true positives, but it had far smaller effects on controlling false positives. Ensemble returned better results than any single caller used alone in most cases, indicating that it takes advantage of every caller’s strength in true-positive detection and false-positive control (see Tables 2 and 3) . This also suggests that there is no “one-size-fits-all” solution for variant calling and therefore provides an additional incentive for using more than one caller and integrating results to improve performance. Although it was not our intention in this study to investigate why different variant callers perform differently on different data sets, we are planning detailed investigations to identify possible contributing factors.
It is thought that higher G-C content regions tend to have higher relative gene density scores than do regions of lower G-C content . But previous studies of the relationship between G-C content and gene expression have shown only a very weak correlation . In this study, we used segmentation analysis attempt to discover whether any correlations between SNP occurrence and G-C content or gene density exist. We found no significant correlations between the two. Our use of synthetic data in this study and the random insertion of SNPs into the genome might account for this result. To resolve this question, we believe it would be worthwhile to carry out a similar analysis using real data sets with known mutation sites. Another possible way to uncover such correlations would be to improve the statistical algorithm we used or to develop new algorithms specifically developed for this kind of analysis. It is also possible that the method we adopted of arbitrarily creating large genomic segments diluted certain small or otherwise subtle SNVs differences between “normal” and “tumor” data sets. Instead of randomly subdividing a genome, one could, for example, perform segmentation based on functional or structural context.
After our initial submission of this manuscript and during its review, we learned that the Global Alliance for Genomics and Health (GA4GH) Benchmarking Team has put together some reference materials and tools for benchmarking germline variant calls . They developed a large set of bed files based on different genomic contexts, including G-C content, coding regions, different types of tandem repeats, and difficult-to-map regions. We plan to examine their approach and may adopt it for somatic variant calls.
In this study, we pursued an unconventional approach to analyzing and comparing the performance of five variant callers not only globally by surveying the entire genome as has traditionally been done, but also by splitting the genome into 316 segments to efficiently search for correlations between localized mutation variations and G-C content or gene density. To our knowledge, this study is among the first, if not the first, to perform whole-genome data analysis on segmented sequences. Sequence segmentation offers distinct advantages, including increased analytical resolution, of which we have taken advantage in this study. Although we did not uncover any major findings in that respect, our approach represents a new way to analyze NGS data. We hope it will inspire the scientific community to pursue this methodological approach further, not only for SNPs but also for other types of mutation, including copy-number variation or shifting methylation patterns using real data sets coupled with ground truth. We also evaluated the performance of MuSE, a relatively new caller, in detecting SNPs. In this study, we found the tool easy to install and run. It runs quickly, and its performance is comparable to some of the best callers such as MuTect2. Finally, we confirmed the finding by others that combining multiple callers can yield better results than does using a single tool in isolation.
It is incumbent upon the scientific community to reach consensus regarding standards for evaluating the accuracy of new analytical technologies, such as variant callers, used to parse the massive amounts of NGS data we have generated and are transforming into a community resource. The value of NGS data is wholly dependent not only upon accurate analysis and identification of mutations, but also upon valid methods of interpretation and the translation of the resulting data-driven insights into the clinic. To achieve this, we must develop, explore, and compare alternative evaluation methods such as that described in this paper in order to formulate standards of the best-possible quality.
We thank our colleague Laura Kay Fleming, Ph.D., in the NCI Center for Biomedical Informatics and Information Technology for discussions and editorial advice, which improved the quality of this report.
The authors are employees of the National Cancer Institute, National Institutes of Health.
Availability of data and materials
The four synthetic data sets supporting the conclusions of this article are available on the DREAM Challenge website at https://www.synapse.org/#!Synapse:syn312572/wiki/60873.
BZ and BH initiated the research project as well as designed and led the main study. XB designed this project. QC participated in conceiving and designing the study. QC, CN, and DM engaged in data-analysis planning. MH designed the data-analysis pipeline and provided the data sets. XB and YH performed data analysis. YH proposed the segmentation analysis. DM and CN led discussions. XB wrote the manuscript. All authors have read and approved the final manuscript.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
