Computational identification of biomarker genes for lung cancer considering treatment and non-treatment studies
BMC Bioinformatics volume 21, Article number: 218 (2020)
Lung cancer is the number one cancer killer in the world with more than 142,670 deaths estimated in the United States alone in the year 2019. Consequently, there is an overreaching need to identify the key biomarkers for lung cancer. The aim of this study is to computationally identify biomarker genes for lung cancer that can aid in its diagnosis and treatment. The gene expression profiles of two different types of studies, namely non-treatment and treatment, are considered for discovering biomarker genes. In non-treatment studies healthy samples are control and cancer samples are cases. Whereas, in treatment studies, controls are cancer cell lines without treatment and cases are cancer cell lines with treatment.
The Differentially Expressed Genes (DEGs) for lung cancer were isolated from Gene Expression Omnibus (GEO) database using R software tool GEO2R. A total of 407 DEGs (254 upregulated and 153 downregulated) from non-treatment studies and 547 DEGs (133 upregulated and 414 downregulated) from treatment studies were isolated. Two Cytoscape apps, namely, CytoHubba and MCODE, were used for identifying biomarker genes from functional networks developed using DEG genes. This study discovered two distinct sets of biomarker genes – one from non-treatment studies and the other from treatment studies, each set containing 16 genes. Survival analysis results show that most non-treatment biomarker genes have prognostic capability by indicating low-expression groups have higher chance of survival compare to high-expression groups. Whereas, most treatment biomarkers have prognostic capability by indicating high-expression groups have higher chance of survival compare to low-expression groups.
A computational framework is developed to identify biomarker genes for lung cancer using gene expression profiles. Two different types of studies – non-treatment and treatment – are considered for experiment. Most of the biomarker genes from non-treatment studies are part of mitosis and play vital role in DNA repair and cell-cycle regulation. Whereas, most of the biomarker genes from treatment studies are associated to ubiquitination and cellular response to stress. This study discovered a list of biomarkers, which would help experimental scientists to design a lab experiment for further exploration of detail dynamics of lung cancer development.
Lung cancer is the number one cancer killer in the world with more than 142,670 deaths estimated in the United States alone in the year 2019 . Lung cancer is also the second most common cancer in the world. It is broadly classified into two categories - Non-Small Cell Lung Carcinoma (NSCLC) consisting of 80% of all lung cancer cases and Small Cell Lung Carcinoma (SCLC) recorded in 20% of all lung cancers . The NSCLC is further divided into Adenocarcinoma (40%), Squamous Cell Carcinoma (27%) and large cell carcinoma (8%) . Lung cancer has a low 5-year survival rate of 18% . The low survival rate of lung cancer is due to late diagnosis and relapse of lung cancer after treatment . The late diagnosis plays a significant role in the survival of patients. So, new methods for screening and diagnosis of lung cancer patients which would improve the prognosis need to be developed. The advancement in research and technology has been slowly shifting the focus of lung cancer diagnosis, prognosis and treatment towards understanding the underlying cause of disease progression using protein-protein interaction (PPI) networks, gene co-expression networks and molecular pathways. Though the PPI and co-expression networks are static in nature, these come with rich information about the dynamic processes such as behavior of genetic networks in response to DNA damage , prediction of protein subcellular localization [7,8,9,10,11,12], protein function , genetic interaction , process of aging , and protein network biomarkers [16,17,18,19,20,21,22]. The networks are of special interest because the genes do not act alone. They act as a group to achieve a collective goal. In their recent work, Mondal et al.  showed that proteins or genes achieved their collective goals by forming clique-like and bipartite graphs, which could be the building blocks for disease initiation and progression. Using these building blocks, Tanvir et al.  discovered network modules related to cancers from gene co-expression networks. These literatures suggest that network modules do correlate to specific functions. These motivates us to discover biomarker genes using network-based apps, Cytohubba  and MCODE (Molecular Complex Detection) , which are two plugins of Cytoscape . This work is the extended version of our previous work , which used only three of twelve algorithms available in Cytohubba to discover the biomarker genes. In the present work, all of twelve algorithms in Cytohubba along with another Cytoscape app, MCODE, are used to discover the biomarker genes.
In this study, first, DEGs are identified from GEO database using GEO2R tools . Second, a functional network is created with these DEG genes using Cytoscape plugin ReactomeFI . Third, hub genes are identified from this network using twelve different graph-theoretic algorithms available in Cytohubba, which is another Cytoscape app. Fourth, cluster of genes are isolated from the functional network using MCODE, which is also a Cytoscape app. The common genes isolated using Cytohubba and MCODE are considered as the probable biomarker genes for lung cancer.
Data collection and cleaning
The gene expression data for lung cancer was collected from GEO database . It provides genome-wide gene expression profiles including DEGs. Figure 1 shows the cleaning and identification of top 250 DEGs that could be probable biomarkers.
Querying GEO database with phrase “lung cancer” retrieved 1,050,133 gene expression (GE) profiles. Using the GEO built-in filter “up/down genes”, the retrieved GE profiles are reduced to 16,876 genes, which are all the DEGs based on GEO filter. The retrieved DEGs were downloaded as a text file, in which each GE profile consists of six lines of record.
A PERL script was used to obtain five important features for each DEG - Gene Symbol, GDS number (study the gene belongs to), organism’s name, and the number of samples used for the study. This intermediate data was stored in column format. From this data, we discovered that the retrieved 16,876 DEGs belong to 27 unique studies.
The scope of the present work is to consider the studies with treatment and non-treatment. Upon using manual filtering - reading the title and abstract of the main publications resulted from these 27 studies - we discovered that only 3 of these studies are non-treatment (GDS1312, GDS4794 and GDS5201) and 2 are treatment (GDS1204 and GDS2499).
In study GDS1204, the lung cancer cell line, A549, is treated with chemotherapeutic drug motexafin gadolinium (MGd) . Three samples are examined at 4, 12, and 24 h following treatment, thus the study consists of 9 control and 9 case samples. In study GDS2499 , A549 lung cancer cell lines are treated with two doses of anti-cancer agent sapphyrin PCI-2050 and one dose of transcription inhibitor actinomycin D. The controls are prepared by treating A549 cell lines with mannitol. In each experiment 3 samples are used. This study will provide two sets of DEGs – a) By comparing two doses (applied to 3 samples for each dose, a total of 6 cases) of anti-cancer agent sapphyrin PCI-2050 with 3 control samples; b) By comparing 3 samples with one dose of actinomycin D with 3 control samples.
Two of the non-treatment studies are based on human genome (GDS1312 and GDS4794) and the other is based on mouse genome (GDS5201). In study GDS1312, expression profiling of squamous lung cancer biopsy specimens and paired normal specimens from 5 patients are conducted . The study GDS4794 provides expression profiles of 23 clinical small cell lung cancer (SCLC) samples from patients undergoing pulmonary resection and 42 normal tissue samples from different organs including the lung . In study GDS5201, expression profiles of two mice samples are generated at three genomic variations – normal lung, lung tumor with KrasG12D single mutant, and lung tumor with LSL-KrasG12D double mutant . This study provides one set of DEGs by comparing 4 lung tumor cases with 2 normal lung controls.
Table 1 shows the summary of these 5 datasets including number of case and control. The non-treatment studies are those in which controls are normal samples and cases are cancer patients. Whereas, in treatment studies, both control and case samples are cancer cell lines; samples before treatment are controls and after treatment are cases.
Isolating top 250 differentially expressed genes
After identifying the non-treatment and treatment studies, GEO2R, a LIMMA R package in GEO database, was used to isolate top 250 DEGs from each study. The cutoff criteria used were P-value < 0.05 and absolute log2 Fold Change (FC) > 1. Benjamini & Hochberg (False Discovery Rate) method was used for adjusting P-values. The duplicate DEGs and DEGs with missing symbols were removed from the top 250 DEGs. Finally, a total of 407 DEGs (254 upregulated and 153 downregulated) were discovered from non-treatment studies. Similarly, a total of 547 DEGs (133 upregulated and 414 downregulated) were discovered from treatment studies. There is no common DEGs between non-treatment and treatment studies.

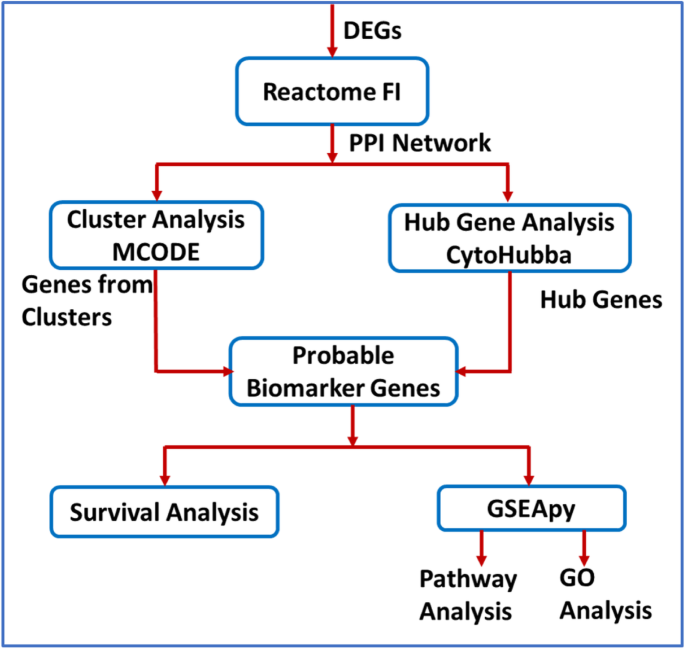

Figure 2 shows the overview of data analysis methodology including i) constructing functional protein network, ii) discovering biomarker genes using Cytohubba and MCODE, iii) functional and pathway analysis of biomarker genes, and iv) survival analysis using biomarker genes.
Constructing functional protein network
A Cytoscape app, ReactomeFI  was used to create two functional protein networks – one consists of non-treatment DEGs and the other consists of treatment DEGs. The resulting two networks have a smaller number of nodes than the original lists, 166 for non-treatment and 260 for treatment, since all DEGs are not functionally related or their functional relation has not yet been discovered. The functional relationship between DEGs was based on Reactome database . These networks were further analyzed to discover probable gene biomarkers using two Cytoscape apps, CytoHubba and MCODE.
Discovering biomarker genes
The Cytoscape app MCODE  was used to find clusters in Non-treatment and Treatment networks constructed above. The default parameters in MCODE (Degree cutoff = 2, Node score cutoff ≥0.2, K-core ≥2 and Max depth from seed = 100) were used for finding the clusters. Another Cytoscape app, CytoHubba  was used to find hub genes from the non-treatment and treatment networks. Hub genes are highly connected nodes in the network. The gene network was analyzed using 12 scoring methods available in Cytohubba - betweenness, bottleneck, closeness, clustering coefficient (CC), degree, density of maximum neighborhood component (DMNC), eccentricity (EcC), edge percolated component (EPC), maximal clique centrality (MCC), maximum neighborhood component (MNC), radiality and stress. The top ten genes from each of these methods were isolated. Any gene that is common in at least two scoring methods of Cytohubba and is also present in any of MCODE clusters was considered as a biomarker gene.
Pathway and GO enrichment analysis
A software package, GSEApy (Gene Set Enrichment Analysis in Python) was used for pathway and GO (Gene Ontology) terms enrichment analysis of biomarker genes. GSEApy is a python wrapper for Enrichr  and GSEA (Gene Set Enrichment Analysis) . The analysis was implemented in python 3.7.3 using gseapy package 0.9.5. The adjusted p-value < 0.05 and Benjamini & Hochberg correction for multiple testing was used as statistical measure. The pathway analysis was performed using Enrichr ‘KEGG_2019_Human’ library. The enrichr libraries used for GO enrichment are – ‘GO_Biological_Process_2018’, ‘GO_Cellular_Component_2018’ and ‘GO_Molecular_Function_2018’.
The survival analysis was performed using online tool Kaplan Meier-Plotter . There are 14 datasets, 12 are collected from GEO database, and the rest two are collected from Cancer Biomedical Informatics Grid (caBIG) and The Cancer Genome Atlas (TCGA). There are a total of 1926 lung cancer samples if the default parameters are chosen. The tool has an option to input either one or multiple genes of interest, then select the factor to split the patients into two groups, such as median (set as default), lower quartile, upper quartile and so on. For the present study, patients with expression value for a gene above the median are included in high-expression group and below the median are included in low-expression group. This system incorporates Kaplan Meier, Logrank method and univariate and multivariate Cox Regression, which are one of the common methods in survival analysis. There are options to restrict the survival analysis based on certain criteria such as histology, stage, grade, gender, surgery success, chemotherapy, radiotherapy.
In the present study, all the samples available (1926) in KM-Plotter was used for survival analysis. However, the number of samples will vary for each gene as only the samples which are relevant to the gene being assessed is used for the analysis . The default parameters were used, meaning, the samples were not restricted based on treatment types or subtypes of cancer. The survival analysis is used to check the prognostic capability of each of the biomarker genes in differentiating between low and high expression groups. For certain genes, more than one probes are available. Without loss of generality, first available probe was used for the present study. FLog.
Functionally interacting protein networks
The functionally interacting protein network constructed using non-treatment DEGs has 166 genes and 534 interactions as shown in Fig. 3. Two hundred forty-one out of 407 DEGs for non-treatment studies do not have any functional interaction based on Reactome database. So, they are not included in the network. The reason might be that those genes are not related to any pathways or they are yet to be determined whether they belong to any pathway or not. Further study is required to position those genes on appropriate pathways. Similarly, only 260 out of 547 DEGs are found in Reactome database with 648 functional interaction for treatment studies.
Two Cytoscape apps, CytoHubba and MCODE are used to isolate the biomarker genes from the functional networks. Figure 4 shows the top 10 hub genes highlighted in non-treatment network based on the scoring method “Degree” in CytoHubba. The list of hub genes discovered using 12 scoring methods in CytoHubba from non-treatment and treatment studies are shown in Tables 1 and 2 of Additional File 1.
The app MCODE was used to extract the clusters of genes (probable biomarkers) from the functional networks. A total of 8 and 10 clusters were extracted from non-treatment and treatment networks respectively. The complete list of MCODE clusters with their score, number of nodes and edges is available in Tables 1 and 2 of Additional File 2.
Any gene common between at least two scoring methods and presents in at least one of the MCODE clusters was considered to be a biomarker gene. A total of 32 biomarker genes - 16 from non-treatment studies and 16 from treatment studies - were discovered in this study.
Tables 2 and 3 show biomarker genes along with their regulation and description in non-treatment and treatment studies respectively. There are no biomarker gene in common between non-treatment and treatment studies.
Enriched GO terms and pathways
The biomarker genes of non-treatment and treatment studies were analyzed for enriched pathways and GO terms using GSEApy.
Non-Treatment Studies: The GO terms enriched with biomarker genes from non-treatment studies are shown in Table 1 of Additional File 3. The significantly enriched biological processes are- regulation of mitotic cell cycle phase transition, metaphase plate congression, negative regulation of ubiquitin-protein ligase activity involved in mitotic cell cycle, regulation of ubiquitin-protein ligase activity involved in mitotic cell cycle, positive regulation of ubiquitin-protein ligase activity involved in regulation in mitotic cell cycle, negative regulation of ubiquitin protein ligase activity, anaphase-promoting complex-dependent catabolic process, positive regulation of ubiquitin protein ligase activity, mitotic sister chromatid segregation and positive regulation of protein ubiquitination involved in ubiquitin-dependent protein catabolic process. The significantly enriched cellular components are- spindle, chromosome, centromeric region, chromosomal region, spindle microtubule, nuclear chromosome part, kinetochore microtubule, centrosome, condensed nuclear chromosome kinetochore, microtubule organizing center and mitotic spindle. The significantly enriched molecular functions are- cyclin dependent protein serine/threonine kinase activity and cyclin dependent protein kinase activity. The KEGG pathways enriched with biomarker genes from non-treatment studies are shown in Table 1 of Additional File 4. The significantly enriched KEGG pathways are- cell cycle, oocyte meiosis, progesterone-mediated oocyte maturation, human T-cell leukemia virus infection, p53 signaling pathway, cellular senescence, human immunodeficiency virus 1 infection, FoxO signaling pathway, viral carcinogenesis and mismatch repair.
Treatment Studies: The GO terms enriched with biomarker genes from treatment studies are shown in Table 2 of Additional File 3. The significantly enriched biological process are – protein polyubiquitination, protein ubiquitination, positive regulation of transcription from RNA polymerase II promoter, ubiquitin-dependent protein catabolic process, positive regulation of transcription DNA templated, positive regulation of apoptotic process, response to cytokine, regulation of transcription from RNA polymerase II promoter, protein modification by small protein conjugation, and cellular response to reactive oxygen species. The significantly enriched cellular components are RNA polymerase II transcription factor complex, SCF ubiquitin ligase complex, nuclear chromatin, chromatin, nuclear chromosome part, cullin-RING ubiquitin ligase complex, nuclear euchromatin, euchromatin, nuclear chromosome, and centrosome. The significantly enriched molecular functions are –ubiquitin-protein transferase activity, transcription regulatory region DNA binding, regulatory region binding, activating transcription factor binding, RNA polymerase II regulatory region sequence-specific DNA binding, DNA binding, RNA polymerase II core promoter proximal region sequence-specific DNA binding, transcription factor activity, and ubiquitin conjugating enzyme binding. The KEGG pathways enriched with biomarker genes from treatment studies are shown in Table 2 of Additional File 4. The significantly enriched KEGG pathways are IL-17 signaling pathway, ErbB signaling pathway, colorectal cancer, MAPK signaling pathway, TNF signaling pathway, osteoclast differentiation, fluid shear stress and atherosclerosis, WNT signaling pathway, Hepatitis B and Kaposi sarcoma-associated herpesvirus infection. Figure 5 shows the pathways enriched with biomarker genes from both non-treatment and treatment studies respectively.
Survival analysis results
Figure 6 presents the survival analysis results of two non-treament biomarkers (CCNB2 and CDC20) and two treatment biomarkers (FBXL3 and FOXA2). It is clear from this figure that the hazard ratio, HR > 1 for the two non-treament biomakers, which means that low expression group has higher chance of survival compare to high expression group. On the other hand, HR < 1 for two treatment biomarkers, which means that high expression group has higher chance of survival compare to low expression group.
The results of complete survival analysis using each of 16 non-treatment biomarker genes are shown in Fig. 1of Additional File 5. Similarly, Fig. 2of Additional File 5 shows the survival analysis using 16 treatment biomarker genes. In case of non-treatment studies, 2 biomarkers (CDK1 and PCNA) out of 16, do not have prognostic capability of differentiating between high-expression and low-expression groups of cancer patients, meaning hazard ratio is close to 1 (HR ≈1); 2 biomarkers (BUB3 and RAD21) show that high-expression groups have higher chance of survival (HR <1); and the remaining 12 biomakers show that low-expression groups have higher chance of survival (HR >1).
In case of treatment studies, 2 biomarkers (FOXA1 and JUND) out of 16, do not have prognostic capability of differentiating between high-expression and low-expression groups of cancer patients, meaning hazard ratio is close to 1 (HR ≈1); 3 biomarkers (CEBPB, MYC and UBC) show that low-expression groups have higher chance of survival (HR >1); and the remaining 11 biomakers show that high-expression groups have higher chance of survival (HR <1).
It can be conlcuded that most of the non-treatment biomarker genes (12 out of 16) have prognostic capability by indicating that low-expression groups have higher chance of survival compare to high-expression groups (HR >1). On the other hand, most of the treament biomarker genes (11 out of 16) have prognostic capability by indicating that high-expression groups have higher chance of survival compare to low-expression groups (HR <1). The opposite prognostic characteristics of biomarker genes discovered from non-treatment and treatment studies are expected since in non-treatment studies, controls are healthy samples and cases are cancer patients; whereas, in treatment studies, controls are cancer cell lines without treament and cases are cancer cell lines with treament.
Discovery of biomarker genes in a nutshell
Table 4 shows the granularity of discovered DEGs at different level of analysis. The GEO built-in filter (up/down genes) retrieved a total of 16,876 DEGs for lung cancer considering all the studies available in GEO database. Based on the five studies (3 non-treatment and 2 treatment) considered in this work, GEO2R tools isolated 407 non-treatment and 547 treatment DEGs. There were 166 non-treatment DEGs and 260 treatment DEGs connected in functional networks based on ReactomeFI database.
The 12 scoring methods (algorithms) in Cytohubba were used to find top 10 hub genes from non-treatment and treatment networks. The combined lists of hub genes for non-treatment and treatment studies are 38 and 51 respectively. Hub genes common in at least two scoring methods were selected as probable biomarkers. This resulted in a total of 21 and 24 hub genes for non-treatment and treatment studies respectively. The App, MCODE was used to find clusters in non-treatment and treatment protein networks. There was a total of 8 clusters consisting of 63 genes from non-treatment network and 10 clusters consisting of 55 genes from treatment network. The genes in common between hub genes and MCODE clusters are considered as the biomarker genes. There were 16 biomarker genes from each of non-treatment and treatment studies with no overlap between the two groups. Finally, based on survival analysis, 14 biomarker genes from each of non-treatment and treatment studies have prognostic capability of differentiating between low-expression and high-expression groups of cancer patients. These final lists of biomarkers can be used to design a lab experiment for further exploration of dynamics in lung cancer development.
Of enormous scientific interest has been the discovery of somatic driver mutations in this malignancy, with up to 10 and 4% of non-small cell lung cancers carrying epidermal growth factor receptor mutations and ALK translocations, respectively. The use of tyrosine kinase inhibitors targeting these subpopulations have resulted in significant gains in antitumor responses, progression free survival, overall survival and quality of life shifting patterns of clinical practice [38,39,40,41]. More recently, another modality of therapy, inhibition of immune checkpoints such as programmed cell death-1 (PD-1) and programmed cell death ligand-1 (PD-L1) has been also shown to benefit patients with lung cancer. Despite the significant survival benefit for some patients with advanced NSCLC, the objective response rates (ORRs) remain relatively low (20–30%) with a large proportion of patients demonstrating primary resistance [42,43,44]. However, the low survival rate of lung cancer patients indicates the need for better cancer diagnosis and treatment approaches. The reasons behind low survival of lung cancer patients is the late diagnosis and resistance to chemotherapeutic drugs. There is a need for better therapeutic measures and diagnostic approaches for improving the quality of life and survival of patients. The advancement in biotechnological tools and bioinformatics has changed the course of lung cancer research towards identifying underlying causes of cancer such as molecular pathways and biomarkers. This study used gene expression profiles from GEO datasets to identify DEGs based on two study groups - Non-treatment (healthy samples as control and lung cancer patients as case) and Treatment (lung cancer cell lines without treatment as control and lung cancer cell lines treated with therapeutic drugs as case). Cytoscape apps, Cytohubba and MCODE were used to identify probable biomarker genes from non-treatment and treatment studies which could be diagnostic or therapeutic biomarkers for lung cancer. The following subsections discuss the roles of discovered biomarkers in lung cancer.
Literatures supporting non-treatment biomarker genes
This section discusses the roles of 16 biomarker genes - BUB3, CCNB1, CCNB2, CDC20, CDCA8, CDK1, CENPF, CENPI, KIF18A, KNTC1, MAD2L1, NDC80, NUP37, PCNA, RAD21, and ZWINT - related to lung cancer discovered from non-treatment studies.
Most of the biomarkers identified in non-treatment studies are associated with biological process mitotic cell cycle (Table 1 in Additional File 3) and they are also enriched in pathways such as cell cycle, oocyte meiosis, progesterone-mediated oocyte maturation, and cellular senescence as shown in Table 1 in Additional File 4. There are hundreds of mutations in our genes every day, some of which might cause deleterious effects. However, most of us are healthy and enjoying our day to day life. This is possible due to delicate checks and balances maintained by the cell regulatory systems. The cell cycle and DNA repair mechanisms are efficient systems which ensure that defective cells are destroyed and only healthy cells remain in our body. The failure in these mechanisms will result in mutations which may lead to genomic abnormalities that lead to cancer. The genes involved in the cell cycle play a vital role in preventing genomic abnormalities. The studies have shown that abnormalities in these genes promote tumorigenesis [45, 46]. An in vivo study in Drosophila with knocked down BUB3 showed that the absence of BUB3 induces tumorigenesis . RAD21 is another important protein in a multi-protein complex that plays important role in mitosis . A study by Ni et al., also identified CCNB1, CCNB2, CDK1 and MAD2L1 as key genes for SCLC due to their role during mitosis . A study by Soria et al. showed the overexpression of CCNB1 in both NSCLC and SCC . CCNB1 is a known regulatory protein in mitosis and is necessary for control of G2/M transition phase in cell cycle. CDK1, a cyclin dependent kinase (CDKs), plays an important role in cell progression .
CENPF, CENPI, KNTC1, NDC80, and ZWINT are components of kinetochore complex . A study showed the upregulation of CENPF was linked to cancer progression and lymph node metastasis . Another study showed similar link between overexpression of CENPI and colorectal cancer metastasis and progression . The results in this study also showed that the genes CENPF, CENPI, KNTC1, NDC80 and ZWINT are upregulated in non-treatment studies, Table 2.
Literatures supporting treatment biomarker genes
This section discusses the roles of 16 biomarker genes - CEBPB, FBXL14, FBXL3, FBXO30, FBXO9, FOXA1, FOXA2, JUN, JUND, MAPK8, MYC, MYLIP, NFE2L2, RNF19A, RNF217, and UBC - related to lung cancer discovered from treatment studies.
Most of the biomarkers identified in treatment studies are associated with biological process ubiquitination, Table 2 in Additional File 3. Ubiquitination is a post translational modification which is important for maintaining various physiological processes and decides the fate of the protein by marking them for degradation, change in cellular location, promote its activity or preventing protein interaction . UBC (Ubiquitin C) encodes polyubiquitin which plays important role in regulation of cell cycle, DNA repair and kinase activation . UBC is one of the biomarkers discovered from treatment studies. It is down regulated in this study (Table 3) and was found in 10 out of 12 CytoHubba scoring matrices as a top gene (gene with the highest score), Table 2 in Additional File 1. MYLIP and RNF19A are both E3 ubiquitin ligase proteins, which are also upregulated, Table 3. F-box protein motifs function as a site of protein-protein interaction . There are four F-box proteins - FBXL14, FBXL3, FBXO30, and FBXO9 - identified as biomarkers in this study, all of which are downregulated, Table 3. F-box proteins are found in cancers as oncogenes or tumor suppressor genes depending upon their expression in their substrate .
In lung cancer, FOXA1 and FOXA2 is involved in regulation of Epithelial to Mesenchymal genes relevant to cellular adhesion and cellular communication, and associated with distant metastasis [59,60,61].
NRF2 (also known as NFE2L2) is a basic leucine zipper transcription factor that regulates the expression of more than 200 genes that protects against stress . In lung cancer NRF2 acts as both oncogene and tumor suppressor gene depending upon the stage of tumor progression . As an oncogene it promotes resistance to chemotherapy and prevents oncogenesis as a tumor suppressor . CEBPB is also a basic leucine zipper transcription factor and it regulates genes that are involved in immune and inflammatory processes .
JUN and JUND are signal transducing transcription factors of the AP-1 family and proto oncogenes associated with apoptosis . Levresse et al.  and other studies have reported the protective response of c-Jun and JNK pathway in SCLC cells. MAPKs (Mitogen-activated protein kinases) are protein Ser/Thr kinases that convert external stimuli into a wide range of cellular responses . MAPK8 is a protein kinase known as Jun N-terminal kinase-1 (JNK-1) involved in cellular responses to stress .
A study by Rapp et.al, showed metastasis in NSCLC driven by MYC gene in a mouse model . Another study by Mollaglu et al. in mouse model showed similar metastasis and tumorigenesis promoted by MYC gene in SCLC .
In summary, most of the biomarkers in non-treatment studies are associated with cellular progression and cell cycles (Table 1 in Additional File 3) and are upregulated (Table 2). On the other hand, most of the biomarkers in treatment studies are associated with ubiquitination (Table 2 in Additional File 3) and are downregulated (Table 3), which affects the activity and progression of proteins. Further study into the molecular mechanisms of these biomarker genes would help to understand the cause of lung cancer as well as the cause of drug resistance in lung cancer. A study in transcriptional landscape of human cancers which studied 33 TCGA cancer types identified that cell cycle pathways and genes related to these pathways are usually upregulated in cancers than in normal tissue , which support the findings using non-treatment studies in the present work. Another study by Danielsson et al., also reported up regulation of cell-cycle genes in cancer cells and downregulation of functionally diverse genes in cancer , which also support the findings in the present work using both non-treatment and treatment studies.
This study developed a computational framework to discover biomarker genes for lung cancer using gene expression profiles from GEO database. Two different types of studies – non-treatment and treatment – are considered for experiment. A total of 32 biomarker genes - 16 from non-treatment studies and 16 from treatment studies - were discovered in this study. The results show that most of the non-treatment biomarker genes (12 out of 16) have prognostic capability by indicating that low-expression groups have higher chance of survival compare to high-expression groups. On the other hand, most of the treament biomarker genes (11 out of 16) have prognostic capability by indicating that high-expression groups have higher chance of survival compare to low-expression groups. The opposite prognostic characteristics of biomarker genes discovered from non-treatment and treatment studies are expected since in non-treatment studies, controls are healthy samples and cases are cancer patients; whereas, in treatment studies, controls are cancer cell lines without treament and cases are cancer cell lines with treament. Most of the biomarkers in non-treatment studies (11 out of 16) were upregulated while most of the biomarkers in treatment studies (14 out of 16) were downregulated.
The biomarker genes identified from non-treatment studies play vital role in tumor progression and metastasis. These biomarker genes are associated with cell cycle and consistent with their role in preventing genomic instabilities. The deletion or mutation of these genes induce tumorigenesis. The biomarker genes identified in treatment studies are associated with ubiquitination and response to stress. Ubiquitination is a multistep process for regulation of function and signaling of cellular pathways and cancer cells exploit these pathways for their survival and metastasis . A better understanding of ubiquitination process and its underlying pathways may help to develop better treatment strategies for lung cancer patients.
The scope of this study was limited to computational identification of biomarkers for lung cancer. The existing literatures support that most of the discovered biomarkers play role in tumorigenesis. A detailed study into the roles of these biomarkers and their mechanism of action is required to understand their contribution to tumor progression and survival of lung cancer patients. The biomarker genes discovered in this study could be used for diagnosis and developing appropriate therapeutic approach for the cure of lung cancer. Further biological experiments with the discovered biomarkers are required to validate the findings in this study.
