GPrimer: a fast GPU-based pipeline for primer design for qPCR experiments

Abstract

Background

Design of valid high-quality primers is essential for qPCR experiments. MRPrimer is a powerful pipeline based on MapReduce that combines both primer design for target sequences and homology tests on off-target sequences. It takes an entire sequence DB as input and returns all feasible and valid primer pairs existing in the DB. Due to the effectiveness of primers designed by MRPrimer in qPCR analysis, it has been widely used for developing many online design tools and building primer databases. However, the computational speed of MRPrimer is too slow to deal with the sizes of sequence DBs growing exponentially and thus must be improved.

Results

We develop a fast GPU-based pipeline for primer design (GPrimer) that takes the same input and returns the same output with MRPrimer. MRPrimer consists of a total of seven MapReduce steps, among which two steps are very time-consuming. GPrimer significantly improves the speed of those two steps by exploiting the computational power of GPUs. In particular, it designs data structures for coalesced memory access in GPU and workload balancing among GPU threads and copies the data structures between main memory and GPU memory in a streaming fashion. For human RefSeq DB, GPrimer achieves a speedup of 57 times for the entire steps and a speedup of 557 times for the most time-consuming step using a single machine of 4 GPUs, compared with MRPrimer running on a cluster of six machines.

Conclusions

We propose a GPU-based pipeline for primer design that takes an entire sequence DB as input and returns all feasible and valid primer pairs existing in the DB at once without an additional step using BLAST-like tools. The software is available at https://github.com/qhtjrmin/GPrimer.git.

Background

Quantitative polymerase chain reaction (qPCR) (also known as real-time PCR) is a standard technique widely used for detecting the mass amplification of specific DNA molecule in real-time. Its applications include virus detection [1], genetically modified organism (GMO) detection [2], pathogen discovery [3], and validation of changes in expression of interested genes [4]. For best results in qPCR experiments, design of high quality primers is more important than anything. MRPrimer [5] is a MapReduce-based powerful pipeline that combines both primer design for target sequences and homology tests on off-target sequences. In general, high quality primers should not only satisfy single and pair filtering constraints (e.g., primer length, melting temperature, GC content) to amplify target sequence(s) properly, but also pass homology tests not to amplify off-target sequences. Different from the conventional methods that do homology tests as an additional step using BLAST-like tools, MRPrimer takes an entire sequence DB and the filtering constraints as input and returns all feasible and valid primer pairs existing in the DB without an additional step using BLAST-like tools. In terms of finding all feasible and valid primer pairs existing in the DB at once, MRPrimer is quite different from the conventional primer design tools such as Primer3Plus [6] and PrimerBlast [7], which find only primer pairs existing in a single sequence. Due to the effectiveness of primers designed by MRPrimer in qPCR analysis, many tools including MRPrimerW [8], MRPrimerV [1] and MRPrimerW2 [9] have been developed based on MRPrimer and widely used. MRPrimerW is a web-based design tool that allows user to easily obtain the best set of primer pairs and TaqMan probes for batch qPCR experiments that should satisfy the set of stringent and uniform constraints as well as pass homology tests. MRPrimerV is a pipeline that can build a database of primers for detection of 1818 RNA viruses by taking both virus sequence DB and host (e.g., human, camel) sequence DB as input. MRPrimerW2 is an enhanced web-based design tool that supports exon spanning design, avoiding SNP sites, input FASTA sequences, and multi-target designing.

Although the MRPrimer pipeline is used as a core engine for the above primer design tools, it has a major drawback that its computational speed is too slow to deal with large-scale sequence DBs. MRPrimer is a MapReduce-based pipeline, and there are also many other MapReduce-based pipelines for sequence data analysis including CloudBurst [10], GATK [11], DistMap [12], MegaSeq [13], Halvade [14], Halvade-RNA [15], Rail-RNA [16], MarDRe [17], MEC [18] and KCH [19]. Originally, MRPrimer has been proposed to be based on the MapReduce framework running on a cluster of machines for fast and scalable data processing. Nevertheless, as the sizes of sequence DBs are growing exponentially due to the advancement of the sequencing techniques, MRPrimer may take too long time to design all primer pairs from the sequence DBs. For instance, in the study of MRPrimerV [1], MRPrimer takes more than two weeks for 101,684 human gene sequences even using 40 nodes of a supercomputer (Rank #454 in TOP500 Supercomputer, June 2016).

To alleviate the problem of slow computational speed of MRPrimer, we propose a GPU-based pipeline running on a single machine for primer design, called GPrimer, that takes the same input and returns the same output with MRPrimer.

MRPrimer consists of a total of seven MapReduce steps, among which two steps are very time-consuming due to a large amount of computation. GPrimer significantly improves the speed of those two steps by exploiting the computational power of GPUs. Processing the remaining steps using GPUs may rather degrade the performance due to data communication overhead between main memory and GPUs, and thus, GPrimer processes those steps only using CPUs. For exploiting GPUs, GPrimer designs data structures for both (1) coalesced memory access in GPU and (2) workload balancing among GPU threads and (3) copies the data structures between main memory and GPU memory in a streaming fashion for hiding data communication overhead. For human RefSeq DB, GPrimer achieves a speedup of 57 times for the entire steps and a speedup of 557 times for the most time-consuming step using a single machine of 4 GPUs, compared with MRPrimer running on a cluster of six machines. There are many GPU-based methods for sequence data analysis including GPU-BLAST [20], G-BLASTN [21], H-BLAST [22], SOAP3-dp [23], sBWT [24], gCUP [25], Arioc [26], YAMDA [27], and NVIDIA Parabricks [28]. But, to the best of our knowledge, there is no GPU-based pipeline (or method) for primer design, and GPrimer is the first one.

In this paper, we briefly review MRPrimer and present the overview of our GPrimer about how it can improve MRPrimer. Then, we present the details about algorithms and data structures to exploit the computational power of GPUs for the two time-consuming steps. We evaluate the performance of GPrimer compared with MRPrimer and conduct a few experiments for the breakdown analysis of GPrimer. Finally, we draw conclusions.

Review of MRPrimer

MRPrimer [5] is a MapReduce-based [29] pipeline that consists of seven steps (Fig. 1a). It takes a sequence DB and a set of filtering constraints as input, and then, after seven steps, returns all feasible and valid primer pairs that exist in the DB.

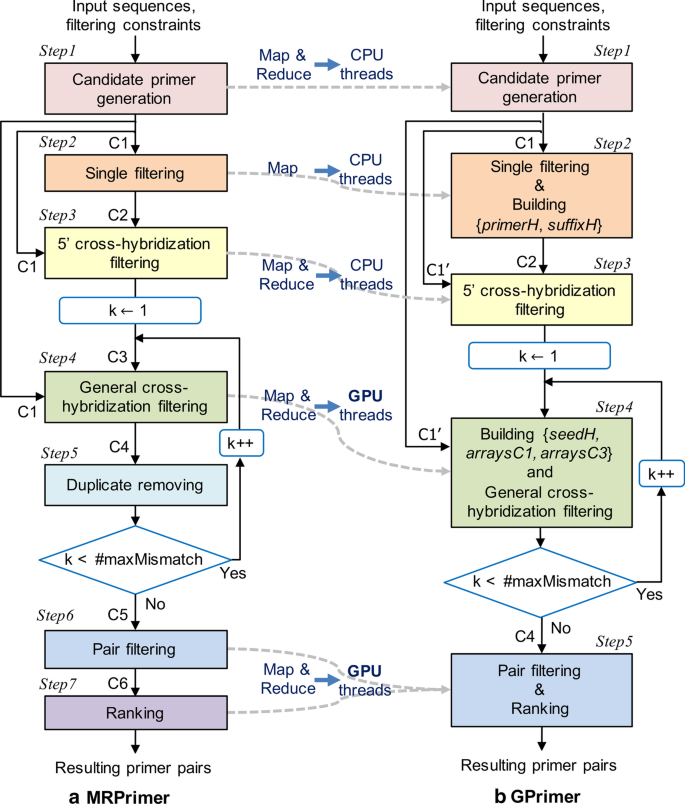

Fig. 1

The pipelines of MRPrimer and GPrimer

Step 1 (candidate primer generation) extracts all possible subsequences of the lengths between the minimum length and the maximum length from each sequence, as candidate primers. The lengths are specified by users (e.g., 19–23 bp) as inputs. This step also extracts their reverse complementary primers while tagging them with a symbol ‘*’. The candidate primers generated in this step are used not only for Step 2 (i.e., other single filtering) but also for Steps 3 and 4 (i.e., approximate string matching). Thus, this step just generates all possible subsequences without other single filtering. Step 2 (single filtering) applies the single-filtering constraints to each primer passed from Step 1 and filters out the primers that violate any filtering constraint. The constraints include melting temperature, GC content, self-complementarity, 3’ end self-complementarity, contiguous residue, and Gibbs free energy, which are specified by users as inputs. Step 3 (5’ cross-hybridization filtering) eliminates a candidate primer that is the same as any subsequence of an off-target sequence at the 3’ end and has only a few mismatches (up to four mismatches) at the 5’ end, and so, might cross-hybridize with the off-target sequence due to the high similarity between them, especially at the 3’ end.

Step 4 (general cross-hybridization filtering) eliminates a candidate primer that is similar with any subsequence of an off-target sequence. This step takes two primer sets, C1 (output of Step 1) and C3 (output of Step 3). We denote the number of mismatched residues between two primers as k. For more efficient computation, this step splits each primer into a set of smaller disjoint pieces (called seeds). According to the theorem in [30, 31], and [32], a primer of length $|\textit{P}|$ with at most k mismatches must contain a seed exactly matched of at least $\lfloor |P| / (k+1) \rfloor$ residues [1, 5, 8]. All pairs of primers from C1 and C3 having a common seed are collected through the shuffle step of MapReduce and checked whether a pair of primers is identical except for k residues in the reduce step of MapReduce. After Step 4, there still might be false-positive primers violating the general cross-hybridization filtering constraint. This inherently occurs due to the distributed computation of MapReduce. In order to filter out such primers completely, Step 5 (duplicate removing) rearranges the result of Step 4 in terms of primer and eliminates the primers that do not pass Step 4 in terms of any seeds. The series of Steps 4 and 5 is performed repeatedly while increasing k from 1 to the maximum number of mismatch residues (i.e., #maxMismatch), which is usually set to 2 [1, 5, 8].

Step 6 (pair filtering) rearranges the result of Step 5 to a set of groups of primers, where each group consists of the primers extracted from the same set of input sequences. Then, it splits the primers of each group into two sets, forward primers and reverse primers, using tags addressed in Step 1, and performs a self-join between them, which applies the pair-filtering constraints to each primer pair. The constraints include length difference, melting temperature difference, product size, pair-complementarity, and 3’-end pair-complementarity, which are specified by users as inputs. The primer pairs passed from Step 6 might not be equally effective even if they satisfy all the given constraints and pass homology tests. Thus, Step 7 (ranking) determines their ranking by calculating a penalty score for each primer pair. The calculation of penalty scores follows the method of Primer3Plus [6].

Implementation

Overview of GPrimer

GPrimer is designed to perform the same task with MRPrimer and so return the same result with MRPrimer. But, different from MRPrimer relying on distributed computation, GPrimer exploits GPU computation to handle a large-scale computation required for primer design. Basically, MRPrimer groups a set of values having the same key through the map and shuffle steps of MapReduce and performs a certain function against the set of values in the reduce step of MapReduce, which are done by a lot of parallel processes having their own main memory spaces (i.e., heaps). In contrast, GPrimer groups the set of values using hash maps and performs the function using a lot of CPU or GPU threads within the same main memory space.

GPrimer performs a total of five steps as in Fig. 1b, where Step 4 of GPrimer corresponds to Steps 4 and 5 of MRPrimer, and Step 5 of GPrimer corresponds to Steps 6 and 7 of MRPrimer. Since GPrimer runs in the same memory space, Step 5 of MRPrimer for removing duplicates is not necessary, and also, Step 7 of MRPrimer (i.e., scoring and output formatting) can be performed together with Step 6 of MRPrimer (i.e., pair filtering) as a single step (i.e., Step 5) in GPrimer. Since the general cross-hybridization filtering and pair filtering are the most time-consuming steps, GPrimer performs the Steps 4 and 5 using GPU threads and the remaining Steps 1, 2 and 3 using CPU threads. Performing the Steps 1, 2 and 3 using GPU threads does not improve the performance much due to the overhead of copying data back and forth between main memory and GPU memory.

Steps 1–3: building hash maps and processing using CPU threads

Step 1 extracts all possible subsequences from a sequence DB for candidate primers as MRPrimer does. We denote the output of Step 1 as C1, the output of Step 2 as C2, and so on. Figure 2a shows an example of C1, where P is a primer, sid is the ID of the sequence where P occurs, and pos is the position where P occurs in the sequence sid. Each row in C1 is just a concatenation of P, sid, and pos. The symbol ‘+’ is a concatenation operation, and we just use a character ‘+’ for the operation in this paper. Figure 2a also shows an example of C1’, which P is a primer, and sidset is the set of IDs of the sequences where P occurs. The set of IDs are concatenated using another character ‘-’. C1’ is generated together with C1 as the outputs of Step 1 by grouping a set of rows of C1 having the same P and removing pos. C1 is used for the input of Step 2, while C1’ is used for the inputs of Steps 3 and 4 for cross-hybridization filtering.

Fig. 2

Examples of output of Step 1 and hash maps. a Example output of Step 1. b Example hash maps used in GPrimer

Step 2 applies six filtering constraints to each candidate primer in C1. For the candidate primers satisfying the filtering constraints, we build two hash maps, primerH and suffixH. Figure 2b shows the examples of both hash maps. The former hash map, primerH has a primer P as a key and a pair of sidset where P occurs and valid as a value, where valid indicates whether P is valid or not, and all valid values in primerH are initialized as 1 (i.e., true). This hash map is used in Steps 3 and 4. At each step, the valid of the primer that does not pass becomes 0. The latter hash map, suffixH has a suffix of a primer (i.e., suffix) as a key and a set of primers (i.e., Pset), where suffix occurs, as a value. This hash map is only used in Steps 3. In addition two hash maps, the set of rows of C1 passing Step 2 is stored as C2, which is used in Step 4.

Step 3 filters out the candidate primers which have a common suffix, but different sidset with any other primers. It can be done by performing a binary join between C1’ and primerH, where C1’ contains all possible subsequences in the DB. In detail, we perform the binary join by looking up the hash maps suffixH and primerH while reading each row of C1’. For instance, we assume that we have read a row GCT+3 from C1’ in Fig. 2. We also assume that there is no primer GCT in primerH and suffixH since it has been filtered out in Step 2. The primer has a suffix CT, and so, we look up the suffix in suffixH and find a set of primers {*TCT}. By looking up the primer *TCT in primerH, we find the primer has 4-5 as sidset, which is different from the sidset of GCT, i.e., 3. That means the primer *TCT may amplify not only the sequences $\{4,5\}$ but also the sequence 3 in wet experiments. Thus, we set valid of *TCT to 0 (false) in primerH. When we read the next row *TCT+4-5 from C1’, we know that the primer *TCT is not valid by looking up primerH and so skip looking up suffixH. In terms of implementation, the table C1’ is divided into multiple subtables, and multiple CPU threads read their own subtable and update primerH, where there is no race condition since we use atomic operations for looking up and setting valid of primerH.

Step 4: building arrays and general cross-hybridization filtering

Step 4 consists of the following two phases: preparing data structures and performing general cross-hybridization filtering. In the first phase, it builds (1) a hash map called seedH, (2) a set of arrays built from the result of Step 3 (shortly, arraysC3), and (3) a set of arrays built from the result of Step 1 (shortly, arraysC1). In the second phase, it performs general cross-hybridization filtering using seedH, arraysC3, and arraysC1, while increasing k from 1 to #maxMismatch.

The hash map seedH is built from the set of valid rows (i.e., valid=1) in primerH by extracting all possible seeds from P. In Fig. 2b, seedH shows an example of the hash map when $k=1$, and so, the length of seed is $\lfloor 3 / 2 \rfloor = 1$. The key of seedH is a concatenation of seed, index (position where seed occurs in P), and |P| (length of P). The value of seedH, i.e., Pset contains a set of primers of length |P| where seed occurs at index. For example, in the first row of seedH means that the set of primers of length 3 where a seed A occurs at the position 0 is {AAC, ATG}. Each set of primers having the same key is grouped in this way. For instance, for human RefSeq DB, a total of 3,309,154 groups are formed when $k=1$, and a total of 77,418 groups are formed when $k=2$. seedH is mainly used for building arraysC3 and arraysC1.

The set of arrays, arraysC3, is composed of four arrays, P3offset, P3, sidset3offset, and sidset3 as shown in Fig. 3a. To build arraysC3, we first sort the keys of seedH in the ascending order of the length of Pset, i.e., the number of primers. The order of the keys is used for handling workload balancing of GPU computation, and we call the order as the workload order. Then, we build the arrays P3 and sidset3 according to the workload order. For example, if we assume that T+1+3 has the shortest Pset, and A+0+3 has the second shortest Pset in the hash map seedH, then P3 starts with Pset of T+1+3 and next Pset of A+0+3. Likewise, sidset3 starts with sidset of T+1+3 in primerH (i.e., 1-2) and next sidset of A+0+3 in primerH (i.e., 2-3-4). Both P3offset and sidset3offset are just pointer arrays for P3 and sidset3, respectively, which is used for coalesced memory access in GPU computation.

Fig. 3

Example of the arrays used in Step 4. a arraysC3: the set of arrays built from the result of Step 3. b arraysC1: the set of arrays built from the result of Step 1

The array output is for storing the result of general cross-hybridization filtering, whose length is the same with P3 since the target of filtering is each primer. It is initialized as 1 which means valid and updated during general cross-hybridization filtering. In general, there are multiple elements in output for the same primer (e.g., at least three elements for ATG).

The set of arrays, arraysC1, is composed of four arrays, P1offset, P1, sidset1offset, and sidset1 as shown in Fig. 3b. Both P1 and sidset1 arrays are also built in the same workload order mentioned above. Following the same order is for performing a binary join between arraysC3 and arraysC1 quickly and massively using GPU computation. P1 and sidset1 are built using P and sidset in C1’ (output of Step 1), respectively, while P3 and sidset3 are built using Pset in seedH and sidset in primerH, respectively. In detail, we extract a set of pairs of key (i.e., seed+index+|P|) and value (i.e., Pset) from each row in C1’, if the corresponding key exists in seedH, and build P1 and sidset1 so as to follow the workload order (e.g., the first T+1+3 and the second A+0+3). The information in arraysC1 becomes to include that in arraysC3 since the former is built using the result of Step 1, while the latter is built using the result of Step 3.

All the data structures, seedH, arraysC3 and arraysC1 need to be constructed for each k in Fig. 1b. That is, GPrimer performs the first general cross-hybridization filtering using the data structures constructed for $k=1$ and then the second filtering using the data structures constructed for $k=2$. After the first filtering using $k=1$, primerH is updated based on output such that, if an element in output for a primer is 0, valid of the corresponding primer in primerH is also set to 0 (false). A new seedH should be constructed for $k=2$ since the length of a seed in seedH becomes shorter as k increases. Accordingly, arraysC3 and arraysC1 should be newly constructed based on the new seedH and the updated primerH. The output array also should be initialized.

If the size of input sequence DB is small enough to be processed only with a single GPU, the procedure of Step 4 is relatively simple: preparing data structures in main memory, copying both arraysC3 and arraysC1 to GPU memory, and executing a GPU kernel function for general cross-hybridization filtering. However, if the size of DB is too large to be processed even with multiple GPUs at a time, the procedure needs to be more complicated. GPrimer exploits the streaming processing functionality of GPU to make Step 4 scalable in terms of the size of DB and the number of GPUs.

Figure 4a shows the flow of data structures of GPrimer among disk, main memory, and GPUs. Basically, GPrimer splits the whole arraysC3 into multiple disjoint chunks and copies each chunk to each GPU (called chunk-copy). We assume that the number of chunks is equal to the number of GPUs (denoted as Q). We denote the chunk assigned to the y-th GPU (simply GPU$^{(y)}$) as arraysC3$^{(y)}$. In Fig. 3a, each key (i.e., seed+index+|P|) and its corresponding subarrays in P3offset, P3, sidset3offset, and sidset3 is the smallest unit of independent workload. Thus, arraysC3 is split at the boundary between keys into multiple chunks which are almost equal in size. GPrimer splits output into chunks and copies each chunk to each GPU in a similar way.

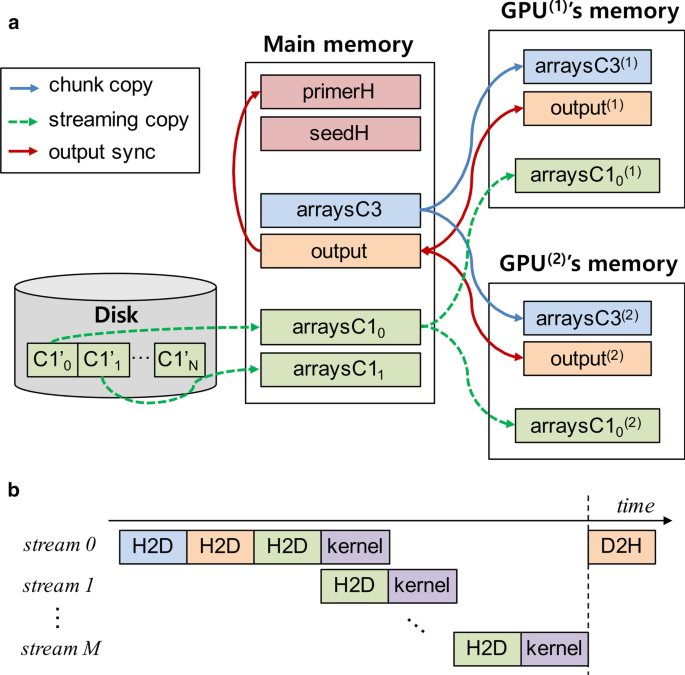

Fig. 4

Data flow and tileline in Step 4. a Data flow among disk, main memory, and GPUs. b Timeline of multiple GPU streams in terms of threee types of GPU operations: H2D(Host to Device) copy, kernel execution, and D2H(Device to Host) copy

In case of arraysC1, the table C1’ is divided into multiple subtables C1’$_x$, and we denote the part of arraysC1 built from C1’$_x$ so as to follow the workload order as arraysC1$_{x}$. We can again split each arraysC1$_{x}$ into multiple disjoint chunks arraysC1$_{x}^{(y)}$ such that the range of keys of arraysC1$_{x}^{(y)}$ is the same to that of arraysC3$^{(y)}$. GPrimer copies arraysC1$_{0}^{(y)}$ to GPU$^{(y)}$ ($0 \le y < Q$), copies arraysC1$_{1}^{(y)}$ to GPU$^{(y)}$ ($0 \le y < Q$) and so on (called streaming-copy).

Here, streaming-copy means that the GPU kernel function for a pair of arraysC3$^{(y)}$ and arraysC1$_{x}^{(y)}$ is executed in a GPU simultaneously during arraysC1$_{z}^{(y)}$ is prepared and copied to the GPU ($x < z$). For streaming-copy, we need to use multiple GPU streams, where a GPU stream means an ordered sequence of the following three types of operations: H2D copy, kernel execution, and D2H copy [33]. Figure 4b shows the timeline of multiple GPU streams in GPU$^{(y)}$. The green H2D boxes correspond to streaming-copying arraysC1$_{x}^{(y)}$ to GPU and the purple boxes executing the GPU kernel function. Once the kernel function has processed arraysC1$_{x}^{(y)}$, its result (i.e., validity of primers) is in output$^{(y)}$ in GPU memory. Thus, we need to synchronize output by copying output$^{(y)}$ from GPU$^{(y)}$ to main memory while merging them (orange D2H box). After completing Step 4 for a specific k, primerH is updated based on output in main memory. We have assumed so far that the whole arraysC3 can fit in the memory of multiple GPUs, and it actually is for all input DBs we have tested. If it does not fit in, GPrimer divides arraysC3 into multiple parts such that each part can fit in and repeats the above procedure like a nested loop method.

Algorithm 1 presents the pseudo code of the GPU kernel function for Step 4, which may seem complicated, but actually is simple. The function mainly relies on coalesced memory access in GPU memory for efficiency, and so, most of its lines are about identifying memory addresses to be accessed. In the function, the basic processing unit is a GPU thread, and the basic data unit to be processed is a key (i.e., seed+index+|P|). For simplicity, we denote arraysC3$^{(y)}$, arraysC1$_{x}^{(y)}$, and output$^{(y)}$, as arraysC3, arraysC1, and output, respectively. Both arrays, arraysC3 and arraysC1, can be divided by each key. For example, in Fig. 2a, the blue part corresponds to the key $T+1+3$, and the red part to the key $A+0+3$. The function takes workloadThreshold and k as inputs and updates and returns the output array as output. The parameter workloadThreshold is the boundary that determines whether each thread processes a single key (each-thread mode), or all threads of a thread block process a single key (block-threads mode). The set of keys having smaller index than workloadThreshold (e.g., the index of $A+0+3$ is 1 in Fig. 2a) is processed in the each-thread mode using Algorithm 1. We will explain how to determine workloadThreshold later in more detail.

Since it is a GPU kernel function, all GPU threads execute the same entire function (Line 1). At Line 2, each thread gets the index of a key that it processes based on its own index (i.e., threadIdx), the size of a thread block (i.e., blockDim) and the index of the block (i.e., blockIdx). After a thread processes its own key (Lines 4–23), it gets the index of the next key (Line 24) and repeats processing the key. The thread gets the start and end indices in P3 (Lines 4–5) and the start and end indices of in P1 (Lines 6–7). Then, it checks every pairs of primers between P3[P3start : P3end] and P1[P1start : P1end] (Lines 8–11). For a specific pair of primer3 and primer1, it gets the start and end indices in sidset3offset (Lines 12–13) and the start and end indices of in sidset1offset (Lines 14–15). Then, it sets output[i] for primer3 to 0, i.e., invalid, (Line 18), if primer3 is similar to primer1 with up to k mismatch residues (Line 17), and at the same time, primer1 amplifies any target sequences that primer3 does not amplify (Line 16). The logic in Lines 16–19 has been presented in the previous studies [1, 5, 8].

Table 1 shows the amount of computation of Step 4 in terms of the number of pairs of primer3 and primer1 to be processed, i.e., the number of executions of Line 12–21 in Algorithm 1. It exceeds 1.4 trillions for human and mouse, which indicates Step 4 is indeed compute-intensive.

Table 1 The amount of computation of Step 4 for six species.

Now, we explain about the parameter workloadThreshold, which is the boundary that determines whether each thread processes a single key (each-thread mode), or all threads of a thread block process a single key (block-threads mode). The set of keys having smaller index than workloadThreshold (e.g., the index of $A+0+3$ is 1 in Fig. 3a) is processed in the each-thread mode. The distribution of the numbers of primers per key in the array P3 (or P1) is highly skewed. For instance, the minimum number of primers per key is 1, while the maximum number is 8786 for human RefSeq DB ($k=2)$. That means some GPU threads process a few keys, while some other GPU threads process thousands keys. The former threads do nothing until the latter threads complete the execution of the function, which may severely reduce the utilization of GPU computation and so degrade the performance of Step 4. The hybrid approach that uses either the each-thread mode or the block-threads mode depending on the workload (i.e., the number of primers per key) can alleviate this problem. Since P3 is already sorted by workload, and P1 is also almost sorted by workload, we can just perform the each-thread mode for the keys having smaller indices than workloadThreshold and the block-threads mode for the other keys. In the block-threads mode, we usually set the number of blocks to 1024 and the size of a block to 1024 threads. That is, up to 1024 keys are processed in parallel using 1024 threads per key.

The number of primers per key tends to be increased as k increases since the number of unique seeds is decreased as k increases. Thus, we set workloadThreshold to a smaller percentile when $k=2$ compared to when $k=1$. We heuristically set workloadThreshold to the 85th percentile for $k=1$, while setting it to the 20th percentile for $k=2$. That is, if there are a total 100 keys, workloadThreshold becomes 85 for $k=1$. For human RefSeq DB, the number of primers of the key of the 85th percentile is 22 ($k=1$), and that of the 20th percentile is 164 ($k=2$). That means the keys having up to 22 and 164 primers are processed using a single thread when $k=1$ and $k=2$, respectively.

Step 5: pair filtering and ranking

GPrimer processes Step 5 as well as Step 4 by exploiting coalesced memory access using arrays, hiding PCI-E communication overhead using multiple asynchronous GPU streams, and load balancing using workloadThreshold. At the end of Step 4, GPrimer simply reads each row of C2 and writes the row into C4 if its valid is 1 in primerH. Step 5 takes the result of Step 4, i.e., C4, as input, and groups it by sid. For constructing arrays, GPrimer counts the number of forward (or reverse) primers for each sid group in C4 and sorts the groups in C4 in the ascending order of the number of primers per group (i.e., workload order). Figure 5a shows an example of C4 sorted by the workload order.

Fig. 5

Example of data structures used in Step 5. a Sorted C4. b Arrays for forward primers. c Arrays for reverse primers. d Arrays for the scores of pairs of primers

GPrimer constructs two kinds of arrays, one for forward primers and the other for reverse primers, using C4 and applies five pair filtering constraints to all possible pairs between forward primers (FPs) and reverse primers (RPs). Then, for all valid pairs of FP and RP satisfying the constraints, GPrimer calculates their scores, sorts the pairs by their scores, and stores the formatted result of the pairs as output. In detail, it constructs three arrays, FPoffset, FP and Fpos, for forward primers, and three arrays, RPoffset, RP and Rpos, for reverse primers, according to the workload order. For example, FP starts with CGT for the group sid:7 and next {ATG, AAC} for the group sid:2 in Fig. 5b. Likewise, RP starts with {CAA, GAC} for sid:7 and next {TCA, TCG} for sid:2 in Fig. 5c. GPrimer also prepares the array called score for storing the scores of all possible pairs between FPs and RPs (Fig. 5d). By scanning both FPoffset and RPoffset once, we can construct scoreoffset, i.e., the pointer array for score. It is initialized with $-1.0$, which means the corresponding pair is invalid. If a pair of primers is valid, i.e., satisfies the pair filtering constraints, its score is calculated and assigned to the corresponding element in the array score.

The GPU kernel function for Step 5 processes pairs of primers between FP and RP. For instance, in Fig. 5b–d, the first GPU thread (keyIdx=0) processes two pairs of primers in blue, and the second GPU thread (keyIdx=1) processes four pairs of primers in red. The exact workload should be the number of primer pairs, but we regard the number of forward primers as the amount of workload for simplicity. The distribution of the workload in Step 5 is more highly skewed than that in Step 4. Figure 6a, b show the distributions of workload per group for human and mouse, where x-axis is keyIdx (i.e., group), and y-axis is the number of forward primers per group (i.e., workload). The figures indicate that a lot of sequences (groups) have relatively small workload, while a few sequences have very large workload. Figure 6c, d show the detailed distributions for human and mouse, where x-axis is workload, and y-axis is the number of sequences per workload. Based on this observation, we use two workload thresholds,smallThreshold and largeThreshold for Step 5, instead of a single threshold used in Step 4. We perform the each-thread mode for the groups having smaller indices than smallThreshold and the block-threads mode for the groups having the indices between smallThreshold and largeThreshold. For the groups having larger indices than largeThreshold, we make all the threads of a GPU process a single group (all-threads mode). We usually set the number of blocks to 1024 and the size of a block to 512 threads for both the block-threads and all-threads modes. For human, the groups of keyIdx[0:114] are processed in the each-thread mode, the groups of keyIdx[114:51925] in the block-threads mode, and the groups of keyIdx[51925:] in the all-threads mode. The last group contains 17767 forward primers and 17713 reverse primers, and a total of more than 300 million pairs of the primers are processed using 512 thousand threads in the all-threads mode.

Fig. 6

Distribution for workload in Step 5. a and b represent the distributions of workload per group for human and mouse RefSeq DBs, respectively. c and d represent the distributions of the number of sequences per workload for human and mouse RefSeq DBs

In Step 4, GPrimer streaming-copies arraysC1 to GPUs if it does not fit in GPU memory. Likewise, in Step 5, GPrimer streaming-copies six arrays for FPs and RPs and two arrays for scores to GPUs if they do not fit in GPU memory. Since each group is an independent workload in Step 5, GPrimer streaming-copies the arrays for disjoint sets of groups to different GPUs. The resultant score array in each GPU is copied back to main memory for synchronization. Ranking (i.e., sorting) of the pairs by their scores is done by CPU threads.

Result

Experimental setup and data sets

MRPrimer [5] was evaluated using MapReduce on a cluster of six server machines: one master and five slaves. Each machine is equipped with two Intel Xeon 10-core CPUs, 512 GB main memory, and 6 TB disk. We used 40 Map processes and 40 Reduce processes per machine (i.e., a total of 200 Map and 200 Reduce processes). GPrimer was evaluated using a single machine equipped with the same CPUs, the same main memory, but eight NVIDIA GTX 1080 ti GPUs having 11 GB device memory.

Table 2 The size of data in each step (input: the number of sequences, C1–C4: the number of rows, output: the number of pairs of primers)

For data sets, we used the mRNA sequence DBs for six species—human, mouse, rat, zebrafish, cow, and pig—from the NCBI Reference Sequence (RefSeq) database (http://www.ncbi.nlm.nih.gov/refseq/). The RefSeq DBs used contain a total of 138,375 mRNA sequences that have NM as the prefix of GenBank accession number (the version that updated at 21 November 2018 for human, and 7 November 2018 for others). Table 2 summarizes the size of data in each step. The number of rows in output becomes much larger than that in C4 since each row is not a single primer, but a pair of primers.

Performance comparison with MRPrimer

We evaluated the elapsed times of GPrimer and MRPrimer. Figure 7a shows the speedup of GPrimer compared to MRPrimer for all steps for all species. In the figure, the speedup using eight GPUs is higher than that using four GPUs, but the difference is not much, which will be explained in the next section. The speedup also becomes larger as the size of an input sequence DB increases, for example, from pig to human. We can say that it is a desirable property that the speedup is more improved for a larger sequence DB. Figure 7b shows the speedup for Steps 1–3, where GPrimer only uses CPU threads as MRPrimer does. GPrimer improves the performance about twice compared to MRPrimer, even though GPrimer exploits 20 CPU cores, while MRPrimer exploits a total of 100 CPU cores. The performance improvement is mainly due to that the threads in GPrimer compute in the same memory space, while those in MRPrimer compute in different memory spaces with some overhead of network communication. Figure 7c shows the speedup for Step 4, i.e., general cross-hybridization (GCH) filtering step. We performed GCH filtering twice, i.e., for $k = 1$ and $k = 2$, and summed both elapsed times for evaluation. The speedup is quite large, in particular, up to 607 times for human. In terms of elapsed times, for human, GPrimer took about only 11 minutes using four GPUs, while MRPrimer took about 100 h. This indicates that our method for Step 4 described in Implementation is quite effective to exploit the computational power of GPU. Figure 7d shows the speedup for Step 5, i.e., pair filtering and ranking step, where the speedup is about 10. Thus, Step 5 is more compute-intensive compared to Steps 1–3, but much less compute-intensive compared to Step 4.

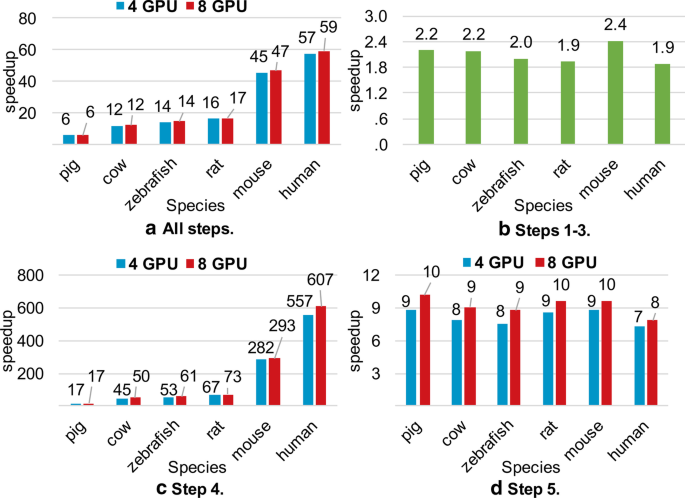

Fig. 7

Speedup of GPrimer compared to MRPrimer. a speedup for all steps; b speedup for Steps 1–3 (not utilizing GPUs); c speedup for Step 4; d speedup for Step 5

Performance of GPrimer varying the number of GPUs

Figure 8a shows the elapsed times of Step 4 of GPrimer for human while varying the number of used GPUs. Step 4 is carried out in the order of five substeps: building seedH, preparing arraysC3, probing arraysC1 against arraysC3, updating primerH, and writing C4. In the figure, the substep of probing arraysC1 includes not only the time of executing the GPU kernel function, but also the time of building each chunk of arraysC1 in main memory using CPUs and streaming it to GPU memory. In fact, three different types of operations, i.e., building, streaming, and executing, for arraysC1 overlap much in the timeline. The time of probing arraysC1 decreases as the number of GPUs increases, since the substep is executed in GPUs. But, the time is not much decreased for four or eight GPUs, since the overhead of building and streaming arraysC1 gets larger. The time of only executing the GPU kernel function decreases in inverse proportion to the number of GPUs, as in Table 3. Here, the reason why the time decreases by more than twice sometimes when the number of GPUs becomes twice is that the memory usage for arraysC3 in each GPU is reduced as the number of GPUs increases, and so we can reduce the number of executions of the GPU kernel function by increasing the size of a chunk of arraysC1. The substep of preparing arraysC3 means building arraysC3 in main memory and chuck-copying it GPU memory. As the number of GPUs increases, the size of the chunk of arraysC3 assigned to each GPU decreases, and so, the time of this substep also decreases. The times of other three substeps are almost the same regardless of the number of GPUs.

Fig. 8

Elapsed times of the substeps in Steps 4 and 5 of GPrimer while varying the number of GPUs for human RefSeq DB. Each bar in graphs indicates the total elapsed time. The probing C1 phase in a and filtering and scoring phase in b are the phases that perform GPU operations

Figure 8b shows the elapsed times of Step 5 of GPrimer. Step 5 is carried out in the order of three substeps: building arrays, filtering & scoring, and writing & ranking. In the figure, the substep of filtering & scoring is processed by GPUs, and so its time decreases approximately in inverse proportion to the number of GPUs. On the contrary, the elapsed times of the other two substeps are almost the same regardless of the number of GPUs, since they are not related to GPU computation.

Table 3 Elapsed times of executing the GPU kernel function for human RefSeq

Effectiveness of workload balancing and streaming-copying

To fully exploit GPUs, GPrimer relies on coalesced memory access within GPU, workload balancing among GPU threads, and streaming-copying data between main memory and GPU memory. Among three techniques, we check the effectiveness of workload balancing and streaming-copying in this section. It is hard to turn on and off coalesced memory access, and so we skip checking its effectiveness. Figure 9 shows the breakdown of performance of GPrimer, in particular, the substeps using GPUs, i.e., probing arraysC1 in Step 4 and filtering & scoring in Step 5. We evaluated the elapsed times of the following four versions of GPrimer: only using streaming-copying (S), only using workload balancing (B), using neither workload balancing nor streaming-copying (nothing), and using both (S+B). Not using streaming-copying means synchronous copying after completing the execution of the GPU kernel function. Not using workload balancing means processing keys or groups only in a single mode, in particular, only the each-thread mode for Step 4 and only the block-threads mode for Step 5, without considering thresholds. We could not use only the each-thread mode for Step 5 due to lack of GPU memory. In Fig. 9a, we can see workload balancing is more important than streaming-copying for performance. In Fig. 9b, workload balancing and streaming-copying in Step 5 are less effective than those in Step 4. In detail, streaming-copying is less effective since the size of streaming-copied data is smaller, and the data flow of streaming-copying is simpler. Workload balancing is also less effective since the block-threads mode is overall the best single mode among three modes, each-thread mode, block-threads mode, and all-threads mode, in terms of handling the skewness of workload.

Fig. 9

Elapsed times of four different versions of GPrimer while turning on and off two techniques, workload balancing (B) and streaming-copying (S). The experiments are performed for human and mouse RefSeq DBs (indicated in x-axis)

Memory usage

Table 4 shows the memory usage for major data structures in GPrimer (in MByte). The hash maps, primerH, suffixH, and seedH, are in main memory. The remaining data structures all are in GPU memory. As you can see, the size of arraysC3+output is small enough to fit in GPU memory even for human and mouse, and so streaming arraysC1 to GPUs needs to be done only once. The biggest data structure is a pair of score and scoreoffset, but no memory problem occurs since they are allocated, calculated, and copied back to main memory in a small size enough to fit in GPU memory.

Table 4 Memory usage for major data structures (MB)

Table 5 shows the memory overhead of MRPrimer and GPrimer for mouse RefSeq DB. Since MRPrimer does not maintain separate major data structures, we have measured the peak main memory usage of both in each step. For MRPrimer, we sum the memory usage of six machines used. We note that the peak memory of GPrimer in Steps 6 and 7 (i.e., about 85 GB) is smaller than the size of the data structures of score and scoreoffset (i.e., 112 GB) in Table 4. This is because GPrimer does not generate score and scoreoffset at once, but rather generate them step by step in a smaller size that can fit into GPU memory.

Table 5 Peak memory usage of MRPrimer and GPrimer in each step for mouse RefSeq DB (in MB)

Conclusions

In this paper, we have proposed a fast GPU-based pipeline for primer design called GPrimer that can significantly improve the performance of the existing MRPrimer pipeline based on MapReduce. GPrimer takes the same input data and returns the exactly same output with MRPrimer. That is, GPrimer has the exactly same specificity of primer design with MRPrimer. The only difference between GPrimer and MRPrimer is the speed of primer design. MRPrimer is a MapReduce-based pipeline, but GPrimer is a GPU-based pipeline. Due to the proposed data structures and algorithms in this paper, for human RefSeq DB, GPrimer achieved a speedup of 57 times for the entire steps and a speedup of 557 times for the most time-consuming step, i.e., homology test step, using a single machine of 4 GPUs, compared with MRPrimer running on a cluster of six machines. GPrimer not only significantly outperforms MRPrimer, but also its improvement is more marked as the size of sequence DB increases. Since GPrimer has the exactly same specificity of primer design with MRPrimer, GPrimer also outperforms other primer design software that MRPrimer has outperformed, in terms of specificity. Therefore, we believe GPrimer can be significantly used for web-based primer design tools and primer databases for detecting RNA viruses to deal with the sizes of sequence DBs growing exponentially.

Availability and requirements

• Project name: GPrimer.

• Project home page: http://github.com/qhtjrmin/GPrimer.

• Operating system: Linux Ubuntu 16.04 LTS or higher.

• Programming language: C++11, CUDA.

• Other requirements: CUDA toolkit version 8 or higher. Nvidia driver (v384 or higher), GCC/G++ 4.8.x or later.

• License: BSD-3-Clause.

• Restrictions to use by non-academics: Not applicable.
