EZH2 as a prognostic-related biomarker in lung adenocarcinoma correlating with cell cycle and immune infiltrates
BMC Bioinformatics volume 24, Article number: 149 (2023)
It has been observed that high levels of enhancer of zeste homolog 2 (EZH2) expression are associated with unsatisfactory prognoses and can be found in a wide range of malignancies. However, the effects of EZH2 on Lung Adenocarcinoma (LUAD) remain elusive. Through the integration of bioinformatic analyses, the present paper sought to ascertain the effects of EZH2 in LUAD.
The TIMER and UALCAN databases were applied to analyze mRNA and protein expression data for EZH2 in LUAD. The result of immunohistochemistry was obtained from the HPA database, and the survival curve was drawn according to the library provided by the HPA database. The LinkedOmics database was utilized to investigate the co-expressed genes and signal transduction pathways with EZH2. Up- and down-regulated genes from The Linked Omics database were introduced to the CMap database to predict potential drug targets for LUAD using the CMap database. The association between EZH2 and cancer-infiltrating immunocytes was studied through TIMER and TISIDB. In addition, this paper explores the relationship between EZH2 mRNA expression and NSCLC OS using the Kaplan–Meier plotter database to further validate and complement the research. Furthermore, the correlation between EZH2 expression and EGFR genes, KRAS genes, BRAF genes, and smoking from the Cancer Genome Atlas (TCGA) database is analyzed.
In contrast to paracancer specimens, the mRNA and protein levels of EZH2 were higher in LUAD tissues. Significantly, high levels of EZH2 were associated with unsatisfactory prognoses in LUAD patients. Additionally, the coexpressed genes of EZH2 were predominantly associated with numerous cell growth-associated pathways, including the cell cycle, DNA replication, RNA transport, and the p53 signaling pathway, according to Gene Ontology and Kyoto Encyclopedia of Genes and Genomes pathways. The results of TCGA database revealed that the expression of EZH2 was lower in normal tissues than in lung cancer tissues (p < 0.05). Smoking was associated with elevated EZH2 expression (p < 0.001). EZH2 was highly expressed in lung cancers with positive KRAS expression, and the correlation was significant in lung adenocarcinoma (r = 0.3129, p < 0.001). CMap was applied to determine the top 15 positively correlated drugs/molecules and the top 15 negatively correlated drugs/molecules. MK-1775, MK-5108, fenbendazole, albendazole, BAY-K8644, evodiamine, purvalanol-a, mycophenolic-acid, PHA-793887, and cyclopamine are potential drugs for patients with lung adenocarcinoma and high EZH2 expression.
Highly expressed EZH2 is a predictor of a suboptimal prognosis in LUAD and may serve as a prognostic marker and target gene for LUAD. The underlying cause may be associated with the synergistic effect of KRAS, immune cell infiltration, and metabolic processes.
Globally, pulmonary carcinoma exhibits the highest incidence and mortality rate [1, 2]. Non-small cell lung cancer (NSCLC) accounts for between 80 and 85% of all pulmonary carcinoma . Recent advances in the diagnosis and treatment of NSCLC have been remarkable, however, the 5-year overall survival (OS) rate remains below 21% . The subtypes of NSCLC include squamous cell carcinoma, adenocarcinoma, and large cell carcinoma . Lung adenocarcinoma is the most prevalent type, accounting for approximately 40% of lung cancers . Surgery with radiotherapy significantly improves the 5-year survival rate for patients with early-stage lung adenocarcinoma . For patients with early-stage lung adenocarcinoma, surgery with radiotherapy significantly improves the 5-year survival rate (83%, 68%, 60%, and 53% for stage IA, IB, IIA, and IIB patients, respectively, based on clinical stage staging). Patients with advanced lung adenocarcinoma are, however, rarely treated using the same methods. Their 5-year survival rate is approximately 10%, therefore, immunotherapy and targeted therapy for lung cancer have become a hot topic of research in recent years [6, 7]. In the first-line metastatic setting for patients with metastatic LUAD, immunotherapy-based combinations are considered significant breakthroughs and demonstrate efficacy and OS benefits . Even with its success, only a subset of patients exhibited responses, hence necessitating the development of prediction markers. Numerous studies further elucidate subsequent tumor progression and therapeutic response in relation to oncocyte and tumor microenvironment (TME) interactions .
There is a growing body of evidence suggesting that epigenetic variations facilitate cancer developmental processes and treatment reactions. Through DNA methylation and demethylation, histone modification, and chromatin remodeling, epigenetic modifications can modulate chromatin status and genetic expression [10,11,12] without affecting DNA sequences. Enhancer of zeste homolog 2 (EZH2) is a gene associated with conservative cellular bio functions (e.g., cellular cycle, cellular proliferative ability, and cellular differentiative activity). EZH2 is essential for the proliferation and metastasis of cancer [13,14,15]. In vitro and in vivo knockdown of CBX2 significantly inhibited the growth and metastasis of LUAD cells with high EZH2 expression. While the combination of high CBX2 and EZH2 expression was indicative of an unfavorable prognosis for LUAD . Highly expressed EZH2 is indicative of unsatisfactory prognoses for NSCLC, which may be associated with cancer phases or carcinoma types. EZH2 may be an independent NSCLC prognostic index. The prognosis of NSCLC  is influenced by highly expressed EZH2 or its synergy with KRAS or BRAF variants. EZH2 is a promising biomarker candidate with excellent immunotherapy response potential. Highly expressed EZH2 was associated with an unsatisfactory response to anti-PD-1 therapy, an early relapse, and death. In addition, the abnormal expressing level of EZH2 correlates with the sensitivity of cisplatin-based therapy .
Using multiple network databases, this paper conducted exhaustive and systematic analyses of the EZH2 expression level in LUAD. The authors found EZH2 to be significantly overexpressed in LUAD. EZH2 coexpression genes are predominantly abundant during cell development, T cell stimulation, and acquired immune responses. Both EZH2 expressions were related to cancer-infiltration immunocytes and immune modulators in LUAD. This study reveals that EZH2 is an underlying prognostic and predictive marker for response to treatment with immune-checkpoint inhibitors in NSCLC patients.
Materials and methods
Tumor immune estimation resource (TIMER) analyses
The TIMER (https://cistrome.shinyapps.io/timer/) online server is a comprehensive network for studying the interactions of immune infiltrates with multiple tumor types . The team analyzed the RNA sequences of various cancer types in TCGA with the TIMER database to determine the differential expression of EZH2 in tumor and paracancerous tissues. The TIMER algorithm estimated the immune cell abundance. Association modules were applied to determine the relationship between the RNA sequencing expression profile data of EZH2 in LUAD and immunocytes, such as B Cell, CD8+ T cell, CD4+ T cell, Macrophage, Neutrophil, and Dendritic Cell. Based on genetic modules, the genetic biomarkers of immunocytes were also related to the expression level of EZH2. These genetic biomarkers have been mentioned in previously published articles [18,19,20].
UALCAN (http://ualcan.path.uab.edu/) is a comprehensive, facilitative, interaction-based online resource for the analyses of cancer omics data and tumor clinic information from TCGA . In the UALCAN database, this study obtained EZH2 mRNA and protein that were differentially expressed in LUAD and adjacent healthy tissue samples.
Human protein atlas (HPA) database analysis
To map tissue samples, cells, and organs, the HPA (https://www.proteinatlas.org/) is based on proteomics, transcriptomes, and system biology information. It contains the protein expression of tumor tissue and healthy tissue, as well as the survival curve for patients with tumors. The HPA database was queried for immunohistochemical data regarding EZH2 expression in LUAD. In addition, the survival data was applied to draw the survival curve.
Linked omics data base analyses
The Linked Omics database (http://www.linkedomics.org/login.php) is an online platform for analyzing multiple omics data sets from the TCGA . Using the Link Finder module, the database was screened for LUAD for DEGs related to EZH2. The Pearson correlative coefficient was utilized to analyze the correlational outcomes, which were represented by volcanic plots and heat maps. The DEGs associated with EZH2 were annotated with GO analyses, KEGG analyses [23,24,25], and GSEA through the Link Interpreter module in order to acquire descriptive data.
Connectivity map (CMap) analyses
CMap (https://clue.io/) [26,27,28] can be utilized to discover the mechanism of action of small molecules, functionally annotate genetic variants of disease genes, and inform clinical trials. The CMap database was updated with the top 50 EZH2-related up- and down-regulated genes from The Linked Omics database in order to predict potential drug targets for LUAD. And these potential therapeutic targets are ranked according to a point system.
TISIDB data base analyses
The TISIDB database (http://cis.hku.hk/TISIDB) is an online platform for analyzing the interaction between cancer and the immune system, which facilitates the prediction of immune therapy reactions . Through using TISIDB database, this study examined the relationship between the expression level of EZH2 and lymph cells, immune modulators, and chemotactic factors. At p < 0.05, a ‘rho’ value > 0.2 and < − 0.2 was deemed to indicate a significant association at p < 0.05 .
Bioinformatics analysis based on TCGA database
To further validate and supplement our research, the relationship between EZH2 mRNA expression and NSCLC OS is analyzed with the Kaplan–Meier plotter database (https://kmplot.com) [31,32,33]. Lung adenocarcinoma and lung squamous cell carcinoma TCGA data on EZH2 transcriptome expression were retrieved from the TCGA data portal. In addition, we evaluated the correlation between EZH2 expression and the EGFR gene, the KRAS gene, the BRAF gene, and smoking in lung cancer patients from the TCGA database. When the p-value was less than 0.05, the results were deemed statistically significant.
The statistical analysis was performed using GraphPad Prism 8.0 (America) and SPSS 17.0. (America). The measuring data are displayed as average ± SD. The expression levels of EZH2 mRNAs were compared between LUAD and neighboring healthy specimens from the TCGA database utilizing a t-test on independent samples. The TIMER database algorithm was implemented to estimate the immunocyte density. Utilizing the association module, the relationship between RNA-seq expression profile data and immune cells of EZH2 in LUAD was assessed. The Pearson correlation coefficient was applied to observe the EZH2 genes with differential expression in LUAD. Kaplan–Meier (K–M) curves were applied to conduct OS analyses. A two-tailed p = 0.05 was statistically significant.
EZH2 is expressed in LUAD and is associated with prognosis
Compared with normal tissues, EZH2 was upregulated in Bladder Urothelial cancer (BLCA), mammary cancer (BRCA), Cervical squamous cell cancer and endocervical glandular cancer (CESC), biliary tract cancer (CHOL), Colonic glandular cancer (COAD), Esophagus cancer (ESCA), Glioblastoma multiforme (GBM), Head and Neck squamous cell cancer (HNSC), HNSC−HPV+, Kidney renal clear cell cancer (KIRC), Kidney renal papillary cell cancer (KIRP), Liver cell cancer (LIHC), Lung glandular cancer (LUAD), Lung squamous cell cancer (LUSC), Prostate glandular cancer (PRAD), Rectum glandular cancer (READ), Stomach glandular cancer (STAD), Thyroid cancer (THCA), and Uterine Corpus Endometrial cancer (UCEC) (Fig. 1A, B). Consistent with the data regarding the level of mRNA expression, our team discovered that the level of EZH2 protein expression was greater in LUAD specimens than in neighboring specimens (Fig. 1C). The positive dyeing of EZH2 was predominantly in the plasma and membranes (Fig. 1D). As illustrated by Fig. 1B, EZH2 was expressed more in cancer tissue than in paracancer tissue (Fig. 1B). K–M analyses revealed that high EZH2 expression was significantly associated with inferior OS [hazard ratio (HR) = 1.372, p = 0.035] in LUAD patients. The median value of EZH2 expressing level was 3.95. Patients with a higher expressing level had a 5-year OS of 38%, while those with a lower expressing level had a 5-year OS of 47% (Fig. 1E).

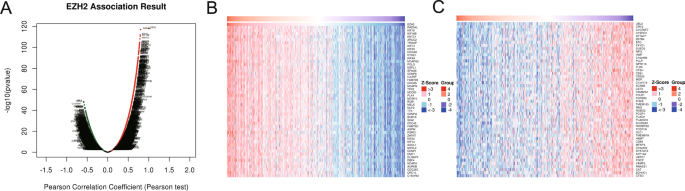

EZH2 co-expression network in LUAD
The findings of the coexpression feature of EZH2 revealed that 6559 genes were positively associated with EZH2, while 6209 genes were negatively associated (Fig. 2A). Positive and negative heatmaps displayed the top 50 genes related to EZH2 in a positive and negative manner, respectively (Fig. 2B, C).
GO analyses unveiled that coexpressed genes of EZH2 join predominantly in DNA replication, protein localization to the cell surface, adrenergic receptor signaling pathway, basal part of the cell, MHC protein complex, transcriptional factor (TF) activity, direct ligand modulated sequence-specific DNA binding, transmembrane receptor protein kinase activity, immunoglobulin binding, etc. (Tables 1, 2, 3).
KEGG analyses revealed the enriched pathways in the Cellular cycle, DNA replication, Homologous recombination, Fanconi anemia pathway, Spliceosome, Mismatch repair, RNA transportation, Nucleotide excision repair, p53 signaling pathway, Oocyte meiosis, Metabolism of xenobiotics by cytopigment P450, PPAR signal path, Cellular adhesive molecules (CAMs), Chemical tumorigenesis, Staphylococcus aureus infection, Salivary secretion, Retinol metabolic process, Lysosome, Complement and coagulation cascades, Drug metabolic process, etc. (Table 4). These findings indicate that the net of EZH2 expressing significantly affects the immune microenvironment in LUAD, and that the net of EZH2 expressing is essential for the onset and progression of cancers.
EZH2 Is related to immunocyte infiltration in LUAD
EZH2 was positively correlated with neutrophil infiltration (pr = 0.129, p = 4.51e−03) and a negative correlation with macrophage (pr = − 0.092, p = 4.25e−02) (Fig. 3A). EZH2 was remarkably related to immunostimulators, such as HHLA2 (rho = − 0.313, p = 4.1e−13), IL6R (rho = −0.381, p < 2.2e−16), TMEM173 (rho = −0.499, p < 2.2e−16), and TNFSF13 (rho = -0.488, p < 2.2e−16) (Fig. 3B). The expressing level of EZH2 was associated with immune inhibitors such as IDO1(rho = 0.179, p = 4.34e−05), LAG3(rho = 0.246, p = 1.57e−08), LGALS9(rho = −0.186, p = 2.08e−05), and TGFB1(rho = −0.244, p = 2.23e−08) (Fig. 3C). The level of EZH2 expression was significantly correlated with CCL14 (rho = − 0.483, p = 2.2e−16), CCL17 (rho = − 0.364, p = 4.41e−18), CCL23 (rho = − 0.303, p = 2.47e−12), and CXCL16 (rho = − 0.43, p = 2.2e−16) (Fig. 3D). Moreover, the level of EZH2 expression was significantly correlated with chemotactic factor acceptors CCR6 (rho = − 0.352, p = 1.81e−16), CX3CR1 (rho = − 0.486, p < 2.2e−16), CXCR1 (rho = − 0.205, p = 2.78e−06), CXCR2 (rho = − 0.244, p = 2.1e−08) (Fig. 3E). These results validate the hypothesis that EZH2 is an immune regulatory factor in LUAD.
EZH2 expression analysis through TCGA database
A total of 165 non-smokers and 361 smokers were extracted from the TCGA database of lung adenocarcinoma patients; 550 lung adenocarcinoma patients and 550 lung squamous carcinoma patients with EGFR expression; 526 lung adenocarcinoma patients and 550 lung squamous carcinoma patients with EGFR expression. KRAS expression was detected in 585 lung adenocarcinoma patients and 550 lung squamous cell carcinoma patients. With BRAF expression, there were 527 lung adenocarcinoma patients and 502 lung squamous cell carcinoma patients. In lung squamous cell carcinoma and lung adenocarcinoma, EZH2 expression is positively correlated with BRAF (r = 0.2397, p < 0.0001) and KRAS (r = 0.3167, p < 0.001) gene expression (Fig. 4A, G). The EZH2 gene expression of lung adenocarcinoma was positively correlated with the gene expression of BRAF (r = 0.2633, p < 0.0001) and KRAS (r = 0.31229, p < 0.0011) (Fig. 4B, H). The EZH2 gene expression of lung squamous cell carcinoma was positively correlated with the gene expression of BRAF (r = 0.3662, p < 0.0001) and KRAS (r = 0.3567, p < 0.0001) (Fig. 4C, I). A positive correlation exists between EZH2 expression and EGFR expression in lung squamous cell carcinoma and lung adenocarcinoma, but it is weak (r = 0.1122, p = 0.0002) (Fig. 4D). However, there was no statistical significance in the statistics of lung adenocarcinoma(r = 0.008, p = 0.8594) (Fig. 4E) and lung squamous cell carcinoma(r = 0.0660, p = 0.1221) (Fig. 4F). TCGA data demonstrate a correlation between high EZH2 expression and smoking (p < 0.0001) (Fig. 4J), particularly in lung adenocarcinoma (p = 0.0011) (Fig. 4K). The result in lung squamous cell carcinoma was not statistically significant (p = 0.8453) (Fig. 4L).
Survival analysis of lung cancer through Kaplan–Meier plotter database
To verify the results of this research, the Kaplan–Meier database was adopted for survival analysis. The medical records of patients diagnosed with NSCLC that were included in the study showed that high levels of EZH2 mRNA expression occurred in 962 of the cases, with a median survival time of 54.17 months; I n 964 cases with low expression, the median survival time was 79.50 months (HR = 1.31, 95% CI 1.15–1.48, p < 0.05). (Fig. 5A). Further analysis revealed that 360 lung adenocarcinoma cases with low expression of EZH2 had a median survival time of 119.87 months, compared to 357 cases with high expression of EZH2 (HR = 1.27, 95% CI 1.01−1.6, p < 0.05) (Fig. 5B). High expression of EZH2 mRNA was associated with a median survival time of 52.97 months in 261 cases of lung squamous cellcarcinoma, whereas low expression was associated with a median survival time of 62.00 months in 263 cases (HR = 1.03, 95% CI 0.81−1.3, p = 0:82) (Fig. 5C).
CAMP database analysis
The CMap database was up-regulated with the top 50 EZH2-related up- and down-regulated genes from The Linked Omics database to predict potential drug targets for LUAD. These potential therapeutic targets are ranked according to a point system. CMap was applied to determine the top 15 positively correlated drugs/molecules and the top 15 negatively correlated drugs/molecules. Docetaxel, palbociclib, and angiogenesis-inhibitor were among the extensively used compounds for the treatment of tumor, as determined by their scores. Other drugs/molecules, such as MK-1775 [34, 35], MK-5108 , fenbendazole [37, 38], albendazole , BAY-K8644 , evodiamine , purvalanol-a , mycophenolic-acid , PHA-793887 , cyclopamine , is a possible treatment for lung adenocarcinoma (Tables 5, 6). To determine the therapeutic potential of these drugs/molecules in patients with lung adenocarcinoma with high EZH2 expression, additional research is necessary.
Advanced lung adenocarcinoma is now commonly treated with immunotherapy-based combination therapy, which has demonstrated efficacy and OS advantages in the first-line metastasis. Notwithstanding the advancements in targeted therapy and immunotherapy, immune therapy patients will eventually develop drug tolerance due to immune evasion mechanisms. Patients with advanced pulmonary adenocarcinoma and metastatic lung adenocarcinoma have a dismal prognosis. In addition to PD-1/PDL1, numerous molecules, such as siglec-15 and FGL1 [46, 47], are implicated in the immune microenvironment. Consequently, investigating the latent immune-related factors of cancer immunoescape can improve the prognosis for lung adenocarcinoma patients. While the role of EZH2 in LUAD is unidentified, we sought to probe its clinical significance and biological functions by utilizing open-access databases for a comprehensive analysis.
The epigenetic modification of histones is a crucial mechanism for regulating cellular processes, such as tumorigenesis and immunity. Typically, epigenetic abnormalities are associated with tumor progression and cancer development . EZH2 is the catalytic component of multicomb inhibition complex 2, which trimethylates lysine 27 of histone H3 to promote transcriptional inhibition . It is frequently overexpressed in a variety of tumors, including pulmonary carcinoma , colonic and rectal carcinoma , mammary carcinoma , pancreatic carcinoma , and prostate carcinoma . Multiple cancer types, including BLCA, BRCA, CESC,CHOL, COAD, ESCA, GBM, HNSC, HNSC-HPV+. KIRC,KIRP,LIHC, LUAD, LUSC, PRAD, READ, STAD, THCA, and UCEC, had elevated levels of EZH2 relative to normal tissue, according to the findings of this study (Fig. 1A, B). Our study found higher levels of EZH2 mRNA and protein in lung adenocarcinoma than in adjacent tissues. Moreover, a higher level of EZH2 expression is associated with an inferior prognosis for lung adenocarcinoma patients.
To delve deeper into the biological information of EZH2, GO and KEGG analysis is performed.These results demonstrate that the net of EZH2 expressing significantly affects the immune microenvironment in LUAD, and that the net of EZH2 expressing is essential for the onset and progression of cancers. Hoxha et al. believed that the Hippo–YAP pathway was closely related to EZH2. It may participate in this signaling pathway to inhibit the transcription of a large gene network and mediate a variety of cellular functions. This includes the inhibition of the cell cycle kinase inhibitor p27, which promotes contact inhibition and regulates the occurrence and progression of tumor cells. Moreover, EZH2 is involved in cell proliferation and organ size regulation . EZH2 and JMJD6 gene profiles overlap in breast cancers, with EZH2 co-regulating a unique gene box in both ER+ and ER− cells. In MDA MB 231 cells, 496 genes, including aurora kinase, are co-regulated, and aurora kinase is currently being evaluated as a potential new treatment target for mammary carcinoma.
The CMap database was to predict potential drug targets for LUAD. And these potential therapeutic targets are ranked according to a point system. Docetaxel, palbociclib, and angiogenesis-inhibitor were among the extensively used compounds for the treatment of tumor, as determined by their scores. We have identified some potential drugs or molecules for the treatment of lung adenocarcinoma by reading the literature, such as MK-1775 [34, 35], MK-5108 , fenbendazole [37, 38], albendazole , BAY-K8644 , evodiamine , purvalanol-a , mycophenolic-acid , PHA-793887 , and cyclopamine  (Tables 5, 6). Of interest is the WEE1 inhibitor MK-1775, which has shown potential chemotherapy or radiotherapy sensitivity in preclinical models, particularly, although not exclusively, in p53 mutated or deficient cancer cells . Several clinical trials have shown that WEE1 inhibitors can be safely used in combination with different chemotherapeutic agents as well as concurrent chemotherapy with radiation therapy. Ongoing clinical trials testing novel agents of WEE1 inhibitors, such as ATR and PAPR inhibitors and anti-PDL1 immunotherapies, are underway and could better define the role of WEE1 inhibitors in the future, in terms of efficacy in terms of good safety profile compared to monotherapy and/or standard of care, if any of the novel therapeutic combinations would show superior antitumor efficacy [53, 54]. In our study, EZH2 was highly expressed in lung cancers with positive KRAS expression, and the correlation was significant in lung adenocarcinoma (r = 0.3129 and p < 0.001) (Fig. 4H). The direct dependence of Methylenetetrahydrofolate dehydrogenase 2 (MTHFD2) and EZH2 expression on mutation-activated KRAS and their prognostic relevance in KRAS-mutated LUAD were identified in a study by Li et al. . Aberrant KRAS activity renders LUAD cancer cell lines vulnerable to MTHFD2 and EZH2 inhibitors. Importantly, co-inhibition of these two factors has a synergistic effect . Therefore the relationship between EZH2 and KRAS may be one of our breakthroughs for LUAD-targeted therapy, but the related research literature is limited and deserves further exploration.
EZH2 is associated with the modulation of pivotal regulatory targets and therapeutic targets in the cellular cycle . These findings are in line with this study. Moreover, this study revealed that EZH2 is closely associated with drug metabolism, MHC protein complex and helicase activities, TF activities, transmembrane acceptor protein kinase activities, and immunoglobulin binding.
Selective deletion of EZH2 or inhibition of its hematopoietic activity with small molecules increases the production of the il-15 acceptor, CD122 + NK progenitors, and mature NK precursors in murine and human stem and precursor cells. These findings suggest that EZH2 modulates the development of NK cells and autoimmunity . Phosphorylation of EZH2 interferes with the function of PRC2 and increases the expression of type I interferon and antigen presentation genes. The increased efficacy of anti-CTLA-4 immunotherapy and enhanced overall survival in tumor models of syngeneic mice [58, 59]. Inhibition of EZH2 can direct myeloid differentiation of primitive hematopoietic progenitors. Consequently, EZH2 plays a crucial yet diverse role in the modulation of TME, which is required for determination at specific phases. Our extracted data revealed that EZH2 is closely associated with immunity-related factors, such as immune stimulators, immune inhibitors, immune chemokines, and chemokine receptors. It is noteworthy that Macrophage and Neutrophil are closely associated with the expression level of EZH2. Higher inflammatory markers are associated with unsatisfactory prognoses in NSCLC patients, according to a paper we just published ; these results imply that the effects of EZH2 on lung adenocarcinoma may be tightly linked to inflammatory factors. Hence, the prognosis of NSCLC could be enhanced by regulating inflammatory markers.
This study based on various database mining techniques revealed that EZH2 is a biomarker associated with LUAD prognosis. The level of EZH2 expression is connected to the infiltration of immunocytes, immunomodulators, and chemokines and is involved in the cell cycle process. Our research is limited by the following factors: first, it is possible that the gene expression analysis based on the open-source database we examined is flawed. Accordingly, to explore the latent biological causal link between EZH2 and the interplay between tumor and immunity in LUAD, it is necessary to carry out additional in vivo or in vitro experiments. Second, the effects of EZH2 on the clinical outcomes of immune therapy remain undetermined and need to be clarified by additional clinical studies. Nonetheless, this study focuses on the immunofunction of EZH2 in the tumor microenvironment and its effect on the cell cycle.
In conclusion, these findings support the probability that EZH2 appears to assume an immunomodulatory function in lung adenocarcinoma. TME is crucial in determining the outcome and progression of tumor rejection. Increasing evidence suggests that it is essential to understand the effect of TIME on tumor genesis and development to accurately evaluate the efficacy of anticancer therapies and develop more effective treatments. Since EZH2 plays a role in numerous immune cells that may contribute to tumor immunity, it is essential to investigate how inhibition of EZH2 may affect immune cell function during tumor development, a question that remains unanswered at present.
As a prognosis index and target gene in LUAD, highly expressed EZH2 can serve as a predictor of unsatisfactory prognoses. It is possible that the underlying cause is associated with the synergistic effect that KRAS, immune cell infiltration, and metabolic processes; correspondingly, these aspects necessitate further exploration.
Availability of data and materials
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article. The TIMER (https://cistrome.shinyapps.io/timer/). UALCAN (http://ualcan.path.uab.edu/). The HPA (https://www.proteinatlas.org/). The Linked Omics data base (http://www.linkedomics.org/login.php). The TISIDB data base (http://cis.hku.hk/TISIDB). The CMap (https://clue.io/). The Kaplan–Meier plotter database (https://kmplot.com). TCGA data base (https://portal.gdc.cancer.gov/).
The prognostic value of enhancer homolog 2
The Cancer Genome Atlas
Disease Free Survival
Normalized Enrichment Score
Polycomb repressive complex 2
Cordeiro de Lima VC, Baldotto CS, Barrios CH, Sobrinho EM, Zukin M, Mathias C, et al. Stage III non-small-cell lung cancer treated with concurrent chemoradiation followed or not by consolidation chemotherapy: a survival analysis from. J Glob Oncol. 2018;4:1–11. https://doi.org/10.1200/JGO.17.00214.
Lu T, Yang X, Huang Y, Zhao M, Li M, Ma K, et al. Trends in the incidence, treatment, and survival of patients with lung cancer in the last four decades. Cancer Manag Res. 2019;11:943–53. https://doi.org/10.2147/CMAR.S187317.
Wang M, Herbst RS, Boshoff C. Toward personalized treatment approaches for non-small-cell lung cancer. Nat Med. 2021;27:1345–56. https://doi.org/10.1038/s41591-021-01450-2.
Goldstraw P, Chansky K, Crowley J, Rami-Porta R, Asamura H, Eberhardt WEE, et al. The IASLC lung cancer staging project: proposals for revision of the TNM stage groupings in the forthcoming (eighth) edition of the TNM classification for lung cancer. J Thorac Oncol. 2016;11:39–51. https://doi.org/10.1016/j.jtho.2015.09.009.
Travis WD, Brambilla E, Nicholson AG, Yatabe Y, Austin JHM, Beasley MB, et al. The 2015 World Health Organization classification of lung tumors: impact of genetic, clinical and radiologic advances since the 2004 classification. J Thorac Oncol. 2015;10:1243–60. https://doi.org/10.1097/JTO.0000000000000630.
Clark SB, Alsubait S. StatPearls: Non Small Cell Lung Cancer. 2022.
Ettinger DS, Wood DE, Aisner DL, Akerley W, Bauman J, Chirieac LR, et al. Non-small cell lung cancer, version 5.2017, NCCN clinical practice guidelines in oncology. J Natl Compr Cancer Netw. 2017;15:504–35. https://doi.org/10.6004/jnccn.2017.0050.
Osmani L, Askin F, Gabrielson E, Li QK. Current WHO guidelines and the critical role of immunohistochemical markers in the subclassification of non-small cell lung carcinoma (NSCLC): moving from targeted therapy to immunotherapy. Semin Cancer Biol. 2018;52:103–9. https://doi.org/10.1016/j.semcancer.2017.11.019.
Wu F, Fan J, He Y, Xiong A, Yu J, Li Y, et al. Single-cell profiling of tumor heterogeneity and the microenvironment in advanced non-small cell lung cancer. Nat Commun. 2021;12:2540. https://doi.org/10.1038/s41467-021-22801-0.
Greer EL, Shi Y. Histone methylation: a dynamic mark in health, disease and inheritance. Nat Rev Genet. 2012;13:343–57. https://doi.org/10.1038/nrg3173.
Margueron R, Reinberg D. The Polycomb complex PRC2 and its mark in life. Nature. 2011;469:343–9. https://doi.org/10.1038/nature09784.
Fan K, Zhang C-L, Qi Y-F, Dai X, Birling Y, Tan Z-F, Cao F. Prognostic value of EZH2 in non-small-cell lung cancers: a meta-analysis and bioinformatics analysis. Biomed Res Int. 2020;2020:2380124. https://doi.org/10.1155/2020/2380124.
Kim KH, Roberts CWM. Targeting EZH2 in cancer. Nat Med. 2016;22:128–34. https://doi.org/10.1038/nm.4036.
Hanaki S, Shimada M. Targeting EZH2 as cancer therapy. J Biochem. 2021;170:1–4. https://doi.org/10.1093/jb/mvab007.
Gan L, Yang Y, Li Q, Feng Y, Liu T, Guo W. Epigenetic regulation of cancer progression by EZH2: from biological insights to therapeutic potential. Biomark Res. 2018;6:10. https://doi.org/10.1186/s40364-018-0122-2.
Hu F-F, Chen H, Duan Y, Lan B, Liu C-J, Hu H, et al. CBX2 and EZH2 cooperatively promote the growth and metastasis of lung adenocarcinoma. Mol Ther Nucleic Acids. 2022;27:670–84. https://doi.org/10.1016/j.omtn.2021.12.032.
Gao C, Gu X, Chen Y, Zhou M, Jiang F, Zheng S. Identification of potential prognostic and predictive biomarkers for immune-checkpoint inhibitor response in small cell lung cancer. Med Sci Monit. 2021;27:e932275. https://doi.org/10.12659/MSM.932275.
Danaher P, Warren S, Dennis L, D’Amico L, White A, Disis ML, et al. Gene expression markers of Tumor Infiltrating Leukocytes. J Immunother Cancer. 2017;5:18. https://doi.org/10.1186/s40425-017-0215-8.
Sousa S, Määttä J. The role of tumour-associated macrophages in bone metastasis. J Bone Oncol. 2016;5:135–8. https://doi.org/10.1016/j.jbo.2016.03.004.
Siemers NO, Holloway JL, Chang H, Chasalow SD, Ross-MacDonald PB, Voliva CF, Szustakowski JD. Genome-wide association analysis identifies genetic correlates of immune infiltrates in solid tumors. PLoS ONE. 2017;12:e0179726. https://doi.org/10.1371/journal.pone.0179726.
Chandrashekar DS, Bashel B, Balasubramanya SAH, Creighton CJ, Ponce-Rodriguez I, Chakravarthi BVSK, Varambally S. UALCAN: a portal for facilitating tumor subgroup gene expression and survival analyses. Neoplasia. 2017;19:649–58. https://doi.org/10.1016/j.neo.2017.05.002.
Vasaikar SV, Straub P, Wang J, Zhang B. LinkedOmics: analyzing multi-omics data within and across 32 cancer types. Nucleic Acids Res. 2018;46:D956–63. https://doi.org/10.1093/nar/gkx1090.
Kanehisa M, Furumichi M, Sato Y, Kawashima M, Ishiguro-Watanabe M. KEGG for taxonomy-based analysis of pathways and genomes. Nucleic Acids Res. 2023;51:D587–92. https://doi.org/10.1093/nar/gkac963.
Kanehisa M. Toward understanding the origin and evolution of cellular organisms. Prot Sci Publ Prot Soc. 2019;28:1947–51. https://doi.org/10.1002/pro.3715.
Kanehisa M, Goto S. KEGG: kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000;28:27–30. https://doi.org/10.1093/nar/28.1.27.
Mu W, Xie Y, Li J, Yan R, Zhang J, Liu Y, Fan Y. High expression of PDZ-binding kinase is correlated with poor prognosis and immune infiltrates in hepatocellular carcinoma. World J Surg Oncol. 2022;20:22. https://doi.org/10.1186/s12957-021-02479-w.
Subramanian A, Narayan R, Corsello SM, Peck DD, Natoli TE, Lu X, et al. A next generation connectivity map: L1000 platform and the first 1,000,000 profiles. Cell. 2017;171:1437-1452.e17. https://doi.org/10.1016/j.cell.2017.10.049.
Wang C-Y, Chiao C-C, Phan NN, Li C-Y, Sun Z-D, Jiang J-Z, et al. Gene signatures and potential therapeutic targets of amino acid metabolism in estrogen receptor-positive breast cancer. Am J Cancer Res. 2020;10:95–113.
Ru B, Wong CN, Tong Y, Zhong JY, Zhong SSW, Wu WC, et al. TISIDB: an integrated repository portal for tumor-immune system interactions. Bioinformatics. 2019;35:4200–2. https://doi.org/10.1093/bioinformatics/btz210.
Mukaka MM. Statistics corner: a guide to appropriate use of correlation coefficient in medical research. Malawi Med J. 2012;24:69–71.
Lánczky A, Győrffy B. Web-based survival analysis tool tailored for medical research (KMplot): development and implementation. J Med Internet Res. 2021;23:e27633. https://doi.org/10.2196/27633.
Kao T-J, Wu C-C, Phan NN, Liu Y-H, Ta HDK, Anuraga G, et al. Prognoses and genomic analyses of proteasome 26S subunit, ATPase (PSMC) family genes in clinical breast cancer. Aging. 2021;13:17970. https://doi.org/10.18632/aging.203345.
Monies D, Abou Al-Shaar H, Goljan EA, Al-Younes B, Al-Breacan MMA, Al-Saif MM, et al. Identification of a novel genetic locus underlying tremor and dystonia. Hum Genom. 2017;11:25. https://doi.org/10.1186/s40246-017-0123-5.
Bridges KA, Hirai H, Buser CA, Brooks C, Liu H, Buchholz TA, et al. MK-1775, a novel Wee1 kinase inhibitor, radiosensitizes p53-defective human tumor cells. Clin Cancer Res. 2011;17:5638–48. https://doi.org/10.1158/1078-0432.CCR-11-0650.
Chen G, Zhang B, Xu H, Sun Y, Shi Y, Luo Y, et al. Suppression of Sirt1 sensitizes lung cancer cells to WEE1 inhibitor MK-1775-induced DNA damage and apoptosis. Oncogene. 2017;36:6863–72. https://doi.org/10.1038/onc.2017.297.
Chinn DC, Holland WS, Mack PC. Anticancer activity of the Aurora A kinase inhibitor MK-5108 in non-small-cell lung cancer (NSCLC) in vitro as monotherapy and in combination with chemotherapies. J Cancer Res Clin Oncol. 2014;140:1137–49. https://doi.org/10.1007/s00432-014-1675-6.
Shimomura I, Yokoi A, Kohama I, Kumazaki M, Tada Y, Tatsumi K, et al. Drug library screen reveals benzimidazole derivatives as selective cytotoxic agents for KRAS-mutant lung cancer. Cancer Lett. 2019;451:11–22. https://doi.org/10.1016/j.canlet.2019.03.002.
Studenovský M, Rumlerová A, Kovářová J, Dvořáková B, Sivák L, Kostka L, et al. HPMA copolymer mebendazole conjugate allows systemic administration and possesses antitumour activity in vivo. Pharmaceutics. 2022. https://doi.org/10.3390/pharmaceutics14061201.
Zhu L, Kuang X, Zhang G, Liang L, Liu D, Hu B, et al. Albendazole induces immunotherapy response by facilitating ubiquitin-mediated PD-L1 degradation. J Immunother Cancer. 2022. https://doi.org/10.1136/jitc-2021-003819.
González-Hernández E, Aparicio R, Garayoa M, Montero MJ, Sevilla MÁ, Pérez-Melero C. Dihydropyrimidine-2-thiones as Eg5 inhibitors and L-type calcium channel blockers: potential antitumour dual agents. Medchemcomm. 2019;10:1589–98. https://doi.org/10.1039/c9md00108e.
Hyun SY, Le HT, Min H-Y, Pei H, Lim Y, Song I, et al. Evodiamine inhibits both stem cell and non-stem-cell populations in human cancer cells by targeting heat shock protein 70. Theranostics. 2021;11:2932–52. https://doi.org/10.7150/thno.49876.
Chen X, Liao Y, Long D, Yu T, Shen F, Lin X. The Cdc2/Cdk1 inhibitor, purvalanol A, enhances the cytotoxic effects of taxol through Op18/stathmin in non-small cell lung cancer cells in vitro. Int J Mol Med. 2017;40:235–42. https://doi.org/10.3892/ijmm.2017.2989.
Chen X, Zhao Y, Wang D, Lin Y, Hou J, Xu X, et al. The HNF4α-BC200-FMR1-positive feedback loop promotes growth and metastasis in invasive mucinous lung adenocarcinoma. Cancer Res. 2021;81:5904–18. https://doi.org/10.1158/0008-5472.CAN-21-0980.
Erkin ÖC, Cömertpay B, Göv E. Integrative analysis for identification of therapeutic targets and prognostic signatures in non-small cell lung cancer. Bioinform Biol Insights. 2022;16:11779322221088796. https://doi.org/10.1177/11779322221088796.
Kalainayakan SP, Ghosh P, Dey S, Fitzgerald KE, Sohoni S, Konduri PC, et al. Cyclopamine tartrate, a modulator of hedgehog signaling and mitochondrial respiration, effectively arrests lung tumor growth and progression. Sci Rep. 2019;9:1405. https://doi.org/10.1038/s41598-018-38345-1.
Sun J, Lu Q, Sanmamed MF, Wang J. Siglec-15 as an emerging target for next-generation cancer immunotherapy. Clin Cancer Res. 2021;27:680–8. https://doi.org/10.1158/1078-0432.CCR-19-2925.
Qian W, Zhao M, Wang R, Li H. Fibrinogen-like protein 1 (FGL1): the next immune checkpoint target. J Hematol Oncol. 2021;14:147. https://doi.org/10.1186/s13045-021-01161-8.
Jones PA, Baylin SB. The epigenomics of cancer. Cell. 2007;128:683–92. https://doi.org/10.1016/j.cell.2007.01.029.
Kodach LL, Jacobs RJ, Heijmans J, van Noesel CJM, Langers AMJ, Verspaget HW, et al. The role of EZH2 and DNA methylation in the silencing of the tumour suppressor RUNX3 in colorectal cancer. Carcinogenesis. 2010;31:1567–75. https://doi.org/10.1093/carcin/bgq147.
Kleer CG, Cao Q, Varambally S, Shen R, Ota I, Tomlins SA, et al. EZH2 is a marker of aggressive breast cancer and promotes neoplastic transformation of breast epithelial cells. Proc Natl Acad Sci USA. 2003;100:11606–11. https://doi.org/10.1073/pnas.1933744100.
Hoxha S, Shepard A, Troutman S, Diao H, Doherty JR, Janiszewska M, et al. YAP-mediated recruitment of YY1 and EZH2 represses transcription of key cell-cycle regulators. Cancer Res. 2020;80:2512–22. https://doi.org/10.1158/0008-5472.CAN-19-2415.
Kong A, Mehanna H. WEE1 inhibitor: clinical development. Curr Oncol Rep. 2021;23:107. https://doi.org/10.1007/s11912-021-01098-8.
Ha D-H, Min A, Kim S, Jang H, Kim SH, Kim H-J, et al. Antitumor effect of a WEE1 inhibitor and potentiation of olaparib sensitivity by DNA damage response modulation in triple-negative breast cancer. Sci Rep. 2020;10:9930. https://doi.org/10.1038/s41598-020-66018-5.
Bukhari AB, Lewis CW, Pearce JJ, Luong D, Chan GK, Gamper AM. Inhibiting Wee1 and ATR kinases produces tumor-selective synthetic lethality and suppresses metastasis. J Clin Investig. 2019;129:1329–44. https://doi.org/10.1172/JCI122622.
Li Y, Elakad O, Yao S, von Hammerstein-Equord A, Hinterthaner M, Danner BC, et al. Regulation and therapeutic targeting of MTHFD2 and EZH2 in KRAS-mutated human pulmonary adenocarcinoma. Metabolites. 2022. https://doi.org/10.3390/metabo12070652.
Biswas A, Mukherjee G, Kondaiah P, Desai KV. Both EZH2 and JMJD6 regulate cell cycle genes in breast cancer. BMC Cancer. 2020;20:1159. https://doi.org/10.1186/s12885-020-07531-8.
Yin J, Leavenworth JW, Li Y, Luo Q, Xie H, Liu X, et al. Ezh2 regulates differentiation and function of natural killer cells through histone methyltransferase activity. Proc Natl Acad Sci USA. 2015;112:15988–93. https://doi.org/10.1073/pnas.1521740112.
Dai X, Bu X, Gao Y, Guo J, Hu J, Jiang C, et al. Energy status dictates PD-L1 protein abundance and anti-tumor immunity to enable checkpoint blockade. Mol Cell. 2021;81:2317-2331.e6. https://doi.org/10.1016/j.molcel.2021.03.037.
Huang S, Wang Z, Zhou J, Huang J, Zhou L, Luo J, et al. EZH2 inhibitor GSK126 suppresses antitumor immunity by driving production of myeloid-derived suppressor cells. Cancer Res. 2019;79:2009–20. https://doi.org/10.1158/0008-5472.CAN-18-2395.
Zhang C-L, Fan K, Gao M-Q, Pang B. Prognostic value of glasgow prognostic score in non-small cell lung cancer: a systematic review and meta-analysis. Pathol Oncol Res. 2022. https://doi.org/10.3389/pore.2022.1610109.
Thanks to the Department of Radiation Oncology staff, Hebei Province Cangzhou Hospital of Integrated Traditional and Western Medicine, for their help in data collecting for publication.
This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.
Ethics approval and consent to participate
Not applicable. The data for this study come from the online repositories and do not require ethical approval.
Consent for publication
The authors declare that they have no competing interests.
