Comparative analysis of the JAK/STAT signaling through erythropoietin receptor and thrombopoietin receptor using a systems approach
BMC Bioinformatics volume 10, Article number: S53 (2009)
The Janus kinase-signal transducer and activator of transcription (JAK/STAT) pathway is one of the most important targets for myeloproliferative disorder (MPD). Although several efforts toward modeling the pathway using systems biology have been successful, the pathway was not fully investigated in regard to understanding pathological context and to model receptor kinetics and mutation effects.
We have performed modeling and simulation studies of the JAK/STAT pathway, including the kinetics of two associated receptors (the erythropoietin receptor and thrombopoietin receptor) with the wild type and a recently reported mutation (JAK2V617F) of the JAK2 protein.
We found that the different kinetics of those two receptors might be important factors that affect the sensitivity of JAK/STAT signaling to the mutation effect. In addition, our simulation results support clinically observed pathological differences between the two subtypes of MPD with respect to the JAK2V617F mutation.
The Janus kinase-signal transducer and activator of transcription (JAK/STAT) pathway has been frequently reported to be responsible for oncogenic processes such as uncontrollable proliferation, apoptosis resistance, sustained angiogenesis, and immune evasion . Recently, several research groups have demonstrated the existence of a point mutation in JAK2 in most patients with polycythaemia vera (PV), and approximately half of patients with essential thrombocythaemia (ET) and primary myelofibrosis (PMF) which are subtypes of myeloproliferative disorder (MPD) [2–4]. The mutation results in a substitution of valine for phenylalanine at codon 617 of JAK2 (JAK2V617F) and leads to cytokine hypersensitivity and cytokine independent activation of the JAK/STAT pathway. As a consequence, the expression of JAK2V617F causes the production of hematopoietic colonies that are characteristic of MPD patients.
Although JAK2V617F is well known to be an important marker for MPD, it has also been reported that the frequencies of the JAK2V617F allele in PV, ET, and PMF patients are significantly different. The frequency of the JAK2V617F allele in each MPD subtype is shown in Table 1. Moreover, homozygous JAK2V617F mutant erythroid colonies can be grown from >30% of patients with PV, while it is rarely observed in patients with ET (Table 1) . Hematopoietic colonies grown from ET patients mostly have wild type JAK2 or heterozygous JAK2 proteins. These findings imply that there are important genetic differences between PV and ET in terms of JAK/STAT signaling. Erythropoietin (Epo) and thrombopoietin (Tpo) induce JAK/STAT signaling through the corresponding receptors, the erythropoietin receptor (EpoR) and thrombopoietin receptor (TpoR), and regulate the production of red blood cells and platelets, respectively. Thus, it has been suggested that JAK/STAT signaling through EpoR and TpoR are related to PV and ET, respectively .
Furthermore, a dosage effect of JAK2V617F on JAK/STAT signaling has been reported. Constitutive activation of JAK/STAT signaling observed in cells transfected with only the JAK2V617F gene were diminished when cells were transfected with both the wild type and JAK2V617F gene .
Although several efforts have been made for modeling the JAK/STAT pathway [6–10], to the best of our knowledge, there has been no comparative analysis performed for JAK/STAT signaling through EpoR and TpoR that is related to specific disease phenotypes. In this work, we aimed to understand the role of the JAK2V617F mutation in the formation of the disease phenotypes, PV and ET, through systems analysis. The main question of this work is how the two cytokine ligands, Epo and Tpo, and the corresponding receptors are related to PV and ET in regard to the activation of the JAK/STAT pathway. To study the different dynamic characteristics, we considered not only the kinetics of the receptors but also the relationship of the receptors with JAK2. In addition, the behavior of the suppressor of cytokine signaling (SOCS) protein, a negative regulator of JAK/STAT signaling, was investigated.
Through this systems approach, we found that the JAK2V617F mutation led to the over-activation of JAK/STAT signaling and the effect of the mutation was different between PV and ET based on the different receptor kinetics, supporting the different mutation patterns clinically observed in the patients.
Results and Discussion
Comparison of wild type JAK/STAT signaling through EpoR and TpoR
In the absence of continuous exposure of cytokine ligands, both EpoR and TpoR did not transduce a signal through the JAK/STAT pathway in wild type models, and accordingly, the concentration of nuclear phosphorylated STAT dimers (STAT*Dn) did not change (Figure 1). The binding of cytokine to the receptors led to signal transduction and the concentration of STAT*Dn reached a peak within 1 hour and reverted to its initial concentration, suggesting that the negative regulators control the pathway, regardless of receptor dynamics. Compared with EpoR with a high disappearance rate (kd = 0.0452), TpoR with a relatively low disappearance rate (kd = 0.0152) showed a stronger effect on the level of peak concentration of STAT*Dn. The peak concentration of STAT*Dn was increased by the signal transduction through TpoR approximately 2~3 times as compared to STAT*Dn that was increased by signal transduction through EpoR.
Comparison of JAK/STAT signaling with wild type JAK2 and JAK2V617F mutant proteins

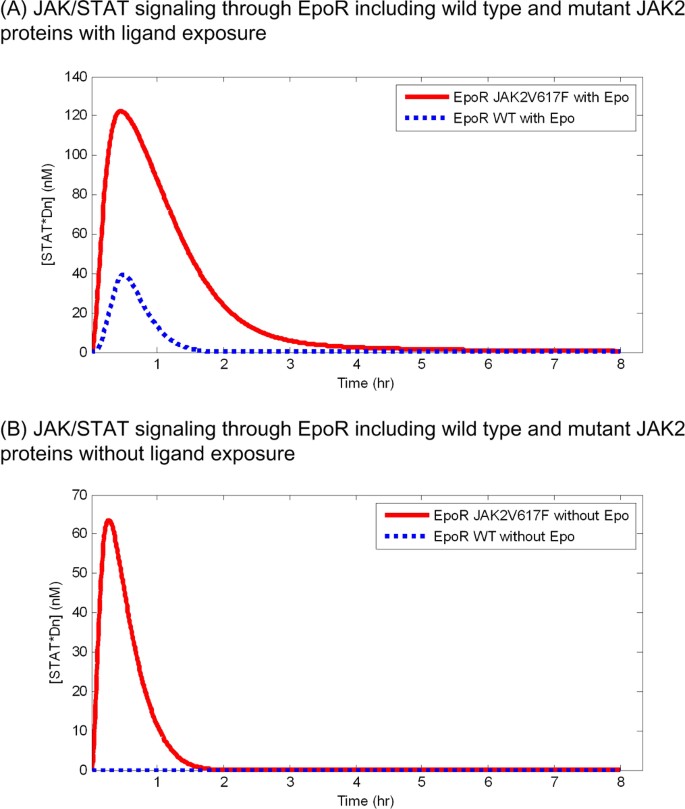

As represented in Figure 2, with 8 hour continuous exposure to Epo, the JAK2V617F mutant model shows a higher level of STAT*Dn than the wild type model. The peak concentration of STAT*Dn in the mutant model increased approximately 80 nM more than that in the wild type model, and the concentration of STAT*Dn in the mutant model decreased slowly as compared to that of the wild type model (Figure 2A). The concentration of STAT*Dn reverted to its initial concentration within 2 hours in the wild type model while it reverted after more than 4 hours in the mutant model. This observation indicates that the negative regulator SOCS could not control JAK/STAT signaling with the JAK2V617F mutant as effectively as with the wild type model . As similar to continuous Epo exposure, of particular importance, the JAK2V617F mutant model shows a high peak concentration even in the absence of Epo (Figure 2B). This result is consent with the known pathological condition observed in patients with PV such that STAT*Dn is highly activated even without ligand exposure .
The JAK2V617F mutant JAK/STAT signaling through TpoR also showed an increased level of the concentration of STAT*Dn in both cases with and without continuous exposure to Tpo (Figure 3). However, the increased level of STAT*Dn induced by the mutant model in JAK/STAT signaling through TpoR was higher than that in the signaling through EpoR. Whereas the concentration of STAT*Dn in the wild type model decreased completely to its initial concentration within 2 hours, the concentration in the TpoR JAK2V617F mutant model was kept high for more than 4 hours (Figure 3A). The TpoR JAK2V617F mutant model was shown to increase the concentration of STAT*Dn greatly (Figure 3B). The increased level and duration of high concentration of STAT*Dn became larger in the TpoR JAK2V617F mutant model than in the EpoR JAK2V617F mutant model, indicating that the difference in the receptor kinetics between the EpoR and TpoR model can affect the response of the JAK2V617F mutation on the pathway.
Comparison of JAK/STAT signaling with JAK2V617F through EpoR and TpoR

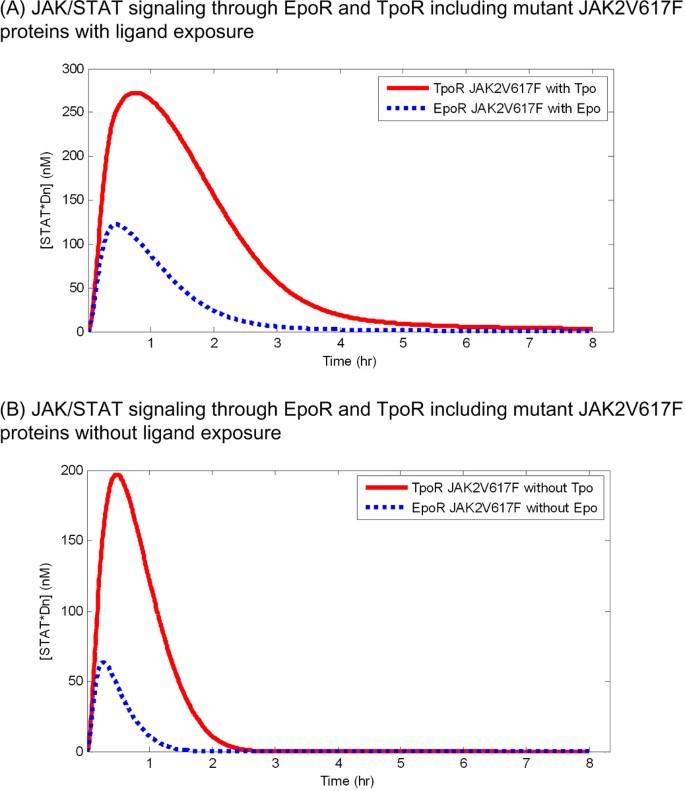

Figure 4 shows a comparison of the effects of the JAK2V617F mutation on JAK/STAT signaling through EpoR and TpoR. The peak concentration of STAT*Dn induced by signaling through TpoR was much higher than that through EpoR (Figure 4A). Moreover, the duration of the high concentration of STAT*Dn was longer in signaling through TpoR than that through EpoR. This observation was also found in the case without continuous ligand exposure. In the absence of ligand, signaling through TpoR produced approximately 130 nM of STAT*Dn more than signaling through EpoR (Figure 4B).
Figure 5 illustrates the peak intensity and the duration of JAK/STAT signaling through EpoR and TpoR in models including wild type JAK2 or mutant JAK2 proteins (JAK2V617F) under ligand exposure or no ligand exposure. With ligand exposure, JAK/STAT signaling with the JAK2V617F mutation through EpoR and TpoR increased similarly, 3.1 and 2.8 times as strong in intensity, and 3.5 and 4.0 times as long in duration as with wild type JAK2. However, without ligand exposure, which is an important condition in terms of MPD pathology, there is virtually no JAK/STAT signaling in the model with wild type JAK2, but JAK/STAT signaling with the JAK2V617F mutant protein showed a signifiacant increase in both intensity and duration. Interestingly, the amount of signaling increase through TpoR is much larger than that through EpoR (198 versus 68 in intensity and 25 versus 17 in duration).
These findings suggesting that JAK/STAT signaling through TpoR is more sensitive to the mutation effect than through EpoR support that a lower frequency of the JAK2V617F mutation is observed in ET patients than in PV patients. JAK/STAT signaling through EpoR is considered as mainly related with the production of red blood cells, whose excessive increase is an important clinical characteristic of PV patients, and signaling through TpoR is related with the production of platelets whose excessive production is a manifestation of ET. In addition, the findings also support the rare homozygosity of JAK2V617F in ET patients while a significant population of PV patients carry homozygous JAK2V617F alleles.
This study has shown that a systems approach can be useful for a comparative analysis of receptor kinetics of a signal transduction pathway in the context of the pathological domain for understanding MPD, especially JAK/STAT signaling through EpoR and TpoR. The simulated results indicate that the difference of receptor kinetics between Epo-induced and Tpo-induced JAK/STAT pathway might affect the sensitivity of the pathway to JAK2V617F, a gain-of-function mutation. Particularly, in the absence of ligands (this condition might be critical in chronic diseases as well as for MPD), JAK/STAT signaling through TpoR with a higher cell surface expression and a lower disappearance rate was more sensitive to the mutation effect than through EpoR. Accordingly, the peak and steady state concentration level of STAT*Dn, regarded as an indicator of the amount of JAK/STAT signaling, was set to an abnormally high level by the mutant model of JAK/STAT signaling through TpoR. These observations can be in accord with the clinical observation of the rarer homozygosity of JAK2V617F in ET patients than in PV patients. The effect of the mutation in PV is relatively weak and the high rate of homozygosity or dosage of mutant JAK2 proteins might be required to induce the PV phenotype [12, 13].
In future work, to investigate the pathway with regard to the pathogenesis of PV and ET, the model needs to be extended further to include some proteins related with disease phenotypes. Since PV patients can be characterized by an abnormal increase in the number of three types of blood cells – erythrocytes, granulocytes, and platelets  – the model for PV should involve hematopoietic transcription factors such as GATA-1, GATA-2 [15, 16], C/EBPε and Fli-1 [17, 18] that correspond to each lineage. In addition, some previous studies have shown that the cytokine receptors are also needed for JAK2V617F-mediated transformation [19, 20]. Therefore, it might be informative to include JAK as a chaperone for the receptor kinetics into the model.
JAK/STAT pathway model

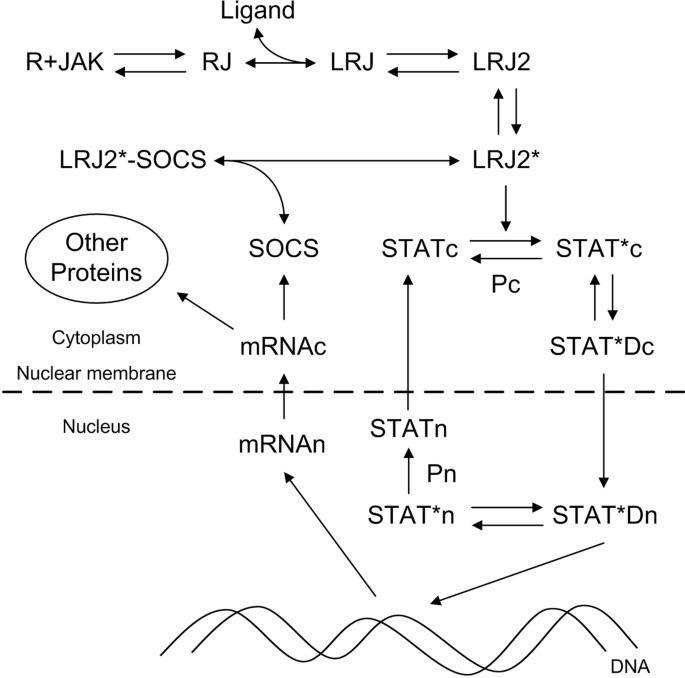

We adopted the JAK/STAT pathway model by Yamada et al. . The schematic diagram (Figure 6) represents the cytokine ligand (Epo or Tpo) induced JAK/STAT pathway. The binding of ligand to the Receptor-JAK complex (RJ) results in the dimerization of LRJ. The dimerized LRJ (LRJ2) is phosphorylated by JAK and the phosphorylated LRJ dimer (LRJ2*) phosphorylates STAT in the cytoplasm (STATc). The phosphorylated STAT (STAT*c) dimerizes (STAT*Dc) and translocates to the nucleus (STAT*Dn), which functions as a transcription factor for various genes. One of the genes induced by STAT*Dn is SOCS that inhibits the kinase activity of LRJ2*. STAT*Dn also induces other proteins related to the cell proliferation of erythroid, myeloid, and megakaryocytic lineage. The level of nuclear phosphorylated STAT dimers (STAT*Dn) was considered as the output of the pathway. We performed simulations using the Systems Biology Toolbox  with Matlab (The Mathworks, Natick, MA USA).
To understand the dynamic differences of the Epo and Tpo induced JAK/STAT pathway, we included receptor kinetics. Several studies have demonstrated that in the absence of JAK, a much larger fraction of the thrombopoietin receptor (TpoR) (~5 times) than the erythropoietin receptor (EpoR) is on the cell surface . The studies have also shown that TpoR is rapidly internalized from the cell surface , and that Epo induces the rapid internalization and degradation of Epo while Tpo induces long-lasting signaling in target cells . These observations may indicate that TpoR has a lower degradation rate than EpoR, which leads to the rapid recycling of TpoR although EpoR and TpoR have a similar rate of internalization. From previously reported experimental results [22, 23], we estimated the disappearance rate (kd) of EpoR and TpoR, which comprises the internalization and degradation rate for the sake of simplicity. It was estimated that EpoR disappears approximately three times faster than TpoR. The estimated relative surface expression levels and disappearance rates are summarized in Table 2.
JAK2V617F mutant model
JAK2V617F mutant kinases bind to cytokine receptors and are phosphorylated in the absence of ligands, leading to the ligand-independent activation of downstream signaling pathways . We assumed that the phosphorylation rate of cytoplasmic STAT depended on the concentration of the receptor-JAK complex (RJ) as well as active ligand binding receptors, as JAK2V617F is a gain-of-function mutation independent of ligand binding or negative regulation. The chemical reaction by which JAK2V617F was added to the wild type model is as follows:
d/dt(STAT*c) = WT reactions + kJAK2V617F × RJ
The rate constant kJAK2V617F was estimated based on reported experimental results .
