Preferred analysis methods for Affymetrix GeneChips. II. An expanded, balanced, wholly-defined spike-in dataset
BMC Bioinformatics volume 11, Article number: 285 (2010)
Concomitant with the rise in the popularity of DNA microarrays has been a surge of proposed methods for the analysis of microarray data. Fully controlled "spike-in" datasets are an invaluable but rare tool for assessing the performance of various methods.
We generated a new wholly defined Affymetrix spike-in dataset consisting of 18 microarrays. Over 5700 RNAs are spiked in at relative concentrations ranging from 1- to 4-fold, and the arrays from each condition are balanced with respect to both total RNA amount and degree of positive versus negative fold change. We use this new "Platinum Spike" dataset to evaluate microarray analysis routes and contrast the results to those achieved using our earlier Golden Spike dataset.
We present updated best-route methods for Affymetrix GeneChip analysis and demonstrate that the degree of "imbalance" in gene expression has a significant effect on the performance of these methods.
As a result of their ability to detect the expression levels of tens of thousands of genes simultaneously, DNA microarrays have quickly become a leading tool in diverse areas of biological and biomedical research. Given this popularity and the associated accumulation of numerous microarray analysis methods, there is a critical need to know the accuracy of microarray technology and the best ways of analyzing microarray data. Important advances toward this goal were made by the MicroArray Quality Control (MAQC) project launched by US Food and Drug Administration . For the MAQC study, two distinct reference RNA samples were mixed together at specified ratios and then hybridized to different microarray platforms at multiple test sites. This design enabled the MAQC consortium to evaluate the reproducibility of microarray technology and the consistency between platforms. The study demonstrated that high levels of both intraplatform and interplatform concordance can be achieved in detecting differentially expressed genes (DEGs) when the microarray experiment is performed appropriately. However, as the exact identities of the individual RNAs in the reference samples were unknown, the MAQC project was not able to address questions regarding the overall accuracy of microarray technology and analysis methods.
Spike-in experiments are designed to address questions about the correctness of microarray data and have been used extensively to compare among different analysis methods. Currently there are four major spike-in datasets available for the Affymetrix microarray platform: the Affymetrix spike-in dataset for cross platform comparisons , the Affymetrix Latin square dataset , the Gene Logic spike-in dataset  and the Golden Spike dataset . Different from the other spike-in studies where a small number of spike-in RNAs were mixed with large unknown background RNA samples, the Golden Spike dataset contains a defined background sample of over 2500 RNAs and over 1300 spike-in RNAs that differ by known relative abundance with fold changes from 1.2 to 4. This dataset was used to determine the preferred choices at each step in microarray analysis to achieve optimal DEG detection , and subsequent work by a variety of researchers has extended these findings and proposed improved analysis alternatives [6–11].
Although it has enjoyed wide-spread use in the bioinformatics community, concerns have been raised over two aspects of the Golden Spike dataset: differentially expressed RNAs are more abundant in the spike arrays than in the control arrays , and the experiment consists of only a limited (triplicate) set of technical replicates . The former condition violates a main assumption of most microarray normalization methods, which presuppose that up-and down-regulation of genes is balanced and total RNA amount is equivalent in both samples. In order to address both of these concerns as well as to explore further questions regarding ways of analyzing microarray data, we have constructed a new wholly-defined Affymetrix GeneChip control dataset, the "Platinum Spike" dataset. This new dataset consists of a total of 18 microarrays with evenly balanced up and down gene expression between conditions. We used the Platinum Spike dataset to compare over 40,000 possible analysis routes derived from combining different methods in individual steps of the analysis procedure in order to determine the optimal path for DEG detection and to pinpoint the most critical steps affecting analysis accuracy. We find that how normalization is conducted has a dramatic effect on performance and depends on the balance of gene expression between the sets of arrays being compared. The highly balanced Platinum Spike dataset, and comparisons between it and the unbalanced Golden Spike dataset, provide a valuable resource for developing and testing analysis procedures to handle a range of distributions of DEGs in Affymetrix GeneChip experiments. The Platinum Spike raw data are available at http://www.ccr.buffalo.edu/halfon/spike/index.html, and through NCBI's Gene Expression Omnibus (GEO; accession GSE21344) .
Results and Discussion
The Platinum Spike dataset consists of 18 Affymetrix Drosophila Genome 2.0 microarrays representing two different "conditions" ("A" and "B", nine arrays each), each of which contains the identical 5749 cRNAs, but at different defined relative concentrations. We generated three independently labeled samples for each condition, and hybridized each sample to three arrays. Therefore the nine arrays for each condition consist of three sample replicate groups, and each group contains three technical replicates (Figure 1). For each condition, the total amount of cRNA is the same, and there are similar numbers of up-and down-regulated cRNAs: 1146 and 947 individual RNAs are up-and down-regulated in condition A versus condition B respectively, with known fold changes varying between 1.2 and 4 fold, and 3643 RNAs are identical in abundance between the two conditions (Table 1; Additional file 1, Figure S1). Our previous Golden Spike dataset  was criticized for having higher-than-typical hybridization signal intensities . We calibrated the amount of RNA hybridized to the arrays in the current experiment so that gene intensities fell within the range commonly seen in experiments stored in GEO (data not shown). 24 additional RNAs were spiked in at defined (absolute) concentrations to provide further validation that our RNA concentrations fell within a reasonable range (~1 pM to 100 pM, approximating a few copies to a few hundred copies of transcript per cell ). The Platinum Spike dataset therefore differs from the earlier Golden Spike dataset in four critical ways: it includes 1889 additional individual RNAs (an increase of close to 50%); it is balanced with respect to total labeled RNA amount and extent of up-and down-regulation for each experimental condition; the observed probe intensities are more in line with what is typically seen in an Affymetrix experiment; and it consists of both technical and sample replicates.
Assessment of present/absent calls
The Affymetrix Drosophila Genome 2.0 arrays measure the levels of over 18,500 transcripts using probe sets composed of 14 oligonucleotide probe pairs per transcript. Each probe pair contains two 25 bp DNA oligonucleotide probes: the perfect match (PM) probe, which is exactly complementary to the target cRNA, and the mismatch (MM) probe, which is almost identical to the PM probe except that the central nucleotide has been changed to the complementary base. Affymetrix estimates whether or not the cRNA target of a probe set is present in a sample based on the MAS 5.0 detection algorithm , as follows: to obtain the present/absent call for each probe set in an array, a discrimination score (PM-MM)/(PM+MM) is calculated for every PM, MM probe pair, and then a Wilcoxon signed rank test is performed to test whether the median of the score values is greater than a pre-specified value τ (which we set equal to zero; see Methods). As we knew in advance what cRNAs were in fact present or absent in the Platinum Spike dataset, we could evaluate the performance of the detection algorithm by using Receiver Operating Characteristics (ROC) curves.
As background correction and probe normalization could change the probe intensities and therefore affect the results of the detection algorithm, we evaluated the performance of the present/absent call for multiple analysis routes obtained from different combinations of popular methods for these two steps (Figure 2, see Methods). Eight different ways of background correction were used, including no background correction, rma, MAS 5.0 (mas) , and five different scenarios of gcrma. Probe normalization was either not performed, or performed using one of the six normalization methods coupled with one of three "normalization groups." The arrays in the Platinum Spike experiment fall into two distinct conditions. Each condition contains three sample replicate groups, and each sample group contains three technical replicates. At the normalization step, therefore, we could normalize among technical replicates and perform six normalizations ("technical" normalization group), normalize among arrays under the same condition and perform two normalizations ("conditional" group), or normalize once using all arrays ("all" group) (Figure 1B). The latter, in which all arrays are used for normalization, is the typical choice in microarray analysis and is based on a popular assumption that there is an equal amount of up-and down-regulation in the samples leading to comparable intensity distributions from all arrays. However, we and others have argued that this assumption may often not be justified [19–21].
In the Platinum Spike dataset, there are 13,337 empty probe sets and 5615 probe sets whose cRNA targets are present in the samples (including the 18 probe sets designed for Affymetrix Eukaryotic Hybridization Controls and 24 probe sets hybridized to the cRNAs spiked in with known concentration). The relative performance of all routes from different combinations of background correction and probe normalization was assessed based on a summary statistic of the ROC curve, r AUC0.05. This statistic measures the Area Under the Curve (AUC) relative to the maximum AUC value (0.05) when the false positive rate (1-specificity) is less than or equal to 0.05. That is, where p AUC0.05 is the partial AUC  when the false positive rate (FPR) ≤ 0.05. We define FPR as the number of probe sets that are incorrectly called "present" divided by the number of probe sets whose targets are truly absent, while true positive rate (TPR) is the number of probe sets that are correctly called "present" divided by the number of probe sets whose targets are truly present in the samples. We used a conservative FPR cutoff (0.05), as researchers are typically interested in performance when the number of false positives is relatively small. A larger r AUC0.05 value corresponds to a higher true positive rate and lower false positive rate, and therefore better performance. As the MAS 5.0 detection algorithm is applied on each individual array, we obtained 18 r AUC0.05 values corresponding to the 18 arrays and used the average value () for evaluation.

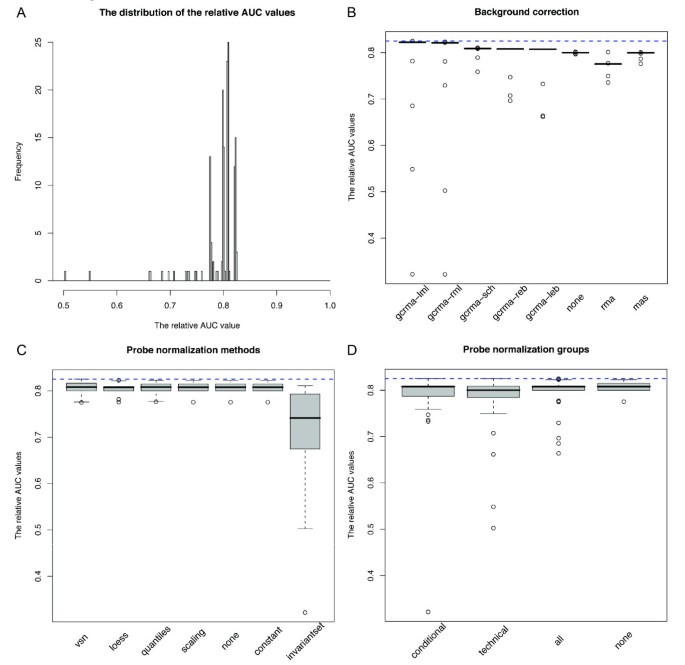

A total of 152 different routes were compared, and most routes generated reasonably high (median = 0.808, median (average TPR across 18 arrays when actual FPR ≤ 0.05) = 0.835, Figure 3A). At a false positive rate not greater than 5%, the best route on average calls "present" approximately 85% of probe sets whose cRNA targets are truly present. gcrma background correction using maximum likelihood estimation (gcrma-lml and gcrma-rml) generally outperformed other background correction methods by a small margin, although it could also lead to very poor results when used with the wrong combination of other steps (Figure 3B). Different normalization methods mostly performed similarly to no probe normalization. The exception to this is invariantset normalization, which showed larger variation than the others, and whose best performance was substantially worse than the best performance of any other normalization method (Figure 3C). Choice of normalization group also had little effect on overall performance (Figure 3D). The limited contribution of probe normalization might be due to the fact that the detection algorithm is designed to be applied on an individual chip basis.
Detection of differentially expressed genes
One of the primary uses for microarrays is to detect the genes whose expression levels have changed between compared conditions. DEG detection using Affymetrix data requires a series of analysis steps including background correction, probe normalization, PM correction, probe summarization, probe set normalization and DEG testing (Figure 4, see Methods). For each of these steps, we picked several representative methods based on different algorithms, and assessed all possible combinations of these methods. We also tested several methods which themselves already combine multiple steps. In total, we examined 41,423 different routes and evaluated the performance of each combination using r AUC0.05.
Most of the routes performed well on the Platinum Spike dataset (median r AUC0.05 = 0.696, median TPR0.05 = 0.720; Additional file 1, Figure S3A), with the best 1% of routes all yielding a TPR 0.05 > 0.858. (Here TPR is the number of probe sets that are correctly predicted to be DEGs divided by the number of probe sets whose targets are truly DEGs, while FPR is the number of probe sets that are incorrectly predicted as DEGs divided by the number of probe sets whose targets are not DEGs). The Alchemy and GoldenSpike methods, which previously had been shown to fall among the top methods for the Golden Spike dataset [5, 8], perform strongly on the Platinum Spike dataset as well, with Alchemy falling within the top ten (Table 2 and Additional file 1, Figure S3A).
Somewhat surprisingly, we found that the choice of method at most steps in the analysis had relatively little impact on overall performance. For instance, while the overall best route used the gcrma-reb background correction method, and while the gcrma-rml and gcrma-lml background correction methods were significantly more enriched in the top 1% of routes (Bonferroni corrected one sided Fisher exact P-value = 1.031e-07 and 0.030 respectively), the effect was only marginal (odds ratio = 2.134 and 1.561; Figure 5A and Additional file 1, Figure S4A). Similarly, although invariantset normalization was found to be highly enriched in the routes of the top 1% (Bonferroni corrected one sided Fisher exact P-value = 2.455e-35 and odds ratio = 3.905; Figure 5B and Additional file 1, Figure S4B), the top two routes used scaling and vsn normalization, respectively. Probe set normalization was also found to be of minimal utility, consistent with the suggestion by Choe et al.  that this step is of importance mainly when the log fold changes are not centered around zero as a result of unequal cRNA amounts between conditions, which is not the case in the Platinum Spike dataset (data not shown). Choice of statistical test for DEG detection also had little bearing on performance. Interestingly, the simple fold change method performed extremely well and was in fact marginally enriched in the top 1% of routes (Bonferroni corrected one sided Fisher exact P-value = 4.023e-08 and odds ratio = 1.884; Figure 5H and Additional file 1, Figure S4H). We treated technical replicates and sample replicates as part of a single 18-array experiment in order to take advantage of the resulting larger sample size. Although such a choice in theory could lead to underestimation of the overall variance, we consider any such effect to be negligible in this case as the variation introduced by independent sample preparation can be seen to be much smaller than other sources of variation (Supplemental methods in Additional file 2, and Additional file 1, Figure S7). The relatively large number of replicates and overall low variance in the Platinum Spike dataset may be at least partially responsible for this surprisingly strong performance achieved by simply ranking probe sets by their fold change levels.
The most important factors affecting DEG detection appear to be the probe normalization group, PM correction method, and summarization method, as the options selected at these steps had the largest impact on performance. Probe normalization among all arrays ("all" group) was always more likely to produce large r AUC0.05 values than using either the other normalization groups or no probe normalization at all (Figure 5C and Additional file 1, Figure S4C; odds ratio for enrichment in top 1% of routes = 3.118, Bonferroni corrected one sided Fisher exact P-value = 1.336e-28). We speculate that the improved performance seen when using all arrays might merely be the result of increased sample size for normalization; performance decreases in proportion with the number of arrays normalized such that all (18) > conditional (9) > technical (3) ≈ none. pmonly and medianpolish were consistently the best methods in the PM correction and summarization steps, respectively. Not only did the best route use these two methods, but routes using these two methods always yielded a higher percentage of large r AUC0.05 values (Figure 5D-F and Additional file 1, Figure S4D-F). The superiority of pmonly over mas PM correction is consistent with results reported by  but in contradiction to those of , likely reflecting differences in the nature of the various datasets being analyzed (see below).
In order to test whether the performance of DEG detection depends on the magnitude of the fold change between conditions, we calculated r AUC0.05 values for all routes at each fold change level. The cRNAs spiked in at each individual fold change level were considered to be true DEGs, while the fold change = 1 and empty probe sets were considered as non-DEGs. Consistent with previous findings using the Golden Spike dataset , DEGs with fold changes below 1.7× were poorly detected by most of the routes (Additional file 1, Figure S5). Although the best route for detecting high fold-change DEGs did not work well for identifying small fold-change DEGs, the overall best route performed equally well at all fold change levels, with detection of small fold-change DEGs only slightly worse than observed for higher fold changes.
Comparison with the Golden Spike dataset
We  and others [8, 9, 11] have used the previously developed Golden Spike dataset  to determine optimal methods for microarray analysis. Interestingly, however, many of the methods that were shown to perform strongly on the Golden Spike dataset did not fall among the best routes identified here for the Platinum Spike dataset. One reason for this could be that some methods did not exist, or were not considered, at the time of those analyses. On the other hand, the Platinum Spike dataset and the Golden Spike dataset are two distinct datasets and might require different analysis strategies. We addressed this issue in two ways: (1) we analyzed the Platinum Spike dataset using only those methods that had previously been applied to the Golden Spike dataset, and (2) we applied all of the methods evaluated here for the Platinum Spike dataset to the Golden Spike dataset.
Using only those methods that had previously been applied to the Golden Spike dataset in the Choe et al. study , we found that optimal methods for the Platinum Spike dataset were still different from Choe et al.'s findings (e.g., rma outperformed mas in the Platinum Spike dataset, Additional file 1, Figure S6). (When applied to the Golden Spike dataset, as a control, our current implementations of this subset of methods confirmed the Choe et al. findings; data not shown). Thus differences in the datasets, rather than in available algorithms, appear to be responsible for the differences between the two studies.
To further investigate the effect of different datasets on method performance, we also evaluated the DEG detection performance of 19,507 routes on the Golden Spike dataset using the same methods--including those not available at the time of the Choe et al. study--we assessed for the Platinum Spike dataset. (Note that since the arrays under each condition of the Golden Spike dataset are all technical replicates, normalizing by condition is identical to normalizing by technical replicate, giving only two possible normalization groups.) Whereas with the Platinum Spike dataset a large number of methods gave reasonably good results, most of the routes we tested performed poorly on the Golden Spike dataset (Additional file 1, Figure S3B). We did identify a number of strongly-performing routes, including ones that significantly outperformed Alchemy and GoldenSpike, which were reported to be the best methods in previous studies [5, 8]. Importantly, however, we found that these routes do not correspond to the most strongly performing routes identified using the Platinum Spike dataset. gcrma-lml and gcrma-rml were superior to other background correction methods, and the constant normalization method was slightly better than others for probe normalization step. In stark contradiction to the better performance observed when normalizing using all arrays in the Platinum Spike dataset, we found normalization among all arrays to be deleterious in the Golden Spike dataset for both probe normalization and probe set normalization, with clearly improved performance seen with either technical/conditional group normalization or no normalization at all (Figure 6). We additionally saw that CyberT is the optimal DEG test method for the Golden Spike dataset, consistent with .
Although the optimal analysis routes identified for each dataset are clearly different, we were able to identify routes that gave acceptable performance on both datasets as long as the appropriate normalization groups were used (using all, r AUC0.05 in the Platinum Spike dataset = 0.768 corresponding to 76.86th percentile and using technical/conditional, r AUC0.05 in the Golden Spike dataset = 0.856 corresponding to 99.99th percentile; brown lines in Additional file 1, Figure S3). This suggests that the predominant factor affecting analysis of the two datasets is how the arrays are grouped for normalization. The opposite performance of the normalization groups between the Platinum Spike and Golden Spike experiments can be seen to result from the respective designs of the two datasets. The degree of up-and down-regulation in the Platinum Spike dataset is balanced, and a similar amount of labeled cRNA was hybridized to each array. Therefore the signal intensity across all 18 arrays is similar, even for arrays from different conditions, and normalization using all arrays is beneficial (probably due to the increased sample size). On the contrary, the Golden Spike dataset is imbalanced and more labeled cRNA was added to the spike arrays than the control arrays, leading to higher relative signal intensities in the former. When all arrays are used for normalization, the true intensity difference between the two conditions is improperly diminished, leading to degraded performance. When only arrays from the same condition are used for normalization, the true intensity difference between the spike and control arrays is maintained. The difference in balance between conditions in the two datasets likely contributes to the other differences we observed in optimal analysis methods as well, including choice of background correction, PM correction, summarization and DEG testing. These steps may be affected by the differences in background hybridization intensity for the empty probes and the amount of cross-hybridization caused by the presence of more labeled cRNA in the spike versus control arrays.
False discovery rate
A common practice in microarray analysis is to estimate the false discovery rate (FDR), the expected proportion of false positive results among the detected DEGs, typically expressed as a q-value for each gene . A number of methods have been proposed to estimate this statistic in which the actual q-value is mathematically guaranteed to be below the estimated q-value. Although statistically sound, it is unknown how well these q-value estimations perform in real-world microarray experiments. We have shown previously for the Golden Spike dataset that the q-values appear to underestimate the true FDR . Taking advantage of the full knowledge of the cRNA identities in the Platinum Spike dataset, we compared the actual FDR and the estimated q-values by using the results from the overall top ten DEG detection routes (Figure 7). The estimated q-values were calculated either by permutation or by the Benjamini and Hochberg method  (see Methods). Our results show that when using the Benjamini and Hochberg method, the predicted q-values (which can only be applied to the five of the top ten routes that report p-values) understate the true FDR in four out of the five evaluated routes for q = 0.05 (right panel of Figure 7A). The permutation-based method worked slightly better, as the true FDR was successfully controlled in six of the ten routes (left panel of Figure 7A). Nevertheless, these results show that care must be taken in assessing the FDR in microarray experiments, as the true FDR is frequently not successfully controlled.
Control of the FDR requires that the p-values from statistical evaluation of the genes not differentially expressed ("null genes") be uniformly distributed in the interval (0,1). Dabney and Storey  show that this is not the case for the Golden Spike data and suggest that non-uniform null p-value distribution is the cause for the underestimation of the FDR for those data observed in . They also claim that the non-uniform p-values are due to specific design flaws in the Golden Spike experiment, a claim we have disputed . Fodor et al.  lend support to our view with their finding that the Affymetrix Latin Square experiment also shows a non-uniform distribution of the null gene p-values. The null gene p-values in the current dataset also fail to form a uniform distribution (Figure 7B), despite the great care we have taken to ensure that the Platinum Spike experiment closely approximates the conditions of a "typical" microarray experiment. This observation lends further support to the idea that the skewed distribution is not dataset specific but rather due to more general factors, perhaps from the analysis procedures themselves .
Sample size study
Due to high costs and/or limited biological samples, microarray experiments are frequently performed using three or even fewer replicates. We find that in the Platinum Spike dataset, the variation introduced by sample preparation and hybridization are similarly small (Supplemental methods in Additional file 2, and Additional file 1, Figure S7), allowing us to treat all of the arrays from each experimental condition together as a single 9-fold replicated experiment. By randomly drawing and analyzing differently sized subsets of the nine arrays, we addressed the question of how many arrays are needed to identify DEGs with high accuracy and specificity [27–34].
We evaluated the performance of DEG detection when using as few as two up through seven arrays per condition. In each case, we applied nine analysis routes (the best ten as determined above, excluding Alchemy, modified to use only normalization across all arrays) on 200 samples formed by randomly selecting arrays from the total nine "A" and nine "B" arrays (Table 3, Additional file 3, Table S1 and Additional file 1, Figure S8). For five of the nine routes being tested, we found that using five arrays per condition can reach at least 95% of the performance (assessed by r AUC0.05) seen when all nine arrays are used, while for two routes four arrays were sufficient (Table 3). These results suggest that at least five replicate arrays are required to achieve near-optimal DEG discovery in a microarray experiment. As the variation among arrays in "real" experiments is likely to be greater than in the Platinum Spike dataset, which lacks potential additional variation introduced by using different biological samples, an even larger number of replicates may be necessary. On the other hand, the magnitude of the change in correctly identified DEGs when moving from four to five replicates is relatively small (average 26 ± 24 DEGs, a 1.3% change in TPR0.05), suggesting that four replicate arrays will frequently give acceptable results. The commonly-used three replicates, while clearly sub-optimal in absolute terms, also tends to give reasonable results with an average change in DEGs of 73 ± 34 (a 3.8% change in TPR0.05) when compared to using four arrays (Additional file 3, Table S1).
The wholly-controlled Platinum Spike dataset provides an important addition to the available spike-in control datasets available for assessing Affymetrix microarray analysis methods. Our analysis of over 40,000 analysis routes on this dataset reveals that in general the state of Affymetrix analysis is in good shape: most commonly used methods perform strongly. The best performance when using default settings for MAS 5.0, RMA, and GCRMA yielded between 84%-87% sensitivity at a 5% false positive rate, close to that achieved by the best overall routes. Choice of probe normalization group, PM correction method, and summarization method were the key factors affecting outcome. Our sample size study suggests that while five or more replicates is the preferred choice, four or even three replicates, typical sizes for microarray studies, produce reasonable outcomes.
At the same time, our data reveal several areas that remain in need of further development. As noted previously [5, 26], methods for assessing the false discovery rate tend to underestimate its size, providing a false sense of confidence about the specificity of the results, even in the highly controlled, idealized Platinum Spike dataset. A proposed solution to this problem  did not appear to be effective with the Platinum Spike dataset (data not shown), suggesting that continued investigation of this important issue is warranted. Perhaps more critically, our current data suggest that accuracy in microarray analysis is significantly affected by the nature of the transcriptomes being compared in an experiment. In this respect, the Platinum Spike dataset serves as a useful complement to our previous Golden Spike dataset. Together, they represent extremes of highly balanced (Platinum Spike) and imbalanced (Golden Spike) changes of gene expression between the compared experimental conditions and illustrate the importance of designing and choosing analysis algorithms appropriate for the underlying RNA distributions in a microarray experiment. Methods that work well on the Platinum Spike dataset perform far less well on the Golden Spike dataset, which is much more sensitive to choice of analysis route. Although analysis routes that give acceptable performance on both datasets can be identified, they are suboptimal and moreover still depend on appropriate choice of normalization group for each dataset. In the Golden Spike dataset, which has a considerable degree of imbalanced gene expression between the two compared conditions, using the "conditional" normalization group gives superior performance. However, normalizing in this manner carries the obvious risk that differences introduced by significant technical variation between the conditions--experimental artifact--will be artificially exaggerated rather than eliminated by normalization. The problem lies in the fact that with real experimental data, one cannot know which is more severe, technical variation between the conditions or the degree of "imbalance" in the true RNA distributions. Therefore, means to properly assess underlying RNA imbalances and other dataset-specific issues, and methods to allow for proper normalization among arrays that can account both for imbalance and for technical artifact, are urgently needed in order to guide researchers to the most effective choice of analysis route for their particular experiment. Our data suggest that a single "best" route for all microarray experiments may not exist.
cRNA sample preparation and hybridization
PCR products generated from 5725 Drosophila Gene Collection release 1.0 (DGCr1) cDNA clones were collected into 28 distinct pools. PCR was conducted as described, with clones that failed to amplify eliminated from subsequent analysis; the number of mislabeled clones was previously estimated to be less than 3% . Biotin-labeled cRNAs were generated from each pool using the Ambion MEGAscript kit with T7 or SP6 polymerase, as appropriate. Reactions were purified using QIAGEN RNeasy columns and resulting concentrations were measured by RiboGreen assay (Invitrogen). The labeled cRNAs from each pool were mixed together with specified relative abundance to generate samples representing the A and B conditions. Note that as all labeling was performed per pool and pools only subsequently added to the A and B samples, all cRNAs from the same pool have identical fold change values between samples (Figure 1A and Additional file 1, Figure S1; see also discussion in ). Three independent sample preparations were performed for each condition. 24 clones from the Drosophila Gene Collection release 2.0 (DGCr2) that did not have sequence similarity with DGCr1 clones and could be assigned to a unique Affymetrix probe set were added to each sample in known concentrations before hybridization (Additional file 3, Table S2). Eukaryotic Hybridization Controls were added to the hybridization cocktail and each sample was hybridized in triplicate to GeneChip® Drosophila Genome 2.0 Array using standard Affymetrix protocols. Roughly 3.9 μg cRNA was used for each hybridization. The Platinum Spike dataset has been deposited in GEO with series accession number GSE21344.
Clone sequences and probe set assignment
Out of the 5749 cDNA clones in the samples, 5594 had known full length clone sequences. Of the remainder, 154 clone sequences were inferred from the corresponding 5' and/or 3' EST sequence (see Supplemental methods in Additional file 2); one cDNA had no reliable clone sequence and was therefore omitted from the analysis.
Based on the sequence alignment of all perfect match (PM) probes on the Drosophila Genome 2.0 Array against the obtained clone sequences (see below), we assigned 5597 probe sets to a total of 5339 clones whose cRNAs were present in the samples. 18 probe sets were designed for the cRNAs in Affymetrix Eukaryotic Hybridization Controls and were considered to have fold change = 1 between conditions, as identical amounts of Affymetrix Eukaryotic Hybridization Controls were added to each array according to the Affymetrix protocol. The remaining 13,337 probe sets did not map to any cRNAs in the samples and are referred to as "empty" probe sets.
To identify the Affymetrix probe sets hybridized to the cRNAs, we aligned the sequences of all PM probes to the obtained sequences of the clones present in the cRNA samples using BLAST  (version 2.2.18) with word size seven, no complexity filter and e-value cutoff 1. In order to call a PM probe matched to a clone, we required that no fewer than 60% of the probe sequence matched identically to a clone sequence on the correct strand with no gaps. If at least 15% of the probes in a probe set matched to the same clone, we assigned the probe set to that particular clone. If there are always one-to-one matches between probe sets and clones with full length cDNA sequences, we expect 29.5% (5594/18952) of the probe sets in the Drosophila Genome 2.0 Array to have a clone assignment. The two cutoffs were chosen to achieve this percentage value while maintaining the unique clone assignments of most probe sets (95.9%). Using more stringent cutoffs did not significantly influence probe set assignment. For clones with multiple potential clone sequences (see Supplemental methods in Additional file 2), if a probe set mapped to no fewer than 90% of the multiple potential sequences of the same clone, the probe set was assigned to that particular clone (Additional file 4). There were 231 probe sets assigned to multiple clones and 14 probe sets assigned to clones present in multiple pools. These probe sets were excluded from the evaluation of DEG detection, but still considered as "not empty" in assessment of present/absent calls (Additional file 5).
The MAS 5.0 detection algorithm was performed by using the mas5calls function from the Bioconductor affy library  with τ = 0. The choice of value for τ in the Wilcoxon signed rank test can affect the outcome of the detection algorithm. In theory, when the true target is absent and both PM and MM probes are detecting only non-specific signals the discrimination score (PM-MM)/(PM+MM) will approach zero, suggesting an idealized τ value equal to zero. The MAS 5.0 detection algorithm defaults to a small τ value above zero, 0.015. We found that the results are consistent using either τ value, and only the results corresponding to τ = 0 are reported here. The returned p-values from the Wilcoxon signed rank test were used to generate ROC curves and calculate the AUC value of each array using the ROCR library .
The background correction step was either skipped (none) or performed using one of three popular background correction algorithms: gcrma (version 2.14.1), MAS 5.0 (mas), and RMA (rma). As gcrma can be used with different parameters, we tested all possible gcrma settings: gcrma-rml (using reference probe affinity information and maximum likelihood estimation; the default setting of gcrma), gcrma-reb (using reference probe affinity information and empirical Bayes estimation), gcrma-lml (using local probe affinity information and maximum likelihood estimation), gcrma-leb (using local probe affinity information and empirical Bayes estimation). Using maximum likelihood estimation is achieved by setting "fast = TRUE" in the gcrma function, while using empirical Bayes estimation is achieved by setting "fast = FALSE". We also applied the modified gcrma background correction used by Schuster et al. (gcrma-sch) , which is in a similar setting as gcrma-leb but without adjusting the probe effects in specific binding. By default, gcrma and rma only correct PM probe intensities. As the MAS 5.0 detection algorithm requires both PM and MM probe intensities, gcrma and rma were modified to correct background for both PM and MM probes.
Probe normalization methods and normalization groups
The PM and MM probe intensities after the background correction step were either not normalized (none) or normalized with one of the six normalization methods: constant, scaling, invariantset, loess, quantiles, and vsn. Normalizations were either carried out among technical replicates (technical group), among arrays under the same condition (conditional), or among all 18 arrays (all, Figure 1B).
Background correction and probe normalization
The same methods evaluated for present/absent call were used in these two steps except that gcrma-sch was not used, and for routes using gcrma or rma as background correction, only PM probe intensities were adjusted in these two steps.
Each probe pair contains one PM probe and one MM probe. We either directly used PM probe intensities (pmonly) as the corresponding probe pair intensities, or calculated the probe pair intensities based on the method used by MAS 5.0 (mas). As gcrma and rma only adjust PM probe intensities at the background correction step, mas PM correction is not compatible with these background correction methods.
The summarization step is employed to estimate the intensity of each probe set based on multiple probe pairs. We tested four different summarization methods: medianpolish, Tukey-biweight (mas) , FARMS, and DFW.
Probe set normalization
We either skipped probe set normalization (none) or used one of the five normalization methods: constant, scaling, loess, quantiles, or vsn. The different normalization methods were coupled with each of the three normalization groups.
Four methods were used for prediction of DEGs based on summarized probe set intensities: fold change (simply calculating log2 fold change between the A and B conditions), CyberT, LIMMA and the R version of SAM (SAMR) .
Several of the tested methods are integrated algorithms that cannot be separated into individual steps as above. For example, multi-mgMOS (mmgmos)  estimates expression levels of probe sets using a Gamma distribution to model probe pair intensities across multiple arrays. As the method uses both PM and MM intensities at the same time, there is no PM correction step for this method. gcrma and rma only correct PM intensities and therefore are not compatible with mmgmos. Given raw probe intensities, the PerfectMatch program  calculates gene expression levels based on the position-dependent-nearest-neighbor (PDNN) model, which is a binding free energy model of the cRNA and DNA probe duplex. We also evaluated the performance of DEG detection using probe set intensities obtained directly from the gcrma, rma, and mas5 functions in R with default settings. The GoldenSpike and Alchemy packages detect DEGs by combining the results from the top 10 routes evaluated on the Golden Spike dataset. Two routes used in Alchemy utilize the PerfectMatch results. We also tried a variant of Alchemy, which only uses the eight routes that do not depend on PerfectMatch results; we refer to this approach as Alchemy2.
For routes using fold change to detect DEGs, the absolute values of log2 fold change were given to the ROCR library to generate the ROC curves and calculate the AUC values. For routes using CyberT, LIMMA or SAMR, the AUC values were calculated based on the absolute values of the corresponding test statistics. The absolute values of the composite statistics from the GoldenSpike package, Alchemy and Alchemy2 were used to calculate the corresponding AUC values.
False discovery rate
The permutation-based q-values of the overall top 10 routes were calculated from 1500 permutations using the algorithm implemented in the GoldenSpike package. The q-values based on Benjamini and Hochberg's method (BH) were calculated by using the p.adjust function in R. As this function requires p-values as input, we were not able to calculate the BH-based q-values for the routes that did not report p-values. The actual q-values were reported from the ROCR library by using the calculated q-values to rank the probe sets.
All computations were performed on the operating system RedHat Enterprise Linux 4, 2.6 Kernel. R version 2.7.2  and Bioconductor version 2.2 were used in this study.
differentially expressed genes
area under the curve
true positive rate
false positive rate
false discovery rate.
MAQC Consortium: The MicroArray Quality Control (MAQC) project shows inter-and intraplatform reproducibility of gene expression measurements. Nat Biotech 2006, 24: 1151–1161. 10.1038/nbt1239
McCall MN, Irizarry RA: Consolidated strategy for the analysis of microarray spike-in data. Nucleic Acids Research 2008, 36: e180. 10.1093/nar/gkn430
Affymetrix Latin square data[http://www.affymetrix.com/support/technical/sample_data/datasets.affx]
Irizarry RA, Bolstad BM, Collin F, Cope LM, Hobbs B, Speed TP: Summaries of Affymetrix GeneChip probe level data. Nucleic Acids Research 2003, 31: e15. 10.1093/nar/gng015
Choe S, Boutros M, Michelson A, Church G, Halfon M: Preferred analysis methods for Affymetrix GeneChips revealed by a wholly defined control dataset. Genome Biology 2005, 6: R16. 10.1186/gb-2005-6-2-r16
Pearson R: A comprehensive re-analysis of the Golden Spike data: Towards a benchmark for differential expression methods. BMC Bioinformatics 2008, 9: 164. 10.1186/1471-2105-9-164
Schuster E, Blanc E, Partridge L, Thornton J: Correcting for sequence biases in present/absent calls. Genome Biology 2007, 8: R125. 10.1186/gb-2007-8-6-r125
Schuster E, Blanc E, Partridge L, Thornton J: Estimation and correction of non-specific binding in a large-scale spike-in experiment. Genome Biology 2007, 8: R126. 10.1186/gb-2007-8-6-r126
Chen Z, McGee M, Liu Q, Scheuermann RH: A distribution free summarization method for Affymetrix GeneChip(R) arrays. Bioinformatics 2007, 23: 321–327. 10.1093/bioinformatics/btl609
Turro E, Bochkina N, Hein A-M, Richardson S: BGX: a Bioconductor package for the Bayesian integrated analysis of Affymetrix GeneChips. BMC Bioinformatics 2007, 8: 439. 10.1186/1471-2105-8-439
Hochreiter S, Clevert D-A, Obermayer K: A new summarization method for affymetrix probe level data. Bioinformatics 2006, 22: 943–949. 10.1093/bioinformatics/btl033
Irizarry R, Cope L, Wu Z: Feature-level exploration of a published Affymetrix GeneChip control dataset. Genome Biology 2006, 7: 404. 10.1186/gb-2006-7-8-404
Dabney A, Storey J: A reanalysis of a published Affymetrix GeneChip control dataset. Genome Biology 2006, 7: 401. 10.1186/gb-2006-7-3-401
Edgar R, Domrachev M, Lash AE: Gene Expression Omnibus: NCBI gene expression and hybridization array data repository. Nucleic Acids Res 2002, 30: 207–210. 10.1093/nar/30.1.207
Human Gene 1.0 ST Array Performance[http://www.affymetrix.com/support/technical/whitepapers/hugene_perf_whitepaper.pdf]
Affymetrix Statistical Algorithms Description Document[http://www.affymetrix.com/support/technical/whitepapers/sadd_whitepaper.pdf]
Irizarry RA, Hobbs B, Collin F, Beazer-Barclay YD, Antonellis KJ, Scherf U, Speed TP: Exploration, normalization, and summaries of high density oligonucleotide array probe level data. Biostatistics 2003, 4: 249–264. 10.1093/biostatistics/4.2.249
Wu Z, Irizarry RA: Stochastic Models Inspired by Hybridization Theory for Short Oligonucleotide Arrays. Journal of Computational Biology 2005, 12: 882–893. 10.1089/cmb.2005.12.882
Choe S, Boutros M, Michelson A, Church G, Halfon M: Correspondence: response to Irizarry, Cope and Wu. Genome Biology 2006, 7: 404. 10.1186/gb-2006-7-8-404
Peppel J, Kemmeren P, van Bakel H, Radonjic M, van Leenen D, Holstege FC: Monitoring global messenger RNA changes in externally controlled microarray experiments. EMBO Rep 2003, 4: 387–393. 10.1038/sj.embor.embor798
Hannah MA, Redestig H, Leisse A, Willmitzer L: Global mRNA changes in microarray experiments. Nat Biotechnol 2008, 26: 741–742. 10.1038/nbt0708-741
McClish DK: Analyzing a portion of the ROC curve. Med Decis Making 1989, 9: 190–195. 10.1177/0272989X8900900307
Storey JD: The positive false discovery rate: A Bayesian interpretation and the q-value. Ann Stat 2003, 31: 2013–2035. 10.1214/aos/1074290335
Benjamini Y, Hochberg Y: Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing. Journal of the Royal Statistical Society B 1995, 57: 289–300.
Choe S, Boutros M, Michelson A, Church G, Halfon M: Correspondence: response to Dabney and Storey. Genome Biology 2006, 7: 401. 10.1186/gb-2006-7-3-401
Fodor A, Tickle T, Richardson C: Towards the uniform distribution of null P values on Affymetrix microarrays. Genome Biology 2007, 8: R69. 10.1186/gb-2007-8-5-r69
Dobbin KK, Simon RM: Sample size planning for developing classifiers using high-dimensional DNA microarray data. Biostatistics 2007, 8: 101–117. 10.1093/biostatistics/kxj036
Ferreira JA, Zwinderman A: Approximate sample size calculations with microarray data: An illustration. Stat Appl Genet Mo B 2006, 5: 25.
Jorstad TS, Langaas M, Bones AM: Understanding sample size: what determines the required number of microarrays for an experiment? Trends Plant Sci 2007, 12: 46–50. 10.1016/j.tplants.2007.01.001
Jorstad TS, Midelfart H, Bones AM: A mixture model approach to sample size estimation in two-sample comparative microarray experiments. BMC Bioinformatics 2008, 9: 117. 10.1186/1471-2105-9-117
Lee MLT, Whitmore GA: Power and sample size for DNA microarray studies. Stat Med 2002, 21: 3543–3570. 10.1002/sim.1335
Pavlidis P, Li QH, Noble WS: The effect of replication on gene expression microarray experiments. Bioinformatics 2003, 19: 1620–1627. 10.1093/bioinformatics/btg227
Pawitan Y, Michiels S, Koscielny S, Gusnanto A, Ploner A: False discovery rate, sensitivity and sample size for microarray studies. Bioinformatics 2005, 21: 3017–3024. 10.1093/bioinformatics/bti448
Wei CM, Li JN, Bumgarner RE: Sample size for detecting differentially expressed genes in microarray experiments. Bmc Genomics 2004, 5: 87. 10.1186/1471-2164-5-87
Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ: Basic local alignment search tool. J Mol Biol 1990, 215: 403–410.
Gentleman RC, Carey VJ, Bates DM, Bolstad B, Dettling M, Dudoit S, Ellis B, Gautier L, Ge Y, Gentry J, et al.: Bioconductor: open software development for computational biology and bioinformatics. Genome Biol 2004, 5: R80. 10.1186/gb-2004-5-10-r80
Sing T, Sander O, Beerenwinkel N, Lengauer T: ROCR: visualizing classifier performance in R. Bioinformatics 2005, 21: 3940–3941. 10.1093/bioinformatics/bti623
Li C, Hung Wong W: Model-based analysis of oligonucleotide arrays: model validation, design issues and standard error application. Genome Biol 2001, 2: RESEARCH0032.
Bolstad BM, Irizarry RA, Astrand M, Speed TP: A comparison of normalization methods for high density oligonucleotide array data based on variance and bias. Bioinformatics 2003, 19: 185–193. 10.1093/bioinformatics/19.2.185
Huber W, von Heydebreck A, Sultmann H, Poustka A, Vingron M: Variance stabilization applied to microarray data calibration and to the quantification of differential expression. Bioinformatics 2002, 18: S96–104.
Baldi P, Long AD: A Bayesian framework for the analysis of microarray expression data: regularized t -test and statistical inferences of gene changes. Bioinformatics 2001, 17: 509–519. 10.1093/bioinformatics/17.6.509
Smyth GK: Linear Models and Empirical Bayes Methods for Assessing Differential Expression in Microarray Experiments. Stat Appl Genet Mo B 2004, 3: 3.
Tusher VG, Tibshirani R, Chu G: Significance analysis of microarrays applied to the ionizing radiation response. Proceedings of the National Academy of Sciences 2001, 98: 5116–5121. 10.1073/pnas.091062498
Liu X, Milo M, Lawrence ND, Rattray M: A tractable probabilistic model for Affymetrix probe-level analysis across multiple chips. Bioinformatics 2005, 21: 3637–3644. 10.1093/bioinformatics/bti583
Zhang L, Miles MF, Aldape KD: A model of molecular interactions on short oligonucleotide microarrays. Nat Biotech 2003, 21: 818–821. 10.1038/nbt836
R Development Core Team: R: A Language and Environment for Statistical Computing. 2008.
We thank Dr. Daniel Gaile for advice on statistics and Dr. Michael Buck for comments on the manuscript. This study utilized the high-performance Computing cluster at the Center for Computational Research in SUNY Buffalo. This work was supported by NIH grant R03 LM008941 to MSH.
QZ helped plan the study, performed the experiments, and conducted the analysis. JCM helped plan the study and provided advice on experimental design and statistical analysis. MSH conceived of and helped plan the study and provided guidance on the analysis. QZ and MSH wrote the manuscript. All authors read and approved the final manuscript.
