A parameter-adaptive dynamic programming approach for inferring cophylogenies
- Daniel Merkle^{1}Email author,
- Martin Middendorf^{2}Email author and
- Nicolas Wieseke^{2}Email author
https://doi.org/10.1186/1471-2105-11-S1-S60
© Merkle et al; licensee BioMed Central Ltd. 2010
- Published: 18 January 2010
Abstract
Background
Coevolutionary systems like hosts and their parasites are commonly used model systems for evolutionary studies. Inferring the coevolutionary history based on given phylogenies of both groups is often done by employing a set of possible types of events that happened during coevolution. Costs are assigned to the different types of events and a reconstruction of the common history with a minimal sum of event costs is sought.
Results
This paper introduces a new algorithm and a corresponding tool called CoRe-PA, that can be used to infer the common history of coevolutionary systems. The proposed method utilizes an event-based concept for reconciliation analyses where the possible events are cospeciations, sortings, duplications, and (host) switches. All known event-based approaches so far assign costs to each type of cophylogenetic events in order to find a cost-minimal reconstruction. CoRe-PA uses a new parameter-adaptive approach, i.e., no costs have to be assigned to the coevolutionary events in advance. Several biological coevolutionary systems that have already been studied intensely in literature are used to show the performance of CoRe-PA.
Conclusion
From a biological point of view reasonable cost values for event-based reconciliations can often be estimated only very roughly. CoRe-PA is very useful when it is difficult or impossible to assign exact cost values to different types of coevolutionary events in advance.
Keywords
- Host Tree
- Switching Event
- Dynamic Programming Approach
- Random Instance
- Cost Vector
Background
Due to the immense increase of available molecular data and the methodological improvements in computer science to handle this data, methods for analyzing the coevolution of large data sets of two groups of species become more and more sophisticated. Examples of such coevolutionary systems are hosts and their parasites, insect-plant relations, or symbiotic relationships. Different methods for reconstructing the common host parasite relations have been proposed in the literature (for an overview see, e.g., [1, 2]). One common approach is to use an evolutionary model that describes the set of possible types of events that happened during coevolution, and to assign costs for the different types of events. The problem is then to find a reconstruction of the common history with a minimal sum of event costs.
Algorithms that employ this idea are called event-based methods [3]. Typically the four different types of events that are considered are cospeciation events, duplication events, sorting events and switching events (see [9]). The tools that are most commonly used in biological studies that use event-based methods for the analysis of coevolving species associations are TreeMap [4] and TreeFitter [5]. Notable are also Tarzan [6] and Jane [7], as they can handle more complex timing information about the phylogenetic trees than other methods. This is important because several recent studies of cophylogenetic relationships have shown that timing information can be very important for the correct interpretation of results from cophylogenetic analysis. Whereas these tools differ regarding several aspects, e.g., efficiency, the possibility to include timing information, or the availability of a graphical user interface, they all have in common that the event-based approach requires a cost assignment for the coevolutionary events in advance in order to compute a cost minimal reconstruction.
In this paper a new algorithm for event-based cophylogeny reconstruction and the corresponding tool called CoRe-PA are presented. The new method is based on a dynamic programming formulation for the cophylogenetic reconstruction problem and has significant new features compared to the current state-of-the-art methods TreeFitter, TreeMap, and Tarzan (compare also the paper [8] and the recently published tool Jane [7] where a dynamic formulation is used as well). Algorithm CoRe-PA can handle associations of parasites with multiple hosts, it includes the handling of divergence timing information. Unlike most other tools it can handle multifurcations in the input trees. It is suitable also for large phylogenetic trees due to a dynamic programming formulation for the reconstruction problem. Most notably however is the parameter-adaptive reconstruction approach of CoRe-PA. Unlike other event-based methods, in CoRe-PA no costs have to be assigned to the coevolutionary events. This is achieved by a careful definition of an underlying optimization criterion.
The paper is structured as follows. In the methods section a dynamic programming formulation for inferring cophylogenies is introduced. Furthermore the parameter-adaptive approach utilized in CoRe-PA is described and it is explained how randomized tests can be performed. In later sections several cophylogenetic systems are analyzed.
Methods
Basic definitions
We need the following definitions. If p is a node of a tree, then p.i denotes the i-th child node of p. The out-degree of node p is denoted with deg(p). An association of a parasite p ∈ P to a host h ∈ H is denoted as (p, h). A reconstruction R is the set of all associations of all parasites to nodes in the host tree, i.e., for each node p ∈ P it exists an h ∈ H such that (p, h) ∈ R. A reconstruction is valid if i) all parasite leaves are mapped to host leaves according to φ, ii) if node p is mapped to node h, then no descendant of p is associated with an ancestor of h, as this would induce an inconsistency, and iii) at least one child p.i of p has to be associated with an descendant of h. We do not consider the case of a speciation of the parasite p where both child species change to hosts that are outside of the subtree with root h because such events can not be traced back (many other studies also do not allow such events, e.g., [9]).
Based on a valid reconstruction R, the events implied by the associations in R can be inferred as follows. For all non-leaf nodes p ∈ P the association of p and of all its children p.i, 1 ≤ i ≤ deg(p), is considered. If for example, in the case of binary trees, the association (p, h) exists, and p.1 is mapped to one child of h and p.2 is mapped to the other child of h, then this implies either i) one cospeciation event, or ii) a duplication and two sorting events. This association triple technique has been used before in Tarzan and leads to an efficient reconstruction method (for details see [6]). A valid reconstruction for the coevolutionary system of Figure 1 (left) is depicted in Figure 1 (right). In the reconstruction the three associations (p_{3}, h_{2}), (p_{4}, h_{3}), and (p_{2}, h_{1}) induce one cospeciation and one sorting event (in general many different sets of events may be possible). The three associations (p_{2}, h_{1}), (p_{5}, h_{4}), and (p_{1}, h_{1}) induce one duplication and two sorting events. The depicted reconstruction requires two cospeciations, one duplication, and three sortings.
We will discuss divergence timing information and incompatible reconstruction only briefly in this article and refer to [9] and [6]. Considering again an association (p, h), where one child p.i is mapped to a node h', and h' is not a descendant of h, then this implies (at least) one host switching event. A problem with switches in a reconstruction is that they induce a timing relation between the take-off site and the landing site. A consequence is that the occurrence of several switches in a valid reconstruction can lead to timing relations which are not possible. CoRe-PA includes more sophisticated methods for detecting these so-called incompatible (in contrast to compatible) reconstructions than, for example, Tarzan (for details how these incompatibilities can be resolved see [6]). However we will focus on the parameter-adaptive reconstruction approach in this article. Furthermore, we point out that CoRe-PA includes the same handling of divergence timing information as Tarzan, i.e., nodes can be labeled with divergence timing information and an association (p, h) is only allowed, if the timing information of p and h do not disallow this association.
Dynamic programming approach
In the following a dynamic programming formulation (DP) for the reconstruction problem is given, which is a key component of CoRe-PA. We briefly discuss how the usage of divergence timing information is included, and explain details of runtime optimization techniques that are used. We omit a detailed discussion of how multifurcations and multiple-host parasites are handled (instead of resolving multifurcations by iterating over all possible binary subtrees, as done in Tarzan, non-binary cophylogenetic events where introduced, e.g., events that represents a composition of multiple duplications and cospeciations occurring consecutively taking into account the structure of multifurcating host and parasite nodes).
Initial DP formulation
For details on how min(E(h, h_{1}, ..., h_{deg(p)})) is computed in the binary case see Algorithm 1.
Algorithm 1: Computing min(E(h, h_{1}, h_{2})) in the binary case of Equation 1
Input: h, h_{1}, h_{2}, cospeciationCost, sortingCost, duplicationCost, hostswitchCost
Output: costs E
1 E ← ∞;
2 if h is not a descendant of h _{1} or h _{2} then
3 S← Compute number of sortings from h to h_{1} plus sortings from h to h_{2};
4 if h_{1} and h_{2}are in the subtree with root h then
5 E ← duplicationCost + (S * sortingCost);
6 if h_{1} and h_{2}are in different subtrees with root h.1 and h.2 then
7 E ← min(E, cospeciationCost + ((S - 2) * sortingCost);
8 end
9 end
10 if either h_{1}or h_{2}is in subtree with root h then
11 E ← hostswitchCost + (S * sortingCost);
12 end
13 end
14 return E;
Inclusion of divergence timing information
Similar to the approach in [6], algorithm CoRe-PA allows assigning intervals of time zones to the nodes in one of the trees, e.g., the parasite tree. The nodes in the other tree, e.g., the host tree, have to be assigned to a single time zone. The reason for this is that the reconstruction problem becomes much more complex when nodes in both trees are assigned to time zone intervals [6]. For each possible association (p, h) we define a value Z_{p, h}. The value of Z_{p, h}is 0 if the association is valid with respect to the timing information, and it is ∞ otherwise. For the revised DP formulation we add the value Z_{p, h}in the recursion step of Equation 1.
Optimization
A direct implementation of the DP formulation, as given in Equation 1, would not perform very well, as all possible combinations of all possible associations of nodes p.i to nodes h_{ i }would be considered in order to compute C_{p, h}, i.e., any of the n^{deg(p)}combinations of choosing deg(p) hosts out of the n nodes in the host phylogeny have to be considered. Therefore several improvements are included into the implementation of CoRe-PA. The most important improvement reduces the number of combinations of associations that have to be considered significantly as described in the following. If the costs for C_{p, h}are computed according to Equation 1, all possible mappings of each p.i to all h ∈ H are considered. Let us assume two possibilities for mappings of p.i, namely p.i being mapped to h' and p.i being mapped to h". Let us further assume that h' and h" are both in a subtree of H that has a child of h as a root node. As we know the values of C_{p.i, h'}and C_{p.i, h″}(due to the recursive approach) and as the number of sorting events induced by the pair of associations (p, h) and (p.i, h') (respectively (p, h) and (p.i, h")) is known, one of the associations (either (p.i, h') or (p.i, h")) will dominate the other (unless the costs are equal). This is true for every pair of host nodes that occur in the same subtree of H that have a child of h as root node. Therefore, only the association that induces the smallest cost in such a subtree must be considered and the number of combinations to be considered in the recursive approach is reduced significantly. This is not only true for all these subtrees, but also for the set of all other nodes that are neither h itself nor in one of the just described subtrees. For the binary case pseudocode is given in Algorithm 2.
Algorithm 2: Computing C_{p, h}in the binary case of Equation 1
Input: parasite p, host h, C_{p.1, h'}, C_{p.2, h"}, for all h', h" ∈ H
Output: C_{p, h}
1 if p ∈ L(P) then
2 return ((p, h) ∈ φ)?0:∞;
3 end
4 T ← 4-partition of H specified by {nodes of subtree h.1, nodes of subtree h.2, {h}, remaining nodes};
5 ← for each T^{ j }∈ T choose the h' ∈ T^{ j }with min(C_{p.1, h'}+ sorting costs from h to h');
6 ← for each T ^{ j }∈ T choose the h" ∈ T^{ j }with min(C_{p.2, h"}+ sorting costs from h to h'');
7 C_{p, h}← ∞;
8 foreach h _{1} from do
9 foreach h_{2}from do
10 C_{p, h}← min(C_{p, h}, + + min(E(h, h_{1}, h_{2})));
11 end
12 end
13 return C_{p, h};
In addition to this dominance-based optimization CoRe-PA utilize tables of precomputed event costs. Assume that an arbitrary parasite node p is being mapped on h and a child p.i of p is being mapped on h'. A certain set of events that have to occur can be precomputed independent from the specific choice of p and p.i: for example, if h' is a descendant of h, the number of sorting events can be computed; in other cases host switches can be inferred beforehand. In order to perform such precomputations, it is assumed that each possible h and h' for the mapping of an arbitrary p and the child node p.i is considered. Also in the case that divergence timing information is used, the best take-off and landing sites can be precomputed in the same manner.
Let n be the maximal number of nodes in the host or in the parasite tree. It is not difficult to see, that computing a reconstruction with CoRe-PA runs in order of O(n^{3}), if the maximal degree of the nodes in the trees is assumed to be constant.
Parameter-adaptive cophylogenetic reconstruction
i.e., the probability for a certain event is the normalized value of the reciprocal event cost. This ensures that also the ratio between the probabilities of two events are inversely proportional to the ratio between the corresponding cost values. Note that negative cost values can not be considered in this parameter-adaptive approach, as negative probability values can not be interpreted reasonably. However, from a parsimony perspective negative cost values are questionable anyway (see [3]).
By using as an optimization criteria, a cost vector is sought such that is minimized. The value can be interpreted as a quantification of how unlikely a reconstruction is. Furthermore, if, based on some significance test, there is a strong support for coevolution, but the corresponding is very high, then the support for the coevolutionary signal has still to be questioned.
The parameter-adaptive approach reduces the parameterized cophylogenetic reconstruction problem to a parameter-adaptive optimization problem. Of course, many sophisticated methods are known for finding a good vector , like meta-heuristics [10] or utilizing the concept of a simplex (like in the Nelder-Mead downhill simplex method [11]). In order to be able to present a reasonable statistical analysis of the parameter-adaptive component of CoRe-PA and not to be biased by an underlying optimization method, we present only results that are based on randomly chosen (uniform distribution) cost vectors (although the Nelder-Mead simplex method is already included in CoRe-PA).
Randomized tests in CoRe-PA
In order to evaluate whether the number of different phylogenetic events of a reconstruction indicates significant coevolution, different randomization tests can be used (see, e.g., [12]). The idea of these tests is to create reconstructions for scenarios where part of the problem instance is randomly changed, e.g., the hosts and parasite associations can be changed randomly. Then the number of events in the reconstructions for the random scenarios can be compared to the reconstruction for the original host parasite scenario. Different opinions have been stated in the literature about what part of the host-parasite data should be randomized when creating random instances for a significance test. Some possibilities are to randomize the parasite tree, the host tree, both trees, or the associations between host and parasites (see [12]). It is important that the random instances are biologically plausible because otherwise the significance results that can be obtained with the tests are biologically useless. Therefore, different methods have been proposed how the random instances should be generated (see [13] for an overview). One randomization test that is integrated in TreeMap is the most often used test in literature on host parasite coevolution (see, e.g., [14]). The test asks whether the maximum proportion of cospeciating nodes inferred is greater than the maximum proportion that can be inferred when one of the phylogenies is randomized. TreeMap allows to randomize either one tree (the host or the parasite tree) or both trees. All these possibilities have been used in the literature.
In [12] the proper use of randomization methods in order to analyze, whether the fit between hosts and parasites can be explained by coevolution, is discussed. It was argued that for a corresponding test it is not appropriate to make random changes in the host or parasite tree. Instead it was proposed to keep the phylogenies of the hosts and the parasites as well as the number of associations. Only the associations between the hosts and parasites should be randomized. This method has been used, e.g., in [14]. For many host parasite systems it can be observed that the number of different parasite species on one host species is small. For such a system it might not be biologically meaningful if a random association between hosts and parasites is created by assigning each parasite a random host with equal probability. Therefore we propose here that random associations should be created that keep the character of the host parasite assignment in the following sense. The number of hosts that have k parasite species should be the same in the original host parasite system and the random instance for all integers k. We call this a character preserving association. All the discussed methods are included in CoRe-PA. In the case that random trees have to be generated, the well known β-splitting model [13] is employed. The β-splitting model includes the Markov model and the PDA model as special cases. The method for randomizing the parasite tree (resp. the host tree and both trees) is denoted by RND-parasite (resp. RND-host and RND-both); the character preserving association is denoted by RND-assoc.
Results and discussion
Six biological coevolutionary systems that have already been studied intensely in the literature are used as test examples in this study. Note that in coevolutionary systems multifurcations are often resolved artificially into bifurcations, although there are clear indications that the support for this method based on the biological data is very weak. Furthermore, if not stated otherwise, the data sets from the literature do not contain multi-host parasites, although there is sometimes support for this in the underlying data. These restrictions are necessary in order to be able to use standard tools for cophylogenetic reconstruction; CoRe-PA would not require these restrictions. When generating random trees with the β-splitting model, we always use β = -1 as suggested in [13]. Note that all reconstructions in this section, which are suggested by CoRe-PA, are compatible.
Biological data sets
The test systems are one system - denoted by S_{1} - of gophers hosts and lice parasites (see Figures 11 and 13 in [9]), two systems - denoted by S_{2-ML}and S_{2-MP}- of Pelecanicform bird hosts and Pectinopygus lice parasites (see Figure 2, 4, and 5 in [15]), one system - denoted by S_{3} - of Hystricognathi rodents and pinworm parasites (see Figure 6.5 in [16]), one system - denoted by S_{4} - of seabirds and their chewing lice (see Figure 12.4 in [17]) and a recently presented system - denoted by S_{5} - of Microbotyrum funghi and their Caryophyllaceae hosts that includes multihost parasites (see Figure 4 in [18]).

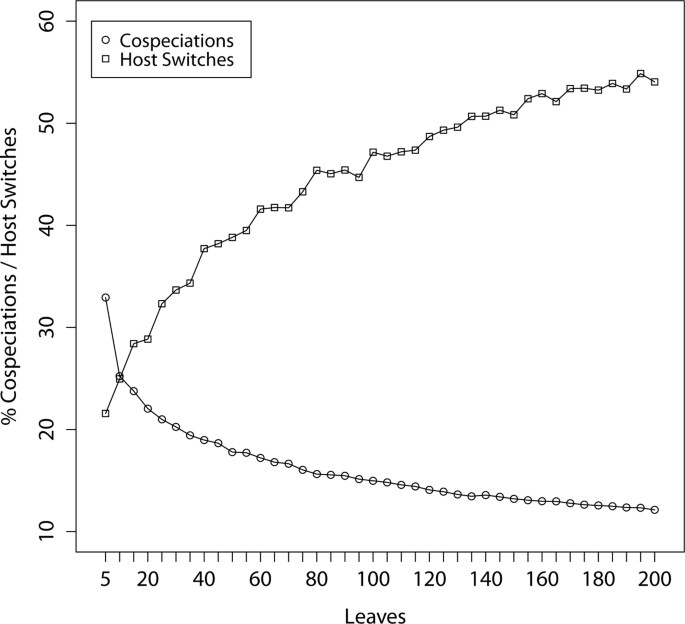

Parameterized reconstruction of random trees
Parameter-adaptive reconstruction
When using the parameter-adaptive approach of CoRe-PA, 100000 cost-minimal reconstructions are computed based on randomly chosen cost vectors. The reconstruction with the smallest value for (compare Equation 3) is the reconstruction suggested by CoRe-PA. When employing one of the randomization methods RND-{host, parasite, both, assoc} for each randomized instance 100000 cost-minimal reconstructions are computed based on randomly chosen cost vectors, and the resulting value refers to the best of these.
Reconstruction results for systems S_{1}, ..., S_{5}.
System | event frequency | best cost vector |
| p_{co,>}/p_{co,≥} | p _{ qu } |
---|---|---|---|---|---|
S _{1} | (6, 5, 2, 1) | (0.166, 0.198, 0.512, 0.987) | 0.008 | 0.00/0.13 | 0.04 |
S _{2-ML} | (10, 20, 5, 2) | (0.226, 0.114, 0.457, 0.989) | 0.015 | 0.04/0.13 | 0.24 |
S _{2-MP} | (12, 18, 5, 0) | (0.007, 0.005, 0.018, 0.882) | 0.036 | 0.00/0.00 | 0.78 |
S _{3} | (8, 15, 3, 1) | (0.095, 0.053, 0.268, 0.738) | 0.024 | 0.00/0.00 | 0.28 |
S _{4} | (9, 11, 3, 1) | (0.077, 0.061, 0.224, 0.667) | 0.011 | 0.01/0.03 | 0.05 |
S _{5} | (6, 32, 9, 4) | (0.388, 0.072, 0.252, 0.587) | 0.006 | 0.87/0.98 | 0.00 |
The results give a strong indication for a coevolutionary history of systems S_{1} and S_{4} with respect to the number of cospeciations. As is very small for these systems this outcome should be interpreted as a clear sign of coevolution. Systems S_{2-ML}, S_{2-MP}, and S_{3} also show a strong evidence for coevolution based on p_{co,≥}, but the support for this (compare p_{ qu }) is only reasonably good for S_{2-ML}and S_{3}, and bad for S_{2-MP}(p_{ qu }= 0.78). The values for system S_{5} should be interpreted as a clear sign of no coevolution (p_{co,≥}= 0.98) with a strong support for this result based on p_{ qu }= 0.00. Note that the extensive studies in the literature [16, 18] for systems S_{2-ML}, S_{2-MP}, and S_{5} also do not conclude that there is a clear coevolutionary signal, and the tools used showed partially contradicting results.
Although a detailed discussion of the reconstructions is not possible in this paper, we want to point out that for systems S_{4} (respectively S_{1}, S_{2-ML}, and S_{2-MP}) the best reconstruction that was obtained by CoRe-PA is identical (or very similar) to the reconstructions that are given in the literature. But different from the results in the literature the reconstructions obtained by CoRe-PA did not assume any predefined costs for the coevolutionary events.
It is also noteworthy that in all systems, except S_{1}, CoRe-PA obtained higher cost values for cospeciation events than for sorting events, which is contrary to standard cost vectors used in the literature. As expected the switching event had the highest cost values.
Conclusion
We have introduced a new algorithm and a corresponding tool called CoRe-PA for parameter-adaptive cophylogenetic analysis. Different from other event-based reconstruction methods CoRe-PA does not require any cost settings for the considered cophylogenetic events in advance, but seeks for the cheapest reconstruction in which the used costs are inversely related to the relative frequency of the corresponding event. The quality of the reconstructions obtained with CoRe-PA was analyzed experimentally on six coevolutionary systems. The results show that CoRe-PA is very useful when it is difficult or impossible to assign exact cost values to different types of coevolutionary events in advance.
