A new method for identifying bivariate differential expression in high dimensional microarray data using quadratic discriminant analysis
BMC Bioinformatics volume 12, Article number: S6 (2011)
One of the drawbacks we face up when analyzing gene to phenotype associations in genomic data is the ugly performance of the designed classifier due to the small sample-high dimensional data structures (n ≪ p) at hand. This is known as the peaking phenomenon, a common situation in the analysis of gene expression data. Highly predictive bivariate gene interactions whose marginals are useless for discrimination are also affected by such phenomenon, so they are commonly discarded by state of the art sequential search algorithms. Such patterns are known as weak/marginal strong bivariate interactions. This paper addresses the problem of uncovering them in high dimensional settings.
We propose a new approach which uses the quadratic discriminant analysis (QDA) as a search engine in order to detect such signals. The choice of QDA is justified by a simulation study for a benchmark of classifiers which reveals its appealing properties. The procedure rests on an exhaustive search which explores the feature space in a blockwise manner by dividing it in blocks and by assessing the accuracy of the QDA for the predictors within each pair of blocks; the block size is determined by the resistance of the QDA to peaking. This search highlights chunks of features which are expected to contain the type of subtle interactions we are concerned with; a closer look at this smaller subset of features by means of an exhaustive search guided by the QDA error rate for all the pairwise input combinations within this subset will enable their final detection. The proposed method is applied both to synthetic data and to a public domain microarray data. When applied to gene expression data, it leads to pairs of genes which are not univariate differentially expressed but exhibit subtle patterns of bivariate differential expression.
We have proposed a novel approach for identifying weak marginal/strong bivariate interactions. Unlike standard approaches as the top scoring pair (TSP) and the CorScor, our procedure does not assume a specified shape of phenotype separation and may enrich the type of bivariate differential expression patterns that can be uncovered in high dimensional data.
The development of high-throughput technologies, such as gene or proteinn microarrays, has provided the scenario of the state of cells by monitoring the expression levels of hundreds or thousands of biological inputs (p) for a few number (n) of experimental units measured under different clinical conditions. A challenging problem within this domain is the identification of inputs or interactions of them highly correlated to the outcome. The low sample-high dimensional (n ≪ p) structure of the data we handle makes this challenge a difficult task, in particular when we are concerned with the detection of bivariate interactions. Some papers that tackle this problem using indexes of pairwise feature association are [1, 2], which introduced the TSP score, and  which defined the CorScor index by the changes in the intra-class correlation coefficient and explores the feature space looking for gap/substitution and on/off association patterns. These approaches assume a specified shape for the interaction.
In this paper we address the problem by evaluating the performance of a classification rule trained on the data at hand; hopefully, this will enrich the typology of interactions that might be hidden in the data. One of the main drawbacks for facing up this problem is the well known peaking phenomenon; it consists of the deterioration of the performance of the designed classifier when the number of inputs increases and many noisy variables are involved in fitting the classifier, so the signal gets masked and the classifier confuses it with the noise. There is a great deal of literature discussing this phenomenon; some recent papers [4, 5] study the problem within a general framework and  tackles it in the context of feature selection.
The peaking phenomenon is more acute for weak marginal/strong bivariate signals as pointed out in , that is, for highly predictive interactions having useless marginal distributions for classifying the outcome. This paper studies the peaking phenomenon for this type of bivariate interaction patterns. We propose a search procedure which utilizes the error rate of the quadratic discriminant analysis (QDA) classifier to carry out an exploration of the feature space in order to find such signals. The use of the QDA classifier will hopefully enlarge the type of patterns of bivariate differential expression uncovered by the aforementioned methods TSP and CorScor.
This section gives a detailed description of how weak marginal/strong bivariate interactions are lost by different classification rules as the dimension of the feature space increases and many noise predictors are involved in training the classifier. For the sake of simplicity we confine ourselves to the binary classification problem, where n0 and n1 observations are drawn from each one of the categories of the outcome variable.
Weak marginal/strong bivariate interactions
Four examples of weak marginal/strong bivariate interaction patterns are given by the following synthetic scenarios.
The observations are drawn from bivariate random variable Z = (Z1, Z2) in accordance with the following scheme: the conditional distribution of Z|Y = 0 —black labels— is bivariate normal with mean vector µ0 = (0, 0); meanwhile, the other class conditional distribution for Z|Y = 1 —red labels— is bivariate normal with mean vector µ1 = (–1,1). We assume both distributions have the same covariance matrix given by
Scenario 2 (XOR)
The observations for the XOR pair are drawn from a bivariate random variable X = (X1, X2) in accordance with the following scheme: the conditional distribution of the random variable X|Y = 0 —black labels— is uniform over the quadrants . On the other hand, X|Y = 1 —red labels— has a uniform distribution over .
Scenario 3 (circular pattern)
Cases are simultated from a bivariate normal distribution R = (R1, R2) with vector means µ = (0, 0) and covariance matrix the indentity I. The labels are assigned in accordance to the following rules: if then Y = 0 —black labels— and if then Y = 1 —red labels.
Scenario 4 (V-shaped pattern)
Observations in this situation are drawn from uniform distributions confined to the domain . The interaction between the pair V = (V1, V2) and the outcome variable Y is given by the following rules: V|Y = 0 —black labels— has a uniform distribution over , with . On the other hand, V|Y = 1 —red labels— has a uniform distribution over , with .
Figure 1 shows the scatter plots obtained by simulating observations in accordance to the four schemes for sample sizes n0 = n1 = 40. Note that if the points are projected on each one of the axes, both categories of the outcome do overlap; however, if both variables of the pair are considered together the classes are neatly separated. Therefore, the discrimination comes from the bivariate interaction between them. This is the reason why we call this type of interactions weak marginal/strong bivariate interactions.
The peaking phenomenon
We consider the previous synthetic scenarios and generate samples of sizes n0 = n1 = 40. For each scenario, we add j independent noisy features, j = 1, 2,…, 100, with standard normal distribution and estimate the error rate for the following four classification rules: Adaboost , Random Forests (RF) , a support vector machine (SVM) with polynomial kernel  and the QDA classifier  . The error rate is estimated by 10-fold cross validation. The results are shown in the plots of Figure 2.
Note that the error rate of the polynomial kernel in scenario 1 is high, around 0.5, when only the variables of the pair (Z1, Z2) are used as predictors. This ugly performance is related to the type of polynomial kernel we used, a second order polynomial kernel, which is well suited for tracing nonlinear quadratic patterns but poor for identifying linear decision boundaries as in scenario 1; see the improvement of SVM classifier in scenarios 2, 3 and 4 where it makes a better job with the non linear interaction patterns (X1, X2), (R1, R2) and (V1, V2) tracing the separation between the classes.
In addition, we can observe that the error rate deteriorates as the number of features increases; this shows the peaking phenomenon for weak marginal/strong bivariate interactions. The QDA resistance to peaking compares to RF and Adaboost, with the exception of scenario 3 when p < 20; see that the error rates are nearly similar, specially for a number of inputs under 10 or 15. In addition, the QDA has the appealing property of requiring a low computational cost for training the classifier; this fact is crucial in the design of the search strategy since our procedure will explore the feature space in an almost exhaustive way by fitting thousands of times the QDA classifier.
Comparative study for a benchmark of classification rules
The CMA package  from Bioconductor project repositories in  provides an interface for the analysis of genomic data. One of the utilities of CMA is the possibility to carry out a comparative study of the performance of classifiers for a benchmark of classification rules.
In this section we revisit the effect of the peaking phenomenon for a selection of classifiers from the CMA package: k-nearest neighbors (knn) and neural networks (nnet) , diagonal (DLDA), linear (LDA) and quadratic (QDA) discriminant analysis as in , partial least squares with lda, logistic regresion and RF variants (pls_lda, pls_lr, pls_rf) as in , PAM classifier (scDA) as introduced in , random forests , the componentwise boosting (compBoost) introduced in , the ElasticNet  and two versions of the SVM (svm, svm2) with second order polynomial and radial kernels respectively. The error rate was estimated by 10-fold cross validation.
The function compare gives a picture of how these classifiers compare one with each other. For each one, it displays the boxplot of the error rate over the 10 validation sets.
The data sets were generated by drawing n0 = n1 = 40 samples from scenarios 1, 2, 3 and 4. The boxplots in Figures 3, 4 and 5 give a glance of the performance of the classifiers. The experiment was carried out for p = 2 (the signal alone), p = 10 (signal and 8 noisy inputs) and p = 20 (signal and 18 noisy inputs) features. We can see that QDA outperforms the remaining classification rules in almost all the scenarios. It is of special interest the XOR interaction pattern as pointed out in ; in this case, all these simulations have shown that the performance of all the classifiers deteriorates when the number of features reaches p = 20. It is worth noting that for p under 10 (see Figure 4) the most resistant classifier to peaking for the XOR signal is QDA; meanwhile, for p = 20 all the classifiers are highly affected by peaking in the XOR scenario (see scenario 2 in Figure 5). So we conclude that QDA is a good candidate for designing a search strategy that uncovers this type of interaction patterns.
A closer look at QDA and its resistance to peaking
Now we explore with more detail the resistance of QDA classification rule to peaking by means of a simulation study.
Recall that binary QDA is concerned with the discrimination between two p-dimensional multivariate normal class conditional populations N(µ1, Σ1) and N(µ2, Σ2), where µ1 and µ2 are the mean vectors and Σ1 and Σ2 are the covariance matrices. The decision boundary corresponding to the QDA classification rule is given by
with and π1, π2 the a priori class probabilities. When we are dealt with balanced classes π1 = π2 = 0.5.
When the sample estimates , , , of the covariances and the means are plugged in the expression above, we obtain the QDA designed classifier.
The previous decision boundary defines an hyperquadric whose shape depends on the elements involved in the difference of inverses , more specifically on the product of its eigenvalues. This yields to elliptical, hyperbolic, parabolic or linear boundaries; see  for details. Thus, the variety of patterns recognized by QDA is rich enough to consider it a good classification rule for pattern discovery. We now carry out a simulation experiment in order to study its resistance to peaking for weak marginal/strong bivariate interactions.
We have drawn 80 observations (n0 = n1 = 40) according to patterns in scenarios 1, 2, 3 and 4, along with 80 cases from p – 2 independent standard normal variables, which are uninformative features for class prediction. On the order hand, we have generated n0 + n1 = 80 samples from p independent standard normal variables and obtain a data set with only noisy features. The error rate of the QDA classifier was estimated by 10-fold cross validation for each data set. We repeated the experiment B = 100 times in order to get both populations of error rates: with the signal and with only noisy features. We have considered feature spaces with p = 2, 5, 10, 15, 20, 30 predictors.
The boxplots of Figures 6 and 7 show the results of the simulations. The amount of overlap between both populations is shown for each p in parenthesis. This overlap was measured by one of the alternatives widely used in the statistical practice: the well known measure Φ(–∆/2), with Φ the distribution function of the standard normal variable and ∆ the Mahalanobis distance. This measure has an appealing theoretical flavor since it provides the overall error rate of the linear discriminant classifier when the multivariate normality within the classes and the equality of class covariance matrices assumptions are met; see . Note that the amount of overlap between both populations is always less than 5% when the number of predictors is smaller than 10, which means that QDA classification rule is able to distinguish between chunks of inputs containing a weak marginal/strong bivariate signal and chunks with only noisy features, provided that the size of the chunk is not greater than 10. As p increases, the amount of overlap becomes larger; therefore the QDA would be unable to catch the signal and might confuse it with the noise.
The QDA interaction detector procedure
The results of the simulations have shown that QDA resistance threshold to peaking can be set at p = 10 (or at most p = 15), when we are concerned with the detection of weak marginal/strong bivariate interactions in high dimensional data sets. This finding is crucial and puts the basis of the search strategy we will design to uncover this type of interaction patterns. The rationale behind this strategy is as follows. The naive solution would explore the feature space in an exhaustive way by fitting a QDA classifier to each pair of variables; a high accurate classification would be highlighting the presence of a signal. Obviously, this alternative is time consuming prohibitive since it would require a total of p(p – 1)/2 QDA fits; for example, if p = 2000 then 1999000 fits are needed.
Our search strategy proceeds in a nearly exhaustive way by dividing the feature space in small blocks of features of a specified size bsize and by fitting the QDA for all pairs of blocks. As we know that QDA is resistant to peaking while the number of features ranges between p* = 10 and p* = 15, we propose to take bsize such that 2 ∗ bsize ≤ p*; in this way we protect ourselves against the danger of peaking when the QDA classifier is fit with all the features belonging to the union of both blocks. Once the QDA classifiers are obtained for all the possible matchings of blocks, we know that for a matching containing a bivariate interaction pattern, the classifier will give a very low error rate; meanwhile, for a block matching with only noisy features we will obtain a high error rate. Thus, we can construct a ranking of block matchings, where the top ranked matchings will contain the informative bivariate interaction patterns, and the matchings at the bottom of the ranking carrying on only noisy features. Now, at a second stage we can restrict the search to the subset of features belonging to the top ranked matchings of blocks. For example if we confine the search to the 2 ∗ bsize features of the first block matching, we would need to explore bsize × bsize interactions in order to find out which one of them is responsible for the observation of such a low error rate in the QDA; usually this search is very low time consuming since bsize is smaller than 7.
Searching in the feature space in a blockwise manner has an enormous advantage with respect to the exhaustive search; for example, if p = 2000 and we take bsize = 5, we would obtain 400 blocks; so the search would need only 79800 QDA fits, much less than the 1999000 fits of the naive solution.
This procedure has been implemented using the R platform for statistical computing downloaded from . The following steps summarizes the main stages.
It is recommended to carry out a first screening step in order to filter the strong marginal features highly correlated with the outcome before applying the search procedure. Recall that our search strategy was designed to uncover the weak marginal/strong bivariate interactions which are usually rejected by traditional sequential search procedures or pre-screening filtering tools (see  for a detailed explanation of this fact).
Results and discussion
A simulation example for synthetic data
Let n0 = n1 = 40 be the class sizes. The cases were drawn from p-dimensional random vectors, (Z1, Z2, E), (X1, X2, E), (R1, R2, E) and (V1, V2, E) corresponding to scenarios 1, 2, 3 and 4, with E = (E1, …, E p –2) a vector of independent noisy standard normal variables added to the signal. For p = 200 the signal represents 1% of a 200-dimensional feature space.
We have applied the QDA interaction detector procedure with bsize = 5 to the previous synthetic scenarios and have obtained the ranking of block matchings. As we have discussed, this ranking is a useful tool that allows to restrict the search for the hidden interaction patterns by exploring its top ranked positions. Figure 8 displays the heat matrix of QDA errors for all the bivariate interactions obtained from the first position of the ranking of block matchings. Light yellow and orange shades represent a high error rate while the red color represents a low error rate.
Note that the procedure has found interaction patterns (Z1, Z2), (X1, X2) and (R1, R2). The red hot squares of scenarios 1, 2, 3 and 4 in Figure 8 highlight the weak marginal/strong bivariate interaction hidden in the matching. These matrices may also provide a useful tool for identifying different types of weak marginal/strong bivariate signals: for example the first row of red squares in scenario 4 is highlighting the not so weak behavior of component V2 in the V-shaped pattern. On the other hand, the isolated red hot spot in scenario 2, surrounded by light yellow and orange spots, might be explaining the weak predictive power of the components in the XOR interaction, where both variables behave as noisy features.
An application to real data: the colon cancer dataset
The colon cancer data set is a publicly available experiment which can be obtained from the package colonCA in . Gene expression levels for 2000 genes across 40 tumor and 22 normal tissue samples were collected with Affymetrix oligonucleotide arrays . The data were preprocessed by a log transformation and standardization across genes.
Random Forests (RF) outlier detector utility identified cases 18, 20, 52, 55 and 58 as outliers. These were previously identified in  as aberrant observations and will be removed from the analysis.
Data analysis and findings

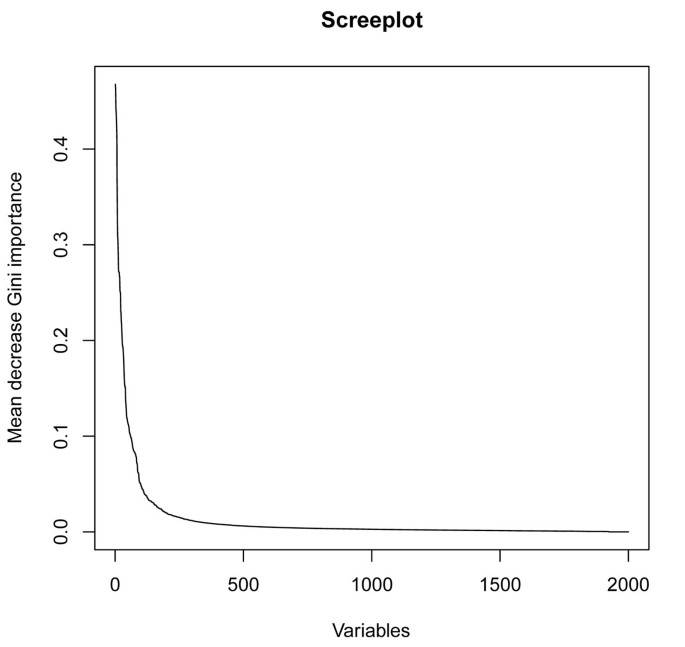

The table of variable importance of RF identifies the most influential genes for class prediction. We took as a measure of importance the mean decrease Gini score; we utilized the values ntree = 5000 for the number of trees in the forest and the default for mtry, the number of eligible splitters. Figure 9 shows the screeplot for the variable importance scores. After a deep decay, we find a long plateau which begins at an elbow located at position 100 of the ranking.
We pick up the first one hundred genes of RF table of variable importance. The list has a great agreement with other previous selections in the literature, in particular with that one in . Table 1 shows the identifiers of the genes of the list (four biomarkers identified as control are not reported). We put them aside and retain the remaining ones for the application of QDA interaction detector procedure.
Application of the QDA interaction detector procedure
After putting aside the biomarkers identified in the screening step and eliminating a few duplicated columns, we end up with a data set containing 1891 features along with the binary outcome.
Before applying the procedure, we set bsize = 5. Figure 10 displays the heat matrix plots of the error rate given by QDA classification rule for all the bivariate associations obtained by pairwise matching of the variables belonging to the six top positions of the ranking of block matchings.
The heat matrix plots reveal interesting interactions among features which were considered useless by RF ranking of variable importance at the initial screening step. Four bivariate interactions are standing out; they correspond to the interaction of the genes at columns: (G 1334, G 1573), (G 792, G 1526), (G 85, G 145) and (G 99, G 1549) which come from the first, third, fourth and fifth positions of the ranking of block matchings. These associations correspond to the following gene to gene interactions: (H 72234, D 29641), (R 88740, H 05899), (T 68848, H 48072) and (D 45887, H 11084). The scatter plots in Figure 11 contain the type of bivariate interaction pattern displayed by each one of them.

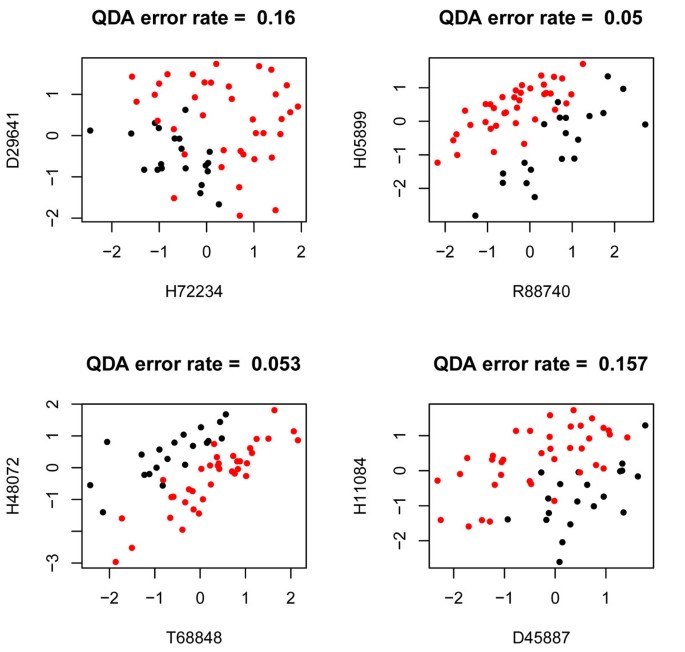

Note that none of the genes in the scatterplots exhibit univariate differential expression since both classes of the outcome do overlap when projected on the axes. However, if both genes are considered together, they discriminate the binary outcome; such discrimination stems from the bivariate association between them. They are four cases of weak marginal/strong bivariate gene interaction patterns uncovered by our procedure.
Comparative analysis with TSP and CorScor methods
Table 2 shows the bivariate selection as provided by our procedure and the TSP and CorScor methods; it also provides the scores of the selected genes given by TSP and CorScor indexes. These results bring out a distinguishing issue, perhaps the most meaningful one, between the proposed method and some of the existing alternatives in the literature as TSP or CorScor indexes. The latter are identifying the interaction of genes (R 88740, H 23544) as a high scored one. The scatter plots in Figures 12 and 13 corroborates that both genes of the pair don’t exhibit univariate differential expression; however, a remarkable pattern of class separation stems from their association, which is described by a nearly linear decision boundary. This situation, although being very important for the aim of these two procedures, does not play the key role in our proposal which tries to detect, by means of a wider in purpose procedure, interactions which are not necessarily described in terms of such linear patterns of class separation. The connection between our method and the aforementioned TSP and CorScor is seen with the interactions (R 88740, H 05899), (T 68848, H 48072) and (D 45887, H 11084) where an almost linear pattern of class separation can be traced, although not so neatly as with the pair (R 88740, H 23544). Unlike them, the pair (H 72234, D 29641), with moderate to low values of the TSP and CorScor, exhibit a non linear pattern of class separation and is an example of the distinguishing feature between these methods and our approach.
This paper has explored the peaking phenomenon in the context of detecting marginal/strong bivariate interactions in high dimensional settings. The appealing properties of the QDA classifier and its resistance to peaking has justified its use as a search engine of a procedure that explores the feature space in order to look for this type of signals in high dimensional data.
The method was applied both to artificial data and to a real microarray gene expression experiment, the colon cancer data set. The application to real data has led to promising results providing gene interactions that exhibit bivariate differential expression but are not differentially expressed when considered marginally. The results show the usefulness of QDA interaction detector procedure, which is expected to become an efficient tool for biologists and bioinformaticians for the discovery of new gene to gene interactions.
The proposed method has been developed for binary classification; the analysis for multi-class problems is a natural extension for conducting future research efforts. Some research regarding the computational cost involved in the QDA interaction detector search strategy is also an issue for further improvements.
Xu L, Tan AC, Naiman DQ, Geman D, Winslow RL: Robust prostate cancer marker genes emerge from direct integration of inter-study microarray data. Bioinformatics 2005, 21(20):3905–3911. 10.1093/bioinformatics/bti647
Geman D, d’Avignon C, Naiman DQ, Winslow RL: Classifying gene expression profiles from pairwise mRNA comparisons. Stat Appl Genet Mol Biol 2004, 3: Article19.
Dettling M, Gabrielson E, Parmigiani G: Searching for differentially expressed gene combinations. Genome Biology 2005, 6: R88. 10.1186/gb-2005-6-10-r88
Hua J, Xiong Z, Dougherty ER: Determination of the optimal number of features for quadratic discriminant analysis via the normal approximation to the discriminant distribution. Pattern Recognition 2005, 38(3):403–4212. 10.1016/j.patcog.2004.08.007
Hua J, Xiong Z, Lowey J, Suh E, Dougherty ER: Optimal number of features as a function of sample size for various classification rules. Bioinformatics 2005, 21(8):1509–1515. 10.1093/bioinformatics/bti171
Sima C, Dougherty ER: The peaking phenomenon in the presence of feature-selection. Pattern Recognition Letters 2008, 29: 1667–1674. 10.1016/j.patrec.2008.04.010
Arevalillo JM, Navarro H: Using random forests to uncover bivariate interactions in high dimensional small data sets. In StReBio ’09: Proceedings of the KDD-09 Workshop on Statistical and Relational Learning in Bioinformatics. New York, NY, USA: ACM; 2009:3–6.
Freund Y, Schapire RE: Experiments with a new boosting algorithm. ICML 1996, 148–156.
Breiman L: Random Forests. Machine Learning 2001, 45: 5–32. 10.1023/A:1010933404324
Scholkopf B, Smola AJ: Learning with Kernels: Support Vector Machines, Regularization, Optimization, and Beyond. Cambridge, MA, USA: MIT Press; 2001.
McLachlan GJ: Discriminant Analysis and Statistical Pattern Recognition. Cambridge, MA, USA: John Wiley & Sons; 1992.
Slawski M, Daumer M, Boulesteix AL: CMA - a comprehensive Bioconductor package for supervised classification with high dimensional data. BMC Bioinformatics 2008., 9: [http://dblp.uni-trier.de/db/journals/bmcbi/bmcbi9.html#SlawskiDB08]
Biocondutor. Open source software for bioinformatics[http://www.bioconductor.org]
Ripley BD: Pattern Recognition and Neural Networks. Cambridge University Press; 1996.
Boulesteix AL, Strimmer K: Partial least squares: A versatile tool for the analysis of high-dimensional genomic data. Brief Bioinform 2007, 8: 32–44.
Tibshirani R, Hastie T, Narasimhan B, Chu G: Class prediction by nearest shrunken centroids, with applications to DNA microarrays. Statistical Science 2003, 18: 104–117. 10.1214/ss/1056397488
Bϋhlmann P, Yu B: Boosting with the L 2 loss: regression and classification. Journal of the American Statistical Association 2003, 98: 324–339. 10.1198/016214503000125
Zou H, Hastie T: Regularization and variable selection via the Elastic Net. Journal of the Royal Statistical Society, Series B 2005, 67: 301–320. 10.1111/j.1467-9868.2005.00503.x
Duda RO, Hart PE, Stork DG: Pattern classification, second edition. Wiley; 2001.
The R Project for Statistical Computing[http://www.r-project.org/]
Alon U, Barkai N, Notterdam D, Gish K, Ybarra S, Mack D, Levine A: Broad patterns of gene expression revealed by clustering analysis of tumor and normal colon tissues by oligonucleotide arrays. PNAS 1999, 96: 6745–6750. 10.1073/pnas.96.12.6745
Ambroise C, McLachlan GJ: Selection bias in gene extraction on the basis of microarray gene-expression data. PNAS 2002, 99(10):6562–6566. 10.1073/pnas.102102699
Ben-Dor A, Bruhn L, Friedman N, Nachman I, Schummer M, Yakhini Z: Tissue classification with gene expression profiles. Journal of Computational Biology 2000, 7: 559–583. 10.1089/106652700750050943
This work has been partially supported by the Spanish Ministerio de Ciencia e Innovacion grant MTM 2008-03282.
This article has been published as part of BMC Bioinformatics Volume 12 Supplement 12, 2011: Selected articles from the 9th International Workshop on Data Mining in Bioinformatics (BIOKDD). The full contents of the supplement are available online at http://www.biomedcentral.com/bmcbioinformatics/12?issue=S12.
The authors declare that they have no competing interests.
The authors JMA and HN have equally contributed to the work. Both authors have read, reviewed and approved the final version of the manuscript.
