Bioinformatic pipelines in Python with Leaf



An incremental, loosely planned development approach is often used in bioinformatic studies when dealing with custom data analysis in a rapidly changing environment. Unfortunately, the lack of a rigorous software structuring can undermine the maintainability, communicability and replicability of the process. To ameliorate this problem we propose the Leaf system, the aim of which is to seamlessly introduce the pipeline formality on top of a dynamical development process with minimum overhead for the programmer, thus providing a simple layer of software structuring.


Leaf includes a formal language for the definition of pipelines with code that can be transparently inserted into the user’s Python code. Its syntax is designed to visually highlight dependencies in the pipeline structure it defines. While encouraging the developer to think in terms of bioinformatic pipelines, Leaf supports a number of automated features including data and session persistence, consistency checks between steps of the analysis, processing optimization and publication of the analytic protocol in the form of a hypertext.


Leaf offers a powerful balance between plan-driven and change-driven development environments in the design, management and communication of bioinformatic pipelines. Its unique features make it a valuable alternative to other related tools.


Systemic Bioinformatic analysis requires heterogeneously composed research groups, including data producers, data miners and application domain experts (such as biologists). Data producers use dedicated technology on biological specimen to extract data; data miners analyze data and try to highlight relevant information; biologists examine the filtered data, which thy then validate through targeted experiments and use to support their hypothesis or to formulate new ones (See Figure 1). Custom bioinformatic analysis requires programmers to implement new methods and/or put together existing ones in order to build new data analysis frameworks (data flows [1], commonly known as bioinformatic pipelines). In such cases, high level scripting languages are used (such as Python, Perl, R, Matlab) to quickly implement and test new methodologies and present results to other research groups, while statically typed languages (like C, C++, Java) are generally preferred when computational performance is crucial [2-4].

Figure 1
figure 1

Example of bioinformatic collaboration. Bioinformatic research collaboration scheme. This is a representation of a typical process in a bioinformatic study where different research units are involved. The left part of the scheme represents a loop with iterations that are usually cheaper (no consumables or expensive technologies involved) and more prone to be iterated over time in order to refine the analysis based on partial results. This loop represents a major challenge in terms of code maintainability.

Indeed the priority of custom data analysis software is above all about results, while features like code maintainability, documentation and portability are often considered secondary. In our experience, a precise design of the analysis process is usually impossible to achieve in advance, since the feedback produced by preliminary results may drive the study in unpredictable directions. In fact, the main shortcoming of plan-based development paradigms is in their lack of responsiveness to change. Software Engineering deals with such issue by means of dedicated development models (Extreme Programming, Prototype-based Programming [5], Agile development [6]) that try to relax formal constraints in order to more easily adapt to dynamic conditions [6].

However, if taken to an extreme, prototype-based approaches tend to undermine the integrity of the system’s architecture [7], accumulating patches as more requests are fulfilled. The resulting analysis is often hard to reproduce, which is also due to difficulties with establishing its execution provenance [8-10]. Such challenges have been recently evinced in [11], where urgency for open source code in scientific development was emphasized as a consequence of the difficulty of reproducing bioinformatic results and accounting for all the technical aspects of a bioinformatic analysis. In addition, we note that loosely structured and poorly documented processes can hardly be reproduced even when source code is available.

In order to take into account the need to reduce planning and at the same time maintain high level structuring in bioinformatic analyses, we developed the Leaf [12, 13] system (Figures 2 and 3). Its purpose is to allow for the transparent association of regular code written in a high-level programming languages with a pipeline structure. To this aim, Leaf implements a graph design language (namely LGL, Leaf Graph Language, see Figure 4 for a brief overview) that allows the programmer to define the high level pipeline describing his analysis directly within his source code in other languages. Specifically, we developed LGL support for the Python language, implemented as the Pyleaf library. Python was chosen as a high level, dynamically typed, general purpose, interpreted language, that offers interoperability with other languages (like R) and clean, readable code [2]. Moreover, a growing community of Bioinformaticians has shown interest in the Python language, also through the development of tools like those collected in the Biopython project [14]. The LGL language provides an extremely minimalist approach, enforcing almost no conventions as to how the pipeline nodes must be implemented.

Figure 2
figure 2

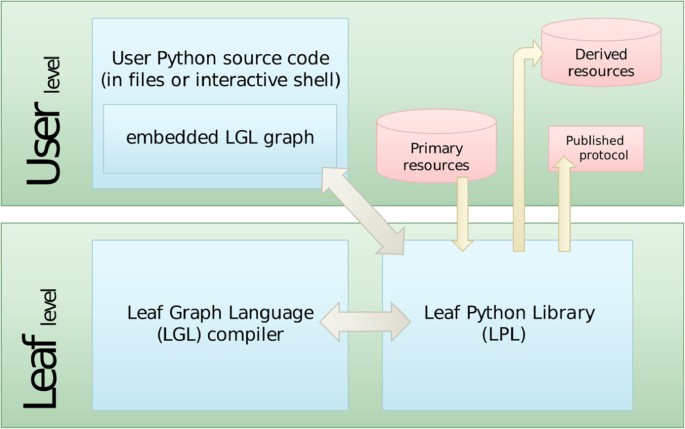

Leaf architecture. A Leaf project is carried out by three different layers. On the top layer, a high level definition of a pipeline is coded through the Leaf Graph Language (LGL). The Pyleaf library is able to interpret an LGL graph as a computational pipeline and bind the nodes of the pipeline to the user’s Python code.

Figure 3
figure 3

User interaction. The interaction between the user’s Python code and the Leaf system happens through the definition of an LGL graph (the high level pipeline) and the use of Pyleaf. The user creates a new Leaf project by providing Pyleaf with the pipeline definition, the Python code implementing each node of the pipeline and the primary resources to work on. The project is then used to request the production of resources.

Figure 4
figure 4

LGL syntax examples. This figure shows some examples of graph structures defined through the Leaf Graph Language (LGL). Tree structures of any depth and degree can be encoded using the fork arrow (<) and void node (.) mechanisms. Note that through LGL it is possible to define graphs that are not DAGs (see main text), though they are not allowed by Pyleaf.

The formal definition of a pipeline is used by Leaf to provide a number of automated features described in the next sections. As a final output, Leaf is able to generate a hypertext document describing both the high level design and all the details of the analysis (the bioinformatic protocol), including provenance information.
