AUG_hairpin: prediction of a downstream secondary structure influencing the recognition of a translation start site
BMC Bioinformatics volume 8, Article number: 318 (2007)
The translation start site plays an important role in the control of translation efficiency of eukaryotic mRNAs. The recognition of the start AUG codon by eukaryotic ribosomes is considered to depend on its nucleotide context. However, the fraction of eukaryotic mRNAs with the start codon in a suboptimal context is relatively large. It may be expected that mRNA should possess some features providing efficient translation, including the proper recognition of a translation start site. It has been experimentally shown that a downstream hairpin located in certain positions with respect to start codon can compensate in part for the suboptimal AUG context and also increases translation from non-AUG initiation codons. Prediction of such a compensatory hairpin may be useful in the evaluation of eukaryotic mRNA translation properties.
We evaluated interdependency between the start codon context and mRNA secondary structure at the CDS beginning: it was found that a suboptimal start codon context significantly correlated with higher base pairing probabilities at positions 13 – 17 of CDS of human and mouse mRNAs. It is likely that the downstream hairpins are used to enhance translation of some mammalian mRNAs in vivo. Thus, we have developed a tool, AUG_hairpin, to predict local stem-loop structures located within the defined region at the beginning of mRNA coding part. The implemented algorithm is based on the available published experimental data on the CDS-located stem-loop structures influencing the recognition of upstream start codons.
An occurrence of a potential secondary structure downstream of start AUG codon in a suboptimal context (or downstream of a potential non-AUG start codon) may provide researchers with a testable assumption on the presence of additional regulatory signal influencing mRNA translation initiation rate and the start codon choice. AUG_hairpin, which has a convenient Web-interface with adjustable parameters, will make such an evaluation easy and efficient.
Translation of most eukaryotic mRNAs is likely to be initiated by a linear scanning mechanism , although some alternative mechanisms are also possible [2, 3]. According to the scanning model, 40S ribosomal subunits can either initiate translation at the 5'-proximal AUG codon in a suboptimal context or miss it and initiate translation at downstream AUG(s). For mammalian mRNAs, the most important elements of AUG context are the adenine at position -3 and guanine at position +4 [1, 4]. One might expect that mRNA should possess some features providing efficient translation, including the recognition of a genuine translation start site (TSS). However, the fraction of eukaryotic mRNAs with the start AUG codon in a suboptimal context is relatively large [5, 6]. It is likely that at least some mRNAs with a suboptimal context of annotated start codon contain other signals providing additional information for efficient TSS recognition (e.g., ).
It has been reported earlier that stable hairpins located in certain positions downstream of AUG codon in a suboptimal context can increase translation initiation efficiency . The hairpin was placed at the distances of 5, 11, 17, and 35 nucleotides downstream of the CDS beginning, and start codon recognition efficiencies were evaluated in in vitro experiment (Fig. 1). It was reported that the hairpin located at the distance of either 5 or 35 nucleotides did not increase the AUG recognition. However, the hairpin located at the distance of 17 or (to lesser extent) 11 nucleotides enhanced translation initiation considerably in a sequence-independent manner. It was hypothesized  that stable hairpins could temporarily stop the movement of 40S ribosomal subunits until the disruption of the secondary structure. The hairpin located at certain critical distance(s) with respect to start codon (at 17th nucleotide in the experiment) could delay the 40S ribosomal subunit just in the position providing an efficient interaction between the met-tRNAi-located anticodon and the start AUG codon. It was also shown that such a downstream hairpin could increase translation from non-AUG start codons located in the optimal context [8, 9].
This hypothetical mechanism has not been fully verified by in vivo experiments yet. However, it was often suggested that such secondary structures can be used to modulate translation efficiency of certain viral and cellular mRNAs with a suboptimal context of start AUG codons [10–14] or with a non-AUG start codons [15–17]. For example, the efficiency of TSS in a suboptimal context in Dengue virus mRNA is increased by a hairpin of moderate stability located 17 nucleotides downstream. The hairpin effect on the TSS recognition depended on its stability and position with respect to AUG . It was also recently found that the stable hairpin located downstream of start AUG codon in Sindbis virus subgenomic 26S RNA provides efficient translation even though eIF2alpha is phosphorylated and translation of most cellular mRNAs is blocked . The authors hypothesized that the hairpin can stall the ribosomes on the correct site to initiate translation, thus bypassing the requirement for a functional eIF2 and, thereby, specifically supporting translation of certain viral and (probably) cellular mRNAs. Notably, this function of a downstream hairpin is related to a general cellular translation control rather than a compensation of the "weakness" of the upstream start codon context. Thus, the information on the presence of potential compensatory hairpins may be useful for further experimental investigation of both general and specific mRNA translational properties.
Here, we describe the computational tool (AUG_hairpin) targeted at the prediction of secondary structure elements possibly compensating for suboptimal context of translational start codon. We also analyzed the structural features of human and mouse mRNAs and found significant correlation between the base pairing probabilities in positions 13–17 of CDS and the TSS context. This relationship supports the hypothesis on the functional significance of precisely located downstream hairpins for the TSS recognition in some cellular mRNAs.
According to the experimental data, the hairpins started either upstream or downstream of certain "critical" region of CDS did not compensate for the "weak" AUG context. In particular, continuous secondary structure started at 5th nucleotide of coding sequence did not increase translation initiation efficiency despite it included the critical 12th and 18th positions (Fig. 1; ). Based on this observation, AUG_hairpin predicts the stem-loop structures, in which 5'-borders are located within the critical region (from 12th to 18th nucleotides by default). An appropriate stem-loop structure can also be a part of a more complex secondary structure started upstream of the critical region. We hypothesized that the 40S ribosomal subunit moving from the 5'-end of mRNA can pause consequently on each stable stem of a complex stem-loop structure waiting for its melting. In this case we assumed that an eligible hairpin has to be separated from upstream secondary structure elements by some impaired segment (e.g., loop) (for detailed description, see tutorial at the program www-sites).

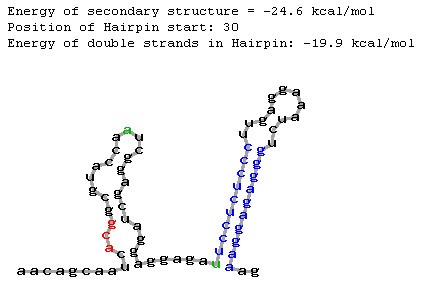

5'-UTR and CDS nucleotide sequences have to be entered separately to the program through www-page (this provides the program with information on the start codon position). AUG_hairpin analyzes the mRNA segment compiled from 10 nucleotides long 5'-UTR portion located immediately upstream of the start AUG codon and 100 5'-proximal nucleotides of CDS. Algorithm consists of the following main steps: (1) Prediction of RNA optimal secondary structure for 5'UTR-CDS fragment. For this purpose the program foldRNA from Vienna RNA package v.1.4  was implemented as subroutine. (2) Checking the occurrence of a perfect (or imperfect) stem located a certain distance downstream of start AUG codon (from 12th to 18th nucleotides by default; user can change this range from the CDS beginning till 30th nucleotide). Conventionally, a stem is perfect when it does not contain any interrupting loops; an imperfect stem includes short mismatches (one-nucleotide bulges or 1+1 inner loops) which presumably do not interrupt stacking interactions. Program's output presents visualization of the optimal secondary structure and provides calculation of the predicted thermodynamic stability of the secondary structure and the helices (if any) started within the defined critical region. The program was written on C++ and runs in a Unix environment.
It is likely that a downstream hairpin can increase translation even located outside the critical region defined by Kozak (; from 12th to 18th nucleotides of CDS) although at a lower efficiency. It was experimentally found that the hairpin could influence translation even located at pos. 30  or at pos. 27 of CDS . Taking into account that the hairpin located at CDS position 35 did not increase an upstream AUG recognition in in vitro experiment , we limited the AUG_hairpin prediction interval by 30th nucleotide of CDS. We analyzed two mRNA nucleotide sequences with annotated non-AUG translation start site taking them as examples. CDS of Agamous mRNA (Arabidopsis thaliana) starts from ACG codon  and CDS of NsRpoT-C mRNA (Nicotiana sylvestris) starts from CUG codon . According to the AUG_hairpin prediction, there are stable hairpins located downstream of start codons in these mRNAs (Agamous: at pos. 30, E = -19.9 kcal/mol, Fig. 2; NsRpoT-C: at pos. 22, E = -12.7 kcal/mol, Fig. 3).
Results and discussion
It was assumed that stable hairpins precisely located downstream of translation start sites (AUG or non-AUG) enhance translation initiation rate of some viral and cellular mRNAs [10–17]. Computational analysis of yeast mRNAs demonstrated the interrelationship between the base pairing probabilities at pos. 14–17 of CDS and the start codon context: mRNAs with a suboptimal TSS context were characterized by a more frequent presence of secondary structure at these positions . In this work we tested the interdependency between the base pairing probabilities in the 5'-terminal CDS segment and start codon context in mammalian mRNAs. For this purpose human and mouse cDNA samples characterized by complete CDS and 5'-UTR size larger than 29 nucleotides were extracted from GenBank. The subsamples of cDNAs characterized by either optimal (purine at pos. -3 upstream the annotated TSS; 18750 human and 7700 mouse cDNAs) or suboptimal (pyrimidine at pos. -3 upstream the annotated TSS; 3469 human and 1233 mouse cDNAs) start codon context were used for further comparative analysis. The mRNA base pairing probabilities (BPP; ) were calculated using the Vienna RNA secondary structure package . mRNA segments containing 5'-UTR (limited by 100 nucleotides in size) and the beginning of CDS (100 nucleotide in size; thus, total size of segments varied from 130 to 200 nucleotides depending on the 5'-UTR length) were used. Positional BPP values were calculated and compared between the samples of mRNAs with optimal and suboptimal start codon contexts. The difference in average BPP values at the CDS positions between these samples is shown in Table 1. One may see that mRNAs with a suboptimal TSS context are characterized by significantly higher average BPP values in pos. 13–17. We also calculated average BPP values at 5'-end CDS positions (from 6th to 56th nucleotides; average BPP = 0.615112 ± 0.0006 (human mRNAs with a suboptimal TSS context); 0.615775 ± 0.0006 (human mRNAs with optimal TSS context); 0.613197 ± 0.002 (mouse mRNAs with a suboptimal TSS context); 0.614936 ± 0.0009 (mouse mRNAs with optimal TSS context)). Thus, mRNAs with a suboptimal start codon context were not characterized by a higher average BPP value at the CDS beginning.
It may be speculated that this difference results from a local deviation in G+C content (GC pairs make the major impact on the secondary structure stability) or from some codon-dependent periodic pattern [23, 24]. However, average positional differences in G+C frequencies do not correlate with the difference in BPP values: it is unlikely that the observed dependency between the TSS context and base pairing probabilities reflects an unusual G+C distribution at the CDS beginning rather than the more frequent representation of the hairpin-containing mRNAs in a sample with a suboptimal TSS context (Table 1). These data demonstrate that precisely positioned hairpins may increase translation efficiency of some mammalian mRNAs in vivo and that the positions defined by Kozak (; from 13th to 17th nucleotide of CDS) are most frequently (or efficiently) used for this purpose.
AUG_hairpin was used to analyze the stem-loop structures whose 5'-borders were located between the 6th and 30th nucleotides of CDS in human and mouse mRNA samples. Three parameters were taken into account: total energy of the stem-loop structure (Etot), energy of the stem (Est), and the stem size (Lst, 5'-proximal perfect stems started within defined region were taken). It was found that mRNAs with a suboptimal start codon context were characterized by significantly more stable secondary structure elements started in positions 13, 14, 16, 17, 19 (Table 2). According to these results, the 5'-border of the critical region is also located at position 13 of CDS. We further selected subsamples of human and mouse mRNAs with stable stem-loop structures whose 5'-borders were located between the 13th and 19th nucleotides of CDS. It was found that 546 human mRNAs (16% of the sample with a suboptimal start codon context) were characterized by the presence of a stable stem-loop structure (Etot < -20 kcal/mol) in the defined region. Average energies of eligible stem-loop structures (Etot) were -34.9 kcal/mol and -33.2 kcal/mol for human mRNAs with a suboptimal and the optimal start codon contexts, respectively (the distributions of Etot values differ significantly according to Kolmogorov-Smirnov two-sample test, p < 0.01; the difference between mean Etot values was also significant according to the Mann-Whitney U-test, p < 0.00005). Similarly, 187 mouse mRNAs with a suboptimal start codon context were characterized with a highly stable hairpin (Est < -20 kcal/mol) in this region (Etot = -32.9 kcal/mol).
It was reported that a correctly positioned hairpin even of a moderate stability (-8.2 kcal/mol) enhanced the recognition of upstream AUG codon in a suboptimal context : thus, it may be assumed that at least some of these mammalian mRNAs possess higher translation initiation efficiency due to the presence of "compensatory" hairpins than it may be expected from the context of annotated start codon (lists of human and mouse mRNAs with some additional information on secondary structure characteristics are available as Additional file 1 and Additional file 2, respectively). It should be, however, noted that suboptimal context of start codon is not necessarily compensated by "compensatory hairpin": in many cases, contexts of translational start sites are likely to be evolutionary attenuated to decrease translation level of mRNAs encoding regulatory proteins (e.g., ).
The presence of a potential secondary structure downstream of start AUG codon in a suboptimal context (or downstream of a potential non-AUG start codon) can provide researchers with a testable assumption on the additional regulatory element influencing translation initiation level. AUG_hairpin is based on an elegant hypothesis supported by the in vitro  and in vivo experimental data [10, 12–14] as well as the results of computational analysis (; Tables 1 and 2 in this manuscript).
It should be noted that the applied algorithm depends on the interpretation of available (rather limited) experimental data and the prediction accuracy may also be limited. Only few hairpin positions were tested in experiments. Secondary structure elements influencing translation start site recognition in vivo may have distinct characteristics (e.g., species-specific or tissue-specific). Currently it is also not possible to predict the interdependence of hairpin stability and its influence on start codon recognition as well as the influence of mRNA-protein and mRNA-ribosome interactions during translation initiation process on the mRNA secondary structure. Finally, the recognition of start codons in a suboptimal context can be modulated through other (currently poorly known) signals [7, 25–28], and the absence of a "compensatory" hairpin does not necessarily mean that the TSS recognition is inefficient. However, despite these limitations, AUG_hairpin may be used to reveal potential "compensatory" hairpins in the case of discrepancy between the gene expression pattern and mRNA features (e.g., highly expressed gene is characterized by a suboptimal context of annotated translation start site, proteomic or phylogenetic data suggest the usage of non-AUG potential start codons , etc.).
Availability and requirements
Project name: AUG_hairpin
Project home pages:
Any restrictions to use by non-academics: licence needed
untranslated region of mRNA
protein coding sequence
base pairing probability.
Kozak M: Regulation of translation via mRNA structure in prokaryotes and eukaryotes. Gene 2005, 361: 13–37. 10.1016/j.gene.2005.06.037
Jackson RJ: Alternative mechanisms of initiating translation of mammalian mRNAs. Biochem Soc Trans 2005, 33: 1231–1241. 10.1042/BST20051282
Baird SD, Turcotte M, Korneluk RG, Holcik M: Searching for IRES. RNA 2006, 12: 1755–1785. 10.1261/rna.157806
Pisarev AV, Kolupaeva VG, Pisareva VP, Merrick WC, Hellen CU, Pestova TV: Specific functional interactions of nucleotides at key -3 and +4 positions flanking the initiation codon with components of the mammalian 48S translation initiation complex. Genes Dev 2006, 20: 624–636. 10.1101/gad.1397906
Rogozin IB, Kochetov AV, Kondrashov FA, Koonin EV, Milanezi L: Presence of ATG triplets in 5' untranslated regions of eukaryotic cDNAs correlates with a "weak" context of the start codon. Bioinformatics 2001, 17: 890–900. 10.1093/bioinformatics/17.10.890
Kochetov AV, Sarai A, Rogozin IB, Shumny VK, Kolchanov NA: The role of alternative translation start sites in generation of human protein diversity. Mol Genet Genomics 2005, 273: 491–496. 10.1007/s00438-005-1152-7
Kochetov AV: AUG codons at the beginning of protein coding sequences are frequent in eukaryotic mRNAs with a suboptimal start codon context. Bioinformatics 2005, 21: 837–840. 10.1093/bioinformatics/bti136
Kozak M: Downstream secondary structure facilitates recognition of initiator codons by eukaryotic ribosomes. Proc Natl Acad Sci USA 1990, 87: 8301–8305. 10.1073/pnas.87.21.8301
Kozak M: Context effects and inefficient initiation at non-AUG codons in eucaryotic cell-free translation systems. Mol Cell Biol 1989, 9: 5073–5080.
Hwang W-L, Su T-S: The encapsidation signal of hepatitis B virus facilitates preC AUG recognition resulting in inefficient translation of the downstream genes. J Gen Virol 1999, 80: 1769–1776.
Ciullo M, Del Pozzo G, Autiero M, Guardiola J: Downstream sequence adjacent to AUG affects translation of chloramphenicol acetyl transferase in eukaryotic cells. DNA Cell Biol 2000, 19: 39–46. 10.1089/104454900314690
Kwon HS, Lee DK, Lee JJ, Edenberg HJ, Ahn YH, Hur MW: Posttranscriptional regulation of human ADH5/FDH and Myf6 gene expression by upstream AUG codons. Arch Biochem Biophys 2001, 386: 163–171. 10.1006/abbi.2000.2205
Yang L, Chen J, Chang CC, Yang XY, Wang ZZ, Chang TY, Li BL: A stable upstream stem-loop structure enhances selection of the first 5'-ORF-AUG as a main start codon for translation initiation of human ACAT1 mRNA. Acta Biochim Biophys Sin 2004, 36: 259–268.
Clyde K, Harris E: RNA secondary structure in the coding region of dengue virus type 2 directs translation start codon selection and is required for viral replication. J Virol 2006, 80: 2170–2182. 10.1128/JVI.80.5.2170-2182.2006
Riechmann JL, Ito T, Meyerowitz EM: Non-AUG initiation of AGAMOUS mRNA translation in Arabidopsis thaliana. Mol Cell Biol 1999, 19: 8505–8512.
Nguyen M, He B, Karaplis A: Nuclear forms of parathyroid hormone-related peptide are translated from non-AUG start sites downstream from the initiator methionine. Endocrinology 2001, 142: 694–703. 10.1210/en.142.2.694
Takahashi K, Maruyama M, Tokuzawa Y, Murakami M, Oda Y, Yoshikane N, Makabe KW, Ichisaka T, Yamanaka S: Evolutionarily conserved non-AUG translation initiation in NAT1/p97/DAP5 (EIF4G2). Genomics 2005, 85: 360–371. 10.1016/j.ygeno.2004.11.012
Ventoso I, Sanz MA, Molina S, Berlanga JJ, Carrasco L, Esteban M: Translational resistance of late alphavirus mRNA to eIF2alpha phosphorylation: a strategy to overcome the antiviral effect of protein kinase PKR. Genes Dev 2006, 20: 87–100. 10.1101/gad.357006
Hofacker IL: Vienna RNA secondary structure server. Nucleic Acids Res 2003, 31: 3429–3431. 10.1093/nar/gkg599
Kobayashi Y, Dokiya Y, Kumazawa Y, Sugita M: Non-AUG translation initiation of mRNA encoding plastid-targeted phage-type RNA polymerase in Nicotiana sylvestris . Biochem Biophys Res Comm 2002, 299: 57–61. 10.1016/S0006-291X(02)02579-2
Kochetov AV, Kolchanov NA, Sarai A: Interrelations between the efficiency of translation start sites and other sequence features of yeast mRNAs. Mol Genet Genomics 2003, 270: 442–447. 10.1007/s00438-003-0941-0
McCaskill JS: The equilibrium partition function and base pair binding probabilities for RNA secondary structure. Biopolymers 1990, 29: 1105–1119. 10.1002/bip.360290621
Meyer IM, Miklos I: Statistical evidence for conserved, local secondary structure in the coding regions of eukaryotic mRNAs and pre-mRNAs. Nucleic Acids Res 2005, 33: 6338–6348. 10.1093/nar/gki923
Shabalina SA, Ogurtsov AY, Spiridonov NA: A periodic pattern of mRNA secondary structure created by the genetic code. Nucleic Acids Res 2006, 34: 2428–2437. 10.1093/nar/gkl287
Lukaszewicz M, Feuermann M, Jerouville B, Stas A, Boutry M: In vivo evaluation of the context sequence of the translation initiation codon in plants. Plant Sci 2000, 154: 89–98. 10.1016/S0168-9452(00)00195-3
Sawant SV, Kiran K, Singh PK, Tuli R: Sequence architecture downstream of the initiator codon enhances gene expression and protein stability in plants. Plant Physiol 2001, 126: 1630–1636. 10.1104/pp.126.4.1630
Zhao K-N, Tomlison L, Liu WJ, Gu W, Frazer IH: Effects of additional sequences directly downstream from the AUG on the expression of GFP gene. Biochim Biophys Acta 2003, 1630: 84–95.
Shabalina SA, Ogurtsov AY, Rogozin IB, Koonin EV, Lipman DJ: Comparative analysis of orthologous eukaryotic mRNAs: potential hidden functional signals. Nucleic Acids Res 2004, 32: 1774–1782. 10.1093/nar/gkh313
Touriol C, Bornes S, Bonnal S, Audigier S, Prats H, Prats AC, Vagner S: Generation of protein isoform diversity by alternative initiation of translation at non-AUG codons. Biol Cell 2003, 95: 169–178. 10.1016/S0248-4900(03)00033-9
This work was supported by the Russian Foundation for Basic Research (grant No. 05-04-48207) and RAS programs (Dynamics of Gene Pools). A.V.K., N.A.K. and D.G. thank Siberian Division of Russian Academy of Sciences (Complex Integration Program 5.3) and RAS Program "Molecular and Cellular Biology" for partial support. A.V.K. is also grateful to JSPS short-term fellowship program.
AK and IT conceived of the study, carried out the computational analysis and drafted the manuscript. AP participated in the implementation of AUG_hairpin algorithm. NK and AS participated in the design and coordination of the study. DG prepared the www-site. All authors read and approved the final manuscript version.
Electronic supplementary material
Additional file 1: List of human mRNAs with a suboptimal context of annotated start codon potentially containing "compensatory hairpins". This table provides a list of human mRNAs with a suboptimal context of annotated start codon containing stem-loop structures whose 5'-borders are located between the 13th and 19th nucleotides of CDS. The Table contains information on secondary structure (position of a hairpin's 5'-border, energy of the hairpin and stem(s) given separately) as well as an information from DE (DESCRIPTION) field of GenBank entries (which provides the names of corresponding genes). (XLS 98 KB)
Additional file 2: List of mouse mRNAs with a suboptimal context of annotated start codon potentially containing "compensatory hairpins". This table provides a list of mouse mRNAs with a suboptimal context of annotated start codon containing stem-loop structures whose 5'-borders are located between the 13th and 19th nucleotides of CDS. The Table contains information on secondary structure (position of a hairpin's 5'-border, energy of the hairpin and stem(s) given separately) as well as an information from DE (DESCRIPTION) field of GenBank entries (which provides the names of corresponding genes). (XLS 41 KB)
