A Web-based and Grid-enabled dChip version for the analysis of large sets of gene expression data

  • Luca Corradi1Email author,
  • Marco Fato1,
  • Ivan Porro1,
  • Silvia Scaglione1 and
  • Livia Torterolo1
BMC Bioinformatics20089:480

https://doi.org/10.1186/1471-2105-9-480

Received: 06 June 2008

Accepted: 13 November 2008

Published: 13 November 2008

Abstract

Background

Microarray techniques are one of the main methods used to investigate thousands of gene expression profiles for enlightening complex biological processes responsible for serious diseases, with a great scientific impact and a wide application area. Several standalone applications had been developed in order to analyze microarray data. Two of the most known free analysis software packages are the R-based Bioconductor and dChip. The part of dChip software concerning the calculation and the analysis of gene expression has been modified to permit its execution on both cluster environments (supercomputers) and Grid infrastructures (distributed computing).

This work is not aimed at replacing existing tools, but it provides researchers with a method to analyze large datasets without any hardware or software constraints.

Results

An application able to perform the computation and the analysis of gene expression on large datasets has been developed using algorithms provided by dChip. Different tests have been carried out in order to validate the results and to compare the performances obtained on different infrastructures. Validation tests have been performed using a small dataset related to the comparison of HUVEC (Human Umbilical Vein Endothelial Cells) and Fibroblasts, derived from same donors, treated with IFN-α.

Moreover performance tests have been executed just to compare performances on different environments using a large dataset including about 1000 samples related to Breast Cancer patients.

Conclusion

A Grid-enabled software application for the analysis of large Microarray datasets has been proposed. DChip software has been ported on Linux platform and modified, using appropriate parallelization strategies, to permit its execution on both cluster environments and Grid infrastructures. The added value provided by the use of Grid technologies is the possibility to exploit both computational and data Grid infrastructures to analyze large datasets of distributed data. The software has been validated and performances on cluster and Grid environments have been compared obtaining quite good scalability results.

Background

During the last years, genomics and proteomics have deeply changed the scientific approach to the study of the molecular basis of cells and tissues behaviors both in physiological and pathological conditions, giving a new comprehensive view to the research community.

As the interest on these fields has been more and more increasing, innovative and more suitable technologies have been developed. At present, one of the most promising and reactive fields is certainly the microarray technology, which has had, so far, a great scientific impact and a wide application area. In fact, several types of micorarrays have been developed and proposed, each focused on a specific type of analysis, from genetic screening to proteomics and from biological research to diagnostics.

Through the comparison of genomic profiles it is possible to study gene expression differences among cross-correlated conditions, thus understanding their meaning. Thanks to the microarray technology a large number of genes may be investigated at the same time to find which are differentially expressed on a certain cell type. Quantitative researchers have proposed a variety of methods for handling probe-level data from Affymetrix® oligonucleotide arrays. Such methods employ different procedures for adjusting background fluorescence, normalizing data, incorporating information from "mismatch" probes, and summarizing probe sets.

Even if microarrays are a powerful instrument, studies on these data are often conditioned by technological limits, thus decreasing their capabilities. The most relevant limitation concerns the analysis of large datasets. In fact this kind of analysis requires long computational times rather than the availability of specific hardware. A huge availability of memory and computational power is required for analyzing microarrays and often researchers cannot succeed in performing their studies because of the impossibility to access suitable resources.

Several tools and algorithms had been developed in order to analyze microarray data, all of them consisting in standalone applications. Two of the most known free analysis software packages are the R-based Bioconductor and dChip [1, 2].

This work is not aimed at replacing those systems, but it provides researchers with a new method to analyze large datasets without any hardware or software constraints, by simply using a common web browser. To reach this aim, dChip software has been modified by using appropriate parallelization strategies, to permit its execution on both cluster environments and Grid infrastructures, exploiting existing computational and storage capabilities. Since dChip is a wide application containing a large number of functionalities, this work is related to the computation and the analysis of gene expression.

Implementation

The goal of this work is focused on the design and development of a tool for the analysis of gene expression to be included in a more general Grid-enabled software application for the analysis of microarray data. As an added value, the use of Grid technologies makes it possible to exploit both computational and data Grid infrastructures to analyze large datasets of distributed data.

DChip, an existing analysis tool for Microarray experiments, was originally a free and open source Windows application. Starting from the original source code (dChip 2005 version), several versions of the software have been implemented, in order to fit different kinds of resources [see Additional file 1]:

  • standalone Linux version

  • parallel cluster implementation

  • parallel Grid implementation

The execution is supported on 64 bit computers too.

With regard to the user interface, as a first release, the application was implemented in a command line version to permit the execution on remote computing elements. Two input files are used: the first one contains specific options for the execution; the second one contains the list of the microarray files used for the analysis. As a second step, in order to simplify the use of above mentioned dChip versions, the executables have been integrated within a biomedical portal [3, 4] which provides a simple graphical user interface to run the application. Such a portal integration allows unpractised users to store their experimental data on a complex storage system and access distributed data and services in a transparent way. Furthermore users can easily run the application from any computer or location with only Internet connection, without loosing time in installation and maintenance procedures. Moreover, users can use the software through a simple web interface and launch their analyses taking advantage of the possibility to orchestrate different portal services in a workflow strategy. Thanks to the ease of the web interface, users are not required to know technical dChip details.

The new software version has been designed to be modular, i.e. the original software has been divided into several independent modules, each performing a different part of the analysis. This approach has allowed to improve (i) optimization, by implementing the most appropriate parallelization strategy for each part of the analysis and (ii) scalability, by replacing in a transparent way one or more modules with other, more powerful, ones or with modules providing different functionalities. The application has been structured in three different modules that have to be executed sequentially (Figure 1):
Figure 1

Organization of dChip in different modules. A graphical representation of developed dChip modules is shown. The original software was divided into three different modules concerning respectively (i) normalization, (ii) expression values computation, (iii) filtering, differentially expressed genes extraction and clustering.

  • module 1: opening, reading and normalization of CEL files

  • module 2: computation of expression levels

  • module 3: filtering, extraction and clustering of differentially expressed genes

Each of them has been designed as a standalone program working in an independent way. Data and overall information are moved through the modules using CSV (Comma Separated Values) file format. The final output is composed of three main files containing respectively: the expression values in an R compatible format, the list of the differentially expressed genes and the cluster tree.

Using large datasets, long execution times and great computational efforts are required. Parallelization strategies are necessary to improve performances and to allow the analysis of a large number of arrays in a short time. A first accurate analysis of dChip algorithm revealed the possibility to parallelize both the first and the second module that implement the most data intensive algorithms from a computational point of view. The applied parallelization does not affect the original algorithms of dChip but it is related to a data access strategy. Since the algorithms for normalization and expression calculation work in different ways, two different parallelization approaches have been adopted.

The normalization algorithm is based on the invariant set method. It works by processing each array separately with a baseline chosen as the median intensity array. Therefore the Module 1 has been parallelized according to the number of microarrays. Each parallel execution opens a restricted number of files, normalizes them against the baseline and writes the related CSV output files.

DChip algorithms concerning the calculation of gene expression (PM only and PM/MM methods) work in a different way, since they need all genes from all microarrays to work. So the Module 2 has been parallelized into a number of executions, each reading all CVS files of all normalized arrays but performing the calculation only on a restricted group of genes. The execution results of each subset are then merged and the output thus containing the expression levels of all data is produced.

The third module reads the CSV file containing the gene expression values and allows to perform the filtering over genes, the extraction of differentially expressed genes and some clustering operations by using the dChip unmodified algorithms.

Two different modalities of parallel execution are available: with or without MPI (Message Passing Interface) libraries. The second approach allows the execution on environments not supporting MPI technology, but requires specific scripts for the management, the submission and the monitoring of parallel jobs.

Finally the code has been modified to enable the submission to the Grid infrastructure. For this purpose the gLite [5] middleware has been considered. In order to allow to read and to write files on remote and distributed storage elements, GFAL API [6] has been used. In this way it is possible to access data, reading the whole files, or a part of them, directly where they are stored without moving them to Grid elements that actually run the calculation. Thanks to a Public Key Infrastructure (PKI) [7], which provides X.509 certificate based authentications, this solution allows to preserve user privacy and data security.

Results and discussion

An application able to perform the computation and the analysis of gene expression on large datasets of microarrays has been developed using dChip algorithms. In details, concerning pre-analysis, the invariant-set method has been used for normalization and PM-MM difference model or PM-only models can be chosen for genes expression calculation. Original dChip functionalities like filtering, differentially expressed genes (compare samples) discovery and clustering are provided by Module 3. Customized analyses can be performed by setting specific parameters inside the input file.

By modifying the Makefile with the appropriate options it is very easy to obtain different versions of the application depending on the kind of infrastructure chosen for the analysis: standalone Linux, MPI or Grid-enabled versions.

Starting from the developed application different tests have been performed in order to validate results and compare performances obtained on different infrastructures. To this goal, tests have been divided into two different categories:

  • Validation Tests

  • Performance Tests

Validation Tests

In order to validate the results obtained with the developed software, a small dataset coming from a published study [8] has been used for the analysis. The considered case study concerns the comparison of results obtained from separated analyses of HUVEC (Human Umbilical Vein Endothelial Cells) and Fibroblasts, derived from same donors, treated with Interferon-α (INF-α), to the purpose of identifying interferon's effects on transcriptome of endothelial cells.

The dataset is divided in two parts with the following features:

  • ChipType: Affimetrix GeneChip HU-133A

  • Origin: HUVEC, Human Umbilical Vein Endothelial Cells

  • Genes: 22283

  • Dataset dimension: 103 MB

  • Number of microrarrays: 10

  • ChipType: Affimetrix GeneChip HU-133A

  • Origin: FB, Human Umbilical Fibroblasts

  • Genes: 22283

  • Dataset dimension: 54.3 MB

  • Number of microrarrays: 5

The datasets are both composed by baseline and experiment arrays (respectively untreated and treated with INF-α) and for each of them the following steps, according to the original analysis, have been performed:

  • Normalization: Invariant-set method

  • Model-based expression: PM Only model [9, 10]

  • Extraction of differentially expressed genes: fold change with threshold 2.

As a first test, microarrays have been analyzed using both original and modified versions of dChip (standalone Linux version, parallel and grid-enabled). The same options have been set in all tests in order to compare final results.

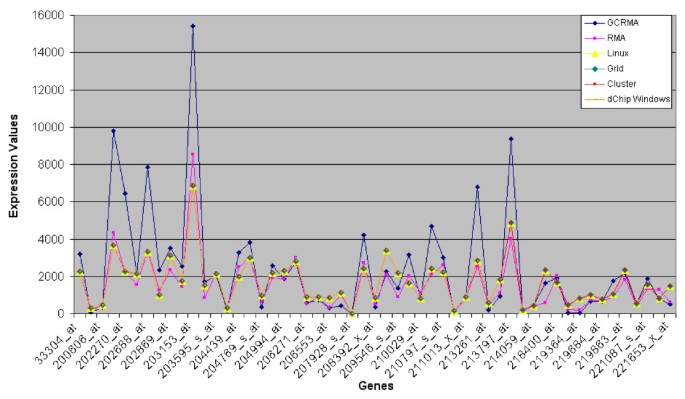

Tables 1 and 2 and Figures 2 and 3 represent the mean values of gene expressions, computed respectively on the baseline and experiment arrays on HUVEC data, coming from developed and original dChip versions. We notice that all the new dChip versions give the same results. There is a really small difference between Windows and Linux versions of dChip. This is probably due to the different approximations between compilers on Windows and Linux platforms. However, these little differences do not affect the global final result that can be considered pretty much the same.
Table 1

Comparison of baseline arrays results using all dChip implementations

probe set

Gene Name

Linux

Cluster

Grid

Windows

33304_at

interferon stimulated gene 20 kDa

284.20

284.20

284.20

284.02

823_at

chemokine (C-X3-C motif) ligand 1

47.16

47.16

47.16

47.09

200606_at

desmoplakin (DPI, DPII)

97.68

97.68

97.68

97.64

202269_x_at

guanylate binding protein 1

220.40

220.40

220.40

220.36

202270_at

guanylate binding protein 1

152.16

152.16

152.16

152.31

202687_s_at

tumor necrosis factor member 10

188.82

188.82

188.82

189.00

202688_at

tumor necrosis factor member 10

334.35

334.35

334.35

334.48

202748_at

guanylate binding prot 2, interf-inducible

247.40

247.40

247.40

247.66

202869_at

2',5'-oligoadenylate synthetase 1

209.99

209.99

209.99

209.87

203148_s_at

tripartite motif-containing 14

203.86

203.86

203.86

203.81

203153_at

interferon-induced protein

84.72

84.72

84.72

84.89

203236_s_at

lectin, galactoside-binding, soluble, 9

277.38

277.38

277.38

277.33

203595_s_at

retinoic acid- and interferon-inducible prot

296.66

296.66

296.66

296.56

204070_at

retinoic acid receptor responder 3

95.42

95.42

95.42

95.26

204439_at

chromosome 1 open reading frame 29

50.84

50.84

50.84

50.74

204533_at

chemokine (C-X-C motif) ligand 10

97.55

97.55

97.55

97.53

204769_s_at

transporter 2, ATP-binding cassette

241.98

241.98

241.98

241.99

204972_at

2'-5'-oligoadenylate synthetase 2

61.14

61.14

61.14

61.07

204994_at

myxovirus (influenza virus) resistance 2

63.91

63.91

63.91

63.85

205660_at

2'-5'-oligoadenylate synthetase-like

113.84

113.84

113.84

113.87

206271_at

toll-like receptor 3

92.93

92.93

92.93

92.72

206503_x_at

promyelocytic leukemia

288.58

288.58

288.58

288.80

206553_at

2'-5'-oligoadenylate synthetase 2

55.00

55.00

55.00

55.03

207375_s_at

interleukin 15 receptor, alpha

230.35

230.35

230.35

230.40

207928_s_at

glycine receptor, alpha 3

1.15

1.15

1.15

0.95

208012_x_at

SP110 nuclear body protein

291.32

291.32

291.32

290.87

208392_x_at

SP110 nuclear body protein

155.09

155.09

155.09

155.13

208436_s_at

interferon regulatory factor 7

259.61

259.61

259.61

259.68

209546_s_at

apolipoprotein L, 1

493.11

493.11

493.11

492.97

209969_s_at

signal transd and activator of transcription 1

241.42

241.42

241.42

241.65

210029_at

indoleamine-pyrrole 2,3 dioxygenase

99.88

99.88

99.88

99.70

210163_at

chemokine (C-X-C motif) ligand 11

27.88

27.88

27.88

27.81

210797_s_at

2'-5'-oligoadenylate synthetase-like

83.82

83.82

83.82

83.70

210846_x_at

tripartite motif-containing 14

38.65

38.65

38.65

38.51

211013_x_at

promyelocytic leukemia

292.75

292.75

292.75

292.74

211122_s_at

chemokine (C-X-C motif) ligand 11

40.68

40.68

40.68

40.83

213261_at

KIAA0342 gene product

135.93

135.93

135.93

135.74

213716_s_at

secreted and transmembrane 1

120.94

120.94

120.94

120.72

213797_at

vipirin

74.26

74.26

74.26

74.25

214038_at

chemokine (C-C motif) ligand 8

47.63

47.63

47.63

47.56

214059_at

interferon-induced protein 44

68.26

68.26

68.26

68.22

214329_x_at

ESTs

338.08

338.08

338.08

338.22

218400_at

2'-5'-oligoadenylate synthetase 3

242.05

242.05

242.05

242.01

219011_at

pleckstrin homology domain

139.71

139.71

139.71

139.58

219364_at

likely ortholog of mouse D11lgp2

92.46

92.46

92.46

92.17

219593_at

peptide transporter 3

105.99

105.99

105.99

106.00

219684_at

28 kD interferon responsive protein

71.72

71.72

71.72

71.69

219691_at

hypothetical protein FLJ20073

85.39

85.39

85.39

85.33

219863_at

cyclin-E binding protein 1

212.87

212.87

212.87

212.73

220104_at

likely ortholog of rat zinc-finger antivir prot

86.64

86.64

86.64

86.58

221087_s_at

apolipoprotein L, 3

211.18

211.18

211.18

242.92

221371_at

tumor necrosis factor member 18

258.60

258.60

258.60

258.67

221653_x_at

apolipoprotein L, 2

286.52

286.52

286.52

286.22

Table 2

Comparison of experiment arrays results using all dChip implementations

probe set

Gene Name

Linux

Cluster

Grid

Windows

33304_at

interferon stimulated gene 20 kDa

2244.54

2244.54

2244.54

2246.75

823_at

chemokine (C-X3-C motif) ligand 1

303.39

303.39

303.39

303.30

200606_at

desmoplakin (DPI, DPII)

459.07

459.07

459.07

459.40

202269_x_at

guanylate binding protein 1

3651.44

3651.44

3651.44

3654.06

202270_at

guanylate binding protein 1

2282.05

2282.05

2282.05

2283.43

202687_s_at

tumor necrosis factor member 10

2133.03

2133.03

2133.03

2131.72

202688_at

tumor necrosis factor member 10

3309.36

3309.36

3309.36

3311.57

202748_at

guanylate binding prot 2, interf-inducible

1007.71

1007.71

1007.71

1007.97

202869_at

2',5'-oligoadenylate synthetase 1

3112.07

3112.07

3112.07

3112.08

203148_s_at

tripartite motif-containing 14

1774.94

1774.94

1774.94

1773.47

203153_at

interferon-induced protein

6863.81

6863.81

6863.81

6853.83

203236_s_at

lectin, galactoside-binding, soluble, 9

1540.56

1540.56

1540.56

1540.34

203595_s_at

retinoic acid- and interfer-inducible prot

2144.76

2144.76

2144.76

2144.24

204070_at

retinoic acid receptor responder 3

314.03

314.03

314.03

314.49

204439_at

chromosome 1 open reading frame 29

1982.76

1982.76

1982.76

1980.53

204533_at

chemokine (C-X-C motif) ligand 10

3018.77

3018.77

3018.77

3015.67

204769_s_at

transporter 2, ATP-binding cassette

971.37

971.37

971.37

973.42

204972_at

2'-5'-oligoadenylate synthetase 2

2173.07

2173.07

2173.07

2172.05

204994_at

myxovirus (influenza virus) resistance 2

2312.15

2312.15

2312.15

2312.96

205660_at

2'-5'-oligoadenylate synthetase-like

2793.93

2793.93

2793.93

2792.91

206271_at

toll-like receptor 3

905.37

905.37

905.37

905.16

206503_x_at

promyelocytic leukemia

910.07

910.07

910.07

909.93

206553_at

2'-5'-oligoadenylate synthetase 2

873.65

873.65

873.65

873.49

207375_s_at

interleukin 15 receptor, alpha

1114.76

1114.76

1114.76

1114.91

207928_s_at

glycine receptor, alpha 3

2.37

2.37

2.37

2.65

208012_x_at

SP110 nuclear body protein

2436.07

2436.07

2436.07

2435.94

208392_x_at

SP110 nuclear body protein

842.89

842.89

842.89

842.75

208436_s_at

interferon regulatory factor 7

3397.64

3397.64

3397.64

3397.97

209546_s_at

apolipoprotein L, 1

2170.99

2170.99

2170.99

2170.16

209969_s_at

signal transd and activator of transcription 1

1642.44

1642.44

1642.44

1642.01

210029_at

indoleamine-pyrrole 2,3 dioxygenase

814.88

814.88

814.88

814.71

210163_at

chemokine (C-X-C motif) ligand 11

2400.30

2400.30

2400.30

2400.22

210797_s_at

2'-5'-oligoadenylate synthetase-like

2210.17

2210.17

2210.17

2210.97

210846_x_at

tripartite motif-containing 14

139.55

139.55

139.55

139.69

211013_x_at

promyelocytic leukemia

891.32

891.32

891.32

892.07

211122_s_at

chemokine (C-X-C motif) ligand 11

2835.46

2835.46

2835.46

2829.05

213261_at

KIAA0342 gene product

598.16

598.16

598.16

598.27

213716_s_at

secreted and transmembrane 1

1844.02

1844.02

1844.02

1846.77

213797_at

vipirin

4883.14

4883.14

4883.14

4882.36

214038_at

chemokine (C-C motif) ligand 8

209.79

209.79

209.79

209.81

214059_at

interferon-induced protein 44

417.94

417.94

417.94

418.01

214329_x_at

ESTs

2344.63

2344.63

2344.63

2348.62

218400_at

2'-5'-oligoadenylate synthetase 3

1695.06

1695.06

1695.06

1694.47

219011_at

pleckstrin homology domain

462.15

462.15

462.15

462.03

219364_at

likely ortholog of mouse D11lgp2

828.68

828.68

828.68

830.36

219593_at

peptide transporter 3

1005.54

1005.54

1005.54

1006.65

219684_at

28 kD interferon responsive protein

792.34

792.34

792.34

793.37

219691_at

hypothetical protein FLJ20073

1068.37

1068.37

1068.37

1068.61

219863_at

cyclin-E binding protein 1

2329.30

2329.30

2329.30

2332.30

220104_at

likely ortholog of rat zinc-finger antivir prot

547.91

547.91

547.91

548.08

221087_s_at

apolipoprotein L, 3

1547.18

1547.18

1547.18

1570.80

221371_at

tumor necrosis factor member 18

821.30

821.30

821.30

820.92

221653_x_at

apolipoprotein L, 2

1495.00

1495.00

1495.00

1496.70

Figure 2

Trend of (mean) expression values of baseline HUVEC arrays using R/Bioconductor and dChip algorithms. A graphical representation of results presented on Table 1 and 3 is shown. It's worth noting that dChip versions results are overlapped and they have a similar trend compared to RMA algorithm.

Figure 3

Trend of (mean) expression values of experiment HUVEC arrays using R/Bioconductor and dChip algorithms. A graphical representation of results presented on Table 2 and 4 is shown. It's worth noting that all dChip versions results are overlapped and they have a similar trend compared to RMA algorithm.

As a second test, the same analysis has been performed by using R/Bioconductor software using both GCRMA [11] and RMA [12] algorithms and results have been compared with the previous obtained with dChip.

This comparison is principally for completeness purposes since the dataset was published with results coming from an R/Bioconductor analysis.

Although there are currently many different methods for processing and summarizing probe level data from Affymetrix oligonucleotide arrays, R/Bioconductor and dChip are two of the most popular methods that consistently produce the best agreement between oligo array and RT-PCR data for medium and high intensity genes [13, 14]. It is known that often expression values computed with dChip and RMA algorithms show similar results, while results are different for GCRMA.

Tables 3 and 4 and Figures 2 and 3 show the comparison between dChip Linux and R/Bioconductor results obtained on the former data. It's observable that dChip and RMA present similar trends conversely to GCRMA results.
Table 3

Comparison of baseline arrays results using R/Bioconductor and dChip implementation

probe set

Gene Name

GCRMA

RMA

dChip Linux

33304_at

interferon stimulated gene 20 kDa

203.01

284.72

284.20

823_at

chemokine (C-X3-C motif) ligand 1

4.93

66.60

47.16

200606_at

desmoplakin (DPI, DPII)

12.38

97.36

97.68

202269_x_at

guanylate binding protein 1

250.15

192.46

220.40

202270_at

guanylate binding protein 1

220.16

131.76

152.16

202687_s_at

tumor necrosis factor member 10

75.06

104.00

188.82

202688_at

tumor necrosis factor member 10

464.46

316.93

334.35

202748_at

guanylate binding protein 2, interferon-inducible

409.70

305.82

247.40

202869_at

2',5'-oligoadenylate synthetase 1

5.81

75.13

209.99

203148_s_at

tripartite motif-containing 14

38.57

96.29

203.86

203153_at

interferon-induced protein

7.75

58.02

84.72

203236_s_at

lectin, galactoside-binding, soluble, 9

146.27

176.17

277.38

203595_s_at

retinoic acid- and interferon-inducible protein

50.34

169.34

296.66

204070_at

retinoic acid receptor responder 3

16.93

90.63

95.42

204439_at

chromosome 1 open reading frame 29

5.06

39.15

50.84

204533_at

chemokine (C-X-C motif) ligand 10

4.16

76.22

97.55

204769_s_at

transporter 2, ATP-binding cassette

50.42

180.53

241.98

204972_at

2'-5'-oligoadenylate synthetase 2

4.97

56.39

61.14

204994_at

myxovirus (influenza virus) resistance 2

3.85

74.62

63.91

205660_at

2'-5'-oligoadenylate synthetase-like

3.64

101.76

113.84

206271_at

toll-like receptor 3

5.82

46.99

92.93

206503_x_at

promyelocytic leukemia

114.42

292.54

288.58

206553_at

2'-5'-oligoadenylate synthetase 2

19.89

90.71

55.00

207375_s_at

interleukin 15 receptor, alpha

17.48

219.39

230.35

207928_s_at

glycine receptor, alpha 3

8.48

14.27

1.15

208012_x_at

SP110 nuclear body protein

122.80

250.06

291.32

208392_x_at

SP110 nuclear body protein

8.20

94.29

155.09

208436_s_at

interferon regulatory factor 7

45.15

138.04

259.61

209546_s_at

apolipoprotein L, 1

69.01

158.61

493.11

209969_s_at

signal transducer and activator of transcription 1

142.29

210.42

241.42

210029_at

indoleamine-pyrrole 2,3 dioxygenase

5.07

105.59

99.88

210163_at

chemokine (C-X-C motif) ligand 11

7.94

22.10

27.88

210797_s_at

2'-5'-oligoadenylate synthetase-like

6.44

80.66

83.82

210846_x_at

tripartite motif-containing 14

9.07

34.13

38.65

211013_x_at

promyelocytic leukemia

161.42

279.82

292.75

211122_s_at

chemokine (C-X-C motif) ligand 11

7.12

23.88

40.68

213261_at

KIAA0342 gene product

10.03

120.40

135.93

213716_s_at

secreted and transmembrane 1

8.37

220.23

120.94

213797_at

vipirin

4.70

33.70

74.26

214038_at

chemokine (C-C motif) ligand 8

8.16

39.84

47.63

214059_at

interferon-induced protein 44

7.65

46.42

68.26

214329_x_at

ESTs

104.51

62.56

338.08

218400_at

2'-5'-oligoadenylate synthetase 3

25.02

128.86

242.05

219011_at

pleckstrin homology domain

5.92

81.93

139.71

219364_at

likely ortholog of mouse D11lgp2

4.44

81.92

92.46

219593_at

peptide transporter 3

3.52

129.28

105.99

219684_at

28 kD interferon responsive protein

3.66

55.44

71.72

219691_at

hypothetical protein FLJ20073

48.86

66.73

85.39

219863_at

cyclin-E binding protein 1

8.03

64.18

212.87

220104_at

likely ortholog of rat zinc-finger antiviral protein

18.28

70.07

86.64

221087_s_at

apolipoprotein L, 3

204.63

272.26

211.18

221371_at

tumor necrosis factor member 18

98.32

354.34

258.60

221653_x_at

apolipoprotein L, 2

60.81

153.69

286.52

Table 4

Comparison of experiment arrays results using R/Bioconductor and dChip implementation

probe set

Gene Name

GCRMA

RMA

dChip Linux

33304_at

interferon stimulated gene 20 kDa

3196.51

2268.74

2244.54

823_at

chemokine (C-X3-C motif) ligand 1

94.32

199.31

303.39

200606_at

desmoplakin (DPI, DPII)

346.10

472.57

459.07

202269_x_at

guanylate binding protein 1

9812.82

4339.89

3651.44

202270_at

guanylate binding protein 1

6437.35

2278.30

2282.05

202687_s_at

tumor necrosis factor member 10

2156.88

1550.21

2133.03

202688_at

tumor necrosis factor member 10

7854.88

3398.70

3309.36

202748_at

guanylate binding protein 2, interferon-inducible

2345.96

1250.53

1007.71

202869_at

2',5'-oligoadenylate synthetase 1

3531.07

2325.40

3112.07

203148_s_at

tripartite motif-containing 14

2521.04

1435.02

1774.94

203153_at

interferon-induced protein

15412.19

8556.41

6863.81

203236_s_at

lectin, galactoside-binding, soluble, 9

1711.84

847.55

1540.56

203595_s_at

retinoic acid- and interferon-inducible protein

2012.55

2181.61

2144.76

204070_at

retinoic acid receptor responder 3

211.37

292.39

314.03

204439_at

chromosome 1 open reading frame 29

3293.52

2515.21

1982.76

204533_at

chemokine (C-X-C motif) ligand 10

3827.84

3009.14

3018.77

204769_s_at

transporter 2, ATP-binding cassette

351.22

608.05

971.37

204972_at

2'-5'-oligoadenylate synthetase 2

2566.06

1918.87

2173.07

204994_at

myxovirus (influenza virus) resistance 2

1879.30

1864.21

2312.15

205660_at

2'-5'-oligoadenylate synthetase-like

2757.19

3007.87

2793.93

206271_at

toll-like receptor 3

572.08

560.92

905.37

206503_x_at

promyelocytic leukemia

737.59

913.65

910.07

206553_at

2'-5'-oligoadenylate synthetase 2

315.50

323.83

873.65

207375_s_at

interleukin 15 receptor, alpha

438.00

1020.22

1114.76

207928_s_at

glycine receptor, alpha 3

8.43

14.61

2.37

208012_x_at

SP110 nuclear body protein

4220.13

2720.23

2436.07

208392_x_at

SP110 nuclear body protein

347.25

510.43

842.89

208436_s_at

interferon regulatory factor 7

2270.19

2097.07

3397.64

209546_s_at

apolipoprotein L, 1

1379.27

915.53

2170.99

209969_s_at

signal transducer and activator of transcription 1

3157.23

2027.40

1642.44

210029_at

indoleamine-pyrrole 2,3 dioxygenase

833.17

1133.97

814.88

210163_at

chemokine (C-X-C motif) ligand 11

4702.03

2094.38

2400.30

210797_s_at

2'-5'-oligoadenylate synthetase-like

3022.68

2622.26

2210.17

210846_x_at

tripartite motif-containing 14

20.39

70.48

139.55

211013_x_at

promyelocytic leukemia

952.73

861.97

891.32

211122_s_at

chemokine (C-X-C motif) ligand 11

6782.66

2521.40

2835.46

213261_at

KIAA0342 gene product

184.92

481.56

598.16

213716_s_at

secreted and transmembrane 1

924.99

1132.93

1844.02

213797_at

vipirin

9384.39

4037.25

4883.14

214038_at

chemokine (C-C motif) ligand 8

131.65

153.26

209.79

214059_at

interferon-induced protein 44

460.99

417.83

417.94

214329_x_at

ESTs

1651.68

566.67

2344.63

218400_at

2'-5'-oligoadenylate synthetase 3

1914.27

2042.07

1695.06

219011_at

pleckstrin homology domain

33.03

216.27

462.15

219364_at

likely ortholog of mouse D11lgp2

23.39

211.10

828.68

219593_at

peptide transporter 3

678.07

754.28

1005.54

219684_at

28 kD interferon responsive protein

678.29

651.96

792.34

219691_at

hypothetical protein FLJ20073

1761.43

914.96

1068.37

219863_at

cyclin-E binding protein 1

2191.56

1844.42

2329.30

220104_at

likely ortholog of rat zinc-finger antiviral protein

500.61

427.62

547.91

221087_s_at

apolipoprotein L, 3

1873.08

1325.73

1547.18

221371_at

tumor necrosis factor member 18

787.94

1269.50

821.30

221653_x_at

apolipoprotein L, 2

520.21

609.52

1495.00

Ultimately, results of the entire analysis related to differences between HUVEC and FB are illustrated. We have found that using all dChip developed versions, in HUVEC, 239 genes were up-regulated (> 2-fold increase) by IFN, including genes involved in the host response to RNA viruses, inflammation, and apoptosis. Interestingly, 35 genes showed a > 4-fold higher induction compared with human fibroblasts. Obviously, because the results of the published study had been obtained using GCRMA algorithm, they are not exactly the same of dChip's. These show 175 genes up-regulated by IFNs in HUVEC and 41 genes with a > 5-fold higher induction compared with human fibroblasts. However it's interesting to notice that quite similar results have been found.

In particular (Table 5) we have found that CXCL11 (chemokine (C-X-C motif) ligand 11) is selectively induced by IFN-α along with other genes associated with angiogenesis regulation, including CXCL10, TRAIL, and guanylate-binding protein 1.
Table 5

induction of IFN-α on HUVEC respect to Human Fibroblasts

probe set

Gene Name

HUVEC/FB fold change increment

33304_at

interferon stimulated gene 20 kDa

3.61

823_at

chemokine (C-X3-C motif) ligand 1

8.88

200606_at

desmoplakin (DPI, DPII)

4

202269_x_at

guanylate binding protein 1, interferon-inducible

3.17

202270_at

guanylate binding protein 1, interferon-inducible

3.79

202687_s_at

tumor necrosis factor (ligand) superfamily, member 10

5.37

202688_at

tumor necrosis factor (ligand) superfamily, member 10

12.49

202748_at

guanylate binding protein 2, interferon-inducible

4.55

202869_at

2',5'-oligoadenylate synthetase 1, 40/46 kDa

6.69

203148_s_at

tripartite motif-containing 14

3.34

203153_at

interferon-induced protein with tetratricopeptide repeats 1

3.18

203236_s_at

lectin, galactoside-binding, soluble, 9 (galectin 9)

6.49

203595_s_at

retinoic acid- and interferon-inducible protein (58 kD)

3.67

204070_at

retinoic acid receptor responder (tazarotene induced) 3

5.09

204439_at

chromosome 1 open reading frame 29

5.53

204533_at

chemokine (C-X-C motif) ligand 10

16.73

204769_s_at

transporter 2, ATP-binding cassette, sub-family B (MDR/TAP)

5.04

204972_at

2'-5'-oligoadenylate synthetase 2, 69/71 kDa

12.99

204994_at

myxovirus (influenza virus) resistance 2 (mouse)

3.71

205660_at

2'-5'-oligoadenylate synthetase-like

3.5

206271_at

toll-like receptor 3

3.06

206503_x_at

promyelocytic leukemia

3.38

206553_at

2'-5'-oligoadenylate synthetase 2, 69/71 kDa

9.08

207375_s_at

interleukin 15 receptor, alpha

4.1

207928_s_at

glycine receptor, alpha 3

4.52

208012_x_at

SP110 nuclear body protein

3.11

208392_x_at

SP110 nuclear body protein

5.67

208436_s_at

interferon regulatory factor 7

4.09

209546_s_at

apolipoprotein L, 1

4.15

209969_s_at

signal transducer and activator of transcription 1, 91 kDa

4.17

210029_at

indoleamine-pyrrole 2,3 dioxygenase

8

210163_at

chemokine (C-X-C motif) ligand 11

76.55

210797_s_at

2'-5'-oligoadenylate synthetase-like

12.49

210846_x_at

tripartite motif-containing 14

4.91

211013_x_at

promyelocytic leukemia

3.5

211122_s_at

chemokine (C-X-C motif) ligand 11

19.03

213261_at

KIAA0342 gene product

3.97

213716_s_at

secreted and transmembrane 1

7.2

213797_at

Vipirin

5.06

214038_at

chemokine (C-C motif) ligand 8

3.57

214059_at

interferon-induced protein 44

4.58

214329_x_at

ESTs, Weakly similar to cytokine receptor-like factor 2

3.88

218400_at

2'-5'-oligoadenylate synthetase 3, 100 kDa

4.6

219011_at

pleckstrin homology domain containing, family A member 4

4.28

219364_at

likely ortholog of mouse D11lgp2

3.92

219593_at

peptide transporter 3

4.54

219684_at

28 kD interferon responsive protein

6.4

219691_at

hypothetical protein FLJ20073

4.46

219863_at

cyclin-E binding protein 1

7.68

220104_at

likely ortholog of rat zinc-finger antiviral protein

5.39

221087_s_at

apolipoprotein L, 3

5.47

221371_at

tumor necrosis factor (ligand) superfamily, member 18

3.67

221653_x_at

apolipoprotein L, 2

3.77

The induction of IFN-α on HUVEC respect to Human Fibroblasts is shown. In particular the up-regulated HUVEC genes with fold induction more then 3 higher compared with Fibroblast's are shown. The genes associated with angiogenesis induction are marked with bold text. As we expected, results show that CXCL11 gene is the most discriminator.

Performance Tests

These tests, although far from any biological meaning, have the only purpose of comparing performances using a large dataset on different environments. In details several application tests have been performed on both cluster and Grid environments using different values of parallelization rate and final results have been compared.

In order to create a large data set for testing purposes, the on-line public repository GEO [15] has been used. A dataset of 1000 HG-U133A Breast Cancer microarrays has been made available. It shows the following features:

  • ChipType: Affimetrix GeneChip HU-133A

  • Origin: Breast Cancer

  • Genes: 22283

  • Dataset dimension: ~12 GB

  • Number of microrarray: 1000

The performance results have been obtained by calculating the average of the execution times of three independent executions of the application on the same dataset.

The tests on the cluster environment have been performed using the MPI implementation of dChip on Michelangelo, the LITBIO project cluster [16] dedicated to bioinformatics applications requiring great computational efforts.

Grid tests have been performed using the gLite middleware on the BIOMED Virtual Organization [17] of the EGEE (Enabling Grids for E-sciencE) infrastructure [18]. In this case data had been previously uploaded on several remote and distributed storage elements and have been analyzed submitting more parallel jobs through opportune strategies.

Concerning Grid tests, a not-MPI parallel implementation has been used, because MPI jobs are unstable on the gLite middleware, at the present time. More parallel jobs can be submitted and monitored using ad hoc scripts.

Two kinds of test have been carried out: (i) scalability on the number of parallel jobs, (ii) scalability on the number of microarrays.

As a first test, a subset of 100 microarrays has been analyzed to compare the performances of the two parallel modules in changing the parallelization rate, both on cluster and grid implementation. In detail, four tests have been run using respectively 5, 10, 15 and 20 parallel jobs. By comparing results, we can observe that Module 1 has a better scalability (Figures 4A and 5A) due to the different parallelization strategy adopted. In fact, while in the first module there is a reduction in time for all the three execution steps (file opening, normalization and output writing), in the Module 2 (Figures 4B and 5B) we have a reduction only for gene expression calculation whereas file opening and output writing remain constant. Through the comparison of cluster and Grid executions we can notice that this trend is approximately the same in both conditions. Eventually, the speedup ratio (S(N) = T(1)/T(N), where T(1) is the execution time on a single processor and T(N) the execution time on N processors), has been calculated for the cluster tests with the purpose to estimate the parallelization efficiency. As shown in Table 6, it is worth noting that for 100 microarrays the parallelization has a quite good result up to 15 parallel jobs.
Figure 4

Scalability on cluster environment by increasing parallelization rate. The different scalability of dChip MPI version run on LITBIO cluster using 100 microarrays respectively for (A) module 1 (normalization), (B) module2 (model-based expression computation) is shown. In particular the mean execution times coming from three independent executions of respectively 5, 10, 15 and 20 parallel jobs are represented.

Figure 5

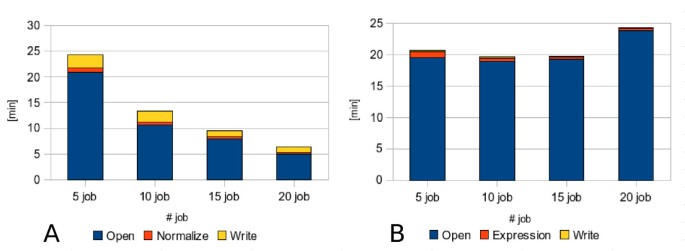

Scalability on Grid environment by increasing parallelization rate. The different scalability of dChip Grid version run within BIOMED Virtual Organization using 100 microarrays respectively for (A) module 1 (normalization), (B) module2 (model-based expression computation) is shown. In particular the mean execution times coming from three independent executions of respectively 5, 10, 15 and 20 parallel jobs are represented.

Table 6

Mean execution times and speedup ratio analysing 100 microarrays on cluster environment



1 job

5 job

10 job

15 job

20 job

Module 1

285 sec

63.80 sec

35.20 sec

26.40 sec

25.65 sec

Module 2

344 sec

81.60 sec

58.00 sec

44.47 sec

39.55 sec

Module 1+2

629 sec

145.40 sec

93.20 sec

70.87 sec

65.20 sec

speedup ratio module 1



4.47

8.09

10.79

11.11

speedup ratio module 2



4.22

5.93

7.74

8.69

speedup ratio module 1+2



4.33

6.75

8.88

9.65

The table shows the mean execution times coming from three different execution of dChip MPI version run on LITBIO cluster using respectively 1, 5, 10, 15, 20 parallel jobs to compute the expression values of 100 microarrays. To estimate the parallelization efficiency, the speedup ratio (S(N) = T(1)/T(N), where T(1) is the execution time on a single processor and T(N) the execution time on N processors) was calculated.

As a second test, the whole 1000 microarrays dataset has been analyzed on the Grid, by running the parallel dChip version using 10 parallel jobs, in order to investigate the trend of performances according to the dataset dimensions. In Figure 6 we can see the results concerning respectively the Module 1 and Module 2 executions. Cluster performances show better results than the Grid ones.
Figure 6

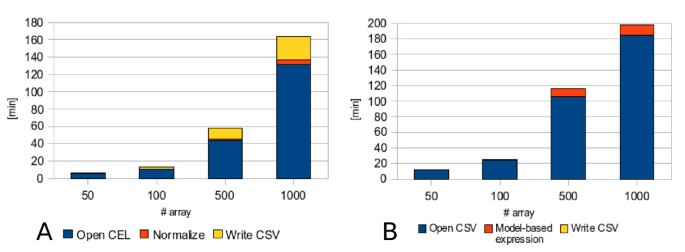

Scalability on Grid environment by increasing microarrays' number. The different scalability on microarray's number of dChip Grid version run within BIOMED Virtual Organization using 10 parallel jobs respectively for (A) module 1 (normalization), (B) module2 (model-based expression computation) is shown. In particular the mean execution times coming from three independent executions to analyse respectively 50, 100, 500 and 1000 microarrays are represented.

Actually the great advantage for researchers in using Grid is the possibility to store a large amount of data, to run complex algorithms and to access all data shared by Grid virtual communities, using remote resources.

This feature has a great relevance especially for small laboratories or for researchers that, due to the high cost of producing microarray data, cannot perform analyses using large datasets (a necessary condition to get better results). The access to a Grid environment makes it possible to get access to all the datasets made available by the community and to perform more accurate analyses.

As previously said, the Grid provides several advantages related to security aspects as well. Using the Grid certificate-based authentication data are safe from possible attacks to privacy and security.

Finally, the integration of this application into a Grid-enabled portal provides a simple graphical user interface to run the application. In this way, researchers do not need any particular hardware or software installed locally but only a web connection to the portal.

Actually, besides the cost of producing data, another relevant issue concerns the analysis of large datasets using standalone applications running on local hardware. The use of such applications implies the existence powerful computers available locally, and, often, this is not possible, even in large laboratories. The previously explained analysis related to 1000 microarrays is an example of experiment that could not be performed using standalone applications, even on the most recent powerful computers.

Our solution resolves this problem and provides users with a web-based service able to launch more analyses in a parallel way, easily monitoring the status of executions directly from the portal.

Conclusion

A scalable way to analyze large microarray datasets has been presented. To do that, we have ported existing tools to High Performance and Grid Computing environments. dChip software has been ported on Linux platforms and modified, by using appropriate parallelization strategies, to permit its execution on both cluster environments and Grid infrastructures. The added value provided by the use of Grid technologies is the possibility of exploiting both computational and data Grids infrastructures to analyze large datasets of distributed data. The software has been successfully validated through the comparison with the original standalone Windows version of dChip. Performance tests were performed in order to investigate the improvements on performances related to the adopted strategies for parallelization. Moreover these tests have been used to compare cluster and Grid performances too. As result we found that parallelization gives quite good results in terms of execution times, especially for the first module. Furthermore we found that Grid executions have longer execution times rather than cluster ones. But it is worth noting that the relevance related to the use of Grid computing for the presented application is principally focused on the opportunity of sharing data. This is done through different research groups and exploiting distributed computational resources rather than on the improvement of performances.

Availability and requirements

A web-portal version of the software is accessible within the LITBIO portal.

  • Operating system(s): Linux

  • Programming language: C++

  • Other requirements: MPICH2 library (cluster version)

  • License: GNU GPL

Abbreviations

GFAL:

Grid File Access Library

API:

Application Program Interface

INF:

Interferon

HUVEC:

Human Umbilical Vein Endothelial Cells

FB:

Human Fibroblasts

Declarations

Acknowledgements

This work is developed within the Italian FIRB project LITBIO (Laboratory for Interdisciplinary Technologies in BlOinformatics).

Thanks are due to Ulrich Pfeffer and his Bioinformatics group at the Advanced Biotechnology Centre of Genoa, Italy for their collaboration and for provision of microarray data as well as of their expertise.

Thanks are due to Cheng Li for his collaboration and for provision of the dChip source code.

Authors’ Affiliations

(1)
Computer Science, Systems, and Communication Department, University of Genova

References

  1. Li C, Wong WH: DNA-Chip Analyzer (dChip). In The analysis of gene expression data: methods and software. Edited by: Parmigiani G, Garrett ES, Irizarry R, Zeger SL. Springer, New York; 2003:120–141.View ArticleGoogle Scholar
  2. Gentleman RC, Carey VJ, Bates DJ, Bolstad BM, Dettling M, Dudoit S, Ellis B, Gautier L, Ge Y, Gentry J, Hornik K, Hothorn T, Huber W, lacus S, Irizarry R, Leisch F, Li C, Maechler M, Rossini AJ, Sawitzki G, Smith C, Smyth GK, Tierney L, Yang YH, Zhang J: Bioconductor: Open software development for computational biology and bioinformatics. Genome Biol 2004, 5(10):R80.PubMed CentralView ArticlePubMedGoogle Scholar
  3. Porro I, Torterolo L, Corradi L, Fato M, Papadimitropoulos A, Scaglione S, Schenone A, Viti F: A Grid-based solution for management and analysis of microarrays in distributed experiments. BMC Bioinformatics 8(Suppl 1):S7. 2007 Mar 8PubMed CentralView ArticlePubMedGoogle Scholar
  4. Beltrame F, Papadimitropoulos A, Porro I, Scaglione S, Schenone A, Torterolo L, Viti F: GEMMA – A Grid environment for microarray management and analysis in bone marrow stem cells experiments. Future Generation Computer Systems 2007, 23(3):382–390.View ArticleGoogle Scholar
  5. gLite middleware[http://glite.web.cern.ch/glite]
  6. GFAL[http://grid-deployment.web.cern.ch/grid-deployment/gis/GFAL/GFALindex.html]
  7. Tuecke S, Welch V, Engert D, Pearlman L, Thompson M: Internet X.509 public key infrastructure (PKI) proxy certificate profile. IETF RFC 2004, 3820.Google Scholar
  8. Pfeffer U, Ferrari N, Dell'Eva R, Indraccolo S, Morini M, Noonan DM, Albini A: Molecular mechanisms of action of angiopreventive anti-oxidants on endothelial cells: Microarray gene expression analyses. Mutation Research -Fundamental and Molecular Mechanisms of Mutagenesis 2005, 591(1–2):198–211.View ArticlePubMedGoogle Scholar
  9. Li C, Wong WH: Model-based analysis of oligonucleotide arrays: expression index computation and outlier detection. Proc Natl Acad Sci USA 2001, 98: 31–36.PubMed CentralView ArticlePubMedGoogle Scholar
  10. Li C, Wong WH: Model-based analysis of oligonucleotide arrays: model validation, design issues and standard error application. Genome Biology 2001, 2(8):1–0032.Google Scholar
  11. Wu Z, Irizarry RA, Gentleman R, Murillo FM, Spencer F: A Model Based Background Adjustment for Oligonucleotide Expression Arrays. Working Papers, Department of Biostatistics, Johns Hopkins University; 2004.Google Scholar
  12. Irizarry RA, Hobbs B, Collin F, Beazer-Barclay YD, Antonellis KJ, Scherf U, Speed TP: Exploration, normalization, and summaries of high density oligonucleotide array probe level data. Biostatistics 2003, 4: 249–264.View ArticlePubMedGoogle Scholar
  13. Qin LX, Beyer RP, Hudson FN, Linford NJ, Morris DE, Kerr KF: Evaluation of methods for oligonucleotide array data via quantitative real-time PCR. BMC Bioinformatics 2006, 7: 23.PubMed CentralView ArticlePubMedGoogle Scholar
  14. Millenaar FF, Okyere J, May ST, van Zanten M, Voesenek LA, Peeters AJ: How to decide? Different methods of calculating gene expression from short oligonucleotide array data will give different results. BMC Bioinformatics 2006, 7: 137.PubMed CentralView ArticlePubMedGoogle Scholar
  15. Expression Omnibus (GEO)[http://www.ncbi.nlm.nih.gov/geo]
  16. LITBIO – Laboratory for Interdisciplinary Technologies in BIOinformatics FIRB Project[http://www.litbio.org]
  17. BIOMED[http://cic.gridops.org/index.php?section=home&page=volist&vo=6]
  18. EGEE Project[http://public.eu-egee.org/intro/]

Copyright

© Corradi et al; licensee BioMed Central Ltd. 2008

This article is published under license to BioMed Central Ltd. This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Advertisement
