Volume 9 Supplement 12

## Seventh International Conference on Bioinformatics (InCoB2008)

- Research
- Open Access

# Extracting transcription factor binding sites from unaligned gene sequences with statistical models

- Chung-Chin Lu
^{1}, - Wei-Hao Yuan
^{2}and - Te-Ming Chen
^{1}Email author

**9 (Suppl 12)**:S7

https://doi.org/10.1186/1471-2105-9-S12-S7

© Lu et al; licensee BioMed Central Ltd. 2008

**Published:**12 December 2008

## Abstract

### Background

Transcription factor binding sites (TFBSs) are crucial in the regulation of gene transcription. Recently, chromatin immunoprecipitation followed by cDNA microarray hybridization (ChIP-chip array) has been used to identify potential regulatory sequences, but the procedure can only map the probable protein-DNA interaction loci within 1–2 kb resolution. To find out the exact binding motifs, it is necessary to build a computational method to examine the ChIP-chip array binding sequences and search for possible motifs representing the transcription factor binding sites.

### Results

We developed a program to find out accurate motif sites from a set of unaligned DNA sequences in the yeast genome. Compared with MDscan, the prediction results suggest that, overall, our algorithm outperforms MDscan since the predicted motifs are more consistent with previously known specificities reported in the literature and have better prediction ranks. Our program also outperforms the constraint-less Cosmo program, especially in the elimination of false positives.

### Conclusion

In this study, an improved sampling algorithm is proposed to incorporate the binomial probability model to build significant initial candidate motif sets. By investigating the statistical dependence between base positions in TFBSs, the method of dependency graphs and their expanded Bayesian networks is combined. The results show that our program satisfactorily extract transcription factor binding sites from unaligned gene sequences.

## Keywords

- Transcription Factor Binding Site
- Position Specific Score Matrix
- Phylogenetic Footprinting
- Candidate Motif
- Motif Finding Algorithm

## Background

Understanding transcription is central to understanding genetic regulatory mechanisms. The transcription of a gene is generally dependent on the presence of specific signals located at upstream regions of the core-promoter. These specific signals derive from their use as binding sites by transcription factors (TFs), and are therefore termed transcription factor binding sites (TFBSs). Recently, chromatin immunoprecipitation followed by cDNA microarray hybridization (ChIP-chip array) has been used to identify potential regulatory sequences, but the procedure can only map the probable protein-DNA interaction loci within 1–2 kilobases resolution [1]. To find out the exact binding motifs, it is necessary to build a computational method to examine the ChIP-chip array binding sequences and search for possible motifs representing the TFBSs (motif discovery).

There are many computational TFBS motif finding tools available [2–4]. The traditional approach for finding TFBSs is to collect and align a set of promoter sequences of co-regulated genes from either the literature or systematic experiments. Numerous computational tools, such as CONSENSUS [5], EM [6], MEME [7] and the Gibbs sampler [8], have utilized the approach to identify short DNA sequence motifs which are statistically over-represented in the promoter sequences.

Other than the alignment-based motif finding algorithms in above, many approaches have tried to extend to the use of evolutionary conservation information such as phylogenetic footprinting or the detection of combinations of binding sites (termed as cis-regulatory modules; CRMs) [2, 3]. Phylogenetic footprinting methods [9–11] is an approach that seeks to identify conserved regulatory elements by comparing genomic sequences between related species. However, due to the statistical nature of the approach, e.g., a small amount of closely related species, not all transcription binding sites can be found by using phylogenetic footprinting. Hence, some algorithms have emerged to combine the alignment-based motif prediction with phylogenetic footprinting such as PhyloGibbs [12] and MY sampler [13]. On the other hand, by the detection of CRMs due to the cooperative interactions between TFs, algorithms like those in [14–16] can produce predictions of substantially better specificity than those of isolated sites.

Recently, more effective motif finders, e.g., MDscan [1], ANN-Spec [17], DMOTIFS [18], DME [19] and Cosmo [20], have taken the advantage of a background set, serving as a negative control. The goal of these discriminant motif finders is to search only for motifs that are most discriminating, that is, only those enriched in the foreground set relative to the background set [2]. Although these motif finders have improved the performance of TFBS prediction, it is still a trouble to have a satisfactory solution. How to find out accurate binding motifs may require much attention in the computational biology community. In this study, an improved sampling algorithm is proposed to incorporate the binomial probability model to build significant initial motif sets. By investigating the statistical dependence between base positions in TFBSs, it appears feasible to use statistical models to formulate the structural dependence of a motif in the identification of TFBSs. In light of this observation, the method of dependency graphs and their expanded Bayesian networks [21] is combined and prediction results show that our algorithm is able to find out motifs more consistent with previously known evidence.

## Methods

Let *TF* be one of the transcription factors to be investigated. The binding dataset of the transcription factor *TF*, denoted as *B*_{
TF
}, consists of the sequences with low binding *p*-value (< 0.001) to the *TF* in the ChIP-chip array data [22]. A sliding window of size *w* is used to extract segments of length *w* when sliding through each of the sequences in *B*_{
TF
}.

*S*

_{ TF }be the collection of all extracted segments from

*B*

_{ TF },

*M*the number of sequences in the binding dataset

*B*

_{ TF },

*L*

_{ i }the length of the

*i*th sequence in the binding dataset

*B*

_{ TF }, and

*T*

_{ TF }the total number of segments in

*S*

_{ TF }. Then

To discover the binding motifs of the transcription factor *TF*, a number of initial candidate motif sets for *TF* is subsequently built from the collection *S*_{
TF
}of extracted segments. Note that the contents of segments, called patterns, in *S*_{
TF
}may not be distinct.

Most of early motif finding algorithms, such as Gibbs sampler [8] and MEME [23], have a weakness, where initial candidate motif sets are built by randomly extracting segments from sequences in the binding dataset *B*_{
TF
}(i.e. randomly selecting segments from the set *S*_{
TF
}). To improve the deficiency, the binomial probability distribution model is firstly utilized in the establishment of a number of initial candidate motif sets in our algorithm.

Then in the process of iterative sampling in our algorithm to expand and/or trim each of the initial candidate motif sets, the method of dependency graphs and their expanded Bayesian networks [21] is used to develop a statistical model for the background motif set identified as the union *S* = ∪_{
TF
}*S*_{
TF
}of segments extracted from all transcription factor binding datasets.

*TF*is as follows:

- 1.
Build

*N*initial candidate motif sets. - (a)
Take

*N*distinct patterns from the set*S*_{ TF }with the most highest significance scores as the candidates by the binomial distribution model (see the Binomial probability distribution model subsection). - (b)
Then for each of the

*N*significant binding site candidates for the transcription factor*TF*, in view of evolution, collect all segments in*S*_{ TF }whose patterns have no more than*d*Hamming distance matching to the candidate pattern to form an initial candidate motif set.

*N*initial candidate motif sets for the transcription factor

*TF*are built.

- 2.
Iteratively sample through the binding dateset

*B*_{ TF }to expand and/or trim each of the*N*initial candidate motif sets so that their approximate maximum a posteriori (AMAP) scores [1, 24] can keep increasing until the*N*candidate motif sets are invariant in*K*consecutive iterations (see the Iterative sampling subsection). - (a)
In the calculation of AMAP scores in this stage, the background model for the background motif set

*S*= ∪_{ TF }*S*_{ TF }is established under the method of dependency graphs and their expanded Bayesian networks (see the Method of dependency graphs and their expanded Bayesian networks subsection). - 3.
Refine each of the

*N*candidate motif sets by re-examining all the segments already included in the motif set. A segment is removed from the motif set if doing so increases the AMAP score.

### Initial motif sets building

Our method begins by enumerating those patterns in *S*_{
TF
}that appear most often in the binding dataset *B*_{
TF
}than in others. What we want to do first is to calculate the appearance probability of a pattern in *S*_{
TF
}, which is the probability that the pattern appears no less than *n* times in the binding dataset *B*_{
TF
}. If a pattern *b* appears more often than other patterns in *S*_{
TF
}and its occurrence probability in a generic intergenic region is comparatively low, the calculated significance score of *b* would be relatively high. We will take patterns with the most highest significance scores as the candidates to build a number of initial candidate motif sets.

#### Binomial probability distribution model

*j*occurrences of pattern

*b*in the collection

*S*

_{ TF }of segments extracted from the binding dataset

*B*

_{ TF }is estimated by the binomial distribution

*occ*(

*b*) is the occurrence times of pattern

*b*in

*S*

_{ TF }and

*f*(

*b*) is the probability that pattern

*b*occurs in the intergenic region and is estimated as the relative frequency of pattern

*b*in the union

*S*= ∪

_{ TF }

*S*

_{ TF }of segments extracted from all transcription factor binding datasets. The probability to observe

*n*or more occurrences of the pattern

*b*in

*S*

_{ TF }is

We define the significance score *sig*_{
TF
}(*b*) of a pattern *b* to *TF* as

*sig*_{
TF
}(*b*) = -log_{10}(*P*_{
TF
}(*occ*(*b*) ≥ *n*)).

The less probable pattern *b* in *S* appears more than *n* times in *S*_{
TF
}, the more probable will it be a binding site candidate for the transcription factor *TF*. We will take *N* distinct patterns with the most highest significance scores as the candidates.

For each of the *N* significant binding site candidates for the transcription factor *TF*, in view of evolution, collect all segments in *S*_{
TF
}whose patterns have no more than *d* Hamming distance matching to the candidate pattern to form an initial candidate motif set. Thus *N* initial candidate motif sets for the transcription factor *TF* are built at the end of this stage. As an example, the PWM and the rank of five initial candidate motif sets for the motif prediction of the transcription factor CBF1 are shown in Figure 2.

### Iterative sampling

In this stage, a sampling method is used to expand and/or trim each of the *N* initial candidate motif sets *M*_{1}, *M*_{2},.., *M*_{
N
}. For our purpose, a false motif set *M*_{N+1}is created by randomly selecting *e*_{0} (*e*_{0} is equal to the maximum size of the *N* initial candidate motif sets) segments from the collection *S*_{
TF
}such that *M*_{
i
}∩ *M*_{N+1}= ∅, for all *i* = 1, 2,..., *N*. In addition, let the collection *S* = ∪_{
TF
}*S*_{
TF
}of segments extracted from all transcription factor binding datasets represent the intergenic background and here be denoted as *M*_{
BG
}.

#### Approximate maximum a posteriori (AMAP) measure

*M*

_{ i }is defined as [1, 24]

where *p*_{s, j}is the frequency of nucleotide *j* at base position *s* in the candidate motif set *M*_{
i
}(which can be retrieved from the position specific scoring matrix (PSSM) of *M*_{
i
}), *n*_{
i
}is the number of segments in *M*_{
i
}, and *P*(*m*|*M*_{
BG
}) is the probability of the pattern of segment *m* in the motif set *M*_{
i
}under an expanded Bayesian network (EBN) model [21] developed from the background motif set *M*_{
BG
}(EBN model will be discussed shortly).

The first part of the AMAP score is a negative entropy, which is higher if there are more similar patterns in the candidate motif set *M*_{
i
}. A motif set *M*_{
i
}with all identical patterns has the maximum negative entropy 0, whereas equal nucleotide frequencies at every position in the PSSM of *M*_{
i
}has the minimum negative entropy. And a segment *m* in the candidate motif set *M*_{
i
}which has a pattern much different from the background motif model built from *M*_{
BG
}would have lower appearance probability *P* (*m*|*M*_{
BG
}) and hence increases the score $ama{p}_{{M}_{i}}$ of the AMAP measure of *M*_{
i
}.

#### Sampling strategy

In each iteration, there are two steps for the sampler, the S-step and the M-step.

In the S-step, the sampler samples a site by randomly selecting a sequence from *B*_{
TF
}and then randomly picking up a site in the selected sequence to extract a segment *m*_{
s
}of length *w*. For 1 ≤ *i* ≤ *N*, if the sampled segment *m*_{
s
}appears in *M*_{
i
}, segment *m*_{
s
}will be removed from *M*_{
i
}if the AMAP score $ama{p}_{{M}_{i}}$ of the candidate motif set *M*_{
i
}increases after its removal; otherwise, segment *m*_{
s
}will be kept in *M*_{
i
}. Note that the PSSM of the motif model *M*_{
i
}should be retrained if the sampled segment *m*_{
s
}is removed from *M*_{
i
}.

*N*+ 1 motif sets would be the best motif set for the sampled segment

*m*

_{ s }will depend on the appendant score $ap{p}_{{M}_{i}}$ that the segment

*m*

_{ s }is derived from

*M*

_{ i }[24, 25]

where *n*_{
i
}is the size of current motif set *M*_{
i
}, *P*(*n*_{
i
}) equals $\frac{{n}_{i}}{{T}_{TF}}$, *P*(*m*_{
s
}|*M*_{
i
}) and *P*(*m*_{
s
}|*M*_{
BG
}) are the probabilities of the content of the sampled segment *m*_{
s
}under the PSSM model developed from the current motif set *M*_{
i
}and under an EBN model developed from the background *M*_{
BG
}, respectively. The sampled segment *m*_{
s
}will be considered to append into the motif set *M*_{
i
}with the highest appendant score $ap{p}_{{M}_{i}}$. If $ap{p}_{{M}_{N+1}}$ is the highest score, then the sampled segment *m*_{
s
}is appended into the false motif set *M*_{N+1}unless *m*_{
s
}is already there and the current iteration stops here. If for some *i*, 1 ≤ *i* ≤ *N*, $ap{p}_{{M}_{i}}$ is the highest score, the sampled segment *m*_{
s
}will be further checked in the M-step to see if we really want to append *m*_{
s
}into *M*_{
i
}unless we have processed *m*_{
s
}for *M*_{
i
}at the beginning of this S-step as in above and the current iteration stops here.

In the M-step, the sampler has to decide whether the newly sampled segment *m*_{
s
}should be appended into the candidate motif set *M*_{
i
}or not. The AMAP measure again will be used to evaluate our decision. The sampled segment *m*_{
s
}is appended into the candidate motif set *M*_{
i
}if and only if the score $ama{p}_{{M}_{i}}$ of the motif model *M*_{
i
}is increased once the sampled segment *m*_{
s
}is appended to *M*_{
i
}. Note that the PSSM of the motif model *M*_{
i
}should be retrained after the sampled segment *b*_{
s
}is appended to *M*_{
i
}. Now the M-step is done and the current iteration stops here.

The sampler will iteratively sample through the binding dataset *B*_{
TF
}to expand and/or trim the *N* candidate motif sets *M*_{1}, *M*_{2},.., *M*_{
N
}so that their AMAP scores $ama{p}_{{M}_{i}}$ will keep increasing. The *N* candidate motif sets will tend to be invariant after a (larger) number of iterations. The stopping criterion of the sampling process is that all the *N* candidate motif sets are invariant in *K* consecutive iterations. The parameter *K* is usually set to be 1% of the size of *S*_{
TF
}.

#### Alternative sampling strategy

There is an alternative sampling strategy as follows.

In the S-step, the new sampler also randomly samples a site from a sequence in *B*_{
TF
}to extract a segment *m*_{
s
}of length *w*. For 1 ≤ *i* ≤ *N*, if the pattern of the sampled segment *m*_{
s
}appears in *M*_{
i
}, all the segments in *M*_{
i
}whose pattern is the same as that of *m*_{
s
}will be removed if the AMAP score $ama{p}_{{M}_{i}}$ of the motif set *M*_{
i
}increases after their removal. Otherwise, these segments will be kept in *M*_{
i
}.

Also in the S-step, if $ap{p}_{{M}_{N+1}}$ is the highest among all $ap{p}_{{M}_{i}}$, 1 ≤ *i* ≤ *N* + 1, then all segments in the set *S*_{
TF
}having the same pattern as that of the sampled segment *m*_{
s
}will be appended into the false motif set *M*_{N+1}unless these segments are already there and the current iteration stops here. If $ap{p}_{{M}_{i}}$ is the highest for some *i*, 1 ≤ *i* ≤ *N*, the sampled segment *m*_{
s
}will be further checked in the M-step to see if we really want to append those segments in the set *S*_{
TF
}having the same pattern as that of the sampled segment *m*_{
s
}into *M*_{
i
}unless we have already processed those segments for *M*_{
i
}at the beginning of this S-step as in above and the current iteration stops here.

In the M-step, all the segments in the set *S*_{
TF
}having the same pattern as that of the sampled segment *m*_{
s
}are decided to append to the candidate motif set *M*_{
i
}if and only if the AMAP score $ama{p}_{{M}_{i}}$ of *M*_{
i
}increases after these segaments are appended into *M*_{
i
}.

#### Method of dependency graphs and their expanded Bayesian networks

Considering the binding mechanism of transcription factors to specific DNA sites (motifs), there must be distinctive features for the specific motif regions from other intergenic regions which represent the background DNA sequence. Hence, it is conceivable that we can use a statistical model to capture the feature of a specific DAN site (motif) or a generic DNA intergenic region (background). Since the size of a candidate motif set *M*_{
i
}is often small, a PSSM model is commonly used for *M*_{
i
}instead of any other more sophisticated statistical model. However, the size of the background motif set *M*_{
BG
}is usually large enough to be equipped with a more sophisticated one.

*χ*

^{2}-test from known sample data. An edge is established between two nodes (a node represents a base position) in the graph if the two corresponding base positions of the motif or region are dependent. After all dependent edges have being established completely, a dependency graph for the motif or region is constructed. An example of a dependency graph with 7 nodes is shown in Figure 3.

*M*

_{ BG }.

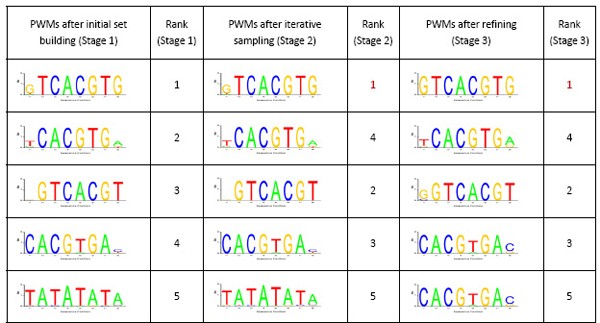

Continued with the same example of the motif prediction of the transcription factor CBF1, the PWM and the rank of the five candidate motif sets at the end of the iterative sampling stage are also shown in Figure 2, together with the final results at the end of the refinement stage.

## Results and discussion

### Data

In order to search for the transcription factor binding sites that regulate gene expressions, we collected binding promotor sequences from the cDNA microarray hybridization (ChIp-chip array) of yeast genome [22]. Each of the binding sequences may contain some unknown motifs that are implanted at unknown positions. These data represent the binding affinity of a target transcription factor to the promoter region of a gene *in vivo*. The experiment protocol assigns a binding *p*-value to each binding promoter sequence of the corresponding transcription factor. A sequence with binding *p*-value less than 0.001 is considered to be bound by the corresponding transcription factor. The threshold of 0.001 is set up to reduce the false positive identification in yeast genome-wide screening.

We collected the ChIp-chip array sequence data from the "Motif discovery results – Discovered motifs, version 24" at [26]. For a transcription factor *TF* to be investigated, we collected all sequences with binding *p*-value less than the threshold 0.001 to *TF* into the binding dataset *B*_{
TF
}. There are 65 binding datasets *B*_{
TF
}being able to be collected from Harbison's website.

### Accuracy measurement and comparison

To evaluate the performance of our program, we collected known specificities from many famous websites, such as YPD, SCPD, Transfac and from the literature with experimental evidence [27] to compare with the discovered specificities predicted by our program.

*B*

_{ TF }collected from Harbison's website, we chose 36 transcription factor binding datasets which have known specificities with experimental evidence to evaluate the performance of our program. The results of our program for the 36 transcription factor binding datasets are listed in Figure 5. It is deserved to be mentioned that the specificity reported for transcription factor PHO2 in Harbrison

*et al*'s website is "GTGCGsyGCG", while the predicted result of our program is "ATTATC". In this case, the newly found motif by our program is more consistent with the results reported by Barbaric

*et al*[28] that PHO2 binds to an AT-rich region than the specificity reported in Harbrison

*et al*'s website.

*M*

_{ BG }in the calculation of the AMAP scores of the

*N*candidate motif sets and the appendant scores of the

*N*+ 1 motif sets. In Table 1, for each transcription factor, the number in each 'Rank' column indicates the rank of the predicted motif which is most consistent with the known evidence from the top ten predicted candidate motifs.

Comparison of MDscan and our program.

TF | Rank (EBN model) | Rank (PSSM model) | Rank (MDscan) |
---|---|---|---|

AFT2 | 1 | 1 | 1 |

BAS1 | 1 | 5 | 2 |

CAD1 | 1 | 5 | 4 |

CBF1 | 1 | 2 | 1 |

CIN5 | 1 | 2 | 1 |

FKH2 | 1 | 1 | 3 |

DAL82 | 2 | 1 | N* |

DIG1 | 2 | 3 | 1 |

FKH1 | 1 | 2 | 1 |

GAT1 | 1 | 2 | 2 |

GCN4 | 1 | 1 | 1 |

RPN4 | 1 | 1 | 1 |

GLN3 | 1 | 1 | 1 |

HAP4 | 1 | 3 | 1 |

INO2 | 1 | 2 | 1 |

INO4 | 2 | 2 | 1 |

LEU3 | 1 | 1 | 1 |

MBP1 | 1 | 1 | 2 |

MSN2 | 3 | 3 | 4 |

NRG1 | 1 | 2 | 1 |

PHO2 | 1 | 1 | 2 |

PHO4 | 1 | 2 | 1 |

RCS1 | 1 | 1 | 5 |

RAP1 | 1 | 3 | 2 |

RDS1 | 1 | 1 | 1 |

REB1 | 1 | 3 | 4 |

STE12 | 1 | 2 | 1 |

SWI4 | 3 | 2 | 4 |

TEC1 | 1 | 4 | 1 |

TYE7 | 1 | 1 | 4 |

UME6 | 1 | 1 | 3 |

YAP1 | 1 | 5 | 1 |

YAP7 | 1 | 2 | 1 |

HSF1 | 1 | 1 | 1 |

AZF1 | 1 | 1 | N |

MCM1 | 2 | 2 | N |

As shown in Table 1, our approach with EBN background model outperforms the other two methods. Our approach with EBN background model gives 30 out of the 36 most predicted motifs for the corresponding 36 transcription factors with the 1st rank, while MDscan and our approach with PSSM background model give only 20 out of 36 and 15 out of 36 most predicted motifs with the 1st rank, respectively. Moreover, MDscan fails in discovering a motif for three transcription factor binding datasets, while our approach in this study is still able to predict a motif consistent with the known evidence.

*E*-value criterion in MEME. In addition, three model types (OOPS, ZOOPS, or TCM) can data-adaptively be selected in Cosmo to achieve better performance. Since there is no prior knowledge used in our program, we compared it to the constraint-less version of the Cosmo program. On the other hand, since the Cosmo program reports only one motif PWM for a dataset, instead of a list of ranked candidate motif PWMs as in MDscan, we adopted only the rank 1 results of our program in this comparison. To evaluate the performance of both programs, we used the statistics proposed by Tompa et al. [4]. For a (computational) tool at the site level, the performance statistics on a dataset are defined as follows:

where *TP* is the number of known sites overlapped by predicted sites, *FN* is the number of known sites not overlapped by predicted sites, and *FP* is the number of predicted sites not overlapped by known sites. To summarize the performance of a given tool over a collection $\mathcal{C}$ of datasets, we compute the "combined" statistics as though *C* were one large dataset by adding *TP*, *FP* and *FN* respectively over the datasets in $\mathcal{C}$. Then the combined statistics of our program are *Sn* = 0.6698, *PPV* = 0.8206, and *ASP* = 0.7452, while those of Cosmo are *Sn* = 0.6573, *PPV* = 0.5134 and *ASP* = 0.5854. For the detailed Cosmo prediction results and the comparison of the two programs, please see Figure S1 (see Additional file 1). The comparison shows that our program can offer better performance than Cosmo, especially in the elimination of false positives.

The parameters used in our program include the sliding window size *w* used to extract segments from binding datasets *B*_{
TF
}to form *S*_{
TF
}, the Hamming distance *d* used to collect segments from *S*_{
TF
}to establish initial candidate motif sets, the number of most dependent edges used to form a dependency graph for the background motif model and the number of parents used in the construction of an expanded Bayesian network from the dependency graph [21]. The parameters used in our program to give the best predicted motifs for each of the 36 transcription factors are listed in Table S1 (see Additional file 2). Comparing the performance of the two sampling strategies discussed in the Method section, as shown in Figure S2 (see Additional file 3), we found that the alternative sampler is faster and has almost identical best predicted motifs with those by the primary sampler, except that transcription factors GCN4, HAP4 and PHO4 have the best predicted motifs one nucleotide position shift from those by the primary sampler. In addition, the alternative sampler is slightly better than the primary sampler in the sense that the best predicted motif for the transcription factor DIG1 promotes its rank from the 2nd place by the primary sampler to the 1st place by the alternative sampler.

## Conclusion

In this study, we employed the binomial probability model to establish a number of initial candidate motif sets, and used the method of dependence graphs and their expanded Bayesian networks to model the background motif set as a control to predict TFBSs (motifs) from a set of unaligned DNA sequences. The prediction results suggest that, overall, our algorithm outperforms MDscan since the predicted motifs are more consistent with previously known specificities reported in the literature and have better prediction ranks. And when compared with the constraint-less Cosmo program, our algorithm has a slightly higher combined sensitivity *Sn*, a much higher positive predictive value *PPV* and a higher average site performance *ASP*. However, the performance of our algorithm is not much better if the length of possible binding sites are too long (more than 12 bps). Further research is needed to discover long motifs.

Furthermore, variable spacing within binding sites is legitimate for some transcription factors while this study focuses on ungapped motif discovery. Programs such as BIPAD [31] and spaced dyad [32] have investigated into such a bipartitie sequence element discovery problem. Therefore another direction for our future research is to investigate into gapped motifs.

## Declarations

### Acknowledgements

We thank Yi-Sian Liao for helping the execution of our prediction program. We also thank the reviewers for their valuable suggestions which improve the presentation of this paper. This work was supported by the National Science Council, Taiwan, under Contracts NSC 93-3112-B-007-004 and NSC95-3114-P-002-005-Y.

This article has been published as part of *BMC Bioinformatics* Volume 9 Supplement 12, 2008: Asia Pacific Bioinformatics Network (APBioNet) Seventh International Conference on Bioinformatics (InCoB2008). The full contents of the supplement are available online at http://www.biomedcentral.com/1471-2105/9?issue=S12.

## Authors’ Affiliations

## References

- Liu XS, Brutlag DL, Liu JS: An algorithm for finding protein-DNA binding sites with applications to chromatin-immunoprecipitaion microarray experiments. Nat Biotechnol. 2002, 20: 835-839.View ArticlePubMedGoogle Scholar
- Zhang MQ: Computational analyses of eukaryotic promoters. BMC Bioinformatics. 2007, 8 (Suppl 6):Google Scholar
- Wasserman WW, Sandelin A: Applied bioinformatics for the identification of regulatory elements. Nat Rev Genet. 2004, 5: 276-287. 10.1038/nrg1315.View ArticlePubMedGoogle Scholar
- Tompa M, Li N, Bailey TL, Church GM, Moor BD, Eskin E, Favorov AV, Frith MC, Fu Y, Kent WJ, Makeev VJ, Mironov AA, Noble WS, Pavesi G, Pesole G, Regnier M, Simonis N, Sinha S, Thijs G, van Helden J, Vandenbogaert M, Weng Z, Workman C, Ye C, Zhu Z: Assessing computational tools for the discovery of transcription factor binding sites. Nat Biotechnol. 2005, 23: 137-144. 10.1038/nbt1053.View ArticlePubMedGoogle Scholar
- Hertz GZ, George W, Hartzell I, Stormo GD: Identification of consensus patterns in unaligned DNA sequences known to be functionally related. Comput Appl Biosci. 1990, 6: 81-92.PubMedGoogle Scholar
- Lawrence CE, Reilly AA: An expectation maximization (EM) algorithm for the identification and characterization of common sites in unaligned biopolymer sequences. Proteins. 1990, 7: 41-51. 10.1002/prot.340070105.View ArticlePubMedGoogle Scholar
- Bailey TL, Elkan C: The value of prior knowledge in discovering motifs with MEME. Proceedings of the Third International Comference on Intelligent Systems for Molecular Biology. 1995, Menlo Park, CA: AAAI Press, 21-29.Google Scholar
- Lawrence CE, Altschul SF, Boguski MS, Liu JS, Neuwald AF, Wootton JC: Detecting subtle sequence signals: A Gibbs sampling strategy for multiple alignment. Science. 1993, 262: 208-214. 10.1126/science.8211139.View ArticlePubMedGoogle Scholar
- Tagle DA, Koop BF, Goodman M, Slightom JL, Hess DL, Jones RT: Embryonic
*ε*and*γ*globin genes of a prosimian primate (Galago crassicaudatus). Nucleotide and amino acid sequences, developmental regulation and phylogenetic footprints. J Mol Biol. 1988, 203: 439-455. 10.1016/0022-2836(88)90011-3.View ArticlePubMedGoogle Scholar - Blanchette M, Schwikowski B, Tompa M: Algorithms for phylogenetic footprinting. J Comput Biol. 2002, 9: 211-223. 10.1089/10665270252935421.View ArticlePubMedGoogle Scholar
- Lenhard B, Sandelin A, Mendoza L, Engstrom1 P, Jareborg N, Wasserman WW: Identification of conserved regulatory elements by comparative genome analysis. J Biol. 2003, 2: 13-10.1186/1475-4924-2-13.PubMed CentralView ArticlePubMedGoogle Scholar
- Siddhartan R, Siggia ED, van Nimwegen E: PhyloGibbs: A Gibbs sampling motif finder that incorporates phylogeny. PLoS Comput Biol. 2005, 1: e67-10.1371/journal.pcbi.0010067.View ArticleGoogle Scholar
- Andersson SA, Lagergren J: Motif Yggdrasil: Sampling sequence motifs from a tree mixture model. J Comput Biol. 2007, 14 (5): 682-697. 10.1089/cmb.2007.R010.View ArticlePubMedGoogle Scholar
- Wasserman WW, Fickett JW: Identification of regulatory regions which confer muscle-specific gene expression. J Mol Biol. 1998, 278: 167-181. 10.1006/jmbi.1998.1700.View ArticlePubMedGoogle Scholar
- Johansson O, Alkema W, Wasserman WW, Lagergren J: Identification of functional clusters of transcription factor binding motifs in genome sequences: the MSCAN algorithm. Bioinformatics. 2003, 19 (Suppl 1): i169-i176. 10.1093/bioinformatics/btg1021.View ArticlePubMedGoogle Scholar
- Aerts S, Van Loo P, Thijs G, Moreau Y, De Moor B: Computational detection of cis-regulatory modules. Bioinformatics. 2003, 19 (suppl 2): ii5-ii14.View ArticlePubMedGoogle Scholar
- Workman CT, Stormo GD: ANN-Spec: A method for discovering transcription factor binding sites with improved specificity. Pac Symp Biocomput. 2002, 5: 467-478.Google Scholar
- Sinha S: Discriminative motifs. J Comput Biol. 2003, 10: 599-615. 10.1089/10665270360688219.View ArticlePubMedGoogle Scholar
- Smith AD, Sumazin P, Zhang MQ: Identifying tissue-selective transcription factor binding sites in vertebrate promoters. Proc Natl Acad Sci USA. 2005, 102: 1560-1565. 10.1073/pnas.0406123102.PubMed CentralView ArticlePubMedGoogle Scholar
- Bembom O, Keles S, van der Laan MJ: Supervised detection of conserved motifs in DNA sequences with Cosmo. Stat Appl Genet Mol Biol. 2007, 6: 8-Google Scholar
- Chen TM, Lu CC, Li WH: Prediction of splice sites with dependency graphs and their expanded bayesian networks. Bioinformatics. 2004, 21: 471-482. 10.1093/bioinformatics/bti025.View ArticlePubMedGoogle Scholar
- Harbison CT, Gordon DB, Lee TI, Rinaldi NJ, Macisaac KD, Danford TW, Hannett NM, Tagne JB, Reynolds DB, Yoo J, Jennings EG, Zeitlinger J, Pokholok DK, Kellis M, Rolfe PA, KT T, Lander ES, Gifford DK, Fraenkel E, Young RA: Transcriptional regulatory code of a eukaryotic genome. Nature. 2004, 431: 99-104. 10.1038/nature02800.PubMed CentralView ArticlePubMedGoogle Scholar
- Bailey TL, Elkan C: Unsupervised learning of multiple motif in biopolymers using expectation maximization. Machine Learning. 1995, 21: 51-80.Google Scholar
- Liu J, Neuwald AF, Larence CE: Bayesian models for multiple local sequence alignment and Gibbs sampling strategies. J Am Stat Assoc. 1995, 90: 1156-1170. 10.2307/2291508.View ArticleGoogle Scholar
- Neuwald AF, Liu JS, Lawrence CE: Gibbs motif sampling: Detection of bacterial outer membrane protein repeats. Protein Sci. 1995, 4: 1618-1632.PubMed CentralView ArticlePubMedGoogle Scholar
- Motif discovery results – Discovered motifs, version 24. [http://fraenkel.mit.edu/Harbison/release_v24/final_set/Final_Motifs/]
- MacIsaac KD, Wang T, Gordeon DB, Gifford DK, Stormo GD, Fraenkel E: An improved map of conserved regulatory sites for Saccharomyces cerevisiae. BMC Bioinformatics. 2006, 7: 113-10.1186/1471-2105-7-113.PubMed CentralView ArticlePubMedGoogle Scholar
- Barbaric S, Munsterkotter M, Svaren J, Horz W: The homeodomain protein Pho2 and the basic-helix-loop-helix protein Pho4 bind DNA cooperatively at the yeast PHO5 promoter. Nucleic Acids Res. 1996, 24: 4479-4486. 10.1093/nar/24.22.4479.PubMed CentralView ArticlePubMedGoogle Scholar
- MDscan: A fast and accurate motif finding algorithm with aApplications to chromatin immunoprecipitation microarray experiments. [http://ai.stanford.edu/~xsliu/MDscan/]
- Cosmo – Constrained search for motifs in DNA sequences. [http://cosmoweb.berkeley.edu/]
- Bi C, Rogan PK: BIPAD: A web server for modeling bipartite sequence elements. BMC Bioinformatics. 2006, 7: 76-10.1186/1471-2105-7-76.PubMed CentralView ArticlePubMedGoogle Scholar
- van Helden J, Rios AF, J CV: Discovering regulatory elements in non-coding sequences by analysis of spaced dyads. Nucleic Acid Res. 2000, 28: 1808-1818. 10.1093/nar/28.8.1808.View ArticlePubMedGoogle Scholar

## Copyright

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
