affy2sv: an R package to pre-process Affymetrix CytoScan HD and 750K arrays for SNP, CNV, inversion and mosaicism calling
© Hernandez-Ferrer et al.; licensee BioMed Central. 2015
Received: 24 July 2014
Accepted: 30 April 2015
Published: 20 May 2015
The well-known Genome-Wide Association Studies (GWAS) had led to many scientific discoveries using SNP data. Even so, they were not able to explain the full heritability of complex diseases. Now, other structural variants like copy number variants or DNA inversions, either germ-line or in mosaicism events, are being studies. We present the R package affy2sv to pre-process Affymetrix CytoScan HD/750k array (also for Genome-Wide SNP 5.0/6.0 and Axiom) in structural variant studies.
We illustrate the capabilities of affy2sv using two different complete pipelines on real data. The first one performing a GWAS and a mosaic alterations detection study, and the other detecting CNVs and performing an inversion calling.
Both examples presented in the article show up how affy2sv can be used as part of more complex pipelines aimed to analyze Affymetrix SNP arrays data in genetic association studies, where different types of structural variants are considered.
KeywordsAffymetrix CytoScan CytoScan HD CytoScan 750k CNV Inversion Mosaicism Structural variants
Genome-Wide Association Studies (GWAS) interrogate a large number of genetic variants with high-throughput technologies using single nucleotide polymorphisms (SNPs). Up to now, GWAS have led to many scientific discoveries including genes and gene variants related to cancer [1–4], asthma [5–7] or obesity [8, 9] among others. Nonetheless, SNPs have explained relatively little of the total heritability of complex diseases [10, 11]. In order to overcome this difficulty, researchers are also analyzing other structural genomic variants (SVs) such as copy number variants (CNVs) [12–14], inversions [15, 16] or chromosomal rearrangements present in mosaicism [17–19]. This has been possible due to the efforts made by scientific community in developing new tools to detect SV using existing SNP array data [20–22].
Over the last few years, commercial enterprises such as Affymetrix and Illumina, have produced high-density SNP arrays that made possible to genotype many markers in a single assay. These arrays are excellent tools to perform GWAS not only with SNPs but also with common and rare SVs. An example of it is Affymetrix CytoScan family, that includes a high-density array (CytoScan HD) and a light version array (CytoScan 750K) [23, 24]. This family of arrays was designed to provide a genome-wide overview of the whole genome since they include markers for constitutional and cancer genes and OMIM and RefSeq genes.
Affymetrix provides a wide range of software to analyze the data obtained from their arrays. The most common software to analyze CytoScan data is called Chromosome Analysis Suite (ChAS) . Despite the benefits, the usage of ad hoc software from Affymetrix has two main limitations. On one hand, while the raw data can be processed in a high throughput way, the analysis of the results is recommended to be performed by groups of three subjects. On the other hand, the set of available analysis is reduced to the algorithms included in the software, so no other custom-functionality can be added to help researchers to perform downstream analyses.
In order to overcome these drawbacks an R package called affy2sv has been created. This R package improves the advantages provided by ChAS incorporating new functionalities that make possible the analysis of CytoScan data using other existing R packages (MAD , R-GADA , snpStats , invClust [29, 30]) and external software (PLINK , PennCNV [32–34]), as well as data visualization. Therefore, affy2sv will facilitate the analysis of CytoScan data in SNPs, CNVs, mosaicism or inversion association studies using pipelines under R environment.
In this article, we illustrate affy2sv's performance by analyzing two different sets of SNP array generated with CytoScan platform. The first set includes population of two different locations: 429 subjects from general population of Toronto and 198 subjects from Nijmegen (Dataset A). The second set includes 315 subjects diagnosed with intellectual disability (Dataset B). Dataset A is used to illustrate how to compare genetic variants between two general populations under GWAS framework and how to detect mosaicism events. Dataset B is used to illustrate how to detect potentially pathogenic CNVs and how to perform inversion calling. The result obtained from the inversion analysis is the genotype of a well-known inversion located at chromosome 8p23.1 .
affy2sv is implemented as a R package freely available from its web page  and through CREAL-installer . affy2sv is based on standard CRAN and Bioconductor classes allowing for full flexibility, modularity and integration with other R packages.
affy2sv is compatible with the newest Affymetrix SNP array CytoScan HD/750k, but it also accepts Genome-Wide SNP 5.0/6.0 and Axiom arrays. It works with the raw data files, known as .CEL files. Internally, affy2sv uses the package CRLMM [38–41] to extract some measures [genotype, Log R Ratio (LRR) and B Allele Frequency (BAF)] from Genome-Wide SNP 5.0/6.0 raw data. To deal with Axiom and CytoScan arrays and to extract the homologous measures (genotype, allele peaks, allele intensities, LRR and BAF), affy2sv uses the Affymetrix Power Tools (APT) .
affy2sv can be used to process .CEL files and to generate R objects and files compatibles with snpStats, MAD, R-GADA, PLINK, and PennCNV. These R packages and programs are specifically designed to perform GWAS, analyze mosaicism and CNVs, respectively.
The R object generated for snpStats is called SnpMatrix Container. This object contains a MAP and a SnpMatrix. The MAP is a data.frame that includes an annotation for each SNP (SNP's name, chromosome, cM, position and alleles). The genotypes are stored in a SnpMatrix object. The file compatible with MAD and R-GADA is a tabular file for each subject containing the BAF, the LRR and the genotype of each SNP (SNP's name, chromosome, position, LRR, BAF and genotype). The compatibility with PLINK is reached creating a TPED file (transposed format), which contains the chromosome, SNP's name, genetic distance and position, followed by all the genotype-pairs. To work with PennCNV several files are required. The tools manual, available on its web page , explains its composition and how to generate them. affy2sv creates the a file that contains the LRR, BAF and genotype, called signal intensity file.
Step 1: Process raw data and get BAF, LRR and genotype
This step is performed using the function Cyto2APT. Cyto2APT is in charge to call the APT. These tools require a series of library and annotation files depending on the array-technology used. These files can be downloaded from the Affymetrix Library  and from the Affymetrix annotation  web pages. The user needs to download the files corresponding to their own data's technology. Later, the function APTparam creates a required object that indicates the correct system call to deal with apt-copynumber-cyto from APT. The following code illustrates the use of a standard call:
This code indicates that the raw .CEL files are located at /home/cydata. The argument output.path indicates where the intermediate files will be saved. In analysis.path is indicated the path where all the library and annotation files are stored. All the other arguments refer to the library and annotation files required by the function. These argument define the technology used in the array, the distribution of the probes, the name of each probe (and the related SNP) and others.
We thought these technical arguments could be hidden, but leaving them unmasked would allow the user to have more than one library (for example, one for CytoScan HD and another one for CytoScan 750K) or more than one version of a single library. The term intermediate files is used to refer to the files generated by Cyto2APT. These files are, in fact, the plain text version of the common .cychp files generated by apt-copynumber-cyto. So, at the end of this step, the intermediate files generated by Cyto2APT are the same files that could be obtained by using ChAS. This is because the system call to apt-copynumber-cyto generated by affy2sv is the recommended by Affymetrix in the tool's manual [46, 47].
In order to increase the versatility of the package affy2sv, we also make possible to create a personalized system call to apt-copynumber-cyto through APTparam. This can be done by setting the argument type from standard to custom . Then, it is needed to fill the argument param with a string containing all the arguments for apt-copynumber-cyto (arguments like cel.list, output.path… must not to be set on APTparam but in the string to param). An example of how to do it is available in the supplementary material (Additional file 1).
Once APTparam set up the arguments, Cyto2APT will manage with apt-copynumber-cyto to create the intermediate files. The following code is an example of how to use Cyto2APT:
Step 2: Generate a specific output
The R package affy2sv can create objects or files compatible with MAD, R-GADA, snpStats, PLINK and PennCNV. This is done using Cyto2Mad or Cyto2SnpMatrix depending on the desired output.
The function Cyto2Mad creates the files compatible with MAD, R-GADA and with PennCNV. The following code shows how to create the files compatible with MAD:
The first argument, cychp.files, indicates where the intermediate files are stored (in this case it takes the value /home/tmp). The second one, output.name, indicates where the files compatible with MAD will be saved (they will be saved into /home/mad). The third argument specifies the output's format (MAD). The last argument, annotation.file is filled with the path to the annotation file (in CSV format), provided by Affymetrix.
To create the files compatible compatible with PennCNV only the value of output.type needs to be changed from mad to penncnv:
The function Cyto2SnpMatrix is in charge of creating a SnpMatrix Container, an object compatible with the R package snpStats. An example of how this function is used:
The argument cychp.files (/home/tmp) takes the path where the intermediate files generated with Cyto2APT are stored. annotation.file is filled with the path to the annotation file (in CSV format), provided by Affymetrix. The output.type is set to snpmatrix to generate the SnpMatrix Container.
Setting the value of output.type to plink, and adding and filling the argument output.name with a valid directory, Cyto2SnpMatrix creates a file compatible with PLINK:
affy2sv can create a series of plots to help to perform a quality control process on CytoScan populations. The function Cyto2QCView allows to create three type of plots: 1) a plot to see how a single probe was genotyped for all the population 2) a plot, for a single individual, where the intensities of all its probes are shown 3) a plot, for a single individual, that displays the strength and the contrasts of all its probes. The following code shows how Cyto2QCView can be used:
Results and discussion
To show how affy2sv can be integrated in pipelines developed in R, two different datasets have been analyzed. Figure 1b shows a schema of these two analysis. Dataset A is used to illustrate how to perform a GWAS using CytoScan data. The same data is used to show how to detect genetic mosaicisms. Dataset B is used to describe how to analyze large CNVs and how to genetoype the well-known 8p23.1 inversion.
Results of analyzing Dataset A with aff2sv and snpStats

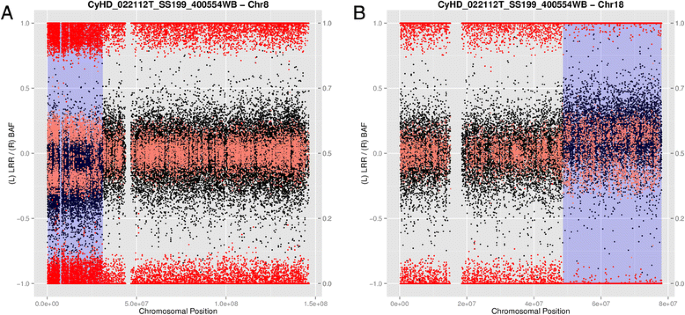

Results of analyzing Dataset A with aff2sv and MAD
Results of analyzing Dataset A with aff2sv and R-GADA
affy2sv is an R package to pre-process raw .CEL files from Affymetrix CytoScan HD and 750k arrays (also the old SNP arrays called Genome-Wide SNP 5.0/6.0 and Axiom). The package can be used to create a wide range of output files and object compatibles with other R packages, like snpStats or MAD, and external software, like PLINK and PennCNV, used in genetic structural variants studies.
Availability & requirements
Package's name: affy2sv
Package's state: affy2sv 1.0.12 with APT 1.16.1
Package's web page: affy2sv is available at Bioinformatic Research Group in Epidemiology (BRGE - CREAL) software page http://www.creal.cat/brge.htm. Also at its own page on bitbucket https://bitbucket.org/brge/affy2sv.
Package's manual: The package comes with its standard R documentation. A web page manual is available at the packages own page on bitbucket https://bitbucket.org/brge/affy2sv/wiki.
○ operating systems: Multiplatform (Windows, GNU/Linux and MAC OS)
○ r dependence: R (> = 3.0.0), snpStats, crlmm, oligo, oligoClasses, VanillaICE, SNPchip, genomewidesnp6Crlmm, genomewidesnp5Crlmm, ff, pd.genomewidesnp.6, pd.genomewidesnp.5, stringr, biomaRt, ggplot2, gtable, grid, data.table, Biobase, parallel, methods
○ external dependences: python 2.7, numpy (> = 1.7), pandas
Programming language: R, Python and C/C++
Any restrictions to use by non-academics: No restrictions to use affy2sv, check the license for APT at its own web page.
