Homology modeling and molecular dynamics provide structural insights into tospovirus nucleoprotein
BMC Bioinformatics volume 17, Article number: 489 (2016)
Tospovirus is a plant-infecting genus within the family Bunyaviridae, which also includes four animal-infecting genera: Hantavirus, Nairovirus, Phlebovirus and Orthobunyavirus. Compared to these members, the structures of Tospovirus proteins still are poorly understood. Despite multiple studies have attempted to identify candidate N protein regions involved in RNA binding and protein multimerization for tospovirus using yeast two-hybrid systems (Y2HS) and site-directed mutagenesis, the tospovirus ribonucleocapsids (RNPs) remains largely uncharacterized at the molecular level and the lack of structural information prevents detailed insight into these interactions.
Here we used the nucleoprotein structure of LACV (La Crosse virus-Orthobunyavirus) and molecular dynamics simulations to access the structure and dynamics of the nucleoprotein from tospovirus GRSV (Groundnut ringspot virus). The resulting model is a monomer composed by a flexible N-terminal and C-terminal arms and a globular domain with a positively charged groove in which RNA is deeply encompassed. This model allowed identifying the candidate amino acids residues involved in RNA interaction and N-N multimerization. Moreover, most residues predicted to be involved in these interactions are highly conserved among tospoviruses.
Crucially, the interaction model proposed here for GRSV N is further corroborated by the all available mutational studies on TSWV (Tomato spotted wilt virus) N, so far. Our data will help designing further and more accurate mutational and functional studies of tospovirus N proteins. In addition, the proposed model may shed light on the mechanisms of RNP shaping and could allow the identification of essential amino acid residues as potential targets for tospovirus control strategies.
Tospovirus is a thrips-borne plant-infecting genus within the family Bunyaviridae, which also includes four animal-infecting genera: Hanta/Nairo/Phlebo- and Orthobunyavirus . GRSV (Groundnut ringspot virus) is an emerging tospovirus, that has caused severe diseases in distinct vegetable crops in South America and is phylogenetically close to the tospovirus type-species TSWV (Tomato spotted wilt virus) . Like all tospoviruses, GRSV contain a trisegmented negative single-stranded RNA (ssRNA) genome that encodes the viral RNA-dependent RNA polymerase (RdRp), two glycoproteins (Gn/Gc), the movement protein (NSm), the RNA silencing suppressor protein (NSs) and the nucleoprotein (N) . N is a multifunctional protein involved in RNA protection, particle assembly, intracellular movement and might play a role in transcription/replication regulation [4–14]. Multiple copies of the N protein form oligomers that interact with the viral RNAs to build ribonucleoprotein complexes (RNPs) that are proposed to be transported via plasmodesmata and are functional templates for RNA replication and transcription [6, 15, 16].
Multiple studies have attempted to identify candidate N protein regions involved in RNA binding and protein multimerization for TSWV using yeast two-hybrid systems (Y2HS) and site-directed mutagenesis [4, 6, 17, 18], but the tospovirus RNPs remains largely uncharacterized at the molecular level and the lack of structural information prevents detailed insight into these interactions. The lack of a reverse genetics system, which is available for other bunyaviruses, has hampered tospovirus research. The N protein crystal structures of related RNA virus families (Arena/Orthomyxo/Bunyaviridae) have been elucidated [8, 19–26] and despite different size and distinct N-folding structures, there are common features and architectural principles by which these proteins form N-N multimers and N-RNA complexes . Therefore, these available structures were used to predict a three-dimensional model for GRSV N (the most important and prevalent tospovirus in Brazil) using homology modeling.
Results and discussion
Three-dimensional model of GRSV N and oligomerization

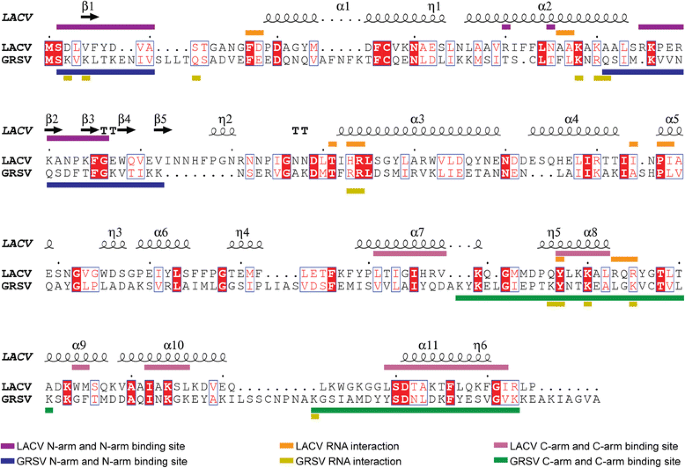

The GRSV N and LACV N have similar protein fold with the predicted GRSV N monomer forming thirteen helical segments and two small beta-sheets (Figs. 1, 2a and e-f). The protein has a globular core domain (26–223 aa) containing a deep positively charged groove with the two chain terminals forming an N-terminus arm (1–25 aa) and a C-terminus arm (224–258 aa) (Fig. 2a-b and Fig. 3). The N- and C-arms extend outwards from the globular core domain and interacts with the globular core domain of neighboring monomers to mediate the multimerization, supporting the “head-to-tail” model proposed by . Amino acids S2-V12 of the N-arm interact with the Q61-N82 of the core domain of one neighboring monomer (Fig. 2c and e) while K227-K249 of the C-arm interact with the K173–K198 of the core domain the other neighboring monomer (Fig. 2d and f). Specific residue-residue interactions have been listed in Table 1 for the two independent interfaces. According to PISA, the intermolecular interactions were mainly hydrogen bonds, but van der Waals and hydrophobic interactions also contribute to hold the monomers together (data not shown). This interaction model is further corroborated by the available mutational studies on TSWV N [4, 17, 18].
Actually, the first assay to map functional domains of TSWV N, performing Y2HS and random serial deletions, showed that both the N- (1–39 aa) and C-terminals (233–248 aa) were important for N-N interaction , in clear agreement with the structural results presented here. Furthermore,  identified three crucial intermonomer binding regions: 42–56, 132–152 and 222–248 which have a clear correspondence with the predicted interaction residues of GRSV N located at N- and C-arms, or buried in the core of the model (Fig. 3). Moreover, amino acids residues located at the regions K103-A119 and L132-V135 are solvent accessible and therefore are able to interact with NSm, glycoproteins, viral polymerase or host proteins [6, 7]. Recently, studies have been performed attempting to identify N-NSm interactions [28, 29] which results are in perfect congruence with the GRSV N protein model. In both cases, the model proposed here represents an efficient tool to assist in planning experiments with mutations and deletion in the N protein.
In addition, the obtained model for N protein was submitted to molecular dynamics simulations in order to both refine the structure in aqueous solvent [30, 31] and access the protein conformational ensemble, further exploring its structural and functional roles. During the simulation time, the globular core domain did not reveal any loss of secondary structure, increase of radius of gyration or persistent increments on RMSD values, which supports the model quality. It is worthy to mention that RMSF calculations indicate the N-terminal arm (1–25 aa) as a very flexible region (Fig. 4c).
According to the GRSV N protein model, the RNA is primarily bound at the central RNA-binding groove (Fig. 2b), and the key residues for this interaction (K3, K5, Q17, K58, R60, Q61, R94, R95, K183, Y184, K187, K192 and K227) are mainly located in this positively charged groove. This positively charged groove is only possible because residues F37, F56, F72, F74, I79, M91, F93 and L96 form a hydrophobic core, which is indispensable to stabilize the protein folding and to correctly orient the RNA interacting residues towards the groove. Importantly, these residues are highly conserved among all tospoviruses (Fig. 3). Note that the N-terminal arm is also involved in RNA binding and shielding RNA from the solvent (Fig. 2c-d). Residues F23, L54, F56, L57 and F93 were observed to modulate the RNA nucleobases dynamics during the performed simulation, while the N-terminal arm seems to play a stabilization role during MD simulations of GRSV N protein (Fig. 4a and b). In addition, the content of alpha-helices in GRSV N protein bound to RNA increased 25 % during the simulation in comparison to the free monomer (Fig. 4d), suggesting that, in the simulated timescale, the monomeric state does not present a lack of conformational stability in detriment of oligomeric states, as observed experimentally for other viruses [32, 33].
Recently, the residues R60, R94, and R95 were confirmed to interact with RNA , which also supports our results. RNA is strongly bent at each N-N interface and is largely solvent-inaccessible in the tetramer (Fig. 2d). The dimensions of the groove can accommodate ssRNA and PISA analysis showed that the majority of residue-nucleotide interactions occur with the ribose and the phosphate moieties, suggesting a non-sequence-specific RNA interaction. Indeed, Richmond et al.  carried out mutagenesis and gel shift assay studies to identify N regions important for ssRNA binding and demonstrated that the N-RNA complex is highly stable and non-sequence-specific, further supporting these results.
Taken together, these data will help designing further and more accurate mutational and functional studies of tospovirus N proteins. In addition, the proposed model may shed light on the mechanisms of RNP shaping and could allow the identification of essential amino acid residues as potential targets for tospovirus control strategies.
In silico homology modeling and model optimization
A template for modeling the GRSV N protein was searched in expasy SWISS-MODEL server  using the amino acid sequence of GRSV N as a reference. Template crystal structures of Orthobunyavirus genus were chosen due to their genetic relationship. The LACV (La Crosse virus-Orthobunyavirus) N tetrameric crystal structure in complex with ssRNA (PDB ID 4BHH) was selected as the template , aligned with GRSV N using T-Coffee server  and the resulting alignment was manually improved using BioEdit . Aligned sequences were used with MODELLERv9.10  to develop high quality tetrameric models along with or without RNA.
Optimization of the models was achieved using energy minimization protocols available at Yasara  and Chiron  servers. Quality of the 3D models were evaluated with ERRAT (version 2.0)  and MOL probity . Ramachandran plots for the models were assessed and Ramachandran outlier residues were fixed with COOT  and energy minimization. The highest quality model with 90.1 % residues in favored region and 8.4 % in allowed region while 1.5 % outlier at Ramachandran plot was selected after visual inspection (see Additional file 1: Figure S1). The model was subjected to the PISA program  for interface analysis at EBI-EMBL server and the retrieved PISA data was analyzed for binding patterns using PyMOL .
Molecular dynamics techniques were applied using GROMACS suite  in order to evaluate the stability and consistency of the obtained N protein monomeric model and investigate GRSV N protein-RNA interactions over time. Therefore, N protein model was simulated in the presence and absence of the modeled RNA, in two analytical systems. Amber99SB-ILDN force field  was used to generate proper topologies. The models were placed at the center of a dodecahedral box and solvated with TIP3P water model . Counterions were used to neutralize the net charge of the system, and 0.15 M of NaCl was added to the box in order to simulate cellular ionic environment.
After a minimization protocol using steepest descent and conjugate gradient to eliminate possible clashes and bad contacts, NVT ensemble with restraint forces of 1000 kJ/mol was carried for 4 ns at 300 K. Moreover, five subsequent equilibration steps in NPT ensemble were carried out at 1 bar with restraint forces of 800 kJ/mol on heavy atoms, 600 Kcal/(mol x nm) and 400 kJ/mol on mainchain, 200 kJ/mol on backbone and 100 kJ/mol on alpha-carbons, totalizing 13 ns. Finally, production runs with no restraints were carried for 50 ns using an integration step of 2 fs and LINCS algorithm . Also, Particle Mesh Ewald method  was applied for Coulombic and Lennard-Jones interactions longer than 1 nm.
Walter CT, Barr JN. Recent advances in the molecular and cellular biology of bunyaviruses. J Gen Virol. 2011;92(Pt 11):2467–84.
de Avila AC, de Haan P, Kormelink R, Resende Rde O, Goldbach RW, Peters D. Classification of tospoviruses based on phylogeny of nucleoprotein gene sequences. J Gen Virol. 1993;74(Pt 2):153–9.
Pappu HR, Jones RA, Jain RK. Global status of tospovirus epidemics in diverse cropping systems: successes achieved and challenges ahead. Virus Res. 2009;141(2):219–36.
Richmond KE, Chenault K, Sherwood JL, German TL. Characterization of the nucleic acid binding properties of tomato spotted wilt virus nucleocapsid protein. Virology. 1998;248(1):6–11.
Ribeiro D, Borst JW, Goldbach R, Kormelink R. Tomato spotted wilt virus nucleocapsid protein interacts with both viral glycoproteins Gn and Gc in planta. Virology. 2009;383(1):121–30.
Soellick T, Uhrig JF, Bucher GL, Kellmann JW, Schreier PH. The movement protein NSm of tomato spotted wilt tospovirus (TSWV): RNA binding, interaction with the TSWV N protein, and identification of interacting plant proteins. Proc Natl Acad Sci U S A. 2000;97(5):2373–8.
Feng Z, Chen X, Bao Y, Dong J, Zhang Z, Tao X: Nucleocapsid of Tomato spotted wilt tospovirus forms mobile particles that traffic on an actin/endoplasmic reticulum network driven by myosin XI-K. New Phytol. 2013;200(4):1212-24.
Ariza A, Tanner SJ, Walter CT, Dent KC, Shepherd DA, Wu W, et al. Nucleocapsid protein structures from orthobunyaviruses reveal insight into ribonucleoprotein architecture and RNA polymerization. Nucleic Acids Res. 2013;41(11):5912–26.
Guu TS, Zheng W, Tao YJ. Bunyavirus: structure and replication. Adv Exp Med Biol. 2012;726:245–66.
de Oliveira AS, Melo FL, Inoue-Nagata AK, Nagata T, Kitajima EW, Resende RO. Characterization of bean necrotic mosaic virus: a member of a novel evolutionary lineage within the genus tospovirus. PLoS One. 2012;7(6):e38634.
Snippe M, Willem Borst J, Goldbach R, Kormelink R. Tomato spotted wilt virus Gc and N proteins interact in vivo. Virology. 2007;357(2):115–23.
Mir MA, Panganiban AT. The bunyavirus nucleocapsid protein is an RNA chaperone: possible roles in viral RNA panhandle formation and genome replication. RNA (New York, NY). 2006;12(2):272–82.
Mir MA, Panganiban AT. The hantavirus nucleocapsid protein recognizes specific features of the viral RNA panhandle and is altered in conformation upon RNA binding. J Virol. 2005;79(3):1824–35.
Brennan B, Welch SR, Elliott RM. The consequences of reconfiguring the ambisense S genome segment of rift valley fever virus on viral replication in mammalian and mosquito cells and for genome packaging. PLoS Pathog. 2014;10(2):e1003922.
Li W, Lewandowski DJ, Hilf ME, Adkins S. Identification of domains of the tomato spotted wilt virus NSm protein involved in tubule formation, movement and symptomatology. Virology. 2009;390(1):110–21.
Singh P, Indi SS, Savithri HS. Groundnut bud necrosis virus encoded NSm associates with membranes via its C-terminal domain. PLoS One. 2014;9(6):e99370.
Kainz M, Hilson P, Sweeney L, Derose E, German TL. Interaction between tomato spotted wilt virus N protein monomers involves nonelectrostatic forces governed by multiple distinct regions in the primary structure. Phytopathology. 2004;94(7):759–65.
Uhrig JF, Soellick TR, Minke CJ, Philipp C, Kellmann JW, Schreier PH. Homotypic interaction and multimerization of nucleocapsid protein of tomato spotted wilt tospovirus: identification and characterization of two interacting domains. Proc Natl Acad Sci U S A. 1999;96(1):55–60.
Zheng W, Olson J, Vakharia V, Tao YJ. The crystal structure and RNA-binding of an orthomyxovirus nucleoprotein. PLoS Pathog. 2013;9(9):e1003624.
Reguera J, Malet H, Weber F, Cusack S. Structural basis for encapsidation of genomic RNA by La Crosse orthobunyavirus nucleoprotein. Proc Natl Acad Sci U S A. 2013;110(18):7246–51.
Dong H, Li P, Elliott RM, Dong C. Structure of schmallenberg orthobunyavirus nucleoprotein suggests a novel mechanism of genome encapsidation. J Virol. 2013;87(10):5593–601.
Niu F, Shaw N, Wang YE, Jiao L, Ding W, Li X, et al. Structure of the leanyer orthobunyavirus nucleoprotein-RNA complex reveals unique architecture for RNA encapsidation. Proc Natl Acad Sci U S A. 2013;110(22):9054–9.
Raymond DD, Piper ME, Gerrard SR, Skiniotis G, Smith JL. Phleboviruses encapsidate their genomes by sequestering RNA bases. Proc Natl Acad Sci U S A. 2012;109(47):19208–13.
Carter SD, Surtees R, Walter CT, Ariza A, Bergeron E, Nichol ST, et al. Structure, function, and evolution of the Crimean-Congo hemorrhagic fever virus nucleocapsid protein. J Virol. 2012;86(20):10914–23.
Ferron F, Li Z, Danek EI, Luo D, Wong Y, Coutard B, et al. The hexamer structure of rift valley fever virus nucleoprotein suggests a mechanism for its assembly into ribonucleoprotein complexes. PLoS Pathog. 2011;7(5):e1002030.
Brunotte L, Kerber R, Shang W, Hauer F, Hass M, Gabriel M, et al. Structure of the Lassa virus nucleoprotein revealed by X-ray crystallography, small-angle X-ray scattering, and electron microscopy. J Biol Chem. 2011;286(44):38748–56.
Reguera J, Cusack S, Kolakofsky D. Segmented negative strand RNA virus nucleoprotein structure. Curr Opin Virol. 2014;5:7–15.
Tripathi D, Raikhy G, Pappu HR. Movement and nucleocapsid proteins coded by two tospovirus species interact through multiple binding regions in mixed infections. Virology. 2015;478:137-47.
Leastro MO, Pallas V, Resende RO, Sanchez-Navarro JA. The movement proteins (NSm) of distinct tospoviruses peripherally associate with cellular membranes and interact with homologous and heterologous NSm and nucleocapsid proteins. Virology. 2015;478c:39–49.
Kairys V, Gilson MK, Fernandes MX. Using protein homology models for structure-based studies: approaches to model refinement. TheScientificWorldJOURNAL. 2006;6:1542–54.
Sellers BD, Nilmeier JP, Jacobson MP. Antibodies as a model system for comparative model refinement. Proteins. 2010;78(11):2490–505.
Dong H, Li P, Bottcher B, Elliott RM, Dong C. Crystal structure of schmallenberg orthobunyavirus nucleoprotein-RNA complex reveals a novel RNA sequestration mechanism. RNA (New York, NY). 2013;19(8):1129–36.
Li J, Feng Z, Wu J, Huang Y, Lu G, Zhu M, et al. Structure and function analysis of nucleocapsid protein of tomato spotted wilt virus interacting with RNA using homology modeling. J Biol Chem. 2015;290(7):3950–61.
Biasini M, Bienert S, Waterhouse A, Arnold K, Studer G, Schmidt T, et al. SWISS-MODEL: modelling protein tertiary and quaternary structure using evolutionary information. Nucleic Acids Res. 2014;42(Web Server issue):W252–8.
Notredame C, Higgins DG, Heringa J. T-coffee: a novel method for fast and accurate multiple sequence alignment. J Mol Biol. 2000;302(1):205–17.
Hall T. BioEdit: a user-friendly biological sequence alignment editor and analysis program for windows 95/98/NT. Nucleic Acids Symp Ser. 1999;41:95–8.
Sali A, Blundell TL. Comparative protein modelling by satisfaction of spatial restraints. J Mol Biol. 1993;234(3):779–815.
Krieger E, Joo K, Lee J, Lee J, Raman S, Thompson J, et al. Improving physical realism, stereochemistry, and side-chain accuracy in homology modeling: four approaches that performed well in CASP8. Proteins. 2009;77 Suppl 9:114–22.
Ramachandran S, Kota P, Ding F, Dokholyan NV. Automated minimization of steric clashes in protein structures. Proteins. 2011;79(1):261–70.
Colovos C, Yeates TO. Verification of protein structures: patterns of nonbonded atomic interactions. Protein sci pub protein soc. 1993;2(9):1511–9.
Chen VB, Arendall 3rd WB, Headd JJ, Keedy DA, Immormino RM, Kapral GJ, et al. MolProbity: all-atom structure validation for macromolecular crystallography. Acta Crystallogr D Biol Crystallogr. 2010;66(Pt 1):12–21.
Emsley P, Lohkamp B, Scott WG, Cowtan K. Features and development of coot. Acta Crystallogr D Biol Crystallogr. 2010;66(Pt 4):486–501.
Krissinel E, Henrick K. Inference of macromolecular assemblies from crystalline state. J Mol Biol. 2007;372(3):774–97.
Delano W. The PyMOL molecular graphics system. San Carlos: DeLano Scientific; 2002.
Abraham MJ, Murtola T, Schulz R, Páll S, Smith JC, Hess B, et al. GROMACS: high performance molecular simulations through multi-level parallelism from laptops to supercomputers. SoftwareX. 2015;1–2:19–25.
Lindorff-Larsen K, Piana S, Palmo K, Maragakis P, Klepeis JL, Dror RO, et al. Improved side-chain torsion potentials for the amber ff99SB protein force field. Proteins. 2010;78(8):1950–8.
Jorgensen WL, Madura JD. Quantum and statistical mechanical studies of liquids. 25. Solvation and conformation of methanol in water. J Am Chem Soc. 1983;105(6):1407–13.
Hess B, Bekker H, Berendsen HJC, Fraaije JGEM. LINCS: a linear constraint solver for molecular simulations. J Comput Chem. 1997;18(12):1463–72.
Essmann U, Perera L, Berkowitz ML, Darden T, Lee H, Pedersen LG. A smooth particle mesh ewald method. J Chem Phys. 1995;103(19):8577–93.
This article has been published as part of BMC Bioinformatics Volume 17 Supplement 18, 2016. Proceedings of X-meeting 2015: 11th International Conference of the AB3C + Brazilian Symposium on Bioinformatics: bioinformatics. The full contents of the supplement are available online https://bmcbioinformatics.biomedcentral.com/articles/supplements/volume-17-supplement-18.
Publication of this paper has been funded by CNPq (Conselho Nacional de Desenvolvimento Científico e Tecnológico), CAPES (Coordenação de Aperfeiçoamento de Pessoal de Nível Superior), and FAPDF (Fundação de Apoio à Pesquisa do Distrito Federal), Brazil.
Availability of data and materials
The datasets supporting the conclusions of this article are included within the article and its supplementary files.
Conceived and designed the experiments: JARGB MF RNL. Performed the homology modeling: MF RNL. Performed the Molecular Dynamics: HV MDP. Analyzed the data: FLM HV JARGB MDP MF RNL ROR. Wrote the paper: FLM HV JARGB MDP MF RNL ROR. All authors read and approved the final manuscript.
The authors declare that they have no competing interests.
Consent for publication
Ethics approval and consent to participate
Additional file 1:
Ramachandran plot analysis of predicted structure of Groundnut ringspot virus (GRSV) N protein. The regions covered by light blue lines show most favored regions, while the regions covered by dark blue lines show allowed regions. Other regions of the plot show the disallowed region. The pink dots show the outliers (PNG 87 kb)
Additional file 2:
The Genbank acession numbers of the viruses used at this work (TABLEDOCX 19 kb)
