ODG: Omics database generator - a tool for generating, querying, and analyzing multi-omics comparative databases to facilitate biological understanding
BMC Bioinformatics volume 18, Article number: 367 (2017)
Rapid generation of omics data in recent years have resulted in vast amounts of disconnected datasets without systemic integration and knowledge building, while individual groups have made customized, annotated datasets available on the web with few ways to link them to in-lab datasets. With so many research groups generating their own data, the ability to relate it to the larger genomic and comparative genomic context is becoming increasingly crucial to make full use of the data.
The Omics Database Generator (ODG) allows users to create customized databases that utilize published genomics data integrated with experimental data which can be queried using a flexible graph database. When provided with omics and experimental data, ODG will create a comparative, multi-dimensional graph database. ODG can import definitions and annotations from other sources such as InterProScan, the Gene Ontology, ENZYME, UniPathway, and others. This annotation data can be especially useful for studying new or understudied species for which transcripts have only been predicted, and rapidly give additional layers of annotation to predicted genes. In better studied species, ODG can perform syntenic annotation translations or rapidly identify characteristics of a set of genes or nucleotide locations, such as hits from an association study. ODG provides a web-based user-interface for configuring the data import and for querying the database. Queries can also be run from the command-line and the database can be queried directly through programming language hooks available for most languages. ODG supports most common genomic formats as well as generic, easy to use tab-separated value format for user-provided annotations.
ODG is a user-friendly database generation and query tool that adapts to the supplied data to produce a comparative genomic database or multi-layered annotation database. ODG provides rapid comparative genomic annotation and is therefore particularly useful for non-model or understudied species. For species for which more data are available, ODG can be used to conduct complex multi-omics, pattern-matching queries.
Collecting genomic and transcriptomic data has become fast and easy. Making biological sense of these data remains challenging. For model systems curated databases (e.g. MaizeGDB, SoyBase, WormBase) provide powerful tools that integrate, analyze, and visually display complementary data types such as annotated metabolic pathways, characterized genes, and diversity analyses. These curated databases greatly facilitate biological insights [1,2,3,4]. Even these curated databases, however, have limitations that impede biologists ability to leverage omics data: complicated multi-omics queries are difficult or impossible due to limits in the underlying database functionality, users are often unable to integrate their own data into the databases, there is little flexibility for users to design specific queries, and many curated datasets, such as pathway or transcriptomic datasets, are limited by the lack of additional integrated annotations and comparative genomics. Despite these limitations, the resources available in curated reference databases available for model systems greatly exceed what is available for non-model systems.
We developed the Omics Database Generator (ODG), an easy to configure database that is amenable for custom installations and use with non-model systems. ODG allows users to integrate and query many data types (genomic, transcriptomic, comparative, variant, ontological, annotated pathway, interactions, etc.) in fast and powerful ways and can easily incorporate new data. ODG also has built in functions for translating annotation between different versions of assembly and annotation. Finally, ODG provides an easy-to-use web interface and command-line to perform queries while the structure of the database allows for flexible queries that would be difficult without extensive modification in most other database platforms. ODG can supplement large-scale curated databases but is flexible enough for individual labs to run on a local machine.
ODG has several advantages over many commonly used genomic databases: i) Advanced query capabilities allow users to explore relationships and ask queries that are virtually impossible with relational databases, and difficult without extensive customization with BioMart-type setups, ii) ODG is easy to setup for any organism and its related species, and automatically generates a query interface, and iii) easy and automatic cross-referencing of gene names and coordinates from one genome release to another (e.g., v 3 to v 5) and from one genome to related species’ genomes. Research and annotation of non-model systems can therefore be facilitated by comparison to model systems to enrich annotation. iv) By using scalable open-source technologies, researchers can run a customized local copy for their lab, and curators of larger database sites can integrate features of ODG into their existing platforms.
Architecture and importing data
The underlying structure of ODG relies on graph database storage. ODG stores and queries data using Neo4J, an open-source graph database that has recently grown in popularity and maturity . Graph databases differ from relational databases used for most biological databases in that they do not require the data be fit into the underlying database paradigm, something that can be difficult to achieve because many types of biological data do not fit into strict schemas. For example, CHADO, a relational database that underlies many commonly used genomic databases, requires that biological data be fit into strict schema for SQL queries . The result is a data structure unrepresentative of the underlying biological paradigms, and the SQL schema must be learned in order to conduct queries. In SQL relationships between data are typically stored in a separate table, one additional table for each relationship type. Therefore, to maximize the potential of CHADO one must learn both SQL and the CHADO schema itself.

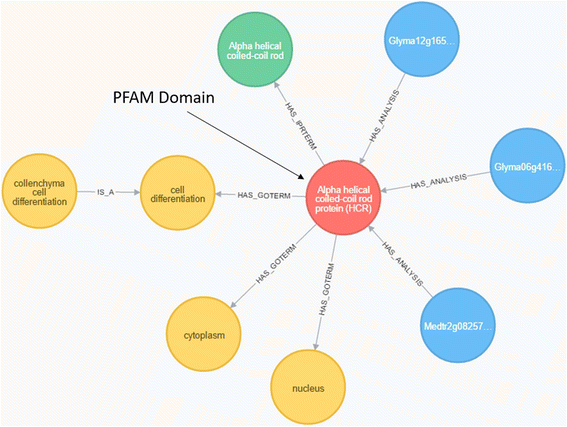

In contrast, graph databases model the data and their relationships more intuitively and allow for flexible data structures of both nodes, representing data, and edges, representing the relationship between nodes (Fig. 1 ). This flexible schema allows for custom fields such as additional annotation and metadata. The stored relationships make the data amenable to easier and more powerful queries. All data are stored locally, making it is possible for users to select genomes and experimental data to include in the database, utilize internally generated data, and prioritize integration of data that are most relevant to specific research projects. This structure allows for flexible queries that would be difficult without extensive modification in other database platforms.
Initial configuration of databases is typically a complex process that requires knowledge and expertise in systems administration. By contrast, initial configuration of ODG is accomplished easily using a web-based tool that leads users through the process and can be installed on a local workstation or laptop with only a basic knowledge of UNIX (Fig. 2). ODG assists in initial configuration and setup by providing necessary scripts and automatically generating a full network-oriented query interface based on input files.
Once ODG is installed and configured, the next step is to perform initial processing steps to identify initial annotation information (i.e., running BLAST+ or InterProScan, if not previously completed) [7, 8]. ODG then imports data specified in the configuration file, including the importing of several omic data types (genomic, transcriptomic, comparative, variant, ontological, annotated pathways, and gene interactions, etc.) with the only limitation being that the data are available in standard file formats (e.g. GFF3, FASTA, TSV, OBO, etc.). New data and resources can be added at any time and ODG can be fully regenerated as needed. ODG saves configurations between uses to facilitate adding or updating data sources.
Data types and database generation
ODG will import and create appropriate relationships from annotation files, assemblies, BLAST results, miRBase, Cufflinks expression data, InterProScan results, including motifs, Pfam, Gene3D, and Coils [8,9,10]. In order to provide further annotation information, the Gene Ontology and ExPASY ENZYME definition files can be imported to add additional data to GO (Gene Ontology) term IDs, which receive relationships from InterProScan results . Pathways from PlantCyc can also imported, but any pathways with the same file format will work . Molecular interactions from BioGRID can also be imported . Other data can be converted into generic file formats to import new attributes or relationships into ODG. Each additional data type imported can add a new dimension of annotation to the database, as illustrated in Fig. 3.
Static data, such as annotations and assemblies, must be obtained from public repositories or provided by researchers. InterProScan and cufflinks must be performed manually by user, due to the complexity and needs for each genome, but common output formats from both programs can be imported directly into ODG. Further guidelines are provided in the user’s guide. Other data must be generated locally, including BLASTP matches and BLASTN matches such as hairpin miRNAs and genomic regions. ODG generates scripts to run BLAST+ programs to ensure compatible output files are created and file names are as expected by the import step. When cufflinks expression files are included in the configuration, ODG will store and record expression conditions, FPKMs, and generate co-expression correlations and store them as relationships.
ODG is well suited for transferring information from one or more model organisms or other well-studied species to a newly sequenced or understudied species. With a minimum of genome sequence and predicted coding sequences it is possible to BLAST these sequences to other organisms and ODG will identify the best reciprocal hits and best syntenic hits. Data from other organisms such as known pathways or expression data will then be associated with these coding sequences. InterProScan can be run to identify known motifs and domains to associate putative genes to GO categories, PFAM domains, and UniPathway annotations which can then be used as a basis for further queries . Additional data such as expression information can provide gene expression patterns and be used in queries.
Inferred network relationships

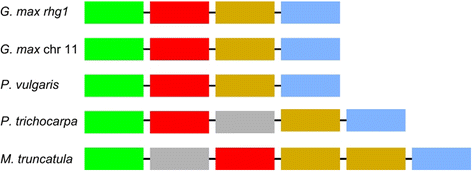

Data in ODG is a network based on relationships between data nodes. ODG can work with subnetworks to identify biological patterns. Because not all species have defined co-expression or pathway networks, ODG has the ability to infer network relationships when direct relationships are not available. For example, when an unannotated gene has a top BLASTP hit to an annotated gene that has been placed in the same co-expression network, then the information from the annotated gene can be assayed to provide possible annotations for the unannotated gene, such as GO terms or ENZYME pathway data. The power to infer or transfer annotation information can be particularly useful when working on un-curated datasets or understudied species.
Annotation translation between genome versions
Updates of genome assemblies and annotations yield versions that are closer to the true representation of genomes, but can cause confusion because different genome versions often differ in gene models, locations, and construction. Currently, annotation between genome versions is accomplished using liftOver which converts coordinates from a previous assembly to coordinates in a new assembly . The liftOver approach is not ideal because it does not account for updated gene models, gene splits, or gene merges. ODG compares annotation versions or transfer annotations by performing an all-vs-all BLASTN to identify gene ID changes, and can detect and mark most gene splits and merges between annotation versions. When confronted with ambiguity, such as multiple top BLAST hits, neighboring genes will be used to identify the correct gene model in both versions by taking into account genic synteny. Identical BLAST hits can be an issue with recent duplications or gene families. The nature of the graph database makes the use of neighboring gene models a flexible query, where changes in the immediate region, such as newly annotated genes or deleted gene models, will not hinder the syntenic search (Fig. 4).
Performing database queries
Once data have been imported and the database generated, there are four methods that can be used to query the database. Table 1 lists queries that are built-in to the database. An ODG web query interface can be started with the command: odg.sh start and the user can open their browser to http://localhost:6789 to access ODG’s built-in query interface. Figure 5 provides some screen captures from this interface, including additional layers of annotation for the specified gene. For large queries, it is often best to use the command-line. More advanced users can mount the ODG database into the Neo4J query framework and write their own queries, or query directly from a programming language such as R or Java using existing Neo4J adapters and libraries.
Through the web interface and command-line interface (CLI) the database can be queried using individual Gene IDs, a gene list, a set of genomic coordinates, or other feature names, simply by choosing the species to be queried from the drop-down menu and then typing an identifier. ODG will return the node corresponding to the query, its information, and a set of relationships. Each node and relationship may be clicked on to view additional data.
While ODG has several built-in queries, advanced users can query the database directly using CYPHER, the query language of Neo4j, directly through Neo4J’s web interface or via language hooks available for many programming languages. An example of this is featured in Additional file 1: Fig. S1. ODG also supports many queries via the command-line interface, allowing for larger queries to be executed without the overhead of a web server running in the background. For example, we have used customized command-line queries to pull out useful data from several thousand SNPs identified via GWAS, identify orthologs for a list of genes, determine ENZYME E.C. numbers from GO categories, and to retrieve GO biological process terms for a list of genes. Additional queries may be written in Java or other programming languages.
Comparative Omics study
To illustrate the usefulness of ODG we examined four recently sequenced and published strains of Rhizobia, a bacterial species which can form nitrogen-fixing nodules with some legumes, a useful trait in agriculture. We examined Rhizobium aegypticaum sv. trifolii, Rhizobium bangladeshense sv. trifolii, two species with limited foundational research published, and compared these to the well-studied bacteria Escherichia coli and Ensifer meliloti (previously known as Sinorhizobium meliloti), a model bacterium for studying legume-rhizobia symbiosis [15,16,17,18]. R. aegypticaum and R. bangladeshense were isolated from berseem clover in Egypt. R. aegypticaum, strain Rhiz950, is salt-tolerant; the three strains of R. bangladeshense, Rhiz1002, Rhiz1017, and Rhiz1024, are thermal and pH-tolerant. Genes were predicted for the four rhizobia strains using prodigal . Published annotations of E. coli and E. meliloti were used in this study. All were compared with BLAST+ using scripts generated by ODG and analyzed with InterProScan 5.24–63.0 [7, 20].
To examine potential causative genes for the salt-tolerance trait in Rhiz950, we compared GO biological process categories of the predicted Rhiz950 proteins to those in the other four strains. In Rhiz950 we identified three genes with GO biological process categories “sodium ion transport” and “oxidation-reduction process” but none in any of the other strains. An additional gene was found related to “sodium ion transport” and “alanine transport” with no orthologs identified in R. bangladeshense. Additionally, two more with the combined categories of “sodium ion transport” and “regulation of pH” had two copies in Rhiz950, missing in Rhiz1002, and one copy in the remaining strains (Additional file 2: Table S2).
We further examined the pathways present in all Rhiz950 genes that did not have orthologs in any of the other species (Rhiz950 vs. all). We identified genes belonging to the mevalonate pathway I and isoprene biosynthesis II, as defined by MetaCyc and KEGG [21, 22]. The identified PFAM domains of all genes in Rhiz950 are included as Additional file 2: Table S2.
The R. bangladeshense strains contain two genes related to the queuosine biosynthesis pathway not found in any of the other strains, including Rhiz950. Examining PFAM domains reveals 1865 novel genes in these three strains that are related to ABC transporters, 912 belonging to the lysR regulatory family, and 874 having a LysR substrate binding domain. Additional ones are reported in Additional file 2: Table S2.
Additional file 3: Table S3 contains predicted functional annotation derived from the better studied bacteria E. meliloti or E. coli based on best orthologs. Future directions for this study would likely include transcriptomic data from all species, potential knockouts, and literature searches for existing gene orthologs in either E. coli or E. meliloti potentially related to these traits.
Using ODG we were able to rapidly identify genes potentially related to the salt-tolerance trait for follow-up studies, identify potential pathways found in Rhiz950, and examine some differences between R. bangladeshense strains and the other strains.
Results and discussion
ODG provides an alternative way of storing and analyzing biological data, brings the ability to host and run custom tailored databases to individual labs and researchers, and provides a platform for connecting newly sequenced or understudied species with annotated species and other genomic and experimental information. By focusing on user-provided data while interacting with existing and published data researchers are able to customize databases and queries for their projects. ODG’s flexibility allows researchers to focus on the data that is important to them, while the interface lowers the computational skills required to build and query the database. ODG could also benefit a larger database warehousing site for a model organism that chose to use its API or query the final database product directly.
ODG builds networks from user-specified input data that provide the basis for all queries. The database has been primarily tested on plants and bacteria, but by working with standard file formats and allowing for some deviation from those standards, should work on a variety of organisms with zero or minimal additional processing. By also accepting user-defined data, the database can be made to fit many research needs.
As demonstrated in the omics study presented above, ODG has the capability to rapidly facilitate annotation, comparative searches, and predicted protein analyses across multiple genomes adding additional dimensions to relatively sparse data. This will accommodate researchers studying new species and well-studied species at the single-gene scale and genomic scales by centralizing much of their data. By allowing additional data-types and being built using within an open-source database engine, ODG enables researchers to add in new layers of data which can then be made available to the lab or potentially to the public.
ODG changes how researchers store and query data at genome-scales, facilitating knowledge transfer from prior work on model organisms and related species. ODG is most useful to researchers working with understudied organisms, as well as those performing genome-wide studies where many loci are queried at once. Full usage of ODG requires database generation, allowing users to utilize appropriate data sources and types for their project. Once database generation is complete, a query mode is available, allowing usage by a web browser for basic queries yet providing a programmatic interface for more advanced users.
Availability and requirements
Project name: Omics Database Generator
Project home page: https://github.com/jguhlin/odg
Operating system(s): Mac OS X, Windows, Linux, Unix
Programming language: Clojure, Java
Other requirements: Java 1.8 or higher
License: GNU GPL v3
Any restrictions to use by non-academics: None
Omics Database Generator
Lawrence CJ, Dong Q, Polacco ML, Seigfried TE, Brendel V. MaizeGDB, the community database for maize genetics and genomics. Nucleic Acids Res. 2004;32(Database issue):D393–7. doi:10.1093/nar/gkh011.
Joshi T, Fitzpatrick MR, Chen S, Liu Y, Zhang H, Endacott RZ, et al. Soybean knowledge base (SoyKB): a web resource for integration of soybean translational genomics and molecular breeding. Nucleic Acids Res. 2014;42(Database issue):D1245–52. doi:10.1093/nar/gkt905.
Grant D, Nelson RT, Cannon SB, Shoemaker RC. SoyBase, the USDA-ARS soybean genetics and genomics database. Nucleic Acids Res. 2010;38(Database issue):D843–6. doi:10.1093/nar/gkp798.
Chen N, Harris TW, Antoshechkin I, Bastiani C, Bieri T, Blasiar D, et al. WormBase: a comprehensive data resource for Caenorhabditis biology and genomics. Nucleic Acids Res. 2005;33(Database issue):D383–9. doi:10.1093/nar/gki066.
Neo4j: The World’s Leading Graph Database. http://neo4j.com/. Accessed 10 Mar 2017.
Introduction to Chado. http://gmod.org/wiki/Introduction_to_Chado. Accessed 10 Mar 2017.
Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ. Basic local alignment search tool. J Mol Biol. 1990;215:403–10. doi:10.1016/S0022-2836(05)80360-2.
Zdobnov EM, Apweiler R. InterProScan - an integration platform for the signature-recognition methods in InterPro. Bioinformatics. 2001;17:847–8. doi:10.1093/bioinformatics/17.9.847.
Trapnell C, Roberts A, Goff L, Pertea G, Kim D, Kelley DR, et al. Differential gene and transcript expression analysis of RNA-seq experiments with TopHat and cufflinks. Nat Protoc. 2012;7:562–78. doi:10.1038/nprot.2012.016.
Griffiths-Jones S, Grocock RJ, van Dongen S, Bateman A, Enright AJ. miRBase: microRNA sequences, targets and gene nomenclature. Nucleic Acids Res. 2006;34(Database issue):D140–4. doi:10.1093/nar/gkj112.
Ashburner M, Ball CA, Blake JA, Botstein D, Butler H, Cherry JM, et al. Gene ontology: tool for the unification of biology. Nat Genet. 2000;25:25–9. doi:10.1038/75556.
Plant Metabolic Network (PMN). http://www.plantcyc.org/. Accessed 4 Mar 2017.
Stark C, Breitkreutz B-J, Reguly T, Boucher L, Breitkreutz A, Tyers M. BioGRID: a general repository for interaction datasets. Nucleic Acids Res. 2006;34(Database issue):D535–9. doi:10.1093/nar/gkj109.
Kuhn RM, Haussler D, Kent WJ. The UCSC genome browser and associated tools. Brief Bioinform. 2013;14:144–61. doi:10.1093/bib/bbs038.
Blattner FR, Plunkett G, Bloch CA, Perna NT, Burland V, Riley M, et al. The Complete Genome Sequence of Escherichia coli K-12. Science (80- ). 1997;277. http://science.sciencemag.org/content/277/5331/1453. Accessed 15 Jun 2017.
Sugawara M, Epstein B, Badgley BD, Unno T, Xu L, Reese J, et al. Comparative genomics of the core and accessory genomes of 48 Sinorhizobium strains comprising five genospecies. Genome Biol. 2013;14:R17. doi:10.1186/gb-2013-14-2-r17.
Shamseldin A, Nelson MS, Staley C, Guhlin J, Sadowsky MJ. Draft genome sequences of four novel thermal- and alkaline-tolerant Egyptian Rhizobium strains Nodulating Berseem clover. Genome Announc. 2016;4:e00988–16. doi:10.1128/genomeA.00988-16.
Galibert F, Finan TM, Long SR, Pühler A, Abola P, Ampe F, et al. The Composite Genome of the Legume Symbiont Sinorhizobium meliloti. Science (80- ). 2001;293. http://science.sciencemag.org/content/293/5530/668. Accessed 15 Jun 2017.
Hyatt D, Chen G-L, LoCascio PF, Land ML, Larimer FW, Hauser LJ. Prodigal: prokaryotic gene recognition and translation initiation site identification. BMC Bioinformatics. 2010;11:119. doi:10.1186/1471-2105-11-119.
Jones P, Binns D, Chang H-Y, Fraser M, Li W, McAnulla C, et al. InterProScan 5: genome-scale protein function classification. Bioinformatics. 2014;30:1236–40. doi:10.1093/bioinformatics/btu031.
Caspi R, Foerster H, Fulcher CA, Kaipa P, Krummenacker M, Latendresse M, et al. The MetaCyc database of metabolic pathways and enzymes and the BioCyc collection of pathway/genome databases. Nucleic Acids Res. 2007;36(Database):D623–31. doi:10.1093/nar/gkm900.
Kanehisa M, Goto S. KEGG: Kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000;28:27–30. doi:10.1093/nar/28.1.27.
This work was funded by NSF grant IOS-1237993 awarded to NDY and PT.
Availability of data and materials
Omics Database Generator and related materials are available for download at http://github.com/jguhlin/odg.
Medicago truncatula data used in Figure as an example is available from J. Craig Venter Institute: http://jcvi.org/medicago/display.php?pageName=General§ion=Download and is based on the Medicago genome release version Mt4.0v1.
Ethics approval and consent to participate
Consent for publication
The authors declare that they have no competing interests.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Advanced users can query ODG using Neo4j’s query language CYPHER. Presented is an example identifying HMM Matches to nearby genes and aggregating GO term counts, requiring GO terms to be labelled as a biological process. (JPEG 274 kb)
PFam Domains and biological process GO categories for the four rhizobia strains. Predicted proteins related to multiple GO biological process categories are joined together with the pipe character. (XLSX 639 kb)
Gene annotations of top scoring BLAST+ hits for the predicted genes in the four rhizobia strains, as inferred from E. coli MG1655 and E. meliloti 1021. (XLSX 383 kb)
