 Methodology
 Open Access
 Published:
Fast estimation of genetic relatedness between members of heterogeneous populations of closely related genomic variants
BMC Bioinformatics volume 19, Article number: 360 (2018)
Abstract
Background
Many biological analysis tasks require extraction of families of genetically similar sequences from large datasets produced by Nextgeneration Sequencing (NGS). Such tasks include detection of viral transmissions by analysis of all genetically close pairs of sequences from viral datasets sampled from infected individuals or studying of evolution of viruses or immune repertoires by analysis of network of intrahost viral variants or antibody clonotypes formed by genetically close sequences. The most obvious naïeve algorithms to extract such sequence families are impractical in light of the massive size of modern NGS datasets.
Results
In this paper, we present fast and scalable kmerbased framework to perform such sequence similarity queries efficiently, which specifically targets data produced by deep sequencing of heterogeneous populations such as viruses. It shows better filtering quality and time performance when comparing to other tools. The tool is freely available for download at https://github.com/vyacheslavtsivina/signaturesj
Conclusion
The proposed tool allows for efficient detection of genetic relatedness between genomic samples produced by deep sequencing of heterogeneous populations. It should be especially useful for analysis of relatedness of genomes of viruses with unevenly distributed variable genomic regions, such as HIV and HCV. For the future we envision, that besides applications in molecular epidemiology the tool can also be adapted to immunosequencing and metagenomics data.
Background
Consider two sets T_{1} and T_{2} each containing N DNA or RNA sequences of length L. The similarity join problem consists in locating the set P of all pairs of sequences, with one sequence from T_{1} and the other from T_{2}, within an edit distance or Hamming distance defined by the specified threshold t. In molecular epidemiology, this computational problem needs to be solved for detection of viral transmissions from sequences of intrahost viral variants sampled from infected individuals [1, 2]. Viral populations, for which the minimal intersample distance does not exceed the threshold, are considered to be potentially linked by transmission [1], while the number of pairs in P may suggest the time since a transmission event [3]. The related genetic network construction problem aims to build a graph with vertices corresponding to sequences from a given dataset T and edges corresponding to all pairs of sequences with an edit or Hamming distance less than the threshold t. This problem arises in studying and analysis of viral populations [4] or antibody repertoires [5]. Similar problems also emerged under different names in various areas of computer science [6–10].
The edit distance between a pair of sequences can be calculated in time O(L^{2}) using dynamic programming [11]. If only distances below a desired threshold t which is small relative to L are desired. The distance calculation can be carried out with a small subset of diagonals neighboring the main diagonal of the dynamic programming matrix, leading to O(tL) time algorithm [12]. In this case a naïve algorithm for the similarity join problem requiring pairwise comparison of all sequences has an asymptotic running time O(tLN^{2}), which is still impractical for more than several thousand sequences.
Several filteringbased approaches have been put forward to improve the efficiency of the similarity jointype problems by reducing the number of pairs to be compared. Note that while fast heuristic and approximate methods exist such as Shingling [13], LSH [7], or BLAST [14], this paper focuses on the problem of exact distance calculation.
The common filtering approach is based on on the fundamental idea that related sequences should share long kmers (substrings of length k) [15]. Several existing methods rely on signature schemes to quickly locate feasibly linked pairs [6] by assuming that pairs with an edit or Hamming distance which does not exceed a threshold t will share at least a certain number of kmerbased signature keys. However, straightforward application of this technique to viral sequencing data is not sufficiently efficient, since mutations are not distributed uniformly along viral genomes, but tend to concentrate in short hypervariable regions [16]. As a result, many viral sequences share kmers, thus significantly reducing the efficiency of filtering. The same effect has been observed for immunosequencing data [5], where all antibodies originating from the same V gene often share a kmer from that gene.
In this paper, we describe a tool which uses kmerbased signature filtering scheme optimized for viral data to solve the following problems:

Sample pair filtering: given two NGS sequence samples T_{1} and T_{2}, quickly determine whether the distances between all intersample pairs of sequences are greater than the threshold t.

Intersample sequence retrieval (similarity join): given two NGS sequence samples T_{1} and T_{2}, find all intersample pairs of sequences at edit distance or hamming distance below the threshold t.

Intrasample sequence retrieval (or genetic network construction): given an NGS sequence sample T_{1}, find all pairs of sequences at edit distance or hamming distance below the threshold t.
The tool was validated using Hepatitis C Virus (HCV) data in the settings used for detection of viral transmissions and outbreaks [1, 2].
Methods
Notation
In the methods description, we assume that input sequence samples T_{1} and T_{2} both contain N sequences of length L, which cover the same genomic region. From here onwards we will use k as a fixed predefined parameter.
Further we will use the following notation:

S=s_{1}s_{2}…s_{L}  sequence over the alphabet {A,C,T,G}.

S[i:j]=s_{i}s_{i+1}…s_{j}  subsequence of S starting at position i and ending at position j.

kmer  any subsequence of length k

ksegment  kmer that starts at a position 1+ik, i=0,1,2,….

K(S)  the set of all kmers of the sequence S.

R(S)  the family of all ksegments of the sequence S (possibly with repetitions).

h(S,Q)  Hamming distance between two sequences S and Q

l(S,Q)  edit distance (Levenshtein distance) between two sequences S and Q

led(S,Q)={l(S,Q), ifl(S,Q)≤t−1, otherwise  limited edit distance, as mentioned above, could be calculated using dynamic programming [12]
Main Data Structure
Our signaturebased filtering scheme is based on the following simple observation:
Proposition 1.1
[6] If l(S,Q)≤t, then K(Q)∩R(S)≥m−t, where \(m = \left \lfloor \frac {L}{k}\right \rfloor \).
Proof
If S and Q differ by an edit distance of t, then by the pigeon hole principal at most tksegments differ between the sequences S and Q. So at least m−tksegments must be the same. □
Thus we need a fast way to calculate the number of common ksegments and kmers for a given pair of sequences. To do it we introduce a hash function:
where f:{A,C,G,T}→{0,1,2,3} is an arbitrary bijection. For kmers with k<32, this hash function allows us to store them as 64bit integers and can be quickly recursively calculated as follows:
In addition, the hash can be inverted and so only the hash values of k−mers need to be stored.
In the proposed framework, each sample T is stored using a data structure further referred to as a Tdictionary and denoted by dict(T), which consists of the following fields:

dict(T).HM  an inverted index of T [17], i.e. a hash table, where each key is a kmer hash and its value is a set of all sequences from T that contain this kmer.

dict(T).KM  A set of all possible kmer hashes in T

dict(T).KS  hash table, where keys are sequences and values are lists of their ksegments (represented by their hash values) from 1 to m

dict(T).SC  A list of L sets SC_{1},…,SC_{m}, where SC_{i} is a set of all ksegments in a position 1+ik (represented by their hash values).
Algorithm Description
We will first describe the approach for the sample pair filtering problem. Building a simple and fast filter for unrelated samples T_{1} and T_{2} is easy by applying Proposition 1.1 to whole samples as follows. Recall that T_{1} and T_{2} are considered to be genetically related, if the minimal edit distance between their sequences does not exceed the threshold t. Given two dictionaries dict(T_{1}) and dict(T_{2}), the necessary condition for their genetic relatedness is an existence of at least m−t positions {i_{1},i_{2},…,i_{m−t}} such that \(dict(T_{1}).{SC}_{i_{j}}\cap dict(T_{2}).KM \neq \emptyset \) for every j=1,…,m−t. The sample pair filter pseudocode is presented at Algorithm 1.
Assuming that membership verification for a hash set dict(T).KM can be performed in time O(1), the worstcase running time of the filter is O(NL). In real settings, samples with genetically related sequences produce significantly smaller maps dict(T).SC, thus leading to a lower average running time than in the worst case.
The algorithms for intersample sequence retrieval and intrasample sequence retrieval problems are very similar, so we will describe the approach for the former problem. As before, let T_{1} and T_{2} be two samples. The algorithm first constructs the set of candidate neighbors CN_{S}⊆T_{2} for every sequence S∈T_{1}. This procedure (the filtering), is followed by the verification procedure, which calculates actual neighbors of all sequences S∈T_{1} by calculating distances between S and all sequences S^{′}∈CN_{S}. The pseudocode for intersample sequence retrieval algorithm is presented in Algorithm 2.
The basic filtering strategy utilizes Proposition 1.1, with the following features aiming at improvement of the running time. For each S∈T_{1}, the set CN_{S} can be implemented as a hash table, with keys being sequences S^{′}∈T_{2} and values CN_{S}(S^{′}) being numbers of matches between ksegments in S and kmers of S^{′}. Let L_{S} be the number of ksegments of S that occur as kmers in T_{2}, and \(\phantom {\dot {i}\!}I = (i_{1},i_{2},\ldots. i_{L_{S}})\) be the list of starting positions of these ksegments. To calculate the number of matches between ksegments in S and kmers of S^{′} we may iterate over the list I and increment the current value of CN_{S}(S^{′}), when necessary. If after j iterations the inequality
does not hold, then S^{′} cannot accumulate the required number of matches with the remaining iterations, and therefore the sequence S^{′} can be filtered out right away. These considerations imply that the order in which starting positions of ksegments are examined is important in determining the algorithm’s running time.
The order of ksegment starting positions is determined heuristically as follows. For each position i let k_{S}(i)=dict(T_{2}).HM(S[i:i+k−1]) be the number of sequences from T_{2} that contain the ith ksegment from S. If we sort positions by ascending order of the numbers k_{S}(i) it usually leads to faster pruning of sequence pairs as this order minimizes the size of the candidate set that must be examined at each iteration.
Another simple adjustment could be implemented using the fact that the hamming distance is an upper bound for an edit distance, while the calculation of the former is significantly faster. Therefore if h(S,Q)≤t, then Q can be added to the list of neighbors of S without the edit distance calculation.
Hamming distance adjustment
The filtering strategy described above can be further improved, if the input sequences are aligned to a reference. In this case the samples can be compared using Hamming distance instead of an edit distance. For Hamming distance, Proposition 1.1 can be applied to ksegments of both comparable sequences thus simplifying the filling and filtering steps.

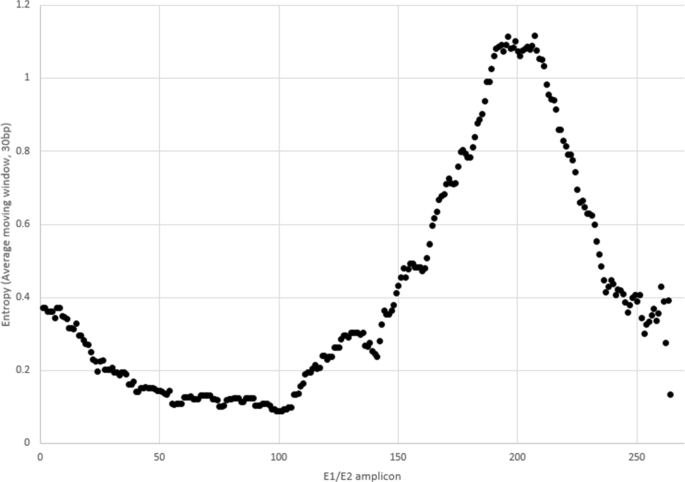

Furthermore, genomic heterogeneity is distributed highly irregularly along the genomes of species of interest. For example, Fig. 1 illustrates the distribution of nucleotide entropy for a particular intrahost population along the 264bplong genomic HCV region at the junction of envelope glycoproteins E1 and E2, which is often used in epidemiological and immunological studies [1, 18, 19]. It should be noticed that ksegments from conserved regions are significantly less useful for the filtering as we want to maximize detectable differences between tested sequences. The nonuniformity in genomic heterogeneity can be taken into account by switching to the framework with ksegments of unequal size. By selecting ksegment boundaries that contain roughly equal amounts of average information entropy over the dataset, the filtering speed and quality could be significantly improved. Figure 2 provides an example, when entropybased ksegments length allows more accurate filtering than uniform ksegments length. Formally, let \(H_{i}={\sum \nolimits }_{j=1}^{4} P(x^{i}_{j})log_{2}(P(x^{i}_{j}))\) be the sample nucleotide entropy at position i, where \(P(x^{i}_{j})\) is a frequency of nucleotide \(x^{i}_{j}\) on ith position of the alignment. The segments are selected in such a way that for every segment [i,j] we have \({\sum \nolimits }_{l=i}^{j}H_{l} \approx \frac {H}{m}\), where \(H = {\sum \nolimits }_{i=1}^{L} H_{i}\) and m is the number of segments. Different numbers of segments were examined empirically and the best performance was obtained with m=t+7.
Results
Validation Data
The developed tool was validated using NGS datasets of intrahost HCV populations sampled from infected individuals. Each dataset contains the E1/E2 junction of the HCV genome of length 264nt, which contains the Hyper Variable Region 1 (HVR1) region. Each sample was processed by error correction and haplotyping tools, and as a result we receive as an input datasets consisting of unique HCV haplotypes.
We used a set of 413 samples from [2] with 501.5 haplotypes per sample in average produced by NGS; 8 datatsets d_{1},…,d_{8} with 1000, 2000, …, 128 000 sequences produced by random sampling from NGS dataset with sequences sampled from chronically infected individuals and one additional NGS dataset m_{1} consisting of 10 467 sequences. The data are available in tool’s repository.
In all tests, the threshold t=3.77%≡10nt was used. This value is derived in [1] as empirically validated recommended threshold for separation between epidemiologically related and unrelated intrahost HCV HVR1 populations.
All tests were run on server with 128 Intel Xenon E74850 2.1GHz cores and 1.4Tb RAM. For Intersample sequence retrieval desktop PC was used with 4 Intel(R) Core(TM) i75500 2.4GHz cores and 8Gb RAM. All code is written on Java to provide a threaded, platform independent solution.
Sample pair filtering and InterSample Sequence Retrieval validation
For Sample pair filtering and InterSample Sequence Retrieval problems, we validated the tool using HCV datasets from [2]. The proposed approach has been compared with the Filter Composition pipeline proposed in [2]. Both methods were run on a desktop computer, as in the original paper [2]. The results are reported in Table 1. Here we show the result of comparison of all pairs of samples and all intersample pairs of sequences.
The proposed sample pair filtration algorithm removed 92% of all possible samples pair comparisons, and sequence pair filtering algorithm managed to filter out 99.996% of all possible sequence pairs. The latter means that only 888,914 out of 22,037,502,011 sequence pairs passed from filtering to verification stage of the algorithm. As a result, the proposed approach significantly outperforms the Filter Composition Pipeline in filtering quality and in running time.
We studied how the filtering quality is affected by different optimization subroutines (Table 2). Disabling sample pair filtering increases the running time for comparison of all samples by 42%, while the impact of sorting of ksegment starting positions is even higher, with disabling of this step slowing down the comparison by 254%.
Preprocessing and dictionary building can take up a significant portion of the total running time of a signaturebased filtering algorithm, when samples are distant and few distance calculations are required. For the given collection of 413 samples, preprocessing of all samples takes ∼ 4840ms, which constitutes approximately 1/3 of the total running time of the algorithm. Note that in the case when significant number of closely related sequence pairs is present, the situation is different (see the next section).
The algorithm performance depends on the size of the kmers and ksegments. Small k leads to larger number of matches between ksegments and kmers of distant sequences, which can cause extra sequences to be added to the candidate lists thus leading to decrease in filtering quality. Larger k leads to fewer false matches but unfortunately also a larger kmer dictionaries. We examined different kmer sizes to determine the optimal size for our datasets and found that k=11 gives the best performance.
Intrasample Sequence Retrieval Validation
For Intrasample Sequence Retrieval Problem, we validated the proposed approach using datasets d1,...,d8,m1. First, for it was compared with a singlethread, brute force method with the worstcase complexity O(N^{2}Lt), which performs pairwise comparison of all sequences and calculates limited edit distance using dynamic programming as described in [12]. The results are presented in Table 3.

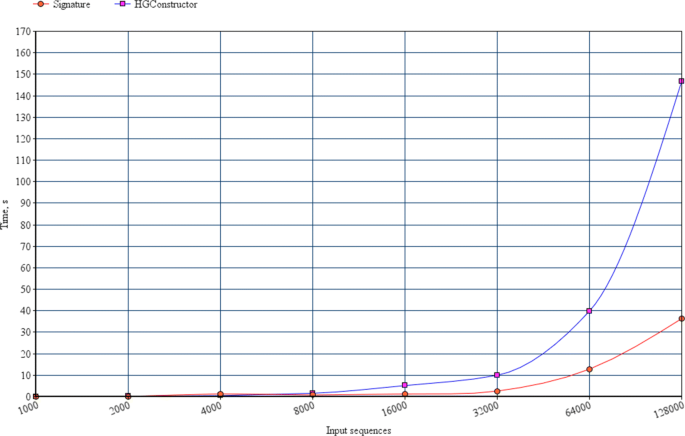

The running time of the proposed tool was also compared with the running time of a recently published method from [5], which was originally designed for the analogous problem for immunosequencing data. Figure 3 illustrates that signaturebased filtering approach demonstrates the significant advantage.

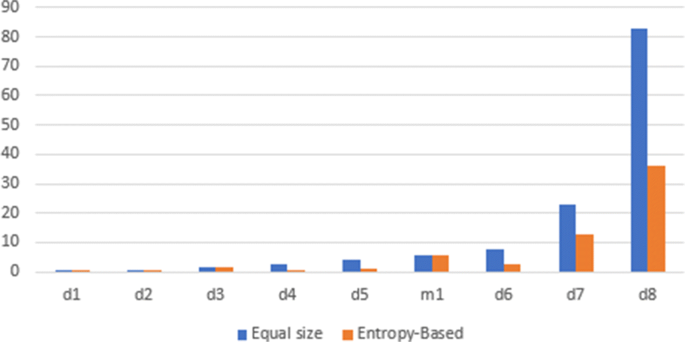

Figure 4 demonstrates that for aligned sequences in most cases the adjustment utilizing entropybased variablesize ksegments allows to achieve a significant speedup with respect to a constantsize ksegment.
The speedup described above is achieved by the combination of the several features. The first feature is the quality of filtering, which is analyzed in Tables 4 and 5. On average, only ∼ 10% of sequence pairs that pass filtering step (“false positives”) are not genetically related. As expected, most of the false positive pairs were very close to the threshold (Fig. 5). With the threshold set at t=10, pairs with an edit distance of l(S,Q)=11,12,13 represent up to 75% of all false positives. Pairs that are so close to the threshold are difficult to filter out.
Another important feature is the fact that as the input increases in size the runtime of the algorithm is dominated by the edit distance calculations (Fig. 6). However, the filtering and the Hamming distance shortcut reduces the number of edit distance calculations that must be performed. As a result, the actual edit distance is only calculated on small portion of the total pairs from the dataset (Table 4).
We attempted to improve the filtering performance using other methods such as kmer similarity [20], true matches [6], Hamming radius filter [2]. However, the overhead of these methods was greater than any runtime savings.
Discussion
In this paper we presented an efficient signaturebased tool to solve problems of edit or Hamming distance sequence retrieval for NGS data obtained from heterogeneous viral populations. It outperforms other approaches to this problem by including several dataspecific steps and filters. The proposed approach was designed having problems of computational molecular epidemiology in mind. Until recent years, genomic analyses of viral transmissions and epidemic spread used a single viral sequence per infected individual. The advent of sequencing technologies now allows to analyze thousands of viral haplotypes per patient. Furthermore, just in the United States, from 2.7 million to 3.9 million people are infected with HCV [21], while ∼ 1.1 million people are infected with HIV [22]. These numbers put an immense computational burden on realtime advanced molecular surveillance systems, such as Global Hepatitis Outbreak Surveillance Technology (GHOST) [23], which is currently being deployed by Centers for Disease Control and Prevention. When deployed, such system should have computational capacity to identify, whether a query set of viral samples is genetically related with any sample from a database consisting of hundreds of thousands of samples each consisting of thousands of sequences. The proposed approach aim to allow to process such queries efficiently. It builds on the general idea proposed in [6], which is heavily optimized by utilization of efficient data structures, such as inverted indexes and hash maps, and introduction of running timeimproving procedures, such as efficient hash values calculation and determination of optimal order of kmers processing. The proposed optimization steps allows for more than 2.5fold running time decrease in comparison with the nonoptimized filtering (Table 2). Furthermore, the proposed method takes into account uneven distribution of heterogeneous position along viral genomes by using variable entropybased kmers. It allows to improve both filtering quality (Fig. 2) and speed (Fig. 4). In general, for viral samples comparison the proposed filtering approach allows to eliminate the overwhelming majority of sequence comparisons and achieve a substantial running time decrease (Tables 1, 2, 3, 4 and 5).
Conclusion
The proposed tool allows for efficient detection of genetic relatedness between genomic samples produced by deep sequencing of heterogeneous populations. The tool is freely available for download at https://github.com/vyacheslavtsivina/signaturesj. It should be especially useful for analysis of relatedness of genomes of viruses with unevenly distributed variable genomic regions, such as HIV and HCV. For the future we envision, that besides applications in molecular epidemiology the tool can also be adapted to immunosequencing and metagenomics data.
Abbreviations
 HCV:

Hepatitis C virus
 HVR1:

Hypervariable region 1
 NGS:

Nextgeneration sequencing
References
 1
Campo DS, Xia GL, Dimitrova Z, Lin Y, Forbi JC, GanovaRaeva L, Punkova L, Ramachandran S, Thai H, Skums P, et al.Accurate genetic detection of hepatitis c virus transmissions in outbreak settings. J Infect Dis. 2016; 213(6):957–65.
 2
Rytsareva I, Campo DS, Zheng Y, Sims S, Thankachan SV, Tetik C, Chirag J, Chockalingam SP, Sue A, Aluru S, et al.Efficient detection of viral transmissions with nextgeneration sequencing data. BMC Genomics. 2017; 18(4):372.
 3
Glebova O, Knyazev S, Melnick A, Artyomenko A, Khudyakov Y, Zelikovsky A, Skums P. Inference of genetic relatedness between viral quasispecies from sequencing data. BMC Genomics. 2017; 18(10):918.
 4
Skums P, Zelikovsky A, Singh R, Gussler W, Dimitrova Z, Knyazev S, Mandric I, Ramachandran S, Campo D, Jha D, et al.Quentin: reconstruction of disease transmissions from viral quasispecies genomic data. Bioinformatics. 2017; 34(1):163–70.
 5
Shlemov A, Bankevich S, Bzikadze A, Turchaninova MA, Safonova Y, Pevzner PA. Reconstructing antibody repertoires from errorprone immunosequencing reads. J Immunol. 2017:ji1700485.
 6
Qin J, Wang W, Lu Y, Xiao C, Lin X. Efficient exact edit similarity query processing with the asymmetric signature scheme. In: Proceedings of the 2011 ACM SIGMOD International Conference on Management of Data, SIGMOD ’11. New York: ACM: 2011. p. 1033–44. https://doi.org/10.1145/1989323.1989431.
 7
Gionis A, Indyk P, Motwani R. Similarity Search in High Dimensions via Hashing. In: Proceedings of the 25th International Conference on Very Large Data Bases, VLDB ’99. San Francisco: Morgan Kaufmann Publishers Inc.: 1999. p. 518–29. http://dl.acm.org/citation.cfm?id=645925.671516.
 8
Li C, Wang B, Yang X. Vgram: Improving performance of approximate queries on string collections using variablelength grams. In: Proceedings of the 33rd International Conference on Very Large Data Bases, VLDB ’07. Vienna: VLDB Endowment: 2007. p. 303–14. http://dl.acm.org/citation.cfm?id=1325851.1325889.
 9
Medvedev P, Scott E, Kakaradov B, Pevzner P. Error correction of highthroughput sequencing datasets with nonuniform coverage. Bioinformatics. 2011; 27(13):137–41.
 10
Nikolenko SI, Korobeynikov AI, Alekseyev MA. Bayeshammer: Bayesian clustering for error correction in singlecell sequencing. BMC Genomics. 2013; 14(1):7.
 11
Wagner RA, Fischer MJ. The stringtostring correction problem. J ACM (JACM). 1974; 21(1):168–73.
 12
Gusfield D. Algorithms on Strings, Trees and Sequences: Computer Science and Computational Biology. New York: Cambridge university press; 1997, pp. 217–220.
 13
Broder AZ, Glassman SC, Manasse MS, Zweig G. Syntactic clustering of the web. Comput Netw ISDN Syst. 1997; 29(813):1157–66.
 14
Altschul SF, Gish W, Miller W, Myers EW, Lipman DJ. Basic local alignment search tool. J Mol Biol. 1990; 215(3):403–10.
 15
Ma B, Tromp J, Li M. Patternhunter: faster and more sensitive homology search. Bioinformatics. 2002; 18(3):440–5.
 16
Cuypers L, Li G, Libin P, Piampongsant S, Vandamme AM, Theys K. Genetic diversity and selective pressure in hepatitis c virus genotypes 1–6: significance for directacting antiviral treatment and drug resistance. Viruses. 2015; 7(9):5018–39.
 17
Zobel J, Moffat A, Ramamohanarao K. Inverted files versus signature files for text indexing. ACM Trans Database Syst (TODS). 1998; 23(4):453–90.
 18
Pawlotsky JM, Pellerin M, Bouvier M, RoudotThoraval F, Soussy CJ, Dhumeaux D. Genetic complexity of the hypervariable region 1 (hvr1) of hepatitis c virus (hcv): Influence on the. J Med Virol. 1998; 54:256–64.
 19
Bankwitz D, Steinmann E, Bitzegeio J, Ciesek S, Friesland M, Herrmann E, Zeisel MB, Baumert TF, Keck Zy, Foung SK, et al.Hepatitis c virus hypervariable region 1 modulates receptor interactions, conceals the cd81 binding site, and protects conserved neutralizing epitopes. J Virol. 2010; 84(11):5751–63.
 20
Peterlongo P, Sacomoto GAT, do Lago AP, Pisanti N, Sagot MF. Lossless filter for multiple repeats with bounded edit distance. Algoritm Mol Biol. 2009; 4(1):3. https://doi.org/10.1186/1748718843.
 21
Ward JW. The hidden epidemic of hepatitis c virus infection in the united states: occult transmission and burden of disease. Top Antivir Med. 2013; 21(1):15–9.
 22
for Disease Control, Prevention C, et al.Diagnoses of hiv infection in the united states and dependent areas, 2015. HIV Surveill Rep. 2016; 27:1–114.
 23
Longmire A, Sims S, Rytsareva I, Campo DS, Dimitrova Z, Skums P, Dimitrova Z, Ramachandran S, Medrzycki M, Thai H, GanovaRaeva L, et al. Ghost: Global health outbreak and surveillance technology. BMC genomics. 2017; 18(10):916.
Funding
Publication of this manuscript was sponsored by IH grant 1R01EB02502201
Availability of data and materials
The datasets generated and analyzed during the current study are available in the github repository https://github.com/vyacheslavtsivina/signaturesj/tree/master/data
About this supplement
This article has been published as part of BMC Bioinformatics Volume 19 Supplement 11, 2018: Proceedings from the 6th Workshop on Computational Advances in Molecular Epidemiology (CAME 2017). The full contents of the supplement are available online at https://bmcbioinformatics.biomedcentral.com/articles/supplements/volume19supplement11.
Author information
Affiliations
Contributions
VT designed, implemented and tested the algorithms and wrote the paper; DC and SS designed algorithms, prepared datasets for algorithms’ testing and wrote the paper; AZ designed algorithms; YK prepared datasets for algorithms’ testing, designed the study and supervised the research; PS designed the study, designed algorithms, prepared datasets for algorithms’ testing, wrote the paper and supervised the research. All authors have read and approved the final manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License(http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver(http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
About this article
Cite this article
Tsyvina, V., Campo, D., Sims, S. et al. Fast estimation of genetic relatedness between members of heterogeneous populations of closely related genomic variants. BMC Bioinformatics 19, 360 (2018). https://doi.org/10.1186/s1285901823339
Published:
DOI: https://doi.org/10.1186/s1285901823339
Keywords
 Similarity search
 Similarity join
 Kmer
 Filtering
 Edit distance
 Hamming distance
