Exploring spatial-frequency-sequential relationships for motor imagery classification with recurrent neural network

BMC Bioinformatics201819:344

https://doi.org/10.1186/s12859-018-2365-1

  • Received: 9 April 2018
  • Accepted: 10 September 2018
  • Published:

Abstract

Background

Conventional methods of motor imagery brain computer interfaces (MI-BCIs) suffer from the limited number of samples and simplified features, so as to produce poor performances with spatial-frequency features and shallow classifiers.

Methods

Alternatively, this paper applies a deep recurrent neural network (RNN) with a sliding window cropping strategy (SWCS) to signal classification of MI-BCIs. The spatial-frequency features are first extracted by the filter bank common spatial pattern (FB-CSP) algorithm, and such features are cropped by the SWCS into time slices. By extracting spatial-frequency-sequential relationships, the cropped time slices are then fed into RNN for classification. In order to overcome the memory distractions, the commonly used gated recurrent unit (GRU) and long-short term memory (LSTM) unit are applied to the RNN architecture, and experimental results are used to determine which unit is more suitable for processing EEG signals.

Results

Experimental results on common BCI benchmark datasets show that the spatial-frequency-sequential relationships outperform all other competing spatial-frequency methods. In particular, the proposed GRU-RNN architecture achieves the lowest misclassification rates on all BCI benchmark datasets.

Conclusion

By introducing spatial-frequency-sequential relationships with cropping time slice samples, the proposed method gives a novel way to construct and model high accuracy and robustness MI-BCIs based on limited trials of EEG signals.

Keywords

  • EEG signals classification
  • Spatial-frequency-sequential relationships
  • Deep recurrent neural networks
  • Brain computer interface

Background

Motor imagery brain computer interfaces (MI-BCIs) construct path-ways by electroencephalography (EEG) signals’ event-related desynchronizing/event-related synchronizing (ERD/ERS) phenomenon in central brain’s band power in two rhythms, μ (8 - 12 Hz) and β (18 - 25 Hz) [1, 2]. Due to characteristics of EEG signals, conventional methods of MI-BCIs can be roughly divided into three categories: (1) classification by spatial features [37], (2) classification by frequency-spatial features [812], and (3) classification by temporal-frequency features [1317]. The state-of-the-art approach of MI-BCIs was spatial-frequency features extracted by filter bank common spatial pattern algorithm (FB-CSP) [8, 12]. Such FB-CSP algorithm was effective for constructing optimal spatial features that discriminate among different classes of ERD/ERS rhythms in MI-BCIs by a bank of band-pass filters [18, 19]. By distinguishing the relationships between EEG signals and underlying primary source, the spatial-frequency features were good at solving the volume conduction effect [20].

Although the spatial-frequency features are enough for classification of EEG signals in MI-BCIs, the number of samples and simplified features are still two major challenges for the classification. First, since the conventional classification of EEG signals was usually adapted by “shallow” classifiers (linear discriminant analysis (LDA), support vector machine (SVM), and neural network (NN)) [2125], such classifiers are appropriate for small sample size. Hence, a complete entity of each motor imagery trial’s spatial-frequency features was fed into these classifiers for classification. Due to the difficulty of obtaining motor imagery trials, public or private datasets have limited amounts of EEG trials from MI-BCIs [26, 27]. Thus, “shallow” classifiers with less data will produce poor performances of classification.

Second, except for spatial-frequency features, EEG signals’ sequential relationship is another useful feature for motor imagery classification. By cropping the spatial-frequency features into several time slices, each time slice can be treated as time-series, which contains sequential relationships over time. If the sequential relationships can be modeled by classifiers, the novel spatial-frequency-sequential relationships will significantly improve the performances and robustness of motor imagery classification.

To solve the two major challenges, this paper introduces a deep recurrent neural network (RNN) architecture for the classification based on FB-CSP algorithm [28, 29]. Also, by modeling EEG signals by RNN, an optimal number of hidden layers are obtained for RNN. Then, a sliding window cropping strategy (SWCS) is used to crop the entity trial into several time slices to increase the number of samples by the optimal number. Since the deep neural networks have dramatically improved the state-of-the-art methods in signal processing and classification, researches on EEG signals have been developed by using deep learning techniques to extract essential feature representations. The sequential relationships of EEG signals are easy to be extracted by RNN architecture. Therefore, the two contributions of this study are as follow:
  1. 1.

    A deep RNN architecture is applied to the FB-CSP features to extract the spatial-frequency-sequential relationships for motor imagery classification. The abundant features will improve the performances of classification. Also, two different memory units, long short-term memory (LSTM) unit [30] and gated recurrent unit (GRU) [31], are included in the RNN architecture.


  2. 2.

    The FB-CSP features extracted from a complete entity motor imagery trial are cropped by the SWCS with an optimal number. The strategy will increase a large a e deep neural networks.



Related works

Conventional methods

Manual feature extraction methods and shallow classifiers are developed for conventional motor imagery classification. These features are usually extracted from the spatial-frequency features and sequential relationships of EEG signals. Table 1 illustrates the related work regarding feature extraction methods and the corresponding classifiers in the state of the art methods.
Table 1

Conventional classification methods for motor imagery classification

Methods

Features

Classifiers

Datasets

Qin et al. (2004) [17]

Time-frequency

Source analysis

BCI competition II

Schlogl et al. (2005) [15]

AAR

kNN/LDA/SVM

BCI competiti on III

Herman et al. (2008) [22]

PSD

LDA/RFD/SVM

Graz University dataset

Blankertz et al. (2007) [21]

CSP

LDA

Graz University dataset

Ang et al. (2012) [8]

FB-CSP

PW Naive Bayes

BCI competition IV

Park et al. (2013) [25]

MEMD+CSP

SVM

BCI competition IV

Yuksel and Olmez (2015) [24]

SFN

BPNN

BCI competition III

Wu et al. (2015) [32]

P-CSP

FLDA

Paper’s private data

Kumar et al. (2018) [33]

Enhanced CSP

GA and SVM

BCI competition III and IV

From Table 1, we found CSPs algorithm [8, 21] is the key algorithm for extracting spatial features in motor imagery classification. Other researchers improve the CSPs algorithm by a probabilistic model [32] or the genetic algorithm (GA) [33]. Except for spatial features, the frequency features of power spectrum density (PSD) and sequential relationships of adaptive auto regression (AAR) are also used in motor imagery classification [22, 34]. Besides, the “time-frequency” features combine frequency features and sequential relationships for classification [17]. For the classification, conventional classifiers focus on shallow machine learning models. In some cases, the pre-processing algorithm multivariate empirical mode decomposition (MEMD) has been used to improve signal-noise ratio and classification accuracy [25]. The related works used manual features and shallow classifiers for the following reasons: on the one hand, because public datasets have limited EEG samples, they are more suited for classification by LDA/SVM/Naive Bayes classifiers; on the other hand, the EEG signals are regarded as a complete entity, and the entity is classified by spatial, frequency features or sequential relationships. However, if signals belong to time-series data, sequential relationships over time will provide the discriminant features for motor imagery classification.

Deep learning methods

Statistical, integrated, and deep learning are the common classification methods in machine learning [35, 36]. In particular, deep learning classification methods have been used gradually for EEG signal classification [3739]. Table 2 illustrates the related works regarding the state of the art of deep learning classifiers.
Table 2

Related works of EEG signal classification by deep learning

Methods

EEG phenomena

Deep learning architectures

Cecotti and Graeser (2008) [40]

Steady state visual evoked potential

CNN

Cecotti and Graser (2011) [41]

Event related potential 300ms

CNN

Yang et al. (2015) [43]

Motor Imagery

CNN

Kumar S and Sharma A (2016) [44]

Motor imagery

CSP+CNN

Hajinoroozi et al. (2015) [45]

Driver’s cognitive states

DBN

Wulsin et al. (2011) [46]

Abnormal EEG monitor

DBN

Zheng et al. (2014) [32]

Emotion

DBN

Ren and Wu (2014) [42]

Motor imagery

Convolution DBN

Forney and Anderson (2011) [47]

Imagined mental tasks

RNN

Soleymani et al. (2016) [48]

Durative affection

RNN

From Table 2, we conclude that deep learning is widely used in EEG signal classification. Convolution Neural Network (CNN) models [4044] and Deep Belief Network (DBN) models [32, 45, 46] are most often used in the analysis of EEG signals. Actually, the CNN and DBN models are used to extract the spatial features from EEG signals. These two deep learning models still treat the complete entity trials for classification, so the performance can’t be improved much. However, the deep RNN architecture can extract the sequential relationships from EEG signals [47, 48]. By using a sliding window cropping strategy, the complete entity trials will be cropped into several time slices for classification. Several multiples growth number of samples by cropping for classification will obtain a significant performance improvement of motor imagery classification. Therefore, the discriminant features for motor imagery classification are extracted by using a combination of the FB-CSPs algorithm and RNN architecture.

Methods

By considering references [47, 49], our proposed method regards EEG signals as time-series data, and the extracted spatial-frequency features’ sequential relationships are represented by RNN architecture. Due to the fact that conventional FB-CSPs algorithms with shallow classifiers do not contain the sequential relationships, and these algorithms regarded the entity of each trial as a single sample for classification. Therefore, two methods are developed to validate and represent spatial-frequency-sequential relationships for classification. First, we test a group of smoothing time windows on the FB-CSP features to validate whether the sequential relationships can improve the classification performance of EEG time-series. Then, a deep RNN architecture is applied to represent spatial-frequency-sequential relationships on FB-CSP features for classification. It is easy to cause over-fitting problems and drop the classification performance if the deep neural networks are presented for classification by the entity of a trial [50]. Therefore, before using the deep RNN architecture, a sliding window cropping strategy is applied to crop the entity of each trial into several time slices. Then, each time slice is fed into the deep RNN architecture for the motor imagery classification. The size of each time slice will be set as the same of the optimal number of hidden layers for RNN to obtain the optimal classification performance. The proposed method is illustrated in Fig. 1.
Fig. 1
Fig. 1

The procedure of our proposed methods. Our proposed method is comprised of four progressive stages of signal processing and machine learning on EEG signals: (1) a filter bank comprising multiple Butterworth band-pass filters to extract frequency features, (2) a CSP algorithm is used to extract spatial features, (3) a sliding window cropping strategy is applied to crop time slices to model the sequential relationships of spatial-frequency features, (4) classification of the spatial-frequency-sequential relationships on time slices by a deep RNN architecture. In the deep RNN architecture, two different memory units, LSTM unit and GRU, are included to compare classification performance and robustness

In Fig. 1, our proposed method is comprised of four progressive stages of signal processing and machine learning on EEG signals: (1) a filter bank comprising multiple Butterworth band-pass filters to extract frequency features, (2) a CSP algorithm is used to extract spatial features, (3) a sliding window cropping strategy is applied to crop time slices to model the sequential relationships of spatial-frequency features, (4) classification of the spatial-frequency-sequential relationships on time slices by a deep RNN architecture. In the deep RNN architecture, two different memory units, GRU and LSTM unit, are included to compare classification performance and robustness. The CSP projection matrix for each filter band, the discriminative spatial-frequency features, and the deep RNN architectures are computed and trained from training data labeled with the respective motor imagery action. These parameters computed from the training phase then used to validate each single-trial motor imagery action. By using the same cropping strategy in the validation phase, the classification of single-trial motor imagery action will predict several targets. The final evaluated action will be obtained by averaging all predicted targets.

Spatial-frequency features

The widely used spatial-frequency features extraction algorithm for classification of motor imagery EEG signals was Filter Bank Common Spatial Patterns (FB-CSP) algorithm [8, 9]. There are two steps in the FB-CSP method: (1)a group of band-pass filters are presented to the raw EEG data to obtain the subject-specific frequency band. (2)The CSP algorithm is provided to every filter result to extract the optimal spatial features. Then, a classifier is used in all of the FB-CSP features for motor imagery classification.

To extract CSP features, let XcRNT represent one band-pass filtering result, where c is the number of classes, N is the number of potentials of EEG, T is the number of samples in each trial. Each dataset contains L trials of EEG signals and each signal Xc is a zero average signal. The purpose of the CSP algorithm is to find an optimal spatial vector, \(\overrightarrow w \in {R^{M \times \mbox{{N}}}}\), to project the original EEG signal to a new space to obtain good spatial resolution and discrimination between different classes of EEG signals. To calculate the optimal projection matrix, let the average covariance matrix of class “c” be \(\overline C_{c}\), and average power of class “c” be \({\overline P_{c}}={\overrightarrow w^{T}}{\overline C_{c}}\overrightarrow w\). For an example of two classes on the minimized projected \(\overrightarrow w\) axis, the maximization of the power ratio is written into the Rayleigh quotient form:
$$ \mathop {\arg \max }\limits_{\overrightarrow w} {\rm{ }}\frac{{{{\overline P }_{1}}}}{{{{\overline P }_{2}}}} = \mathop {\arg \max {\rm{ }}}\limits_{\overrightarrow w} \frac{{{{\overrightarrow w }^{T}}{{\overline C }_{1}}\overrightarrow w }}{{{{\overrightarrow w }^{T}}{{\overline C }_{2}}\overrightarrow w }} $$
(1)
The Rayleigh quotient is then re-translated into a constrained optimization problem, which is then solved by applying the Lagrange multiplier method to the problem. The optimization results include both eigen-vectors and eigen-values. The optimal CSP spatial filter vector, \({\overrightarrow w^{*}} \in {R^{M \times N}}\), is constructed by taking M=2m,MN eigen-vectors corresponding to the “m” largest and “m” smallest eigen-values:
$$ {\overrightarrow w^{*}} = {\left[{\overrightarrow w_{{\lambda_{1}}}},\cdots,{\overrightarrow w_{{\lambda_{m}}}},\cdots,{\overrightarrow w_{{\lambda_{N - m + 1}}}},...,{\overrightarrow w_{{\lambda_{N}}}}\right]^{T}} $$
(2)
where \({\overrightarrow w_{{\lambda _{i}}}}\) is the eigen-vector that corresponds to the eigen-value λi. Each filter band of EEG signals, Xc, is spatially filtered by:
$$ {Z_{c}} = {\overrightarrow w^{*}}{X_{c}} $$
(3)

where ZcRM×T is the spatial-frequency features. The EEG signals are composed of rapidly changing voltage values; therefore, band power (variance) is used as a feature for the classifier. For multi-class extension to the FB-CSP algorithm, the one-versus-rest (OVR) strategy is presented to solve the multi-class motor imagery BCI classification.

Spatial-frequency-sequential relationships

Conventional algorithms for motor imagery EEG signals fed spatial-frequency features (FB-CSP) into classifiers to discriminate different motor imagery targets. In this paper, the FB-CSP features are fed into a deep RNN architecture to get spatial-frequency-sequential relationships to improve the classification performance of motor imagery. To validate and represent the spatial-frequency-sequential relationships, a group of smoothing time windows are put on the FB-CSP features to validate the effect of sequential relationships, and a RNN model with sliding window cropping strategy is applied to represent spatial-frequency-sequential relationships on EEG time-series. To improve the classification performance and overcome the over-fitting problem, the LSTM unit and GRU are used to construct LSTM-RNN architecture or GRU-RNN architecture for EEG signals classification.

Smoothing time windows on FB-CSP features

Since the FB-CSP features are extracted from EEG time-series, such features also contain sequential relationships. Before we represent the sequential relationships by the RNN architecture, a group of smoothing time windows are put on the FB-CSP features to smooth the sequential relationships. For the classification by FB-CSP features, we will adjust the smoothing time window size, and find the influence of classification performance by the smoothing time windows. If the influence for the performance is large, the sequential relationships on FB-CSP features will be validated to influence the classification performance. Therefore, the RNN architectures with LSTM and GRU memories will be applied to extract spatial-frequency-sequential relationships on FB-CSP features. According to the smoothing process, given smoothing window size, ω, the following smoothing operation is applied to the FB-CSP features, Zc:
$$ {\overline Z_{c}}(t) = {\frac{1}{\omega }\sum\limits_{n = 0}^{\omega} {{Z_{c}}(t - n)}} $$
(4)

where \({\overline Z_{c}}(t)\) is the smoothed FB-CSP features. In the experiments, we adjust the parameter ω to obtain different smoothing levels of FB-CSP features, and get the classification performance by support vector machine (SVM). The classification performance will validate and instruct the sequential relationships for EEG signals classification.

RNN architectures with LSTM and GRU memories

To represent the spatial-frequency-sequential relationships, we introduce the RNN architecture in this study [51, 52]. The RNN architecture, containing an input layer, recurrent hidden layers and an output layer, is widely used to represent time-series [53, 54]. In recurrent hidden layers, a number of simple computation units with weighted interconnections, including delayed feedback [28]. The feedback will give intrinsic states and learn tasks from memory, which is suitable for modeling EEG signals. With the activation functions, the deep RNN architecture is good at learning sequential patterns from EEG signals. Figure 2 illustrates the standard deep RNN architecture. In the figure, the simplified RNN architecture is shown in the box on the left. The box on the right shows the architecture unfolded in a form of time-series [,t−1, t,t+1, ]. In the form of time-series hidden layers, the input of layer “t” contains the output of layer “ t+1”, so do the input of layer “ t−1”. The sequential relationships propagate from the end of the time-series to the start of the time-series by neurons, which are connected by horizontal lines in the figure.
Fig. 2
Fig. 2

The standard deep RNN architecture. The simplified RNN architecture is shown in the box on the left. The box on the right shows the architecture unfolded in a form of time-series data [..., t - 1, t, t + 1,...]. Connections exist in the recurrent hidden layers; the input information of hidden layer “t” contains the output information of hidden layer “t+1”, and the sequential relationships over time are connected by horizontal lines

Recurrent connections between hidden layers are followed by a feed-forward output layer. Hence, the deep RNN architecture is universal approximators of finite states. Therefore, a deep RNN architecture can approximate any finite states with enough recurrent hidden layers and trained weights. Let ZcRMT represent FB-CSP features, where M is the features dimension, T is the number of samples in each trial. The RNN architecture can be defined as:
$$\begin{array}{*{20}l} {h_{t}} &= {\sigma_{t}}\left({W_{h}}{x_{t}} + {U_{h}}{h_{t - 1}} + {b_{h}}\right) \end{array} $$
(5)
$$\begin{array}{*{20}l} {y_{t}} &= {\sigma_{y}}\left({W_{y}}{h_{t}} + {b_{y}}\right) \end{array} $$
(6)

where xt is the vector of input layer, which is one of the time slices of the FB-CSP features ZcRMT. ht is the vector of hidden layer. yt is the vector of output layer. W, U and b are the recurrent connected weights. σ is the activation functions.

Neural networks are processed by back-propagations (BP) algorithm in common. For the RNN architecture, the sequential relationships propagate all steps back through time, so the feedback of hidden layers will be processed by back-propagation through time (BPTT) algorithm [55]. The training procedure of a deep RNN architecture is performed using a stochastic gradient descent (SGD) algorithm. By using SGD algorithm, we can iteratively update the network’s weight values based on BPTT algorithm. However, the BPTT algorithm is too sensitive to recent distractions; thus, the error flow tends to vanish as long as the weights have absolute low variations, especially at the onset of the training phase. Long short-term memory (LSTM) unit [30] and Gated recurrent unit (GRU) [31] are proposed to overcome the vanishing gradient problem. The LSTM and GRU architecture is illustrated in Figs. 3 and 4. The introduction of these two architectures are as follow:
  1. 1.
    LSTM architecture: In a LSTM unit [56], input, output and forget gates are used to retain memory contents; these gates also prevent the irrelevant inputs and outputs from entering the memory. Thus, the unit stores the long term memory features of the time-series data. A peephole method [57] will be included in the LSTM architecture to transfer memories for all gates.
    Fig. 3
    Fig. 3

    The LSTM unit architecture. In a LSTM unit, input, output and forget gates are used to retain memory contents; these gates also prevent the irrelevant inputs and outputs from entering the memory. Thus, the unit stores the long term memory features of the time-series data

    Fig. 4
    Fig. 4

    The GRU architecture. A GRU supports each recurrent unit to adaptively obtain dependencies of different time scales. The GRU has “update” and “reset” gates to prevent the error flow of information in the unit. Similarly to the LSTM unit, the gates prevent irrelevant inputs and outputs


  2. 2.

    GRU architecture: A GRU supports each recurrent unit to adaptively obtain dependencies of different time scales. The GRU has “update” and “reset” gates to prevent the error flow of information in the unit. Similarly to the LSTM unit, the gates prevent irrelevant inputs and outputs.



In such “memory units”, because these special units have internal states, multiplicative gates are employed to enforce constant error flow. These two different memory units are used in the deep RNN architecture to classify motor imagery tasks through spatial-frequency-sequential relationships. For each hidden layer of the RNN architecture, the original hidden layer will be replaced by LSTM unit or GRU to construct LSTM-RNN architecture or GRU-RNN architecture. Classification results are compared and analyzed to show which memory unit is more suitable for MI-BCI.

Sliding window cropping strategy

The conventional trial-wise EEG signals classification algorithms treat the entity duration of a trial as a single sample and the corresponding label as a single target. Then, a shallow classifier is used to train and validate motor imagery tasks. The conventional algorithms will lead to less samples and high dimensionality of features, which will cause the over-fitting problem and drop the accuracy of classification. In this study, a deep RNN architecture is used for the classification of EEG signals, if the entity duration of a trial is fed into deep RNN architecture, the number of hidden layers will be too large to get long-term patterns for the classification of EEG signals. To avoid the over-fitting problem of classification, a sliding window cropping strategy is applied to each trial to crop the entity duration of the trial into several time slices, and the label of the trial will be repeated to all time slices. This strategy will increase the number of training samples for the RNN architecture, which is widely used in the recognition tasks of image, audio and EEG signals by neural networks [5860].

In our study, let ZcRMT represents the inputs of RNN, the entity duration of a trial includes T time steps. Assumed τ is the cropping size of the sliding window cropping strategy, the time slices of the trial by cropping can be defined as
$$ {Z_{SWC}} \in \left\{ {Z_{t,\cdots,t + T}}|t \in 1,\cdots,T - {\tau}\right\} $$
(7)
The number of training samples will be increased Tτ times, and all time slices will get the label yc as the same label from the original trial. Since the deep RNN architecture has the ability to extract signals’ sequential relationships for classification, we treat the number of hidden layers as the size of time slices. Therefore, we need to confirm the optimal number of hidden layers of the deep RNN architecture for motor imagery EEG signals classification; then, the optimal cropping size will be obtained from the EEG modeling experiment. If the optimal number of hidden layers is confirmed, the cropping size is confirmed. In common, the trial duration used for motor imagery is two seconds, and we obtain 500 samples for a 250 Hz sample rate. If the optimal number of the hidden layers is 20, the original trial will be crop to 480 time slices. The sliding window procedure for cropping a trial into time slices is shown in Fig. 5.
Fig. 5
Fig. 5

The sliding window procedure for cropping a trial into time slices. In common, the trial duration used for motor imagery is two seconds, and we obtain 500 samples for a 250 Hz sample rate. If the optimal number of the hidden layers is 20, the original trial will be crop to 480 time slices

Experiments and results

Experimental datasets setup

The performances of the algorithms were evaluated on the BCI Competition IV [27] “Dataset 2a” and “Dataset 2b”1. The two datasets are compared in Table 3. Figure 6 illustrates how the single-trial EEG data were extracted on “Dataset 2a” and “Dataset 2b”. The two datasets share the same procedure. In the motor imagery classification experiments, each subject sat in a soft chair comfortably facing a computer screen. The BCI Competition IV experiments are composed of the following six steps: (1) Each trial started with a warning tone. (2) Simultaneously, a fixation cross was shown on the computer screen for two seconds. (3) After two seconds, a cue, in the form of an arrow, was randomly shown in lieu of the fixation cross, and the subjects started the corresponding motor imagery task of the cue. (4) After another 1.25 s, the cue reverted to the fixation cross. (5) The motor imagery task continued until the sixth second, at which time the fixation cross disappeared. (6) Finally, there was a short 1.5 s break. The signals were sampled at 250 Hz and recorded. The pre-processing operations on the signals for notch filtered and band-pass filtered were 50Hz and 0.1-100Hz, respectively.
Fig. 6
Fig. 6

The procedure of single-trial motor imagery in BCI Competition IV. The BCI Competition IV experiments are composed of the following six steps: (1) Each trial started with a warning tone. (2) Simultaneously, a fixation cross was shown on the computer screen for two seconds. (3) After two seconds, a cue, in the form of an arrow, was randomly shown in lieu of the fixation cross, and the subjects started the corresponding motor imagery task of the cue. (4) After another 1.25 seconds, the cue reverted to the fixation cross. (5) The motor imagery task continued until the sixth second, at which time the fixation cross disappeared. (6) Finally, there was a short 1.5-seconds break

Table 3

Comparison of “Dataset 2a” and “Dataset 2b”

Dataset

Classes

Electrodes

Subjects

Sessions

Trials per session

2a

4(left, right, foot, tongue)

22EEG+3EOG

9

2

288

2b

2(left, right)

3EEG+3EOG

9

5

160

The BCI Competition IV “Dataset 2a” is composed of the following four classes of motor imagery EEG measurements from nine subjects: (1) left hand, (2) right hand, (3) feet, and (4) tongue. Two sessions, one for training and another for evaluation, were recorded from each subject. “Dataset 2b” is composed of two classes of motor imagery EEG measurements from nine subjects: (1) left hand and (2) right hand. Five sessions, the first three for training and the last two for evaluation, were recorded from each subject. According to the extraction procedure, the time range [4, 6s] was chosen for motor imagery classification because of a strong ERD/ERS phenomenon within that range [12, 44].

The spatial-frequency features are extracted by the FB-CSPs algorithm. In the division of the whole band (8-30Hz, covered μ and β rhythms) to obtain universality for all subjects, the optimal band width range is 4Hz overlaps the next by 2Hz [5, 25]. The optimal division of band-pass filters is shown in Table 4. After the optimal frequency bands filter the raw EEG signals, the CSP algorithm is applied to the filtered EEG signals to obtain spatial-frequency features. In (2) in the CSP algorithm, parameter m for processing “Dataset 2a” and “Dataset 2b” is set to 2 and 1, respectively.
Table 4

Optimal division of band-pass filters

Sub-bands

f b 1

f b 2

f b 3

f b 4

f b 5

f b 6

f b 7

f b 8

f b 9

f b 10

Frequency(Hz)

[8,12]

[10,14]

[12,16]

[14,18]

[16,20]

[18,22]

[20,24]

[22,26]

[24,28]

[26,30]

After extraction of spatial-frequency features, two separate experiments to confirm the parameters and validate the performances of spatial-frequency-sequential relationships and the classification of motor imagery are as follows:
  1. 1.

    EEG modeling experiments: First, a size range of [0, 4] smoothing time windows are put on the FB-CSP features to obtain the performance of classification. After validate the affections of performances by sequential relationships, two different sub-experiments on “Dataset 2a Subject 3” are presented to confirm whether a deep RNN architecture can model EEG signals well by cross-entropies and accuracies. Another sub-experiment is presented to find the optimal number of hidden layers in the deep RNN architecture.


  2. 2.

    Classification experiments: For motor imagery classification, the spatial-frequency FB-CSP features are fed into the deep RNN architecture to obtain spatial-frequency-sequential relationships. The spatial-frequency features are cropped by a sliding window sized by the optimal number of hidden layers. In the classification by LSTM-RNN architecture and GRU-RNN architecture, the accuracies, errors and efficiency of classification will be compared between spatial-frequency features and spatial-frequency-sequential relationships.



EEG modeling experiments and results

To obtain the performance of classification influenced by the sequential relationships, a group of smoothing windows with the size range [0,4] is presented to FB-CSP features. In our experiments, via smoothed FB-CSP features, the SVM classifier with RBF kernel is used for motor imagery classification. Figure 7 illustrates the smoothing time window experimental results for “Dataset 2a” and “Dataset 2b”. Among the results, “SW=0” expresses the FB-CSP features without smoothing. From the results, we find that the performance of EEG signals classification was fully influenced by the smoothing time windows. Thus, the RNN architecture is introduced in this study to extract spatial-frequency-sequential relationships from FB-CSP features for classification. However, we must validate the presentation of spatial-frequency-sequential relationships by a RNN architecture at first.
Fig. 7
Fig. 7

The classification results by using different size of smoothed FB-CSP features and SVM for both “Dataset2a” and “Dataset2b”. To obtain the performance of classification influenced by the sequential relationships, a group of smoothing windows with the size range [0,4] is presented to FB-CSP features. In our experiments, via smoothed FB-CSP features, the SVM classifier is used for motor imagery classification. Among the results, “SW=0” expresses the FB-CSP features without smoothing. The size number of smoothing time window fully influences the performance of EEG signals classification. a The classification results of “Dataset2a” and b The classification results of “Dataset2b”

There are three steps to validate the presentation of spatial-frequency-sequential relationships by RNN architecture. First, to validate whether the deep RNN architecture can model EEG signals or not, we train a deep RNN architecture by 200 iterations of SGD algorithm over 22 channels of the first three seconds of EEG signals from “Dataset 2a Subject 3”. To test the modeling ability, the previous outputs are fed back into model’s inputs to predict the current EEG signals. The results on channel “ C3” by 20, 30, 90 hidden layers are drawn in Fig. 8. From the results, we find the deep RNN architecture will predict the same level of signals as the number of hidden layers increased. The predictions by 20 hidden layers matched the EEG signals after a few samples, and the predictions by 30 hidden layers matched almost half of the rest samples. The predictions by 90 hidden layers matched the entity of rest samples for both LSTM-RNN architecture and GRU-RNN architecture. A highest number of hidden layers will get rich sequential relationships which have a similar spectrum to the EEG signals.
Fig. 8
Fig. 8

The prediction results of LSTM-RNN and GRU-RNN by 20, 30, and 90 hidden layers on channel “ C3”. The deep RNN architecture will predict the same level of signals as the number of hidden layers increased. A highest number of hidden layers will get rich sequential relationships which have a similar spectrum to the EEG signals. a 20 hidden layers of LSTM unit, b 20 hidden layers of GRU, c 30 hidden layers of LSTM unit, d 30 hidden layers of GRU, e 90 hidden layers of LSTM unit and f 90 hidden layers of GRU

Second, we evaluate the classification performances of the deep RNN architecture by 200 iterations of SGD algorithm over the training data of “Dataset 2a Subject 3”. The loss function for EEG signals by RNN architecture is the logarithmic cross-entropy, which is defined as [61]:
$$ E = - \frac{1}{N}\sum\limits_{t = 1}^{T} {{c_{t}}\log b_{c}^{t} + (1 - {c_{t}})\log \left(1 - b_{c}^{t}\right)} $$
(8)
where ct is the ground truth result, and \(b_{c}^{t}\) is the prediction result by deep classifier. The number of iterations for optimizing the loss function is an experience value of controlling training epochs by limiting the number of hidden layers. Figure 9 gives the training and validation cross-entropies as the number of hidden layers increased. From the results, we find the training and validation cross-entropies have separations over 20 hidden layers. The cross-entropies will not reduce if the signals are over-fitted by the RNN architecture. In fact, the cross-entropies will not increase, so the deep RNN architecture continues to learn components of the signals that are common to all of the EEG sequences. Compared with LSTM-RNN architecture and GRU-RNN architecture, the LSTM-RNN architecture needs more hidden layers to achieve a same level of cross-entropy during the classification of EEG signals.
Fig. 9
Fig. 9

The curves of LSTM-RNN and GRU-RNN’s training and validation cross-entropies as the number of hidden layers increased. The training and validation cross-entropies have separations over 20 hidden layers. The cross-entropies will not reduce if the signals are over-fitting by RNN. In fact, the cross-entropies will not increase, so the deep RNN architecture continues to learn components of the signals that are common to all of the EEG sequences. a The curves of LSTM-RNN and b The curves of GRU-RNN

Third, since a large number of hidden layers requires much computational complexity, and causes the over-fitting problem to achieve low validation accuracies, Fig. 10 gives the training and validation accuracies as the number of hidden layers increased. From the results, we find the validation accuracies appear peaks with a 20–15 hidden layers. Compared with LSTM-RNN architecture and GRU-RNN architecture, the LSTM-RNN architecture needs more hidden layers to achieve a same level of accuracy during the classification of EEG signals. When the deep RNN architecture is over-fitting, the accuracy of GRU-RNN has a sharp drop than LSTM-RNN.
Fig. 10
Fig. 10

The curves of LSTM-RNN and GRU-RNN’s training and validation accuracies as the number of hidden layers increased. The validation accuracies appear peaks with a 20–15 hidden layers. The results of accuracies will be paradoxical with the results of cross-entropies, and the classification of EEG signals will be quickly over-fitting. The reason is that the deep RNN architecture continues to learn common components of the EEG sequences, while simultaneously learning signal noise and non-discriminative components. Therefore, there is a trade-off between classification and long-term patterns of modeling errors. a The curves of LSTM-RNN and b The curves of GRU-RNN

Classification experiments and results

Let \({\overline Z_{c}} \in {R^{M * T}}\) represents the spatial-frequency features, where M is the feature dimension, T is the number of samples in each trial. After EEG modeling experiments, the optimal number of hidden layers for LSTM-RNN and GRU-RNN of all subjects are confirmed. Then, the optimal number τ is used for cropping training set and validation set by sliding window cropping strategy. Hence, the samples of each trial in training set and validation set will be increased Tτ times to satisfy the deep RNN architecture. After training procedure, the validation procedure will produce Tτ classification targets in each trial. Finally, the unique target of the trial will be calculated by averaging all targets of time slices.

To confirm the parameters and weights of RNN architecture, the characteristics of non-linearity and non-stationarity in EEG signals will be considered, since the characteristics will limit the reliability of the conventional activation function in the deep learning architecture. Therefore, there are three different activation strategies, “tanh”, “sigmoid” and “ReLu”, for constructing activation functions [62]. The activation function, “tanh”, is applied to cell input activation function of both the LSTM unit and GRU. The activation function, “sigmoid”, is applied to the cell output activation function of the LSTM units. To prevent the vanishing error flow, the “ReLu” activation function is applied to the gates activation function of both the LSTM unit and GRU. The weights of RNN are initialized by a Gaussian distribution N(0,0.2). The BPTT algorithm is used to train RNN by minimizing cross-entropy (see (8)) loss function. Also, because the Adam strategy [63] is suitable for time-series in deep classifiers and its momentum improves the robustness of error flow, the strategy is applied to compute the learning rate during BPTT. Finally, a “Dropout” strategy is applied to prevent the over-fitting problem [64]. The key idea of the “Dropout” strategy is to randomly eliminate units (along with their connections) from the neural network during training. By experience, the dropout rate is set at 0.2, and the maximum number of iterations is set at 200.

For both “Dataset 2a” and “Dataset 2b”, we train two different RNN architectures, each of which includes LSTM unit and GRU. Figure 11 illustrates the learning curves for different memory units in different datasets. In the case of both datasets, GRU-RNN architecture converges faster than LSTM-RNN architecture. To reach lowest loss, GRU-RNN architecture acquire less number of iterations than LSTM-RNN architecture. For some specific subjects, GRU-RNN architecture obtains lower average cross-entropy loss than LSTM-RNN architecture within 200 iterations. Overall, the subjects’ EEG signals from “Dataset 2a” and “Dataset 2b” represent similar average cross-entropy between LSTM-RNN architecture and GRU-RNN architecture.

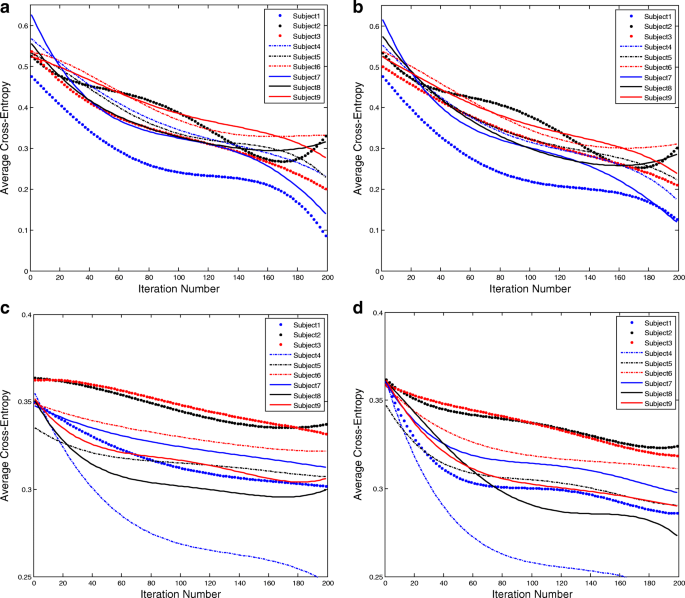

Fig. 11
Fig. 11

The learning curves for different memory units in different datasets. In the case of both datasets, GRU-RNN converge faster than LSTM-RNN. To reach lowest loss, GRU-RNN acquires less number of iterations than LSTM-RNN. For some specific subjects, GRU-RNN obtains lower average cross-entropy loss than LSTM-RNN within 200 iterations. Overall, the subjects’ EEG signals from “Dataset 2a” and “Dataset 2b” represent similar average cross-entropy between LSTM-RNN and GRU-RNN. a LSTM-RNN in “Dataset 2a”, b GRU-RNN in “Dataset 2a”, c LSTM-RNN in “Dataset 2b” and d GRU-RNN in “Dataset 2b”

Table 5 gives the average training and validation time complexity per trial comparison between spatial-frequency-sequential relationships and spatial-frequency features. To compare time complexity, “Dataset 2a Subject 7” and “Dataset 2b Subject 8” are used to detect the average training and validation time complexity per trial. In Table 5, since the deep neural networks architectures (RNN and CNN) need more number of iterations for convergence in training phase, the average training time complexity of deep architectures is significantly higher than the conventional SVM model. However, in the validation phase, the deep architectures achieve a same level of time complexity than the conventional SVM model. Hence, the RNN architecture will cost appropriate time consumptions in the applications of MI-BCIs. Besides, compared with two different memory units of RNN architecture, GRU-RNN architecture outperform LSTM-RNN architecture in time complexity of EEG signals’ training and validation.
Table 5

Training and validation time complexity comparison between spatial-frequency- sequential features and spatial-frequency features with respect to “Dataset 2a Subject 7” and “Dataset 2b Subject 8”

Datasets and subjects

Spatial-frequency-sequential relationships

Spatial-frequency features



LSTM-RNN

GRU-RNN

CNN

SVM-linear

Training time

“Dataset 2a S7”

272.26

214.34

478.08

8.19

complexity (/s)

“Dataset 2b S8”

169.80

148.11

342.00

22.83

Validation time

“Dataset 2a S7”

1.89

1.49

3.32

2.01

complexity (/s)

“Dataset 2b S8”

3.40

2.96

6.84

4.17

All classification experimental results of all subjects in “Dataset 2a” and “Dataset 2b” are listed in Tables 6 and 7, respectively. Spatial-frequency-sequential relationships extracted from LSTM-RNN architecture and GRU-RNN architecture; spatial-frequency features extracted from CNN, SVM with linear, polynomial and RBF kernels are used to classify motor imagery for comparison. The results are presented by error rate forms, and a paired t-test statistical technique is used to detect whether the spatial-frequency-sequential relationships significantly outperform than spatial-frequency features in the classification of MI-BCIs. For each subject, we confirm the optimal number of hidden layers (ONHL) for LSTM-RNN architecture and GRU-RNN architecture.
Table 6

The misclassification rate and variance of motor imagery classification in “Dataset 2a”

Subjects

Spatial-frequency-sequential relationships

Spatial-frequency features



ONHL(τ)

LSTM-RNN(a)

ONHL(τ)

GRU-RNN(b)

CNN(c)

SVM-RBF(d)

SVM-polymonial(e)

SVM-linear(f)

S1

37

16.41 ±2.92

30

15.18 ±2.86

20.86 ±3.19

18.06 ±2.88

18.40 ±2.94

17.71 ±3.03

S2

35

34.13 ±5.63

29

34.68 ±5.56

48.18 ±6.87

43.40 ±6.69

46.53 ±6.55

46.18 ±6.36

S3

41

21.19 ±3.42

33

16.46 ±3.55

17.59 ±3.48

15.97 ±3.24

15.28 ±3.35

17.71 ±3.36

S4

40

31.67 ±5.15

31

32.33 ±5.60

44.12 ±7.37

39.24 ±5.64

37.15 ±5.48

42.71 ±7.19

S5

34

36.14 ±5.72

27

36.00 ±5.65

32.53 ±5.28

57.99 ±9.75

40.62 ±6.24

38.54 ±5.82

S6

36

33.11 ±5.15

26

29.13 ±5.36

49.30 ±8.68

46.87 ±8.98

47.22 ±8.52

47.57 ±8.49

S7

33

23.52 ±3.40

24

15.04 ±2.86

16.63 ±2.72

13.54 ±3.64

30.21 ±3.57

12.16 ±2.40

S8

36

23.60 ±3.63

28

28.05 ±3.75

13.61 ±3.86

29.51 ±4.35

28.13 ±4.63

31.94 ±5.72

S9

39

26.99 ±4.14

26

31.10 ±4.26

15.71 ±3.85

26.39 ±4.50

29.17 ±5.21

34.03 ±5.43

AVG

-

27.42 ±4.35

-

26.44 ±4.38

28.73 ±5.03

32.33 ±5.52

32.52 ±5.17

32.06 ±5.31

p-test

-

a vs. f

-

b vs. f

c vs. b

d vs. b

e vs. b

-

p-value

-

p=0.13

-

p <0.05

p=0.59

p=0.08

p <0.05

-

The smallest value for each subject is highlighted in bold. :significant at 5% significance level for paired t-test

Table 7

The misclassification rate and variance of motor imagery classification in “Dataset 2b”

Subjects

Spatial-frequency-sequential relationships

Spatial-frequency features



ONHL(τ)

LSTM-RNN(a)

ONHL(τ)

GRU-RNN(b)

CNN(c)

SVM-RBF(d)

SVM-polynomial(e)

SVM-linear(f)

S1

39

22.61 ±4.63

31

20.24 ±4.29

30.66 ±5.96

35.94 ±6.46

32.5 ±5.27

33.44 ±5.65

S2

36

28.15 ±5.86

27

27.24 ±5.69

36.76 ±5.42

46.43 ±6.48

47.86 ±6.86

46.79 ±7.62

S3

44

27.87 ±4.53

35

26.85 ±4.62

38.61 ±5.27

45.94 ±7.52

44.69 ±7.40

45.62 ±7.65

S4

42

8.64 ±2.13

32

7.53 ±2.20

1.87 ±1.03

3.12 ±2.58

3.75 ±2.62

4.06 ±2.18

S5

36

14.67 ±3.46

28

13.75 ±3.35

14.58 ±3.28

19.37 ±4.25

16.25 ±3.86

16.25 ±3.97

S6

32

17.92 ±4.16

30

15.49 ±4.23

12.64 ±3.60

21.87 ±5.30

22.19 ±5.14

23.12 ±5.21

S7

33

14.53 ±3.59

39

13.35 ±3.46

10.06 ±2.84

22.81 ±4.72

22.50 ±4.41

22.81 ±4.23

S8

35

7.25 ±2.15

25

6.53 ±2.03

3.16 ±1.86

10.00 ±3.68

9.69 ±3.13

10.31 ±3.24

S9

38

24.64 ±4.62

28

24.31 ±4.72

30.66 ±5.13

17.19 ±3.42

16.56 ±3.35

17.19 ±3.41

AVG

-

18.48 ±3.90

-

17.25 ±3.84

19.89 ±3.83

24.74 ±4.93

24.00 ±4.67

24.40 ±4.80

p-test

-

a vs. f

-

b vs. f

c vs. b

d vs. b

e vs. b

-

p-value

-

p=0.08

-

p <0.05

p=0.28

p <0.05

p=0.06

-

The smallest value for each subject is highlighted in bold. :significant at 5% significance level for paired t-test

From the results in Tables 6 and 7, for both datasets, spatial-frequency-sequential relationships outperform the spatial-frequency features in the classification of MI-BCIs. Among them, the average error rate of 27.42% and 26.44% is achieved by LSTM-RNN and GRU-RNN in the case of “Dataset 2a”, respectively. The results of paired t-test show GRU-RNN (b) achieves significantly lower error rate than SVM-Polynomial (e) (p <0.05) and SVM-Linear (f) (p <0.05). In the case of “Dataset 2b”, an averaged error rate of 18.48% and 17.25% is achieved by LSTM-RNN and GRU-RNN, respectively. The results of paired t-test show GRU-RNN (b) achieves significantly lower error rate than SVM-RBF (d) (p <0.05) and SVM-Linear (f) (p <0.05). To compare the classification performances of GRU-RNN and LSTM-RNN, Fig. 12 gives the classification accuracies for all subjects with all algorithms.
Fig. 12
Fig. 12

The classification accuracy performances for all subjects with all algorithms. CNN and SVM (Linear) outperforms RNN in some subjects with high-level (over 60%) accuracies (S3, S7, S8, S9 in “Dataset 2a” and S4, S6, S8, S9 in “Dataset 2b”). However, in low-level (below 60%) accuracies of subjects, RNN outperforms CNN and SVM-Linear (S2, S4, S6 in “Dataset 2a” and S2, S3 in for “Dataset 2b”). In the average-level accuracies, RNN outperforms CNN and SVM (Linear). a Classification accuracy performances for “Dataset 2a” and b Classification accuracy performances for “Dataset 2b”

From the results in Fig. 12, we find CNN and SVM (Linear) outperformed RNN in some subjects with high-level (over 60%) accuracies (S3, S7, S8, S9 in “Dataset 2a” and S4, S6, S8, S9 in “Dataset 2b”). However, in low-level (below 60%) accuracies of subjects, RNN outperformed CNN and SVM (Linear) (S2, S4, S6 in “Dataset 2a” and S2, S3 in “Dataset 2b”). In the average-level accuracies, RNN architecture outperformed CNN and SVM (Linear). Besides, a comparison of the averaged accuracies for LSTM unit and GRU in both datasets shows that GRU-RNN architecture outperformed LSTM-RNN.

Discussion

Discussion for sequential relationships

Four different sub-experiments have been created to analyze the application of sequential relationships. From smoothing time window experimental results shown in Fig. 7, a small size of smoothing time window leaded to an improvement of classification accuracy for “Dataset 2a” and a decline of classification variance for “Dataset 2b”. However, a large size of smoothing time window leaded performance to decline for both “Dataset 2a” and “Dataset 2b”. The smoothing time window with different sliding sizes can change the sequential relationships; in addition, the experimental results demonstrated that the relationships significantly changed the classification performance; since the classification results can be changed if different sizes of smoothing time windows were applied to the sequential relationships. The finding gives us a novel enlightenment to smooth the extracted features to improve the classification performance and robustness [8, 12]. In addition, the sequential learning in the NLP also suggested to consider the sequential relationships as the key features for solving the natural language processing (NLP) problems [65, 66]. Therefore, due to the EEG signals contained the similar characteristics as the sentence structure in the NLP, the finding can assist us to use the sequential relationships to model the EEG signals.

In the experiments of representing EEG signals’ sequential relationships by RNN architectures, we found more hidden layers number of RNN architecture represented the EEG signals well, but more hidden layers number also caused memory vanishing problem(see Figs. 8, 9 and 10). To overcome the memory vanishing problem in the conventional RNN architecture, the LSTM-RNN architecture and GRU-RNN architecture have been introduced for the classification. We have validated the training and validation results in Figs. 9 and 10, the results of accuracies were paradoxical with the results of cross-entropies, and the classification of EEG signals will quickly over-fitting. The reason is that the deep RNN architecture continues to learn common components of the EEG sequences, while simultaneously learning signal noise and non-discriminative components [47]. Hence, here we must use propriate numbers of hidden layers to retain the classification performance. From the results in Fig. 10, the number of the hidden layers of the LSTM-RNN was about 30, and the number of hidden layers of GRU-RNN was about 35 [67, 68] (see Fig. 10). Therefore, the constraint of LSTM-RNN/GRU-RNN architecture leads us to crop the trial of EEG signals to time slices to feed into the classification architectures. Therefore, the SWCS is introduced on the time-series to crop the entity of a trial into several time slices. The time slices keep the same length of the number of hidden layers in order to well trained the LSTM-RNN architecture and GRU-RNN architecture.

Discussion for EEG classification

In the EEG classification experiment, he results of RNN architectures outperformed the state-of-the-art methods (see Tables 6 and 7, and Fig. 12). There are two reasons for the results. The first reason is that EEG signals usually have easy distinguishing parts and difficult distinguishing parts. “Easy parts” for classification are well represented by the spatial-frequency features, since these features are statistical features. However, the “difficult parts” are nonlinear and non-stationary; therefore, the statistical features cannot well model these parts [69, 70]. Since the RNN architectures have enough neurons to fit the sequences’ nonlinear and non-stationary characteristics, the introduced spatial-frequency-sequential relationships retain the classification performance of “easy parts”, while improve the classification performance of “difficult parts”. The second reason is that the conventional spatial-frequency features regarded EEG signals as a complete entity, many factors can influence classification; in particular, the subject-specific diversity might be significant one. Instead of conventional features, spatial-frequency-sequential relationships consider the EEG signals as time-series to take spatial, frequency and temporal features of EEG data into consideration. This idea not only reduces the factors that influence classification, but also increases the corresponding robustness of the subjects by reducing the subject-specific diversity. Hence, the classification accuracies of MI-BCI by spatial-frequency-sequential relationships are significantly higher than those using the spatial-frequency features.

To solve the limitation of hidden layers number of RNN architecture, the SWCS is introduced on the time-series to crop the entity of a trial into several time slices. In this way, the number of samples for deep learning models is widely increased; therefore, enough samples are required to satisfy the generalization and performance of classification. In common, trials of EEG signals were obtained from complicated devices and the number of samples was too less to train the deep learning models. The application of SWCS solved the problem of sample number, and can also fit the RNN architecture. In addition, the LSTM and GRU are two different memory units for the RNN architecture. In order to test which memory unit is suited for processing EEG signals, the two memory units were applied to the RNN architectures. Our experimental results showed that GRU-RNN architecture was suited for the EEG signals better, and the spatial-frequency-sequential relationships with GRU memory units outperformed both shallow learning and deep learning models (see Table 5).

Advantages of spatial-frequency-sequential relationships

Since the EEG signals are nonlinear and non-stationary signals, the spatial and frequency features are the robust statistical features, which can be well classified by SVM using FB-CSP features. We considered such features as the “easy parts” for classification; in contrast, we considered the temporal features as the “difficult parts” that are difficult to be classified by the conventional machine learning models. Hence, we introduced the spatial-frequency-sequential relationships by using RNN architecture on FB-CSP features. Experimental results showed that the approach involving spatial-frequency-sequential relationships can have the better classification performance of the “difficult parts”; also, the results outperformed the-state-of-the-art methods. Besides classifying the “difficult parts” of EEG signals, another reason for introducing the RNN architecture was that: the limitation number of hidden layers leaded us to crop the entity of a trial into several time slices. Although the different time slices shared the same labels, the slices increased the diversity of EEG signals during the classification. Therefore, the cropping strategy also improved the classification performance. To sum up, the advantages of introducing spatial-frequency-sequential relationships can improve classification performance and increase EEG samples diversity.

Conclusion

In this paper, an FB-CSPs algorithm was used to extract spatial-frequency features, which were cropped by a sliding window cropping strategy into time slices. Then, the time slices were fed into deep RNN architectures, with two different memory units, to extract spatial-frequency-sequential relationships for MI-BCI classification. The extracted relationships included spatial, frequency and temporal characteristics. The experiments on MI-BCI demonstrated that the proposed method owned two advantages: (1) The spatial-frequency-sequential relationships extracted by FB-CSPs and RNN architectures can achieve significantly higher performance than spatial-frequency features. Meanwhile, the relationships had the same level of time complexity with the conventional algorithms. (2) A comparison of the accuracy and efficiency of motor imagery classification between GRUs and LSTM units revealed that GRUs can generate the better results.

Our future work will focus on collecting more EEG data to construct deeper RNNs architecture, exploring the error flow rules in BPTT, and constructing a deeper RNNs architecture that is adapted and generalized for EEG signals.

Abbreviations

AAR:

Adaptive auto regression

BPTT:

Back-propagation through time

CNN:

Convolution neural network

DBN:

Deep belief network

EEG:

Electroencephalography

ERD/ERS:

Event-related desynchronizing/event-related synchronizing

FB-CSP:

Filter bank common spatial pattern

GRU:

Gated recurrent unit

LDA:

Linear discriminant analysis

LSTM Long-short term memory; MEMD:

Multivariate empirical mode decomposition

MI-BCIs:

Motor imagery brain computer interfaces

NN:

Neural network

OVR:

One-versus-rest

PSD:

Power spectrum density

RNN:

Recurrent neural network

SVM:

Support vector machine

SWC:

Sliding window cropping

SWCS:

Sliding window cropping strategy

Declarations

Acknowledgements

The authors want to thank the members of the brain-like robotic research group of Xiamen University for their proofreading comments. The authors are very grateful to the anonymous reviewers for their constructive comments which have helped significantly in revising this work.

Funding

This work was supported by the National Natural Science Foundation of China (No.61673322, 61673326, and 91746103), the Fundamental Research Funds for the Central Universities (No. 20720160126), Natural Science Foundation of Fujian Province of China (No. 2017J01128 and 2017J01129), and the European Union’s Horizon 2020 research and innovation programme under the Marie Sklodowska-Curie grant agreement No. 663830. The funding body played the roles in supporting the experiments.

Availability of data and materials

The evaluation data is on the BCI Competition IV [27] “Dataset 2a” and “Dataset 2b” http://www.bbci.de/competition/iv/#datasets.

Authors’ contributions

FC and TL designed and implemented the methods. TL was responsible for the experiments. FC and TL analyzed the experimental results. CZ, FC and TL wrote and edited the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Department of Cognitive Science, School of Information Science and Engineering, Xiamen University, 422 Siming South Road, Siming District, Xiamen, 361005, China
(2)
Department of Computer Science, Institute of Mathematics, Physics and Computer Science, Aberystwyth University, Aberystwyth, Wales, SY23 3DB, UK

References

  1. Lotte F, Congedo M, Lécuyer A, Lamarche F, Arnaldi B. A review of classification algorithms for EEG-based brain–computer interfaces. J Neural Eng. 2007; 4(2):1.View ArticleGoogle Scholar
  2. Wolpaw JR, Birbaumer N, Heetderks WJ, McFarland DJ, Peckham PH, Schalk G, Donchin E, Quatrano LA, Robinson CJ, Vaughan TM, et al. Brain-computer interface technology: a review of the first international meeting. IEEE Trans on Rehabil Eng. 2000; 8(2):164–73.View ArticleGoogle Scholar
  3. Wang Y, Gao S, Gao X. Common spatial pattern method for channel selelction in motor imagery based brain-computer interface. In: 27th Annual International Conference of the Engineering in Medicine and Biology Society (EMBS). New York: IEEE: 2006. p. 5392–5.Google Scholar
  4. Devlaminck D, Wyns B, Grosse-Wentrup M, Otte G, Santens P. Multisubject learning for common spatial patterns in motor-imagery BCI. Comput Intell and Neurosci. 2011; 2011:8.View ArticleGoogle Scholar
  5. Thomas KP, Guan C, Lau CT, Vinod AP, Ang KK. A new discriminative common spatial pattern method for motor imagery brain–computer interfaces. IEEE Trans on Biomed Eng. 2009; 56(11):2730–3.View ArticleGoogle Scholar
  6. Brunner C, Naeem M, Leeb R, Graimann B, Pfurtscheller G. Spatial filtering and selection of optimized components in four class motor imagery EEG data using independent components analysis. Pattern Recogn Lett. 2007; 28(8):957–64.View ArticleGoogle Scholar
  7. Qin L, Ding L, He B. Motor imagery classification by means of source analysis for brain–computer interface applications. J Neural Eng. 2004; 1(3):135.View ArticleGoogle Scholar
  8. Ang KK, Chin ZY, Wang C, Guan C, Zhang H. Filter bank common spatial pattern algorithm on BCI competition IV datasets 2a and 2b. Front Neurosci. 2012; 6:39.View ArticleGoogle Scholar
  9. Ang KK, Chin ZY, Zhang H, Guan C. Filter bank common spatial pattern (FBCSP) in brain-computer interface. In: IEEE International Joint Conference on Neural Networks. Hong Kong: IEEE: 2008. p. 2390–7.Google Scholar
  10. Lemm S, Blankertz B, Curio G, Muller K-R. Spatio-spectral filters for improving the classification of single trial EEG. IEEE Trans on Biomed Eng. 2005; 52(9):1541–8.View ArticleGoogle Scholar
  11. Chin ZY, Ang KK, Wang C, Guan C, Zhang H. Multi-class filter bank common spatial pattern for four-class motor imagery BCI. In: Annual International Conference of the IEEE Engineering in Medicine and Biology Society, IEEE-EMBC. Minneapolis: IEEE: 2009. p. 571–4.Google Scholar
  12. Kumar S, Sharma A, Tsunoda T. An improved discriminative filter bank selection approach for motor imagery EEG signal classification using mutual information. BMC Bioinforma. 2017; 18(16):545.View ArticleGoogle Scholar
  13. Sitaram R, Zhang H, Guan C, Thulasidas M, Hoshi Y, Ishikawa A, Shimizu K, Birbaumer N. Temporal classification of multichannel near-infrared spectroscopy signals of motor imagery for developing a brain–computer interface. NeuroImage. 2007; 34(4):1416–27.View ArticleGoogle Scholar
  14. Kayikcioglu T, Aydemir O. A polynomial fitting and k-nn based approach for improving classification of motor imagery BCI data. Pattern Recogn Lett. 2010; 31(11):1207–15.View ArticleGoogle Scholar
  15. Schlögl A, Lee F, Bischof H, Pfurtscheller G. Characterization of four-class motor imagery EEG data for the BCI-competition 2005. J Neural Eng. 2005; 2(4):14.View ArticleGoogle Scholar
  16. Pfurtscheller G, Neuper C, Schlogl A, Lugger K. Separability of EEG signals recorded during right and left motor imagery using adaptive autoregressive parameters. IEEE Trans on Rehabil Eng. 1998; 6(3):316–25.View ArticleGoogle Scholar
  17. Wang T, Deng J, He B. Classifying EEG-based motor imagery tasks by means of time–frequency synthesized spatial patterns. Clin Neurophysiol. 2004; 115(12):2744–53.View ArticleGoogle Scholar
  18. Pfurtscheller G, Brunner C, Schlögl A, Da Silva FL. Mu rhythm (de) synchronization and EEG single-trial classification of different motor imagery tasks. Neuroimage. 2006; 31(1):153–9.View ArticleGoogle Scholar
  19. Neuper C, Wörtz M, Pfurtscheller G. ERD/ERS patterns reflecting sensorimotor activation and deactivation. Prog Brain Res. 2006; 159:211–22.View ArticleGoogle Scholar
  20. Blankertz B, Tomioka R, Lemm S, Kawanabe M, Muller K-R. Optimizing spatial filters for robust EEG single-trial analysis. IEEE Signal Process Mag. 2008; 25(1):41–56.View ArticleGoogle Scholar
  21. Blankertz B, Dornhege G, Krauledat M, Müller K-R, Curio G. The non-invasive berlin brain–computer interface: fast acquisition of effective performance in untrained subjects. NeuroImage. 2007; 37(2):539–50.View ArticleGoogle Scholar
  22. Herman P, Prasad G, McGinnity TM, Coyle D. Comparative analysis of spectral approaches to feature extraction for EEG-based motor imagery classification. IEEE Trans on Neural Syst and Rehabil Eng. 2008; 16(4):317–26.View ArticleGoogle Scholar
  23. Wu W, Chen Z, Gao X, Li Y, Brown EN, Gao S. Probabilistic common spatial patterns for multichannel EEG analysis. IEEE Trans on Pattern Anal and Mach Intell. 2015; 37(3):639–53.View ArticleGoogle Scholar
  24. Yuksel A, Olmez T. A neural network-based optimal spatial filter design method for motor imagery classification. PLoS ONE. 2015; 10(5):0125039.View ArticleGoogle Scholar
  25. Park C, Looney D, ur Rehman N, Ahrabian A, Mandic DP. Classification of motor imagery BCI using multivariate empirical mode decomposition. IEEE Trans on Neural Syst and Rehabil Eng. 2013; 21(1):10–22.View ArticleGoogle Scholar
  26. Blankertz B, Muller K-R, Krusienski DJ, Schalk G, Wolpaw JR, Schlogl A, Pfurtscheller G, Millan JR, Schroder M, Birbaumer N. The BCI competition iii: Validating alternative approaches to actual BCI problems. IEEE Trans on Neural Syst and Rehabil Eng. 2006; 14(2):153–9.View ArticleGoogle Scholar
  27. Tangermann M, Müller K-R, Aertsen A, Birbaumer N, Braun C, Brunner C, Leeb R, Mehring C, Miller KJ, Mueller-Putz G, et al. Review of the BCI competition IV. Front Neurosci. 2012; 6:55.View ArticleGoogle Scholar
  28. Mikolov T, Karafiát M, Burget L, Černockỳ J, Khudanpur S. Recurrent neural network based language model. In: Eleventh Annual Conference of the International Speech Communication Association. Makuhari: ISCA: 2010.Google Scholar
  29. Williams RJ, Zipser D. A learning algorithm for continually running fully recurrent neural networks. Neural Comput. 1989; 1(2):270–80.View ArticleGoogle Scholar
  30. Hochreiter S, Schmidhuber J. Long short-term memory. Neural Comput. 1997; 9(8):1735–80.View ArticleGoogle Scholar
  31. Chung J, Gulcehre C, Cho K, Bengio Y. Gated feedback recurrent neural networks. In: International Conference on Machine Learning. Lille: JMLR.org: 2015. p. 2067–75.Google Scholar
  32. Zheng W-L, Zhu J-Y, Peng Y, Lu B-L. EEG-based emotion classification using deep belief networks. In: IEEE International Conference on Multimedia and Expo (ICME). Chengdu: IEEE: 2014. p. 1–6.Google Scholar
  33. Kumar S, Sharma A. A new parameter tuning approach for enhanced motor imagery eeg signal classification. Med Biol Eng Comput. 2018; 2018:1–14.Google Scholar
  34. Pfurtscheller G, Neuper C. Motor imagery and direct brain-computer communication. Proc IEEE. 2001; 89(7):1123–34.View ArticleGoogle Scholar
  35. Palaniappan R, Sundaraj K, Sundaraj S. A comparative study of the svm and k-nn machine learning algorithms for the diagnosis of respiratory pathologies using pulmonary acoustic signals. BMC Bioinforma. 2014; 15(1):223.View ArticleGoogle Scholar
  36. Li L, Yu S, Xiao W, Li Y, Huang L, Zheng X, Zhou S, Yang H. Sequence-based identification of recombination spots using pseudo nucleic acid representation and recursive feature extraction by linear kernel svm. BMC Bioinforma. 2014; 15(1):340.View ArticleGoogle Scholar
  37. Yu N, Yu Z, Pan Y. A deep learning method for lincrna detection using auto-encoder algorithm. BMC Bioinforma. 2017; 18(15):511.View ArticleGoogle Scholar
  38. Li H, Hou J, Adhikari B, Lyu Q, Cheng J. Deep learning methods for protein torsion angle prediction. BMC Bioinforma. 2017; 18(1):417.View ArticleGoogle Scholar
  39. Maxwell A, Li R, Yang B, Weng H, Ou A, Hong H, Zhou Z, Gong P, Zhang C. Deep learning architectures for multi-label classification of intelligent health risk prediction. BMC Bioinforma. 2017; 18(14):523.View ArticleGoogle Scholar
  40. Cecotti H, Graeser A. Convolutional neural network with embedded fourier transform for EEG classification. In: 19th International Conference on Pattern Recognition (ICPR). Tampa: IEEE: 2008. p. 1–4.Google Scholar
  41. Cecotti H, Graser A. Convolutional neural networks for P300 detection with application to brain-computer interfaces. IEEE Trans Pattern Anal Mach Intell. 2011; 33(3):433–45.View ArticleGoogle Scholar
  42. Ren Y, Wu Y. Convolutional deep belief networks for feature extraction of EEG signal. In: International Joint Conference on Neural Networks (IJCNN). Beijing: IEEE: 2014. p. 2850–3.Google Scholar
  43. Yang H, Sakhavi S, Ang KK, Guan C. On the use of convolutional neural networks and augmented CSP features for multi-class motor imagery of EEG signals classification. In: 37th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC). Milan: IEEE: 2015. p. 2620–3.Google Scholar
  44. Kumar S, Sharma A, Mamun K, Tsunoda T. A deep learning approach for motor imagery eeg signal classification. In: Computer Science and Engineering (APWC on CSE), 2016 3rd Asia-Pacific World Congress On. Fiji: IEEE: 2016. p. 34–9.Google Scholar
  45. Hajinoroozi M, Jung T-P, Lin C-T, Huang Y. Feature extraction with deep belief networks for driver’s cognitive states prediction from EEG data. In: IEEE China Summit and International Conference on Signal and Information Processing (ChinaSIP). Chengdu: IEEE: 2015. p. 812–5.Google Scholar
  46. Wulsin D, Gupta J, Mani R, Blanco J, Litt B. Modeling electroencephalography waveforms with semi-supervised deep belief nets: fast classification and anomaly measurement. J Neural Eng. 2011; 8(3):036015.View ArticleGoogle Scholar
  47. Forney EM, Anderson CW. Classification of EEG during imagined mental tasks by forecasting with elman recurrent neural networks. In: International Joint Conference on Neural Networks (IJCNN). San Jose: IEEE: 2011. p. 2749–55.Google Scholar
  48. Soleymani M, Asghari-Esfeden S, Fu Y, Pantic M. Analysis of EEG signals and facial expressions for continuous emotion detection. IEEE Trans Affect Comput. 2016; 7(1):17–28.View ArticleGoogle Scholar
  49. Chandra R, Frean M, Zhang M. Adapting modularity during learning in cooperative co-evolutionary recurrent neural networks. Soft Comput. 2012; 16(6):1009–20.View ArticleGoogle Scholar
  50. Bentlemsan M, Zemouri E-T, Bouchaffra D, Yahya-Zoubir B, Ferroudji K. Random forest and filter bank common spatial patterns for EEG-based motor imagery classification. In: 5th International Conference on Intelligent Systems, Modelling and Simulation (ISMS). Langkawi: IEEE: 2014. p. 235–8.Google Scholar
  51. Heffernan R, Yang Y, Paliwal K, Zhou Y. Capturing non-local interactions by long short-term memory bidirectional recurrent neural networks for improving prediction of protein secondary structure, backbone angles, contact numbers and solvent accessibility. Bioinforma. 2017; 33(18):2842–9.View ArticleGoogle Scholar
  52. Mikolov T, Kombrink S, Burget L, Černocký J, Khudanpur S. Extensions of recurrent neural network language model. In: 2011 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). Prague: IEEE: 2011. p. 5528–31.Google Scholar
  53. Heffernan R, Paliwal K, Lyons J, Dehzangi A, Sharma A, Wang J, Sattar A, Yang Y, Zhou Y. Improving prediction of secondary structure, local backbone angles, and solvent accessible surface area of proteins by iterative deep learning. Sci Rep. 2015; 5:11476.View ArticleGoogle Scholar
  54. Heffernan R, Dehzangi A, Lyons J, Paliwal K, Sharma A, Wang J, Sattar A, Zhou Y, Yang Y. Highly accurate sequence-based prediction of half-sphere exposures of amino acid residues in proteins. Bioinformatics. 2015; 32(6):843–9.View ArticleGoogle Scholar
  55. Mazumdar J, Harley RG. Recurrent Neural Networks Trained With Backpropagation Through Time Algorithm to Estimate Nonlinear Load Harmonic Currents. IEEE Trans Ind Electron. 2008; 55(9):3484–91.View ArticleGoogle Scholar
  56. Hanson J, Yang Y, Paliwal K, Zhou Y. Improving protein disorder prediction by deep bidirectional long short-term memory recurrent neural networks. Bioinformatics. 2016; 33(5):685–92.Google Scholar
  57. Gers FA, Schraudolph NN, Schmidhuber J. Learning precise timing with lstm recurrent networks. J Mach Learn Res. 2002; 3:115–43.Google Scholar
  58. He K, Zhang X, Ren S, Sun J. Deep residual learning for image recognition. In: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition. Las Vegas: IEEE: 2016. p. 770–8.Google Scholar
  59. Sercu T, Puhrsch C, Kingsbury B, LeCun Y. Very deep multilingual convolutional neural networks for LVCSR. In: IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). Shanghai: IEEE: 2016. p. 4955–9.Google Scholar
  60. Schirrmeister RT, Springenberg JT, Fiederer LDJ, Glasstetter M, Eggensperger K, Tangermann M, Hutter F, Burgard W, Ball T. Deep learning with convolutional neural networks for EEG decoding and visualization. Hum Brain Mapp. 2017; 38(11):5391–420.View ArticleGoogle Scholar
  61. Chan JCC, Eisenstat E. Marginal likelihood estimation with the Cross-Entropy method. Econ Rev. 2015; 34(3):256–85.View ArticleGoogle Scholar
  62. Dahl GE, Sainath TN, Hinton GE. Improving deep neural networks for LVCSR using rectified linear units and dropout. In: IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). Vancouver: IEEE: 2013. p. 8609–13.Google Scholar
  63. Duchi J, Hazan E, Singer Y. Adaptive subgradient methods for online learning and stochastic optimization. J Mach Learn Res. 2011; 12(Jul):2121–59.Google Scholar
  64. Srivastava N, Hinton G, Krizhevsky A, Sutskever I, Salakhutdinov R. Dropout: A simple way to prevent neural networks from overfitting. J Mach Learn Res. 2014; 15(1):1929–58.Google Scholar
  65. Sutskever I, Vinyals O, Le QV. Sequence to sequence learning with neural networks. In: Advances in Neural Information Processing Systems. Montreal: NIPS: 2014. p. 3104–12.Google Scholar
  66. Mikolov T, Yih W-t, Zweig G. Linguistic regularities in continuous space word representations. In: Proceedings of the 2013 Conference of the North American Chapter of the Association for Computational Linguistics: Human Language Technologies. Atlanta: ACL: 2013. p. 746–51.Google Scholar
  67. Gal Y, Ghahramani Z. A theoretically grounded application of dropout in recurrent neural networks. In: Advances in Neural Information Processing Systems. Barcelona: NIPS: 2016. p. 1019–27.Google Scholar
  68. Ravuri S, Stolcke A. A comparative study of recurrent neural network models for lexical domain classification. In: Acoustics, Speech and Signal Processing (ICASSP), 2016 IEEE International Conference On. Shanghai: IEEE: 2016. p. 6075–9.Google Scholar
  69. Riaz F, Hassan A, Rehman S, Niazi IK, Dremstrup K. Emd-based temporal and spectral features for the classification of eeg signals using supervised learning. IEEE Trans Neural Syst Rehabil Eng. 2016; 24(1):28–35.View ArticleGoogle Scholar
  70. Jiao Z, Gao X, Wang Y, Li J, Xu H. Deep Convolutional Neural Networks for mental load classification based on EEG data. Pattern Recogn. 2018; 76:582–95.View ArticleGoogle Scholar

Copyright

© The Author(s) 2018

Advertisement
