Replicability analysis in genomewide association studies via Cartesian hidden Markov models
BMC Bioinformatics volume 20, Article number: 146 (2019)
Abstract
Background
Replicability analysis which aims to detect replicated signals attracts more and more attentions in modern scientific applications. For example, in genomewide association studies (GWAS), it would be of convincing to detect an association which can be replicated in more than one study. Since the neighboring single nucleotide polymorphisms (SNPs) often exhibit high correlation, it is desirable to exploit the dependency information among adjacent SNPs properly in replicability analysis. In this paper, we propose a novel multiple testing procedure based on the Cartesian hidden Markov model (CHMM), called repLIS procedure, for replicability analysis across two studies, which can characterize the local dependence structure among adjacent SNPs via a fourstate Markov chain.
Results
Theoretical results show that the repLIS procedure can control the false discovery rate (FDR) at the nominal level α and is shown to be optimal in the sense that it has the smallest false nondiscovery rate (FNR) among all αlevel multiple testing procedures. We carry out simulation studies to compare our repLIS procedure with the existing methods, including the BenjaminiHochberg (BH) procedure and the empirical Bayes approach, called repfdr. Finally, we apply our repLIS procedure and repfdr procedure in the replicability analyses of psychiatric disorders data sets collected by Psychiatric Genomics Consortium (PGC) and Wellcome Trust Case Control Consortium (WTCCC). Both the simulation studies and real data analysis show that the repLIS procedure is valid and achieves a higher efficiency compared with its competitors.
Conclusions
In replicability analysis, our repLIS procedure controls the FDR at the prespecified level α and can achieve more efficiency by exploiting the dependency information among adjacent SNPs.
Background
Since the first publication of genomewide association studies (GWAS) on agerelated macular degeneration in 2005 [1], great progress has been made in the genetic studies of the human complex diseases. As of September 1st, 2016, more than 24,000 SNPs have been identified to be associated with complex diseases or traits [2]. It also has been shown that different diseases or traits usually share the similar genetic mechanisms and are even affected by some of the same genetic variants [3, 4]. This phenomenon is known as “pleiotropy". It is desirable to make an integrative analysis of several GWAS studies to improve the power by leveraging the pleiotropy information.
Metaanalysis is one of the approaches that combines of multiple scientific studies and has been widely used in biomedical research. In GWAS, however, the results obtained from metaanalysis are often in contradiction with those in single studies. For example, Voight et al. [5] reported that some of the type 2 diabetes (T2D) related SNPs detected by metaanalysis were not discovered in single studies. It is more convincing if the result can be replicated in at least one study [6]. To this end, replicability analysis was suggested to detect signals that are discovered in more than one study for GWAS [7, 8]. Instead of examining the association in each single study separately, replicability analysis combines results across different studies and can usually gain additional power in genetic association studies. Moreover, it has been reported that the population stratification may affect the GWAS identifications and lead to a subtle bias [9]. We also hope that some of the identified SNPs in the study of one population can be replicated for the studies of other populations. Fortunately, replicability analysis of multiple GWAS from different populations can avoid this kind of bias in some extent.
So far, only a handful of methods have been proposed for replicability analysis. Benjamini et al. [10] utilized the maximum pvalue of two studies as the joint pvalue for each test and then carried out the BenjaminiHochberg procedure [11] to detect replicated signals across two studies. Bogomolov and Heller [12] focused on replicability analysis for two studies, and proposed an alternative FDR controlling procedure based on pvalues. In 2014, a statistical approach, named GPA, was proposed by [13], which can extract replicated associations through joint analysis of multiple GWAS data sets and annotation information. Heller and Yekutieli [14] extended the twogroup model [15] and suggested a generalized empirical Bayes approach, called repfdr, for discovering replicated signals in GWAS. Heller et al. [16] also presented the R package repfdr that provides a flexible and efficient implementation of the method in Heller and Yekutieli [14]. In fact, replicability analysis is a multiple testing problem which involves testing hundreds of null hypotheses that correspond to SNPs without replicated associations. The traditional multiple testing procedures for replicability analysis essentially involve two steps: ranking the hypotheses based on appropriate multiple testing statistics (such as pvalues) and then choosing a suitable cutoff along with the rankings to ensure the FDR is controlled at the prespecified level.
It should be pointed out that all these existing approaches assume that the multiple testing statistics (such as pvalues) are independent in each study, which is obviously unreasonable in practice. For example, in GWAS, since the adjacent genomic loci tend to cosegregate in meiosis, the diseaseassociated SNPs are always clustered and locally dependent. Wei and Li [17] pointed out that the efficiency of analysis of largescale genomic data can be evidently enhanced by exploiting genomic dependency information properly. It also has been shown that ignoring the dependence among the multiple testing statistics will decrease the statistical accuracy and testing efficiency in multiple testing [18–20]. Hence a reasonable multiple testing statistic for a given SNP should depend on data from neighboring SNPs in replicability analysis and it is worthy of developing a multiple testing procedure that can take into account the dependency information among adjacent SNPs for each study in replicability analysis.
Recently, the hidden Markov model (HMM) has been successfully applied to largescale multiple testing under dependence [20]. Since the Markov chain is an effective tool for modelling the clustered and locally dependent structure, it has been successfully applid in GWAS [21–23]. Inspired by their works, we utilize the Cartesian hidden Markov model (CHMM) to characterize the dependence among adjacent SNPs for each study in replicability analysis. Based on CHMM, we develop a novel multiple testing procedure which is referred to as replicated local index of significance (repLIS) for replicability analysis across two studies. The statistics involved in repLIS can be calculated highly effectively by using the forwardbackward algorithm. Simulation studies show that our repLIS procedure can control the FDR at the nominal level and enjoys a higher efficiency compared with its competitors. We also successfully apply our repLIS procedure in replicability analyses of psychiatric disorders data sets collected by Psychiatric Genomics Consortium (PGC) and Wellcome Trust Case Control Consortium (WTCCC).
Results
Application of detecting the pleiotropy effect
So far, accumulating evidence suggests that many different diseases or traits share the similar genetic architectures and are usually affected by some of the same genetic variants [3, 4]. This phenomenon is referred to as “pleiotropy". It is meaningful to jointly analyze several GWAS data sets to detect the SNPs with pleiotropy information. The crossdisorder group of Psychiatric Genomics Consortium (PGC) is aim to investigate the genetic associations between five psychiatric disorders, including attention deficithyperactivity disorder (ADHD), autism spectrum disorder (ASD), bipolar disorder (BD), major depressive disorder (MDD), and schizophrenia (SCZ) [24, 25]. It has been shown that there exists the pleiotropy effect between BD and SCZ [13, 26]. We apply our proposed repLIS procedure to detect the SNPs with pleiotropy effect between BD and SCZ in the data sets collected by the PGC. The pvalues are available for 2,427,220 SNPs in BD and 1,252,901 SNPs in SCZ, in which 1,064,235 SNPs are used both in BD and SCZ. In this study, we aim to detect the SNPs with pleiotropy effect between BD and SCZ.
Since both repfdr and our repLIS procedure are based on zvalues, we first calculate the zvalues transformed by the corresponding pvalues. In order to avoid the situation that the zvalue is infinity, we set the pvalues to be 0.99 if they are recorded to be 1 in the data sets. We compare the results given by repfdr and repLIS for detecting the SNPs with pleiotropy effect. Wei et al. [21] suggested that combining the testing results from several chromosomes is more efficient. Hence we apply the repLIS procedure to calculate the repLIS statistics on each chromosome separately, while the ranking of repLIS statistics is based on all the chromosomes of interest. The Manhattan plots are shown in Fig. 1, and the horizontal line for each panel is drawn such that there are 100 SNPs with the values of \(\log _{10}\left (\widehat {repLIS}\right)\) or \(\log _{10}\left (\widehat {repfdr}\right)\) above the line. In Fig. 1, we can see from panel (b) that the SNPs above the horizontal line concentrate on chromosome 3 and chromosome 10. This indicates that the SNPs identified by repfdr procedure with strong pleiotropy effect are located on chromosomes 3 and 10. Indeed, most of the Top 100 SNPs discovered by repfdr are clustered in the genes IHIH1, IHIH3, GNL3, PBRM1, NEK4, GLT8D1 (on chromosome 3) and ANK3 (on chromosome 10). In addition to these genes identified by repfdr procedure, our repLIS procedure further discoverd genes SYNE1 on chromosome 6 and TENM4 on chromosome 11 with strong pleiotropy effect between BD and SCZ. The findings here support several genetic associations to genes for BD and/or SCZ. For instance, the gene SYNE1 provides instructions for making a protein called Syne1 which is especially critical in the brain and plays a role in the maintenance of the part of the brain that coordinates movement. It has been shown that SYNE1 is one of the implicated genes in the etiology of BD [25]. Another gene TENM4 (also named ODZ4) has been identified to be coexpressed with miR708. It has been reported that a single variant located near the miR708 may have a role in susceptibility to BD and SCZ [27].
Application of discovering the replicated association
Bipolar disorder (BD) is a manic depressive illness that causes periods of depression and periods of elevated mood. In this section, we further apply our repLIS procedure to the replicability analysis of BD data sets from PGC and Wellcome Trust Case Control Consortium (WTCCC). The data sets collected by WTCCC contain 1998 cases and 3004 controls, among which there are 1504 control samples from the 1958 Birth Cohort (58C) and the other control samples from UK Blood Service (UKBS).

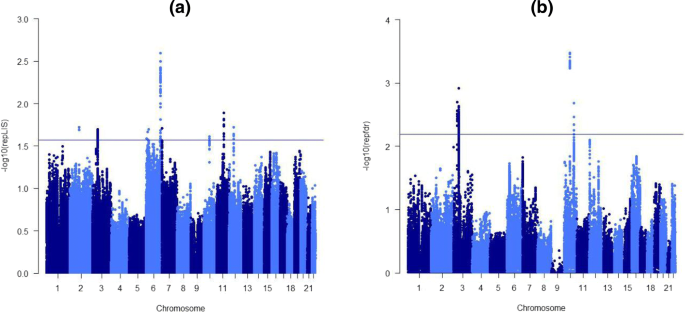

We first conduct a series of procedures for quality control on WTCCC data sets. We eliminate 130 samples from the BD cohort, 24 samples from the 58C cohort and 42 samples from the UKBS cohort owing to the high missing rate, overall heterozygosity, and nonEuropean ancestry. In addition, we remove the SNPs in accordance with the exclusion list provided by WTCCC and exclude the SNPs with minor allele frequency less than 0.05. We fit the logistic regression model for each SNP and obtain the pvalue of testing for the association between the SNP and the disease of interest. Taking the intersection of SNPs in PGC and WTCCC yields to 361,665 SNPs that are available for replicability analysis.

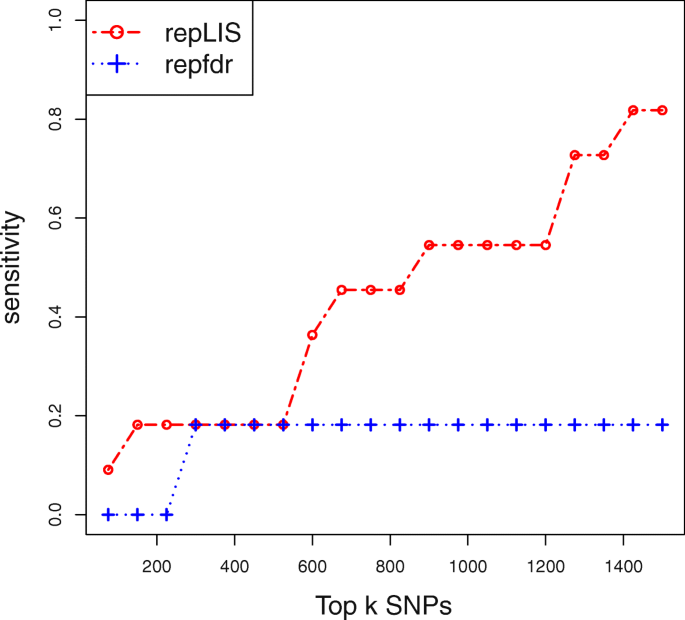

Since it is unfeasible to validate the true FDR level in real data analysis, we choose an alternative measure, the efficiency of ranking replicated signals, for comparisons. Consortium et al. [28] have identified fourteen BDsusceptibility SNPs that are showing strong or moderate evidence of associations with BD, among which eleven SNPs are simultaneously identified by [29]. We focused on these fourteen SNPs and treated them as relevant SNPs. The performance of replicability analysis procedure is assessed by the ranks of these fourteen relevant SNPs as well as the number of relevant SNPs that are selected by top k significant SNPs. Table 1 presents the results of repLIS and repfdr in identifying the relevant SNPs when top k=500. repLIS identifies eight of the fourteen relevant SNPs, whereas repfdr only identifies five of those SNPs. Four relevant SNPs (rs7570682; rs1375144; rs2953145; rs10982256) are identified by repLIS only, whereas one SNP (rs3761218) is identified by repfdr only. We can observe that there is a significant improvement of rankings for most of these SNPs with replicated associations when conducting repLIS procedure. For instance, rs420259 that is reported to have a strong association with BD [28] ranks 255th by repfdr procedure and 115th by repLIS procedure.
To further illustrate the superiority of repLIS is achieved by leveraging information from adjacent SNPs via a Markov chain, we focused on the adjacent SNPs of rs420259, and selected the five adjacent SNPs on each side of rs420259 as relevant SNPs. We plotted the sensitivity curve in Fig. 2 as described in Simulation II, and obtained very similar results.
Discussion
In this paper, we propose a novel multiple testing procedure, called repLIS procedure, for replicability analysis across two studies. The repLIS procedure can characterize the local dependence structure among adjacent SNPs via a fourstate Markov chain. Based on the CHMM, the multiple testing statistics (repLIS statistics) can be calculated efficiently by using the forwardbackward algorithm. When the parameters of CHMM are known, the theoretical results showed that our repLIS procedure is valid and optimal in the sense that repLIS procedure can control the FDR at the prespecified level α and has the smallest FNR among all αlevel multiple testing procedures. In reality, the parameters of CHMM are usually unknown and hence we further provided the detailed EM algorithm to estimate the parameters of CHMM.
Both the simulation studies and real data analysis exhibit that the repLIS procedure is valid and more efficient by employing the dependency information among adjacent SNPs. Some of the SNPs identified by repLIS have been verified by other researchers. For example, a large number of literatures confirm that rs420259 is really relevant to BD [29–31]. However, some of the other SNPs identified by repLIS have not been verified in previous research (e.g., rs206731), and further experiments need to be conducted to verify the research findings.
The repLIS procedure is implemented by using the R code. We give a brief description of the source code in Additional file 1, and all core code of repLIS procedure are available on GitHub (https://github.com/wpf19890429/largescalemultipletestingviaCHMM).
Conclusions
Our repLIS procedure can also be extended in several ways. First, it might be a strong assumption that the transition probability (1) is invariant across the whole two studies. It would be of interest to generalize our repLIS from a homogeneous Markov chain to a nonhomogeneous Markov chain or even a Markov random field. Second, the EM algorithm for estimating the parameters of CHMM is a heuristic algorithm and may lead to a local optimum in some situations. The Markov Chain Monte Carlo (MCMC) algorithm which are not relying on the starting point may give rise to a bright way for estimating these parameters. Finally, although this paper considered the repLIS procedure for replicability analysis across two studies, extensions to more than two studies are straightforward by utilizing a multidimensional Markov chain to describe the local dependence structure. However, a new issue will arise in multiple testing, since the computation is intractable when the dimension is high. It is desirable to develop a procedure that can handle replicability analysis with a multitude of studies.
Methods
Replicability analysis in the framework of multiple testing
In order to express the problem explicitly, we first make a brief description of the framework for replicability analysis across two studies in GWAS. Suppose there are m SNPs to be investigated in each study. For the ith study (i=1,2), let \(\left \{H_{i,j}\right \}^{m}_{j=1}\) be the underlying states of the hypotheses, where H_{i,j}=1 indicates that the jth SNP is associated with the phenotype of interest and H_{i,j}=0 otherwise. For the jth SNP, we are interested in examining the following null hypothesis
and we call \(\mathcal {H}^{0j}_{NR}\) the no replicability null hypothesis showing that the SNP is associated with the phenotype in at most one study. The goal of the replicability analysis in GWAS is to discover as many SNPs that are associated with phenotype in both studies as possible [14]. In this paper, we handle this problem in the framework of multiple testing under dependence since the diseaseassociated SNPs are always clustered and dependent. Specifically, we aim to develop a multiple testing procedure that can discover the SNPs with replicated associations (i.e. (H_{1,j},H_{2,j})=(1,1)) as many as possible, while the FDR is controlled at the prespecified level. To this end, we define the FDR as follows:
where δ_{j}=1 indicates that the jth SNP is claimed to be associated with the phenotype in both studies and δ_{j}=0 otherwise. Correspondingly, the marginal false discovery rate (mFDR) is defined as:
Since the mFDR is asymptotically equivalent to the FDR in the sense that \(\text {mFDR}=\text {FDR}+O\left (1/\sqrt {m}\right)\) under some mild conditions [32], hereafter, we mainly focus on developing a multiple testing procedure that can control the mFDR at the prespecified level for replicability analysis.
The Cartesian hidden Markov model
Let z_{i,j} be the observed zvalue of the jth SNP in the ith association study, which can be obtained by using appropriate transformation. Specifically, z_{i,j} can be transformed from Φ^{−1}(1−p_{i,j}), where Φ^{−1} is the inverse of the standard normal distribution and p_{i,j} is the pvalue of the jth SNP in the ith association study, for i=1,2, and j=1,…,m.
The Markov chain, which is an effective tool for modelling the clustered and locally dependent structure among diseaseassocaited SNPs, has been widely used in the literatures [21, 22]. We assume that \(\left \{\left (H_{1,j},H_{2,j}\right)\right \}^{m}_{j=1}\) is a fourstate stationary, irreducible and aperiodic Markov chain with the transition probability
where u,v∈{(0,0),(1,0),(0,1),(1,1)}. We further assume that the observed zvalues \(\left \{\left (z_{1,j},z_{2,j}\right)\right \}^{m}_{j=1}\) are conditionally independent given the hypotheses states \(\left \{\left (H_{1,j},H_{2,j}\right)\right \}^{m}_{j=1}\), namely,
The Markov chain \(\left \{\left (H_{1,j},H_{2,j}\right)\right \}^{m}_{j=1}\) with the dependence model (2) is called Cartesian hidden Markov model (CHMM) [33]. The structure of the CHMM can be intuitively understood with a graphical model as follows in Fig. 3.
Following [20–22], we suppose that the corresponding random variable Z_{i,j} follows the twocomponent mixture model:
where f_{i0} and f_{i1} are the conditional probability densities of Z_{i,j} given H_{i,j}=0 and H_{i,j}=1, respectively. In practice, we usually assume that f_{10} and f_{20} are the densities of the standard normal distribution N(0,1), and f_{11} and f_{21} are the densities of the normal distributions \(N\left (\mu _{1},\sigma ^{2}_{1}\right)\) and \(N\left (\mu _{2},\sigma ^{2}_{2}\right)\), respectively.
Let π=(π_{00},π_{10},π_{01},π_{11}) be the initial distribution of the fourstate Markov chain, where π_{st}=P((H_{1,1},H_{2,1})=(s,t)), for s,t=0,1. For convenience, let \(\vartheta =(\pi,\mathcal {A},\mathcal {F})\) denote the parameters of the CHMM, where \(\mathcal {A}=\left \{A_{uv}\right \}_{4\times 4}\) with u,v∈{(0,0),(1,0),(0,1),(1,1)} and \(\mathcal {F}=\left (f_{10},f_{11},f_{20},f_{21}\right)\).
The repLIS procedure for replicability analysis
In this section, we develop the multiple testing procedure for replicability analysis by studying the connection between the multiple testing and weighted classification problems. Consider the loss function of the weighted classification problem with respect to replicability analysis as
where λ is the relative cost of false positive to false negative, and δ_{j} was defined in the above section and we call (δ_{1},…,δ_{m})∈{0,1}^{m} the classification rule for replicability analysis here. By some simple derivations, the optimal classification rule, which minimizes the expectation of the loss function, is obtained as
where
is called the optimal classification statistic in the weighted classification problem, and I_{(·)} is an indicator function.
Following the work of [34], it is not difficult to show that the optimal classification statistic is also optimal for replicability analysis in the sense that the multiple testing procedure based on the optimal classification statistics with a suitable cutoff can control the mFDR at the prespecified level α and has the smallest mFNR among all αlevel multiple testing procedures. Since Λ_{j} is increasing with \(P\left (\mathcal {H}^{0j}_{NR} \text {~is ~true~} \left \{z_{1,i}\right \}^{m}_{i=1},\left \{z_{2,i}\right \}^{m}_{i=1}\right)\), we can also define the optimal multiple testing statistic for replicability analysis as
Denote by repLIS_{(1)}, repLIS_{(2)},…,repLIS_{(m)} the ordered repLIS values and \(\mathcal {H}^{0(1)}_{NR}\), \(\mathcal {H}^{0(2)}_{NR}, \dots, \mathcal {H}^{0(m)}_{NR}\) the corresponding no replicability null hypotheses. The repLIS procedure for replicability analysis is:
It is necessary to note that, to focus on the main ideas, we restrict attention to repLIS in testing two GWAS studies. Extending repLIS to multiple GWAS studies (≥3) is formally straightforward, but requires additional computations.
The following theorem shows that repLIS procedure is asymptotically optimal. The proof of the theorem is outlined in Additional file 2.
Theorem 1
Consider the Cartesian hidden Markov model (1)(2) and define the testing statistics \(\text {repLIS}_{j}=P\left (\left (H_{1,j},H_{2,j}\right)\in \{(0,0),(1,0),(0,1)\} \{z_{1,i}\}^{m}_{i=1},\left \{z_{2,i}\right \}^{m}_{i=1}\right)\) for j=1,…,m. Let repLIS_{(1)}, repLIS_{(2)},…,repLIS_{(m)} be the ordered repLIS values and \(\mathcal {H}^{0(1)}_{NR}\), \(\mathcal {H}^{0(2)}_{NR}, \dots, \mathcal {H}^{0(m)}_{NR}\) be the corresponding no replicability null hypotheses. Then the repLIS procedure (6) controls FDR at α. Moreover, the FNR yielded by repLIS procedure is β^{∗}+o(1), where β^{∗} is the smallest FNR level among all αlevel FDR multiple testing procedures.
The forwardbackward algorithm for computing repLIS
When the parameters of CHMM are known, repLIS statistics can be calculated by utilizing the forwardbackward algorithm. Specifically, the repLIS statistic for the jth SNP can be expressed as:
where the forward variable \(\alpha _{j}(p,q)=P\left ({\vphantom {\left \{z_{1,i}\right \}^{j}_{i=1},\left \{z_{2,i}\right \}^{j}_{i=1}}}\left (H_{1,j},H_{2,j}\right)=\right. \left.(p,q),\left \{z_{1,i}\right \}^{j}_{i=1},\left \{z_{2,i}\right \}^{j}_{i=1}\right)\) and the backward variable \(\beta _{j}(p,q)=P\left (\left \{z_{1,i}\right \}^{m}_{i=j+1},\left \{z_{2,i}\right \}^{m}_{i=j+1}\left (H_{1,j},H_{2,j}\right)=(p,q)\right)\) can be calculated by using the following recursive formulas:
The EM algorithm for estimating the parameters of CHMM
In reality, the parameters 𝜗 of the CHMM are not usually known. We use the plugin \(\widehat {\text {repLIS}}\) yielded by utilizing the maximum likelihood estimates to replace the true parameters for replicated analysis. In this section, we provide details of the EM algorithm for estimating the parameters of CHMM. For simplicity, let \(\sum \limits _{H_{1,*};H_{2,*}}=\sum \limits _{H_{1,1},H_{1,2},\dots,H_{1,m}} \sum \limits _{H_{2,1},H_{2,2},\dots,H_{2,m}}\), \(\mathcal {Z}=\left (\left \{z_{1,j}\right \}^{m}_{j=1},\left \{z_{2,j}\right \}^{m}_{j=1}\right)\) and \(\mathcal {H}=\left (\left \{H_{1,j}\right \}^{m}_{j=1},\left \{H_{2,j}\right \}^{m}_{j=1}\right)\).
The full likelihood can be expressed as:
We first initialize the parameters \(\vartheta ^{(0)}= \left (\pi ^{(0)},\mathcal {A}^{(0)},\mathcal {F}^{(0)}\right)\). In the Estep of the tth iteration, we calculate the following Q(𝜗,𝜗^{(t)}) function:
In the Mstep of the tth iteration, maximizing Q(𝜗,𝜗^{(t)}) yields to
Specifically, using the Lagrange multiplier method yields to
for i=1,2 and u,v∈{(0,0),(1,0),(0,1),(1,1)}.
Simulation studies
Simulation I
In this section, we explore the numerical performance of our novel procedures: the oracle repLIS (repLIS.or) and datadriven repLIS (repLIS) procedures, and two existing multiple testing procedures for replicability analysis in testing two GWAS studies, including the BenjaminiHochberg procedure (BH) [11] and the repfdr procedure (repfdr) [14]. We also carried out further simulation studies for repLIS in testing three GWAS studies. The detailed simulation results are displayed in Additional file 2 and they are almost coincide with those for testing two GWAS studies. We compare these multiple testing procedures in detecting replicated signals from three aspects. First, we check whether or not the FDR values yielded by different procedures are controlled at the prespecified level α, where α is set to be 0.1 and 0.02 in the simulation, and the results for α=0.02 are illustrated in Additional file 2. Second, we compare the FNR and the average number of true positives (ATP). In general, a valid procedure (the FDR value is contronlled at the prespecified level) is efficient if it allows for a small FNR value and a large ATP value. In Simulation I, we consider two scenarios based on whether or not the tests of all the SNPs are independent in each study. Third, we investigate the ranking efficiency of these procedures in Scenario 2 of Simulation I. The simulation results are based on 200 replications in Simulation I and the number of tests (i.e. m) in each study is 10000 for all the simulations.
Scenario 1: independent tests
In this scenario, we set σ_{1}=σ_{2}=1 and μ_{2}=4. The joint states of the hypotheses across two studies \(\left \{\left (H_{1,j},H_{2,j}\right)\right \}^{m}_{j=1}\) are generated from the Multinomial distribution Multi(10000,(0.4,0.2,0.2,0.2)). We vary μ_{1} from 2.0 to 3.0 with an increment 0.5 and exhibit the simulation results in Fig. 4. In Fig. 4, we can see from panel (a) that all four procedures can control the FDR level at the prespecified level 0.1 approximately. Although the datadriven repLIS procedure has the largest FDR, it is still acceptable (FDR = 0.115). We can also observe that the empirical Bayes procedure repfdr is slightly conservative and the BH procedure leads to a quite small FDR value. These results indicate that our novel procedures are still valid for replicated analysis even the tests are independent in each study. The results revealed from panel (b) and (c) in Fig. 4 show that: (1) The FNR yielded by these procedures are decreasing when μ_{1} varies from 2.0 to 3.0; (2) The ATP yielded by these procedures are increasing when μ_{1} varies from 2.0 to 3.0; (3) The FNR and ATP yielded by oracle repLIS procedure, datadriven repLIS procedure, and repfdr procedure are almost the same. We can conclude that our proposed procedures (repLIS.or and repLIS) are as efficient as repfdr when the tests are independent in each study.
Scenario 2: locally dependent tests
In this scenario, we set σ_{1}=σ_{2}=1, μ_{2}=2, and vary μ_{1} from 3 to 5 with an increment 1. Consider the CHMM (1)(3) and the joint states of the hypotheses across two studies \(\left \{\left (H_{1,j},H_{2,j}\right)\right \}^{m}_{j=1}\) are generated with the following transition matrix
and the initial distribution π is set to be (0.25,0.25,0.25,0.25). Since the replicated associations are more likely to be clustered, the values of the entries in the diagonal of the transition matrix are set to be large. Here, A_{(1,1)(1,1)} is set to be 0.7, and the numerical results are displayed in Fig. 5. We further explored the robustness of repLIS under CHMMs by varying A_{(1,1)(1,1)} from 0.5 to 0.7, and the results are illustrated in Additional file 2.
To investigate the robustness of repLIS when the order of Markov dependence is incorrectly specified, we added simulation studies. Without loss of generality, we consider the case where the order of Markov dependence is set to be 2. We choose the setup to be consistent with those in Scenario 2 when possible. The detailed model settings are depicted in Additional file 2.
From Fig. 5 we can observe that the numerical results are almost coincide with those in Scenario 1, except that there is a significant difference in FNR and ATP values between our procedures (repLIS.or and repLIS) and repfdr procedure. The results reveal that our proposed procedures enjoy a smaller value of FNR and a larger value of ATP compared with their competitors. This indicates that our novel procedures are more efficient in detecting replicated signals when the tests are locally dependent in each study.
It is important to point out that the superiority of repLIS is achieved by characterizing the clustered and locally dependent structure via the Markov chain. Table 2 presents the outcomes of repLIS, repfdr, and BH in testing two clusters of replicated signals in Scenario 2 of Simulation I. It can be clearly seen that BH and repfdr can only identify the replicated signals with extremely small pvalues, whereas repLIS tends to identify the entire cluster of replicated signals. By leveraging information from adjacent SNPs, repLIS are more efficient in detecting replicated signals.
Ranking efficiency
The efficiency of ranking hypotheses is another measure that was widely used to perform comparison for different multiple testing procedures. In general, an efficient multiple testing procedure enjoys a ranked list where the nonnulls concentrate on the top of the ranked list. In this section, we use the ROC curve to compare the efficiency of ranking nonnull hypotheses for different procedures. Figure 6 shows the results of the comparison for two cases that the tests of all the SNPs are independent (panel (a)) and are not independent (panel (b)) in each study, respectively. We can see that the ROC curves of our procedures dominate these of repfdr and BH procedures in panel (b). This implies that our repLIS procedures lead to a more efficient hypotheses ranking, especially when the tests of all the SNPs are not independent in each study.
Simulation II
In this section, we perform additional simulations to evaluate the performance of our repLIS procedure on a more realistic simulated data. In order to obtain a simulated data for two GWAS studies with more realistic LD patterns, we generate two genotype pools by randomly matching 340 haplotypes from the subjects of JPT+CHB (Japanese in Tokyo, Japan and Han Chinese in Beijing, China) and 410 haplotypes from the subjects of CEU+TSI (Utah residents with Northern and Western European ancestry from the CEPH collection and Toscani in Italia) collected by HapMap3 [35], respectively. To focus on the main points, we select six SNPs from a region of the chromosome 7 (consists of 10000 SNPs) as disease causal SNPs. Specifically, the three SNPs, 1200th, 1500th, 1800th, are chosen to be far away and the others, 6500th, 6504th, 6508th, are chosen to be clustered. The disease status Y is generated by using a logistic regression model:
where G=(G_{1},G_{2},...,G_{6})^{T} and G_{i} is the corresponding genotype of the ith causal SNPs. We set β_{0}=−8 and β_{1}=β_{2}=...=β_{6}= log(2) so that the prevalence of the disease is controlled at 0.04. The performance of replicability analysis procedure is assessed by the selection rate of relevant SNPs, and the relevant SNPs are refered to as the three adjacent SNPs on each side of a causal SNP. The sensitivity is defined as the percentages of relevant SNPs that are selected by top k SNPs. The simulation is repeated for 100 times and the results are displayed in Fig. 7.
From Fig. 7 we can observe that the sensitivities yielded by our repLIS are uniformly larger than those of repfdr. This indicates that repLIS achieves a higher ranking efficiency and can discover more replicated signals at the same number of rejections.
Abbreviations
 GWAS:

Genomewide association studies
 CHMM:

Cartesian hidden Markov model
 SNPs:

Single nucleotide polymorphisms
 BH:

The BenjaminiHochberg procedure
 repLIS:

The replicated local index of significance procedure
 FDR:

False discovery rate
 FNR:

False nondiscovery rate
 MCMC:

Markov chain Monte Carlo algorithm
 PGC:

Psychiatric Genomics Consortium
 WTCCC:

Wellcome trust case control consortium
 ADHD:

Attention deficithyperactivity disorder
 ASD:

Autism spectrum disorder
 BD:

Bipolar disorder
 MDD:

Major depressive disorder
 SCZ:

Schizophrenia
References
 1
Klein RJ, Zeiss C, Chew EY, Tsai JY, Sackler RS, Haynes C, Henning AK, SanGiovanni JP, Mane SM, Mayne ST, et al. Complement factor h polymorphism in agerelated macular degeneration. Science. 2005; 308(5720):385–9.
 2
MacArthur J, Bowler E, Cerezo M, Gil L, Hall P, Hastings E, Junkins H, McMahon A, Milano A, Morales J, et al. The new nhgriebi catalog of published genomewide association studies (gwas catalog). Nucleic Acids Res. 2016; 45(D1):896–901.
 3
Visscher PM, Brown MA, McCarthy MI, Yang J. Five years of gwas discovery. Am J Hum Genet. 2012; 90(1):7–24.
 4
Vattikuti S, Guo J, Chow CC. Heritability and genetic correlations explained by common snps for metabolic syndrome traits. PLoS Genet. 2012; 8(3):1002637.
 5
Voight BF, Scott LJ, Steinthorsdottir V, Morris AP, Dina C, Welch RP, Zeggini E, Huth C, Aulchenko YS, Thorleifsson G, et al. Twelve type 2 diabetes susceptibility loci identified through largescale association analysis. Nat Genet. 2010; 42(7):579–89.
 6
Heller R, Bogomolov M, Benjamini Y. Deciding whether followup studies have replicated findings in a preliminary largescale omics study. Proc Natl Acad Sci. 2014; 111(46):16262–7.
 7
McCarthy MI, Abecasis GR, Cardon LR, Goldstein DB, Little J, Ioannidis JP, Hirschhorn JN. Genomewide association studies for complex traits: consensus, uncertainty and challenges. Nat Rev Genet. 2008; 9(5):356–69.
 8
Chanock SJ, Manolio T, Boehnke M, Boerwinkle E, Hunter DJ, Thomas G, Hirschhorn JN, Abecasis G, Altshuler D, BaileyWilson JE, et al. Replicating genotype–phenotype associations. Nature. 2007; 447(7145):655–60.
 9
Kraft P, Zeggini E, Ioannidis JP. Replication in genomewide association studies. Stat Sci Rev J Inst Math Stat. 2009; 24(4):561–73.
 10
Benjamini Y, Heller R, Yekutieli D. Selective inference in complex research. Philos Trans R Soc Lond A Math Phys Eng Sci. 2009; 367(1906):4255–71.
 11
Benjamini Y, Hochberg Y. Controlling the false discovery rate: a practical and powerful approach to multiple testing. J R Stat Soc Ser B Methodol. 1995; 57(1):289–300.
 12
Bogomolov M, Heller R. Discovering findings that replicate from a primary study of high dimension to a followup study. J Am Stat Assoc. 2013; 108(504):1480–92.
 13
Chung D, Yang C, Li C, Gelernter J, Zhao H. Gpa: a statistical approach to prioritizing gwas results by integrating pleiotropy and annotation. PLoS Genet. 2014; 10(11):1004787.
 14
Heller R, Yekutieli D. Replicability analysis for genomewide association studies. Ann Appl Stat. 2014; 8(1):481–98.
 15
Efron B. Largescale inference: Empirical bayes methods for estimation, testing, and prediction. Cambridge: Cambridge University Press; 2012, pp. 17–8.
 16
Heller R, Yaacoby S, Yekutieli D. repfdr: a tool for replicability analysis for genomewide association studies. Bioinformatics. 2014; 30(20):2971–2.
 17
Wei Z, Li H. A hidden spatialtemporal markov random filed model for networkbased analysis of time course gene expression eata. Ann Appl Stat. 2008; 2(1):408–29.
 18
Owen AB. Variance of the number of false discoveries. J R Stat Soc Ser B Stat Methodol. 2005; 67(3):411–26.
 19
Efron B. Correlation and largescale simultaneous significance testing. J Am Stat Assoc. 2007; 102(477):93–103.
 20
Sun W, Cai T. Largescale multiple testing under dependence. J R Stat Soc Ser B Stat Methodol. 2009; 71(2):393–424.
 21
Wei Z, Sun W, Wang K, Hakonarson H. Multiple testing in genomewide association studies via hidden markov models. Bioinformatics. 2009; 25(21):2802–8.
 22
Xiao J, Zhu W, Guo J. Largescale multiple testing in genomewide association studies via regionspecific hidden markov models. BMC Bioinformatics. 2013; 14(1):282.
 23
Wei Z. Hidden markov models for controlling false discovery rate in genomewide association analysis. Methods Mol Biol. 2012; 802:337–44.
 24
Ripke S, Wray NR, Lewis CM, Hamilton SP, Weissman MM, Breen G, Byrne EM, Blackwood DH, Boomsma DI, Cichon S, et al. A megaanalysis of genomewide association studies for major depressive disorder. Mol Psychiatry. 2013; 18(4):497–511.
 25
Sklar P, Ripke S, Scott LJ, Andreassen OA, Cichon S, Craddock N, Edenberg HJ, Nurnberger Jr JI, Rietschel M, Blackwood D, et al. Largescale genomewide association analysis of bipolar disorder identifies a new susceptibility locus near odz4. Nat Genet. 2011; 43(10):977–83.
 26
Lee SH, Ripke S, Neale BM, Faraone SV, Purcell SM, Perlis RH, Mowry BJ, Thapar A, Goddard ME, Witte JS, et al. Genetic relationship between five psychiatric disorders estimated from genomewide snps. Nat Genet. 2013; 45(9):984–94.
 27
Fiorentino A, O’brien NL, Sharp SI, Curtis D, Bass NJ, McQuillin A. Genetic variation in the mir708 gene and its binding targets in bipolar disorder. Bipolar Disord. 2016; 18(8):650–6.
 28
Consortium WTCC, et al. Genomewide association study of 14,000 cases of seven common diseases and 3000 shared controls. Nature. 2007; 447(7145):661–78.
 29
Jiang Y, Zhang H. Propensity scorebased nonparametric test revealing genetic variants underlying bipolar disorder. Genet Epidemiol. 2011; 35(2):125–32.
 30
Dizier MH, Demenais F, Mathieu F. Gain of power of the general regression model compared to cochranarmitage trend tests: simulation study and application to bipolar disorder:. BMC Genet. 2017; 18(1):24.
 31
Gonzalez S, Gupta J, Villa E, Mallawaarachchi I, Rodriguez M, Ramirez M, Zavala J, Armas R, Dassori A, Contreras J. Replication of genome wide association study (gwas) susceptibility loci in a latino bipolar disorder cohort. Bipolar Disord. 2016; 18(6):520–7.
 32
Genovese C, Wasserman L. Operating characteristics and extensions of the false discovery rate procedure. J R Stat Soc Ser B Stat Methodol. 2002; 64(3):499–517.
 33
White LB. Cartesian hidden markov models with applications. IEEE Trans Sig Process. 1992; 40(6):1601–4.
 34
Sun W, Cai TT. Oracle and adaptive compound decision rules for false discovery rate control. J Am Stat Assoc. 2007; 102(479):901–12.
 35
Consortium TIH. The international hapmap project. Nature. 2003; 426:789–96.
Acknowledgements
None.
Funding
This work is supported in part by the National Natural Science Foundation of China Grants 11771072 and 11371083. The funders did not play any roles in the design of the study, in the collection, analysis, or in writing the manuscript.
Availability of data and materials
The psychiatric disorders data sets can get from (http://www.med.unc.edu/pgc/resultsanddownloads). The GWAS data sets of the WTCCC Consortium are delivered upon request and are issued subject to conditions by the WTCCC Consortium (https://www.wtccc.org.uk/). The implementations of repLIS procedure are available on GitHub (https://github.com/wpf19890429/largescalemultipletestingviaCHMM).
Author information
Affiliations
Contributions
PW: idea initiation, method development, manuscript writing and data analysis; WZ: idea initiation, method development and manuscript writing; All authors read and approved the final manuscript.
Corresponding author
Correspondence to Wensheng Zhu.
Ethics declarations
Ethics approval and consent to participate
Not applicable.
Consent for publication
Not applicable.
Competing interests
The authors declare that they have no competing interests.
Publisher’s Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Additional file
Additional file 1
Brief description of some core code of our repLIS procedure. repLIS is a program to perform replicability analysis in genomewide association studies, which is written in R code. Here, repLIS program is designed for one chromosome or a segment of chromosome. For the analysis of multiple chromosomes, firstly, the users can make the parallel computing for them, then complete the global analysis by combining all results from multiple chromosomes. (PDF 151 kb)
Additional file 2
Proof of Theorem 1 and additional simulations. We give a brief proof of Theorem 1 in Additional file 2. The asymptotic optimality can be derived without essential difficulty by extending the proof of Theorem 6 in [20]. We also carried out additional simulation studies to investigate the numerical performance of repLIS in various model settings. (PDF 249 kb)
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
About this article
Cite this article
Wang, P., Zhu, W. Replicability analysis in genomewide association studies via Cartesian hidden Markov models. BMC Bioinformatics 20, 146 (2019). https://doi.org/10.1186/s1285901927077
Received:
Accepted:
Published:
Keywords
 GWAS
 Cartesian hidden Markov model
 Replicability analysis
