RNA editing-based classification of diffuse gliomas: predicting isocitrate dehydrogenase mutation and chromosome 1p/19q codeletion

Abstract

Background

Accurate classification of diffuse gliomas, the most common tumors of the central nervous system in adults, is important for appropriate treatment. However, detection of isocitrate dehydrogenase (IDH) mutation and chromosome1p/19q codeletion, biomarkers to classify gliomas, is time- and cost-intensive and diagnostic discordance remains an issue. Adenosine to inosine (A-to-I) RNA editing has emerged as a novel cancer prognostic marker, but its value for glioma classification remains largely unexplored. We aim to (1) unravel the relationship between RNA editing and IDH mutation and 1p/19q codeletion and (2) predict IDH mutation and 1p/19q codeletion status using machine learning algorithms.

Results

By characterizing genome-wide A-to-I RNA editing signatures of 638 gliomas, we found that tumors without IDH mutation exhibited higher total editing level compared with those carrying it (Kolmogorov-Smirnov test, p < 0.0001). When tumor grade was considered, however, only grade IV tumors without IDH mutation exhibited higher total editing level. According to 10-fold cross-validation, support vector machines (SVM) outperformed random forest and AdaBoost (DeLong test, p < 0.05). The area under the receiver operating characteristic curve (AUC) of SVM in predicting IDH mutation and 1p/19q codeletion were 0.989 and 0.990, respectively. After performing feature selection, AUCs of SVM and AdaBoost in predicting IDH mutation were higher than that of random forest (0.985 and 0.983 vs. 0.977; DeLong test, p < 0.05), but AUCs of the three algorithms in predicting 1p/19q codeletion were similar (0.976–0.982). Furthermore, 67% of the six continuously misclassified samples by our 1p/19q codeletion prediction models were misclassifications in the original labelling after inspection of 1p/19q status and/or pathology report, highlighting the accuracy and clinical utility of our models.

Conclusions

The study represents the first genome-wide analysis of glioma editome and identifies RNA editing as a novel prognostic biomarker for glioma. Our prediction models provide standardized, accurate, reproducible and objective classification of gliomas. Our models are not only useful in clinical decision-making, but also able to identify editing events that have the potential to serve as biomarkers and therapeutic targets in glioma management and treatment.

Background

Diffuse gliomas are the most common tumors of the central nervous system (CNS) in adults.

Accurate diagnosis and classification of diffuse gliomas is important for appropriate treatment. Historically diffuse gliomas are categorized predominantly according to histology: astrocytoma (grade II or III), oligodendroglioma (grade II or III), and glioblastoma (grade IV). Patients carrying lower grade gliomas (LGG; grade II or III) have a more-favorable prognosis, while patients with glioblastoma multiforme (GBM; grade IV) tend to have a poor prognosis regardless of recent advances in clinical management [1, 2]. However, histology diagnosis is primarily based on subjective opinion of experienced pathologists; a sample may be graded differently by different pathologists.

In 2016, the World Health Organization (WHO) changed its classification of diffuse gliomas by considering the presence/absence of isocitrate dehydrogenase (IDH) mutation and chromosome 1p/19q codeletion [3]. A large subset of adult diffuse gliomas now falls into one of the following categories: IDH mutation with 1p/19q codeletion (oligodendroglioma), IDH mutation without 1p/19q codeletion (most grades II and III astrocytoma), and IDH wildtype (most glioblastoma). This new classification has been shown to provide better prognostications. Some studies have found that LGG patients with IDH mutation had prolonged overall survival (OS) compared with those carrying wildtype IDH [4, 5]. Also, GBM and anaplastic astrocytoma patients who had IDH mutation exhibited improved progression-free survival and OS compared with those without IDH mutation [6]. Furthermore, patients with both IDH mutation and 1p/19q codeletion had increased OS compared with those with only IDH mutation [7]. Therefore, identification of the status of IDH mutation and 1p/19q codeletion is essential in clinical practice. However, the identification process is time- and cost-intensive and diagnostic discordance remains an issue. For example, immunohistochemistry (IHC) is a common method to detect IDH mutation and requires antibodies to recognize mutations. However, IHC fails to detect less common IDH mutations and the concordance rate between IHC and Sanger sequencing was estimated to range 88 to 99% [8]. Similarly, fluorescent in situ hybridization (FISH) is widely used in hospitals to detect 1p/19q status, but confirmation from experienced pathologist is needed [9, 10]. Taken together, a single method which provides standardized, accurate and objective prediction of IDH mutation and 1p/19q codeletion is warranted.

Recent advance in high throughput molecular profiling (both sequencing and array-based) has promoted the exploration of genome-wide changes during carcinogenesis. Large-scale molecular data and machine learning algorithms has enabled more objective diagnostics. For example, several studies have used DNA methylation data to cluster/classify brain tumors. Ceccarelli et al. [11] identified the association between DNA methylation and the status of 1p/19q codeletion through unsupervised clustering of DNA methylation patterns. IDH mutant gliomas were clustered into three groups: (1) presence of 1p/19q codeletion; (2) absence of 1p/19q codeletion and low global DNA methylation; and (3) absence of 1p/19q codeletion and high global DNA methylation. However, the authors did not develop a method capable of predicting IDH mutation and 1p/19q codeletion, which limits the clinical utility of DNA methylation. Capper et al. [12] developed a random forest-based classifier to classify approximately 100 CNS tumor types based on DNA methylation patterns. However, DNA methylation-based classification is not clinically practical at present because of the cost and it provides little hint on the identification of driver events during tumor development and progression.

Compared with DNA methylation array, RNA sequencing (RNA-Seq) is cost-effective and provides more hints on the identification of tumor driver events. RNA-Seq data can be used to identify events that could cause tumor development and progression, including single nucleotide variation, gene expression alteration, alternative isoforms, gene fusion, and RNA editing events. Recently, Wang et al. used gene expression data to predict 1p/19q codeletion status with high accuracy [10], highlighting the potential of RNA-related features to serve as prognostic markers for gliomas.

RNA editing, converting nucleotides at the RNA level, increases transcriptome diversity and alters microRNA regulation [13]. The most common type of RNA editing in human is adenosine to inosine (A-to-I) editing, which is catalyzed by the adenosine deaminase acting on RNA (ADAR) enzyme family [14]. Inosine is recognized as guanosine (G) by the cellular machinery, resulting in A-to-G mutation (when comparing edited reads to genome sequence). Recent studies have highlighted a link between RNA editing and tumor development and progression [15]. Choudhury et al. [16] reported a negative correlation between the editing level of miR-376a-5p and glioma tumor volume. The authors found that reduced editing of miR-376a-5p was associated with more aggressive glioblastoma and poor prognosis. Tomaselli et al. [17] reported that reduced editing of miR-222/221 and miR-21 precursors led to cell proliferation and migration in glioblastoma. However, whether genome-wide RNA editing signature is a marker for glioma classification remains largely unexamined.

In this study, we aimed to (1) unravel the relationship between RNA editing and IDH mutation and 1p/19q codeletion and (2) develop models which provide standardized, accurate and objective prediction of IDH mutation and chromosome 1p/19q codeletion using RNA editing signature. Three supervised learning algorithms including support vector machines (SVM), random forest (RF) and AdaBoost (AB) were used. We also performed feature selection to avoid overfitting and possibly improve prediction performance. RNA editing events that contribute most to the prediction have the potential to serve as biomarkers and therapeutic targets in glioma management and treatment.

Results

Sample characteristics

From The Cancer Genome Atlas (TCGA) glioma cohort, we selected tumors that have both RNA-Seq bam files and annotation of IDH mutation and 1p/19q codeletion available, resulting in 638 samples [496 low grade glioma (LGG) and 142 glioblastoma multiforme (GBM)]. Samples were classified into three groups based on the status of IDH mutation and 1p/19q codeletion (Table 1): (1) IDH wt: samples without IDH mutation; (2) IDH mut-codel: samples with both IDH mutation and 1p/19q codeletion; and (3) IDH mut-non-codel: samples with only IDH mutation (no 1p/19q codeletion). More than half of IDH wt samples were grade IV tumors and classified as GBM. On the contrary, almost all IDH mutant tumors (IDH mut-codel and IDH mut-non-codel) belong to LGG. Moreover, the vast majority of IDH mut-codel samples were classified as oligodendroglioma, while more than half of IDH mut-non-codel samples belong to astrocytoma.

Table 1 Histology and grade information of the 638 glioma tumors

Identification of A-to-I RNA editing events

We downloaded 638 RNA-Seq bam files from Genomic Data Commons [18]. For each sample we characterized A-to-I editing events on sites reported in REDIportal [19], currently the most comprehensive A-to-I editing database. Among approximately 4.5 million sites in REDIportal, more than 100 thousand sites have at least one editing event in at least one of the 638 samples. To focus on sites that have better discriminative power for classifying gliomas, we removed sites that (1) did not have enough read coverage (< 10 reads); (2) were not edited in > 75% samples; or (3) have small editing variability among samples (see Methods). Finally, the above criteria resulted in 10,642 sites.

We annotated genic location of the 10,642 sites using ANNOVAR [20] and found that the majority of sites located in 3′ untranslated regions (3’UTR), followed by intergenic and intronic regions (Fig. 1a). To examine the relationship between RNA editing and IDH mutation and 1p/19q codeletion status, we calculated total editing level of each sample by considering reads covering the 10,642 sites [total editing level = total (edited G) / total (unedited A+ edited G)]. We found that IDH wt samples, on average, had higher total editing level than IDH mut-non-codel and IDH mut-codel samples (Fig. 1b; Kolmogorov-Smirnov test, p < 0.0001). When tumor grade was considered, however, only grade IV tumors with wildtype IDH exhibited significantly higher total editing level (Fig. 1c). Our results support the idea that RNA editing has the potential to classify gliomas. Next, we developed models to classify gliomas by predicting the status of IDH mutation and 1p/19q codeletion.

Fig. 1
figure1

Genic location and editing level of glioma editome. a Genic location of 10,642 editing sites using ANNOVAR (RefSeq gene annotation). Sites are located in one of the following ANNOVAR-defined categories: UTR3 (overlaps a 3′ untranslated region), intergenic (in intergenic region), intronic (overlaps an intron), downstream (overlaps 1-kb region downstream of transcription end site), ncRNA (overlaps a transcript without coding annotation in the gene definition), exonic (overlaps a coding), upstream (overlaps 1-kb region upstream of transcription start site), and UTR5 (overlaps a 5′ untranslated region). b Total editing level of three glioma subtypes. IDH wt: samples with wildtype isocitrate dehydrogenase (IDH); IDH mut-codel: samples with both IDH mutation and chromosome 1p/19q codeletion; IDH mut-non-codel: samples with only IDH mutation (no 1p/19q codeletion). c Total editing level of glioma subtypes considering tumor grade. G2/G3/G4: grade II, III and IV. Asterisk represents statistical difference between subtypes (Kolmogorov-Smirnov test, p < 0.0001)

Prediction performance for IDH mutation and 1p/19q codeletion

We first applied three supervised learning algorithms (SVM, RF and AB) to predict the mutation status of IDH using RNA editing signatures of the 10,642 sites. Ten-fold cross-validation was applied for generalization of our models and to derive a more accurate estimate of prediction performance. SVM and AB achieved better prediction performance than RF in terms of specificity (SPE) (0.920 and 0.916 vs. 0.764) (Table 2) and the area under the ROC curve (AUC) (0.989 and 0.986 vs. 0.968; DeLong test, p < 10− 4) (Fig. 2a). To rule out DNA changes misidentified as RNA editing events, for each sample we excluded editing events overlapping with sample-specific somatic mutations or germline variants. However, this approach is not feasible in clinical practice because identification of germline variants is time- and cost-intensive. To make our model more practical, we removed all editing sites that overlap with known variants in the public databases (See Methods). This procedure resulted in 9016 sites and their editing signatures were used to predict the mutation status of IDH. The performance of 10,642 sites and 9016 sites were virtually the same (Table 2 and Fig. 2a), suggesting the robustness of our approach.

Table 2 Prediction performance for IDH mutation
Fig. 2
figure2

ROC plots for SVM, random forest, and AdaBoost with different number of editing sites. a Full models (10,642 and 9016 sites) for predicting isocitrate dehydrogenase (IDH) mutation. b Feature selected models for IDH mutation. c Full models for predicting chromosome 1p/19q codeletion d Feature selected models for 1p/19q codeletion. AB: AdaBoost; RF: random forest; SVM: support vector machines

Next, to avoid overfitting of SVM and possibly improve prediction performance of RF, we tried to reduce the number of sites used in the models by performing feature selection.

Each algorithm selected a number of sites based on their importance within each cross-validation fold (137~173 sites for SVM, 163~186 sites for RF, and 45~50 sites for AB). Similar to the full models, the feature selected SVM and AB had higher AUCs (0.985 and 0.983, respectively) compared with the feature selected RF (0.977) (DeLong test, p = 0.01). Notably, the AUC of the feature selected RF was slightly increased compared with the full models (0.968 and 0.972 for 10,642 sites and 9016 sites, respectively) (DeLong test, p = 0.049), probably due to the removal of noise data points. However, for SVM and AB the performance was similar between feature selected and full models (Table 2 and Fig. 2b).

For the prediction of 1p/19q codeletion, SVM outperformed RF and AB in the full models (AUC: 0.990 vs. 0.976 and 0.975; DeLong test, p < 0.001) (Table 3 and Fig. 2c). Feature selection resulted in 166~273 sites in SVM, 196~211 sites in RF, and 45~49 sites in AB. The three feature selected classifiers performed similarly (Table 3 and Fig. 2d), but AUC of the feature selected SVM slightly decreased compared with full models (0.982 vs. 0.990; DeLong test, p = 0.004).

Table 3 Prediction performance for 1p/19q codeletion

RNA editing signatures of sites used in the prediction models

To get a better idea about how glioma samples clustered together using the selected editing sites, we performed hierarchical clustering of editing signatures of sites that were repeatedly selected (at least 5 times) in RF classifiers (132 and 124 sites for IDH and 1p/19q codeletion, respectively). Figure 3 shows blocks of editing signatures and these blocks corresponded well to the status of IDH and 1p/19q codeletion. Figure 3a reveals sites more heavily edited in IDH wildtype (especially GBM) samples as well as sites more heavily edited in IDH mutant samples. Figure 3b reveals sites more heavily edited in 1p/19q codeletion samples and also sites more heavily edited in 1p/19q non-codeletion samples.

Fig. 3
figure3

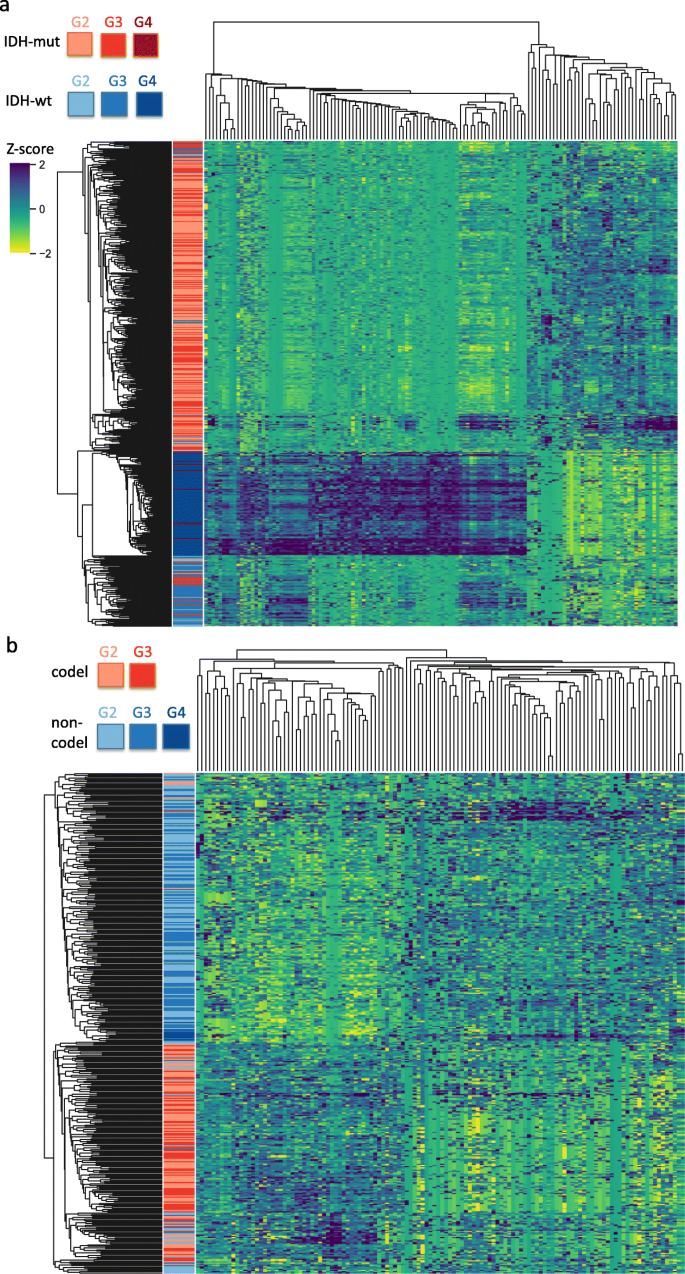

Pan-glioma RNA editing signatures. a Heatmap of RNA editing level of the 132 sites repeated selected in the IDH mutation classifiers (random forest). Columns represent z-score of RNA editing level of 132 sites sorted by hierarchical clustering. Rows represent 638 TCGA glioma samples sorted by hierarchical clustering. IDH mutation status (red: mutant; blue: wildtype) and grade information (G2/G3/G4: grade II, III and IV) of each sample is labeled. b Heatmap of z-score of RNA editing level of the 124 sites repeated selected in the 1p/19q codeletion classifiers (random forest). Columns represent RNA editing level of 124 sites sorted by hierarchical clustering. Rows represent 413 TCGA glioma samples (carrying IDH mutation) sorted by hierarchical clustering. 1p/19q codeletion status (red: codeletion / blue: non-codeletion) of each sample is labeled

We next examined the functional and locational enrichment of these repeatedly selected sites. We performed gene enrichment analyses using The Database for Annotation, Visualization and Integrated Discovery (DAVID) v6.8 [21, 22] with the 9016 editing sites as the background. No functional enrichment was detected with FDR < 0.05. For the locational enrichment, we perform hypergeometric test and focused on the top five categories: UTR3, intergenic, intronic, downstream, and ncRNA_intronic. For IDH (132 sites), we found enrichment in UTR3 (p < 0.02) and depletion in intergenic (p < 0.01) and intronic (p = 0.02) regions. For 1p/19q codeletion (124 sites), enrichment in ncRNA_intronic (p = 0.02) and depletion in UTR3 (p = 0.01) and intronic (p = 0.01) were detected.

Examination of the continuously misclassified samples

We also examined the samples continuously misclassified by our models. For IDH prediction, 13 samples were continuously misclassified. The misclassification is likely due to heterogeneity and the low number of cases in certain subtypes. For example, three of the 13 misclassified samples are GBM with IDH mutation. However, only nine of the 413 samples with IDH mutation belong to GBM. For 1p/19q codeletion, six samples were continuously misclassified. Remarkably, 67% of them were misclassifications in the original labelling after inspection of 1p/19q status and/or pathology report, demonstrating the accuracy and clinical utility of our models.

Discussion

This study represents the first genome-wide RNA editing analysis to date of adult diffuse gliomas. Our analysis demonstrates that RNA editing signature has crucial biological and clinical relevance. Using editing signatures of less than 200 sites, our models achieved high accuracy of predicting IDH mutation and 1p/19q codeletion. Compared with the IHC and FISH methods, our models provide more objective diagnostics and avoid labelling error. Four of the six continuously misclassified samples by our 1p/19q codeletion prediction models were misclassifications in the original labelling after inspection of 1p/19q status and/or pathology report, highlighting the accuracy and clinical utility of our models.

Compared with DNA methylation-based classification, our method has some advantages. First, our model is more cost-effective. RNA-Seq has become indispensable in biological research because it generates large amount of data useful for many applications. Currently, the cost of RNA-Seq can be as low as ~$200 per sample, whereas the cost of FISH and Illumina DNA methylation array is ~$340 [10]. With the increasing sequencing output of the Illumina platform, the cost of RNA-Seq will likely be further reduced with time. Additionally, a cost-effective RNA-Seq protocol was proposed recently, which greatly reduced the cost of sample preparation and sequencing [23]. With the cost of RNA-Seq continuing to drop in the future, our RNA editing-based classification will become more practical and gain more widespread adoption by laboratories and clinics. Second, RNA editing-based classification has the potential to help understand mechanisms driving gliomagenesis and indicate how the tumor could behave in the future. Many of the editing sites used in our models could serve as prognostic markers. For example, chr6:159679878 (one of the sites used to predict 1p/19q codeletion) has prognostic value for LGG patients. Patients with higher level of editing at chr6:159,679,878 have worse OS and progression free interval than those with lower editing (log-rank test: p < 0.0001; Fig. 4). This site resides in 3’UTR of the gene mitochondria-localized manganese superoxide dismutase (MnSOD/SOD2). SOD2 has both tumor promoting and suppressing functions in cancer [24]. It has been suggested that the dichotomous function of SOD2 results from the context-dependent regulation of SOD2 during different stages of tumor development [24]. The dynamic nature of RNA editing might play a role in the temporal regulation of SOD2 during cancer development, although further investigation is needed.

Fig. 4
figure4

Kaplan-Meier survival curves for LGG samples with different editing level at site chr6:159,679,878. a Overall survival (OS) b Progression free interval (PFI). This site located on the 3’UTR of the gene mitochondria-localized manganese superoxide dismutase (MnSOD/SOD2). High (Q3): top 25% samples (with higher editing level). Low (Q1): bottom 25% samples (with lower editing level). Seven and three samples, respectively, were not included in the OS and PFI plots because of lack of data or more than 10 years

Although our model classifies gliomas using only RNA-seq data, it can be adjusted easily to include other -omic data (such as methylation chip and/or exome sequencing). Several studies have shown that DNA methylation is able to cluster/classify brain tumors. The beta value obtained from the methylation chip is between [0,1] (same as the value of RNA editing). It is straightforward to include methylation data in our models and likely to increase the performance. We also developed models to classify patients into one of three groups simultaneously. However, SVM and AB had lower AUCs in predicting IDH mut-non-codel (See Additional file 1: Figure S1).

Some limitations of the study should be considered. First, we did not have an independent validation cohort to assess the performance of our classifiers. Second, our classifiers may only apply to adult gliomas and its performance on children brain tumors requires further investigation. Furthermore, our models are not able to distinguish grade II and grade III (anaplastic) astrocytoma, which are still listed in WHO 2016 classification guidelines.

Conclusions

In summary, our results reveal the clinical utility of RNA editing in glioma classification. Our prediction models provide standardized, accurate, reproducible and objective classification of gliomas. Our model is not only useful for clinical decision-making, but also able to identify editing events that have the potential to serve as biomarkers and therapeutic targets in glioma management and treatment.

Methods

Data collection

We downloaded The Cancer Genome Atlas (TCGA) LGG (low grade glioma) and GBM (glioblastoma multiforme) RNA-Seq bam files (v.2016) and clinical information from Genomic Data Commons (GDC [18];). We selected tumors that have both RNA-Seq bam files and annotation of IDH mutation and 1p/19q codeletion available, resulting in 638 samples (496 LGG and 142 GBM). IDH mutation is defined as carrying any type of known IDH1 or IDH2 mutation. The status of IDH mutation and 1p/19q codeletion of each sample was downloaded from [25].

Identification of RNA editing events in gliomas

Similar to Peng et al. [26], we used REDItools [27] with default settings to detect editing events on sites reported in REDIportal [19], currently the most comprehensive A-to-I RNA editing database. Hyper-edited reads were detected according to Porath et al. [28] and only reads covering sites in REDIportal were included. For each sample, both total editing level and site-specific editing level were calculated. Total editing level was calculated by dividing the number of reads with the edited G nucleotide by total number of A + G reads of the sample. Site-specific editing level was calculated by dividing the number of covering edited G reads by the number of covering A + G reads of an editing site. Because DNA changes could result in misidentification of RNA editing events, we downloaded somatic mutation data from GDC and germline variant data from the TCGA Pan-Cancer analysis project [29] and GDC legacy archive. Editing events overlapping with sample-specific somatic mutations or germline variants were excluded.

Selection of discriminative editing sites

We focused on sites that have better discriminative power for classifying gliomas by dividing sites into three types (based on the number of covering edited G and A + G reads): (1) Type I: (a) covered by ≥3 edited G reads and ≥ 10 A + G reads; and (b) editing frequency (edited G reads / A + G reads) is significantly greater than 0.1% (binomial test with FDR < 0.05); (2) Type II: covered by ≥10 reads but (a) < 3 edited G reads or (b) editing frequency is not significant greater than 0.1% (binomial test); and (3) Type III:: covered by < 10 reads. We first removed sites that were Type III in > 25% samples, resulting in 65,428 sites. We next selected sites with larger editing variability among samples. Median absolute deviation (MAD), defined as the median of the absolute deviations from the data’s median, is often used to measure data variability. To include more sites, here we defined MAD3Q as the median of the absolute deviations from the data’s third quantile. We required sites to be Type I in at least 25% samples and with MAD3Q > 0, resulting in 10,642 sites as starting features in our prediction models.

Annotation of editing sites

Gene structure (RefSeq) and variant (dbSNP, ExAc, and gnomAD) information of editing sites were derived from ANNOVAR (2018 Jul 08) [20].

Machine learning algorithms, ten-fold cross-validation, evaluation measures, and feature selection

Three supervised learning algorithms including support vector machines (SVM), random forest (RF) and AdaBoost (AB) were used in this study to predict the status of IDH mutation and 1p/19q codeletion. SVM is popular because of its accuracy and less usage of computational resource. We selected linear kernel because other kernel functions did not perform better. RF, an ensemble method, first fits a number of decision tree classifiers on various sub-samples of the dataset and then uses averaging to improve accuracy and control over-fitting. AdaBoost (short for “Adaptive Boosting”; AB) is another ensemble learning method, which aims to create a strong classifier from a number of weak classifiers. Python’s scikit-learn (with default parameters) was used to build the above classifiers.

Our models were evaluated using 10-fold cross-validation, which is widely used when sample size is limited and provides a more accurate estimate of prediction performance. The process started from randomly separating the whole dataset into 10 groups with equal size. In each validation, nine groups were used to train the model (i.e., training group) and one group (i.e., test group) was used to evaluate the performance. Accuracy (ACC), sensitivity (SEN), specificity (SPE), and area under the receiver operating characteristics curve (AUC) were used to assess model performance. ACC was calculated as the sum of correct predictions (TP+ TN) divided by total number of predictions (TP + FP + TN + FN), where TP, FP, TN, and FN, respectively, represents true positives, false positives, true negatives, and false negatives. SEN was calculated by TP/(TP + FN) and SPE was calculated by TN/(TN + FP). ROC curves were plotted using SEN and 1-SPE under different cutoff points. The above validation process was repeated 10 times and thus, the whole dataset was completely assessed. We also performed feature selection within each fold for both IDH mutation and 1p/19q codeletion classifiers to avoid overfitting and possibly improve prediction performance.

Survival analysis

Kaplan-Meier (KM) method was used to analyze the association between editing level and overall survival (OS) and progression free interval (PFI). Log-rank test was used to examine statistical significance. Seven and three samples, respectively, were not included in the OS and PFI plots because of lack of data or more than 10 years.

Availability of data and materials

The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Abbreviations

3’UTR:

3′ untranslated regions

AB:

AdaBoost

ACC:

Accuracy

AUC:

Area under the ROC curve

FISH:

Fluorescent in situ hybridization

GBM:

Glioblastoma multiforme

IDH mut-codel:

Samples with both IDH mutation and chromosome 1p/19q codeletion

IDH mut-non-codel:

Samples with only IDH mutation (no 1p/19q codeletion)

IDH wt:

Samples with wildtype isocitrate dehydrogenase (IDH)

IDH:

Isocitrate dehydrogenase

IHC:

Immunohistochemistry

KM:

Kaplan-Meier

LGG:

Low grade glioma

OS:

Overall survival

PFI:

Progression free interval

RF:

Random forest

ROC:

Receiver operating characteristic

SEN:

Sensitivity

SPE:

Specificity

SVM:

Support vector machines

TCGA:

The cancer genome atlas

References

  1. 1.

    Chammas M, Saadeh F, Maaliki M, Assi H. Therapeutic interventions in adult low-grade Gliomas. J Clin Neurol. 2019;15(1):1–8.

  2. 2.

    Gupta T, Sarin R. Poor-prognosis high-grade gliomas: evolving an evidence-based standard of care. Lancet Oncol. 2002;3(9):557–64.

  3. 3.

    Louis DN, Perry A, Reifenberger G, von Deimling A, Figarella-Branger D, Cavenee WK, Ohgaki H, Wiestler OD, Kleihues P, Ellison DW. The 2016 World Health Organization classification of tumors of the central nervous system: a summary. Acta Neuropathol. 2016;131(6):803–20.

  4. 4.

    Cancer Genome Atlas Research N, Brat DJ, Verhaak RG, Aldape KD, Yung WK, Salama SR, Cooper LA, Rheinbay E, Miller CR, Vitucci M, et al. Comprehensive, integrative genomic analysis of diffuse lower-grade Gliomas. N Engl J Med. 2015;372(26):2481–98.

  5. 5.

    Olar A, Wani KM, Alfaro-Munoz KD, Heathcock LE, van Thuijl HF, Gilbert MR, Armstrong TS, Sulman EP, Cahill DP, Vera-Bolanos E, et al. IDH mutation status and role of WHO grade and mitotic index in overall survival in grade II-III diffuse gliomas. Acta Neuropathol. 2015;129(4):585–96.

  6. 6.

    Hartmann C, Hentschel B, Wick W, Capper D, Felsberg J, Simon M, Westphal M, Schackert G, Meyermann R, Pietsch T, et al. Patients with IDH1 wild type anaplastic astrocytomas exhibit worse prognosis than IDH1-mutated glioblastomas, and IDH1 mutation status accounts for the unfavorable prognostic effect of higher age: implications for classification of gliomas. Acta Neuropathol. 2010;120(6):707–18.

  7. 7.

    Jenkins RB, Blair H, Ballman KV, Giannini C, Arusell RM, Law M, Flynn H, Passe S, Felten S, Brown PD, et al. A t(1;19)(q10;p10) mediates the combined deletions of 1p and 19q and predicts a better prognosis of patients with oligodendroglioma. Cancer Res. 2006;66(20):9852–61.

  8. 8.

    Zou Y, Bai HX, Wang Z, Yang L. Comparison of immunohistochemistry and DNA sequencing for the detection of IDH1 mutations in gliomas. Neuro-Oncology. 2015;17(3):477–8.

  9. 9.

    Chaturbedi A, Yu L, Linskey ME, Zhou YH. Detection of 1p19q deletion by real-time comparative quantitative PCR. Biomark Insights. 2012;7:9–17.

  10. 10.

    Wang ZL, Zhao Z, Wang Z, Zhang CB, Jiang T. Predicting chromosome 1p/19q codeletion by RNA expression profile: a comparison of current prediction models. Aging-Us. 2019;11(3):974–85.

  11. 11.

    Ceccarelli M, Barthel FP, Malta TM, Sabedot TS, Salama SR, Murray BA, Morozova O, Newton Y, Radenbaugh A, Pagnotta SM, et al. Molecular profiling reveals biologically discrete subsets and pathways of progression in diffuse Glioma. Cell. 2016;164(3):550–63.

  12. 12.

    Capper D, Jones DTW, Sill M, Hovestadt V, Schrimpf D, Sturm D, Koelsche C, Sahm F, Chavez L, Reuss DE, et al. DNA methylation-based classification of central nervous system tumours. Nature. 2018;555(7697):469–74.

  13. 13.

    Dominissini D, Moshitch-Moshkovitz S, Amariglio N, Rechavi G. Adenosine-to-inosine RNA editing meets cancer. Carcinogenesis. 2011;32(11):1569–77.

  14. 14.

    Bass BL, Nishikura K, Keller W, Seeburg PH, Emeson RB, OConnell MA, Samuel CE, Herbert A. A standardized nomenclature for adenosine deaminases that act on RNA. Rna. 1997;3(9):947–9.

  15. 15.

    Wang YM, Liang H. When MicroRNAs meet RNA editing in cancer: a nucleotide change can make a difference. Bioessays. 2018;40(2):1700188.

  16. 16.

    Choudhury Y, Tay FC, Lam DH, Sandanaraj E, Tang C, Ang BT, Wang S. Attenuated adenosine-to-inosine editing of microRNA-376a* promotes invasiveness of glioblastoma cells. J Clin Invest. 2012;122(11):4059–76.

  17. 17.

    Tomaselli S, Galeano F, Alon S, Raho S, Galardi S, Polito VA, Presutti C, Vincenti S, Eisenberg E, Locatelli F, et al. Modulation of microRNA editing, expression and processing by ADAR2 deaminase in glioblastoma. Genome Biol. 2015;16:5. https://doi.org/10.1186/s13059-014-0575-z.

  18. 18.

    https://gdc.cancer.gov/. Accessed 09, 2017.

  19. 19.

    Picardi E, D'Erchia AM, Lo Giudice C, Pesole G. REDIportal: a comprehensive database of A-to-I RNA editing events in humans. Nucleic Acids Res. 2017;45(D1):D750–7.

  20. 20.

    Wang K, Li M, Hakonarson H. ANNOVAR: functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010;38(16):e164.

  21. 21.

    Huang DW, Sherman BT, Lempicki RA. Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources. Nat Protoc. 2009;4(1):44–57.

  22. 22.

    Huang DW, Sherman BT, Lempicki RA. Bioinformatics enrichment tools: paths toward the comprehensive functional analysis of large gene lists. Nucleic Acids Res. 2009;37(1):1–13.

  23. 23.

    Hou ZG, Jiang P, Swanson SA, Elwell AL, Nguyen BKS, Bolin JM, Stewart R, Thomson JA. A cost-effective RNA sequencing protocol for large-scale gene expression studies. Sci Rep. 2015;5:9570.

  24. 24.

    Kim YS, Gupta Vallur P, Phaeton R, Mythreye K, Hempel N. Insights into the Dichotomous Regulation of SOD2 in Cancer. Antioxidants (Basel). 2017;6(4):86.

  25. 25.

    Liu J, Lichtenberg T, Hoadley KA, Poisson LM, Lazar AJ, Cherniack AD, Kovatich AJ, Benz CC, Levine DA, Lee AV, et al. An integrated TCGA pan-Cancer clinical data resource to drive high-quality survival outcome analytics. Cell. 2018;173(2):400–416.e411.

  26. 26.

    Peng XX, Xu XY, Wang YM, Hawke DH, Yu SX, Han L, Zhou ZC, Mojumdar K, Jeong KJ, Labrie M, et al. A-to-I RNA editing contributes to proteomic diversity in cancer. Cancer Cell. 2018;33(5):817.

  27. 27.

    Picardi E, Pesole G. REDItools: high-throughput RNA editing detection made easy. Bioinformatics. 2013;29(14):1813–4.

  28. 28.

    Porath HT, Carmi S, Levanon EY. A genome-wide map of hyper-edited RNA reveals numerous new sites. Nat Commun. 2014;5:4726. https://doi.org/10.1038/ncomms5726.

  29. 29.

    Huang KL, Mashl RJ, Wu Y, Ritter DI, Wang J, Oh C, Paczkowska M, Reynolds S, Wyczalkowski MA, Oak N, et al. Pathogenic Germline variants in 10,389 adult cancers. Cell. 2018;173(2):355–370.e314.

  30. 30.

    http://cancergenome.nih.gov/ Accessed 09, 2017.
