Evolving knowledge graph similarity for supervised learning in complex biomedical domains



In recent years, biomedical ontologies have become important for describing existing biological knowledge in the form of knowledge graphs. Data mining approaches that work with knowledge graphs have been proposed, but they are based on vector representations that do not capture the full underlying semantics. An alternative is to use machine learning approaches that explore semantic similarity. However, since ontologies can model multiple perspectives, semantic similarity computations for a given learning task need to be fine-tuned to account for this. Obtaining the best combination of semantic similarity aspects for each learning task is not trivial and typically depends on expert knowledge.


We have developed a novel approach, evoKGsim, that applies Genetic Programming over a set of semantic similarity features, each based on a semantic aspect of the data, to obtain the best combination for a given supervised learning task. The approach was evaluated on several benchmark datasets for protein-protein interaction prediction using the Gene Ontology as the knowledge graph to support semantic similarity, and it outperformed competing strategies, including manually selected combinations of semantic aspects emulating expert knowledge. evoKGsim was also able to learn species-agnostic models with different combinations of species for training and testing, effectively addressing the limitations of predicting protein-protein interactions for species with fewer known interactions.


evoKGsim can overcome one of the limitations in knowledge graph-based semantic similarity applications: the need to expertly select which aspects should be taken into account for a given application. Applying this methodology to protein-protein interaction prediction proved successful, paving the way to broader applications.


Knowledge discovery in complex domains can be a challenge for data mining methods, which are typically limited to agnostic views of the data, without being able to gain access to its context and meaning. It is widely recognized that the performance of data mining methods can improve significantly when additional relations among the data objects are taken into account, a strategy employed in relational data mining and Inductive Logic Programming [1].

In the last decade, the explosion in complexity and heterogeneity of biomedical data has motivated a new panorama of semantic data, where millions of semantically-described biological entities are available in knowledge graphs (KGs), through links between ontologies and data [2]. In computer science, an ontology is a formal and explicit specification of a conceptualization in which each term (or concept) is precisely defined and the relationships between terms are parameterized or constrained [3]. Ontologies can be used to represent entities (or instances) in a KG. KGs describe real world entities and their interrelations, through links to ontology concepts describing them, organized in a graph [4]. Gene Ontology (GO) [5] is a very successful biomedical ontology that describes protein function. GO and its associated annotations that link proteins to GO terms make up a KG. Figure 1 shows a small example graph of that KG. Semantic representations of data entities based on KGs that can be explored by data mining approaches provide a unique opportunity to enhance knowledge discovery processes.

Fig. 1
figure 1

A subgraph of the GO KG illustrating the relationships between proteins. The red nodes are the biological entities (proteins) and the black nodes are the ontology concepts (GO terms)

In recent years, some approaches combining methods from data mining and knowledge discovery with KGs have been proposed [6]. One of the biggest challenges faced by these approaches is how to transform data coming from KGs into a suitable representation that can be processed by data mining algorithms. Most of the existing approaches build a propositional feature vector representation of the data (i.e., each instance is represented as a vector of features), which allows the subsequent application of most existent data mining algorithms.

The tools FeGeLOD [7] and RapidMiner [8] generate data mining features based on the exploration of specific or generic relations in the graph. Vries et al. [9] use RDF (resource description framework) graph kernels based on intersection graphs and intersection trees to calculate the instances’ feature vectors. More recently, a set of approaches have been developed that can characterize KGs through “embeddings”. In graph embeddings [6], the KG is transformed into sequences of entities, which can be considered as corpus’ sentences. Then, based on the corpus, vector representations are generated using neural language models. Ristoski et al. [10] propose RDF2Vec that uses language modeling approaches for unsupervised feature extraction from sequences of words and adapts them to RDF graphs.

Machine learning approaches that use vectors of features extracted from KGs have also been applied in biomedicine and life science domains. In [11], supervised classifiers predict protein-protein interactions (PPIs) using a set of features to represent a protein pair. In this approach, a protein pair is treated as a bag of words, where the GO terms annotating (i.e., describing) the two proteins represent the words. The feature value of each word is calculated using the concept of information content. Smaili et al. [12] propose Onto2Vec that also uses language modeling approaches to generate vector representations of biological entities in ontologies by combining formal ontology axioms and annotation axioms from the ontology. Onto2Vec is then applied to PPI prediction on different datasets and the identification of protein families. Maetschke et al. [13] use GO-driven algorithms with inducers for protein interaction inference, combining machine learning and KG techniques.

However, the approaches based on vector representations may fail to capture the full underlying semantics. For instance, graph embeddings and graph kernels mostly explore the local structure of KGs. An alternative strategy, and since measuring similarity is fundamental to many machine learning algorithms, is to use the KGs to measure the semantic similarity (SS) [14] between entities in the graph. SS is the computation of the similarity between entities based on their meaning as described in an ontology. For instance, if two biological entities are annotated within the same ontology, we can compare them by comparing the terms with which they are annotated [14].

There are many bioinformatics applications that benefit from using semantic similarity measures (SSMs) over biomedical KGs to compare proteins based on what they do, rather than using sequence similarity, namely: PPI prediction [13, 1520], prediction of disease-associated genes [15, 2125], validation of function prediction [26], network prediction [27], prediction of cellular localization [28], and automatic annotation validation [29]. Jain and Bader [17] propose an improved algorithm that uses the SS between GO terms annotated to proteins to distinguish true from false protein interactions. Liu et al. [15] propose a method that incorporates enrichment of GO terms by a gene pair in computing the SS, and apply that method to prediction of sequence homologies, PPIs, and disease-associated genes. Other ontologies have also been used, including the Human Phenotype Ontology [30]. Here, Khöler et al. use SS over phenotypes to diagnose genetic diseases [31], and Hoendorf et al. employ phenotype SS similarity to discover disease related genes [32].

However, a challenge remains. Ontologies aim at modeling a given domain, but within a single domain there can be multiple perspectives, and the SS can be computed taking different aspects into consideration. Let’s take as an example the GO: it describes protein function according to three different perspectives or aspects: biological process, cellular component and molecular function. Therefore, we can compute the SS between two proteins in terms of their annotations within a single aspect, or combining multiple aspects. Different learning tasks may need different perspectives of the KG, and selecting the best aspects or combination of aspects to support a given learning task is not trivial. Usually, the selection of the combination of SS aspects is based on a researchers’ intuition and experience. For instance, if the learning task is the prediction of interaction between proteins, it is expected that similarity in biological process or cellular component are stronger indicators for protein interaction than similarity in molecular function. Therefore, a combination in which biological process and cellular component aspects have more weight will probably be the choice of researchers. Both Jain and Bader [17] and Maetschke et al. [13] have found this to be true.

However, not all tasks have such a clear choice of combination. For instance, if the learning task is the prediction of disease-associated genes, how to combine molecular function with the remaining two aspects is not straightforward. Automating the selection of the best combination of KG aspects to support specific tasks would simplify and generalize the application of these techniques, rendering it more independent of expert knowledge.

In this work, we propose a novel methodology, evoKGsim, that uses Genetic Programming (GP) [33] over a set of semantic similarities, each computed over a different semantic aspect of the underlying data, to arrive at the best combination between the different aspects to support different supervised learning tasks. GP is chosen for its ability to search large solution spaces by means of evolving a population of free-form readable models through crossover and mutation. Unlike most search and optimization methods, which try to optimize the values of variables, GP tries to optimize a combination of variables and operators/functions, which is suitable for finding the best combinations of semantic similarity scores. This methodology is applied to PPI prediction and evaluated in benchmark datasets. We focus on this problem since the relationships between the different semantic aspects and potential classification performance are well established.


A key aspect of our evaluation approach is to compare evoKGsim, that is able to evolve a combination of semantic aspects, to static combinations established a priori. This allows us to compare our methodology to a scenario where semantic aspects are selected and combined by experts before the prediction task. We have used five static combinations as baselines: the biological process (BP), molecular function (MF), and cellular component (CC) single aspects, and the average (Avg) and maximum (Max) of the single aspect scores. Furthermore, we also compare evoKGsim to combinations selected by an exhaustive search method and decision tree models.

To establish the performance of the static baselines, the prediction of PPI is formulated as a classification problem where a SS score for a protein pair exceeding a certain threshold (SS cutoff) indicates a positive interaction. The SS threshold is chosen after evaluating the weighted average of F-measures (WAF) at different threshold intervals and selecting the maximum. This emulates the best choice that a human expert could theoretically select.

Regarding exhaustive search combinations, we performed a grid search approach over the weights of each semantic aspect as well as the threshold for classification, where weights were used in a linear combination.

To provide a comparison of our methodology results against the results of another classification method not based on evolutionary algorithms, we employed decision trees using the SS of the three semantic aspects as input features.

By comparing the performance of these alternative approaches to the performance of evoKGsim, we aim at investigating the ability of GP to learn combinations of semantic aspects that are able to support improved classification performance.

Static combinations

Prior to performing the comparative evaluation, we investigated the behavior of the different SS approaches employed, coupled with the different baselines.

Figures 2 and 3 show the WAF of classification at different cutoffs with three SSMs for the DIP-HS and STRING-EC PPI datasets, respectively. While Fig. 2 is representative of the behavior found for the other datasets, Fig. 3 shows a different behavior, where the F-measure is less penalized at higher cutoffs, particularly for the Max and CC results. The proteins in this dataset have fewer BP annotations, which may help explain the improved performance of CC. Additional file 1 shows the results for the remaining datasets.

Fig. 2
figure 2

WAF Curves for DIP-HS PPI dataset. WAF evaluations with static combinations of semantic aspects (CC, BP, MF, Avg and Max) at different cutoffs are shown. The evaluation is performed using three SSMs: a SimGIC, b ResnikMax and c ResnikBMA

Fig. 3
figure 3

WAF Curves for STRING-EC PPI dataset. WAF evaluations with static combinations of semantic aspects (CC, BP, MF, Avg and Max) at different cutoffs are shown. The evaluation is performed using three SSMs: a SimGIC, b ResnikMax and c ResnikBMA

Comparing the charts for different SSMs, we observe that, for each set of curves, the maximum F-measure is achieved at different ranges of SS cutoff. For SimGIC (Fig. 2a), ResnikMax (Fig. 2b) and ResnikBMA (Fig. 2c) the ranges are approximately [0.1−0.3], [0.6−0.8] and [0.3−0.5], respectively. For most datasets, each SSM shows a consistent behavior with curves having similar shapes. Furthermore, we verify that the maximum observed F-measure is achieved when ResnikMax is used.

Static combinations were evaluated using stratified 10-fold cross-validation. The training set is used to select the best classification threshold which is then applied to the test set. Table 1 presents the median WAF achieved in each baseline.

Table 1 Median of WAFs with alternative methodologies and with evoKGsim for the different PPI datasets

Exhaustive search combinations and decision tree models

The exhaustive search method is based on a grid search over a set of possible values for the SS threshold (values in the range from 0 to 1 with a step of 0.05) and a set of possible values for SS score weights (values in the range from 0 to 1 with a step of 0.1), using the WAF of classification on training set as the optimization criterion. The components of the candidate solutions are then a SS threshold and three weights used to calculate the weighted average of the three SS scores. The number of potential solutions was established to be roughly equal to the number of candidate solutions evaluated by GP.

The decision tree models were obtained using the Decision Tree package of scikit-learn 0.20.2 [34] with default parameters.

Exhaustive search combinations and decision tree models were evaluated using 10-fold cross-validation. The median WAF for all datasets is presented in Table 1.

Comparative evaluation

Table 1 shows the median WAF of stratified 10-fold cross-validation for the static combinations, the exhaustive search combinations, the decision tree models and evoKGsim, using different SSMs.

The statistical significance of the experimental results was determined using pairwise non-parametric Kruskal-Wallis tests [35] at p< 0.01. All statistical analyses were performed using the Python library SciPy 1.3.1 [36]. Table S3 of Additional file 1 shows the p-values for the Kruskal-Wallis test for comparisons between evoKGsim and all the other alternative methodologies over the nine PPI datasets. In Table 1, for each dataset-SSM pair, the median WAF achieved for each alternative methodology is underlined when the performance differences between evoKGsim and that methodology are statistically significant.

evoKGsim for intra-species prediction

The previous results suggest that having fewer instances can hinder the ability of GP to learn a suitable combination of aspects. Therefore, and since two of the species have several datasets, we tested evoKGsim using combined sets for each of these species. This allows us to investigate whether a species-oriented model based on more instances can improve on the performance of individual datasets. The human combined set contains the data from 4 datasets (STRING-HS, DIP-HS, GRID/HPRD-bal-HS, GRID/HPRD-unbal-HS), with a total of 54219 protein pairs. The yeast combined set contains the data from three datasets (STRING-SC, BIND-SC, and DIP/MIPS-SC), with a total of 42330 protein pairs. Some pairs of proteins appear in more than one dataset so, in these combined sets, the repeated pairs are first removed from the combined sets and only then randomly split into training and test sets. Figure 4 shows the WAF boxplot for the three yeast datasets, the four human datasets, the yeast combined set and the human combined set. Each box includes the WAFs obtained in 10-fold cross-validation.

Fig. 4
figure 4

WAF Boxplot using combined sets. The yellow boxes represent the WAF of predictions for human data and the green boxes represent the WAF of predictions for yeast data. Within the same species, the datasets appear on the x-axis in ascending order of size. The median of the WAF values is indicated by the bar within a box

Using the boxplots to compare the prediction performance, we conclude that, for both species, the performance using the combined set is similar to the performance of the larger datasets included in that combined set. This may be explained by the influence of the large proportion of instances coming from the larger datasets, such as GRID/HPRD-unbal-HS and GRID/HPRD-bal-HS for human and STRING-SC for yeast, although for human this influence is less pronounced.

We were also interested in investigating, within a species, the performance of training in a given group of datasets and testing on a different one. Once again, to solve the problem of repeated pairs, we determine that if a protein pair is simultaneously in the training set and in the test set, it will be removed from one of them. Tables 2 and 3 present the different tests we conducted, indicating for each test which datasets are in the training set and which are in the test set for human and yeast data, respectively. This strategy does not support stratified cross-validation so results are based on 10 independent runs.

Table 2 Training and test sets and number of protein pairs respectively used in each experiment
Table 3 Training and test sets and number of protein pairs respectively used in each experiment

The results for human and yeast are summarized in Figs. 5 and 6, respectively. Analyzing the results for human sets, we conclude that using a larger dataset for training can improve the performance of classification. For instance, training with data from GRID/HPRD-bal-HS (e.g., S+Gb_D+Gub), the larger dataset, leads to higher test WAFs, while training with fewer data points (e.g., D_S+Gub+Gb) leads to lower WAF values. Relatively to yeast sets, the same behavior is observed. For instance, in S+D_B the experiment with the largest training set and the smallest test set, WAF is more than 5% higher than in the second best performing case.

Fig. 5
figure 5

WAF Boxplot using human datasets to training and testing. The labels of the plots are in format ’D1+D2_D3+D4’, where D1, D2, D3, D4 are the original datasets, D1+D2 is the training set that contains data from D1 and D2, and D3+D4 is the test set that contains data from D3 and D4. In the labels, the names of the datasets STRING-HS, DIP-HS, GRID/HPRD-unbal-HS, and GRID/HPRD-bal-HS are abbreviated to “S”, “D”, “Gub”, and “Gb”, respectively

Fig. 6
figure 6

WAF Boxplot using yeast datasets to training and testing. The labels of the plots are in format ’D1+D2_D3+D4’, where D1, D2, D3, D4 are the original datasets, D1+D2 is the training set that contains data from D1 and D2, and D3+D4 is the test set that contains data from D3 and D4. In the labels, the names of the datasets STRING-SC, BIND-SC, and DIP/MIPS-SC are abbreviated to “S”, “B”, and “D”, respectively

evoKGsim for cross-species prediction

In the above analysis, the training and test data come from the same species. However, training prediction methods on one species’ data and testing them on another species’ protein pairs may be useful to explore, since GO annotation is designed to be species independent [5].

To test this idea, we use evoKGsim to predict PPI but, using one species’ data to train the model and another species’ data to test it. Figure 7 displays the self-test WAF boxplot (obtained using 10-fold cross-validation) and cross-species-test WAF boxplot (obtained in 10 independent runs) using four datasets (STRING-DM, STRING-EC, STRING-HS, STRING-SC) of four different species.

Fig. 7
figure 7

WAF Boxplot using one species to train and another species to test. ’D1_D2’ format of the labels means training with D1 and testing on D2

The results reveal that evoKGsim is generally more effective when trained and tested using data from the same species than when trained with data from one species and tested with data from another species. For D. melanogaster, performances are very similar across training sets. For E. coli, performance can differ greatly, with the human training set decreasing performance by more than 27% when compared to E. coli.

evoKGsim for multi-species prediction

We also tested evoKGsim by training the model using all species data except the one species that was used for testing and performing 10 runs. Additionally, we also ran a species-agnostic 10-fold cross-validation experiment where the data from all datasets was combined into a single dataset. The strategy to remove repeated pairs used before in evolved combinations species-oriented is applied.

In Fig. 8 we can observe some interesting effects. For D. melanogaster and S. cerevisiae, the differences observed between training with the other species or with the same species are rather small: D. melanogaster multiple species performance decreases by 0.3%, whereas for S. cerevisiae it decreases by 3.3%. However, for E. coli and human, the difference is more substancial, with E. coli dropping performance by 16.6% and human by 5.9%. Interestingly, the experiment that uses the data from all the datasets produced a mid-range WAF value, indicating that it is possible to produce a successful species-agnostic model.

Fig. 8
figure 8

WAF Boxplot using multispecies data in training set

Overview of GP models

Since GP produces potentially readable models, after evaluating the performance of evoKGsim, the models generated by GP across different datasets are analyzed. The goal is to identify which are the operators and combinations that GP uses more often, and how they compare across datasets. The analysis of the models is conducted using the Python library SymPy 1.3 [39] and the Python package Graphviz 0.10.1 [40]. Table 4 summarizes, for the 10 folds performed in each dataset, the average length (number of tree nodes) of the models and the average relative frequency of variables BP, CC and MF in the models. These are calculated after arithmetic simplification (using SymPy) of the best solutions returned by GP, that is applied to remove redundant code.

Table 4 Analysis of GP models for each dataset

As expected, variable MF appears less frequently in the GP models. These results are in agreement with the previous results that indicated that BP and CC annotations are stronger indicators for PPI than MF annotation. However, the frequency in which a given variable appears in a GP model does not necessarily measure its importance for the predictions, as its effect may be stronger or weaker depending on its surrounding context. The average length of the GP models is 64.2, with somewhat large differences between datasets. One interesting observation is that, when the datasets are smaller, such as STRING-DM and BIND-SC, the average length of the GP models tends to increase. This may be an indication that GP is evolving highly tuned, possibly overfitted models, for lack of sufficient data to induce smaller and more general ones. However, in GP the complexity of a model does not depend on its size, but on the particular features and operators used to build it, and therefore one cannot assume that larger models overfit more than smaller ones [41].

In GP models of the species-agnostic experiment the differences between the frequencies of the variables BP, CC and MF are more substancial, being MF the least frequent variable and BP, clearly, the most frequent variable (last row of Table 4). Once again the results indicate that similarities in BP and CC annotations are stronger indicators for PPI than MF annotation, with a slight advantage for BP.


Comparison with static combinations

For all datasets, GP is able to learn combinations of semantic aspects that improve the best classification performance obtained by the static baselines for that dataset.

Regarding static combinations approaches, the differences between SSMs are not unexpected since SimGIC considers multiple GO annotations for calculating SS while Resnik approaches only consider the best-matching term pairs. Therefore, the better performance using ResnikMax makes sense because proteins in PPIs only need to be in proximity in a single location or participate in a single shared biological process, to be biologically relevant for PPI prediction. As expected, the results indicate that the predictive power of the BP and CC aspects is similar, with a slight advantage for BP, while the predictive power of MF is considerably lower. The dataset STRING-EC (Fig. 3) is an exception because using only the SS for BP ontology provides worse results comparatively to the other combinations of single aspects. Once again, the explanation for that can be the lack of BP annotations for the species E. coli. The Avg combination outperforms the Max in most cases. This is possibly due to the fact that the Avg combination can take into consideration both the BP and the CC aspects.

Regarding evoKGsim, improvements over the single aspect baselines are, as expected, more pronounced for MF (up to 26%) than for the other aspects. The improvements are also clear when considering the combination baselines (2-7% in most cases). evoKGsim significantly outperforms the MF baseline in any dataset with any SSM. In accordance with static combinations results, the importance of MF to predict PPI is also reduced in evoKGsim as is evidenced by its lower frequency in the GP models. For the remaining static baselines, in all dataset-SSM pairs, except the GRID/HPRD-bal-HS - ResnikMax pair, the performance of evoKGsim is always slightly better than the static baselines, but sometimes not enough to be statistically significant.

It is important to note that the baselines were built to emulate the scenario of a researcher choosing an optimal threshold and employing two well-known strategies for combining the single aspect scores. With GP, we have always used the 0.5 cutoff with no further tuning, and have used a function set that included the maximum but not the average (which interestingly did not guarantee success or failure when compared to these two baselines). It is interesting to note as well, that often evoKGsim achieves its best WAF when used with ResnikMax (in five out of nine datasets). ResnikMax is also the best overall measure for the single aspect baselines. For that reason, in the experiments in sections dedicated to intra-, cross-, multi-species prediction and overview of GP models, the results are obtained using only ResnikMax as SSM.

Comparison with exhaustive search combinations

In four out of nine datasets, evoKGsim performs better than combinations selected by exhaustive search, and achieves the same performance in two datasets. However, the statistical tests reveal that, in the majority of cases, evoKGsim is not able to significantly outperform the exhaustive search approach. Nevertheless, when evoKGsim has a worse performance, these differences are never statistically significant.

It also should be taken into account that 20,000 parameter combinations are tested in search of the combination of SS weights and SS threshold that maximizes the WAF of PPI prediction. In opposition, evoKGsim is based on a genetic algorithm that explores, in an efficient way, the space of possible solutions to obtain the combination of SS scores that maximizes the WAF of the classification. To investigate differences in computational performances, we compared the training and testing times of exhaustive search combinations and our methodology. To visualize these results, Fig. 9 shows the variation of the median execution time with the size of the dataset for each methodology (exhaustive search combinations and evoKGsim). We observe that evoKGsim is not only faster, but also more scalable than the exhaustive search method. Although training and testing times depend on the implementation, there are such large differences in times that the differences cannot be attributed only to implementation.

Fig. 9
figure 9

Plot of median execution time versus dataset size

Comparison with decision tree models

In eight out of nine datasets, evoKGsim is able to learn combinations of semantic aspects that improve the best classification performance obtained by decision trees. These differences are statistically significant in six cases. The only dataset where evoKGsim is unable to improve the performance (STRING-EC) is one of the smallest (<2500 protein pairs), which may help explain the lower performance of our approach. For this dataset, we achieve 2.3% lower performance, but this difference is not statistically significant. Furthermore, we verified that the obtained decision tree models are too large for human understanding in nearly all cases, producing models with hundreds of leaves.

Comparison of species-based aggregation of data

Our results suggest that having fewer instances can hinder the ability of GP to learn a suitable combination of aspects. This motivated different strategies for aggregating datasets based on species. Regarding predictions based on different combinations of datasets within the same species (see Figs. 10 and 11 and Table 1), we verify that prediction methods are always more effective when trained and tested with the same dataset than when trained with other datasets of the same species. This is not surprising, considering how easy it is for biases to be unintentionally included in a dataset, and how much of these biases can be captured and used by a powerful method like GP, as long as they help achieve a good performance. Potential sources of bias could be a direct result of the scientific process, where determining the interaction of proteins is likely to target proteins that are more abundant [42] or that participate in relevant processes, e.g. resistance/susceptibility to disease or stress conditions.

Fig. 10
figure 10

Overview of the evoKGsim methodology

Fig. 11
figure 11

Illustration of a directed acyclic graph representing GO terms annotating two proteins. Red terms annotate only protein A, blue terms annotate only protein B and white terms annotate both proteins A and B

Regarding cross-species prediction, evoKGsim is generally more effective when trained and tested using data from the same species. In fact, training with human data gives consistently the worst results. This could be a result of the human dataset being composed of proteins that bear a lower similarity to those in other species datasets or of differences in the annotation process.

Park [43] and Maetshke et al. [13] also evaluated the cross-species accuracy by training a sequence-based classifier on one species data and predicting interactions for another species. Park found that datasets typically used for training prediction methods contain peculiar biases that limit the general applicability of prediction methods trained with them. In strong contrast, Maetshke et al. conclude that datasets linked to low self-test accuracy result in low cross-species accuracies while datasets with high self-test accuracy indicate datasets of good quality and, consequently, lead to high test accuracies for all training sets. This means that, according to Maetshke et al., the prediction performance on the test species for different training species largely depends on the self-test accuracy achieved on the test dataset and only to a lesser degree on the training dataset. Interestingly, the results for evoKGsim do not seem to indicate that datasets with high self-test WAF (such as STRING-DM) lead to high test WAF for all training sets.

Finally and considering the use of diverse training data will likely produce more generally applicable models, we also investigated applying a model learnt from more than one species data to the classification of another species data. This yielded interesting results with a successful creation of a species-agnostic model.

Other PPI prediction methods

By using benchmark datasets, our results could be in principle directly compared to the results obtained by other works using the same datasets. However, our results cannot be directly compared to the published ones, first because we used more recent versions of the GO KG, and second because we needed to exclude some protein pairs of the benchmark datasets. The results obtained in different works are also not directly comparable between themselves. Nevertheless, the results from relevant related work were compiled, to support a comparative overview.

Table 5 summarizes the area under the receiver operating characteristic curve (AUC-ROC) for several prediction methods and the median AUC-ROC for evoKGsim using the best SSM.

Table 5 Summary of AUC-ROC with several PPI predicton methods, including evoKGsim methodology

The results in the third to sixth columns are all based on a similar approach, whereby an interacting protein pair is described by a vector that combines the presence/absence of GO terms for both proteins. The ULCA (up to lowest common ancestors) variant takes all annotations, direct and inherited up to the lowest common ancestor. The AA variant takes all annotations, direct and inherited. The weighted variants (WULCA and WAA) weight the presence of a GO term by its information content (IC). This is not a semantic-similarity based approach, but rather a propositional feature vector approach over the GO KG. The third column shows the best prediction performance of the ULCA with a Naïve Bayes classifier using the BP aspect obtained by Maetschke et al. [13]. The fourth, fifth, sixth columns present the results obtained by cross-validation of SVM otained by Bandyopadhyay and Mallick using all aspects [11]. The seventh column refers to an improved algorithm proposed by [13] to compute SS between GO terms annotated to proteins in benchmark interaction datasets.

Bandyopadhyay and Mallick [11] is the most recent work where the impact of the GO KG updates introduces less bias in a comparison with our results. An important difference between Bandyopadhyay and Mallick’s approach and ours, is that while ours uses semantic similarity as the features characterizing a protein pair, they employ IC weighted vectors of the GO terms assigned to each protein. Their approach gives the machine learning algorithm access to the annotations themselves, with models being able to learn exactly which annotations are better interaction predictors, while in evoKGsim the model is only able to learn which semantic aspects are the best predictors.

The Onto2Vec method, proposed by Smaili et al. [12], is also applied to predict PPIs in human and yeast. Although they did not use our benchmark datasets, PPIs were collected from STRING, the same database of PPIs from STRING-SC and STRING-HS datasets. In this work, Onto2Vec was used to learn feature vectors for proteins combining information about their GO annotations and the semantics of the GO terms in a single representation. The best AUC-ROC values were 0.8869 and 0.8931 for yeast and human datasets, respectively, and were obtained using an artificial neural network on the Onto2Vec representations.


Knowledge-graph based semantic similarity measures have several very important biomedical applications, ranging from the prediction of protein-protein interactions, of gene product function or even of genes associated with diseases. Using KG-based SSMs typically includes selecting the aspects of the KG that are relevant for a given target application, a task that needs expert knowledge.

We have developed a novel approach, evoKGsim, that is able to learn suitable combinations of SS aspects to support supervised learning using GP. We evaluated its performance in protein-protein interaction prediction using the Gene Ontology as the KG (with its three semantic aspects: molecular function, biological process and cellular component) and a set of nine benchmark datasets.

evoKGsim is able to learn suitable combinations of SS aspects that improve PPI prediction performance over classical static combinations and classical classification algorithms like decision trees. The results have also revealed that exhaustive-like searches can provide comparable results to our methodology, but at the cost of increased computational effort. To overcome the limitation imposed by smaller datasets, we have also demonstrated that a model trained on one or multiple other species can be transferred and successfully be applied to a different species.

There are several avenues for future work, including the application to different supervised learning tasks, adding more SSMs to the evaluation, and combining our approach for semantic aspect selection with the more recent approaches based on graph embeddings. Despite the narrow application proposed here, evoKGsim can also be generalized to other applications and domains, such as disease gene discovery and prioritization using the Human Phenotype Ontology, or link prediction over KGs.


An overview of the evoKGsim methodology is shown in Fig. 10. In a first step, the semantic similarities corresponding to each semantic aspect are computed for each protein pair in our input data. In a second step, GP evolves a good (hopefully the best) combination of the different SS aspects to support PPI prediction. Finally, the quality of the classifications obtained on the test set, using the evolved combination, is evaluated.

The implementation of our methodology takes as input an ontology file, a protein annotation file and a list of protein pairs. The Semantic Measures Library 0.9.1 [44] is used to compute the SSMs using GO and GO annotations. Two machine learning and GP libraries are used in the second step: scikit-learn 0.20.2 [34] and gplearn 3.0 (

Data sources

Data sources are organized in KG and benchmark datasets, which are described in the next subsections.

Knowledge graph

The KG used in this work is composed by the GO and GO annotations. GO [5] (dated January 2019) contains 45006 ontology terms subdivided into 4206 cellular component terms, 29689 biological process terms, and 11111 molecular function terms. Only is-a relations are considered. GO annotations are downloaded from Gene Ontology Annotation (GOA) database [45] (dated January 2019) for different species. These link Uniprot identifiers for proteins with GO terms describing them.

GO [5] is the most widely-used biological ontology. GO defines the universe of concepts (also called “GO terms”) associated with gene productFootnote 1 functions and how these functions are related with each other with respect to three aspects: (i) biological process (BP), which captures the larger process accomplished by multiple molecular activities in which the gene product is active; (ii) molecular function (MF), biochemical (or molecular-level) activity of a gene product; (iii) cellular component (CC), the location relative to cellular structures in which a gene product performs a function. GO terms and their semantic relations form a hierarchical directed acyclic graph (DAG) where the three GO aspects are represented as root nodes of the graph. The ancestor terms in the hierarchy subsume the semantics of descendent terms.

A GO annotation associates a specific gene product with a specific term in the GO, identifying some aspect of its function. For instance, in Fig. 1 the gene product for ACES HUMAN is annotated with the GO term amyloid percursor protein metabolic process. A single gene product may be annotated with several terms across all semantic aspects of GO.

Benchmark protein-protein interaction datasets

For evaluation and comparison, we use benchmark PPI datasets of different species. These datasets were produced by other works and have been applied by several others in evaluating PPI approaches (see Table 6). The positive data (interacting protein pairs) of these datasets were collected from existing databases. The negative data is obtained by random sampling of protein pairs, since experimental high-quality negative data (non-interacting protein pairs) is hardly available. Random sampling is based on the assumption that the expected number of negatives is several orders of magnitude higher than the number of positives, such that the negative space is randomly sampled with larger probability than the positive space [43]. In most of the datasets, negative data is generated by randomly creating protein pairs that are not reported to interact. In the dataset GRID/HPRD-bal-HS a different strategy is employed to achieve balanced random sampling. Here, the number of times each protein appears in the negative set is equal to the number of times it appears in the positive set, with the negative set still being composed of protein pairs that are not known to interact.

Table 6 PPI benchmark datasets, with number of positive interactions (PI) and number of negative interactions (NI)

The species and the number of interactions for each dataset are provided in Table 4. Given the evolving nature of GO annotations, some benchmark proteins are no longer found in current GOA files. Consequently, we removed all pairs that failed to meet this criterion: both proteins have at least one annotation in one semantic aspect. Furthermore, the yeast datasets do not use Uniprot identifiers. We used the Protein Identifier Cross-Reference (PICR) tool [46] web application to map protein identifiers to the corresponding UniProt accession numbers. PICR provides programmatic access through Representational State Transfer (REST) that is very useful since we simply need to build a well-formatted RESTful URL. Thus, not all identifiers could be mapped to Uniprot and those proteins were removed.

Table S1 of Additional file 1 provides the number of interactions for each dataset before excluding the pairs that did not meet the above criteria.

Semantic similarity measures

A SSM is a function that, given two ontology terms or two sets of terms annotating two entities, returns a numerical value reflecting the closeness in meaning between them. Thus, SS can be calculated for two ontology terms, for instance calculating the similarity between the GO terms protein metabolic process and protein stabilization; or between two entities each annotated with a set of terms, for instance calculating the similarity between APBB1 HUMAN and ACES HUMAN. In the case of proteins annotated with GO, SS can be interpreted as a measure of functional similarity between proteins.

Many SSMs applied to biomedical ontologies have been proposed, see for instance [14, 47, 48] and references therein. Early approaches for term semantic similarity have used path distances between terms, assuming that all the semantic links have equal weight. More recent approaches explore the notion of information content (IC), a measure of how specific and informative a term is. This gives SSMs the ability to weight the similarity of two terms according to their specificity. IC can be calculated based on intrinsic properties, such as the structure of the ontology, or using external data, such as the frequency of annotations of entities in a corpus. Taking Fig. 1 as an example, this allows SSMs to consider protein catabolic process and amyloid precursor protein metabolic process more similar than protein metabolic process and protein stabilization.

Entity SSMs typically employ one of two approaches: (1) pairwise: where pairwise comparisons between all terms annotating each entity are considered; (2) groupwise: where set, vector or graph-based measures are employed, circumventing the need for pairwise comparisons. Figure 11 illustrates how two proteins are represented by their GO terms when some terms annotate only one protein while others annotate both proteins.

In this work, the SS between two proteins is computed using three different SSMs (SimGIC, ResnikMax and ResnikBMA), summarized in Table 7. SimGIC is a groupwise approach proposed by Pesquita et al. [49], based on a Jaccard index in which each GO term is weighted by its IC and given by

$$ \text{simGIC}(p_{1},p_{2}) = \frac{ \sum_{t \in \{\text{GO}(p_{1}) \cap \text{GO}(p_{2})\}}\text{IC}(t)}{ \sum_{t \in \{\text{GO}(p_{1}) \cup \text{GO}(p_{2})\}}\text{IC}(t)} $$
Table 7 Summary of SSMs used to calculate the SS between gene-products

where GO(pi) is the set of annotations (direct and inherited) for protein pi.

ResnikMax and ResnikBMA are pairwise approaches based on the term-based measure proposed by Resnik [50] in which the similarity between two terms corresponds to the IC of their most informative common ancestor. This pairwise approach is used with two combination variants, maximum

$$ \begin{aligned} &\text{Resnik}_{\text{Max}}(p_{1},p_{2}) = \\ &\hspace{5mm}\max{\{\text{sim}(t_{1},t_{2}): t_{1} \in \text{GO}(p_{1}), t_{2} \in \text{GO}(p_{2})\}} \end{aligned} $$

and best-match average

$$ \begin{aligned} \text{Resnik}_{\text{BMA}}(p_{1},p_{2}) = & \frac{\sum_{t_{1} \in \text{GO}(p_{1})}\text{sim}(t_{1},t_{2})}{2|{\text{GO}(p_{1})}|} + \\ & \frac{\sum_{t_{2} \in \text{GO}(p_{2})}\text{sim}(t_{1},t_{2})}{2|{\text{GO}(p_{2})}|} \end{aligned} $$

where |GO(pi)| is the number of annotations for protein pi and sim(t1,t2) is the SS between the GO term t1 and GO term t2 and is defined as

$$ \text{sim}(t_{1},t_{2})= \max{\{ \text{IC}(t) : t \in \{\mathrm{A}(t_{1}) \cap \mathrm{A}(t_{2})\}\}} $$

where A(ti) is the set of ancestors of ti.

These measures were selected because SimGIC and ResnikBMA represent high-performing group and pairwise approaches in predicting sequence, Pfam and Enzyme Commission similarity [49], whereas ResnikMax may help elucidating whether a single source of similarity is enough to establish interaction.

The IC of each GO term is calculated using a structure-based approach proposed by Seco et al. [51] based on the number of direct and indirect descendants and given by

$$ \text{IC}_{\text{Seco}}(t) = 1 - \frac{\log{\bigl[\text{hypo}(t)+1\bigr]}\, }{\log{\bigl[\text{maxnodes}\bigr]}\,} $$

where hypo(t) is the number of direct and indirect descendants from term t (including term t) and maxnodes is the total number of concepts in the ontology.

Genetic programming and supervised learning

GP [33] is one of the methods of evolutionary computation [5254] that is capable of solving complex problems by evolving populations of computer programs, using Darwinian evolution and Mendelian genetics as inspiration. GP can be applied to supervised learning problems [33, 55], including several in the biomedical domain (e.g. [5658]).

Figure 12 illustrates the basic GP evolutionary cycle. Starting from an initial population of randomly created programs/models representing the potential solutions to a given problem (e.g., combinations of SS aspects to predict PPI), it evaluates and attributes a fitness value to each of them, quantifying how well the program/model solves the problem (e.g., what is the F-measure obtained). New generations of programs are iteratively created by selecting parents based on their fitness and breeding them using (independently applied) genetic operators like crossover (swapping of randomly chosen parts between two parents, thus creating two offspring) and mutation (modification of a randomly chosen part of a parent, thus creating one offspring). The fitter individuals are selected more often to pass their characteristics to their offspring, so the population tends to improve in quality along successive generations. This evolutionary process continues until a given stop condition is verified (e.g, maximum number of generations, or fitness reaching some threshold), after which the individual with the best fitness is returned as the best model found.

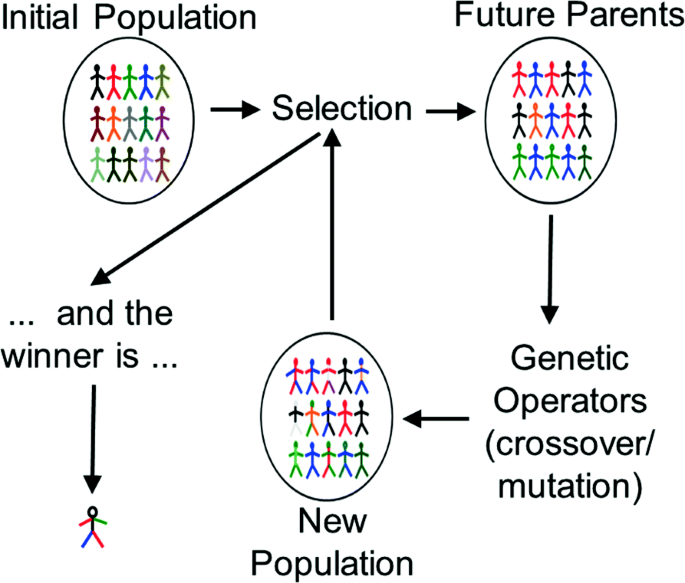

Fig. 12
figure 12

Genetic Programming Flowchart

Theoretically, GP can solve any problem whose candidate solutions can be measured and compared. It normally evolves solutions that are competitive with the ones developed by humans [59], and sometimes surprisingly creative. GP implicitly performs automatic feature selection, as selection promptly discards the unfit individuals, keeping only the ones that supposedly contain the features that warrant a good fitness. Unlike other powerful machine learning methods (e.g., Deep Learning), GP produces ’white-box’ models, potentially readable depending on their size. For PPI prediction, the models evolved by GP are simply combinations of the SS of the three semantic aspects. In tree-based GP (the most common type), these models are represented as parse trees that are readily translated to readable strings. Figure 13 shows a parse tree of one of the simplest combinations evolved in our experiments, here translated as

$$ \max{(BP,CC)} \times \max{(BP,MF)} $$
Fig. 13
figure 13

Example of a combination generated by GP. Variables X0, X1 and X2 represent the SS for BP, CC, and MF, respectively. Mul stands for Multiplication, and Max stands for Maximum

where the SS aspects BP, CC and MF are the variables X0, X1, and X2, respectively. These three variables constitute what is called the terminal set in GP, as they are only admitted as terminal nodes of the trees. In contrast, the function set contains the operators that can be used to combine the variables, and can only appear in internal nodes of the trees. The function set is a crucial element in GP. Together with the fitness function and the genetic operators, it determines the size and shape of the search space.

Given the free-form nature of the models evolved by GP, its intrinsic stochasticity, and the size of the search space where it normally operates, there is high variability among the raw models returned in different runs, even when using the same settings and same dataset. Even upon simplification, these models normally remain structurally very different from each other, while possibly exhibiting similar behavior, i.e., returning similar predictions. This characteristic raises some difficulty in interpreting the GP models, even if they are fully readable. Either way, it is always advisable to run GP more than once for the same problem, to avoid the risk of adopting a sub-optimal model that may have resulted from a less successful search on such a large space.

We have used a “vanilla” tree-based GP system, with no extras to boost the performance. The parameters we have set are listed in Table 8. All others were used with the default values of the gplearn software and are listed in Table S2 of Additional file 1. The parsimony coefficient is a non-standard parameter, specific to gplearn, and consists of a constant that penalizes large programs by adjusting their fitness to be less favorable for selection. It was set to 10−5, a value experimentally found to reduce the size of the evolved models without compromising their fitness. The function set contained only the four basic arithmetic operators (+,−,×, and ÷, protected against division by zero as in [60]), plus the Maximum (max) and Minimum (min) operators. Although there is a vast array of tunable parameters even in the most basic GP system, normally they do not substantially influence the outcome in terms of best fitness achieved [61].

Table 8 GP parameters

For binary classification, it is fairly standard to use GP in a regression-like fashion, where the expected class labels are treated as numeric expected outputs (0 for no interaction; 1 for interaction), and the fitness function that guides the evolution is based on the error between the expected and predicted values [62]. We have used this same system in our experiments, with the Root Mean Squared Error (RMSE) as fitness function [63]. However, when we report the performance of evoKGsim, we first transform the real-valued predicted outputs in class labels, by applying the natural cutoff of 0.5.

Performance measures

The classification quality is evaluated using the weighted average of F-measures (WAF). This metric accounts for class unbalance by computing the F-measure for each class and then calculating the average of all computed F-measures, weighted by the number of instances of each class:

$$ \text{WAF} = \frac{\sum_{c \in C} \text{F-measure}_{\text{c}} \times \text{Support}_{\text{c}}}{\sum_{c \in C}\text{Support}_{\text{c}}} $$

where C is the set of classes, F-measurec is the F-measure computed for class c, and Supportc is the number of instances in class c.

In each experiment, we perform stratified 10-fold cross-validation. The same folds are used throughout all experiments. At the end of each fold, we evaluate the WAF of classifications on the respective test set and report the median.

Availability of data and materials

All data generated and/or analyzed during this study are included in this published article and its supplementary information file.


  1. proteins or RNA



area under the receiver operating characteristic curve


biological process


cellular component


gene ontology


gene ontology annotation


genetic programming


information content


knowledge graph


molecular function


protein identifier cross-reference


protein-protein interaction


resource description framework


representational state transfer


root mean square error


semantic similarity


semantic similarity measure


support vector machine


up to lowest common ancestor


weighted all terms


weighted average F-measure


weighted up to lowest common ancestor


  1. De Raedt L. Logical and Relational Learning. Berlin Heidelberg: Springer; 2008.

    Book  Google Scholar

  2. Schmachtenberg M, Bizer C, Paulheim H. Adoption of the linked data best practices in different topical domains In: Mika P, Tudorache T, Bernstein A, Welty C, Knoblock C, Vrandečić D, Groth P, Noy N, Janowicz K, Goble C, editors. The Semantic Web – ISWC 2014. Cham: Springer: 2014. p. 245–60.

    Google Scholar

  3. Gruber TR. Toward principles for the design of ontologies used for knowledge sharing?. Int J Hum-Comput Stud. 1995; 43(5-6):907–28.

    Article  Google Scholar

  4. Ehrlinger L, Wöß W. Towards a definition of knowledge graphs In: Martin M, Cuquet M, Folmer E, editors. Joint Proceedings of the Posters and Demos Track of the 12th International Conference on Semantic Systems - SEMANTiCS2016, Leipzig, Germany, September 12-15, CEUR Workshop Proceedings, vol. 1695. Leipzig: 2016.

    Google Scholar

  5. Ashburner M, Ball CA, Blake JA, Botstein D, Butler H, Cherry JM, Davis AP, Dolinski K, Dwight SS, Eppig JT, et al.Gene ontology: tool for the unification of biology. Nat Genet. 2000; 25(1):25–29.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  6. Ristoski P, Paulheim H. Semantic Web in data mining and knowledge discovery: A comprehensive survey. J Web Semant. 2016; 36:1–22.

    Article  Google Scholar

  7. Paulheim H, Fümkranz J. Unsupervised generation of data mining features from linked open data. In: Proceedings of the 2nd International Conference on Web Intelligence, Mining and Semantics, WIMS ’12. New York: ACM: 2012. p. 31–13112.

    Google Scholar

  8. Ristoski P, Bizer C, Paulheim H. Mining the web of linked data with rapidminer. J Web Semant. 2015; 35:142–51.

    Article  Google Scholar

  9. De Vries GKD, De Rooij S. A fast and simple graph kernel for RDF. In: Proceedings of the 2013 International Conference on Data Mining on Linked Data - Volume 1082, DMoLD’13. Aachen: 2013. p. 23–34.

    Google Scholar

  10. Ristoski P, Paulheim H. Rdf2Vec: RDF graph embeddings for data mining In: Groth P, Simperl E, Gray A, Sabou M, Krötzsch M, Lecue F, Flöck F, Gil Y, editors. The Semantic Web – ISWC 2016. Cham: Springer: 2016. p. 498–514.

    Google Scholar

  11. Bandyopadhyay S, Mallick K. A new feature vector based on gene ontology terms for protein-protein interaction prediction. IEEE/ACM Trans Comput Biol Bioinformatics. 2017; 14(4):762–70.

    Article  CAS  Google Scholar

  12. Smaili FZ, Gao X, Hoehndorf R. Onto2Vec: joint vector-based representation of biological entities and their ontology-based annotations. Bioinformatics. 2018; 34(13):52–60.

    Article  CAS  Google Scholar

  13. Maetschke SR, Simonsen M, Davis MJ, Ragan MA. Gene ontology-driven inference of protein–protein interactions using inducers. Bioinformatics. 2011; 28(1):69–75.

    Article  PubMed  CAS  Google Scholar

  14. Pesquita C, Faria D, Falcao AO, Lord P, Couto FM. Semantic similarity in biomedical ontologies. PLOS Comput Biol. 2009; 5(7):1000443.

    Article  CAS  Google Scholar

  15. Liu W, Liu J, Rajapakse JC. Gene ontology enrichment improves performances of functional similarity of genes. Sci Rep. 2018; 8(1):12100.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  16. Zhang S-B, Tang Q-R. Protein–protein interaction inference based on semantic similarity of gene ontology terms. J Theor Biol. 2016; 401:30–7.

    Article  CAS  PubMed  Google Scholar

  17. Jain S, Bader GD. An improved method for scoring protein-protein interactions using semantic similarity within the gene ontology. BMC Bioinformatics. 2010; 11(1):562.

    Article  PubMed  PubMed Central  Google Scholar

  18. Wu X, Zhu L, Guo J, Zhang D-Y, Lin K. Prediction of yeast protein–protein interaction network: insights from the gene ontology and annotations. Nucleic Acids Res. 2006; 34(7):2137–50.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  19. Patil A, Nakamura H. Filtering high-throughput protein-protein interaction data using a combination of genomic features. BMC Bioinformatics. 2005; 6(1):100.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  20. Lin N, Wu B, Jansen R, Gerstein M, Zhao H. Information assessment on predicting protein-protein interactions. BMC Bioinformatics. 2004; 5(1):154.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  21. Li M, Li Q, Ganegoda GU, Wang J, Wu F, Pan Y. Prioritization of orphan disease-causing genes using topological feature and GO similarity between proteins in interaction networks. Sci China Life Sci. 2014; 57(11):1064–71.

    Article  CAS  PubMed  Google Scholar

  22. Zhang P, Zhang J, Sheng H, Russo JJ, Osborne B, Buetow K. Gene functional similarity search tool (GFSST). BMC Bioinformatics. 2006; 7(1):135.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  23. Turner FS, Clutterbuck DR, Semple CA. POCUS: mining genomic sequence annotation to predict disease genes. Genome Biol. 2003; 4(11):75.

    Article  Google Scholar

  24. Perez-Iratxeta C, Bork P, Andrade MA. Association of genes to genetically inherited diseases using data mining. Nat Genet. 2002; 31(3):316.

    Article  CAS  PubMed  Google Scholar

  25. Freudenberg J, Propping P. A similarity-based method for genome-wide prediction of disease-relevant human genes. Bioinformatics. 2002; 18(suppl_2):110–15.

    Article  Google Scholar

  26. Duan Z-H, Hughes B, Reichel L, Perez DM, Shi T. The relationship between protein sequences and their gene ontology functions. BMC Bioinformatics. 2006; 7(4):11.

    Article  CAS  Google Scholar

  27. Lee PH, Lee D. Modularized learning of genetic interaction networks from biological annotations and mRNA expression data. Bioinformatics. 2005; 21(11):2739–47.

    Article  CAS  PubMed  Google Scholar

  28. Lei Z, Dai Y. Assessing protein similarity with gene ontology and its use in subnuclear localization prediction. BMC Bioinformatics. 2006; 7(1):491.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  29. Couto FM, Silva MJ, Lee V, Dimmer E, Camon E, Apweiler R, Kirsch H, Rebholz-Schuhmann D. GOAnnotator: linking protein GO annotations to evidence text. J Biomed Discov Collab. 2006; 1(1):19.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  30. Robinson PN, Köhler S, Bauer S, Seelow D, Horn D, Mundlos S. The human phenotype ontology: a tool for annotating and analyzing human hereditary disease. Am J Hum Genet. 2008; 83(5):610–5.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  31. Köhler S, Schulz MH, Krawitz P, Bauer S, Dölken S, Ott CE, Mundlos C, Horn D, Mundlos S, Robinson PN. Clinical diagnostics in human genetics with semantic similarity searches in ontologies. Am J Hum Genet. 2009; 85(4):457–64.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  32. Hoehndorf R, Schofield PN, Gkoutos GV. PhenomeNET: a whole-phenome approach to disease gene discovery. Nucleic Acids Res. 2011; 39(18):119.

    Article  CAS  Google Scholar

  33. Poli R, Langdon WB, McPhee NF, Koza JR. A Field Guide to Genetic Programming. Freely available at Published via; 2008.

  34. Pedregosa F, Varoquaux G, Gramfort A, Michel V, Thirion B, Grisel O, Blondel M, Prettenhofer P, Weiss R, Dubourg V, Vanderplas J, Passos A, Cournapeau D, Brucher M, Perrot M, Duchesnay E. Scikit-learn: Machine learning in Python. J Mach Learn Res. 2011; 12:2825–30.

    Google Scholar

  35. Breslow N. A generalized kruskal-wallis test for comparing k samples subject to unequal patterns of censorship. Biometrika. 1970; 57(3):579–94.

    Article  Google Scholar

  36. Jones E, Oliphant T, Peterson P, et al.Scipy: Open source scientific tools for python. 2001.

  37. Ben-Hur A, Noble WS. Kernel methods for predicting protein–protein interactions. Bioinformatics. 2005; 21(suppl_1):38–46.

    Article  Google Scholar

  38. Yu J, Guo M, Needham CJ, Huang Y, Cai L, Westhead DR. Simple sequence-based kernels do not predict protein–protein interactions. Bioinformatics. 2010; 26(20):2610–4.

    Article  CAS  PubMed  Google Scholar

  39. Meurer A, Smith CP, Paprocki M, Čertík O, Kirpichev SB, Rocklin M, Kumar A, Ivanov S, Moore JK, Singh S, Rathnayake T, Vig S, Granger BE, Muller RP, Bonazzi F, Gupta H, Vats S, Johansson F, Pedregosa F, Curry MJ, Terrel AR, Roučka v, Saboo A, Fernando I, Kulal S, Cimrman R, Scopatz A. SymPy: symbolic computing in Python. PeerJ Comput Sci. 2017; 3:103.

    Article  Google Scholar

  40. Ellson J, Gansner E, Koutsofios L, North SC, Woodhull G. Graphviz – open source graph drawing tools In: Mutzel P, Jünger M, Leipert S, editors. Graph Drawing. Berlin, Heidelberg: Springer: 2002. p. 483–484.

    Google Scholar

  41. Silva S, Dignum S, Vanneschi L. Operator equalisation for bloat free genetic programming and a survey of bloat control methods. Genet Program Evolvable Mach. 2012; 13(2):197–238.

    Article  Google Scholar

  42. Bloom JD, Adami C. Apparent dependence of protein evolutionary rate on number of interactions is linked to biases in protein–protein interactions data sets. BMC Evol Biol. 2003; 3(1):21.

    Article  PubMed  PubMed Central  Google Scholar

  43. Park Y. Critical assessment of sequence-based protein-protein interaction prediction methods that do not require homologous protein sequences. BMC Bioinformatics. 2009; 10(1):419.

    Article  CAS  PubMed  PubMed Central  Google Scholar

  44. Harispe S, Ranwez S, Janaqi S, Montmain J. The semantic measures library and toolkit: fast computation of semantic similarity and relatedness using biomedical ontologies. Bioinformatics. 2013; 30(5):740–2.

    Article  PubMed  CAS  Google Scholar

  45. Huntley RP, Sawford T, Mutowo-Meullenet P, Shypitsyna A, Bonilla C, Martin MJ, O’donovan C. The GOA database: gene ontology annotation updates for 2015. Nucleic Acids Res. 2014; 43(D1):1057–63.

    Article  CAS  Google Scholar

  46. Côté RG, Jones P, Martens L, Kerrien S, Reisinger F, Lin Q, Leinonen R, Apweiler R, Hermjakob H. The protein identifier cross-referencing (PICR) service: reconciling protein identifiers across multiple source databases. BMC Bioinformatics. 2007; 8(1):401.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  47. Guzzi PH, Mina M, Guerra C, Cannataro M. Semantic similarity analysis of protein data: assessment with biological features and issues. Brief Bioinformatics. 2011; 13(5):569–85.

    Article  PubMed  Google Scholar

  48. Harispe S, Sánchez D, Ranwez S, Janaqi S, Montmain J. A framework for unifying ontology-based semantic similarity measures: A study in the biomedical domain. J Biomed Inform. 2014; 48:38–53.

    Article  PubMed  Google Scholar

  49. Pesquita C, Faria D, Bastos H, Falcao A, Couto F. Evaluating GO-based semantic similarity measures. In: Proceedings of the 10th Annual Bio-Ontologies Meeting. Vienna: 2007. p. 37–40.

  50. Resnik P. Using information content to evaluate semantic similarity in a taxonomy. In: Proceedings of the 14th International Joint Conference on Artificial Intelligence - Volume 1, IJCAI’95. San Francisco: Morgan Kaufmann Publishers Inc.: 1995. p. 448–453.

    Google Scholar

  51. Seco N, Veale T, Hayes J. An intrinsic information content metric for semantic similarity in WordNet. In: Proceedings of the 16th European Conference on Artificial Intelligence, ECAI’04. Amsterdam: IOS Press: 2004. p. 1089–1090.

    Google Scholar

  52. Domingos P. The Master Algorithm: How the Quest for the Ultimate Learning Machine Will Remake Our World. New York: Basic Books, Inc.; 2015.

    Google Scholar

  53. Eiben AE, Smith JE, et al.Introduction to Evolutionary Computing, 53. Berlin Heidelberg: Springer; 2003.

    Book  Google Scholar

  54. Langdon WB, Poli R. Foundations of Genetic Programming. Berlin Heidelberg: Springer; 2013.

    Google Scholar

  55. Gandomi AH, Alavi AH, Ryan C. Handbook of Genetic Programming Applications. Cham: Springer; 2015.

    Book  Google Scholar

  56. Brameier M, Krings A, MacCallum RM. Nucpred—predicting nuclear localization of proteins. Bioinformatics. 2007; 23(9):1159–60.

    Article  CAS  PubMed  Google Scholar

  57. Sætrom P, Sneve R, Kristiansen KI, Snøve O, Grünfeld T, Rognes T, Seeberg E. Predicting non-coding rna genes in escherichia coli with boosted genetic programming. Nucleic Acids Res. 2005; 33(10):3263–70.

    Article  PubMed  PubMed Central  CAS  Google Scholar

  58. Bannister CA, Halcox JP, Currie CJ, Preece A, Spasić I. A genetic programming approach to development of clinical prediction models: A case study in symptomatic cardiovascular disease. PloS One. 2018; 13(9):0202685.

    Article  CAS  Google Scholar

  59. Koza J. R.Human-competitive results produced by genetic programming. Genet Program Evolvable Mach. 2010; 11(3):251–84.

    Article  Google Scholar

  60. Koza JR. Genetic Programming: On the Programming of Computers by Means of Natural Selection. Cambridge, USA: MIT Press; 1992.

    Google Scholar

  61. Sipper M, Fu W, Ahuja K, Moore JH. Investigating the parameter space of evolutionary algorithms. BioData Min. 2018; 11(1).

  62. Espejo PG, Ventura S, Herrera F. Applications and Reviews IEEE Trans Syst Man Cybern Part C Appl Rev. 2009; 40(2):121–44.

  63. Silva S, Vanneschi L, Cabral AIR, Vasconcelos MJ. A semi-supervised genetic programming method for dealing with noisy labels and hidden overfitting. Swarm Evol Comput. 2018; 39:323–38.

    Article  Google Scholar

Download references


Partial preliminary results were presented at the 53rd Annual Scientific Meeting of the European Society for Clinical Investigation.


CP, SS, RS are funded by the Fundação para a Ciência e a Tecnologia (FCT) through LASIGE Research Unit (UID/CEC/00408/2019). CP and RS are funded by the SMILAX project (PTDC/EEI-ESS/4633/2014). SS is funded by PERSEIDS (PTDC/EMS-SIS/0642/2014), BINDER (PTDC/CCI-INF/29168/2017) and PREDICT (PTDC/CCI-CIF/29877/2017). RS is funded by FCT (SFRH/BD/145377/2019). The funding had no rule in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript.

Author information

Authors and Affiliations



All authors designed the methodology and the evaluation approach. RS implemented all algorithms and evaluation. All authors analyzed results and participated in the discussion. RS wrote the manuscript, which was revised by CP and SS. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Rita T. Sousa.

Ethics declarations

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Additional file 1

Supplementary figures and tables.

Rights and permissions

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (, which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver ( applies to the data made available in this article, unless otherwise stated.

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Sousa, R.T., Silva, S. & Pesquita, C. Evolving knowledge graph similarity for supervised learning in complex biomedical domains. BMC Bioinformatics 21, 6 (2020).

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI:
