SPEAQeasy: a scalable pipeline for expression analysis and quantification for R/bioconductor-powered RNA-seq analyses
BMC Bioinformatics volume 22, Article number: 224 (2021)
RNA sequencing (RNA-seq) is a common and widespread biological assay, and an increasing amount of data is generated with it. In practice, there are a large number of individual steps a researcher must perform before raw RNA-seq reads yield directly valuable information, such as differential gene expression data. Existing software tools are typically specialized, only performing one step–such as alignment of reads to a reference genome–of a larger workflow. The demand for a more comprehensive and reproducible workflow has led to the production of a number of publicly available RNA-seq pipelines. However, we have found that most require computational expertise to set up or share among several users, are not actively maintained, or lack features we have found to be important in our own analyses.
In response to these concerns, we have developed a Scalable Pipeline for Expression Analysis and Quantification (SPEAQeasy), which is easy to install and share, and provides a bridge towards R/Bioconductor downstream analysis solutions. SPEAQeasy is portable across computational frameworks (SGE, SLURM, local, docker integration) and different configuration files are provided (http://research.libd.org/SPEAQeasy/).
SPEAQeasy is user-friendly and lowers the computational-domain entry barrier for biologists and clinicians to RNA-seq data processing as the main input file is a table with sample names and their corresponding FASTQ files. The goal is to provide a flexible pipeline that is immediately usable by researchers, regardless of their technical background or computing environment.
Gene expression analyses have been revolutionized by the emergence of high-throughput sequencing [1,2,3] which has enabled an explosion in RNA-sequencing (RNA-seq) projects [4,5,6]. Sequencing machines typically output the data in the FASTQ format  that can amount to several gigabytes of disk space per sample depending on the read length and coverage depth of a given experiment. Before doing any statistical analyses on this data such as differential expression [8, 9], researchers need to process the gigabytes or even terabytes of data to compress it and extract the desired information. Doing so requires computationally demanding steps such as RNA-seq alignment [10,11,12] and read quantification [13, 14]. Since the emergence of RNA-seq, a diverse set of bioinformatics software has been designed to solve specific steps of the RNA-seq processing [15,16,17].
Several RNA-seq processing bioinformatics pipelines have been developed to tie these required processing steps together [18,19,20,21,22,23]. The common goal of these approaches involves helping biologists and researchers weave together these bioinformatics solutions to uniformly process samples from RNA-seq projects with different characteristics; for example, single-end versus paired-end. RNA-seq processing pipelines have different characteristics such as the RNA-seq aligner of choice and the quality control steps they use. The design choices of each RNA-seq processing pipeline can have an impact on which analyses researchers can perform with the processed data. Furthermore, the ease of software installation, portability, and level of support can affect the usability of these pipelines.
In recent years we have worked on several RNA-seq projects [24,25,26] and designed an RNA-seq processing pipeline that satisfied our needs to generate quality checked and uniformly processed data with several quality control metrics we could then use in our statistical analyses. We then improved the usability and portability of this pipeline thanks to the Nextflow framework . Our solution, SPEAQeasy, ultimately generates RangedSummarizedExperiment R objects  that are the foundation block for many Bioconductor R packages and the statistical methods they provide [8, 9, 29, 30]. Other key features of SPEAQeasy are that it produces the information that coupled with DNA genotyping information can be used for detecting and fixing sample swaps [31,32,33], RNA-seq processing quality metrics that are helpful for statistically adjusting for quality differences across samples , data that powers the exploration of the un-annotated transcriptome, and that it can be used in several computational frameworks thanks to Nextflow’s configuration flexibility .
We have developed a portable RNA sequencing (RNA-seq) processing pipeline, SPEAQeasy, that provides analysis-ready gene expression files (Fig. 1). SPEAQeasy is a Nextflow-powered  pipeline that starts from a set of FASTQ files , performs quality assessment and other processing steps (Implementation: overview), and produces easy-to-use R objects . SPEAQeasy facilitates both traditional RNA-seq downstream analyses such as gene differential expression, but also the exploration of the annotated transcriptome [34, 35] by quantifying reads that span exon-exon junctions and providing bigWig base-pair coverage files . Input RNA-seq reads are aligned using HISAT2  to a reference genome and pseudo-aligned to a reference transcriptome using kallisto  or Salmon . Genes, exons, and exon-exon junctions are then quantified using featureCounts  and regtools . The resulting quality metrics and read quantification outputs are then arranged to create SummarizedExperiment  R objects that combine the read quantification, expression feature information, and processing and quality metrics. These SummarizedExperiment objects can then be used with a wide variety of Bioconductor  R packages to perform downstream analyses such as differential expression [8, 9, 30], identification of differentially expressed regions (DER) , and exploratory data analysis [42, 43]. For human samples, SPEAQeasy can also perform RNA-based genotype calling with BCFtools  which can be coupled with DNA-based genotype data to identify and resolve sample swaps (Fig. 2: downstream). Additionally, for experiments involving ERCC spike-ins , SPEAQeasy generates plots by sample to quickly visualize expected versus measured concentrations for each of 92 ERCC transcripts (Additional file 1: Figure S1). Thus SPEAQeasy simplifies any RNA-seq based projects from human, mouse and rat-derived data and provides a bridge to the Bioconductor universe. Furthermore, the Nextflow-based implementation allows for more experienced developers to quickly add additional steps or switch out software, creating a flexible and scalable RNA-seq processing pipeline. We document a step-by-step example demonstrating how to replace the trimming tool Trimmomatic  with Trim Galore , to serve as a guide for those interested in modifying components of SPEAQeasy (http://research.libd.org/SPEAQeasy/software.html#using-custom-software).
SPEAQeasy, through Nextflow , can be deployed in a variety of high-throughput computational environments such as: local machines, Sun/Son Grid Engine (SGE) compute clusters, servers that enable Docker , and cloud computing environments  such as Amazon AWS. Nextflow provides the ability to run the same code using configuration files that are specific to the computing environment at hand. To facilitate using SPEAQeasy we provide Docker containers for both the software and annotation files and a SPEAQeasy configuration file for such environments. For SGE or other clusters, SPEAQeasy can also use lmod  software modules such as the one we provide for the JHPCE SGE cluster (https://jhpce.jhu.edu/). In order to use SPEAQeasy in a particular computing environment, identify the example configuration file (Implementation: configuration; Additional file 3:Table S1) that most resembles the setup, make a copy and edit accordingly. Our JHPCE lmod files and docker setup files provide installation instructions for researchers who wish to manually set up the software dependencies (http://research.libd.org/SPEAQeasy).
To test SPEAQeasy on a particular computer setup, first identify the “main” script appropriate for the environment. Scripts exist for execution at JHPCE or within SLURM, SGE, or local environments. A user of a SLURM-managed cluster would launch a test run of SPEAQeasy with:
SPEAQeasy provides test samples for each combination of reference organism and strandness. These test samples are also used if the user does not remove the --small_test option and doesn’t specify a directory containing the samples.manifest file with the --input option (Implementation: test samples). While a typical test run may complete in about 15 min, the first execution will take significantly longer, as reference and annotation-related files must be downloaded and built for a given organism and annotation version. After successful completion, the log file SPEAQeasy_output.log will indicate this success at the bottom, along with details such as total run time. One can examine and become familiar with the output files from SPEAQeasy (Results: outputs), which by default are placed inside the original repository in a subfolder named results. Our documentation provides further details (http://research.libd.org/SPEAQeasy/).

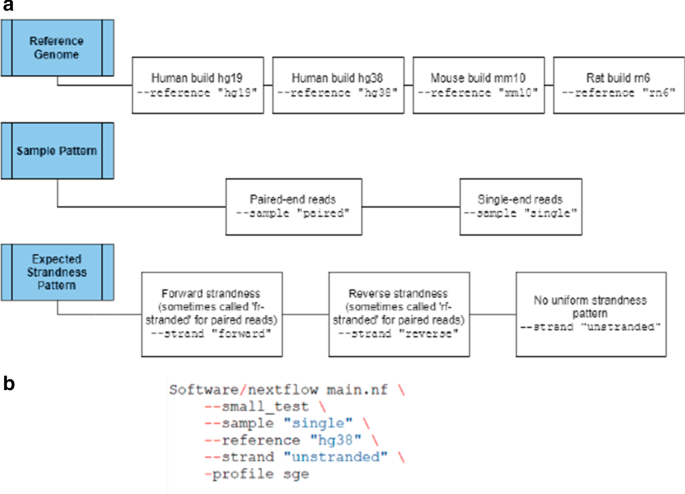

Common SPEAQeasy options
Once SPEAQeasy is installed, a researcher must create a manifest file with the information about the RNA-seq samples to be processed (Implementation: inputs). Next, select the “main” script written to work with the job scheduler available, if any (Implementation: use cases). Within this script, a researcher may modify command options for the particular analysis. Specifically, a choice of appropriate reference genome is required to be specified with the option --reference, which may take values “hg19”, “hg38”, “mm10”, or “rn6”. Specify whether reads are single or paired-end with the option --sample, which takes values “single” or “paired”. Finally, the researcher would indicate the strandness pattern they expect all samples to obey with the option --strand, which may be “forward”, “reverse”, or “unstranded”. SPEAQeasy infers the actual strandness pattern present in each sample as a quality control measure (Implementation: configuration; Fig. 3: main options). See the documentation at http://research.libd.org/SPEAQeasy for further detailed options (Implementation: configuration).
SPEAQeasy output files
Each execution of SPEAQeasy generates a number of output files (Implementation: outputs, Additional file 3: Table S2). One of the primary outputs of interest are RangedSummarizedExperiment R objects , which contain information about the sequence ranges, counts, and additional annotation for each feature. SPEAQeasy produces separate files for each feature type, including genes, exons, and exon-exon junctions. Because the data is packaged into RangedSummarizedExperiment objects, a number of Bioconductor packages can immediately be utilized to perform further analysis appropriate for a number of common use cases, starting with interactively exploring the data using tools like iSEE . A collection of quality metrics is also gathered for each sample, and saved in both an R data frame, and a comma-separated values file (Additional file 3: Table S3). Users can thus assess metrics of interest at-a-glance, or utilize the information to control for covariates of interest in further analysis. Metrics include fractions of concordant, mapped, and unmapped reads during alignment, fraction of reads assigned to genes, and similar quantities.
SPEAQeasy also optionally generates bigWig coverage files for each sample, and one mean coverage file for each strand . To enable comparison between samples, coverage is normalized to 40 million mapped reads of 100 base pairs. While bigWig files may be used directly, SPEAQeasy performs an additional step to quantify coverage at genomic regions of interest. RData files are produced to describe the expressed regions , which provides a foundation for analyses involving finding differentially expressed regions.
For human samples, variant calling is performed to ultimately produce a single file for the experiment in Variant Call Format (VCF) . This file contains genotype information at a list of 740 single nucleotide variant (SNV) missense coding sites with MAF > 30% (Additional file 4: Supplementary File 1. Each individual typically has a unique genotype profile after variant calling, and this can be leveraged to identify mislabelled samples in conjunction with a table of identity information generated prior to sequencing, typically using a subset of the high-coverage variants in the RNA-seq data (Results: example use case involving sample swaps).
Example use case involving sample swaps
We provide a vignette to demonstrate how SPEAQeasy outputs can be utilized to resolve sample identity issues and perform differential expression analysis (http://research.libd.org/SPEAQeasy-example/) using data from the BipSeq PsychENCODE project  which includes bulk RNA-seq data from bipolar disorder affected individuals and neurotypical controls from the amygdala and the subgenual anterior cingulate cortex (sACC). For reproducibility, the vignette walks through how to download the example data and run SPEAQeasy before performing the follow-up analysis.
First, we show how a self-correlation matrix can be constructed from user-provided genotype calls made before sequencing. The particular calls at each SNP are represented as numeric values so that an overall correlation can be computed between any two samples. The same matrix is generated from genotype calls made by SPEAQeasy (Fig. 4a). User-provided metadata can then be leveraged to determine if samples correlate to those of the same labelled donor, and ultimately to resolve conclusive sample swaps or drop samples with more complex identity problems. Finally, the RangedSummarizedExperiment objects from SPEAQeasy can be updated with these findings and example metadata.
Next, we explore the sources of variability in gene expression visually. First, principal component analysis is performed to assess the impact of variables such as total number of reads mapped and concordant map rate on expression (Fig. 4b). We also plot the first ten principal components for each individual, splitting by sex and then brain region to understand the influence of these variables on expression.
Afterward, we perform a differential expression analysis (Additional file 3: Table S4 A, Fig. 4c). This involves normalizing counts with edgeR , forming a design matrix of interest, and controlling for heteroscedasticity in counts with voom . limma  is used to construct a linear model of expression, from which an empirical bayesian calculation can determine genes which are significantly differentially expressed. We then select genes above a particular significance threshold, in this case p < 0.2, and plot expression against variables of interest. We show how to construct an expression heatmap with pheatmap  for top genes, with clusters labelled with covariates of interest- in this case, sex, brain region, and diagnosis status (Fig. 4d).
At the end, we perform a gene ontology analysis using the package clusterProfiler . The goal is to associate significantly differentially expressed genes with known functionality and biological processes. We show how to form example queries with the compareCluster function, and write the results to a CSV format (Additional file 3: Table S4 B).
A number of “end-to-end” pipelines for RNA-seq are already publicly available [19,20,21,22]. However, the majority are difficult to install or configure, require manual handling of annotation-related files, or generally lack the degree of features we have developed in SPEAQeasy (Table S5).
A common pipeline installation pattern involves the use of conda , where users activate and load environments where the software dependencies are installed. If conda is already available on the system, the installation process itself is typically straightforward and well-documented. However, sharing pipeline access among multiple users (e.g. in a research group/laboratory) is often nontrivial for inexperienced users, may require every individual to separately install, and this common use-case is not always documented. In contrast, SPEAQeasy provides more than one installation option, and multiple users can share a single installation instance with a single copy command: copying the main script and optionally the configuration file, which can then be modified for the individual use-case. The preferred installation method relies on Nextflow  to automatically pull pre-specified docker images at run-time unless they were previously downloaded; this approach is used in some currently-available pipelines . One of the goals of SPEAQeasy was to provide a straightforward installation method that required neither knowledge of a software/environment management tool (e.g. conda, docker, singularity, etc.) nor root access permissions. Consequently, we also provide an alternative method for Linux users performed via a single command (Implementation: software management):
Another major focus in SPEAQeasy involves minimizing users needing to configure the pipeline for the execution environment. While many existing pipelines—in theory—support execution on a number of resource managers/ job scheduling platforms, few are pre-configured to truly leverage individual setups. For example, snakemake-based  pipelines [21, 22] allow specification of the total number of CPU cores to allocate, behaving identically on a local machine as on an arbitrary computing cluster. However, in practice, cluster users often must consider several other hardware resources, such as memory or disk space usage. Most notably, users of SLURM-based clusters may be charged based on specified run times of individual jobs. In the case of Nextflow and snakemake-based workflows, individual jobs are internally submitted for each pipeline component, and typically it is implicitly left to the user to worry about time specification for every component. To address this common use-case, we have written and tested configuration files for a number of environments (local execution, SGE-based clusters, SLURM-based clusters), establishing sensible defaults for variables like job run-time, memory, and disk usage.
SPEAQeasy provides other miscellaneous features we have not seen frequently or at all in other available pipelines (Additional file 3: Table S5). The first involves being able to automatically handle input FASTQ samples split across more than one file. Each line in the samples.manifest file (Implementation: inputs) specifies the path for one read or pair of reads for a sample, followed by an associated ID; for samples split across input FASTQ files just repeat the same ID for each set (line) of input files. Another feature is custom per-sample logging, which traces the exact series of commands executed, along with some additional context helpful for debugging such as relevant working directories, exit statuses, and other logging information for each process (Additional file 2: Figure S2). We were motivated to implement this feature after observing how as the pipeline grew in complexity, it became increasingly necessary to understand Nextflow’s implementation details to debug execution errors. Because even a correctly written software pipeline can encounter errors when the input for a processing step is unexpectedly different or the software has a bug, we believe pipelines without specialized debugging tools become inaccessible to most users upon errors.
Software pipelines are sometimes not actively maintained. Given our interest in using SPEAQeasy ourselves [24,25,26, 57], we are actively maintaining SPEAQeasy by adapting it as new software is released for different processing steps or bugs are resolved in newer versions of the SPEAQeasy dependencies. SPEAQeasy includes an example dataset which we internally use for testing the execution as we make updates to SPEAQeasy. Given the open-source nature of SPEAQeasy and Nextflow, the SPEAQeasy code can be adapted if users are interested in switching processing tools or want to expand support to other genome references beyond mm10, rn6, hg19 and hg38. The SPEAQeasy code is available on GitHub (https://github.com/LieberInstitute/SPEAQeasy and https://github.com/LieberInstitute/SPEAQeasy-example), and can be expanded through interactions with users.
We anticipate that SPEAQeasy will be useful for exploring gene expression at a finer resolution, such as using exon and exon-exon junction data. The latter is powerful for exploring the un-annotated transcriptome along with base-pair coverage data . SPEAQeasy will benefit from the development of statistical and bioinformatics methods that integrate results across multiple levels of expression.
Pipeline execution begins with a preliminary gauge of read quality and other quality metrics, via FastQC 0.11.8 . Reads are then optionally trimmed using Trimmomatic 0.39 , and a post-trimming quality assessment is performed again with FastQC. Alignment to a reference genome is performed with HISAT2 2.1.0 , along with pseudoalignment to the transcriptome with kallisto 0.46.1  or Salmon 1.2.1 . A combination of regtools 0.5.1  and featureCounts (Subread 2.0.0)  is used to quantify genes, exons, and exon-exon junctions. At the same time, expressed regions (ERs) are optionally computed with the Bioconductor  R package derfinder . The result is a RangedSummarizedExperiment  object with counts information, RData files with ER information, and plots visualizing the associated data. Variant calling is also performed for human samples, using bcftools 1.10.2  to produce a VCF file  for the experiment. SPEAQeasy is flexible and allows for newer versions of software to be used in place of the ones listed above.
Usage of SPEAQeasy involves configuring two files: the “main” script and a configuration file. The “main” script contains the command which runs the pipeline, along with options specific to the input data, and fundamental choices about how the pipeline should behave. In this script, the researcher must specify if reads are paired-end or single-end, the reference species/genome (i.e. hg38, hg19, mm10, or rn6), and the expected strandness pattern to see in all samples (e.g. “reverse”). Strandness is automatically inferred using pseudoalignment rates with kallisto , and the pipeline can be configured to either halt upon any disagreement between asserted and inferred strand, or simply warn and continue. In particular, we perform pseudoalignment to the reference transcriptome using a subset of reads from each sample, trying both the rf-stranded and fr-stranded command-line options accepted by kallisto. The number of successfully aligned reads for each option is used to deduce the actual strandness for each sample. For example, an approximately equal number (40–60%) of aligned reads for each option suggests the reads lack strand-specificity and are thus “unstranded”; a large enough fold-difference between the two indicates either “reverse” or “forward”-strandness. Specifically, greater than 80% of total reads aligned must have aligned using the rf-stranded option to deduce a sample is “reverse”-stranded, and less than 20% to infer “forward”-strandness. We have found these cutoffs to reliably identify inaccurate --strand specification from the user, while not being so strict as to mistakenly disagree with correct specification. Another example command option in the “main” script controls whether to trim samples based on adapter content metrics from FastQC , trim all samples, or not perform trimming at all.
The configuration file allows for fine-tuning of pipeline settings and hardware resource demands for each pipeline component. Ease of use is a core focus in SPEAQeasy, and configuration files for SLURM, SGE, and local linux environments are pre-built with sensible defaults. The user is not required to modify the configuration file at all to appropriately run SPEAQeasy; however, a great degree of control and customization exists for those users who desire it. Advanced users can tweak simple configuration variables to pass arbitrary command-line arguments directly to each of the software tools invoked by SPEAQeasy. For example, when creating wiggle coverage files from BAM alignment files, the default is to normalize counts to 40 million mapped reads of 100 base pairs. This is achieved by the default value for the following variable in each configuration file:
Suppose a researcher were instead interested in normalizing to 40 million mapped reads of 150 base pairs, and wanted to skip duplicate hit reads. The above variable could be adjusted to pass the appropriate command arguments to bam2wig.py :
The same procedure can be used to fine-tune any other software tool used in SPEAQeasy, allowing a level of control similar to directly running each step. At the same time, settings related to variables such as strandness, possible pairing of reads, and file naming choices are automatically accounted for.
A single file, called samples.manifest, is used to point SPEAQeasy to the input FASTQ files, and associate samples with particular IDs. It is a table saved as a tab-delimited text file, containing the path to each read (or pair of reads), optional MD5 sums, and a sample ID. Sample IDs can be repeated, which allows samples initially split across multiple files to be merged automatically (Fig. 5). Input files must be in FASTQ format, with “.fq” “.fastq” extensions supported, and possibly with the additional “.gz” extension for gzip-compressed files.
SPEAQeasy produces several output files, some of which are produced by the processing tools themselves (Additional file 3: Table S2) and others by SPEAQeasy for facilitating downstream analyses (Fig. 2). The main SPEAQeasy output files, relative to the specified --output directory, are:
Under the count_objects/ directory, rse_gene_[experiment_name].Rdata, rse_exon_[experiment_name].Rdata, rse_jx_[experiment_name].Rdata and rse_tx_[experiment_name].Rdata: these are RangedSummarizedExperiment objects  that contain the raw expression counts (gene & exon: featureCounts; exon-exon junctions: from regtools; transcript: either kallisto or Salmon counts), the quality metrics as the sample phenotype data (Additional file 3: Table S3), and the expression feature information that depends on the reference genome used.
Under the merged_variants/ directory for human samples, mergedVariants.vcf.gz: this is a Variant Call Format (VCF) file  with the information for 740 common variants that can be used to identify sample swaps. For example, if two or more brain regions were sequenced from a given donor, the inferred genotypes at these variants can be used to verify that samples are correctly grouped. If external DNA genotype information exists from a DNA genotyping chip, one can then verify that the RNA sample indeed matches the expected donor, to ensure that downstream expression quantitative trait locus (eQTL) analyses will use the correct RNA and DNA paired data.
Under the coverage/bigWigs/ directory when SPEAQeasy is run with the --coverage option,[sample_name].bw for unstranded samples or [sample_name].forward.bw and [sample_name].reverse.bw for stranded samples: these are base-pair coverage bigWig files standardized to 40 million 100 base-pair reads per bigWig file. They can be used for identification of expressed regions in an annotation-agnostic way , for quantification of regions associated with degradation such as in the qSVA algorithm , visualization on a genome browser , among other uses.
SPEAQeasy provides two options for managing software dependencies. If docker  is available on the system the user intends to run the pipeline, software can be managed in a truly reproducible and effortless manner. As a pipeline based on Nextflow, SPEAQeasy can isolate individual components of the workflow, called processes, inside docker containers. Containers describe the entire environment and set of software versions required to run a pipeline command (such as hisat2-align), eliminating common problems that may occur when a set of software tools (such as SPEAQeasy) is installed on a different system than it was developed. Each docker image is pulled automatically at runtime if not already downloaded (on the first pipeline run), and otherwise the locally downloaded image is used.
Because docker is not always available, or permissions are not trivial to configure, Linux users may alternatively install software dependencies locally. From within the repository directory, the user would run the command:
This installs each software utility from source, where available, and as a pre-compiled binary otherwise. Because installation is performed within a subdirectory of the repository, the user need not have root access for the majority of tools. However, we require that Java and Python3 be globally installed. The motivation for this requirement is that we expect most users to have these tools already installed globally, and local installation of these tools is generally advised against because of potential conflicts with other installations on the system.
Though docker and local software installation are the officially supported and recommended methods for managing software, other alternatives exist for interested users. SPEAQeasy includes a file called conf/command_paths_long.config, containing the long paths for each software utility to be called during pipeline execution. Users can substitute in the paths to already-installed software versions for any utility, in this file. Those familiar with Lmod environment modules  can also trivially specify in their configuration file module names to use for a particular SPEAQeasy process. However, this tends to only be a viable option for those with a diverse set of bioinformatics modules already installed.
SPEAQeasy is intended to be greatly flexible with annotation and reference files. By default, annotation files (the reference genome, reference transcriptome, and transcript annotation) are pulled from GENCODE  for human and mouse samples, or Ensembl  for rat samples. The choice of species is controlled by the command flag “--reference” in the “main” script, which can hold values “hg38”, “hg19”, “mm10”, or “rn6”. In the configuration file, simple variables control the GENCODE release or ensembl version to be used. When the pipeline run is executed, SPEAQeasy checks if the specified annotation files have already been downloaded. If so, the download is not performed again for the current or future runs. This reflects a general feature of SPEAQeasy, provided by its Nextflow base- processes are never “repeated” if their outputs already exist. The outputs are simply cached and the associated processes are skipped.
SPEAQeasy also offers easy control over the particular sequences included in the analysis- a feature we have not seen in other publically-available RNA-seq pipelines utilizing databases such as GENCODE or Ensembl. In particular, researchers are sometimes only interested in alignments/results associated with the canonical reference chromosomes (e.g. chr1-chr22, chrX, chrY, and chrMT for homo sapiens). Alternatively, sometimes extra contigs (sequences commonly beginning with “GL” or “KI”) are a desired part of the analysis as well. RNA-seq workflows commonly overlook subtle disagreement between the sequences aligned against, and sequences included in downstream analysis. SPEAQeasy provides a single configuration variable, called anno_build, to avoid this issue, and capture the majority of use cases. Setting the variable to “main'' uses only the canonical reference sequences for the entire pipeline; a value of “primary” includes additional contigs seen in GENCODE  annotation files having the “primary” designation in their names (e.g. GRCh38.primary_assembly.genome.fa).
Users are not limited to using GENCODE/Ensembl annotation, however. Instead, one can optionally point to a directory containing the required annotation files with the main command option “--annotation [directory path]”. To specify this directory contains custom annotation files, rather than the location to place GENCODE/Ensembl files, one uses the option “--custom_anno [label]”. The label associates internally-produced files with a name for the particular annotation used. The required annotation files include a genome assembly fasta, a reference transcriptome fasta, and a transcriptome annotation GTF. For human samples, a list of sites in VCF format  at which to call variants is also required. Finally, if ERCC quantification is to be performed, an ERCC index for kallisto must be provided .
We expect that the majority of users will have access to cloud computing resources or a local computing cluster, managing computational resources across a potentially large set of members with a scheduler such as Simple Linux Utility for Resource Management (SLURM) or Sun Grid Engine / Son of Grid Engine (SGE). However, SPEAQeasy can also be run locally on a Linux-based machine. For each of these situations, a “main” script and associated configuration file are pre-configured for out-of-the-box compatibility. For example, a SLURM user would open run_pipeline_slurm.sh to set options for his/her experiment, and optionally adjust settings in conf/slurm.config (or conf/docker_slurm.config for docker users).
In the configuration file, simple variables such as “memory” and “cpus” transparently control hardware resource specification for each process (such as main memory and number of CPU cores to use). These syntaxes come from Nextflow, which manages how to translate these simple user-defined options into a syntax recognized by the cluster (if applicable). However, Nextflow also makes it simple to explicitly specify cluster-specific options. Suppose, for example, that a particular user intends to use SPEAQeasy on an SGE-based computing cluster, but knows his/her cluster limits the default maximum file size that can be written during a job. If a SPEAQeasy process happens to exceed this limit, the user can find the process name in the appropriate config file (Additional file 3: Table S1), and add the line “clusterOptions = '-l h_fsize = 100G'" (this is the SGE syntax for raising the mentioned file size limit to 100G per file, a likely more liberal constraint).
We also expect a common use case would involve sharing a single installation of SPEAQeasy among a number of users (e.g. a research lab). A new user wishing to run SPEAQeasy on his/her own dataset simply must copy the appropriate “main” script (e.g. run_pipeline_slurm.sh) to a desired directory, and modify it for the experiment. All users then benefit from automatic access to any annotation files which have been pulled or built by the pipeline in the past, and by default share configuration (potentially reducing work in optimizing setup specific to one’s cluster). However, user-specific annotation locations or configuration settings can be chosen by simple command-line options, if preferred.
The test samples were downloaded from the Sequence Read Archive (SRA) or simulated using polyester , depending on the organism, strandness, and pairing of the samples. Each was then subsetted to 100,000 reads.
We present SPEAQeasy, an actively maintained pipeline that aggregates counts, quality metrics, and covariates of interest into RangedSummarizedExperiment  objects for immediate integration with a number of Bioconductor R packages for potential downstream analyses. SPEAQeasy is designed to be accessible to researchers of any level of technical experience, and work “out of the box” in many common computational environments. Configuration automatically handles annotation, hardware resource allocation, and software-specific settings with reasonable defaults, but provides flexibility for those interested in fine-tuning. We believe SPEAQeasy will be a useful bridging tool for those accustomed to the Bioconductor world of RNA-seq analysis.
Availability of data and materials
SPEAQeasy makes use of test samples, which were originally obtained SRA, Rail-RNA , or generated using polyester  (Implementation: test samples). These data are all available from directly within SPEAQeasy (https://github.com/LieberInstitute/SPEAQeasy). The code that uses the example data from the BipSeq PsychENCODE project  is available at https://github.com/LieberInstitute/SPEAQeasy-example.
Amazon Web Services
Central processing unit
Comma-separated values (file format)
External RNA Controls Consortium
Expression quantitative trait locus
John Hopkins Performance Computing Environment
Minor allele frequency
Quality surrogate variable analysis
Sun Grid Engine or Son of Grid Engine
Simple Linux Utility for Resource Management
Single nucleotide variant
A scalable pipeline for expression analysis and quantification
Sequence Read Archive
Subgenual anterior cingulate cortex
Variant Call Format
Goodwin S, McPherson JD, McCombie WR. Coming of age: ten years of next-generation sequencing technologies. Nat Rev Genet. 2016;17:333–51.
Hawkins RD, Hon GC, Ren B. Next-generation genomics: an integrative approach. Nat Rev Genet. 2010;11:476–86.
Metzker ML. Sequencing technologies - the next generation. Nat Rev Genet. 2010;11:31–46.
Stark R, Grzelak M, Hadfield J. RNA sequencing: the teenage years. Nat Rev Genet. 2019;20:631–56.
K. Van den Berge et al., RNA sequencing data: hitchhiker’s guide to expression analysis. Annu. Rev. Biomed. Data Sci. 2 (2019). https://doi.org/10.1146/annurev-biodatasci-072018-021255.
Wang Z, Gerstein M, Snyder M. RNA-Seq: a revolutionary tool for transcriptomics. Nat Rev Genet. 2009;10:57–63.
Cock PJA, Fields CJ, Goto N, Heuer ML, Rice PM. The Sanger FASTQ file format for sequences with quality scores, and the Solexa/Illumina FASTQ variants. Nucleic Acids Res. 2010;38:1767–71.
Robinson MD, McCarthy DJ, Smyth GK. edgeR: a Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics. 2010;26:139–40.
Love MI, Huber W, Anders S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014;15:550.
Ballouz S, Dobin A, Gingeras TR, Gillis J. The fractured landscape of RNA-seq alignment: the default in our STARs. Nucleic Acids Res. 2018;46:5125–38.
Trapnell C, Salzberg SL. How to map billions of short reads onto genomes. Nat Biotechnol. 2009;27:455–7.
Dobin A, et al. STAR: ultrafast universal RNA-seq aligner. Bioinformatics. 2013;29:15–21.
Anders S, Pyl PT, Huber W. HTSeq — a Python framework to work with high-throughput sequencing data. Bioinformatics. 2015;31:166–9.
Liao Y, Smyth GK, Shi W. featureCounts: an efficient general purpose program for assigning sequence reads to genomic features. Bioinformatics. 2014;30:923–30.
S. Andrews, Babraham Bioinformatics - FastQC A Quality Control tool for High Throughput Sequence Data (2018), (available at https://www.bioinformatics.babraham.ac.uk/projects/fastqc/).
Pertea M, et al. StringTie enables improved reconstruction of a transcriptome from RNA-seq reads. Nat Biotechnol. 2015;33:290–5.
Ewels P, Magnusson M, Lundin S, Käller M. MultiQC: summarize analysis results for multiple tools and samples in a single report. Bioinformatics. 2016;32:3047–8.
Collado-Torres L, et al. Reproducible RNA-seq analysis using recount2. Nat Biotechnol. 2017;35:319–21.
P. Ewels et al. nf-core/rnaseq: nf-core/rnaseq version 1.4.2. Zenodo 2019;https://doi.org/10.5281/zenodo.3503887.
Federico A, et al. Pipeliner: A Nextflow-Based Framework for the Definition of Sequencing Data Processing Pipelines. Front Genet. 2019;10:614.
Cornwell M, et al. VIPER: Visualization Pipeline for RNA-seq, a Snakemake workflow for efficient and complete RNA-seq analysis. BMC Bioinformatics. 2018;19:135.
S. Orjuela, R. Huang, K. M. Hembach, M. D. Robinson, C. Soneson, ARMOR: An Automated Reproducible MOdular Workflow for Preprocessing and Differential Analysis of RNA-seq Data. G3 (Bethesda). 9, 2089–2096 (2019).
Seelbinder B, et al. GEO2RNAseq: An easy-to-use R pipeline for complete pre-processing of RNA-seq data. BioRxiv. 2019. https://doi.org/10.1101/771063.
Collado-Torres L, et al. Regional heterogeneity in gene expression, regulation, and coherence in the frontal cortex and hippocampus across development and schizophrenia. Neuron. 2019;103:203-216.e8.
Jaffe AE, et al. Profiling gene expression in the human dentate gyrus granule cell layer reveals insights into schizophrenia and its genetic risk. Nat Neurosci. 2020;23:510–9.
Burke EE, et al. Dissecting transcriptomic signatures of neuronal differentiation and maturation using iPSCs. Nat Commun. 2020;11:462.
Di Tommaso P, et al. Nextflow enables reproducible computational workflows. Nat Biotechnol. 2017;35:316–9.
M. Morgan, V. Obenchain, J. Hester, H. Pagès, SummarizedExperiment: SummarizedExperiment container (2019).
Huber W, et al. Orchestrating high-throughput genomic analysis with Bioconductor. Nat Methods. 2015;12:115–21.
Ritchie ME, et al. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015;43:e47.
Huang J, Chen J, Lathrop M, Liang L. A tool for RNA sequencing sample identity check. Bioinformatics. 2013;29:1463–4.
Fort A, et al. MBV: a method to solve sample mislabeling and detect technical bias in large combined genotype and sequencing assay datasets. Bioinformatics. 2017;33:1895–7.
Deelen P, et al. Calling genotypes from public RNA-sequencing data enables identification of genetic variants that affect gene-expression levels. Genome Med. 2015;7:30.
Morillon A, Gautheret D. Bridging the gap between reference and real transcriptomes. Genome Biol. 2019;20:112.
D. Zhang et al., Incomplete annotation has a disproportionate impact on our understanding of Mendelian and complex neurogenetic disorders. Sci. Adv. 6, eaay8299 (2020).
Kent WJ, Zweig AS, Barber G, Hinrichs AS, Karolchik D. BigWig and BigBed: enabling browsing of large distributed datasets. Bioinformatics. 2010;26:2204–7.
Kim D, Paggi JM, Park C, Bennett C, Salzberg SL. Graph-based genome alignment and genotyping with HISAT2 and HISAT-genotype. Nat Biotechnol. 2019;37:907–15.
Bray NL, Pimentel H, Melsted P, Pachter L. Near-optimal probabilistic RNA-seq quantification. Nat Biotechnol. 2016;34:525–7.
Patro R, Duggal G, Love MI, Irizarry RA, Kingsford C. Salmon provides fast and bias-aware quantification of transcript expression. Nat Methods. 2017;14:417–9.
Feng Y-Y, et al. RegTools: Integrated analysis of genomic and transcriptomic data for discovery of splicing variants in cancer. BioRxiv. 2018. https://doi.org/10.1101/436634.
Collado-Torres L, et al. Flexible expressed region analysis for RNA-seq with derfinder. Nucleic Acids Res. 2017;45:e9.
K. Rue-Albrecht, F. Marini, C. Soneson, A. T. L. Lun, iSEE: Interactive SummarizedExperiment Explorer. [version 1; peer review: 3 approved]. F1000Res. 7, 741 (2018).
Yu G, Wang L-G, Han Y, He Q-Y. clusterProfiler: an R package for comparing biological themes among gene clusters. OMICS. 2012;16:284–7.
Li H. A statistical framework for SNP calling, mutation discovery, association mapping and population genetical parameter estimation from sequencing data. Bioinformatics. 2011;27:2987–93.
Lee H, Pine PS, McDaniel J, Salit M, Oliver B. External RNA controls consortium beta version update. J Genomics. 2016;4:19–22.
Bolger AM, Lohse M, Usadel B. Trimmomatic: a flexible trimmer for Illumina sequence data. Bioinformatics. 2014;30:2114–20.
F. Krueger, GitHub - FelixKrueger/TrimGalore: A wrapper around Cutadapt and FastQC to consistently apply adapter and quality trimming to FastQ files, with extra functionality for RRBS data (2019), (available at https://github.com/FelixKrueger/TrimGalore).
D. Merkel, Docker: Lightweight Linux Containers for Consistent Development and Deployment. Linux J. 2014 (2014).
Langmead B, Nellore A. Cloud computing for genomic data analysis and collaboration. Nat Rev Genet. 2018;19:208–19.
McLay R, Schulz KW, Barth WL, Minyard T. in State of the Practice Reports on - SC ’11. New York, New York, USA: ACM Press; 2011. p. 1.
Danecek P, et al. The variant call format and VCFtools. Bioinformatics. 2011;27:2156–8.
PsychENCODE Knowledge Portal. Synapse. 2016. https://doi.org/10.7303/syn4921369.
Law CW, Chen Y, Shi W, Smyth GK. voom: Precision weights unlock linear model analysis tools for RNA-seq read counts. Genome Biol. 2014;15:R29.
R. Kolde, pheatmap: Pretty Heatmaps (2019).
Anaconda, Anaconda Software Distribution (Anaconda, 2016).
Köster J, Rahmann S. Snakemake–a scalable bioinformatics workflow engine. Bioinformatics. 2012;28:2520–2.
Price AJ, et al. Divergent neuronal DNA methylation patterns across human cortical development reveal critical periods and a unique role of CpH methylation. Genome Biol. 2019;20:196.
Wang L, Wang S, Li W. RSeQC: quality control of RNA-seq experiments. Bioinformatics. 2012;28:2184–5.
Jaffe AE, et al. qSVA framework for RNA quality correction in differential expression analysis. Proc Natl Acad Sci USA. 2017;114:7130–5.
Kent WJ, et al. The human genome browser at UCSC. Genome Res. 2002;12:996–1006.
W. Zhang et al., Lightweight Container-based User Environment (2019).
Frankish A, et al. GENCODE reference annotation for the human and mouse genomes. Nucleic Acids Res. 2019;47:D766–73.
Cunningham F, et al. Ensembl 2019. Nucleic Acids Res. 2019;47:D745–51.
A. C. Frazee, A. E. Jaffe, R. Kirchner, J. T. Leek, polyester: Simulate RNA-seq reads (2020).
Y. Han et al., Identification of SARS-CoV-2 inhibitors using lung and colonic organoids. Nature. 589, 270–275.
Magini P, et al. Loss of SMPD4 causes a developmental disorder characterized by microcephaly and congenital arthrogryposis. Am J Hum Genet. 2019;105:689–705.
Nellore A, et al. Rail-RNA: scalable analysis of RNA-seq splicing and coverage. Bioinformatics. 2017;33:4033–40.
Xiao G, et al. Transcriptomic analysis identifies Toll-like and Nod-like pathways and necroptosis in pulmonary arterial hypertension. J Cell Mol Med. 2020;24:11409–21.
Li H, et al. The sequence alignment/map format and SAMtools. Bioinformatics. 2009;25:2078–9.
We would like to acknowledge the authors of processing software tools SPEAQeasy is based upon, especially those who answered our questions on GitHub issues, support forums and emails.
Availability and requirements
Project name: SPEAQeasy
Project home page: http://research.libd.org/SPEAQeasy/ and https://github.com/LieberInstitute/SPEAQeasy
Operating system(s): Linux, Mac OS
Programming language: Groovy, R, bash
Other requirements: Java 8 or higher, Python3 with pip
Any restrictions to use by non-academics: None
This project was supported by the Lieber Institute for Brain Development and NIH R21MH120497-01. All funders had no role in the design of this study.
Ethics approval and consent to participate
Consent for publication
Conflict of interest
J.L., V.L.S., E.G-M., I.A-O. were employed by Winter Genomics. All other authors have no conflicts of interest to declare. Winter Genomics had no role in the design of this study.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
