Estimation of total mediation effect for highdimensional omics mediators
BMC Bioinformatics volume 22, Article number: 414 (2021)
Abstract
Background
Environmental exposures can regulate intermediate molecular phenotypes, such as gene expression, by different mechanisms and thereby lead to various health outcomes. It is of significant scientific interest to unravel the role of potentially highdimensional intermediate phenotypes in the relationship between environmental exposure and traits. Mediation analysis is an important tool for investigating such relationships. However, it has mainly focused on lowdimensional settings, and there is a lack of a good measure of the total mediation effect. Here, we extend an Rsquared (R\(^2\)) effect size measure, originally proposed in the singlemediator setting, to the moderate and highdimensional mediator settings in the mixed model framework.
Results
Based on extensive simulations, we compare our measure and estimation procedure with several frequently used mediation measures, including product, proportion, and ratio measures. Our R\(^2\)based secondmoment measure has small bias and variance under the correctly specified model. To mitigate potential bias induced by nonmediators, we examine two variable selection procedures, i.e., iterative sure independence screening and false discovery rate control, to exclude the nonmediators. We establish the consistency of the proposed estimation procedures and introduce a resamplingbased confidence interval. By applying the proposed estimation procedure, we found that 38% of the agerelated variations in systolic blood pressure can be explained by gene expression profiles in the Framingham Heart Study of 1711 individuals. An R package “RsqMed” is available on CRAN.
Conclusion
Rsquared (R\(^2\)) is an effective and efficient measure for total mediation effect especially under highdimensional setting.
Background
Understanding the relationships between an environmental risk factor and health traits through molecular phenotypes, such as gene expression (GE) and DNA methylation, can provide mechanistic insights into disease etiology and exposure biology. Specifically, an environmental risk factor may lead to epigenetic changes, such as changes in DNA methylation, which then alter DNA accessibility and chromatin structure, and thereby regulate GE and further downstream molecular phenotypes pertinent to the disease process. Modern epidemiological studies are capable of measuring a large number of markers, from tens of thousands of GEs to nearly a million CpG sites in DNA methylation studies. There is growing evidence that many of these intermediate phenotypes could lie in the pathway between environmental exposure and downstream health outcomes [1, 2]. It is of great scientific interest regarding how to measure the overall contribution of different types of molecular phenotypes in the pathways from an environmental risk factor to a phenotype endpoint. Mediation analysis is a natural approach to explore such relationships, which can help researchers delineate why and how two variables (dependent variable and independent variable) are related [3].
Our motivating scientific question here is how chronological age affects different health traits through molecular phenotypes. Specifically, we are interested in exploring the mediating role of GEs in the pathway between age and two health traits, blood pressure (BP) and lung function. As an important risk factor for a wide range of health conditions, age can be regarded as a proxy of lifestyle, oxidative stress, or other accumulated environmental risk factors. Researchers have found that GE profiles are associated with the aging process in various biological pathways, notably those involving overexpression of inflammation and immune response genes and underexpression of collagen and energy metabolism genes [4, 5]. On the other hand, a decrease in lung function and increase in systolic BP were found to be associated with many agerelated changes, including inflammation and altered immunity, and these changes may be reflected on the molecular level [6,7,8,9]. Instead of exploring the mediating effect of a particular gene, we intend to quantify the overall role of potentially highdimensional GEs in mediating the relationship between age and health traits, i.e., the total mediation effect. To the best of our knowledge, the existing total mediation effect size measures have been studied under lowdimensional settings and many of them are based on the difference in means, i.e., firstmoment estimand (to be detailed later). Less attention has been given to the moderate and highdimensional settings [10], although such a measure may be especially useful in guiding further more specific analyses and providing mechanistic insights.
To fill in the gap, we extend a total mediation effect size measure, the Rsquared (R\(^2\)) measure, which was originally proposed in a singlemediator model by Fairchild et al. [11], to the multiple and highdimensional mediator models. Briefly, the R\(^2\) measure is a secondmoment measure, quantifying the amount of variance in the dependent variable that is common to both the independent variable and the mediator(s), derived from commonality analysis [12, 13]. As an estimand based on variation, it provides an alternative to existing measures, especially in the presence of possible opposite directions of mediation effects as reported in the literature [14, 15] and our motivating example (Additional file 1: Fig. S3). We show that the R\(^2\)based secondmoment measure has many statistical merits and is easy to interpret. Additionally, our estimation method based on mixedeffect models can accommodate multiple and highdimensional mediators well. However, when addressing our motivating question in the real data, we face an additional challenge that the identification of the true mediators is not known a priori. This is, in fact, not trivial for any similar questions with high dimensionality. We establish a consistent estimation procedure that first uses a variable selection method with the oracle property [16] to filter out the nonmediators that bias the R\(^2\)based secondmoment measure, and then obtains stable R\(^2\) estimates based on the selected mediators. In addition to theoretical justification, we conduct extensive simulations from various perspectives, including bias, variance, finite sample performance of consistency, and the coverage probability of the confidence interval (CI). We show that our method has an allaround performance. We then apply it to answer our motivating question using the Framingham Heart Study (FHS) data, which contains a total of 17,873 candidate genes with corresponding GEs, 1711 subjects for BP evaluation, and 1378 subjects for lung function evaluation. Since the GE levels in the FHS were measured at the same time, we assume undirected correlation among the GE levels, following Huang and Pan 2016 [17] and Boca et al 2013 [18]. Nonetheless, we demonstrate that the R\(^2\)based secondmoment measure is also viable to use when there are directed paths among mediators, i.e., mediators are conditionally dependent on the exposure. The main consideration of our study is the magnitude of the total mediation effect, instead of hypothesis testing that considers whether the effect is present or not [17,18,19,20].
Results
Simulation results
Simulation setting I
Table 1 presents the bias and variance under the highdimensional settings, i.e., (H1) to (H5) as detailed in Methods. When the model consisted of the true mediators (H1, H5), nonmediators \(\mathbf{M} ^{(1)}\) (H3), and noise variables (H4), the \(R^2_{Mediated}\) estimators had very small bias and variance. Estimators of the product, proportion, and ratio measures had relatively high bias when \(n=p_0\) under scenarios (H2) to (H4), probably because it required estimating a large number of coefficients. In addition, the \(R^2_{Mediated}\) estimators were biased under scenario (H2) as expected, suggesting the importance of excluding nonmediators \(\mathbf{M} ^{(2)}\). We further confirmed that our normal assumption on the distribution of random effects was quite robust to misspecification (scenarios (H6)(H12) as discussed in Additional file 1: Section 1.5.3 and shown in Table S3). On the other hand, under lowdimensional setting, we found that mixedeffect models had a slightly better performance in estimating \(R^2_{Mediated}\) and the shared over simple effect (SOS) as defined in Methods, compared with fixedeffect models; however, fixedeffect models had a better performance in estimating the product, proportion, and ratio measure (Additional file 1: Table S1).
Simulation setting II

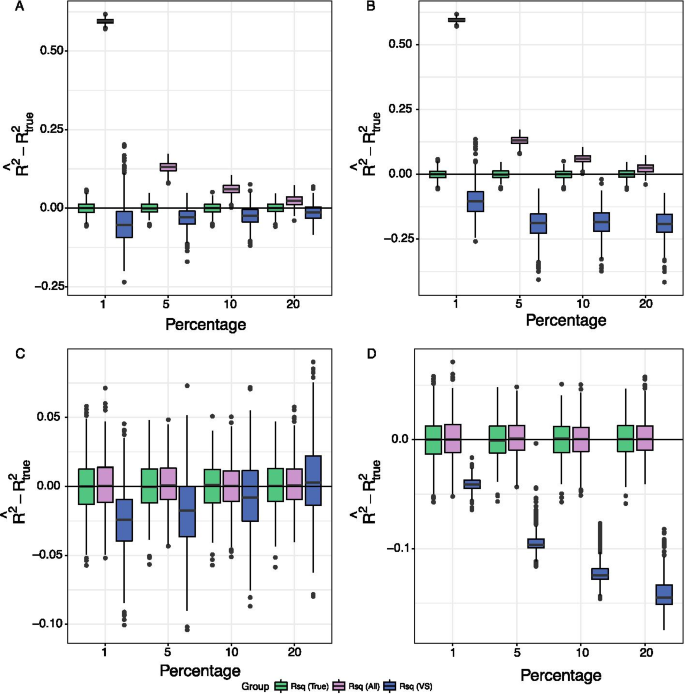

We examined the performance of using iterative sure independence screening (SIS) and false discovery rate (FDR) to select the true mediators \({\mathbf {M}}\) from \(\mathbf {M}_\mathbf{0 }\). Figure 1 shows the bias of \(R^2_{Mediated}\) using iterative SIS and FDR to perform variable selection when \(\mathbf{M} ^{(2)}\) or \(\mathbf{M} ^{(1)}\) were included. The numerical values of the bias, SD, and MSE of the \(R^2_{Mediated}\) and the product measure estimated by Lasso regression are presented in Additional file 1: Tables S6 and S7. We found that: (1) when only \(\mathbf{M} ^{(1)}\) existed, using an inappropriate variable selection method, i.e., FDR, introduced large bias (Fig. 1D); (2) when \(\mathbf{M} ^{(2)}\) existed, applying iterative SIS reduced bias to a much smaller scale, while including all variables without variable selection had a large amount of bias (Fig.1A). The FDR method was so conservative in picking up the true mediators, i.e., low true positive rates, that the bias was changed to negative values (Fig. 1B, D). Although not shown, we varied the FDR cutoffs from 0.01 to 0.25 and found that a more liberal cutoff sometimes better controlled the amount of bias, depending on the percentage of true mediators. Nonetheless, the true proportion of mediators is usually unknown. Therefore, we decided to use iterative SIS for variable selection in the following analyses. The results did not change much in terms of bias, standard deviation (SD), and mean square of error (MSE) with a much larger number of putative mediators, i.e. \(p_0=15,000\) (see Additional file 1: Section 1.6.1 for the details).
Simulation setting III
We further evaluated the finitesample performance of the iterative SIS variable selection coupled with the mixedeffect estimation procedure for \(R^2_{Mediated}\) . As sample size increased, the bias and SD of \({\hat{R}}^2_{Mediated}\) decreased, with a more precise selection of the true mediators (average true positive rates and false positive rates are reported in Additional file 1: Table S6). In addition, we evaluated the coverage probability of the bootstrapbased CI at different numbers of true mediators with a sample size of 1500. We found that when the number of true mediators was 0, and, therefore, the true \(R^2_{Mediated}\) was 0, none of the mediators was selected in all bootstrap samples across simulation replications, leading to a constant 0 estimate. Moreover, 98.0%, 98.0%, and 94.5% of the CIs covered the true value when the number of true mediators was 15, 150, and 300, respectively. Lastly, we did observe a worse performance in variable selection when the mediators were highly correlated with a given sample size, although the bias and variance of the \(R^2_{Mediated}\) did not deteriorate too much (Additional file 1: Table (S7)). We also observed that regressing out the covariates as proposed in Additional file 1: Section 1.4 could help improve the performance of variable selection by reducing the correlations among mediators due to potential exposuremediator confounders (Additional file 1: Section 1.7.4 and Table S8).
Real data example: the Framingham Heart Study
We hypothesized that the effect of chronological age on lung function or systolic BP was mediated by changes in GE levels. We performed a mediation analysis on the FHS Offspring Cohort of European ancestry who attended the eighth and ninth examinations with the average interval between visits being around 6 years. Lung function was measured by forced vital capacity (FVC) in liters, using the highest value among at least two acceptable maneuvers. BP was measured as an average of two sequential readings in mmHg. 15 mmHg was added to the systolic BP if a participant reported taking antihypertensive medication at the time of BP measurement [21]. The covariates were the demographic variables of weight in lb, sex, height in inches and smoking status (ever vs never). We focused on subjects with nonmissing measurements on the covariates variables, phenotype of interest, and pedigree information, resulting in a final sample size of 1378 for FVC and 1711 for systolic BP. We tackled the interindividual correlation in phenotypes, due to family relatedness, by taking residuals of a linear mixed model with a random effect following a multivariate normal distribution with a zero mean vector and a covariance matrix proportional to the kinship matrix derived from the pedigree information [22]. GE profiling for 17,873 genes was measured from fasting peripheral whole blood using the Affymetrix Human Exon 1.0 ST GeneChip platform, details of which were described in previous publications [23]. We used age and GE levels at the eighth examination, and FVC and systolic BP at the ninth examination, such that the temporal precedence from exposure to mediators and mediators to phenotype were established. To take into account the possible confounding effects, we regressed covariates out from age, pedigree relatednessadjusted phenotypes, and 17,873 gene expression levels and used the resulting residuals in subsequent analyses (also see Additional file 1: Section 1.4 for a general estimation procedure involving covariates).
We assumed that a small proportion of genes were involved in the pathway from chronological age to the two health traits. As supported by our simulation study (Fig. 1), we did not conduct any prescreening on \(\mathbf{M} ^{(1)}\); instead, we only performed variable selection to exclude \(\mathbf{M} ^{(2)}\). The results are summarized in Table 2. We found that the variance in FVC shared by chronological age and GE was estimated to be 0, whereas there was considerable shared variance in systolic BP. Specifically, after taking into account weight, height, sex, and smoking status as covariates, 20.7% of FVC variation could be explained by age, but the number of selected mediators using iterative SISMCP was 0 for FVC, suggesting that changes in GE levels did not impact FVC after adjusting for age. This was further confirmed using the Lasso regression and FDR control method. Since GE levels were collected from whole blood, rather than lung tissue, the GE levels in blood might be less relevant for lung function than for blood traits. On the other hand, we found that 6.9% of systolic BP variation can be explained by age, and 2.6% (95% CI = (− 0.3%,6.6%)) could be commonly explained by age given the covariates, and 182 genes whose GEs selected by iterative SIS, accounting for 38.1% (95% CI = (− 8.5%,77.1%)) of the variance explained by age, as measured by SOS. Note that based on the proportion measure, 0.8% (95% CI = (− 17%,14%)) of the total effect was mediated by GEs. Additionally, the CIs of ratio and product measure were almost symmetric around 0, suggesting the existence of bidirectional mediation effects from individual pathways. Additional file 1: Figure S3 also confirmed such relationships for both health traits.
We further conducted a pathway enrichment analysis of the selected mediators for systolic BP and four nominally significant pathways had biological evidence supporting their potential mediation role between age and systolic BP (Additional file 1: Table S9). For example, the nucleotide excision repair pathway was shown to be involved in agerelated vascular dysfunction, which in turn is associated with hypertension [24]. Future analyses with larger sample sizes and using more relevant tissues are warranted to estimate the total mediation effects.
Discussion
We have extended the existing R\(^2\) measure, originally proposed in the singlemediator model, to multiple and highdimensional mediator models, for the purpose of applying this measure to highdimensional omics mediators. Different from the estimation method of the singlemediator model, we proposed a topdown approach: instead of estimating every single regression coefficient, we estimated \(R^2_{Mediated}\) based on the variance components of random coefficients in the mixed model framework. This method can be very efficient, particularly for huge numbers of mediators, because it greatly reduces the number of parameters needed to be estimated. The \(R^2_{Mediated}\) is satisfactorily estimated with correctlyspecified models, but identifying the true mediators under highdimensional settings is a challenging problem. The \(R^2_{Mediated}\) is biased when variables associated with the exposure, yet not with the dependent variable, are included. To this end, we showed that using iterative SIS can largely mitigate such bias, while using all available GEs led to overestimation, and using a hypothesis testing method with stringent FDR cutoff led to underestimation. To draw valid postselection inference following the variable selection step, we split the data into halves: we use the first half for variable selection and the second half for estimation. But it is also possible and probably more efficient, though not yet thoroughly studied for iterative SIS, to use all the data (with certain adjustments) in a more unified framework [25]. We used the nonparametric bootstrap method to calculate the CI and showed that it has satisfactory coverage probability with the sample size comparable to the FHS data. We used the residuals of exposure, mediators and outcomes orthogonalized with respect to the covariates in the real data analysis. It helped improve the performance of variable selection compared with directly adjusting the covariates as shown in simulations (Additional file 1: Section 1.7.4). Additionally, it can be easily shown that the corresponding \(R^2\)’s are partial \(R^2\), thus \(R^2_{Mediated}\) is the additional amount of variance explained given the covariates (Additional file 1: Section 1.4.1).
\(R^2_{Mediated}\) is an extremely useful measure because it can be objectively evaluated and compared across studies [26]. For example, we were able to compare the total mediation effects of the same exposuretrait pair through different types of molecular phenotypes, such as GE and DNA methylation [27], or GE in different tissues. We can also compare the total mediation effects of the same exposure and multiple traits through the same set of mediators. Using the FHS data set as our motivating example, we estimated \(R^2_{Mediated}\) as a total mediation effect measure for age and two traits, i.e., FVC and systolic BP, by using the same set of GEs as candidate mediators. Age is an intriguing and important environmental exposure. Some studies used the methylation to predict biological age, which can serve as a proxy for overall health condition [28, 29]. We examined the relationship from a different perspective using mediation analysis. Interestingly, we found a large amount of agerelated variation in systolic BP can be explained by GEs, while the product/proportion/ratio measures’ \(95\%\) CIs were centered around 0 due to the bidirectional mediation effects from individual pathways.
Mediation analysis of molecular data can be prone to confounding and reverse causation [30]. It is of our future interest to develop the \(R^2_{Mediated}\) measure under the longitudinal setting. Longitudinal analysis allows the examination of whether changes in GE profiles are more likely to precede changes in health traits. It can also deal with unmeasured confounding because each subject serves as a control for oneself.
\(R^2_{Mediated}\) was previously considered to have only a heuristic value, mainly because it can be negative under certain circumstances. When that happens, researchers may find it difficult to interpret. We emphasize that the \(R^2_{Mediated}\) measure is a secondorder common effect and thus no longer a proportion measure [12]. To facilitate the use of \(R^2_{Mediated}\), we evaluated the range of the \(R^2_{Mediated}\) in Additional file 1: Section 1.2.3 Propositions 1–3. Generally, when the magnitude of the ratio of direct effect and total effect exceeds a certain threshold (larger than 1), \(R^2_{Mediated}\) becomes negative; however, under highdimensional settings, the threshold can be very high, such that the occurrence of negative value is infrequent. Finally, we have developed an R package ‘RsqMed’, which is publicly available on CRAN, to implement the proposed \(R^2_{Mediated}\) measure estimation and its CI. The current development of the R\(^2\)based secondmoment measure is focused on continuous outcomes and only additive mediation effects without exposuremediator interactions. Extensions to binary and timetoevent outcomes and nonadditive mediation effects warrant further investigation.
Conclusions
We presented a topdown approach for highdimensional mediation analysis to answer our motivating question: how does gene expression mediate in the pathway between age and a health trait of interest. In FHS, we showed that gene expression played an important role in mediating the pathway from age to systolic blood pressure and interestingly, the selected mediators were enriched in the pathways related to inflammatory and agerelated vascular dysfunction. The R\(^2\) measure coupled with our proposed estimation method is generalizable and has many appealing statistical properties, such as its close connection with the existing measures, adaptivity to a complex dependent structure among mediations, having low bias and variance, consistent, and satisfactory coverage probability of confidence interval. In the multiple and highdimensional mediator model, it can serve as a good starting point to guide more specific downstream biological analyses.
Methods
Review of the commonlyused total effect size measures
A mediation model (Fig. 2) consists of the following equations. Without loss of generality, we assume the dependent, independent and mediator variables are standardized to have mean 0 and variance 1.
p is the total number of mediators. When \(p=1\), it corresponds to a singlemediator model (Fig. 2A); otherwise, it corresponds to a multiplemediator model (Fig. 2B). Y is the continuous dependent variable; X is the independent variable; \(M_j\) is the j th mediator; \(e_1,e_2\), and \(\xi _j\) are residuals for each equation; \(a_j,b_j,r\) and c are regression coefficients, usually estimated by the maximum likelihood estimation (MLE) method. Parameter c is the total effect and r is the direct effect.
Product, proportion, and ratio measures, all based on the difference in means, are among the most commonly seen total mediation effect measures in the literature. The product measure is \(\sum _{j=1}^p a_jb_j\). It is also the natural indirect effect under the potential outcome framework with strong causal inference and model assumptions [31]. The proportion measure is defined as the proportion of total effect mediated by M: \(\sum _{j=1}^p a_jb_j/(\sum _j^p a_jb_j+r)\); the ratio measure is \(\sum _{j=1}^p a_jb_j/r.\) All three measures are sensitive to the direction of effects through different individual mediation pathways. In an extreme example, \(a_jb_j\) from individual pathways have different directions and thus cancel out, result in sum of 0. It leads to a misleading implication that there is no mediation effect at all. Additionally, both the proportion and ratio measures are unitfree, but require a sample size larger than 500 to obtain stable estimates even under lowdimensional settings [3].
Another total mediation effect measure recently proposed by Song et al. [15] is \(\sum _{j=1}^p (a_jb_j)^2\). As a quantity based on the L2 norm, it overcomes the drawbacks mentioned above; however, it is less interpretable than the above three firstmoment measures and the R\(^2\)based secondmoment measure to be described.
R\(^2\) measure under a singlemediator model
Compared with the aforementioned total mediation effect size measures, the R\(^2\) measure has not drawn much attention. The R\(^2\) measure is defined as the variance in dependent variable Y explained by the independent variable X through the mediator [11] (See the Venn diagram in Additional file 1: Fig. S1). It can be written as
where \(r^2\) in lower case denotes the variance explained in the simple regression model and is equal to the squared correlation coefficient; capital \(R^2\) denotes the coefficient of determination for a multiple regression model. \(r_{Y,M}^2=cor(Y,M_1)^2\) is the variance in Y explained by \(M_1\) in the following model (4), \(r_{Y,X}^2=cor(Y,X)^2\) is the variance in Y explained by X in model (1), and \(R^2_{Y,MX}\) is the variance in Y explained by \(M_1\) and X in model (2) with \(p=1\).
where \(d_1\) is the regression coefficient and \(e_4\) is the residual.
The three components in \(R^2_{Mediated}\) can be estimated by the MLE using fixedeffect models, i.e., treating all the coefficients as fixed. We note that the \(R^2_{Mediated}\) is a differenceinR\(^2\) measure, instead of a proportion measure. The R\(^2\) measure has been recognized to have many characteristics of a good measure of effect size. For example, it has a stable performance for sample sizes \(>100\) [11], it increases as the mediation effect approaches the total effect, and it is possible to construct a CI estimate. There are a few other variants of R\(^2\) measure in the literature, such as those proposed in [3, 32] under a singlemediator model. They were aimed at different additional potential advantages including a bounded range between 0 and 1, a monotonic relationship with the product measure, and better dealing with spurious correlations, at the possible price of losing connection with the commonality analysis. More discussion is included in Additional file 1: Section 1.2.
Extension: \(R^2_{Mediated}\) under the multiplemediator model
We extend the R\(^2\) measure to the multiplemediator model, defined as:
where \(r_{Y,X}=cor(Y,X),\) \(R^2_{Y,MX}=var(rX + \sum _{j=1}^{p} M_jb_j),\) and \(R^2_{Y,M} = var(\sum _{j=1}^{p} M_jd_j).\) \(R^2_{Y,M}\), \(r^2_{Y,X}\), and \(R^2_{Y,MX}\) have the same meaning as in the single mediator models and the corresponding models are (6), (1) and (2) with \(p>1\).
where \(d_j\) is the regression coefficient for mediator \(M_{j}\) and \(e_5\) is the residual. \(R^2_{Mediated}\) can be interpreted as that in commonality analysis [12]: the variance that is common to both the independent variable and the mediator(s), which is evaluated by the difference in the variance of the dependent variable that is explained by the exposure (\(r^2_{Y,X}\)) and the additional variance that can be explained by the exposure after taking into account the mediators (\(R^2_{Y,MX}R^2_{Y,M}\)), i.e., represented by equation (5). \(R^2_{mediated}\) does not directly sum up the \(a_jb_j\) from individual pathways with different directions, avoiding the aforementioned problems of the firstmoment measures. Recently, the \(\nu \) measure, a variant of the R\(^2\) measure [32], was extended to multiplemediator models in the structural equation modeling framework. In fact, under our assumption of undirected correlation among M, the extended \(\nu \) measure is reduced to \((\sum _{j=1}^p a_jb_j)^2\), i.e., the squared product measure. Therefore, \(\nu \) was modified to be a firstmoment measure in this case, losing benefits of a secondmoment measure.
A major concern of using the R\(^2\) measure under a singlemediator model is that it has a negative value in some situations. We discuss this matter thoroughly in Additional file 1: Section 1.2 by showcasing that \(R^2_{Mediated}\) can be negative as a differenceinR\(^2\) measure, although it may not happen frequently under a highdimensional setting. Moreover, we have established several additional appealing properties for the R\(^2\)based secondmoment measure, including (1) invariance to certain transformations, such as principal component analysis (Additional file 1: Section 1.2.4 Proposition 6), (2) adaptability to a complex dependent structure (Additional file 1: Section 1.3), and (3) robustness to the inclusion of certain types of nonmediators (Additional file 1: Section 1.2.4, Proposition 4).
Another closely related measure is the shared over simple effect (SOS) [33] measure, which is defined as \(\text{ SOS }=R^2_{Mediated}/R^2_{Y,X}.\) SOS is a relative measure of \(R^2_{Mediated}\). It is the standardized exposurerelated variance in the outcome that is shared with the mediator. The relationships among the R\(^2\), SOS, product, proportion, and ratio measures are described in Additional file 1: Section 1.2.2. Interestingly, we find that SOS is closely related to the proportion measure, although they have different interpretations: SOS monotonically increases with the absolute value of proportion mediated; on the other hand, it is able to capture some bidirectional mediation effects when the proportion measure cannot.
Modelling and estimation
In order to obtain stable estimation under highdimensional settings, we use the mixedeffect model for improved statistical efficiency, as shown later in the numerical examples. Specifically, we assume that the coefficients for the mediators in models (2) and (6) are random effects. In model (2), \(b_j\) is assumed to follow a normal distribution \(b_j \sim N(0,\tau _1)\) for \(j=1,2,\ldots ,p\) and \(e_2 \sim N(0,\phi _1),\) thus
\(R^2_{Y,MX}\) can be interpreted as one minus the variance that is unexplained by the independent variable and mediators. Similarly, in model (6), we assume \(d_j \sim N(0,\tau _2)\) for \(j=1,2,\ldots ,p\) and \(e_4 \sim N(0,\phi _2)\), such that \(R^2_{Y,M} =1\phi _2.\)
We estimate \(\tau _1\),\(\tau _2\), \(\phi _1\) and \(\phi _2\) by the restricted maximum likelihood method, which is consistent under mild conditions [34]. Note that we avoid the direct use of the estimation of a total of 2p coefficients (\(\beta _1,\ldots , \beta _p, d_1,\ldots , d_p\)); instead, we use two parameters (\(\phi _1\) and \(\phi _2\)) to calculate \(R^2_{Mediated}\). The estimation of latter is robust to the misspecification of the distribution of the random effects; it has been supported by multiple theoretical studies and realdata analysis [35,36,37]. Finally, \({\hat{r}}^2_{Y,X} = \sum _{i=1}^n {\hat{y}}_i^2/(n2),\) where \({\hat{y}}_i\) is the fitted value estimated by MLE in model (1).
When \(p<< n\), it is also feasible to estimate the three R\(^2\) components by MLE in the fixedeffect models (also proposed in Lachowicz 2018 [38]), and we evaluate its performance in the simulation study for comparison.
Mediator variable selection
In the traditional mediation analysis, the mediating variables are hypothesized and selected based on specific research questions and subject matter knowledge. However, hypothesizing and identifying the true mediators becomes much harder in the highdimensional settings where the bias for estimating the total mediation effects can be induced by failing to identify the true mediators. Inspired by Baron and Kenny 1986 [39], we differentiated the problem into three categories. The first category is the scenario in which the variables falsely identified as mediators are not associated with the exposure, and thus, not in the pathway from the exposure to the outcome (Fig. 2C). For example, some genes influencing lung function are not in the pathway between chronological age and lung function but others, such as a pathway between smoking and lung function. We denote the set of such variables as \(\mathbf {M}^{\mathbf {(1)}}=\{M_j: b_j \ne 0, a_j=0\}\). Additional file 1: Section 1.2.4, Proposition 4, shows that inclusion of \(\mathbf {M}^{\mathbf {(1)}}\) provides consistent estimation of \(R^2_{Mediated}\). The second category is the scenario in which the variables are associated with the exposure, but not the outcome after adjusting for the exposure (Fig. 2D). For example, collagen synthesis is agerelated, but genes associated with collagen synthesis may not influence BP. We denote the set of such variables as \(\mathbf {M^{(2)}}=\{M_j:a_j \ne 0, b_j=0\}\). The inclusion of \(\mathbf {M^{(2)}}\) could lead to nonzero estimates of the \(R^2_{Mediated}\) when there is in fact no mediation effect. We further show that the \(R^2_{Mediated}\) estimate is biased and inconsistent when \(\mathbf {M^{(2)}}\) are included as mediators in Additional file 1: Section 1.2.4, Proposition 5, as well as the simulation study. Mathematically, the bias comes from \({\hat{R}}^2_{Y,M}\), where part of the variance of X is falsely added due to the inclusion of \(\mathbf {M}^{\mathbf {(2)}}\). The third category is the scenario in which noise variables (\(b = 0\) and \( a = 0\)) are included, for example, genes not associated with age or the health trait of interest. The inclusion of noise variables does not influence the point estimation of \(R^2_{Mediated}\) because of the same reason as \(\mathbf {M}^{\mathbf {(1)}}\). In the steps recommended for mediation analysis [39], \(\mathbf {M}^{\mathbf {(1)}}\), \(\mathbf {M}^{\mathbf {(2)}}\), and noise variables are not considered as mediators, and thus should be excluded from mediation analysis. One promising feature of our \(R^2_{Mediated}\) under highdimensional settings is its robustness to the inclusion of \(\mathbf {M}^{\mathbf {(1)}}\) and noise variables. However, the inclusion of \(\mathbf {M}^{\mathbf {(2)}}\) is clearly problematic, which we use a variable selection method to filter out in model (2) before estimating the \(R^2_{Mediated}\). For illustration purposes, we denote the true mediators as \(\mathbf{M} \), the putative mediating variables in the initial assessment as \(\mathbf{M} _0\), and the variables included in the final mediation model as \({\hat{\mathbf {M}}}\) in the following context.
Sure independence screening (SIS)
To make the highdimensional problem solvable, we assume that the true mediators are sparse in our motivating question. We adopt iterative SIS, an extension of SIS, to exclude putative mediators with zero coefficients \(b_j\)’s based on model (2), i.e., the \(\mathbf {M}^{\mathbf {(2)}}\) and noise variables. Fan and Lv [16] introduced SIS in the context of ultrahighdimensional linear models, which has a sure screening property, i.e., with probability tending to 1, the independence screening technique retains all of the important predictors in the model under certain conditions. The iterative SIS uses marginal and conditional correlations to reduce the dimensionality from high to a moderate scale, for example, \(\lfloor n/log(n) \rfloor \), and then additional variable selection via, e.g., minimax concave penalty (MCP), can be improved on both speed and accuracy. The SIS was used in highdimensional mediation analysis with a focus on hypothesis testing by [40] and later used for variable selection in highdimensional mediation survival model [41]. For our purposes, we use iterative SIS to handle cases where the regularity conditions of SIS fail due to the existence of \(\mathbf{M} ^{(2)}\). For example, some genes maybe jointly uncorrelated with the health trait, but have higher marginal correlations with the trait than true mediators. To obtain valid postselection inference, we split the data into two halves, using one half to select the true mediator(s) and the other half to estimate \(R^2_{Mediated}\) [25, 42]. We establish the consistency of this mixedmodel approach to \(R^2_{Mediated}\) estimation coupled with iterative SISMCP in Additional file 1: Section 1.2.5, i.e., as \( n \overset{}{\rightarrow } \infty , \) \({\hat{R}}^2_{Mediated}(n) \overset{p}{\rightarrow } R^2_{Mediated}. \)
Controlling false discovery rate (FDR)
Another common practice for filtering out the undesirable variables is to test the marginal association of each potential mediator with Y based on the FDR control [20]. We calculated the FDRadjusted pvalues for the \(a_j\)’s in model (3) and the \(b_j^\prime \)’s from the models \(E(Y) = b_j^\prime M_j + r_j X\), for \(j=1,...,p\). When the mediators are conditionally independent given X, testing for \(b_j^\prime \) is equivalent to testing for \(b_j\) in model (2). If either FDRadjusted pvalue of \(a_j\) or \(b_j\) is larger than 0.1, the variable is excluded from the analysis.
Estimating procedure and confidence interval
We describe the estimating procedure incorporating the variable selection step for \(R^2_{Mediated}\) in Additional file 1: Section 1.4. It also includes the nonparametric bootstrap method to calculate the percentile CI and a method to adjust for covariates in the mediation models.
Simulation study
We conducted extensive simulations to evaluate different types of total mediation effect measures, different variable selection methods, and finitesample performance of the proposed estimating procedure. In Simulation setting I, we compared the bias and variance among the proposed \(R^2_{Mediated}\) measure, product, proportion, and ratio measures under both low and highdimensional settings. Then, we evaluated the variable selection methods regarding the true and false positive rates and the corresponding bias in \(R^2_{Mediated}\) (Simulation setting II). Lastly, we reported the finitesample performance of the consistency of \(R^2_{Mediated}\) and the coverage probability of the bootstrapbased confidence interval under different sample sizes in simulation setting III. In general, data were simulated using the same set of coefficients across 500 replications and the true values of \(R^2_{Mediated}\) were obtained through Equation (S4) in the Additional file 1. We used the the mixedeffect models to estimate \(R^2_{Mediated}\) in all simulation settings and the fixedeffect models for estimation under lowdimensional setting I.
Simulation setting I: bias and variance
We evaluated the bias and variance of different types of total mediation effect measures under both low (L1–L6) and highdimensional (H1–H12) settings. We are interested in the performance of our proposed measure \(R^2_{Mediated}\) when mediation effects are in the same (L5, H5) or different (L1–L4, L6, H1–H4, H6–H12) directions and when three types of previously defined nonmediators are included (L2–L4, H2–H4, H7–H9). In addition, we evaluated its performance when mediators were conditionally dependent in the lowdimensional setting (L6) and when the random effects followed a nonGaussian distribution under the highdimensional setting (H6–H12). The simulation setups and results for the lowdimensional settings (L1–L6) are included in Additional file 1: Section 1.5.1. For highdimensional settings, data were generated using model (2) and (3). We set \(n=1500\), \( e_2 \sim N(0,1), X \sim N(0,1)\), and \(r=1\). There were \(p_0\) variables in \(\mathbf {{M}}_{\mathbf {0}}\), and \(\xi =(\xi _1,\xi _2,\ldots ,\xi _{p_0}) \sim N(0,\mathbf{D} _{p_0 \times p_0})\), where \(\mathbf{D} _{p_0 \times p_0}\) is the identity matrix. The number of true mediators is p.

(H1) All variables included were true mediators (\({\hat{\mathbf {M}}} = \mathbf{M} \), \(p_0=p=150\)) with different directions: \(a_j \sim N(0,0.2)\), \(b_j \sim N(0,0.2)\) for \(j=1,\ldots ,150\);

(H2) Adding additional 1350 \(\mathbf{M} ^{(2)}\) to (H1), i.e., \(p_0=1500\): \(a_j \sim N(0,0.2)\), \(b_j =0 \) for \(j=151,\ldots ,1500\);

(H3) Adding additional 1350 \(\mathbf{M} ^{(1)}\) to (H1): \(a_j = 0\), \(b_j \sim N(0,0.2) \) for \(j=151,\ldots ,1500\);

(H4) Adding additional 1350 noise variables to (H1): \(a_j = 0\), \(b_j =0\) for \(j=151,\ldots ,1500\);

(H5) All variables included were mediators with positive directions: \(a_j\) and \(b_j\) were the absolute values of the coefficients in (H1);

(H6)  (H10) Same as (H1) to (H5), except that \(a_j\)’s and \(b_j\)’s followed a scaled tdistribution with the degree of freedom equal to 1;

(H11) Same as (H1) except that \(b_j \sim Unif(0.2,0.2)\) for \(j=1,\ldots ,150\);

(H12) Same as (H1) except that \(b_j=0.2\) for \(j=1,\ldots ,75\), \(b_j=0.2\) for \(j=76,\ldots ,150\).
The true values of each measure are provided in Additional file 1: Tables S2 and S3.
Simulation setting II: variable selection
The existence of nonmediator \(\mathbf{M} ^{(2)}\) could bias the estimation of our proposed measure, thus we evaluated two commonly used variable selection methods (iterative SIS and marginal association tests controlling FDR) by examining their impact on the bias, standard deviation (SD), and mean square of error (MSE) of the estimation of \(R^2_{Mediated}\). We set \(n=1500\), \(r=3\), \( e_2 \sim N(0,1)\), and \( X \sim N(0,1)\); \(\mathbf{D} _{p_0 \times p_0}\) is the identity matrix. We evaluated the variable selection performance by using (V1) and (V2), representing the scenarios of including two types of nonmediators \(\mathbf{M} ^{(1)}\) and \(\mathbf{M} ^{(2)}\) with the total number of putative mediators \(p_0=1500\); then we increased \(p_0\) to 15,000 in (V3) and (V4) to mimic the omicsdata application:

(V1) There were p true mediators, and the additional 1350 were \(\mathbf{M} ^{(2)}\): \(a_j \sim N(0,0.2)\) for \(j=1,\ldots ,1500\), and \(b_j \sim N(0,0.2)\) for \(j=1,\ldots ,p\), \(b_j=0\) for \(j=p+1,\ldots ,1500\);

(V2) There were p true mediators, and the additional 1350 were \(\mathbf{M} ^{(1)}\): \(b_j \sim N(0,0.2)\) for \(j=1,\ldots ,1500\), and \(a_j \sim N(0,0.2)\) for \(j=1,\ldots ,p\), \(a_j=0\) for \(j=p+1,\ldots ,1500\);

(V3) Adding 13,500 noise variables to (V1): \(a_j=b_j=0\) for \(j=1501,\ldots ,15{,}000\);

(V4) There were 1500 \(\mathbf{M} ^{(2)}\) and 13,500 noise variables: \(a_j \sim N(0,0.2)\) for \(j=1,\ldots ,1500\), \(a_j=0\) for \(j=1505,\ldots ,15{,}000\), and \(b_j=0\) for \(j=1,\ldots ,15{,}000\).
We varied p at 0, 15, 75, 150, and 300, corresponding to 0, 1, 5, 10, and 20 percent of the true mediators in (V1) and (V2). The variable selection was performed in the first half of the data, and the estimation of \(R^2_{Mediated}\) was in the second half. The \(R^2_{Mediated}\) without variable selection (\({\hat{\mathbf {M}}}= \mathbf{M} _0\)) and the Lasso regressionbased product measure were estimated based on all data, serving as benchmarks.
Simulation setting III: consistency, coverage probability, and highly correlated mediators
We further evaluated the following highdimensional settings: (1) the performance of consistency under finitesample size \(n=750, 1500\), and 3000 with the initial size of \({\mathbf {M}}_{{0}}\) as \(p_0=1500\) under four scenarios with different types of nonmediators; (2) coverage probability of the proposed bootstrapbased confidence interval with varying number of true mediators at \(p=0,15,150,\) and 300, and sample size at 1500; (3) the finitesample performance of consistency with highly correlated putative mediators in three additional settings with \(p_0=1500\); and (4) the performance of variable selection in the presence of a covariate. The details of the simulation settings were described in Additional file 1: Section 1.7.
Availability of data and materials
The transcriptomics data of the FHS study are accessible from the National Center for Biotechnology Information dbGap (https://www.ncbi.nlm.nih.gov/gap/) with access numbers phs000363.v19.p13. The core R code for implementing the proposed method is developed as an R package called “RsqMed”, available at https://cran.rproject.org/web/packages/RsqMed/index.html.
Abbreviations
 \(R^2\) :

Rsquared
 GE:

Gene expression
 BP:

Blood pressure
 CI:

Confidence interval
 FHS:

Framingham Heart Study
 FDR:

False discovery rate
 MSE:

Mean square error
 SD:

Standard deviation
 FVC:

Force vital capacity
 SIS:

Sure independence screening
 SOS:

Shared over simple effect
References
LaddAcosta C, Fallin MD. The role of epigenetics in genetic and environmental epidemiology. Epigenomics. 2016;8(2):271–83.
Mo Q, Wang S, Seshan VE, Olshen AB, Schultz N, Sander C, Powers RS, Ladanyi M, Shen R. Pattern discovery and cancer gene identification in integrated cancer genomic data. Proc Natl Acad Sci. 2013;110(11):4245–50.
MacKinnon DP. Introduction to statistical mediation analysis. New York: Taylor & Francis; 2012.
De Magalhaes JP, Curado J, Church GM. Metaanalysis of agerelated gene expression profiles identifies common signatures of aging. Bioinformatics. 2009;25(7):875–81.
Weindruch R, Kayo T, Lee CK, Prolla TA. Gene expression profiling of aging using DNA microarrays. Mech Ageing Dev. 2002;123(2–3):177–93.
TorreAmione G. Immune activation in chronic heart failure. Am J Cardiol. 2005;95(11):3–8.
Lowery EM, Brubaker AL, Kuhlmann E, Kovacs EJ. The aging lung. Clin Interv Aging. 2013;8:1489.
Huan T, Esko T, Peters MJ, Pilling LC, Schramm K, Schurmann C, et al. A metaanalysis of gene expression signatures of blood pressure and hypertension. PLoS Genet. 2015;11(3):1–29. https://doi.org/10.1371/journal.pgen.1005035.
Obeidat M, Hao K, Bosse Y, et al. Molecular mechanisms underlying variations in lung function: a systems genetics analysis. Lancet Respir Med. 2015;3(10):782–95. https://doi.org/10.1016/S22132600(15)00380X.
Miočević M, O’Rourke HP, MacKinnon DP, Brown HC. Statistical properties of four effectsize measures for mediation models. Behav Res Methods. 2018;50(1):285–301.
Fairchild AJ, MacKinnon DP, Taborga MP, Taylor AB. R2 effectsize measures for mediation analysis. Behav Res Methods. 2009;41(2):486–98.
Seibold DR, McPhee RD. Commonality analysis: a method for decomposing explained variance in multiple regression analyses. Hum Commun Res. 1979;5(4):355–65.
RayMukherjee J, Nimon K, Mukherjee S, Morris DW, Slotow R, Hamer M. Using commonality analysis in multiple regressions: a tool to decompose regression effects in the face of multicollinearity. Methods Ecol Evolut. 2014;5(4):320–8.
Huang JV, Cardenas A, Colicino E, Schooling CM, RifasShiman SL, Agha G, Zheng Y, Hou L, Just AC, Litonjua AA, et al. DNA methylation in blood as a mediator of the association of midchildhood body mass index with cardiometabolic risk score in early adolescence. Epigenetics. 2018;13(10–11):1072–87.
Song Y, Zhou X, Zhang M, Zhao W, Liu Y, Kardia SL, Roux AVD, Needham BL, Smith JA, Mukherjee B. Bayesian shrinkage estimation of high dimensional causal mediation effects in omics studies. Biometrics. 2019;76:700–10.
Fan J, Lv J. Sure independence screening for ultrahigh dimensional feature space. J R Stat Soc B. 2008;70(5):849–911.
Huang YT, Pan WC. Hypothesis test of mediation effect in causal mediation model with highdimensional continuous mediators. Biometrics. 2016;72(2):402–13.
Boca SM, Sinha R, Cross AJ, Moore SC, Sampson JN. Testing multiple biological mediators simultaneously. Bioinformatics. 2013;30(2):214–20.
Zhang J, Wei Z, Chen J. A distancebased approach for testing the mediation effect of the human microbiome. Bioinformatics. 2018;34(11):1875–83.
Sampson JN, Boca SM, Moore SC, Heller R. FWER and FDR control when testing multiple mediators. Bioinformatics. 2018;34(14):2418–24.
Tobin MD, Sheehan NA, Scurrah KJ, Burton PR. Adjusting for treatment effects in studies of quantitative traits: antihypertensive therapy and systolic blood pressure. Stat Med. 2005;24(19):2911–35.
Cao Y, Maxwell TJ, Wei P. A familybased joint test for mean and variance heterogeneity for quantitative traits. Ann Hum Genet. 2015;79(1):46–56.
Joehanes R, Johnson AD, Barb JJ, Raghavachari N, Liu P, Woodhouse KA, et al. Gene expression analysis of whole blood, peripheral blood mononuclear cells, and lymphoblastoid cell lines from the Framingham Heart Study. Physiol Genom. 2011;44(1):59–75.
Durik M, Kavousi M, van der Pluijm I, Isaacs A, Cheng C, Verdonk K, et al. Nucleotide excision DNA repair is associated with agerelated vascular dysfunction. Circulation. 2012;126(4):468–78.
Lee JD, Sun DL, Sun Y, Taylor JE. Exact postselection inference, with application to the lasso. Ann Stat. 2016;44(3):907–27.
Nakagawa S, Schielzeth H. A general and simple method for obtaining R2 from generalized linear mixedeffects models. Methods Ecol Evolut. 2013;4(2):133–42.
Zhao Y, Yang T, Zhou J, Wang Z, Niu J, Chen H, Wei P. Estimation of total mediation effect for multiple types of highdimensional omics mediators in over 3500 individuals provides novel insight into agingrelated variation in blood pressure. Annual Meeting of the American Society of Human Genetics, vol. 331. 2019.
Horvath S. DNA methylation age of human tissues and cell types. Genome Biol. 2013;14(10):3156.
Slieker RC, van Iterson M, Luijk R, Beekman M, Zhernakova DV, Moed MH, et al. Agerelated accrual of methylomic variability is linked to fundamental ageing mechanisms. Genome Biol. 2016;17(1):191.
Richmond R, Hemani G, Tilling K, Davey Smith G, Relton C. Challenges and novel approaches for investigating molecular mediation. Hum Mol Genet. 2016;25(R2):149–56.
VanderWeele T, Vansteelandt S. Mediation analysis with multiple mediators. Epidemiol Methods. 2014;2(1):95–115.
Lachowicz MJ, Preacher KJ, Kelley K. A novel measure of effect size for mediation analysis. Psychol Methods. 2018;23(2):244.
Lindenberger U, Potter U. The complex nature of unique and shared effects in hierarchical linear regression: implications for developmental psychology. Psychol Methods. 1998;3(2):218.
Cressie N, Lahiri SN. The asymptotic distribution of REML estimators. J Multivar Anal. 1993;45(2):217–33.
Verbeke G, Lesaffre E. The effect of misspecifying the randomeffects distribution in linear mixed models for longitudinal data. Comput Stat Data Anal. 1997;23(4):541–56.
McCulloch CE, Neuhaus JM. Misspecifying the shape of a random effects distribution: why getting it wrong may not matter. Stat Sci. 2011;26:388–402.
Yang T, Chen H, Tang H, Li D, Wei P. A powerful and dataadaptive test for rarevariantbased geneenvironment interaction analysis. Stat Med. 2019;38(7):1230–44.
Lachowicz M. A general measure of effect size for mediation analysis. PhD dissertation, Vanderbilt University. 2018.
Baron RM, Kenny DA. The moderatormediator variable distinction in social psychological research: conceptual, strategic, and statistical considerations. J Pers Soc Psychol. 1986;51(6):1173.
Zhang H, Zheng Y, Zhang Z, Gao T, Joyce B, Yoon G, et al. Estimating and testing highdimensional mediation effects in epigenetic studies. Bioinformatics. 2016;32(20):3150–4.
Luo C, Fa B, Yan Y, Wang Y, Zhou Y, Zhang Y, Yu Z. Highdimensional mediation analysis in survival models. PLoS Comput Biol. 2020;16(4):1007768.
Sun L, Bull SB. Reduction of selection bias in genomewide studies by resampling. Genet Epidemiol. 2005;28(4):352–67.
Acknowledgements
The Framingham Heart Study is conducted and supported by the National Heart, Lung, and Blood Institute (NHLBI) in collaboration with Boston University (Contract No. N01HC25195). This manuscript was not prepared in collaboration with investigators of the FHS and does not necessarily reflect the opinions or views of the FHS, Boston University or NHLBI. The authors acknowledge the Texas Advanced Computing Center at The University of Texas at Austin for providing HPC resources. The authors thank Dr. David MacKinnon for discussions in the early stage of this work, Dr. Mark Lachowicz for helpful discussion on the \(\nu \) measure, and Dr. Lee Ann Chastain and Ms. Jessica Swann for editorial assistance.
Funding
This research was supported by the National Institutes of Health (NIH) grants R01CA169122 and R21HL126032; PW was supported by NIH grant R01HL116720; HC was supported by NIH grant R00HL130593. The NIH was not involved in the design of the study and collection, analysis, and interpretation of data and in writing the manuscript. The content is solely the responsibility of the authors and does not necessarily represent the official views of the NIH.
Author information
Authors and Affiliations
Contributions
TY conceived the study, conducted the simulation and real data analysis, developed the R package used in the work, and drafted the manuscript; JN helped interpret the results, provided critical conceptual support for mediation analysis, and revised the manuscript; HC provided statistical support and revised the manuscript; PW coconceived and codesigned the study and substantially revised the manuscript. All authors have read and approved the manuscript.
Corresponding author
Ethics declarations
Ethics approval and consent to participate
This research was approved by the University of Texas MD Anderson Cancer Center Institutional Review Board (IRB) with approval number PA180971.
Consent for publication
Not applicable
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
Additional file 1.
More explanation, interpretation, discussion of the proposed measure; additional simulation studies and results; extended realdata application results are provided.
Rights and permissions
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated in a credit line to the data.
About this article
Cite this article
Yang, T., Niu, J., Chen, H. et al. Estimation of total mediation effect for highdimensional omics mediators. BMC Bioinformatics 22, 414 (2021). https://doi.org/10.1186/s12859021043221
Received:
Accepted:
Published:
DOI: https://doi.org/10.1186/s12859021043221
