Duet: SNP-assisted structural variant calling and phasing using Oxford nanopore sequencing
BMC Bioinformatics volume 23, Article number: 465 (2022)
Whole genome sequencing using the long-read Oxford Nanopore Technologies (ONT) MinION sequencer provides a cost-effective option for structural variant (SV) detection in clinical applications. Despite the advantage of using long reads, however, accurate SV calling and phasing are still challenging.
We introduce Duet, an SV detection tool optimized for SV calling and phasing using ONT data. The tool uses novel features integrated from both SV signatures and single-nucleotide polymorphism signatures, which can accurately distinguish SV haplotype from a false signal. Duet was benchmarked against state-of-the-art tools on multiple ONT sequencing datasets of sequencing coverage ranging from 8× to 40×. At low sequencing coverage of 8×, Duet performs better than all other tools in SV calling, SV genotyping and SV phasing. When the sequencing coverage is higher (20× to 40×), the F1-score for SV phasing is further improved in comparison to the performance of other tools, while its performance of SV genotyping and SV calling remains higher than other tools.
Duet can perform accurate SV calling, SV genotyping and SV phasing using low-coverage ONT data, making it very useful for low-coverage genomes. It has great performance when scaled to high-coverage genomes, which is adaptable to various clinical applications. Duet is open source and is available at https://github.com/yekaizhou/duet.
The importance of structural variants (SVs) in genetic disorders has been elaborated in recent studies using traditional molecular techniques [1,2,3]. Third-generation sequencing (TGS) generates long-reads, which improve the detection resolution down to the base-pair level and are therefore informative enough to achieve phasing [4, 5]. Resolving SV haplotypes can be useful for determining allele-specific expression, compound heterozygosity, and other diplotypic effects [6,7,8,9,10], thus supporting more accurate diagnosis and treatment planning. One of the more cost-effective TGS options for SV detection involves applying the Oxford Nanopore Technologies (ONT) MinION sequencer for whole genome sequencing.
However, current SV detection tools including cuteSV , SVIM , NanoVar , and Sniffles  have several constraints. First, the accuracy of SV calling can only be guaranteed when the provided sequencing coverage is high, which is not always available in actual clinical settings. The unsatisfactory performance of existing state-of-the-art tools for low-coverage sequencing data originates from their quality control methods. These tools identify false signals when the number (NSV) and the proportion (pSV) of supporting reads with SV marks are low [11,12,13,14]. This approach works well for high-coverage sequencing data where there are abundant number of supporting reads, and a clear gap in NSV and pSV between the true SV calls and the false signals, which can be observed and used for quality control. However, in low-coverage settings, it is common that there are only one or two supporting reads with SV marks for both true and false signals. Low-coverage data will generate SV candidates with low and very close pSV and NSV, which are hard to distinguish from true SVs and false signals based on this single feature. Therefore, novel supporting read signatures and novel features may add to the granularity of the quality control workflow, which is promising for boosting the performance of low-coverage SV calling.
Second, these tools can only distinguish the genotype of the detected SVs (SV genotyping). The genotype can be assigned homozygous (1/1) or heterozygous (0/1) if the level of pSV and NSV is high or median, but the tools lose discriminative power when the sequencing coverage is low. Moreover, this method does not distinguish the paternal (1|0) or maternal (0|1) haplotype of the heterozygous SVs (SV phasing), which is important for clinical applications. To achieve SV phasing and accurate SV genotyping in low-coverage, it is reasonable to solicit additional supporting read signatures, such as the haplotype tendencies of the reads potentially from single-nucleotide polymorphism (SNP) calling and phasing. The additional signatures serve as the raw materials to derive novel features, which provide the granularity for SV phasing and quality control in SV calling at low-coverage.
In this paper, we introduce Duet, a tool for SV calling, genotyping, and phasing, optimized for ONT data. Instead of relying solely on the SV signatures on the reads [11,12,13,14], Duet incorporates SNP signatures to observe paternal or maternal tendencies of each SV supporting read. The tool further integrates both SV and SNP signatures into several novel features. The features form as an interpretable and robust decision path, which can characterize SV haplotype from false signals, even when the number of SV supporting reads is moderate. Therefore, while most existing approaches for SV phasing, require both high-coverage  and multi-platform sequencing data [16,17,18,19], Duet can accurately call and phase SVs with only 8× whole genome sequencing (WGS) ONT data, and has great performance in scaling when the sequencing coverage goes higher, which is promising in various clinical applications.
The schematic diagram of Duet is depicted in Fig. 1. Taking a long-read alignment  and its reference as input (Fig. 1A), Duet processes the data with four major modules, comprising (1) SNP calling (Fig. 1B), (2) SNP phasing and per-read haplotype assignment (Fig. 1C), (3) SV calling (Fig. 1D), and (4) SV phasing (Fig. 1E, F) to output phased SVs. The tool is designed to tolerate false positives of low-coverage ONT WGS data while retaining a high level of accuracy, although the use of a high-coverage dataset (i.e., ≥ 20×) can enhance its performance.
SNP calling generates heterozygous SNPs that can be used as a proxy to infer the reads’ haplotypes. We applied the ONT model of Clair3 , a fast and accurate long-read small-variant caller, with “--snp_min_af 0.25 --pileup_only --call_snp_only” options after experimenting with different settings. The settings were fine-tuned in Duet, which increased the overall processing speed, in addition to providing sufficient variant-calling accuracy for phasing.
SNP phasing and per-read haplotype assignment
Using the SNP-calling results, Duet applies WhatsHap  with “whatshap phase --distrust-genotypes” to generate the two parental haplotypes. The settings provide WhatsHap with higher tolerance for false positives, especially when working with low-coverage datasets. The haplotag “whatshap haplotag --tag-supplementary” subfunction is then called to assign haplotype to each read. In addition, each read is assigned a confidence score by WhatsHap, which is positively related to the number of accurately phased variants. Duet will use the haplotype and the prediction confidence of the reads. We employ GNU Parallel  to allow parallel processing of all chromosomes.
It is essential to apply a base SV caller that is sensitive even when using low-coverage data to reduce the initial false-negative rate, as a large proportion of false positives can be filtered out after SV phasing. After performance evaluation, cuteSV  with the setting “-s 2 --max_cluster_bias_INS 100 --diff_ratio_merging_INS 0.3 --max_cluster_bias_DEL 200 --diff_ratio_merging_DEL 0.5” provides the best output to fit the purpose of Duet, where the SV marks detected are loosely clustered for downstream analysis.
Duet integrates the SV and SNP signatures obtained from the above modules to represent each supporting read, i.e., haplotype (HP), confidence of the haplotype prediction (phasing confidence, PC), and the number of SV marks (VC). For each SV call set with multiple supporting reads, several novel features are derived from the signatures, and an empirical rule-based decision path with corresponding cut-off values is derived accordingly.
The decision path contains three layers:
First, an initial filter is applied to filter out SV calls that contain too small a proportion of phasable reads (pHP) with a very high average phasing confidence (μPC).
The remaining SV calls will go through a subsequent characterization based on the proportion of reads containing SV marks (pSV), to identify false positive SV calls (0/0) if with too low pSV, and homozygous variants (1|1) if with high pSV.
The further remaining SV calls with moderate proportion of reads with SV marks will be finally distinguished between being homozygous or heterozygous, where the phasing confidence is taken into meticulous consideration: Duet classifies the supporting reads into paternal group and maternal group based on their haplotype. Then the sum of the phasing confidence for each haplotype group is calculated (ΣPC1, ΣPC2). If these two values have no huge difference (i.e., a moderate pΣPC), the SV call will be classified as homozygous (1|1). Otherwise, if there is a huge difference between the total phasing confidence, the SV call will be classified as heterozygous and assigned to the haplotype with the dominant total phasing confidence (0|1 or 1|0).
Evaluation methods and metrics
We have an integrated evaluation method for SV calling, genotyping, and phasing, with code available at [https://github.com/yekaizhou/duet/blob/main/src/scripts/evaluation.py]. The evaluation criteria of SV calling and genotyping is adapted from Truvari [https://github.com/ACEnglish/truvari].
In the evaluation of SV calling, an SV candidate is determined as a true positive (TP) if it meets the following conditions:
where comps, compL and compt are the start coordinate, length, and the class of an SV prediction, respectively, while the bases, baseL and baset are the starting coordinate, length, and the class of an SV recorded in the truth set, respectively. An SV call is counted as a false positive (FP) if it does not satisfy Eq. 1. A ground truth SV is assigned as a false negative (FN) if there is no SV call that satisfies Eq. (1) with it.
With the above definition, precision (or the ratio of TPs to total calls in predictions) is defined as:
Recall (or the ratio of TPs to total calls in the truth set) is defined as:
F1 score is defined as:
When considering the performance of SV genotyping, each TP SV call in SV calling gets further evaluated if its genotype is the same as the corresponding base call. If so, it is assigned to be a TP call, otherwise, it will be assigned as an FP call. All the FP calls in the SV calling evaluation procedure remain FP in SV genotyping. Each of the ground truth SVs will be evaluated and assigned TP if there is at least one TP call corresponding to it, otherwise it is assigned false negative (FN). Equations (2)–(4) are used to calculate the statistics of SV genotyping.
Switch error rate is a standard metric to evaluate the phasing accuracy of abundant and adjacent genome variants such as SNPs. However, this metric fails to be a reasonable metric for SVs, which are large and distant . Therefore, we adapted and adjusted the standard evaluation method of SV genotyping for SV phasing. SV phasing will separately evaluate every phase block produced by WhatsHap: For each phase set, the haplotype prediction of TP SV calls in SV calling will have two versions, one remains original and the other was flipped (0|1 to 1|0; 1|0 to 0|1; 0|0 and 1|1 remains unchanged), and their haplotypes will be separately compared to the ground truth set: If the haplotype matches, it will be a TP call, otherwise, it will be an FP call. All the FP calls in the SV calling evaluation procedure remain FP in SV phasing. The evaluation will record the version with more TPs for every phase set. Each of the ground truth SVs will be evaluated and assigned TP if there is at least one TP call corresponding to it, otherwise it is assigned false negative (FN). Equations (2)–(4) were used to calculate the statistics of SV phasing.
We compared Duet against four state-of-the-art SV callers, SVIM , cuteSV , NanoVar , and Sniffles , for SV calling and genotyping. We also compared Duet against LongPhase , an algorithm that can phase SVs based on an existing SV call set generated from other programs. We use the SV call set from cuteSV, and the SNP call set from Clair3 and WhatsHap as the input for LongPhase. In addition to the default setting of using cuteSV as the base SV caller of Duet, we evaluated the performance of Duet using SVIM as the base SV caller. The benchmarking was on HG001, HG002, and HG00733, three standard human samples from the Human PanGenomics Project , with available high-confidence haplotype-resolved SV truth sets from HGSVC2 . We tested the performance on three sequencing coverages: 8× (low-coverage), 20× (middle-coverage), and 40× (high-coverage).

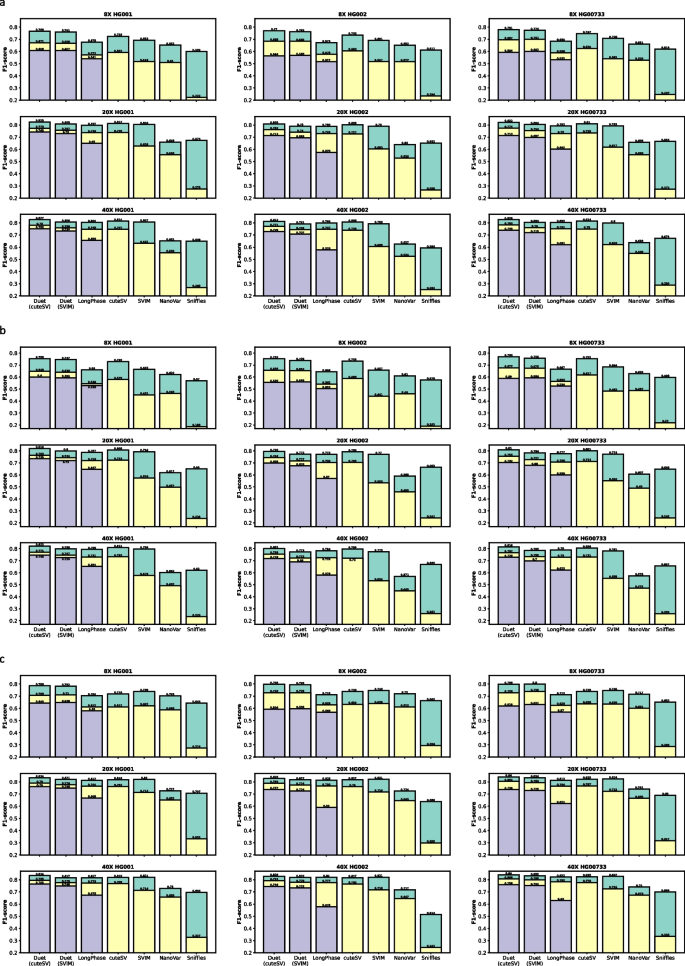

The F1-scores are shown in Fig. 2a. At 8× sequencing coverage of the three human samples, Duet achieved up to 0.85 precision, 0.72 sensitivity, and 0.78 F1-score genome-wide for SV calling; 0.74 precision, 0.66 sensitivity, and 0.70 F1-score for SV genotyping; and 0.65 precision, 0.57 sensitivity, and 0.61 F1-score for SV phasing. Duet outperformed other tools in SV calling, genotyping, and phasing at the low coverage of 8×.
The performance of Duet has stable improvement when the sequencing coverage is increased to 20×, and achieved up to 0.87 precision, 0.79 sensitivity, and 0.82 F1-score genome-wide for SV calling; 0.81 precision, 0.75 sensitivity, and 0.77 F1-score for SV genotyping; and 0.77 precision, 0.72 sensitivity, and 0.74 F1-score for SV phasing. Duet showed increased improvement compared to other tools in SV phasing. Duet still outperformed other tools in SV calling and genotyping and the second in place is cuteSV and LongPhase, respectively.
The performance of Duet has slight improvement when the sequencing coverage is increased from 20× to 40×, and achieved up to 0.87 precision, 0.79 sensitivity, and 0.83 F1-score genome-wide for SV calling; 0.82 precision, 0.75 sensitivity, and 0.78 F1-score for SV genotyping; and 0.78 precision, 0.73 sensitivity, and 0.75 F1-score for SV phasing. Duet still has a great competing edge in SV phasing. Duet still outperformed other tools in SV calling and genotyping and the second in place is cuteSV and LongPhase, respectively.
We further benchmarked Duet against the other tools at all three sequencing coverages on specific SV types including insertion and deletion. The results are shown in Fig. 2b, c. Similar to our previous observations on all SVs, Duet outperformed the other tools on both insertion and deletion. Compared to using cuteSV as Duet’s base SV caller, the performance of using SVIM is comparatively lower on our benchmarking samples, albeit Duet with either caller outperformed the other tools. As it is possible for Duet with SVIM to outperform Duet with cuteSV on different samples, we allow users to choose to use either caller in the Duet, with cuteSV as the default option.
The runtime of Duet using 40 CPU threads ranged from 1.3 to 2.2 h at 8×, 1.6 to 2.3 h at 20×, and 2.0 to 3.6 h at 40× sequencing coverage across the three samples (Fig. 3a). Duet uses either cuteSV or SVIM as its base SV caller, therefore it runs longer than both callers. However, Duet still ran faster than LongPhase, NanoVar, and Sniffles. While the average memory usage was lower, the peak memory of Duet ranged from 34 to 45 GB at 8×, 41 to 56 GB at 20×, and 73 to 79 GB at 40× (Fig. 3b).
To demonstrate why SNP signatures are informative for SV detection, we compared the ratio of false and true SV signals with different phasing confidence of the supporting reads. We ran SVIM, Clair3, and WhatsHap on 8× of HG001, HG002, and HG00733 to gather the raw SV call set, haplotype, and phasing confidence of each sequencing read. Each SV candidate was tagged either false positive or true positive using the evaluation method above. Each supporting read of each SV candidate was tagged with a phasing confidence. All the supporting reads of all SV candidates from the three samples were pooled together to derive the relationship between SV signal correctness and the phasing confidence of the supporting read. The results are shown in Fig. 4. We found that a true SV signal happened more often when supporting reads are with a moderate phasing confidence (300 to 2100), but less happened when with a low phasing confidence (0 to 300). Conversely, excessively high phasing confidence (8100 or above) is associated with more false SV signals. The above complications comprise Duet’s decision-making procedure to distrust SV calls with supporting reads having either too low or too high phasing confidence.
To demonstrate the advantage of Duet’s novel features compared to the traditionally used features, we additionally compared Duet to using either pSV or NSV for removing false signals. For SV genotyping, we set SV candidates with pSV < 0.2 as false, pSV > 0.8 as homozygous (1/1), and in between as heterozygous (0/1). For SV phasing, we set NSV ≥ 2 for both haplotypes as homozygous (1|1), NSV ≥ 2 for only one haplotype as heterozygous (0|1 or 1|0), and NSV < 2 for both haplotypes as false. The results are shown in Fig. 5. Duet outperformed using the traditional features for false signal detection with all three coverages and three samples.
In this study we developed a tool for SV calling, genotyping, and phasing, which we named Duet. We demonstrated that Duet is more accurate and powerful than other state-of-the-art tools in resolving genomic SVs, particularly those that lead to disease, when only low-coverage data is available, which is very useful in clinical settings and resource-constrained lab settings where sufficient genomic data coverage may not be available. At higher coverages, Duet’s performance in SV phasing is further improved in comparison to other competing tools used for the purpose, while maintaining a greater performance in SV genotyping and SV calling. The benchmark results of Duet further demonstrate that by incorporating SNP calling, SNP phasing, read haplotagging, the tailored decision tree is beneficial to SV detection, especially in accurate SV phasing and the quality control for low-coverage SV calling. Although Duet was optimized for ONT data, it has no restriction applying to PacBio data, albeit some thresholds need to be tuned to achieve the best potential.
There are still some limitations in Duet:
Starting from middle-coverage, the competing edge of Duet in SV calling becomes less significant. The main reason is that when the sequencing coverage goes higher, the feature pSV used by other tools has recovered its discriminative power to remove false signals. Duet’s current quality control method has clear improvement at low-coverage, and will generally be caught up by other state-of-the-art methods when the coverage goes higher.
The performance improvement of Duet from middle-coverage to high-coverage is moderate. All the benchmarked tools have similar situation. This is because our highly accurate truth sets are derived from multi-platform sequencing, and some genome regions are hard to map using single-strand sequencing technology, even with high coverage. Despite this objective explanation, there is possibly room to improve the performance of Duet at high-coverage data by updating the quality control method to fit both low- and high-coverage sequencing data in a coverage-dependent manner.
In this study, we introduced Duet, a long-read-based tool for accurate SV calling and phasing. Duet showed promising results that the incorporation of SNP signatures will largely boost the performance of SV detection, especially when there is constraint in sequencing coverage and when there is a need for accurate SV phasing. The tool’s great adaptability and scaling performance in SV calling and phasing promise its usefulness in routine clinical applications.
