GoWeb: a semantic search engine for the life science web



Current search engines are keyword-based. Semantic technologies promise a next generation of semantic search engines, which will be able to answer questions. Current approaches either apply natural language processing to unstructured text or they assume the existence of structured statements over which they can reason.


Here, we introduce a third approach, GoWeb, which combines classical keyword-based Web search with text-mining and ontologies to navigate large results sets and facilitate question answering. We evaluate GoWeb on three benchmarks of questions on genes and functions, on symptoms and diseases, and on proteins and diseases. The first benchmark is based on the BioCreAtivE 1 Task 2 and links 457 gene names with 1352 functions. GoWeb finds 58% of the functional GeneOntology annotations. The second benchmark is based on 26 case reports and links symptoms with diseases. GoWeb achieves 77% success rate improving an existing approach by nearly 20%. The third benchmark is based on 28 questions in the TREC genomics challenge and links proteins to diseases. GoWeb achieves a success rate of 79%.


GoWeb's combination of classical Web search with text-mining and ontologies is a first step towards answering questions in the biomedical domain. GoWeb is online at:


With the tremendous growth of the World Wide Web, search engines became key tools to find documents. Search engines retrieve documents for a user's keywords from a large index and rank them by various criteria. While such keyword-based search is fast and powerful to retrieve single documents, it is far from the vision of answering a user's questions by "understanding" the user's query and answers in the documents as put forward already in the late 1960s [1].

Consider e.g. a biomedical researcher, who might ask questions such as the following: Which model organisms are used to study the Fgf8 protein? Which processes are osteoclasts involved in? What are common histone modifications? Which diseases are associated with wnt signaling? Which functions does Rag C have? Which disease can be linked to fever, anterior mediastinal mass, and central necrosis? What is the role of PrnP in mad cow disease?

The Web holds answers to these questions, but classical keyword-based search is not suitable to answer them, since the keywords are required to appear literally in text. However, documents do contain statements such as e.g. "wnt signalling is linked to cancer" or "we studied fgf8 expression in Zebrafish development". If there is background knowledge that cancer is a disease and that zebrafish is a model organism, then the above questions can be answered.

The use of such knowledge is at the heart of the semantic web, which promotes the use of formal statements and reasoning to deliver advanced services not available on the Web now [2]. To facilitate machine-readability and knowledge processing, a set of standards, query languages, and the semantic stack was proposed by the World Wide Web Consortium (W3C). The stack comprises at the base unique identifiers and XML as common markup language. On top of XML, it defines the Resource Description Framework (RDF) to capture subject-predicate-object triples. Furthermore, there is the modelling language RDF Schema (RDFS) and the query language SPARQL. The basic class definitions and triples of RDF are extended at the next level by the Web ontology language (OWL), which provides description logic as modelling language and by a rule layer [3].

Besides the expressiveness of OWL, mark up for vocabularies and meta-data emerged such as Simple Knowledge Organisation Systems (SKOS) [4], Dublin Core [5], Friend of a Friend (FOAF) [6] and the Semantically-Interlinked Online Communities Project (SIOC) [7]. Additionally, there are formats to embed semantic annotations within web documents, such as embedded RDF (eRDF), Microformats [8] or Resource Description Framework in attributes (RDFa) [9].

All of the above standards serve the need to formally represent knowledge and facilitate reasoning over this knowledge. They require explicit statements of knowledge. As a consequence, the amount of such structured data is still small in comparison to the unstructured data. Thus, to support semantic search there are essentially two approaches: Those, searching structured documents and reasoning over them and those, searching unstructured documents and extracting knowledge and reasoning over it. The knowledge extraction step of the latter uses combinations of natural language processing, information retrieval, text-mining, and ontologies for the knowledge extraction.

Table 1 summarises a number of semantic search engines, which work on structured and unstructured documents. The former comprise Swoogle [10], Semantic Web Search Engine (SWSE) [11], WikiDB [12], Sindice [13], Watson [14], Falcons [15], and CORESE [16]. They include existing RDF repositories and crawl the internet for formal statements, e.g. OWL files. A search retrieves a list of results with URIs. For SWSE and Falcon the result is enriched with a description and a filtering mechanism for result types. CORESE uses conceptual graphs for matching a query to its databases. WikiDB is slightly different from the others in that it extracts formal knowledge implicit in meta tags of Wikipedia pages and converts it into RDF offering querying with SPARQL.

Table 1 Comparison of semantic search engines

As mentioned, the above systems are limited by the availability of structured documents, a problem addressed by approaches such as the semantic media wiki [17] and large efforts such as Freebase [18], which provides an environment to author formal statements. The second class of tools works on unstructured text and therefore does not suffer from this limit. The systems can be distinguished by the document source they work on (Web, Biomedical, Wiki), the use of background knowledge in the form of ontologies, the use of text-mining techniques such as stemming, concept identification, deep/shallow parsing.

Hakia, START [19],, BrainBoost (, AnswerBus [20], Cuil [21], Clusty [22], and Carrot [23] are engines that work on Web documents. Hakia, START and AnswerBus use natural language processing to understand documents, while Cuil, Clusty and Carrot cluster search results and aim to label clusters with phrases, which are offered as related queries. Cuil, Clusty and Carrot are not semantic search engines in a strict sense, since these phrases are not part of an ontology or vocabulary. However, they do have the benefit of being generally applicable and Cuil offers definitions for phrases where available. uses its ExpertRank, an algorithm for computing query-specific communities and ranking in real-time, to identify relevant pages [24]. They include structured knowledge to generate answers.

BrainBoost is a meta-search engine. It uses the proprietary AnswerRank algorithm applying machine learning and natural language processing. It ranks answers extracted from the top websites.

Wikipedia is a valuable resource to answer questions and hence some engines are specifically applied to it.

PowerSet applies e.g. natural language processing to Wiki in a similar manner to Hakia. QuAliM [25] uses a pattern based approach for sentence analysis. Semantic type checking for answers and a fallback mechanism with web search is implemented in QuAliM.

The above tools are intended to be general and as a result they generally do not cover the biomedical domain well. Searching for example for a protein such as Fgf8, PowerSet and Hakia offer information on the protein, but are not able to find zebrafish as a model organism.

Engines such as askMedline, EAGLi [26], GoPubMed [27], ClusterMed, IHOP [28], EBIMed [29], XplorMed [30], Textpresso [31] and Chilibot [32] address this by processing biomedical literature in full text (Textpresso) or abstracts as available in the PubMed literature database. With a focused domain, these engines can use background knowledge. GoPubMed and EBIMed use e.g. the GeneOntology and the Medical Subject Headings, MeSH; XplorMed filters by eight MeSH categories and extracts topic keywords co-occurrences; Chilibot extracts relations and generates hypotheses; IHOP uses genes and proteins as hyperlinks between sentences and abstracts; EAGli and askMedline process questions as input for the search.

Finally, besides all of the automated approaches, Google, Yahoo! and Microsoft use humans to answer questions in their services Google Answers, Yahoo! Answers and MSN Live Search QnA.

Closely related to semantic search, is semantic hyperlinking as implemented in the Conceptual Open Hypermedia Service (COHSE). COHSE annotates a given web page with concepts and offers services based on the identified concepts [33, 34].

None of the above systems combines the simplicity of keyword search on the vast amounts of Web documents with the use of biomedical background knowledge to filter large keyword results with biomedical ontologies. Here, we address this by introducing the GoWeb search engine. GoWeb issues queries to Yahoo and indexes the snippets semantically with ontology terms. These are then offered to filter results by concepts. In order to demonstrate the power of this approach in question answering, we evaluate GoWeb on three benchmarks with questions on gene/function, symptom/disease, and protein/disease relationships and compare it to existing solutions.


GoWeb is an internet search engine based on ontological background knowledge. It helps to filter potentially long lists of search results according to the categories provided by the GeneOntology (GO) [35] and the Medical Subject Headings (MeSH). With GoWeb one can use the GoPubMed [27] features together with the wide range of information sources available in the internet. It offers an efficient search and result set filtering mechanism, highlighting and semi-automatic question answering with the ontological background knowledge.

To facilitate the easy usage of GoWeb, the website is structured in three panels. Please consider Figure 1, a screen shot of the GoWeb web page. The left panel contains the background knowledge and other retrieved meta-data. For quicker navigation the panel is organized in the four categories what, who, where, when (4 w panel). The top-right panel holds the query field (search panel). In the third panel below the input field, the actual search results are presented (document panel).

Figure 1
figure 1

GoWeb screen shot. GoWeb screen shot, shown with example query Fgf8 and selected term "Zebrafish". On the left of the GoWeb website are the semantic filters in the where-what-who-when panels. In the what panel the GO and MeSH are show in a tree representation. For this example the MeSH branch "Organisms" is open. The most relevant concepts in this branch are listed, for instance "Mice" and "Zebrafish". The number of matching search results is given in brackets and is illustrated with a small bar chart. The bar indicates the fraction compared to the overall result set count. The wider the bar the more often it occurs in the search result. On the right side are the search results with the query field and summary on top. The search summary contains information about the current and overall number of search result. The individual search results are presented as a list. Each result has a title and a short text extract. In both keywords and terms are highlighted. The number in front of the title represents the original result position.

The semantic filters of GoWeb are presented in the 4 w panel. The what category contains the result tree for the ontological background knowledge. It uses a tree representation for relations between the ontology concepts of background knowledge. In this way a concept in the tree represents the concept itself and its children. Thus, allowing the user to select relevant concepts with one click.

The who panel contains filters related to persons, companies or institutions. In the where panel there are filters related to locations, such as cities, countries and similar. The when category assists with time related filters, e.g. a date.


The search is executed by a traditional keyword based search service. We use Yahoo! Search BOSS service [36]. The result of a submitted search is a list of textual summaries for web documents, called snippets. Next, GoWeb uses entity recognition techniques to map concepts from the background knowledge to the snippets.

The algorithm for the identification of ontological concepts in text is based on the GoPubMed algorithms [27]. For the identification of protein and gene names we use the approach by Hakenberg et al. [37], which achieved the best results in the gene identification task of BioCreAtIvE 2 (Critical Assessment of Information Extraction systems in Biology) in the year 2007. Further entity recognition services can be integrated into GoWeb. Currently the OpenCalais service [38] is used to identify names and places.

The identified entities of each result and found keywords are the basis for a co-occurrence based semantic filtering mechanism of GoWeb. The filter uses the part-of and is-a relationships from GO and the tree structure of MeSH. These relations are used to induce the relevant search result for each concept from the background knowledge. The induction result for all search results for a query is also used to select important concepts. These top concepts are selected for the entire background knowledge and for each sub category. The selection of top concepts includes the occurrence frequency, the hierarchy level and, if available, a global frequency from a pre-analyzed corpus.


The workflow for GoWeb can be described as follows. The user submits a query through the search form on the GoWeb website to the server. The server preprocesses the query and sends a search request to the search service. The search service returns the first results. The first results are then annotated, highlighted (concepts and keywords), rendered and sent to the user.

The user can now already browse the first results. Once the first results are processed, the server starts fetching the remaining results. This is done for up to 1000 results. Then all fetched results are annotated. To reduce the response time, the fetching and annotation of results is done in parallel. The annotation information is then used to induce a tree representation and top concepts of the ontological background knowledge for the submitted query (result tree). Then this information is rendered and sent to the user-interface using AJAX (Asynchronous JavaScript and XML) technologies using a JSON (JavaScript Object Notation) based message format to reduce the required time and bandwidth. An overview is available in Figure 2.

Figure 2
figure 2

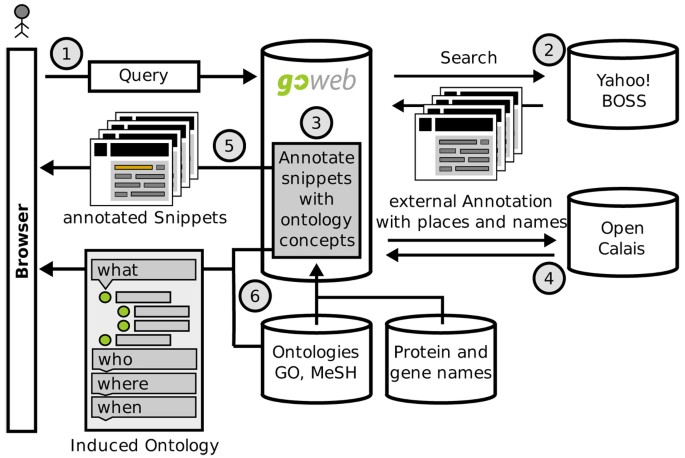

GoWeb workflow. General workflow for GoWeb showing the main components and the interactions between the external services. The workflow starts with the user submitting a query via the search input field from the GoWeb page (1). The search request is parsed and transformed in a search for the external Yahoo! BOSS (2). The service return a list of results, snippets. The textual content is annotated by GoWeb (3) and the additional external OpenCalais service (4). The search keywords and the identified entities form the annotation are highlighted in the search results. Then the results are rendered and sent to the browser (5). Based on the annotations and the ontology structure the tree representation is induced; top concepts are selected and sent to the browser (6).

If the user selects a concept in the result tree by clicking it, a request is made to update the presented documents. This includes a filtering step of the result set and a re-ranking step. For an illustration of this workfow see also Figure 3. The new ranking is based on the found concepts, keywords and the original ranking. A distance measure between keywords and selected concept is included for the reranking calculation.

Figure 3
figure 3

GoWeb workflow (2). Workflow for a request containing a concept selected from the result tree in the user browser. When a user clicks on a concept in tree from the GoWeb website (1), the browser sends a request to update the search results (2). GoWeb filters all search results. If a result is annotated with the concept or a child of this concept, it is included in the new result list (3). Additionally the results are reranked and the highlighting of the selected concept and children is updated. The new result list is finally send to the browser.

Once the user has decided to open a web page, GoWeb offers to highlight the page with the keywords and concepts from the background knowledge. This is done with a proxy-based solution. The server checks if this page is annotatable, e.g. the content is HTML based. Then the GoWeb-server fetches the site and analyzes the content, adds the annotations and sends the result to the user. If the content is not processable by the proxy there is an automatic forward to the original content.

Results and discussion

The goal of GoWeb is to use ontologies and text-mining in semantic web search to answer questions. Here, we give some examples and evaluate the question answering capabilities of GoWeb on three benchmarks.

In the introduction we raised questions such as the following: Which model organisms are used to study the Fgf8 protein? Which processes are osteoclasts involved in? What are common histone modifications? Which diseases are associated with wnt signaling? In which countires the chagas disease is most prominent?

An answer to these questions can be found using GoWeb. For example Fgf8 is studied in Mice, Zebrafish; osteoclasts are involved in bone resorption; common histone modifications are Methylation and Acetylation; the wnt signaling pathway is associated with neoplasms like breast cancer, tumors or leukemia and chagas is most prominent in Brazil, Argentina, Bolivia and other Latin American countries.

The answers were directly obtained with GoWeb using simple keyword searches and the induced background knowledge. For example the answer to the first question can be found in the following way: first submit the query Fgf8 the answer is directly shown as listed concepts in the organism's part of the background knowledge (see also Figure 1 and 4). To retrieve the corresponding search results click on the organism. To answer the last question the approach is very similar. Submit the query keyword chagas. Open the where panel and the entities and countries. There is a list of identified countries which are mostly located in Latin America. Once again a click on the country of interest in the tree retrieves the relevant articles.

Figure 4
figure 4

GoWeb screen shot. GoWeb screen shot, shown with example query Fgf8 and selected term "Cichlids". Next to the top terms as answers there is for instance the concept "Cichlids" listed under "Organisms". When selected GoWeb retrieves the matching snippets. For this example search the result set is reduced to three articles, which were formerly on positions 265, 739 and 943. The snippets talk about the usage of cichlids in the study of tooth and jaw morphogenesis. To learn more about cichlids, there are the concept definitions available in the tooltips or the exploration of related links to Wikipedia.

The simple strategy of using keywords and filter with the induced background knowledge can be generalised to support semi-automatic question answering. Next, we will demonstrate this using three independent benchmarks.

Genes and functions

The first benchmark is based on the association of Genes and their functions. The BioCreAtIvE 1 (Task 2) [39] was a competition for text-mining algorithms to find functional annotations in the form of GeneOntology (GO) concepts for genes in a given full-text corpus. This task is a key problem for annotators of many databases and a key question for biologists encountering a novel gene/protein, they are not familiar with.

The test set for GoWeb now contains all GO annotations and genes from the competition, which were labeled as identified with high confidence in the results. This yields a list of 457 gene names with a total of 1352 GO concepts. For example for "Rag C" there are 10 annotations: cytoplasm, small GTPase mediated signal transduction, RNA splicing, transcription, GDP binding, protein heterodimerization activity, small monomeric GTPase activity, heterotrimeric G-protein complex, protein binding and nucleus.

For a test run GoWeb was given a gene name as query. Then it is checked if the induced ontology tree contained the concepts corresponding to the expected functional annotations for the gene. For all 457 submitted names the search returned documents and the GoWeb system could identify GO concepts from these snippets. The results show that for 58.1% (785 of 1352) of the benchmark concepts are contained in the tree (recall). As the original BioCreAtIvE task specified a corpus and not an internet wide search as with GoWeb, precision is not applicable for this evaluation case.

Symptoms and diseases

The second benchmark demonstrates the capabilities of GoWeb concerning the association of symptoms and diseases as carried out by general practitioners and medical researchers. It is based on the study by Tang et al. [40], who used a set of 26 diagnostic cases published in the case records of the New England Journal of Medicine. The symptoms were used as keywords for the search. From the search results, they proposed a possible diagnosis. For example for the symptoms "fever, anterior mediastinal mass and central necrosis", they expected to find the diagnosis "Lymphoma". With their Google-based approach the proposed diagnosis was for 15 out of 26 (58%) cases correct. It also has to be remarked, that Tang et al. is a controversial [4143] article. One of the main issues was a possible wrong impression to the patients. It has to be clear that a search can not replace the professional and trained diagnostic capabilities of a physician. Especially in the medical domain web search results have to be handled with careful considerations.

In the experimental setup for GoWeb the same keywords as in the original paper, were used. Each diagnosis has been mapped to the corresponding MeSH concept, if possible. Then in the experiment a query was given to the GoWeb system and the resulting induced background knowledge tree was evaluated. As an additional comparison for GoWeb we also applied this benchmark and experimental setup to the GoPubMed system [27].

GoWeb can provide the correct answer in 20 out of 26 (77%) cases. In 10 of these cases, the answer term is found directly in the top categories of the Diseases subtree of MeSH (see Table 2). With up to 10 categories per subtree, this equals to a top 10 ranking or better in these cases for the identified ontology concepts. The cases 8, 10 and 18 are not marked as successful, although the results mention the searched concepts. But they all find only one article, the article [40] this analysis relies on. With GoPubMed an answer could only be found in 13 cases. GoPubMed searches only in scientific abstracts and does not include web contents such as clinical trails, general health pages, disease group pages, etc. For a comparative overview see Table 3.

Table 2 Overview of the GoWeb results for the symptoms and diseases benchmark
Table 3 Comparison of Google, GoPubMed and GoWeb for symptoms and diseases benchmark

For example for the case study number 28 GoWeb finds 126 articles for the query "ANCA haematuria haemoptysis". Under diseases one can find the MeSH concept "Churg-Strauss Syndrome". A click on the concepts in the tree retrieves three snippets containing the concept. The resulting snippets are:

  • Laboratory imposed restrictions on ANCA testing – 63 (5): 594 – Annals of the Rheumatic Diseases

The laboratory has performed ANCA testing only when the request form indicated ... haematuria (requests from the renal/transplant unit), Churg-Strauss syndrome, ...

  • include haemoptysis (13% of patients), cystic bone lesions (4–20% of ... Some 70–75% of patients with Churg-Strauss syndrome have ANCA ...

  • Churg-Strauss Syndrome – Patient UK

Pulmonary: asthma, pneumonitis and haemoptysis ... patients are perinuclear-ANCA (p-ANCA) positive (antimyeloperoxidase antibodies) ...

The GoWeb system performs better than GoPubMed because the underlying search engine has a larger repository of documents. Additionally, it can also index the full text, if it is available on the web. The MEDLINE search for all PubMed based search engines, like GoPubMed, is only based on abstracts. This corresponds with the fact that the MEDLINE search returns often none or only one article abstract.

Proteins, diseases and evidences

Linking proteins and disease is a key task for many molecular biomedical researchers. The third benchmark for GoWeb is based on the questions from the TREC Genomics Track 2006 [44]. The results of TREC Genomics Track 2006 comprise a benchmark that focused on passage retrieval for question answering. It is based on full-text documents from the biomedical literature. For the year 2006 there were 28 questions. With GoWeb one can answer 22 of these 28 questions (78,6%). In 13 of these cases the semantic filter helped to reduce the result set. For a summary of all questions please have a look at Table 4.

Table 4 Summary of TREC Genomics 2006 answering capabilities of GoWeb

For GoWeb the questions were transformed into keywords. The complete listing of questions and keywords is available in Table 5. A question was marked as successfully handled, if there was a snippet that contained a valid answer. The answers had to be available in the top 20 search results. The second aspect addressed with this benchmark was to show the capabilities of the filtering feature. Filtering by background knowledge helps to reduce large results to a smaller set of relevant documents. It was marked as applied, if the answers were found by using the filtering feature. If the semantic filter feature was used the new top 20 after filtering and re-ranking were checked. In most of the cases the re-ranking shifted a valid answer and evidence in the top 5 or better. Similar to the first benchmark, precision is not applicable. The gold-standard for the TREC Genomics Track 2006 contains only passages from the original corpus and competition. New answers and answers from other sources are not comparable.

Table 5 TREC Genomics 2006 questions and keywords

The answers for the first four questions (160–164) are shown in Table 6. They also demonstrate what kind of textual evidence GoWeb can provide as answers. The answer to question 160 (What is the role of PrnP in mad cow disease), for instance, was found by submitting the keywords and selecting the MeSH concept "Encephalopathy, Bovine Spongiform" (mad cow disease is a synonymous label for the concept) as semantic filter. The selected answer was now in the first part of the remaining relevant results. The given number 378 corresponds to the original position. This demonstrates that without the filter this answer would not have been found normally [45]. For the question 161 the keywords were specific enough. This corresponds with the original rank of first and second position for the answers.

Table 6 Answers for TREC Genomics 2006 questions 160 to 164

There are two main reasons for GoWeb to not be able to find an answer for all question in the benchmark. The first is that the question is too complex. The answer is too long to be formulated in a sentence or snippet. For example the question 171 contains actually two questions. The second reason is that the question domain is not sufficiently modelled in the background knowledge. For question 178, for instance, skin biology has no corresponding concept and is too general to be mentioned directly in text.

Discussion and comparison

The three used benchmarks provide a basis for the evaluation of GoWeb. They demonstrate the power of the idea but also its limitations. The starting point is the usage of snippets. This is already a limitation in terms of completeness. Snippets can be seen as an abstraction. They try to summarize facts related to the keywords. A snippet might be too short to contain very complex facts, some information will be lost. But important information is more likely to be in the snippet, because important facts are often close to each other in the original text. Thus it is more likely to be also contained in the snippet. The co-occurrence is used as approximation for relation extraction. One advantage of using this simpler approach is the reduced computational complexity. A proper natural language processing (NLP) based approach would need more computational time. Furthermore, NLP might be hindered by the unpredictable grammatical structure of snippets. With GoWeb the complete annotation for 1000 results can be done on-the-fly and still provides response time of a few seconds.

The decision to use the Yahoo! BOSS API as search service was made on a technical level. The Yahoo! API offers to retrieve the most results per requests, parallel requests, unlimited queries per day and allows re-sorting of results. The latter is explicitly not allowed for the Google AJAX Search API in their current terms of service. The same goes also for the Microsoft Live Search API. Other APIs such as Amazon's Alexa Web Search or the Google SOAP Search API are deprecated and will be discontinued.

If more information than the snippet is required, it is necessary to fetch the web pages and analyze them. This could be done on runtime for the result set or pre-calculated during a crawl of the internet. Both options have major drawbacks. Fetching and analyzing of web pages on-the-fly is not feasible with the requirement of a short response time. The crawling of the internet is possible, but requires a significant amount of resources in terms of hardware and bandwidth to keep the index up-to-date. This is demonstrated by the popular search engines. Each of them uses several data and computing centers. Although the search requests from the user are the main load, keeping the index up-to-date is an important aspect. One advantage of a separate crawl is the chance to build a semantically enhanced index. Such an enhanced index offers the option to include concepts directly into the search and not as post-processing step like GoWeb.

To include all information from a web page will increase the recall. But it would also increase the problem of false positives from matching errors or irrelevant parts. The false positives would also unnecessarily increase the size of an index. With the option to pre-process the information, e.g. with topic recognition or disambiguation algorithms, this can be compensated. For a specialized system with a limited number of documents and known document structure, a semantic index might be a better solution than GoWeb. The application of text mining for concept identification is important for finding the relevant snippets in the search results. A simple keyword can not easily replace the additional information from the background knowledge. This includes synonymous labels and related concepts. For example for heart diseases in MeSH there are over 570 related labels. Although a user can try to emulate this behavior by using long Boolean queries, there is a prerequisite. The user has to know them beforehand. This expert knowledge is compressed and available by using ontology concepts.

The types of questions handled best by GoWeb have to be transformable into keywords and concepts. The answer provided by GoWeb will be either an inferred concept or a sentence/short text extract in the snippet. These options reduce the types of questions which can be answered by GoWeb. For example in a question classification by Tomuro and Lytinen [46] GoWeb performs best with questions of type definition ('What does X do?'), reference ('What', 'Which') or entities ('Who'). But it can not answer question types like manner of action, degree or interval ('how many', 'how much' or 'how long', e.g. What percentage of children are vaccinated?) and procedure ('how to'). For a medical question taxonomy by Ely et al. [47], GoWeb works with questions related to diagnosis branch but it fails for questions from the treatment branch (What are the options for treatment of condition y in situation z?), management (What is the best way to discuss or approach discussion of difficult issue x?) and nonclinical (What are the legal considerations in situation y?).

In comparison to existing systems which are mainly focusing on searching OWL and RDF content (e.g. Swoogle, SWSE) GoWeb covers a broader area. Current RDF search engines cover millions of RDF statements, whereas the internet search engines cover billions of websites. Unfortunately, most of the information in websites is unstructured text. GoWeb tries to bridge the semantic gap with the limited amount of available semantic annotations by employing text-mining for extraction of ontology concepts from text. In a nutshell, GoWeb exploits that keywords and ontology terms co-occurring in snippets are often facts.

Traditional search engines like Google have the coverage but they miss the explicit usage of ontological background knowledge. They only present a long list of results. This works very well for simple retrieval of documents, but has limits for more complex task, e.g. answering questions. Here the semantic filtering with concepts as in GoWeb helps to reduce the result list to relevant answers. If a snippet does not contain the relevant terms, it is likely to be not relevant.

In comparison with other internet search based systems like Hakia or PowerSet the advantage of GoWeb is its additional background knowledge for the biomedical domain. Only GoWeb combines the usage of the GeneOntology (GO), the Medical Subject Heading (MeSH) and protein identification. A clustering of text labels like Clusty or Carrot can not replace the structural knowledge of an ontology. In comparison to PubMed-based systems GoWeb can index the additional resources of full text articles on the web.


The search interface of GoWeb provides with the what-where-who-when categories a simple way to browse the results. Next to the actual search results GoWeb offers also additional information like definitions of concepts or Wikipedia links.

Together with the filtering mechanism to reduce the result set from 1000 possible results to a small number of relevant entries GoWeb offers powerful tool for semantic search in the biomedical domain. Overall, the paper shows that co-occurrences of keywords and ontology terms in lists of snippets are often approximating facts, which aid to answer questions. The simplicity of the approach ensures scalability and speed, still achieving success rates of up to 80%.

Availability and requirements

GoWeb is online available under the URL The GoWeb website has been tested with the following web browsers:

  • Firefox 2.0, 3.0

  • Internet Explorer 6.0, 7.0

  • Safari 3.2

The usage of GoWeb is free of charge for non-commercial users. For commercial users some restrictions may apply. For automated querying from any user, for example using programs, a registration is strongly recommended.



Critical Assessment of Information Extraction systems in Biology




Medical Subject Headings


Resource Description Framework


SPARQL Protocol and RDF Query Language


Text REtrieval Conference


Extensible Markup Language.


  1. Green B, Wolf A, Chomsky C, Laughery K: Computers and Thought. McGraw-Hill chap. BASEBALL: An Automatic Question Answer; 1963:207–216.

    Google Scholar

  2. Berners-Lee T, Hendler J, Lassila O: The Semantic Web. Scientific American 2001, 284(5):34–43.

    Article  Google Scholar

  3. Grigoris A, van Harmelen F: A Semantic Web Primer (Cooperative Information Systems). The MIT Press; 2004.

    Google Scholar

  4. Miles A, Bechhofer S: SKOS Simple Knowledge Organization System – Reference. W3C Working Draft 2008. []

    Google Scholar

  5. Dublin Core Metadata Initiative[]

  6. Brickley D, Miller L: FOAF Vocabulary Specification 0.91.2007. []

    Google Scholar

  7. Berrueta D, Brickley D, Decker S, Fernández S, Görn C, Harth A, Heath T, Idehen K, Kjernsmo K, Miles A, Passant A, Polleres A, Polo L: SIOC Core Ontology Specification.2008. []

    Google Scholar

  8. microformats[]

  9. Adida B, Birbeck M: RDFa Primer – Bridging the Human and Data Webs. W3C Working Draft 2008. []

    Google Scholar

  10. Ding L, Finin T, Joshi A, Pan R, Cost RS, Peng Y, Reddivari P, Doshi V, Sachs J: Swoogle: a search and metadata engine for the semantic web. In Proceedings of the 2004 ACM CIKM International Conference on Information and Knowledge Management, Washington, DC, USA: November 8–13, 2004. Edited by: Grossman DA, Gravano L, Zhai C, Herzog O, Evans DA. ACM; 2004:652–659.

    Google Scholar

  11. Harth A, Umbrich J, Decker S: MultiCrawler: A Pipelined Architecture for Crawling and Indexing Semantic Web Data. In International Semantic Web Conference, Lecture Notes in Computer Science. Edited by: Cruz IF, Decker S, Allemang D, Preist C, Schwabe D, Mika P, Uschold M, Aroyo L. Springer; 2006:258–271.

    Google Scholar

  12. Clements M: WikiDB.[]

  13. Sindice – The semantic web index[]

  14. d'Aquin M, Baldassarre C, Gridinoc L, Angeletou S, Sabou M, Motta E: Characterizing Knowledge on the Semantic Web with Watson. In Proceedings of the 5th International Workshop on Evaluation of Ontologies and Ontology-based Tools, EON Co-located with the ISWC2007, Busan, Korea: November 11th, 2007, Volume 329 of CEUR Workshop Proceedings. Edited by: Garcia-Castro R, Vrandecic D, Gómez-Pérez A, Sure Y, Huang Z. 2007, 1–10.

    Google Scholar

  15. Cheng G, Ge W, Qu Y: Falcons: Searching and Browsing Entities on the Semantic Web. In Proceedings of the 17th International Conference on World Wide Web, WWW Beijing, China, April 21–25, 2008. Edited by: Huai J, Chen R, Hon HW, Liu Y, Ma WY, Tomkins A, Zhang X. Beijing, China; 2008:1101–1102.

    Google Scholar

  16. Dieng-Kuntz R, Corby O: Conceptual graphs for Semantic Web applications. In Conceptual Structures: Common Semantics for Sharing Knowledge, 13th International Conference on Conceptual Structures, ICCS Kassel, Germany: July 17–22, 2005, of Lecture Notes in Computer Science. Volume 3596. Edited by: Dau F, Mugnier ML, Stumme G. Springer; 2005:19–50.

    Google Scholar

  17. Völkel M, Krötzsch M, Vrandecic D, Haller H, Studer R: Semantic Wikipedia. In Proceedings of the 15th international conference on World Wide Web, WWW Edinburgh, Scotland, UK: May 23–26, 2006. Edited by: Carr L, Roure DD, Iyengar A, Goble CA, Dahlin M. New York, NY, USA: ACM; 2006:585–594.

    Chapter  Google Scholar

  18. Bollacker K, Evans C, Paritosh P, Sturge T, Taylor J: Freebase: a collaboratively created graph database for structuring human knowledge. In Proceedings of the ACM SIGMOD International Conference on Management of Data, SIGMOD Vancouver, BC, Canada: June 10–12, 2008. New York, NY, USA: ACM; 2008:1247–1250.

    Chapter  Google Scholar

  19. Katz B, Borchardt G, Felshin S: Natural Language Annotations for Question Answering.In Proceedings of the Nineteenth International Florida Artificial Intelligence Research Society Conference, Melbourne Beach, Florida, USA: May 11–13, 2006 Edited by: Sutcliffe G, Goebel R. AAAI Press; 2006, 303–306. []

    Google Scholar

  20. Zheng Z: AnswerBus question answering system. In Proceedings of the Second International Conference on Human Language Technology Research, San Diego, CA, USA: March 24–27, 2002. Edited by: Marcus M. Morgan Kaufmann Publishers Inc; 2002:399–404.

    Chapter  Google Scholar

  21. Cuil[]

  22. Clusty[]

  23. Carrot Search[]

  24. Yang T: Large Scale Internet Search at Proceedings of the First International Conference on Scalable Information Systems, (INFOSCALE 2006), Hong Kong: May 30–June 1, 2006 [Keynote] 2006.

    Google Scholar

  25. Kaisser M: The QuALiM Question Answering Demo: Supplementing Answers with Paragraphs drawn from Wikipedia. In Proceedings of the 46th Annual Meeting of the Association for Computational Linguistics, ACL-08, HLT Demo Session, Columbus, Ohio, USA: June 15–20, 2008. Association for Computational Linguistics; 2008:32–35.

    Google Scholar

  26. Gobeill J, Tbahriti I, Ehrler F, Ruch P: Vocabulary-driven Passage Retrieval for Question-Answering in Genomics. In Proceedings of The Sixteenth Text REtrieval Conference, TREC Gaithersburg, Maryland, USA: November 5–9, 2007, Volume Special Publication 500–274. Edited by: Voorhees EM, Buckland LP. National Institute of Standards and Technology (NIST); 2007.

    Google Scholar

  27. Doms A, Schroeder M: GoPubMed: exploring PubMed with the Gene Ontology. Nucleic Acids Res 2005, (33 Web Server):W783-W786.

    Google Scholar

  28. Good BM, Kawas EA, Kuo BYL, Wilkinson MD: iHOPerator: user-scripting a personalized bioinformatics Web, starting with the iHOP website. BMC Bioinformatics 2006, 7: 534.

    Article  PubMed Central  PubMed  Google Scholar

  29. Rebholz-Schuhmann D, Kirsch H, Arregui M, Gaudan S, Riethoven M, Stoehr P: EBIMed-text crunching to gather facts for proteins fromMedline. Bioinformatics 2007, 23(2):e237-e244.

    Article  CAS  PubMed  Google Scholar

  30. Perez-Iratxeta C, Pérez A, Bork P, Andrade M: Update on XplorMed: A web server for exploring scientific literature. Nucleic Acids Res 2003, 31(13):3866–8.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  31. Müller HM, Kenny EE, Sternberg PW: Textpresso: an ontology-based information retrieval and extraction system for biological literature. PLoS Biol 2004, 2(11):e309.

    Article  PubMed Central  PubMed  Google Scholar

  32. Chen H, Sharp B: Content-rich biological network constructed by mining PubMed abstracts. BMC Bioinformatics 2004, 5: 147.

    Article  PubMed Central  PubMed  Google Scholar

  33. Carr L, Hall W, Bechhofer S, Goble C: Conceptual linking: ontology-based open hypermedia. In Proceedings of the Tenth International World Wide Web Conference, WWW 10, Hong Kong, China: May 1–5, 2001. ACM Press; 2001:334–342.

    Chapter  Google Scholar

  34. Bechhofer S, Yesilada Y, Stevens R, Jupp S, Horan B: Using Ontologies and Vocabularies for Dynamic Linking. IEEE Internet Computing 2008, 12(3):32–39.

    Article  Google Scholar

  35. Ashburner M, Ball C, Blake J, Botstein D, Butler H, Cherry J, Davis A, Dolinski K, Dwight S, Eppig J, Harris M, Hill D, Issel-Tarver L, Kasarskis A, Lewis S, Matese J, Richardson J, Ringwald M, Rubin G, Sherlock G: Gene Ontology: tool for the unification of biology. The Gene Ontology Consortium. Nat Genet 2000, 25: 25–9.

    Article  PubMed Central  CAS  PubMed  Google Scholar

  36. Yahoo! Search BOSS service[]

  37. Hakenberg J, Royer L, Plake C, Strobelt H, Schroeder M: Me and my friends: Gene mention normalization with background knowledge. In Proceedings of the Second BioCreative Challenge Evaluation Workshop, Madrid, Spain: April 23–25 2007, 2 Edited by: Hirschman L, Krallinger M, Valencia A. 2007, 141–144.

    Google Scholar

  38. ClearForrest: Calais: Connect. Everything. WebService, provided by ClearForest, a Thomson Reuters Company 2008. []

    Google Scholar

  39. Blaschke C, Leon EA, Krallinger M, Valencia A: Evaluation of BioCreAtIvE assessment of task 2. BMC Bioinformatics 2005, 6(Suppl 1):S16.

    Article  PubMed Central  PubMed  Google Scholar

  40. Tang H, Ng JHK: Googling for a diagnosis-use of Google as a diagnostic aid: internet based study. BMJ 2006, 333(7579):1143–1145.

    Article  PubMed Central  PubMed  Google Scholar

  41. Taubert M: Use of Google as a diagnostic aid: bias your search. BMJ 2006, 333(7581):1270. author reply 1270 author reply 1270

    Article  PubMed Central  PubMed  Google Scholar

  42. Twisselmann B: Use of Google as a diagnostic aid: summary of other responses. BMJ 2006, 333(7581):1270–1271.

    Article  PubMed Central  PubMed  Google Scholar

  43. Wentz R: Use of Google as a diagnostic aid: is Google like 10,000 monkeys? BMJ 2006, 333(7581):1270. author reply 1270 author reply 1270

    Article  PubMed Central  PubMed  Google Scholar

  44. Hersh WR, Cohen AM, Roberts PM, Rekapalli HK: TREC 2006 Genomics Track Overview. In Proceedings of the Fifteenth Text REtrieval Conference, TREC Gaithersburg, Maryland, November 14–17, 2006, Volume Special Publication 500–272. Edited by: Voorhees EM, Buckland LP. National Institute of Standards and Technology (NIST); 2006.

    Google Scholar

  45. Granka LA, Joachims T, Gay G: Eye-tracking analysis of user behavior in WWW search. In Proceedings of the 27th Annual International ACM SIGIR Conference on Research and Development in Information Retrieval (SIGIR 2004), Sheffield, UK: July 25–29, 2004. Edited by: Sanderson M, Järvelin K, Allan J, Bruza P. ACM; 2004:478–479.

    Chapter  Google Scholar

  46. Tomuro N, Lytinen SL: Selecting features for paraphrasing question sentences. Proceedings of the Workshop on Automatic Paraphrasing at Natural Language Processing Pacific Rim Symposium (NLPRS 2001), Tokyo, Japan: November 30, 2001 2001, 55–62.

    Google Scholar

  47. Ely J, Osheroff J, Gorman P, Ebell M, Chambliss M, Pifer E, Stavri P: A taxonomy of generic clinical questions: classificationstudy. BMJ 2000, 321(7258):429–32.

    Article  PubMed Central  CAS  PubMed  Google Scholar

Download references


We kindly acknowledge the help and discussions from our colleagues. In particular we would like to thank A. Doms and T. Wächter. For the helpful disccussions about the implementation we acknowledge the GoPubMed team from Transinsight, especially M. Alvers, L. Barrio-Alvers, J. Mönnich, C. Plake, and M. Zschunke. This work was supported by the European Union for the Sealife Project, Project Reference IST-2006-027269.

This article has been published as part of BMC Bioinformatics Volume 10 Supplement 10, 2009: Semantic Web Applications and Tools for Life Sciences, 2008. The full contents of the supplement are available online at

Author information

Authors and Affiliations


Corresponding author

Correspondence to Michael Schroeder.

Additional information

Competing interests

The authors declare that they have no competing interests.

Authors' contributions

HD implemented and tested the application, evaluated GoWeb and has written the manuscript. MS initiated the project, provided the benchmarks and helped to draft the manuscript. Both authors read and approved the final manuscript.

Rights and permissions

This article is published under license to BioMed Central Ltd. This is an open access article distributed under the terms of the Creative Commons Attribution License (, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
