Abstract

Background

Biological research increasingly relies on network models to study complex phenomena. Signal Transduction Pathways are molecular circuits that model how cells receive, process, and respond to information from the environment providing snapshots of the overall cell dynamics. Most of the attempts to reconstruct signal transduction pathways are limited to single regulator networks including only genes/proteins. However, networks involving a single type of regulator and neglecting transcriptional and post-transcriptional regulations mediated by transcription factors and microRNAs, respectively, may not fully reveal the complex regulatory mechanisms of a cell. We observed a lack of computational instruments supporting explorative analysis on this type of three-component signal transduction pathways.

Results

We have developed CyTRANSFINDER, a new Cytoscape plugin able to infer three-component signal transduction pathways based on user defined regulatory patterns and including miRNAs, TFs and genes. Since CyTRANSFINDER has been designed to support exploratory analysis, it does not rely on expression data. To show the potential of the plugin we have applied it in a study of two miRNAs that are particularly relevant in human melanoma progression, miR-146a and miR-214.

Conclusions

CyTRANSFINDER supports the reconstruction of small signal transduction pathways among groups of genes. Results obtained from its use in a real case study have been analyzed and validated through both literature data and preliminary wet-lab experiments, showing the potential of this tool when performing exploratory analysis.

Keywords

microRNA Signal transduction pathways Data fusion Cytoscape Network analysis Pathway analysis Network modules

Background

Network representation of intracellular biological systems, considering molecular components within a cell as nodes (e.g., genes, proteins, miRNA, etc.) and their direct or indirect interactions as links, is steadily gaining interest because of its potential to represent, characterize, and model a wide range of intricate natural systems and phenomena.

Among the different types of biological network models proposed in the literature [1], we are interested in Signal Transduction Pathways (STP) [2, 3]. A cell is highly responsive to specific chemicals in its environment. Broadly, signal transduction pathways can be viewed as molecular circuits. They model how cells receive, process, and respond to information from the environment toward a biological identified end result, thus providing snapshots of the (overall) cell dynamics. The number of these processes shows how many ways the organism can react and respond to its environment. Therefore, discovering new STPs is an important task to contribute to the current knowledge of the cell behavior.

The traditional approach to identify molecular components of a signaling network is through gene knockout experiments and epistasis analysis [4]. In such experiments, an organism is engineered to suppress the expression of one or more genes in order to study the resulting perturbation in the cell dynamics. Although these experiments are effective to identify simple direct signaling activities, more complex signaling circuitries are difficult to identify and understand. Moreover this analysis is time-consuming, expensive, and sometimes the results can be misinterpreted [5].

Computational approaches for modeling and reconstruction of STPs are currently a hot research area. STPs have been modeled through modular kinetic simulations of biochemical networks [6], and detailed integration of biochemical properties of the pathways [7]. Bayesian networks applied to multi-variate expression data have also been used to infer signaling pathways [8]. More recently, PPI networks have been largely used to reconstruct signaling transduction pathways [913]. In general these methods try to extract STPs from PPI networks, which are known to be affected by a high rate of false-positive and false-negative interactions. The use of expression data is used to mitigate this uncertainty.

Most of the attempts to reconstruct STPs focus on gene/protein based networks. However, networks involving a single type of regulator may not fully reveal the complex regulatory mechanisms of a cell. Complexity strongly increases when STPs include post-transcriptional regulation mediated by microRNAs (miRNAs) interacting with different transcription factors (TFs). It is predicted that miRNAs regulate approximately 30 % of the human protein-coding genome [14], they are therefore highly important in modeling the cell regulation. Only a few attempts to reconstruct STPs including miRNAs, TFs, and mRNAs can be found in the literature [15, 16].

Motivated by this, we have developed CyTRANSFINDER, a new Cytoscape 3.3 [17] plugin able to construct three-component signal transduction pathways with the presence of miRNAs, TFs and genes starting from public available regulatory information. Rather than trying to construct big networks as proposed in other studies, CyTRANSFINDER focuses on reconstruction of small signal transduction pathways based on user defined regulatory patterns. These pathways may be of direct use to drive exploratory analysis enabling to better understand experimental data and to further drive laboratory experiments. Formally the problem addressed by CyTRANSFINDER is the following: “Given two set of genes, to discover a set of STPs connecting each gene of the first set with each gene of the second set according to a signaling pattern set by the user.” Recurring signaling patterns have been widely studied in gene regulatory networks as well as other real-world complex systems scenarios [18], because of their central role in driving regulatory responses by specific functions [2]. This assumption is based on the expectation that designs with higher modularity have higher adaptability and therefore higher survival rates [19], thus suggesting that modularity can spontaneously arise under changing environments [20], which eventually results in extremely complex systems made of simple basic building blocks [19].

Since CyTRANSFINDER has been designed to support exploratory analysis, it does not rely on expression data. It includes a data-fusion engine that scrapes information from seven online repositories and integrates them to infer candidate pathways. Different filters can be applied to restrict or enlarge the set of produced results based on the specific use cases. The integration with Cytoscape 3.3 features an intuitive user interface that automates complex tasks and makes the plugin a potential software instrument for biologists with limited skills in computer programming and network analysis. Moreover, it enables to further process and analyze the identified networks with the huge ecosystems of network analysis plugins and functions already available in Cytoscape 3.3.

To the best of our knowledge no other Cytoscape plugin offers the functionalities provided by CyTRANSFINDER. A Cytoscape 2.6 plugin implementing a front-end to BIANA (Biologic Interactions and Network Analysis) is the only tool that somehow offers functionalities related to CyTRANSFINDER [21]. BIANA is a general Python framework aiming at integrating information from several external data-sets in network representations that can be visualized through the Cytoscape plugin. However, differently from CyTRANSFINDER, most of the effort given in BIANA is put on the possibility of describing external data sources and rules to integrate data from different sources. It is therefore a more generic software that does not specifically focuses on the problem of reconstructing STPs, as done instead by CyTRANSFINDER. BIANA standalone application appears discontinued from 2013, while the latest plugin update is dated 2009 and the plugin is only compatible with Cytoscape 2.6, which is becoming obsolete.

To show the capability of the plugin, we have applied it to a study of two miRNAs that are particularly relevant in human melanoma progression, miR-146a and miR-214. Results obtained from CyTRANSFINDER have been analyzed and validated through both literature data and preliminary wet-lab experiments, showing the capability of this tool when performing exploratory analysis.

Implementation

In its basic setup, CyTRANSFINDER implements STP discovery among two sets of genes into Cytoscape integrating regulatory information on the Homo sapiens (human) species. It is developed to work with Cytoscape 3.3. All examples proposed in this paper have been tested with the latest Cytoscape version (Cytoscape 3.3). Once installed from the Cytoscape App Manager, CyTRANSFINDER is available from the Apps menu of Cytoscape. Figure 1 shows a screenshot of CyTRANSFINDER running on a small example whereas Fig. 2 shows the conceptual architecture of the software highlighting its main data sources and computational modules.
Fig. 1

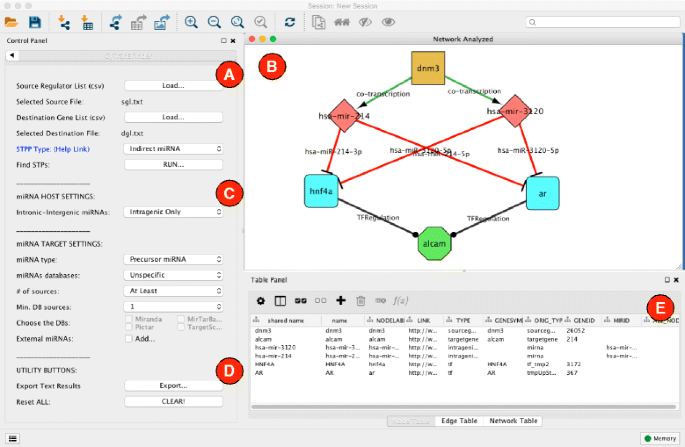

CyTRANSFINDER overview. a The main plugin control panel. It allows the user to set the source and destination list of genes and the specific pattern of regulators to search. b Shows the graphical output of the plugin that consists of a network connecting source genes with destination genes. Nodes of this network represent genes, TFs and miRNAs. c This panel allows to define a set of parameters related to the integration of miRNAs into the generated STPs. They can be used to control the size of the generated networks. d This panel allows the user to export the results in the form of a text file including all identified circuits or to delete the current experiment and start with a new one. e The Cytoscape node and edge tables. They can be used to access detailed information on the nodes and arcs of the identified STPs

Fig. 2

CyTRANSFINDER software architecture. CyTRANSFINDER processes three inputs: (1) the source list of genes (SRL), (2) the destination list of genes (DGL), and (3) the STP pattern (STPP) to be reconstructed. Its fusion engine connects to several on-line repositories to collect regulatory information used to infer STPs connecting source and destination genes according to the selected STP pattern. The identified STPs are then purged to remove duplicated nodes and arcs and the result is returned to the user as a Cytoscape network or exported in the form of a tab separated text file

CyTRANSFINDER processes three main inputs:
  1. 1.

    Source Regulator List (SRL): is a list of regulators working as root nodes of the inferred STPs. Regulators can be either genes or miRNAs (DNM3 – Dynamin 3 – NCBI ID: 26052 in the example of Fig. 1).


  2. 2.

    Destination Gene List (DGL): is a list of genes working as leaves of the inferred STPs (ALCAM – activated leukocyte cell adhesion molecule – NCBI ID: 214 in the example of Fig. 1).


  3. 3.

    STP Pattern (STPP): is a pattern provided through an internal STPP specification language. It describes a general template of regulators to be identified to connect a source node s nS R L to a destination gene d nD G L.



The user can enter the desired inputs through panel (A) of Fig. 1. Both (SRL) and DGL are provided in a text file formatted as described in Fig. 2. Each gene can be defined by either the gene symbol or the NCBI gene ID, while miRNAs are defined using the miRBase identifier (e.g., hsa-mir-214). The STPP can be chosen from a list of default patterns or customized as described in the following sections.

RUN button in panel (A) of Fig. 1 starts the STP search. CyTRANSFINDER fusion engine connects to several on-line repositories to collect regulatory information used to infer STPs connecting source and destination nodes according to the selected STPP. The identified STPs are then purged to remove duplicated nodes and arcs and displayed in the form of a network (panel (B) – Fig. 1).

STPP specification language

A STPP is a general sequence of regulators connecting two genes (or a miRNA to a gene) that are of interest for a given biological question. CyTRANSFINDER provides the user with a simple STPP Specification Language to specify the desired signaling pattern. Three regulators are available in CyTRANSFINDER: (1) gene, (2) TF, and (3) miRNA. The basic regulators are combined into a set of 6 possible interactions that are reported in Table 1 together with the notation used for their specification. They represent realistic biological interactions among the three regulators. The user is free to combine all the interactions of Table 1 in order to describe the desired signaling pattern, which is provided to CyTRANSFINDER in the form of a single text file loaded when setting STPP Type to “Custom STPP” in panel (A) of Fig. 1.
Table 1

STPP Specification Language

#

Regulation type

Description

Notation

1

TF gene

A transcription factor controlling the rate of transcription of a gene

tf,gene

2

TF TF

A transcription factor controlling the rate of transcription of a another transcription factor

tf,tf

3

TF miRNA

A transcription factor hosting a miRNA

tf,mirna

4

gene miRNA

A gene hosting a miRNA

gene,mirna

5

miRNA gene

A miRNA post-transcriptionally targeting a gene

mirna,gene

6

miRNA TF

A miRNA post-transcriptionally targeting a TF

mirna,tf

The list of interactions that can be used in CyTRANSFINDER to build a STPP. For each interaction the related notation is reported. The user is free to combine the interactions in order to describe the desired pattern. The first element of the list must be a gene or miRNA and must be preceded by the term “source”, while the last element must a gene and has to be be preceded by the term “target”

Five default STPPs representing common recurring patterns often analyzed in the literature are directly embedded in the plugin (Fig. 3); three STPPs starting from genes and two starting from miRNAs. The Direct miRNA STPP is the simplest pattern. A source gene hosts a miRNA which also targets one of the destination genes. The Indirect miRNA STPP, is similar to the Direct miRNA STPP, but it involves a TF as miRNA mediator for the destination genes regulation. The Double miRNA indirect STPP is the most complex pattern that combines the two previous ones into two levels of indirect regulation: the first one is an Indirect miRNA STPP, which regulates a Direct miRNA STPP that targets the destination gene. Additionally, a version of the Indirect miRNA STPP and of the Double miRNA indirect STPP starting from a miRNA instead of a gene are available and named Indirect s. miRNA and Double s. miRNA indirect, respectively.
Fig. 3

CyTRANSFINDER built-in STPPs. The figure presents the five default STPPs embedded in the plugin. i) Direct miRNA STPP is the simplest pattern: a source gene hosts a intragenic mirna miRNA or is located close to the region of an intergenic miRNA, which targets one of the destination genes. ii) Indirect miRNA STPP, is pretty similar to the Direct miRNA STPP, but it involves a TF as miRNA mediator for the regulation of the destination genes. iii) the miRNA sourced version of (ii). iv) Double miRNA indirect STPP is the most complex pattern. It involves two levels of regulation; the first indirect regulation is modeled on top of an Indirect miRNA STPP, which regulates a Direct miRNA STPP that targets the destination genes. v) The miRNA sourced version of (iv)

Data fusion engine

The RUN button available in panel (A) of Fig. 1 starts the CyTRANSFINDER data fusion engine. The engine first parses the SRL, the DGL and the STPP provided by the user. It then connects to several external repositories to obtain interaction data to search for the existence of the STPP among the genes contained in SRL and DGL.

Figure 4 provides a high-level pseudo-code of the implemented data-fusion algorithm. The main algorithm is described in the STPFinder procedure (Fig. 4 - lines 1–22). This procedure receives as parameters the source and destination node lists (i.e., SRL and DGL) and the STPP. The STPP is an ordered list of regulators S T P P=(r 1,r 2,·,r n ), with r i {TF,gene,miRNA}. The produced STPs are organized into a set of levels (stplevels in Fig. 4). Each level contains a set of nodes and corresponds to one of the elements of STPP. At the beginning of the search the first level is initialized with the nodes contained in SRL (Fig. 4 - lines 2). Nodes of adjacent levels are connected through a set of interactions (stpinters in Fig. 4).
Fig. 4

CyTRANSFINDER data fusion algorithm. A pseudocode description of the main steps carried out by the plugin to integrate different data sources and to construct the final STP network

The search procedure is an iterative process that analyzes couples of consecutive STPP elements, i.e., S T P P i and S T P P i+1 with i[1,|S T P P|−1] (Fig. 4 - lines 4–21). For each node available at level i (Fig. 4 - lines 7–18) the procedure searches a set of target nodes to add to level i+1 through the search function (Fig. 4 - lines 8). The way this search works (Fig. 4 - lines 23–38) depends on the type of regulators to search at level i and i+1 of STPP, which in turn requires to connect to different repositories to obtain interaction data. Additional details regarding this process will be provided later in this section. Each target node identified with this procedure is added to the set of nodes at level i+1 (Fig. 4 - line 14) and the set of interactions between couples of nodes at the two levels is recorded as well (Fig. 4 - line 15). When reaching the last couple of STPP elements, all identified interactions are finally filtered to limit them to those ending to one of the nodes available in DGL (Fig. 4 - lines 9–11).

At the end of this iterative process, stplevels and stpinters are used to build a Cytoscape network representing the inferred STPs. stplevels contains the set of nodes of the final network organized in levels and stpinters contains the set of arcs connecting the different nodes. Panel (B) of Fig. 1 shows an example of network identified when searching for the Indirect miRNA STPP between DNM3 and ALCAM. This network represents the main output provided by CyTRANSFINDER. Different symbols and colors have been used to make it easy to identify the different types of regulators in the network.

The same information can also be exported into a tab separated plaintext file that enumerates all identified STPs (Export button of panel (D) – Fig. 1). Each row of the file reports a single STP (i.e., a signaling chain from one node in SRL to a node in DGL according to the STPP) and each column represents a regulator in the signaling chain (i.e., a gene, miRNA or TF). This file is obtained by searching all possible paths that connect nodes at the source level with nodes at the destination level. This format is particularly helpful for fast data inspection, especially when the number of discovered STPs is high, which eventually results in a very complex network difficult to visualize.

The remaining of this section focuses on the way interactions are obtained and integrated from public repositories.

Transcription factors interaction data

Transcription Factors (TFs) related to gene entities are extracted from TargetMine [22] using its RESTful interface, which allows to search for TFs given a target gene. This information is required to search for interactions of type 1,2 and 6 of Table 1. It is important to highlight that TargetMine does not provide any information regarding the up- or down- regulatory activity of a TF; users must eventually resort to manual validation in order to understand the exact regulatory effect.

miRNA interaction data

Two different repositories are exploited to retrieve miRNA based interactions.

Interactions of type 3 and 4 from Table 1 are obtained through the miRIAD repository [23]. miRIAD is a web search tool designed to access integrated information concerning intragenic microRNAs and their host genes. The miRIAD database references annotated genes from human genome (hg19) and miRNAs annotated from miRBase (version 19). Given a gene, CyTRANSFINDER uses miRIAD to search for miRNAs “hosted” by the gene. Two types miRNA interactions can be identified with this procedure. The main class is represented by the intragenic miRNAs, which are mapped to intragenic loci of protein coding genes (namely “host genes”). Previous studies have suggested that these miRNAs are transcribed in parallel with their host transcripts [24, 25] therefore creating a direct signaling link. In addition to this, miRIAD enables to search for intergenic miRNAs located in an intergenic region close the the analyzed gene. The relationship between a gene and the intergenic miRNAs is weaker than the one of intragenic miRNAs. Nevertheless, it may represent a valuable information when performing explorative analysis. By acting on the miRNA host type control (panel (C) – Fig. 1) the user is free to work with intragenic only interactions or both intragenic and intergenic interactions.

Interactions of type 5 and 6 from Table 1 are instead obtained from TargetHUB [26]. This web-service provides a programmer friendly interface to access multiple repositories of miRNA target genes with a uniform set of APIs. TargetHUB RESTful interface allows users to interrogate information from four different databases: miRTarBase [27], TargetScan [28], PicTar [29], and miRanda [30]. Using TargetHUB, the list of target genes of a miRNA can be easily retrieved.

CyTRANSFINDER exploits TargetHUB functionalities to allow users to filter miRNA targets (miRNA target settings of panel (C) – Fig. 1). Filtering miRNA targets is a very crucial step during STP discovery. In fact, the lack of miRNA specificity and the large amount of possible miRNA targets (in the order of thousands) may easily increase the complexity of the networks generated by the plugin. A wise usage of filters can dramatically reduce the analysis time. Available filters include the possibility of selecting specific miRNA target databases or to perform majority voting across multiple databases to have a mandatory minimum or exact set of confirmations for the target selection. Moreover, the user can decide to work with regulatory information regarding mature o precursor miRNAs.

Finally, miRNA target settings of panel (C) include an additional control that acts in a opposite way with respect to the other controls, and tries to enlarge the obtained network. This control acts after the full STP search is concluded adding to the network all external miRNAs targeting at least one of the nodes identified in the generated network (i.e., not hosted by one of the network nodes). This option is particularly useful whenever users are focusing on the role of miRNAs in the studied phenomena.

Results and discussion

In this section we show the capability of CyTRANSFINDER by presenting its application in the framework of a research activity on human melanoma performed by the authors of this paper. In previous studies we and others identified that miR-146a and miR-214 are involved in melanoma growth and metastasis formation by modulating several target genes. We are therefore interested in performing discovery analysis searching for STPs involving these two miRNAs. This represents a typical biological question for which CyTRANSFINDER can provide explorative analysis support.

STPs involving human miR-146a analysis

Human miR-146a is located on the positive strand of chromosome 5. Although it is an intergenic miRNA and it does not lie inside a host protein-coding gene, it is overlapped to a manually-annotated long-intergenic-noncoding RNA (lincRNA), CTC-231O11.1 ([31] and http://www.ensembl.org). miR-146a has a crucial role in the immune and inflammatory response, as well as in many human pathologies including muscle disorders, cancer and metastasis [31]. We and others found that miR-146a has a dual role during melanoma development and progression, favoring primary tumor growth while inhibiting metastatic dissemination [32]. We are interested in exploring STPs involving miR-146a to identify new regulatory paths of interest for the melanoma progression. In order to exploit CyTRANSFINDER for this purpose we need to create a SRL and a DGL file.

Our SRL list contains the miR-146a (miRBase identifier hsa-mir-146a) [see Additional file 1 – srl.txt]. We considered instead the set of miR-146a conserved target genes according to TargetScan 5.2 algorithm (224 genes) as DGL [see Additional file 1 – dgl.txt].

We performed an analysis using the Indirect s. miRNA STPP using the default setting of the plugin for all filters, and we have been able to identify a set of 312 STPs [see Additional file 1 – Indirect-miRNA-STPP] starting from miR-146a. Among all, we got particularly interested in TFAP2C (AP-2 γ). In our previous studies, we identified the central role of TFAP2C in melanoma progression, and we are particularly interested in studying the STPs involving this transcription factor ([33, 34]).

All the TFAP2C-mediated STPs are listed in Table 2 and the related network is reported in Fig. 5. Notably, miR-146a relation with TFAP2C was completely unknown.
Fig. 5

miR-146a Indirect s. miRNA STPs involving TFAP2C. Subnetwork of the Indirect s. miRNA STPs using human miR-146a as source intergenic miRNA, miR-146a targets according to TargetScan 5.1 as destination genes and involving TFAP2C as a hub transcription factor. Results are computed using miRNA targets confirmed in at least one source database

Table 2

List of the Indirect s. miRNA STPs obtained with CyTRANSFINDER using human miR-146a as the source intergenic miRNA, miR-146a targets according to TargetScan 5.1 as destination genes and involving TFAP2C as a hub transcription factor

SmiRNA

TF

DG

Reference

hsa-miR-146a

TFAP2C

PRKCE



hsa-miR-146a

TFAP2C

GAS7



hsa-miR-146a

TFAP2C

C4ORF3



hsa-miR-146a

TFAP2C

ESYT2



hsa-miR-146a

TFAP2C

CUX1



hsa-miR-146a

TFAP2C

ZFYVE1



hsa-miR-146a

TFAP2C

RCSD1



hsa-miR-146a

TFAP2C

ELAVL1



hsa-miR-146a

TFAP2C

SLC38A1



hsa-miR-146a

TFAP2C

KCNIP3



hsa-miR-146a

TFAP2C

ATG7



hsa-miR-146a

TFAP2C

VASN



hsa-miR-146a

TFAP2C

SIN3A



hsa-miR-146a

TFAP2C

KIAA0284



hsa-miR-146a

TFAP2C

GGA2

[36]

hsa-miR-146a

TFAP2C

NOTCH2

[36]

hsa-miR-146a

TFAP2C

NPR3

[36]

hsa-miR-146a

TFAP2C

TDRKH

[36]

Results are computed using miRNA targets confirmed in at lease one source database. SmiRNA: Source intergenic miRNA; TF: Transcription Factor; DG: Destination Gene; Reference: data available from literature

Given the interest of this result, we performed gene expression analysis via quantitative Real Time Polymerase Chain Reaction (qRT-PCR) to further investigate this relation. To obtain transient miR-146a or non-specific control (pre-Cntrl) expression, human melanoma MA-2 cells (cultured as in [33]) were transfected using HiPerFect (Qiagen) reagent, according to the manufacturer’s instructions. Total RNA was isolated 48h later from using TRIzol®;Reagent (Invitrogen Life Technologies). 1 μg of DNAse-treated RNA (RQ1 RNase-Free DNase, Promega) was retrotranscribed with High-Capacity cDNA Reverse Transcription Kit (Thermo Fisher Scientific,) and qRT-PCRs were carried out using gene-specific primers for TFAP2C mRNA detection (fw: TCCACGACATGCCTCACCA, rv: TCCTTCTGACAGGGGAGGTTCA).

Quantitative normalization was performed on the expression of the GAPDH gene (qRT-PCR QuantiTect Primer assay QT01192646, Qiagen). The relative expression levels between samples were calculated using the comparative delta Ct (threshold cycle number) method (2Δ Δ C t ) with a control sample as the reference point [35].

Data are presented as mean ± s.e.m. (standard error of the mean) and Two tailed Student’s t-test was used for comparison, with **P <0.01 considered to be statistically significant. Based on these experiments we were able to experimentally verify that miR-146a is able to downmodulate TFAP2C expression upon transient overexpression in human melanoma cells (see Fig. 6).
Fig. 6

miR-146a overexpression leads to reduced TFAP2C mRNA levels. Quantitative-Real Time PCR (qRT-PCR) evaluation of TFAP2C mRNA was performed in melanoma cells upon miR-146a overexpression, compared to controls (pre-146a vs pre-Cntrl). Three independent preparations of melanoma cells RNA were used and results were pooled together. **P <0.01

Furthermore, by searching the literature for TF gene STPs involving TFAP2C and our DGL, we found a paper by Woodfield and colleagues where direct regulation by TFAP2C on GGA2, NOTCH2, NPR3 and TDRKH promoter regions was demonstrated by chromatin immunoprecipitation followed by sequencing (ChIP-Seq) analysis [36], as shown in Table 2.

Next, we also searched for Double Indirect s. miRNA STPP involving miR-146a and the selected DGL. Given the complexity of this pattern, we performed the analysis restricting to miRNA targets confirmed in at least two databases out of the four available in TargetHUB. In this case, we obtained a significantly shorter list of records, that is reported in Table 3 and is visually reproduced in Fig. 7.
Fig. 7

miR-146a Double Indirect s. miRNA STPs. Network of the Double Indirect s. miRNA STPs using human miR-146a as source intergenic miRNA, miR-146a targets according to TargetScan 5.1 as destination genes and miRNA targets confirmed in at least two of the source databases

Table 3

List of Double Indirect s. miRNA STPs obtained with CyTRANSFINDER using human miR-146a as the source intergenic miRNA, targets according to TargetScan 5.1 as destination genes and miRNA targets confirmed in at least two of the source databases

SmiRNA

References

TF

References

TF target (Gene)

ImiRNA

DG

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

MLL2

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

C10ORF76

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

PBX2

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

NF2

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

NPAS4

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

HIC2

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

LRTOMT

has-miR-146a

[37, 5052]

SMAD4

[39]

POR

has-miR-4651

VAT1

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

GOSR1

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

SLC2A3

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

RNF4

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

SCN3B

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

GALNT10

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

MMP16

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

IER5L

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

GNL1

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

KIAA1274

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

KPNA6

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

NFASC

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

GGA2

has-miR-146a

[53]

BRCA1

[40, 54, 55]

CYP19A1

has-miR-4713

ADARB1
