PSE-HMM: genome-wide CNV detection from NGS data using an HMM with Position-Specific Emission probabilities

BMC BioinformaticsBMC series – open, inclusive and trusted201618:30

https://doi.org/10.1186/s12859-016-1296-y

Received: 22 May 2016

Accepted: 20 October 2016

Published: 3 November 2016

Abstract

Background

Copy Number Variation (CNV) is envisaged to be a major source of large structural variations in the human genome. In recent years, many studies apply Next Generation Sequencing (NGS) data for the CNV detection. However, still there is a necessity to invent more accurate computational tools.

Results

In this study, mate pair NGS data are used for the CNV detection in a Hidden Markov Model (HMM). The proposed HMM has position specific emission probabilities, i.e. a Gaussian mixture distribution. Each component in the Gaussian mixture distribution captures a different type of aberration that is observed in the mate pairs, after being mapped to the reference genome. These aberrations may include any increase (decrease) in the insertion size or change in the direction of mate pairs that are mapped to the reference genome. This HMM with Position-Specific Emission probabilities (PSE-HMM) is utilized for the genome-wide detection of deletions and tandem duplications. The performance of PSE-HMM is evaluated on a simulated dataset and also on a real data of a Yoruban HapMap individual, NA18507.

Conclusions

PSE-HMM is effective in taking observation dependencies into account and reaches a high accuracy in detecting genome-wide CNVs. MATLAB programs are available at http://bs.ipm.ir/softwares/PSE-HMM/.

Keywords

Next Generation Sequencing (NGS) Hidden Markov Models (HMMs) Expectation Maximization (EM) algorithm mixture densities Copy Number Variation (CNV)

Background

Copy Number Variation (CNV) is a major source of the genetic variations and aberrations in the human genome. In CNV, number of copies of a gene or a segment of the genome differs from one person to other. Duplications, deletions and insertions are common types of CNVs that affect roughly 13 % of the human genome. Several clinically relevant CNVs are < 1 kb in size. However, the length of a CNV may get as large as several mega bases [1] e.g. in the HapMap project CNVs of length up to 200 k bp are detected [2].

Most CNVs are germlines which are inherited from the progenitors. But the other prominent source of this variation is somatic and occurs due to the aberrations in the genetic activities such as recombination among homolog chromosomes, during different cycles of the cell division.

Previously, some studies applied hidden Markov models for the genome-wide CNV detection from array-based Comparative Genomic Hybridization (aCGH) data [37]. In recent years, development of the Next Generation Sequencing (NGS) has provided an unprecedented opportunity for the study of the genome-wide variations. Most studies that rely on the NGS data use a read depth approach. CNVfinder [8], CNV-seq [9] and BIC-seq [10] compare one sample genome with the reference genome for the CNV detection. On the other hand, CMDS [11], cn. MOPS [12], rSW-seq [13], and CNAseg [14] can take several individuals into account, and predict CNVs based on the information in all samples.

HMM is also applied for modeling NGS read count data [8, 15]. In [8], an HMM with a Poisson emission probability is applied for modeling the observed read counts per genomic segment, after taking the genome-wide variation in GC contents into account. Also, m-HMM uses a Poisson mixture distribution to model read counts for each copy number state [15]. In this way, m-HMM lowers the effect of random errors in the local variations of the read counts.

Due to the high capabilities of the mate pair and split read data in detecting CNVs, in recent years several methods have been using these reads. Some studies applied these mate reads for detecting indels (insertions and deletions) [1618]. However, besides detecting indels, some methods benefit the attractive feature of mate reads in predicting genome-wide inversions [1921] and tandem duplications [2225]. Also, DB2 is introduced for detecting tandem duplication breakpoints [26].

Since mate pair reads have theoretically different potentials in detecting genome-wide CNVs compared to the methods which rely on the read depth, this paper extends the application of HMMs to model variations in the mate pair reads. This novel parametric probabilistic framework enables HMMs to detect genome-wide tandem duplications, besides detecting deletions.

We propose a new HMM which benefit of having Position-Specific Emission probabilities (PSE-HMM) for modeling the length of the genomic regions with deletions (copy loss) and tandem duplications (copy gain). Indeed, a Gaussian mixture density is considered as the emission probabilities in HMM. Each component of this mixture density models a different type of abnormalities that is observed in the insertion size and direction of mate pairs, after being mapped to the reference genome.

A component of the Gaussian mixture density models the increase in the insertion size of the mate pair, after being mapped to the reference genome. This is the case for the genomic regions with deletions. Second component of the Gaussian mixture density models the mate pairs that are mapped to the reference genome in “everted” orientation. This is the case for mate pairs spanning the tandem duplication. Also for the genomic diploid states, a component of the mixture density is applied for emitting those mate pairs with no abnormalities. In PSE-HMM, the position-specific parameter is considered to be the length of a genomic region with copy number variation and this length corresponds to the parameters of the Gaussian mixture density.

The parameters of each density (component) in the Gaussian mixture density are estimated for each genomic segment separately, and on the basis of the mate pairs that are mapped to that segment. However, components’ multipliers are estimated globally, on the basis of the genome-wide mate pair data. Also, Expectation-Maximization (EM) algorithm is applied for estimating the parameters of the HMM emission and transition distributions.

Methods

Assume that a sample genome is sequenced via NGS technology and mate pairs are generated. Further, the reference genome is divided into T segments of length L and mate pairs are mapped to the reference genome. In this article, observations for each genomic segment are all those mate pairs whose reads are flanking the segment and their un-sequenced (insertion) regions are spanning the segment, Fig. 1.
Fig. 1

Mate pairs that are taken as the observation for the 2nd genomic segment are shown. A mate pair whose reads are flanking the 2nd segment and its insertion region is spanning the segment, accounts for the observation in the 2nd genomic segment. Other reads that do not satisfy these conditions are discarded

Observation vector in the tth genomic segment is shown by \( {\mathrm{o}}_{\mathrm{t}}=\left\{{\mathrm{o}}_{\mathrm{t},1},{\mathrm{o}}_{\mathrm{t},2},\dots, {\mathrm{o}}_{\mathrm{t},{\mathrm{n}}_{\mathrm{t}}}\right\} \). Where nt is the number of mate pairs that are mapped to the tthsegment and the above condition is satisfied for them. Each mate pair’s insertion size is indicated by ot,i, where i represents the mate pair index. Observations in genomic segments 1 to T are consequently shown by O = {o1, o2, …, oT}.

Each genomic segment is envisaged to have one of the following states: {homozygous deletion, heterozygous deletion, diploid, tandem duplication}. Indeed, we aim at predicting the copy number of each segment in the sample genome, based on observation vector O. Also, for modeling mate pair data (observation vector O) and predicting the state of each segment, an HMM with inhomogeneous emission probability density is introduced. Indeed, a Gaussian mixture probability density is used to model any aberration in the insertion size and direction of the mate pairs, after mapping to the reference genome.

In the following section, all possible deviations that may occur in the mate pairs’ insertion size and orientation are discussed in details, for each CNV type separately. On the basis of this analysis, a Gaussian mixture density is defined as the emission probability density of the HMM.

Properties of the HMM states

Each HMM state, i.e. {homozygous deletion, heterozygous deletion, diploid, tandem duplication} has some special properties that are used in our method:
  • Diploid state: in the human diploid genome each genomic segment appears in two copies, located on a separate homolog chromosome. All mate pairs that pertain to this state have a standard insertion size, after being mapped to the reference genome. Indeed, this insertion size is a feature of the sequencing machine that is used for generating mate pairs from sample genome and it is assumed to be normally distributed with mean μ and variance σ2, i.e. N(μ, σ2).

  • Homozygous deletion: in this state both copies of a gene or a genomic segment are deleted. Therefore, all mate pairs that are generated from this state, after being mapped on the reference genome will have an increased insertion size of length μ + deletion size. So, insertion size of these reads will follow a normal distribution of the form N(μ + deletion size, σ2).

  • Heterozygous deletion: this state models the genomic segments for which there is one copy in the sample genome. Therefore, after mapping mate pairs, approximately half of them should have a standard insertion size, i.e. N(μ, σ2). However, since one genomic allele is deleted in the sample genome, approximately half of the mate pairs are mapped to the reference genome much further apart than expected with a N(μ + deletion size, σ2) distribution.

  • Tandem duplications: this state models those genomic segments that appear in more than two copies in the sample genome and at least two copies are located one after another and without any space between them, on a homolog chromosome.

Insertion size of a mate pair which is spanning a tandem duplication of length X, after mapping to the reference genome is distributed of the form N(X − μ − 2  (read length), σ2), See Fig. 2a. Clearly, the mean of the insertion size distribution increases linearly with the length of tandem duplication (X). As shown in Fig. 2, these mate pairs after mapping to the reference genome will also have an “everted” orientation.
Fig. 2

Mate pairs which are generated from a region with tandem duplications, are mapped to reference. Abnormalities in the insertion size and direction of a mate pair depend on whether it is generated from a location around a tandem duplication breakpoint or not. a A mate pair spanning the tandem duplication in the sample genome is shown. After mapping to the reference genome, this mate pair encounters a change in direction and abnormality in the insertion size (the distance of point a to b). b Two mate pairs that are not located around breakpoint are shown. These pairs will map normally to the reference genome, without any change in the insertion size or direction

However, mate pairs that are not generated from locations around the tandem duplications’ breakpoint, after being mapped to the reference genome encounter no change in direction or insertion size, i.e. N(μ, σ2), see Fig. 2b.

HMM structure

Each HMM has two major components: transition and emission probabilities. Transition probability is the probability of moving from one state to another in a single step. As shown in Fig. 3, from the diploid state we can reach any other state, i.e. homozygous deletion, heterozygous deletion or a tandem duplication state. From these states we can get back to the diploid state, as well.
Fig. 3

HMM structure, states and transition probabilities are shown. In diploid state each genomic segment has two copies. In heterozygous deletion and homozygous deletion each genomic segment appears in one and no copies, respectively. Duplication state models those genomic segments that have more than two copies in the sample genome, at least one of the tandem duplication type

Emission probabilities define the probability of emitting the observation sequence from each state. We remind that in the tth genomic segment, observations are insertion size and direction of the pair reads which are indicated by \( {\mathrm{o}}_{\mathrm{t}}=\left\{{\mathrm{o}}_{\mathrm{t},1},{\mathrm{o}}_{\mathrm{t},2},\dots, {\mathrm{o}}_{\mathrm{t},{\mathrm{n}}_{\mathrm{t}}}\right\} \), and the corresponding hidden state is indicated by qt, where 1 ≤ t ≤ T. Indeed, qt is a member of {homozygous deletion, heterozygous deletion, diploid, tandem duplication}. The probability of emitting observations from different states is summarized in Table 1.
Table 1

Expected distribution of the observation in different states



Distribution

State

1

2

3

Diploid

N(μ, σ 2)

-

-

Heterozygous deletion

N(μ, σ 2)

N(μ + deletion size, σ 2)

-

Homozygous deletion

-

N(μ + deletion size, σ 2)

-

Tandem duplication

N(μ, σ 2)

-

N(X − μ − 2 read length, σ 2)

In diploid and homozygous states, there is a unimodal distribution for the insertion sizes, while heterozygous deletion and tandem duplication states follow a bimodal insertion size distribution

Based on information in Table 1, in each genomic state the following Gaussian mixture density appears:
$$ \mathrm{f}\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\Big|{\mathrm{q}}_{\mathrm{t}}\right)={\upalpha}_{{\mathrm{q}}_{\mathrm{t}},1}{\mathrm{f}}_1\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\Big|{\mathrm{q}}_{\mathrm{t}}\right)+{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},2}{\mathrm{f}}_2\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\Big|{\mathrm{q}}_{\mathrm{t}}\right)+{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},3}{\mathrm{f}}_3\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\Big|{\mathrm{q}}_{\mathrm{t}}\right). $$
It indicates that kth observation in genomic segment t, ot,k, 1 ≤ k ≤ nt, comes from one of the three indicated densities in Table 1, with a probability of \( {\upalpha_{{\mathrm{q}}_{\mathrm{t}},}}_{\mathrm{z}},1\le \mathrm{z}\le 3 \). Clearly, \( 0\le {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}}\le 1 \) for each qt and \( {\displaystyle {\sum}_{\mathrm{z}=1}^3{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}}}=1 \). Also, ot,k denotes the observed insertion size in a mate pair that is mapped to the reference genome, and fz(ot,k|qt) has the following normal distribution:
$$ {\mathrm{f}}_{\mathrm{z}}\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\left|{\mathrm{q}}_{\mathrm{t}}\right.\right)=\frac{1}{\sqrt{2\uppi {\upsigma}_{\mathrm{t}\mathrm{z}}^2}} \exp \left\{\frac{-1}{2{\upsigma}_{\mathrm{t}\mathrm{z}}^2}{\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}-{\upmu}_{\mathrm{t}\mathrm{z}}\right)}^2\right\}, $$

In which, μtz and σ tz 2 are the mean and variance of the zth density, in the indicated mixture density. f1(ot,k|qt) models the emission of the insertion size in mate pairs that are mapped to the reference genome with no abnormalities, either in direction or insertion size. The proportion of such mate pairs in the tth genomic segment -which is in the state of qt – is indicated by \( {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},1} \). For such mate pairs we assume that μt1 = μ and σ t1 2  = σ2. As the sequencing machine is calibrated to generate mate pairs with an insertion that is distributed as N(μ, σ2), we show this density by f1(. |.).

f2(ot,k|qt) models the insertion size emission in those mate pairs that are mapped to the reference much further apart than expected and has no direction abnormality. \( {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},2} \) is the proportion of such mate pairs in the genomic segment. As indicated in Table 1, μt2 = μ + deletion size.

Finally, insertion size in mate pairs with both direction and insertion size abnormalities, is modeled by f3(ot,k|qt), and proportion of such observations in a genomic segment is indicated by \( {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},3} \). In genomic segments with tandem duplication state \( {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},3} \) is expected to be significantly greater than zero. However, in genomic segments with other states, it is expected to be very close to zero, since some mate pairs may map to the reference genome with direction abnormalities, either due to the sequencing noise or alignment error.

Generally, \( \left({\upalpha}_{{\mathrm{q}}_{\mathrm{t}},1},\ {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},2},{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},3}\right) \) for diploid, heterozygous deletion, homozygous deletion, and tandem duplication states are expected to be \( \left(1,0,0\right),\left(\frac{1}{2},\frac{1}{2},0\right),\left(0,1,0\right) \), and \( \left({\upalpha}_{{\mathrm{q}}_{\mathrm{t}},1},0,1-{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},1}\right) \), respectively.

Model parameters

There are different parameter sets which have to be estimated:

Transition probabilities: since there are 4 states in the HMM, the probability of transition from state i to state j is denoted by aij, where 1 ≤ i, j ≤ 4 and:
$$ {\mathrm{a}}_{\mathrm{ij}}=\mathrm{p}\left({\mathrm{q}}_{\mathrm{t}}=\mathrm{j}\left|{\mathrm{q}}_{\mathrm{t}-1}=\mathrm{i}\right.\right),\kern0.5em \mathrm{f}\mathrm{o}\mathrm{r}\kern0.5em 2\le \mathrm{t}\le \mathrm{T}. $$

All aij values are denoted by a 44 matrix.

Emission probabilities: as mentioned before, the probability of emitting ot,k, 1 ≤ k ≤ nt, in state qt is formulated by the following mixture density:
$$ \begin{array}{cc}\mathrm{f}\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}|{\mathrm{q}}_{\mathrm{t}}\right)& ={\displaystyle \sum_{\mathrm{z}=1}^3{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}}{\mathrm{f}}_{\mathrm{z}}\Big({\mathrm{o}}_{\mathrm{t},\mathrm{k}}\left|{\mathrm{q}}_{\mathrm{t}}\right)},\\ {}& ={\displaystyle \sum_{\mathrm{z}=1}^3{\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}}\frac{1}{\sqrt{2{\uppi \upsigma}_{\mathrm{t}\mathrm{z}}^2}} \exp \left\{\frac{-1}{2{\upsigma}_{\mathrm{t}\mathrm{z}}^2}{\left({\mathrm{o}}_{\mathrm{t},\mathrm{k}}-{\upmu}_{\mathrm{t}\mathrm{z}}\right)}^2\right\}.}\kern1em \end{array} $$

In which \( 0\le {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}}\le 1 \) for 1 ≤ z ≤ 3. The above density depends on genomic position-specific parameters μtz and σ tz 2 which have to be estimated for each genomic segment, separately. Indeed, the position-specific parameter μtz determines the length of a genomic CNV region with deletion or tandem duplication and this length is estimated based on information in the mate pairs reads, in the tth genomic segment.

Also, \( {\upalpha}_{{\mathrm{q}}_{\mathrm{t}},\mathrm{z}} \) values are global parameters and have to be determined based on the genome-wide mate pair data. These global parameters are state dependent which are the key features in decoding the HMM states.

Parameter estimation

PSE-HMM applies an Expectation-Maximization (EM) algorithm for the parameter estimation. See Additional file 1: section S.2, for further details.

Parameter initialization in EM algorithm

T is the genome length which is a fixed value. The segment size (L) can be taken as short as the average insertion size in the clone library. It’s also possible to choose a shorter segment size, as well. However, a shorter segment size results in having more genomic segments which increase the running time of the algorithm. In this study, the segment size is taken to be 150 bp.

The position-specific parameters μtz and σ tz 2 are initialized either based on the information in the mate pair reads mapped to the genomic segments or based on the prior information from the insertion size distribution in clone library. Transition probabilities are also initialized based on the expected length of the genome-wide CNVs.

Also, to assess and to initialize the proportion of the mate pairs which are mapped to the reference genome with an abnormal orientation \( \left({\upalpha}_{{\mathrm{q}}_{\mathrm{t}},3}\right) \), mapping orientations are compared to the expected mate pair orientations in the clone library. The proportion of the mate pairs which are mapped to the reference genome much further apart than expected \( \left({\upalpha}_{{\mathrm{q}}_{\mathrm{t}},2}\right) \) is initialized by comparing the mate pair insertion sizes with the insertion size distribution in the clone library.

Results

PSE-HMM is evaluated on a simulated data set and also on a real data of a Yoruba HapMap individual, NA18507. For data simulation, forward strand of the chromosome 3 of human genome is duplicated. The constructed diploid genome is then altered with deletions (both heterozygous and homozygous) and tandem duplications that are placed randomly. The position, length and the type of each CNV are selected randomly. The generated CNVs are of length 1 kb, 1.5 kb, 2 kb, …, and 5 kb.

Then using MAQ software [27], mate pair reads are simulated from shotgun sequencing of the constructed sample genomes. The insertion size between reads in each mate pair is considered to be normally distributed i.e. N(170, 202). The simulated mate pairs were then mapped to the reference genome. The reference genome is then divided into segments of length 150 nt (Sensitivity of the results to the segment size is studied in Additional file 1: section S.3).

For each genomic segment, we identified mate pairs whose insertion regions are spanning the segment and their reads are flanking the corresponding genomic segment, Fig. 1. The insertion size of these mate pairs are indeed observations that are emitted from the HMM states and are used for the parameter estimation.

Two accuracy measures that are employed are precision and recall (sensitivity) which are TP/(TP + FP) and TP/(TP + FN), respectively. In which, True Positive (TP), False Negative (FN), False Positive (FP) and True Negative (TN). It should be noted that precision is actually 1-FDR (False Discovery Rate) which is of interest. The sensitivity of the results is evaluated for different genomic coverages, i.e. 1×, 5× and 10 × .

Initial values of the parameter vector (α1, α2, α3) and their estimated values after several iterations of the EM algorithm are shown in Table 2, for 10× coverage. For other coverage values, we reached a very similar estimation for this parameter vector.
Table 2

Initial parameter vector (α1, α2, α3) and their estimation after several iterations of the EM algorithm

Initial

Estimated

\( \begin{array}{cc}& \begin{array}{ccc}{\alpha}_1& {\alpha}_2& {\alpha}_3\end{array}\\ {}\begin{array}{c} diploid\\ {}\hfill 1\kern0.5em \mathrm{copy}\hfill \\ {}\hfill 0\kern0.5em \mathrm{copy}\hfill \\ {}\hfill \mathrm{copy}>2\hfill \end{array}& \left[\begin{array}{ccc}\hfill 1\hfill & \hfill 0\hfill & \hfill 0\hfill \\ {}\hfill 0.5\hfill & \hfill 0.5\hfill & \hfill 0\hfill \\ {}\hfill 0\hfill & \hfill 1\hfill & \hfill 0\hfill \\ {}\hfill 0.5\hfill & \hfill 0\hfill & \hfill 0.5\hfill \end{array}\right]\end{array} \)

\( \begin{array}{cc}& \begin{array}{ccc}{\alpha}_1& {\alpha}_2& {\alpha}_3\end{array}\\ {}\begin{array}{c} diploid\\ {}\hfill 1\kern0.5em \mathrm{copy}\hfill \\ {}\hfill 0\kern0.5em \mathrm{copy}\hfill \\ {}\hfill \mathrm{copy}>2\hfill \end{array}& \left[\begin{array}{ccc}\hfill 0.998\hfill & \hfill \approx 0\hfill & \hfill \approx 0\hfill \\ {}\hfill 0.5\hfill & \hfill 0.5\hfill & \hfill 0\hfill \\ {}\hfill 0\hfill & \hfill 1\hfill & \hfill 0\hfill \\ {}\hfill 0.47\hfill & \hfill 0\hfill & \hfill 0.53\hfill \end{array}\right]\end{array} \)

In Table 3, precision and recall values are calculated for each HMM state i.e. {homozygous deletion, heterozygous deletion, diploid, tandem duplication}, and for 10× depth of coverage.
Table 3

PSE-HMM precision and recall are computed for a simulated dataset with 10× depth of coverage



Real state

Heterozygous deletion

Diploid

Homozygous deletion

Tandem duplication

Sum

Precision

Recall

Predicted state

Heterozygous deletions

1,146

660

97

0

1,903

0.60

1.00

Diploid

2

23,560

2

89

23,653

1.00

0.95

Homozygous deletions

0

279

1,221

1

1,501

0.81

0.93

Tandem duplications

3

363

0

2,577

2,943

0.88

0.97

sum

1,151

24,862

1,320

2,667

30,000



In columns 3 to 6, predicted state is shown versus the real state of the genomic segments, and number of segments is indicated in the corresponding cell. A total number of 30,000 genomic segments (4.5 million bp) are evaluated in this analysis

Prediction accuracy of PSE-HMM is compared with central CNV detection methods i.e. m-HMM, CNV-seq, Pindel and Delly. As mentioned before, m-HMM and CNV-seq rely on read depth approach and do not discriminate tandem duplications from other types of duplications. However, Pindel and Delly are capable of this, because of using mate pair reads. For comparisons, coverage is allowed to vary from 1× to 10×. Also, to measure the CNV detection uncertainty, the whole simulation study is repeated five times. In each run, precision and recall values are calculated for each CNV state, separately. Then for each method, average and standard deviation of prediction accuracies over five different runs of the whole study are computed and shown in Table 4.
Table 4

Precision and recall values of PSE-HMM are compared to m-HMM, Pindel, CNV-seq, and Delly



Coverage

10×

Precision mean/std

Recall mean/std

F-measure

Precision mean/std

Recall mean/std

F-measure

Precision mean/std

Recall mean/std

F-measure

Duplications

PSE-HMM

0.91/0.03

0.79/0.02

0.85

0.92/0.02

0.95/0.01

0.93

0.88/0.01

0.97/0.02

0.92

m-HMM

0.95/0.01

0.21/0.02

0.35

1.00/0.02

0.64/0.02

0.78

1.00/0.01

0.71/0.01

0.83

Pindel

1.00/0.00

0.11/0.04

0.20

1.00/0.00

0.67/0.03

0.80

1.00/0.01

0.81/0.03

0.90

CNV-seq

0.55/0.03

0.41/0.03

0.47

0.98/0.00

0.54/0.03

0.70

0.99/0.00

0.57/0.03

0.72

Delly

1.00/0.00

0.80/0.05

0.89

1.00/0.00

0.99/0.05

0.99

1.00/0.00

1.00/0.00

1.00

Deletions

PSE-HMM (heterozygous)

0.43/0.03

0.37/0.03

0.40

0.54/0.04

0.97/0.01

0.69

0.60/0.02

1.00/0.02

0.75

PSE-HMM (homozygous)

0.20/0.03

0.92/0.05

0.33

0.73/0.03

0.97/0.02

0.83

0.81/0.02

0.93/0.03

0.87

PSE-HMM (hetero + homo)a

0.31/0.03

0.86/0.02

0.46

0.63/0.02

0.99/0.01

0.77

0.72/0.03

1.00/0.03

0.84

m-HMM (heterozygous)

0.67/0.02

0.16/0.04

0.25

0.93/0.03

0.88/0.03

0.91

0.93/0.03

0.92/0.02

0.93

m-HMM (homozygous)

0.95/0.02

0.65/0.02

0.77

0.99/0.02

0.62/0.02

0.77

0.99/0.01

0.62/0.03

0.77

m-HMM (hetero + homo)a

0.93/0.02

0.43/0.03

0.59

0.99/0.01

0.78/0.02

0.87

0.99/0.02

0.80/0.03

0.88

Pindel

0.93/0.15

0.02/0.01

0.04

0.91/0.03

0.36/0.02

0.52

0.87/0.06

0.45/0.05

0.59

CNV-seq

0.72/0.05

0.75/0.02

0.73

0.98/0.00

0.91/0.01

0.94

0.98/0.00

0.95/0.01

0.96

Delly

0.98/0.00

0.32/0.04

0.48

0.99/0.00

0.48/0.03

0.65

0.99/0.00

0.49/0.04

0.66

Diploid

PSE-HMM

0.96/0.00

0.79/0.01

0.87

0.99/0.00

0.93/0.00

0.96

1.00/0.00

0.96/0.00

0.98

m-HMM

0.87/0.01

1.00/0.01

0.93

0.94/0.00

1.00/0.00

0.97

0.95/0.00

1.00/0.00

0.97

Pindel

0.82/0.01

1.00/0.00

0.90

0.90/0.01

1.00/0.00

0.95

0.93/0.01

1.00/0.00

0.96

CNV-seq

0.91/0.00

0.93/0.00

0.92

0.94/0.00

1.00/0.00

0.97

0.95/0.00

1.00/0.00

0.97

Delly

0.91/0.01

1.00/0.00

0.95

0.94/0.01

1.00/0.00

0.97

0.94/0.01

1.00/0.00

0.97

For each method, the average and standard deviation of the precision (recall) values over five different runs of the whole simulation study are given in each cell. For each state i.e. tandem duplication, deletion and diploid, evaluations are done for three different coverage values i.e. 1×, 5×, and 10×. The implanted CNVs are of length 1 kb, 1.5 kb, 2 kb, 2.5 kb, …, 4.5 kb, and 5 kb

a hetero + homo stands for copy loss

As shown in Table 4, according to F-measure, Pindel and Delly reached very drastic accuracies in detecting genome-wide deletions for all coverages. CNV-seq also reached a very drastic accuracy in predicting duplications. However, PSE-HMM is always ranked among top methods in all states. To have a better understanding of the performance of PSE-HMM in comparison with other state-of-the-art of methods, arithmetic and harmonic means of F-measures are calculated over different HMM states i.e. deletions, duplications and diploid states. As shown in Table 5, PSE-HMM has reached the highest accuracies according to the arithmetic and harmonic means of F-measures, compared to m-HMM, Pindel, Delly and CNV-seq and for coverages of 5×, and 10 × .
Table 5

Arithmetic and harmonic means of F-measures



Coverage

10×

Arithmetic mean

PSE-HMM

0.72

0.89

0.91

m-HMM

0.62

0.87

0.90

Pindel

0.38

0.76

0.82

CNV-seq

0.71

0.87

0.89

Delly

0.77

0.87

0.87

Harmonic mean

PSE-HMM

0.66

0.88

0.91

m-HMM

0.53

0.87

0.89

Pindel

0.09

0.71

0.78

CNV-seq

0.66

0.85

0.87

Delly

0.71

0.84

0.84

For PSE-HMM, m-HMM, Pindel, CNV-seq, and Delly, arithmetic and harmonic means of F-measures are calculated over different HMM states i.e. tandem-duplications, deletions (either heterozygous or homozygous), and genomic diploid states. The highest accuracies are indicated in bold, for coverages of 5× and 10×

In Table 6, precision and recall values of PSE-HMM and other methods are compared for CNVs of length 1 kb, 3 kb, and 5 kb, separately, and for 10× sequencing coverage.
Table 6

PSE-HMM is compared to other tools in detecting genome-wide deletions and tandem duplications of size 1 kb, 3 kb, and 5 kb



CNV length

1 kb

3 kb

5 kb



Precision mean/std

Recall mean/std

F-measure

Precision mean/std

Recall mean/std

F-measure

Precision mean/std

Recall mean/std

F-measure

Duplications

PSE-HMM

0.88/0.04

0.89/0.03

0.89

0.90/0.03

0.97/0.03

0.93

0.88/0.03

0.98/0.01

0.93

m-HMM

1.00/0.00

0.71/0.1

0.83

1.00/0.00

0.76/0.04

0.86

1.00/0.00

0.75/0.03

0.86

Pindel

1.00/0.00

0.95/0.06

0.98

1.00/0.00

0.82/0.11

0.90

1.00/0.00

0.87/0.1

0.93

CNV-seq

0.99/0.01

0.53/0.06

0.69

0.99/0.00

0.53/0.02

0.69

0.99/0.00

0.59/0.09

0.74

Delly

1.00/0.00

1.00/0.00

1.00

1.00/0.00

1.00/0.00

1.00

1.00/0.00

1.00/0.00

1.00

Deletions

PSE-HMM (heterozygous)

0.68/0.10

1.00/0.01

0.81

0.35/0.10

1.00/0.00

0.52

0.70/0.08

1.00/0.03

0.82

PSE-HMM (homozygous)

0.70/0.11

0.89/0.05

0.78

0.77/0.03

0.80/0.00

0.78

0.75/0.03

1.00/0.00

0.86

PSE-HMM (hetero + homo)a

0.69/0.02

0.96/0.02

0.80

0.64/0.02

1.00/0.02

0.78

0.72/0.02

1.00/0.02

0.84

m-HMM (heterozygous)

0.97/0.03

0.50/0.31

0.66

0.99/0.01

1.00/0.00

0.99

0.99/0.01

1.00/0.01

0.99

m-HMM (homozygous)

0.99/0.01

1.00/0.00

0.99

0.99/0.01

1.00/0.00

0.99

0.99/0.01

0.60/0.00

0.75

m-HMM (hetero + homo)a

0.98/0.01

0.67/0.03

0.79

0.99/0.01

1.00/0.02

0.99

0.99/0.01

0.78/0.01

0.87

Pindel

0.98/0.02

0.39/0.08

0.56

0.85/0.10

0.46/0.08

0.59

0.87/0.11

0.45/0.13

0.59

CNV-seq

0.98/0.00

0.92/0.04

0.95

0.98/0.00

0.96/0.01

0.97

0.98/0.00

0.96/0.02

0.97

Delly

0.99/0.01

0.47/0.11

0.64

0.99/0.00

0.51/0.04

0.68

0.99/0.01

0.45/0.12

0.62

The average and standard deviation of the precision (recall) values are calculated based on five different repeats of the whole simulation study with 10× sequencing coverage

a hetero + homo stands for copy loss

PSE-HMM is also compared to other methods, according to overall accuracies in detecting the genome-wide CNV regions (number of nucleotides in CNV regions whose states were correctly predicted are divided by the total length of CNV regions). As shown by Fig. 4, PSE-HMM outperforms m-HMM, CNV-seq, Pindel, and Delly in detecting genome-wide CNV regions, even for low coverage data.

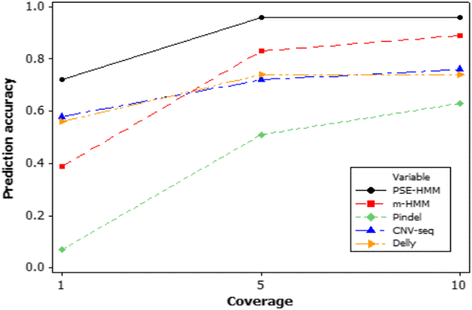

Fig. 4

Comparing the overall accuracy of PSE-HMM, m-HMM, CNV-seq, Pindel and Delly in detecting genome-wide CNV regions. Number of nucleotides in CNV regions whose states are correctly predicted is divided by the total length of the genomic CNV regions

To measure the sensitivity of the result to the genome-wide CNV percentage, we have constructed sample genomes with different CNV percentage. In these sample genomes, the total length of genomic CNV regions over the reference genome length is allowed to vary in the range of 2–30 %, see Additional file 1: section S.4.

Real data

We applied PSE-HMM for the CNV detection in a male Yoruban HapMap individual from Ibadan Nigeria, NA18507. BAM file of the alignment of the mate pair reads to Build 36 of the human reference genome (hg18) is downloaded from http://ftp.1000genomes.ebi.ac.uk/vol1/ftp/pilot_data/data/NA18507/alignment/. This is a low coverage whole-genome shotgun sequencing data generated by illumina platform. Alignment (.BAM) files are then parsed out using SAMtools (samtools.sourceforge.net) and mate pair reads of low mapping quality (<Q25) are filtered out. After this step, a genome-wide coverage of 1.67× is achieved. In this data, each read is of length 36 bp and the average insertion size is estimated to be 123 bp with a standard deviation of 30 bp.

PSE-HMM is applied for detecting deletions and tandem duplications in chromosome 8 of NA18507. PSE-HMM called 5522 CNVs, of which 5447 are deletions of length from 51 to 1871 bp. The other 75 calls are tandem duplications of length in the range of 193 to 46,509 bases. Our calls cover 1.12 % of the studied autosomal chromosome. Also, deletions and tandem duplications cover 0.54 and 0.58 % of the genome, respectively. Distribution of deletion sizes is shown in Fig. 5. Concordant with other studies [25, 28, 29] as deletion size increases, frequency of CNV calls decreases exponentially.
Fig. 5

Deletion size distribution for CNVs detected by PSE-HMM, in NA18507. Frequency of the calls decreases exponentially, as deletion size increases

CNVs detected by PSE-HMM are compared with the Database of Genomic Variants (DGV), http://dgv.tcag.ca/dgv/. The DGV contains 8599 identified CNVs in 40 HapMap individuals using aCGH, covering 2.36 % of the genome. As shown by Table 7, 58 % of our calls overlap a call from DGV. Also, from a total number of 1,634,212 bases that are called as a CNV by PSE-HMM, 70 % are also in DGV. In more details, 58 % of the total number of 5447 deletions called by PSE-HMM overlap with a call in DGV (64 % of the bases). Also, 83 % of the 75 tandem duplication calls that are made by PSE-HMM overlap with a call from DGV (75 % of the bases).
Table 7

Overlap of CNVs detected by PSE-HMM against DGV is given by calls and bases



Number of CNV calls

Overlap against DGV (by calls)

Overlap against DGV (by bases)

Deletion

5,447

58 %

64 %

Tandem duplication

75

83 %

75 %

Total

5,522

58 %

70 %

From the statistical point of view, since CNV calls of DGV cover 2.36 % of the genome, a randomly called base by PSE-HMM will also overlap a call from DGV with a probability of 2.36 %. Therefore, overlapping 70 % of the PSE-HMM base calls with DGV is considered statistically significant.

We compared deletions called by PSE-HMM with eight CNV regions of chromosome 8 of NA18507 that are validated to contain a deletion using aCGH methods [29]. The PSE-HMM was able to detect 75 % of the Kidd et al.’s calls (6 out of 8 calls). Overlap of PSE-HMM deletion calls are also investigated against CNVs detected in [30]. For further details see Additional file 1: section S.5.

Moreover, tandem duplications called by PSE-HMM are compared with the study of [31] in which genomic regions with significant intensity difference were identified using aCGH, in a pool of 270 HapMap individual, including NA18507. For this comparison, following the method that was used in [32], PSE-HMM identified 66 % (4 out of 6) of duplications that were made by [31], in NA18507.

Discussion

The current version of PSE-HMM can be applied for the CNV detection in the diploid genome of human and other organisms, as well. However, it cannot detect CNVs in haploid organisms. Moreover, PSE-HMM reaches accuracies comparable to other state-of-the-art of methods, even using a low coverage data.

Although the current version of the package is limited to whole-genome shotgun sequencing data, further work is in progress to adopt PSE-HMM with the exome or gene panel sequencing data.

The HapMap individual NA18507-used in this study- was sequenced using illumina. However, PSE-HMM may apply for the CNV detection in other platforms, as well. As shown in Additional file 1: section S.6, PSE-HMM will be robust to deviation (skewness) of the insert size distribution from the assumption of normality.

Conclusion

We proposed PSE-HMM as an HMM with inhomogeneous emission probabilities for the CNV detection from NGS data. PSE-HMM efficiently models the observed deviations in the insertion size and direction of mate pairs, after being mapped to the reference genome. For this purpose PSE-HMM uses a Gaussian mixture density for modeling different types of deviations in the mate pair reads.

Although this article is focused on predicting deletions and tandem duplications, PSE-HMM can be applied for detecting other types of variations, as well.

PSE-HMM outperforms central CNV detection methods i.e. m-HMM, CNV-seq, Pindel and Delly and this indicates that in PSE-HMM, dependencies of observations in consecutive genomic segments are successfully modeled.

Abbreviations

CNV:

Copy number variation

EM:

Expectation maximization

FDR:

False discovery rate

FN:

False negative

FP:

False positive

HMM:

Hidden Markov model

indels:

Insertions and deletions

NGS:

Next generation sequencing

PSE-HMM:

HMM with Position-Specific Emission probabilities

TN:

True negative

TP:

True positive

Declarations

Acknowledgements

The authors would like to thank handling associate editors of this manuscript and two anonymous referees for comments. Hamid Pezeshk and Seyed Amir Malekpour would like to thank department of research affairs at University of Tehran.

Funding

The financial support of INSF (No. 95834244) is gratefully acknowledged.

Availability of data and materials

BAM file of the alignment of the mate pair reads to Build 36 of the human reference genome (hg18) is available from http://ftp.1000genomes.ebi.ac.uk/vol1/ftp/pilot_data/data/NA18507/alignment/. Also, MATLAB programs of PSE-HMM are available at http://bs.ipm.ir/softwares/PSE-HMM/.

Authors’ contributions

SAM had the original idea, performed the calculations and data analysis, and wrote the MATLAB programs. HP and MS were involved in the scientific discussions, managed the research and guided the data analysis. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
School of Mathematics, Statistics and Computer Science, College of Science, University of Tehran
(2)
School of Biological Sciences, Institute for Research in Fundamental Sciences (IPM)
(3)
National Institute of Genetic Engineering and Biotechnology

References

  1. Szatkiewicz JP, O’Dushlaine C, Chen G, Chambert K, Moran JL, Neale BM, Fromer M, Ruderfer D, Akterin S, Bergen SE, et al. Copy number variation in schizophrenia in Sweden. Mol Psychiatry. 2014;19(7):762–73.View ArticlePubMedPubMed CentralGoogle Scholar
  2. Altshuler DM, Gibbs RA, Peltonen L, Altshuler DM, Gibbs RA, Peltonen L, Dermitzakis E, Schaffner SF, Yu F, Peltonen L, et al. Integrating common and rare genetic variation in diverse human populations. Nature. 2010;467(7311):52–8.View ArticlePubMedGoogle Scholar
  3. Fridlyand J, Snijders AM, Pinkel D, Albertson DG, Jain AN. Hidden Markov models approach to the analysis of array CGH data. J Multivar Anal. 2004;90(1):132–53.View ArticleGoogle Scholar
  4. Rueda OM, Diaz-Uriarte R. Flexible and accurate detection of genomic copy-number changes from aCGH. PLoS Comput Biol. 2007;3(6):e122.View ArticlePubMedPubMed CentralGoogle Scholar
  5. Ding J, Shah S. A robust hidden semi-Markov model with application to aCGH data processing. Int J Data Min Bioinform. 2013;8(4):427–42.View ArticlePubMedGoogle Scholar
  6. Shah SP, Lam WL, Ng RT, Murphy KP. Modeling recurrent DNA copy number alterations in array CGH data. Bioinformatics (Oxford, England). 2007;23(13):i450–8.View ArticleGoogle Scholar
  7. Marioni JC, Thorne NP, Tavare S. BioHMM: A heterogeneous Hidden Markov model for segmenting array CGH data. Bioinformatics (Oxford, England). 2006;22(9):1144-46.Google Scholar
  8. McCallum KJ, Wang JP. Quantifying copy number variations using a hidden Markov model with inhomogeneous emission distributions. Biostatistics. 2013;14(3):600–11.View ArticlePubMedGoogle Scholar
  9. Xie C, Tammi MT. CNV-seq, a new method to detect copy number variation using high-throughput sequencing. BMC Bioinformatics. 2009;10:80.View ArticlePubMedPubMed CentralGoogle Scholar
  10. Xi R, Hadjipanayis AG, Luquette LJ, Kim TM, Lee E, Zhang J, Johnson MD, Muzny DM, Wheeler DA, Gibbs RA, et al. Copy number variation detection in whole-genome sequencing data using the Bayesian information criterion. Proc Natl Acad Sci U S A. 2011;108(46):E1128–36.View ArticlePubMedPubMed CentralGoogle Scholar
  11. Zhang Q, Ding L, Larson DE, Koboldt DC, McLellan MD, Chen K, Shi X, Kraja A, Mardis ER, Wilson RK, et al. CMDS: a population-based method for identifying recurrent DNA copy number aberrations in cancer from high-resolution data. Bioinformatics (Oxford, England). 2010;26(4):464–9.View ArticleGoogle Scholar
  12. Klambauer G, Schwarzbauer K, Mayr A, Clevert DA, Mitterecker A, Bodenhofer U, Hochreiter S. cn.MOPS: mixture of Poissons for discovering copy number variations in next-generation sequencing data with a low false discovery rate. Nucleic Acids Res. 2012;40(9):e69.View ArticlePubMedPubMed CentralGoogle Scholar
  13. Kim TM, Luquette LJ, Xi R, Park PJ. rSW-seq: algorithm for detection of copy number alterations in deep sequencing data. BMC Bioinformatics. 2010;11:432.View ArticlePubMedPubMed CentralGoogle Scholar
  14. Ivakhno S, Royce T, Cox AJ, Evers DJ, Cheetham RK, Tavare S. CNAseg--a novel framework for identification of copy number changes in cancer from second-generation sequencing data. Bioinformatics (Oxford, England). 2010;26(24):3051–8.View ArticleGoogle Scholar
  15. Wang H, Nettleton D, Ying K. Copy number variation detection using next generation sequencing read counts. BMC Bioinformatics. 2014;15(1):1–14.View ArticleGoogle Scholar
  16. Abel HJ, Duncavage EJ, Becker N, Armstrong JR, Magrini VJ, Pfeifer JD. SLOPE: a quick and accurate method for locating non-SNP structural variation from targeted next-generation sequence data. Bioinformatics (Oxford, England). 2010;26(21):2684–8.View ArticleGoogle Scholar
  17. Hormozdiari F, Hajirasouliha I, McPherson A, Eichler EE, Sahinalp SC. Simultaneous structural variation discovery among multiple paired-end sequenced genomes. Genome Res. 2011;21(12):2203–12.View ArticlePubMedPubMed CentralGoogle Scholar
  18. Zhang ZD, Du J, Lam H, Abyzov A, Urban AE, Snyder M, Gerstein M. Identification of genomic indels and structural variations using split reads. BMC Genomics. 2011;12:375.View ArticlePubMedPubMed CentralGoogle Scholar
  19. Chen K, Wallis JW, McLellan MD, Larson DE, Kalicki JM, Pohl CS, McGrath SD, Wendl MC, Zhang Q, Locke DP, et al. BreakDancer: an algorithm for high-resolution mapping of genomic structural variation. Nat Methods. 2009;6(9):677–81.View ArticlePubMedPubMed CentralGoogle Scholar
  20. Korbel JO, Abyzov A, Mu XJ, Carriero N, Cayting P, Zhang Z, Snyder M, Gerstein MB. PEMer: a computational framework with simulation-based error models for inferring genomic structural variants from massive paired-end sequencing data. Genome Biol. 2009;10(2):R23.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Sindi SS, Onal S, Peng LC, Wu HT, Raphael BJ. An integrative probabilistic model for identification of structural variation in sequencing data. Genome Biol. 2012;13(3):R22.View ArticlePubMedPubMed CentralGoogle Scholar
  22. Abyzov A, Gerstein M. AGE: defining breakpoints of genomic structural variants at single-nucleotide resolution, through optimal alignments with gap excision. Bioinformatics (Oxford, England). 2011;27(5):595–603.View ArticleGoogle Scholar
  23. Layer RM, Chiang C, Quinlan AR, Hall IM. LUMPY: a probabilistic framework for structural variant discovery. Genome Biol. 2014;15(6):R84.View ArticlePubMedPubMed CentralGoogle Scholar
  24. Rausch T, Zichner T, Schlattl A, Stutz AM, Benes V, Korbel JO. DELLY: structural variant discovery by integrated paired-end and split-read analysis. Bioinformatics (Oxford, England). 2012;28(18):i333–9.View ArticleGoogle Scholar
  25. Ye K, Schulz MH, Long Q, Apweiler R, Ning Z. Pindel: a pattern growth approach to detect break points of large deletions and medium sized insertions from paired-end short reads. Bioinformatics (Oxford, England). 2009;25(21):2865–71.View ArticleGoogle Scholar
  26. Yavas G, Koyuturk M, Gould MP, McMahon S, LaFramboise T. DB2: a probabilistic approach for accurate detection of tandem duplication breakpoints using paired-end reads. BMC Genomics. 2014;15:175.View ArticlePubMedPubMed CentralGoogle Scholar
  27. Li H, Ruan J, Durbin R. Mapping short DNA sequencing reads and calling variants using mapping quality scores. Genome Res. 2008;18(11):1851–8.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Korbel JO, Urban AE, Affourtit JP, Godwin B, Grubert F, Simons JF, Kim PM, Palejev D, Carriero NJ, Du L, et al. Paired-end mapping reveals extensive structural variation in the human genome. Science (New York, NY). 2007;318(5849):420–6.View ArticleGoogle Scholar
  29. Kidd JM, Cooper GM, Donahue WF, Hayden HS, Sampas N, Graves T, Hansen N, Teague B, Alkan C, Antonacci F, et al. Mapping and sequencing of structural variation from eight human genomes. Nature. 2008;453(7191):56–64.View ArticlePubMedPubMed CentralGoogle Scholar
  30. Mills RE, Luttig CT, Larkins CE, Beauchamp A, Tsui C, Pittard WS, Devine SE. An initial map of insertion and deletion (INDEL) variation in the human genome. Genome Res. 2006;16(9):1182–90.View ArticlePubMedPubMed CentralGoogle Scholar
  31. McCarroll SA, Kuruvilla FG, Korn JM, Cawley S, Nemesh J, Wysoker A, Shapero MH, de Bakker PIW, Maller JB, Kirby A, et al. Integrated detection and population-genetic analysis of SNPs and copy number variation. Nat Genet. 2008;40(10):1166–74.View ArticlePubMedGoogle Scholar
  32. Medvedev P, Fiume M, Dzamba M, Smith T, Brudno M. Detecting copy number variation with mated short reads. Genome Res. 2010;20(11):1613–22.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2016

Advertisement
