Integrating mean and variance heterogeneities to identify differentially expressed genes
BMC Bioinformatics volume 17, Article number: 497 (2016)
 The Erratum to this article has been published in BMC Bioinformatics 2017 18:89
Abstract
Background
In functional genomics studies, tests on mean heterogeneity have been widely employed to identify differentially expressed genes with distinct mean expression levels under different experimental conditions. Variance heterogeneity (aka, the difference between conditionspecific variances) of gene expression levels is simply neglected or calibrated for as an impediment. The mean heterogeneity in the expression level of a gene reflects one aspect of its distribution alteration; and variance heterogeneity induced by condition change may reflect another aspect. Change in condition may alter both mean and some higherorder characteristics of the distributions of expression levels of susceptible genes.
Results
In this report, we put forth a conception of meanvariance differentially expressed (MVDE) genes, whose expression means and variances are sensitive to the change in experimental condition. We mathematically proved the null independence of existent mean heterogeneity tests and variance heterogeneity tests. Based on the independence, we proposed an integrative meanvariance test (IMVT) to combine genewise mean heterogeneity and variance heterogeneity induced by condition change. The IMVT outperformed its competitors under comprehensive simulations of normality and Laplace settings. For moderate samples, the IMVT well controlled type I error rates, and so did existent mean heterogeneity test (i.e., the Welch t test (WT), the moderated Welch t test (MWT)) and the procedure of separate tests on mean and variance heterogeneities (SMVT), but the likelihood ratio test (LRT) severely inflated type I error rates. In presence of variance heterogeneity, the IMVT appeared noticeably more powerful than all the valid mean heterogeneity tests. Application to the gene profiles of peripheral circulating B raised solid evidence of informative variance heterogeneity. After adjusting for background data structure, the IMVT replicated previous discoveries and identified novel experimentwide significant MVDE genes.
Conclusions
Our results indicate tremendous potential gain of integrating informative variance heterogeneity after adjusting for global confounders and background data structure. The proposed informative integration test better summarizes the impacts of condition change on expression distributions of susceptible genes than do the existent competitors. Therefore, particular attention should be paid to explicitly exploit the variance heterogeneity induced by condition change in functional genomics analysis.
Background
Typically, comparative microarray experiments analyze expressions of thousands to tens of thousands of genes. A core challenge is to identify statistically significant genes of biologically meaningful changes in expression levels under different conditions. Differentially expressed genes may help identify disease biomarkers that are important for the diagnosis of multiple diseases [1, 2]. There are several existent mean heterogeneity tests for identifying differentially expressed genes. The Student t test (ST) has been widely applied as a standard routine for identifying mean differentially expressed (MDE) genes in twocondition experiments [3]. The null hypothesis of this test is mean homogeneity H _{01}: the testing gene has identical mean expression level under the two conditions. It assumes variance homogeneity H _{02}: the testing gene has identical variance in expression level under the two conditions. The necessity of H _{02} for the ST was formally examined under normality setting [4]. It tends to inflate type I error rate for rejecting mean equality if the smaller sample is from the population with the larger variance. In contrast, it tends to be conservative if the larger sample is from the population with smaller variance. The WT [5] is an adaptation of the ST to allow for potential variance heterogeneity between two experimental conditions. This test calibrates potential variance heterogeneity as an impediment to identify differentially expressed genes. Demissie et al. developed the MWT [6] to obtain more stable estimates of the error variance of a gene in a lowreplicate microarray experiment. The MWT outperformed the Welch test to allow for variance heterogeneity. All aforesaid tests either simply ignore or take the variance heterogeneity as an impediment and calibrate it when identifying differentially expressed genes.
In comparative microarray experiments, condition change may alter entire expression distributions of susceptible genes. Genes can interact with each other and interact with environmental factors. For a gene in a complex network, its distribution heterogeneity of expression levels can include heterogeneities in mean, variance, and even higherorder mathematical characteristics. Thus far, researchers have been conventionally focusing on exploiting mean heterogeneity, simply ignoring or adjusting for overall intracondition variance heterogeneity. Herein, we distinguish ‘informative component’ from ‘impediment component’ of the overall variance heterogeneity. Specifically, we call the variance heterogeneity due to condition change as ‘informative variance heterogeneity’; and call variance heterogeneity due to environmental covariates and latent factors (i.e., background data structure) as impediment variance heterogeneity. However, informative variance heterogeneity has not been well recognized and exploited.
Informative variance heterogeneity of a susceptible gene can capture extra information conveyed by complicated biological networks. High genegene correlations are common in coexpression networks of differentially expressed genes [7, 8]. Genes can interact with each other and/or interact with environmental factors. Therefore, the alteration of expression distribution of a susceptible gene cannot be completely determined by its mean heterogeneity. Heterogeneities of highorder characteristics, e.g., variance and kurtosis, can provide extra valuable information. Exploiting informative mean heterogeneity of gene expression level alone would be incompetent to extract the information of the secondorder moment (i.e., the variance). In context of genetic association studies, there are existent methods for integrating variance heterogeneity to identify genetic loci which are associated with the variances of quantitative traits (vQTL) [9, 10] and gene expression levels (evQTL) [11]. In addition, KA GeilerSamerotte [12] presented several biological examples and also argued that variance heterogeneities of biological data may provide insight about phenotypic variability. Detecting QTLs, however, is different from detecting differential expressions between comparative microarray experiments. Existent methods cannot explicitly integrate the informative variance heterogeneity of gene expressions due to condition change; and little has been done to distill informative variance heterogeneity.
In this article, we put forth meanvariance differentially expressed (MVDE) gene as a novel concept. The family of MVDE genes is broader than that of conventional MDE genes. It goes one step closer to our generic concept of a susceptible gene − a gene displays reliable changes in any aspects of the entire distribution of its expression level with the change in condition. A MVDE gene may display different means and/or variances of expression levels between two different conditions. The proper null hypothesis of testing MVDE is H _{03} = H _{01} ∩ H _{02}: the gene has equal mean and equal variance of expression levels between the two conditions. We reject the dual null hypothesis (H _{03}) and claim the testing gene if the data raises significant evidence for mean heterogeneity, variance heterogeneity, or both. Under normality setting, the twosample Ftest is the most powerful procedure for exploiting variance heterogeneity. But the Ftest is very sensitive to the violation of normality [13]. Beyond normality setting, the Levene test [14] and the Brown–Forsythe test [15] are two popular alternatives for inspecting variance heterogeneity.
We mathematically proved and empirically illustrated that testing statistics of mean heterogeneity and variance heterogeneity are independently distributed under H _{03}. This null independence is not wellknown to many, but is crucial to assure the type I error rate control of the IMVT using Fisher’s method [15]. Under comprehensive simulations, the IMVT appeared noticeably more powerful than existent mean heterogeneity tests (i.e., WT, MWT and STSD) as well as the LRT and the SMVT for identifying MVDE genes. In particular, the IMVT appeared strikingly more powerful than the mean heterogeneity tests to identify genes with variance heterogeneity. To illustrate the practical utility of our IMVT, we reanalyzed the gene profiles of peripheral circulating B cells [16] after adjusting for global confounders and background data structure. Our IMVT replicated previous discoveries and identified novel genes that were missed by existent mean heterogeneity tests. Our results highlighted the importance of exploiting informative variance heterogeneity, which is a rich resource about the biology mechanism of gene expressions.
Methods
Let the dataset contain expression levels of M gene probes of n _{ c } unrelated subjects from condition c (i.e., c = 1 for control group, and c = 2 for treatment group). To be specific, let G _{ ijc } be the expression level of gene probe i (=1,2,…,M) on subject j (=1,2,…,n _{ c }) under condition c, and let n = n _{1} + n _{2} be the total sample size. Let μ _{ ic } and σ _{ ic } ^{2} be the genespecific mean and variance of the expression levels of gene probe i under condition c, respectively. The standard unbiased estimators of μ _{ ic } and σ _{ ic } ^{2} are given by \( {\widehat{\mu}}_{ic}={\overline{G}}_{ic}={\displaystyle {\sum}_{j=1}^{n_c}}{G}_{ijc}/{n}_c \) and \( {\widehat{\sigma}}_{ic}^2={\displaystyle {\sum}_{j=1}^{n_c}}{\left({G}_{ijc}{\overline{G}}_{ic}\right)}^2/\left({n}_c1\right) \), respectively.
Concept of MDE genes and mean heterogeneity tests
Researchers conventionally focus on identifying MDE genes. A MDE gene displays mean differentials between the expression levels under two experimental conditions (μ _{1} ≠ μ _{2}). The ST has been widely used routine to identify MDE genes. This mean heterogeneity test rejects the null hypothesis H _{01} : μ _{1} = μ _{2} if the Student statistic of the testing gene departures from zero significantly. A default assumption behind the ST is variance equality H _{02} : σ _{1} ^{2} = σ _{2} ^{2} at the testing gene. Specifically, for the i ^{th} gene, let \( {\boldsymbol{G}}_1={\left({G}_{i11},{G}_{i21},\dots, {G}_{i{ n}_11}\right)}^{\prime } \) and \( {\boldsymbol{G}}_2={\left({G}_{i12},{G}_{i22},\dots, {G}_{i{ n}_22}\right)}^{\prime } \) be the expression levels of two independent random samples from normal populations \( \mathcal{N}\left({\mu}_{i1},{\sigma_i}_1^2\right) \) and \( \mathcal{N}\left({\mu}_{i2},{\sigma}_{i2}^2\right) \), respectively. The ST on H _{01} ^{(i)} : μ _{ i1} = μ _{ i2} assumes variance homogeneity (H _{02} ^{(i)} : σ _{ i1} ^{2} = σ _{ i2} ^{2} ) between the two conditions, and defines the test statistic as
where \( {\widehat{\sigma}}_p^2=\frac{n_11}{n_1+{n}_22}{\widehat{\sigma}}_{i1}^2+\frac{n_21}{n_1+{n}_22}{\widehat{\sigma}}_{i2}^2 \) is the pooled sample variance estimator of the common variance σ^{2}. If H _{03} ^{(i)} = H _{01} ^{(i)} ∩ H _{02} ^{(i)} is true, then the testing statistic \( \widehat{t} \) follows the centralized Student t distribution with (n _{1} + n _{2} − 2) degrees of freedom \( \left(\widehat{t}\sim {t}_{n_1+{n}_22}\right) \). It is well known that violating the assumption of variance homogeneity would result in type I error inflation or power loss of the ST [17].
The WT, as an adaptation of the ST, is more reliable when the twogroup samples have unequal variances and unequal sample sizes. The Welch statistic is defined by
This statistic calibrates the impact of potential variance heterogeneity between two conditions. For a gene with equal means between two conditions (regardless of variance heterogeneity), \( \widehat{WT} \) approximately follows a tdistribution with the following WelchSatterthwaite degree of freedom:
To calibrate unequal variances, another alternative is the MWT [6], which would yield reliable conditionspecific variance estimators for lowreplicate experiments. For largesample experiments, one can perform Student t test on standardized data (STSD), where the gene expression levels are divided by conditionspecific sample standard deviations respectively.
Concept of MVDE genes and variance heterogeneity tests
A gene is called to be susceptible if the change in condition can alter arbitrary aspects of the entire distribution of its expression level, i.e., mean, variance, kurtosis and/or even higherorder characteristics. The term MVDE gene is adopted to describe a gene whose mean and/or variance in expression level is sensitive to the change in condition. Formally, a MVDE gene has different means (μ _{1} ≠ μ _{2}) and/or variances (σ _{1} ^{2} ≠ σ _{2} ^{2} ) of expression levels between two conditions. This concept of MVDE genes goes one step closer to our general concept of a susceptible gene and is more reasonable than the conventional concept of MDE genes, which confines to differential mean expression levels only. In gene coexpression networks, genes work together and the expression levels are correlated. Some susceptible genes may also interact with other susceptible genes and/or environmental factors. Such correlations and interactions among biological networks are very common and are major drivers for the variance heterogeneity of a test susceptible gene. Variance heterogeneity, to some extent, indicates how a gene involve in complex networks. Therefore, we argue that variance heterogeneity should be as equally important as mean heterogeneity for identifying differentially expressed genes. To identify susceptible genes, one crucial step is to extract summary statistics containing potential information about variance heterogeneity, i.e., the p values computed from some appropriate test statistic on the null hypothesis H _{02} ^{(i)} (variance homogeneity).
For a random gene, if its (transformed) expression levels follow normal distribution, then the classical twosample Fstatistic
follows the centralized Fdistribution with (n _{1} − 1) and (n _{2} − 1) degrees of freedom \( \left(\widehat{F}\sim {F}_{n_11,{n}_21}\right) \) since H _{02} ^{(i)} is true. Under normality setting, the Ftest is the most powerful test for exploiting variance heterogeneity. Nevertheless, the Ftest is very sensitive to the violation of normality. Therefore, it may claim random genes to be spuriously significant if their (transformed) expression levels do not strictly follow normal distributions. Actually, the twosample F test is more suitable for testing normality other than variance heterogeneity [13].
As a robust alternative, the BrownForsythe statistic is the Fratio that stems from applying the ordinary oneway analysis of variance on the absolute deviations from the median:
where \( {Z}_{ijc}=\left{G}_{ijc}{\tilde{G}}_{ic}\right \), \( {\overline{Z}}_{ic}=\frac{1}{n_c}{\displaystyle {\sum}_{j=1}^{n_c}}{Z}_{ijc} \), \( {\overline{Z}}_i=\frac{1}{n_1+{n}_2}{\displaystyle {\sum}_{c=1}^2}{\displaystyle {\sum}_{j=1}^{n_c}}{Z}_{i jc} \), and \( {\tilde{G}}_{ic}= median\left({\boldsymbol{G}}_{\boldsymbol{c}}\right) \). When H _{02} ^{(i)} is true, the distribution of \( \widehat{BF} \) follows approximately the Fdistribution with degrees of freedom 1 and (n _{1} + n _{2} − 2).
Another alternative, the Levene test, uses the mean instead of the median:
where \( {Z}_{i jc}=\left{G}_{i jc}{\overline{G}}_{i c}\right,{\overline{Z}}_{i c}=\frac{1}{n_c}{\displaystyle {\sum}_{j=1}^{n_c}}{Z}_{i jc},{\overline{Z}}_i=\frac{1}{n_1+{n}_2}{\displaystyle {\sum}_{c=1}^2}{\displaystyle {\sum}_{j=1}^{n_c}}{Z}_{i jc} \) and \( {\overline{G}}_{ic}= mean\left({\boldsymbol{G}}_{\boldsymbol{c}}\right) \). If H _{02} ^{(i)} is true, then \( \widehat{LF} \) follows approximately the F distribution with degrees of freedom 1 and (n _{1} + n _{2} − 2).
For each gene, the optimal test for variance heterogeneity depends on the underlying gene expression distribution. According to Brown and Forsythe’s Monte Carlo studies [15], the Levene test provided the best power for symmetric, moderatetailed distributions; whereas the BrownForsythe test performed best when the underlying data followed heavily skewed distributions.
Integrating mean and variance heterogeneities
One most commonly used method to integrate two independent pieces of information is Fisher’s linear combination. For a testing gene, let p _{ WT }, p _{ F }, p _{ BF }, p _{ LF } denote the pvalues of the Welch statistic, the F statistic, the BrownForsythe statistic and the Levene statistic, respectively. We recommend using \( \widehat{IMVT}=2\left( \log \left({p}_{WT}\right)+ \log \left({p}_{LF}\right)\right) \) to integrate mean and variance heterogeneities. Another two alternatives are \( \widehat{ F WT}=2\left( \log \left({p}_{WT}\right)+ \log \left({p}_F\right)\right) \) and \( \widehat{ BF WT}=2\left( \log \left({p}_{WT}\right)+ \log \left({p}_{BF}\right)\right) \). Each of the three Fisher linear combinations follows approximately the χ ^{2}  distribution with 4° of freedom, provided that the pvalues of mean heterogeneity tests are independent of the pvalues of variance heterogeneity tests under joint null H _{03}.
Alternative tests for the joint null hypothesis of mean and variance equalities
To test H _{03}, a framework of separate mean and variance tests (SMVT) can also be conducted. This framework applies WT on H _{01} (mean equality) at nominal level α _{1} and Levene test on H _{02} (variance equality) at nominal level α _{2}, respectively. H _{03} is rejected if H _{01} or H _{02} or both are rejected. By our proposition on the null independence, type I error rate of this framework is given by α = α _{1} + α _{2} − α _{1} α _{2}. It is intractable to choose universal optimal α _{1} and α _{2} for all genes. To control the overall type I error rate at nominal level α, one typical choice is setting \( {\alpha}_1={\alpha}_2=1\sqrt{\alpha} \). Similar as Fisher’s linear combination, the SMVT gives equal weight to mean heterogeneity and variance heterogeneity.
The twosample LRT is another alternative to test H _{03}, assuming the (transformed) expression levels follow normal distributions. Specifically, the LRT statistic is given by
\( \widehat{\mu}=\frac{1}{n_1+{n}_2}\left({\displaystyle {\sum}_{j=1}^{n_1}}{G}_{ij1}+{\displaystyle {\sum}_{j=1}^{n_2}}{G}_{ij2}\right) \) (See the Additional file 1 for mathematical derivation of the LRT statistic). Under normal setting with H _{03}, \( {\widehat{\chi}}_2^2=2 \ln \left(\widehat{LRT}\right) \) follows χ ^{2}  distribution with 2° of freedom asymptotically for large sample sizes.
Results
The null independence between the mean and variance heterogeneity tests
It’s commonly believed that testing statistics of mean and variance heterogeneities are dependently distributed, even if the data forming them are from an identical normal population. Actually, this is a widespread misunderstanding due to the forms of the testing statistics. For example, both Student’s tstatistic and the Fstatistic are defined in terms of sample variances. In fact, all aforesaid testing statistics of mean heterogeneity are independent of all aforesaid testing statistics of variance heterogeneity under H _{03}. This null independence lays the foundation of type I error rate control of the integrative heterogeneity tests. Herein, we formally formulate the finitesample null independence by the following proposition.
Proposition: Student t statistic and Welch t statistic are independent of the F, Levene and BrownForsythe statistics if the finite samples ( G _{ 1 } , G _{ 2 } ) forming them jointly follow an arbitrary spherically symmetric distribution.
The proposition formulates the finitesample null independence under a broader distribution family, including normality as a special member (for mathematical proofs, see Additional file 2: Appendixes A and B). Its typical members include multivariate Gaussian, Student, Kotz, exponential power, Laplace distributions with spherically symmetric variancecovariance matrices [13]. Many researchers are familiar with and usually adopt normality assumption on (transformed) gene expression levels. By this proposition, if the normality assumption is met, the proposed integrative heterogeneity tests can properly control the type I error rate. However, the normality assumption is often violated more or less by realworld gene expression data. Rigorously speaking, no transformation of gene expression data can assure exact normality. Therefore, it is necessary and useful to extend the null independence to broader distribution families, e.g., spherically symmetric family.
Empirical illustrations of the proposition
First, we generated 100,000 replicates of twogroup samples from the standard normal distribution with sample size n _{1} = n _{2} = 40. As anticipated by the proposition, the vast majority of replicatespecific pairs of Welch t statistic \( \left(\widehat{WT}\right) \) and Levene statistic \( \left(\widehat{LF}\right) \) randomly concentrates around (0, 1) (Fig. 1a) and so do the replicatespecific Welch t statistic and F statistic pairs (Fig. 1b). Under this simulation design, Welch t and Student t statistics \( \left(\widehat{WT},\widehat{t}\right) \) appeared equivalent (Fig. 1c). The correlation between Levene statistic \( \left(\widehat{LF}\right) \) and BrownForsythe statistic \( \left(\widehat{BF}\right) \) turned to be 0.9894 (Fig. 1d). The scatterplots of \( \left(\widehat{t},\widehat{LF}\right) \), \( \left(\widehat{t},\widehat{BF}\right) \), and \( \left(\widehat{t},\widehat{F}\right) \) are qualitatively the same as those of \( \left(\widehat{WT},\widehat{LF}\right) \) (Results not shown here). Under the normality setting with smaller sample sizes, we also obtained the corresponding figures for some other sample sizes (Additional file 2: Figure S1.1–Figure S1.3, Appendix C), which revealed very similar patterns to Fig. 1. Standard multivariate normal distribution is a typical member in the family of spherically symmetric distributions. These simulation results illustrate the null independence within the family of all spherically symmetric distributions.
As explorations outside of the spherically symmetric family, we performed comprehensive simulations by generating the data from the standard Laplace distribution. Univariate Laplace distribution is a typical member of the family of symmetric distributions. However, the joint distribution of independent univariate Laplace variables is outside of the spherically symmetric distribution family. Under the standard Laplace setting, we obtained the corresponding scatterplots and observed similar patterns of the joint distributions of the mean and variance test statistics (Additional file 2: Figure S2.1–Figure S2.4, Appendix C). These empirical results illustrate the robustness of the null independence between mean and variance tests for the data from the family of symmetric distributions.
Type I error rates control of the competitors
Under normality setting. With extremely small samples, none of the eight competitors could properly control type I error rates (Fig. 2a). The LRT and the STSD severely inflated type I error rates. The IMVT and the SMVT appeared equally anticonservative; both were much less anticonservative than the LRT and the STSD. The MWT performed the best to control type I error rates; it was slightly conservative. The WT and the FWT appeared equally conservative; both were clearly more conservative than the MWT. The BFWT appeared severely conservative. The LRT inflated the type I error rates because the χ _{2} ^{2} distribution could not well approximate the exact distribution of the LRT statistic. The anticonservative of the STSD stemmed from the variability of conditionspecific data standardization. Specifically, sample standard deviations of small samples could not precisely estimate the standard deviation. The conservativeness of the BFWT stemmed from the wellknown conservativeness of the BrownForsythe test [18, 19]. For larger sample sizes (Fig. 2bd), the LRT, the STSD, the SMVT and the IMVT appeared less anticonservative, and the MWT, the WT, the FWT and the BFWT became less conservative. When sample sizes reached 40, the IMVT and the SMVT as well as the WT, the MWT and the FWT properly controlled the Type I error rates (Fig. 2d).
Under the Laplace setting, the LRT and the FWT appeared severely anticonservative (Fig. 3ad). Their inflations in type I error rate appeared even severer as the samples increased. The LRT had inflated type I error rates because it was derived from normality assumption of gene expression levels. The FWT had inflated type I error rates because the F test statistic is very sensitive to the nonnormality of the samples [13]. The other tests displayed similar patterns to those under normality setting. For extremely small sample sizes, the STSD, the IMVT and the SMVT appeared successively less anticonservative; whereas the MWT, the WT and the BFWT appeared successively more conservative (Fig. 3a). Their magnitudes of inflations and deflations in type I error rate appeared to vanish as the sample sizes increased (Fig. 3bd).
Empirical power comparisons under normality setting and nonnormality setting
For power comparisons, we investigated three kinds of scenarios under both normality setting and Laplace setting: (1) unequal mean and equal variance, (2) equal mean and unequal variance and, (3) unequal mean and unequal variance. For sample sizes as large as n _{1} = n _{2} = 40, the proposed and existent tests well controlled type I error rates under normality and Laplace setting. And the sample size is very close to those of the gene expression files of Pan et al. [16]. We thus presented here the power comparisons with the sample sizes n _{1} = n _{2} = 40.
Under normality setting, we simulated independently 10,000 replicates of n _{1} = 40 data points from normal distribution \( \mathcal{N}\left(0,1\right) \) and n _{2} = 40 data points from \( \mathcal{N}\left( r,{\left(1+ s\right)}^2\right) \) for each (r, s) pair. Herein, the parameters r and s represent the magnitudes of mean and variance heterogeneities, respectively. When s ≠ 0, the IMVT and the FWT displayed the highest powers, followed by the SMVT; and all the three joint heterogeneity tests outperformed the three mean heterogeneity tests, i.e., the WT, the MWT and the STSD (Fig. 4ab). The power gains of the joint heterogeneity tests over the mean heterogeneity tests appeared especially noteworthy when s ≠ 0 and r = 0 (Fig. 4b). The joint heterogeneity tests did not display severe power losses even for the theoretical scenarios favoring the mean tests (Fig. 4c). In addition, the FWT slightly outperformed the IMVT because the F test statistic is the optimal test statistic for variance heterogeneity under normality setting. Here, we did not compare the powers of the LRT and the BFWT since they could not control type I error rates.
Under Laplace setting, we simulated independently 10,000 replicates of n _{1} = 40 data points from standard Laplace distribution Laplace (0, 1) and n _{2} = 40 data points from Laplace (r, (1 + s)^{2}) for each (r,s) pair. Again, the parameters r and s represent the magnitudes of mean and variance heterogeneities, respectively. Under the Laplace setting, we observed qualitatively the same patterns as those under the normality setting. When s ≠ 0, the IMVT outperformed the SMVT; and both the joint heterogeneity tests outperformed the three mean heterogeneity tests, i.e., the WT, the MWT and the STSD (Fig. 5ab). The power gains of the joint heterogeneity tests over the mean heterogeneity tests appeared especially noteworthy when s ≠ 0 and r = 0 (Fig. 5b). The joint heterogeneity tests did not display severe power losses even for the theoretical scenarios favoring the mean heterogeneity tests (Fig. 5c). Here, we did not compare the powers of the LRT, the FWT and the BFWT since they could not control type I error rates under nonnormality setting.
These results formally demonstrate the importance of integrating informative variance heterogeneity. In general, the power gains of the IMVT over its competitors are solid. For the scenarios of mean heterogeneity only, the IMVT would have small power losses. All in all, the IMVT displayed valuable merits over its competitors. At least, the IMVT is an admissible procedure. It should be useful to improve the power to identify susceptible genes involved in coexpression networks. By its robustness to nonnormality data, we recommend the IMVT as a powerful alternative to exploit microarray profiles.
Reanalyzing the gene expression profiles of peripheral circulating B Lymphocytes
Pan et al. [16] compared the gene expressions profiles of peripheral circulating B cells between 39 smoking and 40 nonsmoking healthy US white women. Using MAS5 software, they normalized the expression levels of 7215 selected probes out of all the 22,283 experimentwide probes. They applied traditional t tests to the normalized expression levels and report 125 promising DE genes. The authors justified why they did not adjust for menopausal status and age. However, they neglected the latent background data structure. Using the MAS5 software, we normalized the raw expression levels of all the 22,283 experimentwide gene probes. For the normalized data, we computed the probe specific test statistics and p values of five competitors. The genomic inflation factors [20] of these heterogeneity tests would be close to 1 if they could properly control type I error rates. However, all the tests displayed huge genomic inflation factors, especially the STSD (Fig. 6). All the QQ plots climbed quickly above the upper limit of the 95% concentration band (the gray band). The severe genomic inflations indicated that some major latent factors would confound all the competitors. Thus, the t tests performed by Pan et al. [16] would be confounded since they did not adjust for any background factors.

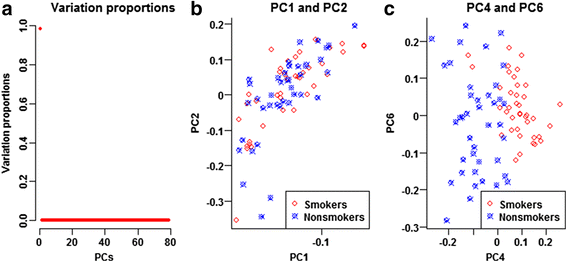

To reveal latent data structure, we first conducted PCA of the MAS5 normalized expression levels of all the 22,283 experimentwide gene probes (Fig. 7, Additional file 3: Table S1). PC1 was the unique major PC, accounting for 98.24% of the total variation (Fig. 7a). PC2 merely accounted for 0.32% of total variation. Neither PC1 nor PC2 displayed mean heterogeneity or variance heterogeneity between the smokers and nonsmokers (Fig. 7b). PC4 displayed strikingly significant mean heterogeneity (p _{ WT } = 1.91 × 10^{− 15}), even if it only accounted for 0.13% of the total variation. PC6 displayed very significant variance heterogeneity (p _{ LF } = 3.2 × 10^{− 4}) even if it accounted for 0.07% of the total variation only. PC4 and PC6 distinguished the smokers and the nonsmokers (Fig. 7c). Additional file 3: Table S1 listed the first 2 and all the global PCs with significant mean and/or variance heterogeneities. These significant global PCs did not distinguish informative heterogeneities and impediment heterogeneities. They were so significant in that they would account for portions of informative mean and variance heterogeneities of DE genes in addition to background heterogeneities. As shown in Fig. 8, naively adjusting for the significant global PCs of all gene probes would result in severe power loss (genomic deflation).
To prevent false positives and false negatives, we selected 13,415 ‘robust’ gene probes to capture the background data structure. The spirit here is similar to the use of control genes to account for unwanted variation [17]. None of the robust gene probes displayed mean heterogeneity or variance heterogeneity, before and after calibrating the significant background PCs, age and menopausal status. We conducted PCA of the MAS5 normalized data of the ‘robust’ gene probes (Fig. 9, Additional file 3: Table S2). PC1 alone accounted for 98.35% of the total variation and was the unique major PC. PC2 merely accounted for 0.37% of total variation (Fig. 9a). Neither PC1 nor PC2 displayed mean heterogeneity or variance heterogeneity (Fig. 9b). PC14 displayed the most significant mean heterogeneity (p _{ WT } = 0.0036), even if it only accounted for 0.03% of the total variation. PC28 displayed the most significant variance heterogeneity (p _{ LF } = 0.0069) even if it only accounted for 0.01% of the total variation. PC14 and PC28 displayed clear stratification of the smokers and the nonsmokers (Fig. 9c). In addition, Additional file 3: Table S2 listed the first 2 and all the background PCs with significant mean and/or variance heterogeneities. After adjusting for these significant background PCs, age and menopausal status, the QQ plots of all the five tests climbed above the diagonal (Fig. 10). Especially, the QQ plot of the IMVT climbed above the upper limit of the 95% concentration band. All the five tests displayed reasonable inflation factors. The mild inflation might be due to weak differentials or residual correlations between DE genes.
Applied to the calibrated expressions, our IMVT identified CUL7, RBMY1J, RDH5 and SOCS3 to be experimentwide significant (Table 1), i.e., p _{ IMVT } < 0.05/22283 = 2.24 × 10^{− 6}. The STSD only identified CUL7 as experimentwide significant gene; while the WT and the MWT failed to identify any experimentwide significant genes. The experimentwide minimum p value of the WT and the MWT turned to be 2.73 × 10^{− 5}, much larger than 2.24 × 10^{− 6}. The SMVT failed to identify any gene to be experimentwide significant. At DDX3X, the WT reached the experimentwide minimum p _{ WT } = 3.10 × 10^{− 5}. For SMVT, both p _{WT} and p _{LF} must be smaller than threshold \( 1\sqrt{10.05/22283}=1.12\times {10}^{6} \) to control overall experimentwide type I error rate at 0.05. Therefore, our analysis of the real data provided solid evidence for the superiority of the IMVT over the SMVT. Without adjusting for the data structure and covariates, Pan et al. [16] did not report any of the four genes although their results were severely inflated. SOCS3 was reported to be related to tobacco smoking by independent studies [21–24]. Per the database of cancer gene networks (TCNG; http://tcng.hgc.jp/index.html), CUL7 [25–27], RBMY1J [25, 27] and RDH5 [25–30] were reported to involve in function gene networks related to smoking. All the four experimentwide significant gene probes displayed both mean and variance heterogeneities (Fig. 11). In addition to the four experimentwide significant genes, our IMVT identified 16 genes that testified to be involved in functional networks by Pan et al. [16] at nominal level 0.05 (Table 2). For a test gene within a network of functional genes, incorporating its informative variance heterogeneity proved one effective way to exploit extra information as provided by the other function genes in the same network.
The false discovery rate (FDR) would be a more appropriate error rate to control than the familywise error rate in microarray studies; and several standard FDR controlling procedures have been widely practiced [31–34]. We did identify more promising gene probes when applying the most widely used FDR controlling procedure to the p values generated by our IMVT. For example, controlling FDR at the stringent level 0.05, our IMVT identified 24 out of the experimentwide 22,283 gene probes. Controlling FDR at the same level, the STSD only identified CUL7, while both the WT and the MWT missed all promising gene probes (Additional file 3: Table S3). Controlling FDR at level 0.1, our IMVT claimed 55 gene probes, while all the three mean heterogeneity tests discovered no additional gene probes. These results have well demonstrated noteworthy gains of explicitly exploiting informative variance heterogeneity. Without adjusting for background data structure, Pant et al. claimed 125 gene probes with local FDRs < 0.05. Their published list of promising gene probes displays huge discrepancies to ours. Such discrepancies stemmed from the severe inflation in their t tests (Fig. 6). Judiciously calibrating background data structure is thus necessary for accurately prioritizing gene probes.
Discussion
Integrating informative variance heterogeneity holds tremendous potential to identify novel genes which involve in genegene coexpression and interaction networks. Susceptible genes can coexpress as indicated by genegene correlations [7, 8]. Genes can interact with each other and/or interact with environmental factors. For example, Pan et al. [16] reported 33 gene probes to involve in constructed functional network. Among which, independent studies reported MYH11, HOXB1, GIT2, VCAM1, CCR1, IQGAP1, PDPK1, HBA1 HBA2, SON, and CPM to involve in networks related to lung cancer and smoking [25–30]. Within a complex network, the distribution change in the expression level of a single susceptible gene cannot determined by its mean heterogeneity completely. Higherorder heterogeneities can provide extra valuable information for the distribution change. This is why the IMVT led to smaller p values than did existent mean heterogeneity tests in our data analyses. In conclusion, integrating informative variance heterogeneity proved an effective step to better capture the latent information conveyed by the coexpression and interaction networks of susceptible genes. It represents one efficient way to extract the inherent higherorder information as induced by complex networks of multiple biomarkers.
The IMVT aims to identify genes whose expression distributions are susceptible to the change in condition. It does not distinguish informative variance heterogeneity from mean heterogeneity. Before applying the IMVT, background data structures must be calibrated to prevent false positive discoveries and power loss. Data structure can be a major confounder for differential analyses, as illustrated by our reanalysis of Pan et al.’s gene profiles [16]. The discrepancy between Pan et al.’s and our discoveries showed the severe confounding impact of the global data structure on differential analyses. In a judicious data calibration, the data structure should be computed from random genes to prevent power loss due to over adjustment.
The IMVT and the SMVT as well, inherit the advantages and disadvantages of the Levene test and the WT. The Levene test is a robust nonparametric method. The exact distribution of the Levene statistic is intractable, and thus its pvalue must be evaluated by its asymptotic distribution. The conditionspecific variance estimators in the Welch statistic could not be accurate for small samples. Thus, the current IMVT is suitable for large samples other than small samples. By our simulation studies and the work of Demissie et al. [6], the MWT could outperform the WT, especially for extremely small sample sizes. Novel parametric methods, i.e., the LRT, are needed to mine expression files of lowreplicate experiments. However, the test statistic and its exact null distribution of a parametric test statistic depend on the exact distributions of the (transformed/calibrated) gene expression levels. It is intractable to learn the exact distributions of gene expressions from small samples. Model missspecifications can mess up differential analyses, as showed by the severe inflations in type I error rate of the normalitybased LRT under the Laplace settings. The development of effective smallsample tests requires further formal efforts. In addition, appropriate adjustment of background data structures and other hidden confounders are important for the success of effectively integrating informative variance heterogeneity instead of spurious variance heterogeneity.
Lastly, we acknowledge that there is no need to consider variance heterogeneity in case the distribution of the expression measure of a gene can be determined by a single parameter, i.e., its mean. In such a case, the IMVT can be less powerful than the Welch test. However, singleparameter distribution cannot well fit realworld expression levels in general. Due to the high complexity of gene networks, the expression distribution of a gene cannot be solely determined by its mean. Distribution heterogeneity is a much bigger umbrella than mean heterogeneity. The proposed IMVT merely made one step further from traditional mean heterogeneity tests. Highorder heterogeneities are quite common and require particular exploitation methods.
Conclusions
In this paper, we put forth the concept of MVDE gene and mathematically proved the null independence between mean heterogeneity tests and variance heterogeneity tests. From existent mean heterogeneity tests, we made one step further to identify susceptible genes, whose expression distributions alter with the change in experimental condition. We formally justified this conceptual shift from MDE to MVDE. Specifically, we developed the IMVT as a robust, powerful procedure to integrate informative mean and variance heterogeneities. By extensive simulations under normality and nonnormality settings and conducted intensive realworld data analysis, the IMVT outperformed some existent mean heterogeneity tests (e.g., the WT, the MWT, the STSD) and some conventional joint heterogeneity tests (e.g., the LRT, the SMVT).
Abbreviations
 BFWT:

Fisher’s linear combination of the BrownForsythe test and the Welch t test
 FWT:

Fisher’s linear combination of the F test and Welch t test
 IMVT:

Integrative meanvariance test combining Welch t test and Levene test
 LRT:

Likelihood ratio test
 MDE gene:

Mean differentially expressed gene
 MVDE gene:

Meanvariance differentially expressed gene
 MWT:

Moderated Welch t test
 SMVT:

Separate meanvariance testing framework using Welch test and Levene test
 ST:

Student t test
 STSD:

Student t test on conditionwise standardized data
 WT:

Welch t test
References
 1.
Sørlie T, Tibshirani R, Parker J, Hastie T, Marron J, Nobel A, Deng S, Johnsen H, Pesich R, Geisler S. Repeated observation of breast tumor subtypes in independent gene expression data sets. Proc Natl Acad Sci. 2003;100(14):8418–23.
 2.
Van’t Veer LJ, Dai H, Van De Vijver MJ, He YD, Hart AA, Mao M, Peterse HL, van der Kooy K, Marton MJ, Witteveen AT. Gene expression profiling predicts clinical outcome of breast cancer. Nature. 2002;415(6871):530–6.
 3.
Jeanmougin M, De Reynies A, Marisa L, Paccard C, Nuel G, Guedj M. Should we abandon the ttest in the analysis of gene expression microarray data: a comparison of variance modeling strategies. PLoS One. 2010;5(9):e12336.
 4.
Glass GV, Peckham PD, Sanders JR. Consequences of failure to meet assumptions underlying the fixed effects analyses of variance and covariance. Rev Educ Res. 1972;42(3):237–88.
 5.
Welch BL. The generalization of student's' problem when several different population variances are involved. Biometrika. 1947;34(1/2):28–35.
 6.
Demissie M, Mascialino B, Calza S, Pawitan Y. Unequal group variances in microarray data analyses. Bioinformatics. 2008;24(9):1168–74.
 7.
Qin H, Feng T, Harding SA, Tsai CJ, Zhang S. An efficient method to identify differentially expressed genes in microarray experiments. Bioinformatics. 2008;24(14):1583–9.
 8.
Qin H, Ouyang W. Statistical properties of gene–gene correlations in omics experiments. Stat Probability Lett. 2015;97:206–11.
 9.
Rönnegård L, Valdar W. Detecting major genetic loci controlling phenotypic variability in experimental crosses. Genetics. 2011;188(2):435–47.
 10.
Shen X, Pettersson M, Rönnegård L, Carlborg Ö. Inheritance beyond plain heritability: variancecontrolling genes in Arabidopsis thaliana. PLoS Genet. 2012;8(8):e1002839.
 11.
Hulse AM, Cai JJ. Genetic variants contribute to gene expression variability in humans. Genetics. 2013;193(1):95–108.
 12.
GeilerSamerotte K, Bauer C, Li S, Ziv N, Gresham D, Siegal M. The details in the distributions: why and how to study phenotypic variability. Curr Opin Biotechnol. 2013;24(4):752–9.
 13.
Markowski CA, Markowski EP. Conditions for the effectiveness of a preliminary test of variance. Am Stat. 1990;44(4):322–6.
 14.
Levene H. Robust tests for equality of variances1. Contrib Probability Stat. 1960;2:278–92.
 15.
Brown MB, Forsythe AB. Robust tests for the equality of variances. J Am Stat Assoc. 1974;69(346):364–7.
 16.
Pan F, Yang TL, Chen XD, Chen Y, Gao G, Liu YZ, Pei YF, Sha BY, Jiang Y, Xu C. Impact of female cigarette smoking on circulating B cells in vivo: the suppressed ICOSLG, TCF3, and VCAM1 gene functional network may inhibit normal cell function. Immunogenetics. 2010;62(4):237–51.
 17.
GagnonBartsch JA, Speed TP. Using control genes to correct for unwanted variation in microarray data. Biostatistics. 2012;13(3):539–52.
 18.
Games PA, Keselman HJ, Clinch JJ. Tests for homogeneity of variance in factorial designs. Psychol Bull. 1979;86(5):978.
 19.
O’Brien RG. Robust techniques for testing heterogeneity of variance effects in factorial designs. Psychometrika. 1978;43(3):327–42.
 20.
Devlin B, Roeder K. Genomic control for association studies. Biometrics. 1999;55(4):997–1004.
 21.
Geraghty P, Wyman AE, GarciaArcos I, Dabo AJ, Gadhvi S, Foronjy R. STAT3 modulates cigarette smokeinduced inflammation and protease expression. Frontiers in Physiology  Respiratory Physiology. 2013;4(267):1–10.
 22.
Halappanavar S, Russell M, Stampfli MR, Williams A, Yauk CL. Induction of the interleukin 6/signal transducer and activator of transcription pathway in the lungs of mice subchronically exposed to mainstream tobacco smoke. BMC Med Genet. 2009;2(1):1.
 23.
Nasreen N, Gonzalves L, Peruvemba S, Mohammed KA. Fluticasone furoate is more effective than mometasone furoate in restoring tobacco smoke inhibited SOCS3 expression in airway epithelial cells. Int Immunopharmacol. 2014;19(1):153–60.
 24.
Rager JE, Bauer RN, Müller LL, Smeester L, Carson JL, Brighton LE, Fry RC, Jaspers I. DNA methylation in nasal epithelial cells from smokers: identification of ULBP3related effects. Am J Phys Lung Cell Mol Phys. 2013;305(6):L432–8.
 25.
Spira A, Beane JE, Shah V, Steiling K, Liu G, Schembri F, Gilman S, Dumas YM, Calner P, Sebastiani P. Airway epithelial gene expression in the diagnostic evaluation of smokers with suspect lung cancer. Nat Med. 2007;13(3):361–6.
 26.
Boelens MC, van den Berg A, Fehrmann RS, Geerlings M, de Jong WK, te Meerman GJ, Sietsma H, Timens W, Postma DS, Groen HJ. Current smoking‐specific gene expression signature in normal bronchial epithelium is enhanced in squamous cell lung cancer. J Pathol. 2009;218(2):182–91.
 27.
Landi MT, Dracheva T, Rotunno M, Figueroa JD, Liu H, Dasgupta A, Mann FE, Fukuoka J, Hames M, Bergen AW. Gene expression signature of cigarette smoking and its role in lung adenocarcinoma development and survival. PLoS One. 2008;3(2):e1651.
 28.
Wang X, Chorley BN, Pittman GS, Kleeberger SR, Brothers II J, Liu G, Spira A, Bell DA. Genetic variation and antioxidant response gene expression in the bronchial airway epithelium of smokers at risk for lung cancer. PLoS One. 2010;5(8):e11934.
 29.
Gümüş ZH, Du B, Kacker A, Boyle JO, Bocker JM, Mukherjee P, Subbaramaiah K, Dannenberg AJ, Weinstein H. Effects of tobacco smoke on gene expression and cellular pathways in a cellular model of oral leukoplakia. Cancer Prev Res. 2008;1(2):100–11.
 30.
Boyle JO, Gümüş ZH, Kacker A, Choksi VL, Bocker JM, Zhou XK, Yantiss RK, Hughes DB, Du B, Judson BL. Effects of cigarette smoke on the human oral mucosal transcriptome. Cancer Prev Res. 2010;3(3):266–78.
 31.
Benjamini Y, Drai D, Elmer G, Kafkafi N, Golani I. Controlling the false discovery rate in behavior genetics research. Behav Brain Res. 2001;125(1):279–84.
 32.
Benjamini Y, Hochberg Y. Controlling the false discovery rate: a practical and powerful approach to multiple testing. J Royal Stat Soc Ser B (Methodological). 1995;57(1):289–300.
 33.
Benjamini Y, Yekutieli D. The control of the false discovery rate in multiple testing under dependency. Ann Stat. 2001;29(4):1165–88.
 34.
Reiner A, Yekutieli D, Benjamini Y. Identifying differentially expressed genes using false discovery rate controlling procedures. Bioinformatics. 2003;19(3):368–75.
Acknowledgements
The authors are grateful to the five expert reviewers and Drs. Liqing Zhang and Rosemary Philpott for their pertinent comments and suggestions.
Funding
This work was funded in part by Innovative Programs Hub (I2PH) Grants Award of Tulane (632037), Tulane’s Committee on Research fellowship (600890), and 5R01DK091369 from the National Institute of Health. The funders had no role in study design, data analysis, preparation of the manuscript, or decision to publish.
Availability of supporting data
The real dataset is available in the GEO with access number GSE18723 (http://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE18723)
Authors’ contributions
Study design: QH, OW; Theoretical results: QH, OW; Simulations: OW, QH; Data analyses: OW, QH; Wrote and revised the manuscript: QH, OW, AQ and ZJ. All authors read and approved the final manuscript.
Competing interests
The authors declare that they have no competing interests.
Consent for publication
Not applicable.
Ethics approval and consent to participate
Not applicable.
Author information
Additional information
The original version of this article was revised
An erratum to this article is available at http://dx.doi.org/10.1186/s1285901715071.
Additional files
Additional file 1:
Twosample likelihood ratio test. In this file, we derive the formula of the twosample likelihood ratio test under the joint null hypothesis. (DOCX 28 kb)
Additional file 2:
The null independence between tests statistics on mean and variance heterogeneities. This file is composed of three appendixes. Appendix A: The null independence under normality setting. Appendix B: The null independence under generic spherically symmetric setting. Appendix C: Additional empirical results on the null joint distributions of mean and variance test statistics. (DOCX 36 kb)
Additional file 3:
Additional tables of real data analyses. This file displays more results derived by reanalyzing the gene expression profiles of peripheral circulating B Lymphocytes. (DOCX 30 kb)
Rights and permissions
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.
About this article
Cite this article
Ouyang, W., An, Q., Zhao, J. et al. Integrating mean and variance heterogeneities to identify differentially expressed genes. BMC Bioinformatics 17, 497 (2016). https://doi.org/10.1186/s128590161393y
Received:
Accepted:
Published:
Keywords
 Functional genomics studies
 MVDE genes
 Integrative heterogeneity test
 Latent confounders
 Latent biomarkers
