Structural prediction of the interaction of the tumor suppressor p27KIP1 with cyclin A/CDK2 identifies a novel catalytically relevant determinant

Contributed equally
BMC BioinformaticsBMC series – open, inclusive and trusted201718:15

https://doi.org/10.1186/s12859-016-1411-0

Received: 28 July 2016

Accepted: 7 December 2016

Published: 5 January 2017

Abstract

Background

The cyclin-dependent kinase 2 (CDK2) together with its cyclin E and A partners is a central regulator of cell growth and division. Deregulation of CDK2 activity is associated with diseases such as cancer. The analysis of substrates identified S/T-P-X-R/K/H as the CDK2 consensus sequence. The crystal structure of cyclin A/CDK2 with a short model peptide supports this sequence and identifies key interactions. However, CDKs use additional determinants to recognize substrates, including the RXL motif that is read by the cyclin subunits. We were interested to determine whether additional amino acids beyond the minimal consensus sequence of the well-studied substrate and tumor suppressor p27KIP1 were relevant for catalysis.

Results

To address whether additional amino acids, close to the minimal consensus sequence, play a role in binding, we investigate the interaction of cyclin A/CDK2 with an in vivo cellular partner and CDK inhibitor p27KIP1. This protein is an intrinsically unfolded protein and, in particular, the C-terminal half of the protein has not been accessible to structural analysis. This part harbors the CDK2 phosphorylation site. We used bioinformatics tools, including MODELLER, iTASSER and HADDOCK, along with partial structural information to build a model of the C-terminal region of p27KIP1 with cyclin A/CDK2. This revealed novel interactions beyond the consensus sequence with a proline and a basic amino acid at the P + 1 and the P + 3 sites, respectively. We suggest that the lysine at P + 2 might regulate the reversible association of the second counter ion in the active site of CDK2. The arginine at P + 7 interacts with both cyclin A and CDK2 and is important for the catalytic turnover rate.

Conclusion

Our modeling identifies additional amino acids in p27KIP1 beyond the consensus sequence that contribute to the efficiency of substrate phosphorylation.

Keywords

Cyclin-dependent kinase Tumor suppressor Molecular modeling p27KIP1 Phosphorylation

Background

Cell cycle progression is controlled by cyclin-dependent kinases (CDK) complexes. CDK2 in complex with E type cyclins regulates the transition through the restriction point in the G1 phase of the cell cycle and early events in S phase. A major function of cyclin A/CDK2 complexes is to promote DNA replication and the progression though S phase [1]. Consistent with these important functions are the involvement of CDK2 kinase complexes in diseases, including cancer [2]. Different cyclins are overexpressed while the expression of CDK inhibitors is reduced in different tumor entities [2]. These findings suggest that CDKs are promising targets for pharmaceutical interventions and CDK2 inhibitors are in clinical trials [35]. Moreover, Wee1, a tyrosine kinase repressor of CDK1 and CDK2, is targeted by small molecules to prevent repression of CDK1 and CDK2 in response to DNA damage and thus enhance genetic instability and apoptosis [6]. Thus the activation or repression of these CDKs is potentially beneficial to cancer patients dependent on the nature of the tumor [7]. Together, these findings suggest that the molecular understanding of the catalytic function of these kinases is both of fundamental and clinical relevance.

In general, cyclin/CDK2 complexes phosphorylate substrate proteins at S or T residues (the so-called P + 0 site, single amino acid code is used). Early on it was recognized that these kinases prefer S/T sites that are followed by a proline (at the P + 1 site) [8], an amino acid that is conserved across nearly all cyclin/CDK substrates. The use of oriented peptide libraries in kinase assays with cyclin A/CDK2 resulted in the description of HHASPRK as an optimal substrate peptide [9], with a basic residue frequently observed at the P + 3 site [9, 10]. This was used to obtain structural information of the cyclin A/CDK2 complex bound to a substrate peptide [11], supporting the conclusion that the amino acids at positions P + 0, P + 1 and P + 3 (underlined in HHASPRK) are recognized by the enzyme.

The above summarized findings relate to a rather small peptide. Whether such a sequence is sufficient for mediating phosphorylation in cells is not known. Frequently multiple lower affinity interactions contribute to functional specificity [12, 13]. One such motif for at least some cyclin/CDK complexes is the RXL sequence on substrates. Cyclin A can interact with this short sequence motif, which enhances specificity beyond the sequence recognized by the kinase domain, and was found to be important to mediate CDK2 phosphorylation [14]. Moreover, it is feasible that also the short sequence motif found to interact with the catalytic domain, which is characterized by a P at the P + 1 and a basic amino acid at the P + 3 site, is further expanded and thus might offer additional selectivity.

Defining interaction domains of substrates, beyond their minimal peptide sequence, with their enzymes allows more detailed molecular analysis. Of interest is to understand whether CDK2 recognizes its substrates by a common binding mode beyond the consensus sequence S/T-P-X-R/K/H described above. Thus, do longer peptide chains, as present in real proteins, affect binding and phosphorylation? To know more about the interaction of CDK2 with a substrate is also indicated as CDK2 inhibitors are evaluated as therapeutic tools in clinical trials [7]. More detailed knowledge of enzyme-substrate interaction may allow defining more selective inhibitors beyond ATP analogs. Here we address this issue by using homology modeling, docking, and bioinformatics conservation analyses and biochemical methods. We focus on the tumor suppressor p27KIP1, whose cyclin E/CDK2 and cyclin A/CDK2-dependent phosphorylation results in subsequent degradation [15, 16]. We observe that additional interactions of p27KIP1 with CDK2 are relevant to enhance phosphorylation rates.

Results and Discussion

Consensus sequences of CDK2 substrates

The majority of information on substrate sequences for CDK2 has been obtained from analyzing peptide and protein substrates using in vitro kinase assays. We wanted to define whether the CDK2 consensus substrate sequence extends beyond the S/T-P-X-R/K/H motif when sites that were confirmed in cells were used. We used PhosphoSitePlus [17] to define potential CDK2 substrates. We then screened the relevant publications i) for direct phosphorylation of the substrate by cyclin/CDK2 including mapping of the site phosphorylated in vitro, ii) for phosphorylation of this site in cells using mass spectrometry and/or phosphospecific antibodies, and iii) for altered phosphorylation of this site in response to modulating CDK2 activity by genetic means or for phosphorylation in a cell cycle-dependent manner that is consistent with CDK2 activity. Thirty-five CDK2 sites of a total of 27 substrates fulfilled these criteria (Table 1). Sequence logo analysis of these CDK2 sites suggested that the S/T-P motif is invariable and that nearly 80% of the substrates possess a basic amino acid at P + 3 (Fig. 1). Thus, most substrates fulfill the requirements of the consensus sequence obtained by using peptide substrates. Little preference for other amino acids at any other position was detected. This is consistent with the concept that additional determinants of various nature, including the RXL motif [14], might contribute to the substrate specificity in cells [13]. Moreover, additional amino acids in the sequence that is modified and that is recognized near the catalytic cleft may contribute to selectivity. Together several different weak determinants may contribute to the overall affinity of an individual substrate and thus contribute to the efficiency of phosphorylation.
Table 1

Information on human CDK2 substrates confirmed by in vivo experiments

Index

Protein

UniProtKB

P + 0 site

Site sequence

Ref.

1

ATRIP

Q8WXE1

S224

VSHVSPRKNPSV

[50]

2

BRCA1

P38398

S1497

VERSSPSKCPSL

[51]

3

CDKN2D

P55273

S76

SGTSPVHDAAR

[52]

4

CROCC iso2

Q5TZA2-2

S763

PVPGSPARDAPA

[53]

5

Ctip

Q99708

T847

IPPNTPENFWEV

[54]

6

DLG1

Q12959

S158

HSHISPIKPTEA

[55]

7

Q12959

S443

QTPASPARYSPV

8

EZH2

Q15910

T345

ERIKTPPKRPGG

[56]

9

FOXM1 iso2

Q08050-2

T596

PISSTPSKSVLP

[57]

10

FOXO1A

Q12778

S249

KSGKSPRRRAAS

[58]

11

HIRA

P54198

T555

SVLTTPSKIEPM

[59]

12

HR6A

P49459

S120

PNPNSPANSQAA

[60]

13

ID3

Q02535

S5

MKALSPVRGCYE

[61]

14

ING5

Q8WYH8

T152

EEEDTPKKKKHK

[62]

15

LIG3

P49916

S210

GQVTSPVKGASF

[63]

16

ORC2

Q13416

T116

ELAKTPQKSVSF

[64]

17

Q13416

T226

VGKETPSKRMKR

18

p27

P46527

T187

SVEQTPKKPGLR

[65]

19

p63

Q9H3D4

T491

RNALTPTTIPDG

[66]

20

p73

O15350

T86

ASPYTPEHAASV

[67]

21

PELP1

Q8IZL8

S991

PPPESPPKVQPE

[68]

22

PLZF

Q05516

S197

LSAMSPTKAAVD

[69]

23

Q05516

T282

EGPGTPTRSSVI

24

PTPN2 iso2

P17706-2

S304

AFDHSPNKIMTE

[70]

25

RbBP1

P29374

S864

LGQSSPEKKIRI

[71]

26

P29374

S1007

FSVASPLTLSQD

27

RPL12

P30050

S38

PLGLSPKKVGDD

[72]

28

SIRT2

Q8IXJ6

S368

STSASPKKSPPP

[49]

29

Smad3

P84022

T8

ILPFTPPIVKRL

[73]

30

P84022

T179

NIPETPPPGYLS

31

P84022

S213

PNPMSPAHNNLD

32

SMRT

Q9T618

S1259

IGEDSPSRLDRG

[74]

33

Q9T618

T1463

ITQGTPLKYDTG

34

Q9T618

S1487

SLIGSPGRTFPP

35

NBS1

Q9NX02

S432

NYQLSPTKLPSI

[75]

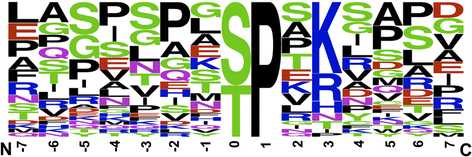

Fig. 1

Sequence logo plot represent normalized amino acid frequencies for ±7 amino acids from the phosphorylation site of CDK2 in vivo substrates reported in Table 1. This figure was generated using WebLogo [76]

Structural model of a p27KIP1 substrate peptide with cyclin A/CDK2

We have addressed the role of additional amino acids close to the consensus sequence for the tumor suppressor p27KIP1, one of the best-studied substrates of CDK2 complexes. p27KIP1 functions as an inhibitor of CDK2 and CDK1 complexes and thus has the ability to interfere with cell cycle progression, for example in response to anti-proliferative signals [16]. p27KIP1 is a naturally unfolded protein that is largely disordered in solution [1820]. Thus, determining its conformation based on computational methods is currently very challenging. In complex with cyclin A/CDK2, the N-terminal portion of p27KIP1 (amino acids 25–93) assumes a stable conformation. In the co-crystal of cyclin A/CDK2—p27KIP1 two binding regions in the latter were identified [21]. Amino acids 25–50 of p27KIP1 interact with cyclin A, whereas amino acids 52–93 bind to CDK2. This second interaction region includes the so-called 310 helix, which contains Y88 (for a structure-function comparison of p27KIP1 see Fig. 2a). Y88 is substrate of non-receptor tyrosine kinases [22]. Y88 phosphorylation triggers a conformational transition and ejects the p27KIP1 310 helix from the CDK2 catalytic cleft [23, 24]. This in turn allows the binding of the C-terminal part of p27KIP1 and the subsequent phosphorylation of T187 by CDK2 [22]. This site is part of the CDK2 consensus sequence with T187PKK in p27KIP1.
Fig. 2

Schematic visualization of p27KIP1 and structural model of the cyclin A/CDK2/p27KIP1 peptide (amino acids 180–194) complex. a Schematic representation of the domain organization of p27KIP1. The N-terminal segment (NTS, residues 1–28), the N-terminal kinase inhibitory domain (KID, residues 28–90), the C-terminal region (CT, residues 91–198), and the nuclear localization sequence (NLS, residues 152–169) are indicated. The known phosphorylation sites observed in p27KIP1 are also indicated [15]. The cyclin and CDK2 binding regions in KID are highlighted [21]. The available crystal structure data for p27KIP1 are highlighted by black bars (PDB ID: 1JSU (residues 25–93) [21] and 2AST (residues 181–190) [29]). The C-terminal binding region (residues 180–194), for which a structural model was constructed, is indicated by a dashed box. b The overall structure is shown in cartoon representation. CDK2, cyclin A, and the peptide substrate (amino acids 180–194 of p27KIP1) are colored in blue, orange, and green, respectively. The model contains ATP. c Close-up view of the binding interface between p27KIP1 and cyclin A/CDK2. Hydrogen bonds are highlighted in black dashed lines. d Sequence alignment showing the conservation of E42 in CDK2 compared with other CDKs. The sequence alignment was obtained using the Clustal Omega webserver [42]. Identical and structurally similar residues are indicated in red and green, respectively

No structural information is presently available for the C-terminal half of p27KIP1 (residues 91–198). There are two main strategies for structural predictions of protein complexes [25]. Template-based docking is a high-throughput method, which performs fairly well when using with high- and medium-sequence or structural similarity (root-mean-square deviation, RMSD <6 Å) between template and target. This is not the case for CDK2 substrates as the peptide (HHASPRK) in the only available crystal structure of a cyclin A/CDK2/substrate complex is not large enough to provide sufficient information of the protein-protein interface for template-based docking [11]. Because of this, free docking is the method of choice with the interacting proteins using the available experimental constraints. As pointed out above, p27KIP1 is disordered and no structural information is available, specifically of the C-terminal half of the protein that contains the cyclin A/CDK2 phosphorylation site. The occurrence of disordered regions for kinase substrates is common, because kinases normally phosphorylate sites in less ordered regions that are exposed on the surface of proteins [2628]. Hence, we applied homology modeling, along with existing information of identical short amino acid sequences with known structures, to construct structural models of the interactor [11, 29]. The docking was guided by two key observations. First, the phosphorylation site of the substrate forms an H-bond with ATP [11]. Second, the basic residue at the P + 3 site forms H-bonds to the phosphorylated T160 (pT160) of CDK2 and I270 of cyclin A [11]. Phosphorylation of T160 in the activation loop is critical for catalytic activity of CDK2 [30]. Consistent with a role of this kinase in late G1, S and G2, phosphorylation of T160 is high in these phases of the cell cycle [31].

The p27KIP1 peptide (amino acids 180 to 194) adopted an extended conformation in the active site of CDK2 (Fig. 2b and c). The interactions that were noticed between CDK2 and the substrate in the crystalized cyclin A/CDK2/HHASPRK structure [11] and in the modeled cyclin A/CDK2/SIRT2 complex [32] are maintained. The positions of T187 and P188 are very similar in our model to those in the cyclin A/CDK2/HHASPRK structure (Fig. 3). The T187, the P + 0 site amino acid, interacts with ATP through an H-bond. More C-terminal the structures start to deviate clearly seen with K190, which moves considerably due to the additional amino acids in the p27KIP1 peptide (amino acids 180 to 194) but still interacts with pT160 of CDK2 and I270 of cyclin A (Figs. 2c and 3).
Fig. 3

Superposition of the predicted model of cyclin A/CDK2/p27KIP1 with cyclin A/CDK2/HHASPRK X-ray structure (PDB ID: 1QMZ [11]). The cartoon representations of CDK2, cyclin A, and the p27KIP1 peptide (amino acids 180–194) are colored in blue, orange, and green, respectively. The peptide substrate in the crystal structure is colored in cyan

Lysine at the P + 2 site and turnover rate

In contrast to the crystal structure [11], in which the arginine at the non-conserved P + 2 site does not have any contact with cyclin A/CDK2, the lysine at the P + 2 site of p27KIP1 (K189) forms a salt bridge with ATP and an H-bond with T14 of CDK2 (Fig. 2c). The first cyclin A/CDK2 structure solved contained one metal ion as part of the ATP · Mg2+ cofactor complex [11, 33], while many other kinases contain two. In a more recent study, a cyclin A/CDK2 transition state complex with ADP, MgF3 (a mimic for the γ-phosphate in the transition state), and a short peptide was crystallized, which revealed a second Mg2+ ion [34]. Based on this structure, a mechanistic analysis suggested that CDK2 also uses 2 Mg2+ ions [35]. The second Mg2+ ion appears to associate reversibly with the active site. It is required just before the chemical step of the catalytic cycle and dissociates as soon as the reaction is complete. Thus, it promotes efficient phosphoryl transfer. But this second Mg2+ ion also increases, together with the other Mg2+ ion, the affinity of ADP and it therefore prevents efficient release. This would reduce the overall turnover rate of the enzymatic reaction [35]. Keeping this in mind, we compared our model with the crystal structure of protein kinase A (PKA) [36]. We observed that the location of the positively charged nitrogen atom of K189 of p27KIP1 is similar to that of the second metal ion in PKA (Fig. 4). We speculate that K189 and its positive charge may affect the stability and/or the positioning of the second Mg2+ ion and facilitate its release once the phosphoryl transfer is completed. In consequence this may result in an acceleration of the turnover rate. In support of this model, short CDK2 substrate peptides with K or R at the P + 2 position show the highest velocity of phosphoryl transfer, while acidic amino acids reduce velocity considerably [10]. Together these findings indicate that the second Mg2+ ion promotes catalysis and in combination with a basic residue at the P + 2 site of the substrates the price for a reduced turnover rate does not have to be paid [37].
Fig. 4

Superposition of cyclin A/CDK2/p27KIP1 peptide (amino acids 180–194) with the PKA/ATP/2 Mn2+ crystal structure (PDB ID: 1AST [36]). The second Mn2+ in PKA is indicated by cyan sphere. The cartoon representations of CDK2 and p27KIP1 are colored in blue and green, respectively. PKA is colored in cyan. PKA residues are labeled with prime

Specific contacts of the P + 7 arginine of the substrate peptide with cyclin A/CDK2

Additional contacts were identified in our model of the trimeric cyclin A/CDK2/p27KIP1 peptide (amino acids 180-194) complex between the non-consensus part of p27KIP1 and cyclin A/CDK2. S183 and G182 of the p27KIP1 peptide make H-bonds with the active site residues Q131 and K88 of CDK2, respectively (Fig. 2c). Importantly, R194 of p27KIP1 forms H-bonds with E42 of CDK2 and P272 of cyclin A, both of which are located at the binding interface between CDK2 and cyclin A. This glutamate is conserved across CDK2, CDK3, CDK5 and CDK6 and belongs to the extension loop of the PSTAIRE helix of CDK2 (residues 45–51) (Fig. 2d), which shows the most significant movement upon cyclin A binding [33]. Thus, R194 may play a role in the phosphorylation of p27KIP1 by cyclin A/CDK2 through interacting with and altering the position of the extended PSTAIRE loop. This might stabilize the active cyclin A/CDK2 complex.

Arginine at the P + 7 position enhances the enzymatic turnover rate

To validate our model, we performed in vitro kinase assays. A p27KIP1 wild-type (wt) peptide (amino acids 180 to 194) and a peptide with an R194A substitution were synthesized and their capacity to be phosphorylated by cyclin A/CDK2 was evaluated. We determined the kinetic constants for these synthetic peptides. The KM values of the two peptides were very similar with 93.6 and 81.4 μM for the wt and R194A, respectively (Fig. 5 and Table 2). However, we observed a difference in the maximal relative rate of phosphoryl transfer between the two peptides, i.e. 2.21 and 1.11 pmol/min for the wt and the R194A peptide, respectively (Fig. 5 and Table 2). Thus the turnover rate of the wt peptide was twice as high as of the R194A mutant peptide. It is possible that the interaction of R194 with both cyclin A and CDK2 allows a faster correct orientation of the P + 0 site amino acid T187 in the catalytic cleft. This data suggests that beside the core consensus sequence defined by the HHASPRK peptide additional residues can be involved in determining the efficiency of substrate phosphorylation.
Fig. 5

Analysis of cyclin A/CDK2 kinase activity on p27KIP1 substrate peptides. Cyclin A/CDK2 Kinase purified from Sf9 cells was incubated with increasing concentrations of p27KIP1 wild type and the R194A mutant peptide as indicated. Phosphorylation of the peptides was monitored after immobilisation on SAM2 membrane by scintillation counting and analysis by GraphPad Prism software. Shown are mean values ± SD of 5 experiments performed in duplicates

Table 2

Kinetic constants for phosphorylation of p27KIP1 peptides

Peptide

Sequence

Km [μM]

Relative rate

[pmol/min]

Relative rate/Km

wt

N180AGSVEQTPKKPGLR

93.6

2.21

0.0195

R194A

N180AGSVEQTPKKPGLA

81.4

1.11

0.0135

Conclusions

The minimal consensus sequence for CDK2 and several other CDKs matches the sequence S/T-P-R/K/H. This information is mainly drawn from work with short model peptides as substrates [911]. To increase specificity of an enzyme-substrate interaction, additional determinants are required, which may be distinct between substrates. In more general terms it has been argued that during evolution multiple lower affinity interactions have been selected to contribute to functional specificity [12, 13]. Intuitively, one might expect that systems develop towards high affinity interactions. However, this seems not to be the case. In fact, signaling, and thus the flow of information, often involves non-structured parts of proteins and low affinity interaction. Nevertheless, these processes are remarkably specific and functional. Moreover, proximity is another important aspect to create specificity [38]. This may include the use of scaffold proteins, targeting subunits or specific microenvironments that allow the co-localization of proteins. All these aspects contribute to the substrate specificity of enzymatic reactions. For example the use of scaffold proteins has been well documented for the activation of MAP kinases in different signaling pathways [39]. In some respect cyclins also have scaffolding function, in addition to activating the CDK. For some cyclin/CDK complex substrates an RXL motif, which is recognized by the cyclin, is important for efficient phosphorylation [40]. Here we identified amino acid P + 7 of the CDK2 phosphorylation site at T187 in p27KIP1 as important for the phosphoryl transfer rate. R194 enhances the turnover rate of a peptide substrate compared to a mutant peptide with R194A. The P + 7 site is not conserved in cellular CDK2 substrates, suggesting that it has a unique effect on p27KIP1 as a key substrate in the control of cell cycle progression. In other substrates, other changes may affect the enzymatic properties and thus, depending on the specific needs, different alterations in substrates may contribute to the efficiency of phosphorylation by CDK2. Moreover, the identification of the amino acid P + 7 of the substrate as relevant for catalysis suggests that determinants relatively far from the site of modification could be relevant for interfering with CDK2 activity. Such determinants could contribute to developing more selective inhibitors, which might be relevant in light of the interest in developing selective CDK inhibitors for therapeutic purposes [7].

Methods

Modeling of cyclin A/CDK2/p27KIP1 complexes

Structural predictions of p27KIP1 is challenging because the protein is largely disordered. In particular no information is available for the C-terminal half of the protein. We constructed models of the C-terminal p27KIP1 peptide (residues 180–194, sequence N180AGSVEQTPKKPGLR, see Fig. 2a) based on the X-ray structure of the p27KIP1 peptide A181GSVEQTPKK [29] and the 30S ribosomal protein S8 peptide K81PGLR [41], of which the sequence identities to the p27KIP1 peptide are 67% and 33%, respectively (for a flow chart of the procedure, see Fig. 6). 200 models of the p27KIP1 C-terminal peptide were generated using the automodel class implemented in MODELLER 9v9 package [42]. Sixty-four models turned out to have 90% or more of the amino acids in the most favored regions of the Ramachandran plot [43]. We selected the model that showed the lowest difference regarding backbone RMSD (1.1 Å) with respect to the C-terminal peptide 180–194 and the crystal structure of amino acids 181–190 of p27KIP1 [29]. This model was also in agreement with an analysis using the iTASSER server [44], from which we obtained five models. All were in an extended conformation similar to the results obtained with MODELLER 9v9 [42] (i.e. backbone RMSD between 0.15 to 0.22 nm, data not shown). The selected model was further evaluated by using MolProbity server [45]. The MolProbity score of the model is 97th percentile closing to 100th percentile of the best structure in the dataset, which shows a good quality of the model. The structure of cyclin A/CDK2 in complex with ATP · Mg2+ was obtained from a previous study [11]. Data-driven docking calculations of cyclin A/CDK2 with the p27KIP1 peptide was carried out as described [32]. The model of cyclin A/CDK2 is based on the X-ray structure of human CDK2 in complex with cyclin A and the HHASPRK peptide (PDB ID: 1QMZ [11]). This contains one Mg2+ ion bound to a water molecule, the ATP cofactor, and N132 and D145 of CDK2. In the docking calculations, we considered only non-hydrogen atoms and imposed restraints between the phosphorylation site of the substrate and ATP, because the contact between ATP and the phosphorylation site is the prerequisite for the phosphoryl group transfer reaction [46], and between the basic residue at the P + 3 site of the substrate, pT160 of CDK2, and I270 of cyclin A, because these contacts are crucial for substrate specificity, as indicated by the crystal structure of cyclin A/CDK2•HHASPRK [11]. Distance restraints were applied on Mg2+ ions and their ligands to preserve the coordination structure using the HADDOCK program [47, 48]. Rigid body docking, semi-flexible simulated annealing and explicit molecular dynamics refinement implemented in HADDOCK [47, 48] were carried out with the default parameters. Hydrogen bonds were defined to be present if the distance between the acceptor and donor atoms is below 3.5 Å and the angle among the hydrogen-donor-acceptor atoms are below 30°. All figures for the visualization of structures were drawn using PyMOL (Molecular Graphics System, Version 1.3, Schrödinger LLC).
Fig. 6

Flow chart describing the modeling process as detailed in the Methods section

Protein purification and in vitro kinase assay

Human cyclin A/CDK2 complexes were expressed in SF9 insect cells (Spodoptera frugiperda) upon infection with recombinant baculo viruses encoding either cyclin A or CDK2. The complex was purified using the GST tag of cyclin A [49]. In vitro kinase assays of cyclin A/CDK2 were performed in kinase buffer (50 mM Tris-HCl, pH 7.5, 10 mM MgCl2, 1 mM EGTA, 1 mM DTT, 40 mM α-glycero-phosphate, 20 mM p-nitrophenylphosphate, 0.1 mM sodium vanadate, 0.01% BriJ 35) containing 50 μM ATP and 1 μCi 32P-γ-ATP for 10 min at 30°C in the presence of increasing amount of biotinylated p27KIP1 wild type or R194A (an arginine to alanine substitution at position 194) peptides as substrates. The assays were terminated by adding 12.5 μl 7.5 M guanidine hydrochloride. The peptides were immobilized on SAM2 Biotin Capture Membranes (Promega), extensively washed as described in the manufacturer’s protocol, and then monitored for radioactivity in a liquid scintillation counter to calculate the specific kinase activity. Kinetic parameters were determined with GraphPad Prism software built-in “Enzyme kinetic Michaelis-Menten”. The sequence of the p27KIP1 wild type peptide corresponds to amino acids 180 to 194. The peptides were synthesized with a biotin-PEG-20-linker and purified by HPLC at the Peptide Specialty Laboratories, Heidelberg (Germany).

Abbreviations

ATP:

Adenosine triphosphate

CDK2:

Cyclin-dependent kinase 2

CT:

C-terminal region

DTT:

Dithiothreitol

GST:

Glutathione S-transferase

KID:

Kinase inhibitory domain

NLS:

Nuclear localization sequence

NTS:

N-terminal segment

PDB:

Protein data bank

PKA:

Protein kinase A

pT:

Phosphorylated threonine

RMSD:

Root-mean-square deviation

Declarations

Acknowledgements

We wish to thank B. H. Shilton for helpful discussions and E. Buerova for excellent technical assistance.

Funding

This work was supported by a grant from the Deutsche Forschungsgemeinschaft DFG (LU466/14-1) to BL. JL is supported by the Minjiang Scholar program of Fujian province (PRC).

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Authors’ contributions

Conceived and designed the experiments: JL, JV, PC, GR, and BL. Performed the experiments: JL and JV. Analyzed the data: JL, JV, PC, GR, and BL. Wrote the paper: JL, JV, GR, and BL. All authors read and approved the final manuscript.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
College of Chemistry, Fuzhou University
(2)
Institute of Biochemistry and Molecular Biology, Medical School, RWTH Aachen University
(3)
Computational Biomedicine, Institute for Advanced Simulation IAS-5 and Institute of Neuroscience and Medicine INM-9, Forschungszentrum Jülich
(4)
Department of Oncology, Hematology and Stem Cell Transplantation, Medical School, RWTH Aachen University
(5)
Jülich Supercomputing Centre (JSC), Forschungszentrum Jülich

References

  1. Murray AW. Recycling the cell cycle: cyclins revisited. Cell. 2004;116(2):221–34.View ArticlePubMedGoogle Scholar
  2. Malumbres M, Barbacid M. Cell cycle, CDKs and cancer: a changing paradigm. Nat Rev Cancer. 2009;9(3):153–66.View ArticlePubMedGoogle Scholar
  3. Zhang J, Yang PL, Gray NS. Targeting cancer with small molecule kinase inhibitors. Nat Rev Cancer. 2009;9(1):28–39.View ArticlePubMedGoogle Scholar
  4. Malumbres M, Pevarello P, Barbacid M, Bischoff JR. CDK inhibitors in cancer therapy: what is next? Trends Pharmacol Sci. 2008;29(1):16–21.View ArticlePubMedGoogle Scholar
  5. Chohan TA, Qian H, Pan Y, Chen JZ. Cyclin-dependent kinase-2 as a target for cancer therapy: progress in the development of CDK2 inhibitors as anti-cancer agents. Curr Med Chem. 2015;22(2):237–63.View ArticlePubMedGoogle Scholar
  6. Do K, Doroshow JH, Kummar S. Wee1 kinase as a target for cancer therapy. Cell Cycle. 2013;12(19):3159–64.View ArticlePubMedPubMed CentralGoogle Scholar
  7. Asghar U, Witkiewicz AK, Turner NC, Knudsen ES. The history and future of targeting cyclin-dependent kinases in cancer therapy. Nat Rev Drug Discov. 2015;14(2):130–46.View ArticlePubMedPubMed CentralGoogle Scholar
  8. Kamijo M, Yasuda H, Yau PM, Yamashita M, Nagahama Y, Ohba Y. Preference of human cdc2 kinase for peptide substrate. Pept Res. 1992;5(5):281–5.PubMedGoogle Scholar
  9. Songyang Z, Blechner S, Hoagland N, Hoekstra MF, Piwnica-Worms H, Cantley LC. Use of an oriented peptide library to determine the optimal substrates of protein kinases. Curr Biol. 1994;4(11):973–82.View ArticlePubMedGoogle Scholar
  10. Holmes JK, Solomon MJ. A predictive scale for evaluating cyclin-dependent kinase substrates. A comparison of p34cdc2 and p33cdk2. J Biol Chem. 1996;271(41):25240–6.View ArticlePubMedGoogle Scholar
  11. Brown NR, Noble ME, Endicott JA, Johnson LN. The structural basis for specificity of substrate and recruitment peptides for cyclin-dependent kinases. Nat Cell Biol. 1999;1(7):438–43.View ArticlePubMedGoogle Scholar
  12. Tokuriki N, Tawfik DS. Protein dynamism and evolvability. Science. 2009;324(5924):203–7.View ArticlePubMedGoogle Scholar
  13. Dennis JW. Many light touches convey the message. Trends Biochem Sci. 2015;40(11):673–86.View ArticlePubMedGoogle Scholar
  14. Schulman BA, Lindstrom DL, Harlow E. Substrate recruitment to cyclin-dependent kinase 2 by a multipurpose docking site on cyclin A. Proc Natl Acad Sci U S A. 1998;95(18):10453–8.View ArticlePubMedPubMed CentralGoogle Scholar
  15. Vervoorts J, Luscher B. Post-translational regulation of the tumor suppressor p27(KIP1). Cell Mol Life Sci. 2008;65(20):3255–64.View ArticlePubMedGoogle Scholar
  16. Chu IM, Hengst L, Slingerland JM. The Cdk inhibitor p27 in human cancer: prognostic potential and relevance to anticancer therapy. Nat Rev Cancer. 2008;8(4):253–67.View ArticlePubMedGoogle Scholar
  17. Hornbeck PV, Kornhauser JM, Tkachev S, Zhang B, Skrzypek E, Murray B, Latham V, Sullivan M. PhosphoSitePlus: a comprehensive resource for investigating the structure and function of experimentally determined post-translational modifications in man and mouse. Nucleic Acids Res. 2012;40(Database issue):D261–270.View ArticlePubMedGoogle Scholar
  18. Bienkiewicz EA, Adkins JN, Lumb KJ. Functional consequences of preorganized helical structure in the intrinsically disordered cell-cycle inhibitor p27(Kip1). Biochemistry (Mosc). 2002;41(3):752–9.View ArticleGoogle Scholar
  19. Flaugh SL, Lumb KJ. Effects of macromolecular crowding on the intrinsically disordered proteins c-Fos and p27(Kip1). Biomacromolecules. 2001;2(2):538–40.View ArticlePubMedGoogle Scholar
  20. Lacy ER, Filippov I, Lewis WS, Otieno S, Xiao L, Weiss S, Hengst L, Kriwacki RW. p27 binds cyclin-CDK complexes through a sequential mechanism involving binding-induced protein folding. Nat Struct Mol Biol. 2004;11(4):358–64.View ArticlePubMedGoogle Scholar
  21. Russo AA, Jeffrey PD, Patten AK, Massague J, Pavletich NP. Crystal structure of the p27Kip1 cyclin-dependent-kinase inhibitor bound to the cyclin A-Cdk2 complex. Nature. 1996;382(6589):325–31.View ArticlePubMedGoogle Scholar
  22. Grimmler M, Wang Y, Mund T, Cilensek Z, Keidel EM, Waddell MB, Jakel H, Kullmann M, Kriwacki RW, Hengst L. Cdk-inhibitory activity and stability of p27Kip1 are directly regulated by oncogenic tyrosine kinases. Cell. 2007;128(2):269–80.View ArticlePubMedGoogle Scholar
  23. Galea CA, Nourse A, Wang Y, Sivakolundu SG, Heller WT, Kriwacki RW. Role of intrinsic flexibility in signal transduction mediated by the cell cycle regulator, p27 Kip1. J Mol Biol. 2008;376(3):827–38.View ArticlePubMedGoogle Scholar
  24. Rath SL, Senapati S. Mechanism of p27 Unfolding for CDK2 Reactivation. Sci Rep. 2016;6:26450.View ArticlePubMedPubMed CentralGoogle Scholar
  25. Vakser IA. Low-resolution structural modeling of protein interactome. Curr Opin Struct Biol. 2013;23(2):198–205.View ArticlePubMedPubMed CentralGoogle Scholar
  26. Iakoucheva LM, Radivojac P, Brown CJ, O’Connor TR, Sikes JG, Obradovic Z, Dunker AK. The importance of intrinsic disorder for protein phosphorylation. Nucleic Acids Res. 2004;32(3):1037–49.View ArticlePubMedPubMed CentralGoogle Scholar
  27. Holt LJ, Tuch BB, Villen J, Johnson AD, Gygi SP, Morgan DO. Global analysis of Cdk1 substrate phosphorylation sites provides insights into evolution. Science. 2009;325(5948):1682–6.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Endicott JA, Noble ME, Johnson LN. The structural basis for control of eukaryotic protein kinases. Annu Rev Biochem. 2012;81:587–613.View ArticlePubMedGoogle Scholar
  29. Hao B, Zheng N, Schulman BA, Wu G, Miller JJ, Pagano M, Pavletich NP. Structural basis of the Cks1-dependent recognition of p27(Kip1) by the SCF(Skp2) ubiquitin ligase. Mol Cell. 2005;20(1):9–19.View ArticlePubMedGoogle Scholar
  30. Johnson LN, Lewis RJ. Structural basis for control by phosphorylation. Chem Rev. 2001;101(8):2209–42.View ArticlePubMedGoogle Scholar
  31. Gu Y, Rosenblatt J, Morgan DO. Cell cycle regulation of CDK2 activity by phosphorylation of Thr160 and Tyr15. EMBO J. 1992;11(11):3995–4005.PubMedPubMed CentralGoogle Scholar
  32. Li J, Flick F, Verheugd P, Carloni P, Luscher B, Rossetti G. Insight into the Mechanism of Intramolecular Inhibition of the Catalytic Activity of Sirtuin 2 (SIRT2). PLoS One. 2015;10(9):e0139095.View ArticlePubMedPubMed CentralGoogle Scholar
  33. Jeffrey PD, Russo AA, Polyak K, Gibbs E, Hurwitz J, Massague J, Pavletich NP. Mechanism of CDK activation revealed by the structure of a cyclinA-CDK2 complex. Nature. 1995;376(6538):313–20.View ArticlePubMedGoogle Scholar
  34. Bao ZQ, Jacobsen DM, Young MA. Briefly bound to activate: transient binding of a second catalytic magnesium activates the structure and dynamics of CDK2 kinase for catalysis. Structure. 2011;19(5):675–90.View ArticlePubMedPubMed CentralGoogle Scholar
  35. Jacobsen DM, Bao ZQ, O’Brien P, Brooks 3rd CL, Young MA. Price to be paid for two-metal catalysis: magnesium ions that accelerate chemistry unavoidably limit product release from a protein kinase. J Am Chem Soc. 2012;134(37):15357–70.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Zheng J, Trafny EA, Knighton DR, Xuong NH, Taylor SS, Ten Eyck LF, Sowadski JM. 2.2 A refined crystal structure of the catalytic subunit of cAMP-dependent protein kinase complexed with MnATP and a peptide inhibitor. Acta Crystallogr D Biol Crystallogr. 1993;49(Pt 3):362–5.View ArticlePubMedGoogle Scholar
  37. Ivanov I. Enzyme cofactors: double-edged sword for catalysis. Nat Chem. 2013;5(1):6–7.View ArticlePubMedGoogle Scholar
  38. Kuriyan J, Eisenberg D. The origin of protein interactions and allostery in colocalization. Nature. 2007;450(7172):983–90.View ArticlePubMedGoogle Scholar
  39. Morrison DK, Davis RJ. Regulation of MAP kinase signaling modules by scaffold proteins in mammals. Annu Rev Cell Dev Biol. 2003;19:91–118.View ArticlePubMedGoogle Scholar
  40. Adams PD, Sellers WR, Sharma SK, Wu AD, Nalin CM, Kaelin Jr WG. Identification of a cyclin-cdk2 recognition motif present in substrates and p21-like cyclin-dependent kinase inhibitors. Mol Cell Biol. 1996;16(12):6623–33.View ArticlePubMedPubMed CentralGoogle Scholar
  41. Davies C, Ramakrishnan V, White SW. Structural evidence for specific S8-RNA and S8-protein interactions within the 30S ribosomal subunit: ribosomal protein S8 from Bacillus stearothermophilus at 1.9 A resolution. Structure. 1996;4(9):1093–104.View ArticlePubMedGoogle Scholar
  42. Marti-Renom MA, Stuart AC, Fiser A, Sanchez R, Melo F, Sali A. Comparative protein structure modeling of genes and genomes. Annu Rev Biophys Biomol Struct. 2000;29:291–325.View ArticlePubMedGoogle Scholar
  43. Ramachandran GN, Ramakrishnan C, Sasisekharan V. Stereochemistry of polypeptide chain configurations. J Mol Biol. 1963;7:95–9.View ArticlePubMedGoogle Scholar
  44. Zhang Y. I-TASSER server for protein 3D structure prediction. BMC Bioinformatics. 2008;9:40.View ArticlePubMedPubMed CentralGoogle Scholar
  45. Chen VB, Arendall IWB, Headd JJ, Keedy DA, Immormino RM, Kapral GJ, Murray LW, Richardson JS, Richardson DC. MolProbity: all-atom structure validation for macromolecular crystallography. In: onlinelibrarywileycom. vol. F. Chester: International Union of Crystallography; 2012. p. 694–701.Google Scholar
  46. Matte A, Tari LW, Delbaere LT. How do kinases transfer phosphoryl groups? Structure. 1998;6(4):413–9.View ArticlePubMedGoogle Scholar
  47. Dominguez C, Boelens R, Bonvin AM. HADDOCK: a protein-protein docking approach based on biochemical or biophysical information. J Am Chem Soc. 2003;125(7):1731–7.View ArticlePubMedGoogle Scholar
  48. de Vries SJ, van Dijk M, Bonvin AM. The HADDOCK web server for data-driven biomolecular docking. Nat Protoc. 2010;5(5):883–97.View ArticlePubMedGoogle Scholar
  49. Pandithage R, Lilischkis R, Harting K, Wolf A, Jedamzik B, Luscher-Firzlaff J, Vervoorts J, Lasonder E, Kremmer E, Knoll B, et al. The regulation of SIRT2 function by cyclin-dependent kinases affects cell motility. J Cell Biol. 2008;180(5):915–29.View ArticlePubMedPubMed CentralGoogle Scholar
  50. Myers JS, Zhao R, Xu X, Ham AJ, Cortez D. Cyclin-dependent kinase 2 dependent phosphorylation of ATRIP regulates the G2-M checkpoint response to DNA damage. Cancer Res. 2007;67(14):6685–90.View ArticlePubMedPubMed CentralGoogle Scholar
  51. Ruffner H, Jiang W, Craig AG, Hunter T, Verma IM. BRCA1 is phosphorylated at serine 1497 in vivo at a cyclin-dependent kinase 2 phosphorylation site. Mol Cell Biol. 1999;19(7):4843–54.View ArticlePubMedPubMed CentralGoogle Scholar
  52. Marazita MC, Ogara MF, Sonzogni SV, Marti M, Dusetti NJ, Pignataro OP, Canepa ET. CDK2 and PKA mediated-sequential phosphorylation is critical for p19INK4d function in the DNA damage response. PLoS One. 2012;7(4):e35638.View ArticlePubMedPubMed CentralGoogle Scholar
  53. Lai WL, Hung WY, Wong LL, Zhou Y, Leong VY, Lee JM, Ng IO, Jin DY, Ching YP. The centrosomal protein tax1 binding protein 2 is a novel tumor suppressor in hepatocellular carcinoma regulated by cyclin-dependent kinase 2. Hepatology. 2012;56(5):1770–81.View ArticlePubMedGoogle Scholar
  54. Huertas P, Jackson SP. Human CtIP mediates cell cycle control of DNA end resection and double strand break repair. J Biol Chem. 2009;284(14):9558–65.View ArticlePubMedPubMed CentralGoogle Scholar
  55. Narayan N, Massimi P, Banks L. CDK phosphorylation of the discs large tumour suppressor controls its localisation and stability. J Cell Sci. 2009;122(Pt 1):65–74.View ArticlePubMedGoogle Scholar
  56. Chen S, Bohrer LR, Rai AN, Pan Y, Gan L, Zhou X, Bagchi A, Simon JA, Huang H. Cyclin-dependent kinases regulate epigenetic gene silencing through phosphorylation of EZH2. Nat Cell Biol. 2010;12(11):1108–14.View ArticlePubMedPubMed CentralGoogle Scholar
  57. Major ML, Lepe R, Costa RH. Forkhead box M1B transcriptional activity requires binding of Cdk-cyclin complexes for phosphorylation-dependent recruitment of p300/CBP coactivators. Mol Cell Biol. 2004;24(7):2649–61.View ArticlePubMedPubMed CentralGoogle Scholar
  58. Huang H, Regan KM, Lou Z, Chen J, Tindall DJ. CDK2-dependent phosphorylation of FOXO1 as an apoptotic response to DNA damage. Science. 2006;314(5797):294–7.View ArticlePubMedGoogle Scholar
  59. Hall C, Nelson DM, Ye X, Baker K, DeCaprio JA, Seeholzer S, Lipinski M, Adams PD. HIRA, the human homologue of yeast Hir1p and Hir2p, is a novel cyclin-cdk2 substrate whose expression blocks S-phase progression. Mol Cell Biol. 2001;21(5):1854–65.View ArticlePubMedPubMed CentralGoogle Scholar
  60. Sarcevic B, Mawson A, Baker RT, Sutherland RL. Regulation of the ubiquitin-conjugating enzyme hHR6A by CDK-mediated phosphorylation. EMBO J. 2002;21(8):2009–18.View ArticlePubMedPubMed CentralGoogle Scholar
  61. Deed RW, Hara E, Atherton GT, Peters G, Norton JD. Regulation of Id3 cell cycle function by Cdk-2-dependent phosphorylation. Mol Cell Biol. 1997;17(12):6815–21.View ArticlePubMedPubMed CentralGoogle Scholar
  62. Linzen U, Lilischkis R, Pandithage R, Schilling B, Ullius A, Luscher-Firzlaff J, Kremmer E, Luscher B, Vervoorts J. ING5 is phosphorylated by CDK2 and controls cell proliferation independently of p53. PLoS One. 2015;10(4):e0123736.View ArticlePubMedPubMed CentralGoogle Scholar
  63. Dong Z, Tomkinson AE. ATM mediates oxidative stress-induced dephosphorylation of DNA ligase IIIalpha. Nucleic Acids Res. 2006;34(20):5721–279.View ArticlePubMedPubMed CentralGoogle Scholar
  64. Lee KY, Bang SW, Yoon SW, Lee SH, Yoon JB, Hwang DS. Phosphorylation of ORC2 protein dissociates origin recognition complex from chromatin and replication origins. J Biol Chem. 2012;287(15):11891–8.View ArticlePubMedPubMed CentralGoogle Scholar
  65. Sheaff RJ, Groudine M, Gordon M, Roberts JM, Clurman BE. Cyclin E-CDK2 is a regulator of p27Kip1. Genes Dev. 1997;11(11):1464–78.View ArticlePubMedGoogle Scholar
  66. Huang Y, Sen T, Nagpal J, Upadhyay S, Trink B, Ratovitski E, Sidransky D. ATM kinase is a master switch for the Delta Np63 alpha phosphorylation/degradation in human head and neck squamous cell carcinoma cells upon DNA damage. Cell Cycle. 2008;7(18):2846–55.View ArticlePubMedPubMed CentralGoogle Scholar
  67. Gaiddon C, Lokshin M, Gross I, Levasseur D, Taya Y, Loeffler JP, Prives C. Cyclin-dependent kinases phosphorylate p73 at threonine 86 in a cell cycle-dependent manner and negatively regulate p73. J Biol Chem. 2003;278(30):27421–31.View ArticlePubMedGoogle Scholar
  68. Nair BC, Nair SS, Chakravarty D, Challa R, Manavathi B, Yew PR, Kumar R, Tekmal RR, Vadlamudi RK. Cyclin-dependent kinase-mediated phosphorylation plays a critical role in the oncogenic functions of PELP1. Cancer Res. 2010;70(18):7166–75.View ArticlePubMedPubMed CentralGoogle Scholar
  69. Costoya JA, Hobbs RM, Pandolfi PP. Cyclin-dependent kinase antagonizes promyelocytic leukemia zinc-finger through phosphorylation. Oncogene. 2008;27(27):3789–96.View ArticlePubMedGoogle Scholar
  70. Bukczynska P, Klingler-Hoffmann M, Mitchelhill KI, Lam MH, Ciccomancini M, Tonks NK, Sarcevic B, Kemp BE, Tiganis T. The T-cell protein tyrosine phosphatase is phosphorylated on Ser-304 by cyclin-dependent protein kinases in mitosis. Biochem J. 2004;380(Pt 3):939–49.View ArticlePubMedPubMed CentralGoogle Scholar
  71. Suryadinata R, Sadowski M, Steel R, Sarcevic B. Cyclin-dependent kinase-mediated phosphorylation of RBP1 and pRb promotes their dissociation to mediate release of the SAP30.mSin3.HDAC transcriptional repressor complex. J Biol Chem. 2011;286(7):5108–18.View ArticlePubMedGoogle Scholar
  72. Chi Y, Welcker M, Hizli AA, Posakony JJ, Aebersold R, Clurman BE. Identification of CDK2 substrates in human cell lysates. Genome Biol. 2008;9(10):R149.View ArticlePubMedPubMed CentralGoogle Scholar
  73. Matsuura I, Denissova NG, Wang G, He D, Long J, Liu F. Cyclin-dependent kinases regulate the antiproliferative function of Smads. Nature. 2004;430(6996):226–31.View ArticlePubMedGoogle Scholar
  74. Stanya KJ, Liu Y, Means AR, Kao HY. Cdk2 and Pin1 negatively regulate the transcriptional corepressor SMRT. J Cell Biol. 2008;183(1):49–61.View ArticlePubMedPubMed CentralGoogle Scholar
  75. Wohlbold L, Merrick KA, De S, Amat R, Kim JH, Larochelle S, Allen JJ, Zhang C, Shokat KM, Petrini JH, et al. Chemical genetics reveals a specific requirement for Cdk2 activity in the DNA damage response and identifies Nbs1 as a Cdk2 substrate in human cells. PLoS Genet. 2012;8(8):e1002935.View ArticlePubMedPubMed CentralGoogle Scholar
  76. Crooks GE, Hon G, Chandonia JM, Brenner SE. WebLogo: a sequence logo generator. Genome Res. 2004;14(6):1188–90.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2017

Advertisement
