Similarities and differences between variants called with human reference genome HG19 or HG38

Study design

This study consists of four main phases:

1. 1.

   Reads were aligned to HG19 or HG38 using three aligners (Bowtie2, BWA, ISAAC).


2. 2.

   SNVs were called using three algorithms (FreeBayes, GATK HaplotypeCaller (HC), ISAAC, SAMtools).


3. 3.

   Coordinates of SNVs were converted between HG19 and HG38 using two tools (Picard, CrossMap).


4. 4.

   Comparative analysis was conducted on the converted SNVs from step 3 (Fig. 1).



First, the raw reads downloaded from GIAB were aligned to human reference genomes HG19 and HG38 separately using three popular aligners (BWA-mem [24], Bowtie2 [25] and ISAAC [26]). For each raw BAM file from each alignment, a GATK recalibration BAM file was generated following the GATK community recommended guidelines [27, 28]. For each of the four BAM files from each aligner, three calling algorithms (ISAAC [26], HC [28], SAMtools [29] and FreeBayes [30]) were used to call SNVs. Next, 26 sets of SNVs (24 generated using above described pipelines and 2 downloaded from GIAB) from HG19 (termed as 38HG19_SNVs hereafter) were converted to SNVs corresponding to HG38 (termed as 19HG38_SNVs hereafter). Similarly, the 26 sets of SNVs from HG38 (termed as 19HG38_SNVs hereafter) were converted to HG19 (termed as 38HG19_SNVs hereafter). The SNV conversions between HG38 and HG19 were performed using LiftoverVcf from the Picard package (http://broadinstitute.github.io/picard/) (Picard is used hereafter) and CrossMap [23]. Then, comparisons between HG19_SNVs and 38HG19_SNVs and between HG38_SNVs and 19HG38_SNVs based on genome position and genotype information were conducted with in-house perl scripts. The discordant SNVs were evaluated for read depth and annotated as being GIAB low and high confidence regions. Lastly, the discordant SNVs were partitioned by the four reference alleles to examine their G/C balance.

Data downloaded

Alignment

The raw reads were aligned to HG19 and HG38. Three aligners were used: BWA (v0.7.15) [24], Bowtie2 (v2.2.9) [25] and ISAAC (v01.15.04.01) [26]. For BWA, default parameters were used with a minimum seed length of 19 bp. For Bowtie2, the length of seed substrings was set at 22 bp with 0 bp mismatch in the seed allowed. For ISAAC, the seed length was set at 32 bp. The alignment rate for each aligner was calculated by SAMtools (v2.3.0) [32] based on the aligner produced BAM files. All alignment tasks were run in parallel on the local cluster at National Center for Toxicological Research.

GATK recalibration

The GATK best practices workflow recommends GATK post-processing recalibration [28], which is believed to improve variant calling accuracy. In addition to the BAM files yielded from alignment, we generated additional BAM files by applying duplicate marking, local realignment around indels and base quality score recalibration for SNV calling. First, duplicates were marked by the MarkDuplicates and AddOrReplaceReadGroups commands from Picard tools (v2.7.1, http://broadinstitute.github.io/picard/). Subsequently, local realignment around known indels was done by the IndelRealigner command in GATK (v3.7) [28] with known indels from the 1000 genome project for both HG19 and HG38. Lastly, the BaseRecalibrator and PrintReads commands in GATK were run to apply base calibration. Both the recalibrated BAM files and the original BAM files were used for SNV calling.

SNV calling

VCF file processing

Indels and structural variants such as copy number variations are not as reproducible as SNVs [34, 35], therefore indel and structural variant concordance from different versions of the human reference genome is not assessed here. Only SNVs from each call set were kept for assessment of reference genome version impact. Vcftools (v0.1.15) [36] was used to remove indels from the VCF files prior to the comparative analyses.

SNV conversion

Coordinate conversion is needed for SNV comparison between two different versions of the reference genome. Two conversion tools were used to convert SNVs between HG19 and HG38. The first tool is Picard (LiftoverVcf command from Picard, v2.7.1, http://broadinstitute.github.io/picard/). The second tool is a standalone program named CrossMap [23]. Both tools are popular and request a fasta file of reference genome and chain file as common inputs. A chain file is a text file defined by UCSC which records chromosomal coordinate relationships between different genomes [16].

Conversion rate calculation

\( 19 HG38\_{SNVs}_{Picard} \) and \( 19 HG38\_{SNVs}_{CrossMap} \) indicate SNVs called with HG19 that were successfully converted to corresponding positions in HG38 using conversion tools Picard and CrossMap, respectively. \( 38 HG19\_{SNVs}_{Picard} \) and \( 38 HG19\_{SNVs}_{CrossMap} \) represent the SNVs called with HG38 that were successfully converted to corresponding positions in HG19 using conversion tools Picard and CrossMap, respectively.

Discordant rate calculation

Using the results from BWA alignment and SAMtools calling as an example, two sets of SNVs were obtained, one from the alignment onto HG19 (HG19_SNVs) and the other from the alignment onto HG38 (HG38_SNVs). To convert HG19_SNVs to the positions in HG38, the HG38 equivalent SNVs \( 19 HG38\_{SNVs}_{Picard} \) and \( 19 HG38\_{SNVs}_{CrossMap} \) were generated using Picard and CrossMap, respectively. The conversion rates for HG19_SNVs were then calculated using Eqs. (1) and (2). In a similar way the conversion rates for HG38_SNVs were calculated using Eqs. (3) and (4). Thereafter, \( 19 HG38\_{SNVs}_{Picard} \) and \( 19 HG38\_{SNVs}_{CrossMap} \) were compared with HG38_SNVs to find the position discordant SNVs (\( PD\_{SNVs}_{Picard}^{HG38} \) and \( PD\_{SNVs}_{CrossMap}^{HG38} \)) and the genotype discordant SNVs (\( GD\_{SNVs}_{Picard}^{HG38} \) and \( GD\_{SNVs}_{CrossMap}^{HG38} \)). Then the position discordant rates and genotype discordant rates were calculated using Eqs. (7–8) and Eqs. (11–12), respectively. In an analogous way, the discordant rates for the converted SNVs from HG38 to HG19 were calculated.

Discordant SNV characterization

We also compared the percentage of reference allele G and C between the discordant SNVs for \( PD\_{SNVs}_{tool}^{TG} \) and \( GD\_{SNVs}_{tool}^{TG} \) using an in-house Perl script. All source data and scripts are provided in the Additional file 1.

HG19 and HG38 produce substantially different alignments

However, read coverage across reference genome alignments showed significant differences between HG19 and HG38. Around 6.5% of the bases in HG19 and 4.4% of the bases in HG38 had no reads aligned by any of the three aligners (Additional file 2: Table S1). Not surprisingly, the newer genome version (HG38) had better genome coverage than the older version (HG19), suggesting preference for the newer version when undergoing sequence analysis. The three aligners produced very similar genome coverages. Thus, aligner selection may be a more minor concern in sequencing data analysis compared to reference genome selection. We further calculated coverage for all bases in all alignment results and examined the coverage distribution from 1 read to 600 reads (Additional file 2: Table S1).

The coverage from each pipeline is plotted against frequency in a log scale with HG19 as red lines and HG38 as blue lines in Fig. 2. The distribution of coverage for HG19 and HG38 showed significant differences for all alignments, as evidenced by t-test p-values less than 0.05 for BWA-mem and Bowtie2 and slightly larger than 0.05 for ISAAC (Additional file 2: Table S2). More interestingly, the differences came from both low and high coverage distributions. For the bases with coverage close to the sequencing depth (300X), HG19 and HG38 performed equally well. In other words, for genomic regions with intermediate amounts of aligned reads, the two versions of human genome were aligned equally. However, for genomic regions with very high or very low amounts of aligned reads, HG19 and HG38 more often produced different alignments. The regions with too few or too many mapped reads are typically difficult regions to be assembled and often assemblies of these areas need improvement. Therefore, the alignment results for the two versions of reference genome might be caused by the improvements of HG38 in these challenging regions. Translating SNVs identified from very low or high coverage regions between genome versions merits caution.

Comparison of coverage distribution between alignments without and with GATK realignment (Additional file 3: Figure S1) revealed that GATK realignment had very little impact. The t-test p-values were close to 1 (Additional file 2: Table S2) and Pearson correlation coefficients were close to 1 (Additional file 2: Table S3). The coverage distribution for different aligners was compared in Additional file 3: Figure S2. BWA-mem and Bowtie2 performed almost identically. In contrast, ISAAC performed differently from the other two aligners in low coverage genomic regions. Even though genomic coverage for different aligners was not significantly different, our comparative analysis of coverage distribution revealed that genetic variants detected in low coverage genomic regions from different aligners should be carefully inspected.

Calling with HG38 generated more SNVs than calling with HG19

The sequencing data was aligned to HG19 and HG38 using three alignment tools followed by GATK realignment. The alignment results, with and without realignment, were used to call SNVs using three algorithms, resulting in 48 sets of SNV calls. We also downloaded four sets of SNVs from GIAB which were obtained from HC and FreeBayes with alignments to HG19 and HG38 using Novoalign. The number of SNVs is plotted in Fig. 3 for all 52 sets of SNVs. No significant variation in the numbers of SNVs was found comparing the three aligners. FreeBayes yielded slightly more SNVs than HC and SAMtools, which identified slightly more SNVs than ISAAC. However, the numbers of SNVs identified from the alignments to the newer version of the human genome (HG38, red bars) are significantly larger (by about 5%) than those detected from the alignments to the older version (HG19, blue bars) for otherwise identical pipelines. On average, 3,859,100 SNVs were called from alignment to HG19 and 4,048,565 SNVs were identified from alignment to HG38, in agreement with what has been previously reported [37]. Here, the improved reference genome (HG38) increased the number of SNVs identified from identical sequencing data, suggesting that genetic variants missed by using HG19 could be identified using HG38. Therefore, we again recommend the newer version (HG38) for sequencing data analysis aimed at variant calling.

Conversion from HG38 to HG19 was more error prone than HG19 to HG38

The conversion rates of all 52 sets of SNVs for the two conversion tools are plotted in Fig. 4. The two conversion tools, Picard (circles) and CrossMap (diamonds), performed nearly identically. Interestingly, the conversion rates from HG19 to HG38 (around 99%) were significantly higher than the corresponding conversion rates from HG38 to HG19 (around 95%). In other words, the coordinates of the older version (HG19) could be readily converted to the coordinate system of the newer version (HG38) while a significant number of SNVs identified from HG38 could not be successfully converted to HG19.

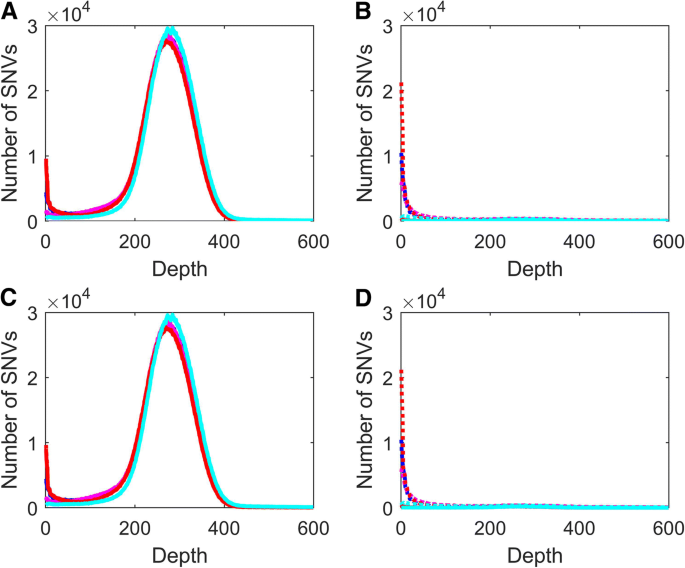

We extracted depth information and calculated the frequency of SNVs at each depth (Additional file 2: Table S4). For the SNVs identified from alignments using BWA, no significant variation in SNV depth was found comparing the three calling algorithms or the two conversion tools. Not surprisingly, for the SNVs converted successfully (Fig. 5a and c), the conversions from HG38 to HG19 (dotted lines) were similar with those from HG19 to HG38 (solid lines). However, the depth distributions for the SNVs that were (Fig. 5a and c) or were not (Fig. 5b and d) successfully converted between the two genomes were very different. Strikingly, most of the SNVs that were unable to be converted had very low sequencing depth. Our results demonstrated that some genomic regions, such as repeats, present a challenge for read alignment and are less consistent between different versions of the human genome. Similar observations were obtained for the SNVs identified from alignment results using Bowtie2 and ISAAC (Additional file 2: Table S4). The SNVs with or without GATK realignment showed very similar depth distributions (Additional file 2: Table S4).

A significant proportion of successfully converted SNVs were discordant

The SNVs identified from alignment to a genome version (“source version” hereafter) and converted to another genome version (“target version” hereafter) are expected to also be detected from alignment directly to the target version. However, some of the successfully converted SNVs were not identified from alignment directly to the target version and are termed hereafter as “discordant SNVs”. The rate of discordant SNVs compared to the total of successfully converted SNVs was calculated for all 40 sets of SNVs (Fig. 6a). On average, around 1.5% of successfully converted SNVs were not detected from any alignments directly to the target version. Intriguingly, the discordant rates of the SNVs successfully converted to HG19 (from HG38) were consistently higher than the discordant rates for the SNVs successfully converted to HG38 (from HG19). The SNVs identified from alignment to the newer version (HG38) not only had more SNVs that could not be converted to the older version HG19 (Fig. 4) but also had a higher discordant rate for the converted SNVs compared with the opposite conversion. This result indicates that translation of findings from the newer version (HG38) to the older version (HG19) should be done cautiously. In contrast to the conversion rates, the discordant rates from Picard conversions were consistently lower than the discordant rates from CrossMap conversion across all calling pipelines. The four sets of SNVs downloaded from GIAB yielded discordant rates between 1.94 and 2.66% (pipeline 1 and 2 in Fig. 6a), slightly higher than the discordant rates from the other 36 sets of SNV calls. For the three alignment tools we used, Bowtie2 demonstrated the lowest discordant rates (1.10% ± 0.20%); BWA had the highest discordant rates and highest variation (1.80% ± 0.41%); ISAAC was in the middle (discordant rates 1.51% ± 0.24%).

We next defined properties of the discordant SNVs. The discordant SNVs that were not detected from alignment directly to the target version are hence named “position discordant SNVs”. The discordant SNVs that were identified from alignment to the target version but with different genotypes called are hence named “genotype discordant SNVs”. We first counted numbers of position discordant and genotype discordant SNVs. The ratios of position discordant SNVs to the genotype discordant SNVs were calculated (Fig. 6b). The log2 values of the ratios were much larger than 1, indicating that the majority of the discordant SNVs were position discordant SNVs. Strikingly, CrossMap not only had more discordant SNVs (Fig. 6a) but also yielded more genotype discordant SNVs (lower ratios in Fig. 6b) compared with Picard, which suggests Picard as a superior choice for conversion between different versions of human genome. Unlike the discordant rate, the ratios of position discordant SNVs to genotype discordant SNVs did not show a significant or consistent difference between the two genome conversions considered here. No significant differences were observed between the aligners or the calling algorithms in this regard.

Discordant SNVs tend to be low confidence calls

To characterize discordant SNVs, we first compared both the successfully converted SNVs and the discordant SNVs against the GIAB gold standard set of HC and LC SNVs. The ratio of position discordant SNVs and genotype discordant SNV to the converted SNVs were calculated using eqs. (13) and (14) as described in methods. The log2 values of the PR (position discordant ratio) and GR (genotype discordant ratio) for all 40 sets of SNVs are plotted in Fig. 7. Position discordant SNVs (Fig. 7a) and genotype discordant SNVs (Fig. 7b) were more often LC as compared to successfully converted SNVs. Converting from HG38 to HG19 generated significant higher log2 PR values (average of 10.85) than the opposite conversion (average of 8.62) for all 52 sets of SNVs converted using either conversion tool (Fig. 7a). Thus, LC SNVs are a major source of position discordant SNVs and present a HG38 to HG19 conversion challenge. In contrast, no significant differences were found for the GR values when converting either way between HG38 and HG19 (Fig. 7b). Taken together, these results demonstrate that HC and LC SNVs equally contributed to the genotype discordant SNVs relative to the successfully converted SNVs for both conversions. Interestingly, the two conversion tools did not show a significant difference in PR values (Fig. 7a), although CrossMap had consistently higher GR values than Picard (Fig. 7b). The PR and GR values varied substantially between aligners and calling algorithms; but no consistent trend was observed.

Discordant SNVs are G/C rich
