Conservation of dynamic characteristics of transcriptional regulatory elements in periodic biological processes
BMC Bioinformatics volume 23, Article number: 94 (2022)
Cell and circadian cycles control a large fraction of cell and organismal physiology by regulating large periodic transcriptional programs that encompass anywhere from 15 to 80% of the genome despite performing distinct functions. In each case, these large periodic transcriptional programs are controlled by gene regulatory networks (GRNs), and it has been shown through genetics and chromosome mapping approaches in model systems that at the core of these GRNs are small sets of genes that drive the transcript dynamics of the GRNs. However, it is unlikely that we have identified all of these core genes, even in model organisms. Moreover, large periodic transcriptional programs controlling a variety of processes certainly exist in important non-model organisms where genetic approaches to identifying networks are expensive, time-consuming, or intractable. Ideally, the core network components could be identified using data-driven approaches on the transcriptome dynamics data already available.
This study shows that a unified set of quantified dynamic features of high-throughput time series gene expression data are more prominent in the core transcriptional regulators of cell and circadian cycles than in their outputs, in multiple organism, even in the presence of external periodic stimuli. Additionally, we observe that the power to discriminate between core and non-core genes is largely insensitive to the particular choice of quantification of these features.
There are practical applications of the approach presented in this study for network inference, since the result is a ranking of genes that is enriched for core regulatory elements driving a periodic phenotype. In this way, the method provides a prioritization of follow-up genetic experiments. Furthermore, these findings reveal something unexpected—that there are shared dynamic features of the transcript abundance of core components of unrelated GRNs that control disparate periodic phenotypes.
Periodic phenotypes span nearly the entire tree of life and include such fundamental processes as the cell-division cycle, circadian rhythms, and developmental cycles. Probing the genetic mechanisms that give rise to these dynamic activities is not only crucial to our fundamental understanding of life and its evolution, it may also add to the current collection of synthetic biology components and principles of design, and may reveal novel treatments for disease and infection. A vast body of experimental evidence, gathered over years of targeted experimentation (e.g. gene knock-outs) has uncovered the existence of endogenous circadian clocks: complex GRNs—comprised mostly of interacting transcription factors (TFs)—within cyanobacteria, fungi, plants and mammals [1,2,3]. Moreover, a GRN also appears to control the timing of cell-cycle events in budding yeast [4,5,6,7,8]. To understand the complex dynamic functions of these GRNs, experimentalists and computational scientists have developed a variety of approaches to infer the structure of GRNs. An essential first step is to identify, from among an expansive set of candidate genes, those core gene products controlling the dynamics of the associated program of gene expression. We conceptualize core nodes as interacting in a strongly connected subnetwork of mutual activation and repression. The core then drives the dynamics of “output” or “effector” nodes that do not feed back into the core but rather transmit the dynamic expression pattern to downstream target genes (Fig. 1).
Identifying core nodes is especially daunting for organisms where genetic experiments are largely intractable. Moreover, functional redundancy, and complex GRN mechanisms, such as accessory feedback loops, can complicate the discovery of core nodes. Here we identify distinguishing characteristics of the dynamics of gene expression that are conserved across organisms that are separated by hundreds of millions of years of evolution, in vastly different biological processes, and across data-collection modalities. We discover that a combination of dynamic features provides a rank ordering of all genes such that core nodes are generally highly ranked, even among the many genes which exhibit these features. Moreover, we find that, in general, a combination of dynamic features more accurately distinguishes core transcriptional regulators than individual features on their own. Our findings support the use of quantified dynamic characteristics of gene expression to identify core regulatory elements and show that there are common features in the dynamic gene expression of core regulatory variables that drive a variety of biological processes.
Results and discussion
Understanding the function of GRNs requires a specification of the control variables and their interactions. Accurate inferences have generally required substantial genetic perturbation and physical localization studies and thus has been confined to experimentally tractable model systems. However, previous work has indicated that interactions between GRN nodes can be inferred directly from transcriptome dynamics data . Here we investigated whether the core nodes themselves could also be identified from time series transcriptomics. We determined that quantifiable features from time-series gene expression measurements can be used to identify experimentally-inferred core nodes from model systems across taxa (yeast cell cycle, mouse circadian cycle, plant circadian cycle).
We consider two quantifiable characteristics of dynamic transcript abundance profiles, measured in multiple ways, and assess the capacity of each to differentiate core from non-core regulatory elements. Because the dynamic phenotypes of interest are rhythmic, e.g. sleep-wake cycles, cell division, etc., it is natural to ask to what extent, relative to all genes, will the core elements driving these processes be endowed with periodicity that matches the observed cycling at the level of their transcript abundance? Moreover, since the core elements are by definition those TFs governing the dynamics of gene expression, to what extent will the strength of the regulatory signal be reflected in the dynamics of transcript abundance?
Dynamic transcript abundance features identify regulatory elements in core networks
We first examined the list of dynamic features, used both individually and in various combinations (see Table 3) to distinguish core TFs from among all TFs. To provide a unified measure of performance across datasets, we considered the average precision (AP) of each metric’s ranking of transcripts. When restricting to TFs, using both periodicity and regulation strength features together yields significantly higher AP scores than the baseline for each of the six datasets examined (Fig. 2A). Even using just one of the two types of dynamic features, we see remarkable improvement over baseline, although generally lower AP scores, than the combined metrics, across all six datasets (Fig. 2B). Notably, the datasets considered in this study represent organisms from three different kingdoms, undergoing two ostensibly mechanistically distinct periodic dynamic processes. The complete set of metrics scoring all genes in all datasets are available in Additional file 4: Gene Rankings and the complete precision-recall curves for all datasets and all metrics are available in Additional file 5: Figs. S1–S6.
From the viewpoint of an experimentalist interested in understanding the entirety of a core network, it is encouraging to observe the enrichment of the top 25 TFs with core genes. Among the top 25 TFs ranked by the measure DL\(\times\)JTK, 13 (12) of the possible 17 S. cerevisiae core genes are identified using the microarray (RNASeq) data. Similarly, 10 (4) core M. musculus genes from the possible list of 15 (14) core genes, are among the top 25 transcription factors as ranked by DL\(\times\)JTK using microarray (RNASeq) data. Finally, A. thaliana LDHC and LL_LDHC datasets contain 4 and 5 core genes, respectively, from among the 11 possible core, in the top 25. Strikingly, 9 of the top 10 M. musculus TFs and 6 of the top 10 S. cerevisiae TFs are core when the high temporal resolution microarray datasets are ranked using DL\(\times\)JTK. These results are given in Table 1.
We emphasize the skill of dynamic gene expression features to identify core TFs in Fig. 3, which gives the distribution of core TF DL\(\times\)JTK ranks among all TFs for S. cerevisiae (see also Additional file 5: Table S1) and heatmaps of microarray gene expression grouped by DLxJTK rankings. The top 25 genes are clearly seen to robustly oscillate at approximately the specified period (94 min) and among these are 13 of the 17 core genes.
The recall of core genes by DL \(\times\) JTK among the top 25 TFs is as much as 76.5% of the core yeast cell-cycle transcriptional regulatory network, up to 66.67% for the mouse circadian clock with well-sampled data, and 45.45% for the core plant circadian network under circadian conditions. Meaning, by using only the dynamics of transcript abundance and a list of TFs, an experimentalist would identify three-quarters of the known core cell-cycle TFs in yeast, two-thirds of the core circadian TFs in mice, and almost half of the core circadian TFs in plants from among the top 25 TFs when ranked using a combined measure of periodicity and regulation strength. Other combined measures perform skillfully when examining the top 25 ranked TFs, although not as consistently well across all the datasets as DL \(\times\) JTK (Additional file 5: Tables S2 and S3).
The ability of dynamic characteristics to identify core TFs from among all TFs may depend on the data collection modality and will certainly depend on the number of time points per cycle collected. This is made apparent by comparing the S. cerevisiae RNASeq and microarray datasets and, separately, M. musculus RNASeq and microarray datasets. We expect that the reduced DL \(\times\) JTK classifier performance is largely due to the sensitivity of the JTK algorithm to the number of timepoints per cycle , although we cannot conclusively rule out the impact of the data type.
At the same time, quantitative measures of rhythmicity in transcript abundance and strength of regulation both independently improve the skill of a classifier above random. Thus, the functional regulatory elements driving very different biological processes exhibit common characteristics in the dynamics of their transcript expression.
Dynamic transcript abundance characteristics remain adept at identifying core regulatory elements, even in the absence of prior knowledge of transcription factors
The organisms chosen for this study are model organisms in mammalian, plant, and fungi research which have been extensively studied. Thus, for these organisms, there are reliable annotations of gene function and comprehensive lists of TFs. If studying a non-model organism, evidence of gene function may be much weaker, for example relying on sequence-based inferences. We ask, to what extent do the dynamic characteristics of transcript abundance that distinguish core TFs from non-core TFs continue to distinguish core from all genes? In this way, we assess the capacity for gene expression dynamics to reduce hypothesis space in the absence of any prior biological knowledge. Note, this is an extremely lofty goal given the minuscule fraction of these genomes occupied by core transcriptional regulator elements.
For each dataset in Table 4 we ranked all transcript abundance profiles using the methods in Table 3. We have chosen to be very conservative in our labelling of core genes: only 17 out of nearly 6000 transcripts in S. cerevisiae, 14 out of close to 20,000 genes in M. Musculus, and 11 of over 22,000 genes in A. thaliana. As expected, AP scores are greatly reduced across all datasets. However, the APs remain significantly above baseline in most cases (Fig. 4). Examining the top 25 genes ranked by the measure DL \(\times\) JTK, at least one core TF remained in the top 25 for all datasets, except the A. thaliana LDHC microarray dataset (Additional file 4—Gene Rankings). Remarkably, six of the 15 core mouse circadian TFs (recall of 40%) are identified among the top 25 genes ranked by DL \(\times\) JTK in the M. Musculus liver microarray dataset.
The dynamic transcript abundance characteristics of core regulatory elements are not overrepresented among transcription factors
It is certainly possible that the dynamic features under investigation are characteristic of TFs themselves, and thus filtering on TFs selects for these features. To investigate the possibility that the dynamic metrics in this study are overrepresented in TFs and not just core transcriptional regulatory elements, we assessed the ability of the dynamic characteristics of transcript abundance to identify TFs from among all transcripts. In line with our hypothesis, all methods listed in Table 3 performed poorly as each method’s AP dropped to near or below the AP baseline (Fig. 5). Said another way, TFs within these organisms are effectively randomly distributed in the rankings of all genes by periodicity and variability of transcript abundance. The inability of the methods to identity TFs in each dataset demonstrates that these dynamic features are not characteristic of TFs in general, although they are indicative of core regulatory elements in disparate circadian systems and in the yeast cell-cycle.
Statistical significance measures are not required to skillfully rank core genes
A major concern with the DL methods for determining significance is that they require the generation of empirical null distributions derived from the periodicity and regulator metrics of many synthetic expression profiles generated by repeated sampling of the experimental data. As the number of genes and/or the number of time points increases, the background distributions of potential random synthetic abundance profiles grows rapidly. As a result, in general, many more synthetic profiles must be generated and characterized to improve estimates of these p-values. If too few random curves are analyzed, there may be ambiguity in the final rankings due to repeated p-values caused by the resulting coarse discretization of possible estimates. This is potentially an issue since ambiguous p-value rankings could, in principle, overstate the quality of the metric. In the worst case scenario an experimentalist would have to test all genes in a block with the same p-value, since one cannot prioritize by this method alone one gene over another. Additionally, the choice of a background distribution has a large impact on statistical significance  and gives poor results when assumptions of the background distribution do not match the reality of the data (see the discussion of the malaria dataset in ).
It should also be noted that, unlike some test statistics, the DL Per Scores need not rank genes in exactly the same way as the corresponding DL Per p-values. Thus we ask, is it necessary to compute a significance value in order to skillfully rank core TFs? We address this question by ranking genes according to DL’s “naive” measurements for periodicity and regulation, individually (DL Per Score and DL Reg Score in Table 3, respectively) and in combination (PerReg). These naive measurements are calculated quickly with no permutations or random sampling required, and thus greatly reduce the computational time required to rank genes. When used individually, the naive DL measurements perform equally well or better than the empirical p-values at identifying core, as measured by AP (Fig. 2B). Indeed, there is a striking difference across all datasets in the ranking of core genes using DL’s naive periodicity score rather than its associated empirical p-value, which is particularly expensive to compute for large gene sets.
When combined, the naive measures also skillfully rank genes well above baseline across all datasets. In fact, there is a notable increase in AP over the other combined metrics, which are derived from p-values, for the A. thaliana data in both conditions (Fig. 2A). We expect that this, along with the generally lower performance of these metrics on A. thaliana data compared to the other datasets, may be due to the fact that the A. thaliana transcript abundance profiles reflect gene expression in multiple tissue types, making it difficult to collect accurate empirical p-values.
Much like DL \(\times\) JTK, PerReg shows skillful recall at identifying core genes among the top 25 TFs (Additional file 5: Table S3), identifying at least 4 and at most 10 core TFs among the top 25, across all datasets considered in this study.
Several high ranking non-core genes display regulatory relationships with core genes
The lists of core TFs used in this study are conservative since (1) a lack of strong evidence supporting a gene as a core regulator is not proof that it is not core and (2) many functional regulators are also known to be transcriptional co-regulators and post-transcriptional modifiers; we labelled the latter as non-core to ensure fair assessment of the performance of the ranking methods. Thus, our binary labels may contain false negatives (core labeled as non-core) due to a lack of strong experimental evidence, and certainly contain false negatives due to our restriction to TFs. We ask, what are the identities of the most highly ranked non-core TFs, and does there exist any evidence that they target the activity of and/or are targeted by our core TFs?
Utilizing the curated list of regulatory relationships in YEASTRACT  and PlantTFDB , as well as a literature search for M. musculus TF interactions, we indeed observe evidence that several yeast, plant, and mouse genes among the top 25 TFs ranked by the measure DL \(\times\) JTK target core and/or are targeted by core (Table 2). For example, we find that among the top 25 S. cerevisiae TFs ranked by DL \(\times\) JTK in either MA or RNASeq datasets, that 40% (9/23) of the genes have existing evidence of both regulating and being regulated by core. This observation suggests that genes that appear highly ranked by our combined measures, but were not labeled as core due to a lack of existing evidence, may in fact be core nodes.

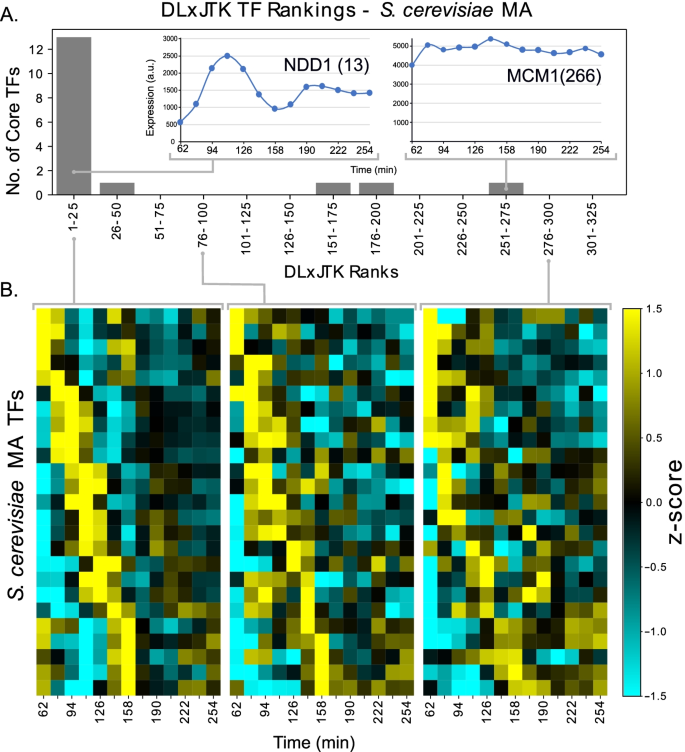

Within the top 25 of all genes, as ranked by DL \(\times\) JTK, we observe a number of regulatory elements that are known to be essential to produce the given periodic program of gene expression, but which are not strictly TFs, and therefore do not qualify in our definition as a core gene. Examples include the mouse transcriptional co-regulators Period 3 (PER3)  and Cryptochrome 1 (CRY1)  and the plant post-transcriptional gene Gigantea (GI)  (Table 2), which are known or proposed to be transcriptional co-regulators and post-transcriptional elements. This supports our conclusion that core elements, even beyond the TFs, can be identified by quantifiable features in their transcript abundance dynamics. Improvement in the annotation of non-TF regulatory elements is needed before we can reliably quantify the extent to which these dynamic characteristics are exhibited by all nodes of these networks at the level of transcript abundance.
External periodic signals do not significantly alter the skill of transcript abundance dynamics at identifying core genes
Implicit in the definitions of the core transcriptional regulatory networks considered in this study is that they are free-running and can support rhythmic oscillations in the absence of external periodic stimuli due to their mutual regulatory interactions with other core elements. Is it necessary to collect time series transcriptomics in the absence of external circadian stimuli to skillfully identify core regulatory elements?
To address this question, we compared the skill of dynamic expression features to identify the core TFs for A. thaliana in (1) periodically fluctuating light and temperature (diurnal) conditions (LDHC) and (2) constant light, (circadian) conditions (LL_LDHC). For the details on the precise experimental setup see .
One might expect that the transcript dynamics of diurnal non-core genes—those that are strictly driven by periodic light-dark and/or temperature cycles—would reduce the capacity of dynamic gene expression features to distinguish core regulatory elements. We find that the signal of core genes is not degraded in the presence of external periodic stimuli in these experiments, since all combined quantitative measures show nearly identical skill at identifying core genes across both conditions (Fig. 2A). Even more striking is the consistency in the individual ranks of core genes across diurnal and circadian conditions, as shown for DL \(\times\) JTK in Additional file 5: Table S1.
Elucidating the underlying GRNs driving dynamic biological processes, such as cell-division and sleep-wake cycles, is crucial if we are to leverage existing control mechanisms for synthetic biology applications, understand the evolution of biological networks, and inform experiments to discover new drug targets. However, experimentally identifying the core regulatory elements of these gene networks can be costly, time consuming and daunting, even for the simplest organisms, due to the large hypothesis space. We have shown that many core transcriptional regulators governing different periodic processes, appearing in evolutionarily distinct organisms, share common features in their transcript abundance dynamics. These findings indicate that cell and circadian cycle GRNs share functionally and/or evolutionarily conserved features. We demonstrated the use of several metrics that quantify and combine these dynamic features. The outcome is a substantial reduction in hypothesis space: a prioritization of gene targets for experimental validation, which may accelerate the discovery of the core control variables of gene regulatory networks.
High degrees of periodicity and strong regulation signals appear to be characteristic features of many core TFs involved in generating periodic biological processes. However, not all known core regulatory TFs strongly exhibit the dynamic features quantified here at the level of their transcript abundance. For instance, the abundance profile of the core S. cerevisiae TF NDD1 is highly periodic with a precise match to cell-cycle period and exhibits large dynamic range, but MCM1 does not show convincing oscillations at the cell-cycle period (Fig. 3A). MCM1 is the only core TF to not rank in the top 70 TFs in at least one of the two S. cerevisiae datasets using DL \(\times\) JTK (Additional file 5: Table S1). However, MCM1 acts in complex with other rhythmically-expressed genes like NDD1 [27, 28], so it can still be part of a highly periodic TF complex without itself exhibiting highly periodic signatures in transcript abundance. It is enticing to imagine there may be other features captured in the gene or protein expression profiles, as well as features not related to gene expression, such as sequence-based and protein interaction features that could be used to more accurately capture all core genes, including those identified in TF complexes.
It is known in the circadian field that several core clock genes have tissue-specific periodic properties in mice . Thus, we expect not all core genes will rise to the top of our rankings in every tissue. For example, within the three retinoid-related orphan receptors (RORs) TFs, RORA, RORB, and RORC, only RORC is known to display periodic gene expression in mouse liver . Indeed, only RORC was ranked in the top 25 TFs ranked by DL \(\times\) JTK (Table 1) in the mouse liver microarray dataset. Another example is the mouse core clock gene ARNTL2, which is not ranked highly in the mouse liver datasets. Most studies suggest ARNTL2 has brain-specific circadian expression with lower levels of expression in the liver in mammals [31,32,33]. There is also growing evidence for genes to exhibit tissue-specific dynamics in plants .
Our ability to identify plant core genes appears generally lower than the other organisms we considered. This may be due to the fact that samples were taken from the whole leaf and thus contained a mixture of multiple tissue types such as mesophyll, epidermis, and vasculature . The abundance and periodicity of any particular transcript might therefore appear muted as genes are likely expressed differentially across tissues. Consistent with this hypothesis, several studies have shown that tissue-specific clocks in plants can be asymmetrically coupled , have different period lengths , or have different levels of gene expression for core components [37, 38]. Naturally it is more difficult to identify a core component whose observed dynamics is either a convolution of multiple dissimilar abundance profiles derived from multiple tissues or has specificity to an under-represented tissue in a mixture of tissue types. Interestingly, the dominant tissue type in whole leaf samples is mesophyll, and morning-expressed clock genes (CCA1, PRRs, and LHY) are highly expressed in the mesophyll [35, 39]. These morning-expressed genes are mostly the only plant core genes ranked highly in this study (Table 1).
Broadly speaking, our findings suggest that even naive measures of periodicity and regulatory strength can be used to skillfully rank genes. We speculate that other methods that quantify and combine these two features will show similar skill at ranking core above non-core genes. With the availability of proper experimental controls across organism, platform, sampling density, etc., it might be possible to compare the various metrics to make a more prescriptive recommendation of which particular method to use for a given dataset.
The use of naive metrics rather than empirical p-values does not suffer from ambiguous rankings caused by insufficient sampling of the null distribution, as may be the case with DL’s method of measuring significance. It is possible to reduce the ambiguity of a ranking by increasing the sampling of the null distribution at the cost of increased compute time. The disambiguation of empirical regulator p-values computed by the DL metric through increased sampling is visualized in Additional file 5: Fig. S7. Similarly, combining several p-values derived from different dynamic characteristics into combined metrics can eliminate ambiguous rankings that may be present in one of these features.
We have demonstrated the importance of reliable genome annotation of TF genes, but many organisms of interest currently lack comprehensive gene annotations. Thus it is desirable to have methods that can leverage high-throughput technologies to provide evidence of gene function. Additional evidence such as identifying DNA-binding domains and/or orthology to known TFs in other organisms are two such methods that could be used to provide putative TF lists for poorly-annotated genomes.
Here we demonstrate that dynamic features of periodic transcriptomes appear to be conserved across kingdoms and networks that appear to serve disparate functions such as cell-cycle or circadian clocks. It is possible that the conservation of these features results from a fundamental property of these GRNs, where a transcriptional signal is developed within a core set of nodes and that the signal degrades as it is propagated through effector nodes that control downstream gene expression. Alternatively, the conservation of features could reflect an evolutionary conservation of network topologies that produce rhythmic behaviors during circadian and cell cycles.
Dynamic curve features
We focused on two dynamic curve features of transcript abundance profiles: (1) periodicity at a specified period and (2) amplitude. Although amplitude has been suggested as a feature of core genes in mouse circadian GRN , to the best of our knowledge, this feature has not been articulated for core nodes of cell-cycle or plant circadian GRNs.
Several algorithms have been published that quantify one or both of these two features [41,42,43,44,45,46,47,48] and several studies have performed benchmarking of the metrics used by these algorithms to quantify the dynamic features [10, 49, 50]. The consensus of the benchmarking studies is that there is no one best metric, as individual metrics each have various underlying definitions of these two dynamic features. Furthermore, when selecting a metric, one must take into account the characteristics of their dataset, e.g., noise, number of cycles, sampling frequency, etc., and whether these characteristics fit the algorithm’s definitions. Of the numerous algorithms to choose from, we selected JTK-CYCLE (JTK)  and de Lichtenberg (DL)  as they have been shown to perform reasonably well across datasets with diverse characteristics .
JTK’s metric for measuring how well a transcript abundance profile fits to a specified period is based on correlating the profile to that of a reference curve that oscillates at the specified period, and then computing the significance of the correlation, using a non-parametric test that can capture non-linear correlations. DL’s metric for measuring periodicity of a transcript abundance profile combines statistical measures of fit to a specified period and strength of regulation. DL’s strength of regulation is a measure of variability within the transcript abundance profile, and can be thought of as a measure of amplitude. To reduce any potential confusion between this study and any studies that also use DL, we use “strength of regulation” as opposed to “amplitude” as this is the same language used in the original DL study. The JTK and DL metrics used in this study are summarized in Table 3. Detailed descriptions of the algorithms used to compute these metrics are available in Additional file 5.

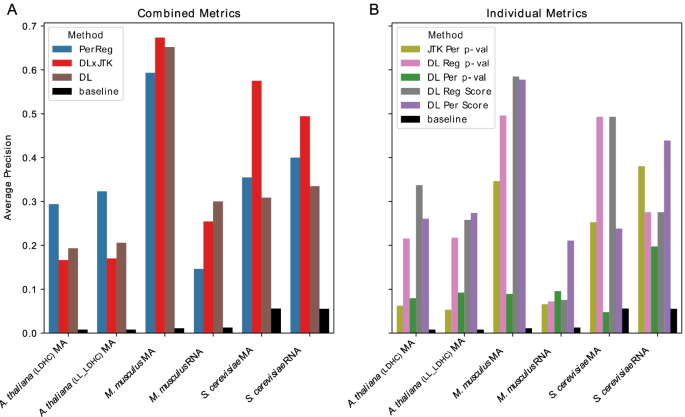

Performance of gene ranking metrics
The problem of identifying the core regulatory elements within an organism’s genome is fundamentally a question of binary classification of gene function: is a gene core or not? In practice, this decision task amounts to ranking all genes by some quantitative metric or “score” in the hope that the ranking is enriched with core genes, so as to reduce the expected effort required to gather additional experimental evidence of gene function through, for example, knock-out experiments.
To assess the capacity of each ranking metric given in Table 3 to rank core genes above non-core genes, we compute the precision-recall (PR) curves of the gene rankings. PR curves track the precision (the fraction of true core genes among all genes ranked above some score threshold) across all levels of recall (the fraction of true core genes appearing above the chosen threshold). From each PR curve we compute the average precision (AP), which summarizes with a single number a ranking’s performance across all recall levels. See Additional file 5—Supplementary Information for a precise definition of PR curves, precision, recall and AP.
Any ranking can achieve a perfect recall of 1 if the threshold is chosen so permissively as to label all genes as core. However, given the goal to reduce hypothesis space and limit the amount of experimental validation needed to identify core regulatory elements, a permissive choice of threshold is of little practical utility. Thus, in this context, a meaningful measure of classifier skill is the precision at a given recall. For example, the precision at a recall of 10% characterizes how many knock-out experiments one would expect to perform, in accordance with a given algorithm’s ranking of genes, before 10% of the core regulatory elements are identified. It is this interpretation that may be of particular value to a researcher interested in using a ranking algorithm to prioritize experiments.
In some rare cases, if a scoring algorithm is particularly discriminating between two classes, the scores may be bimodally distributed and well-separated, allowing a data-driven justification of a choice of threshold. Usually, this is not the case, and a threshold must be chosen arbitrarily. Moreover, it is known that periodicity scores produced by the methods used in this study depend on attributes of the data that may vary from one experiment to the next, e.g. number of time points per cycle , and that there is no universal threshold to distinguish periodic from non-periodic genes . Thus, better measures of classifier performance, such as AP, assess the ranking itself, quantifying the skill of the classifier to rank the members of the true class (core) above the members of the other class (non-core).
A perfect ranking of genes is one in which all core genes are ranked higher than all non-core genes. In this way, an experimentalist prioritizing hypotheses using the gene ranking would encounter all core genes before testing any non-core. The AP of a perfect ranking will be 1. At the other extreme is an uninformative ranking which assigns scores to genes at random. The average precision achieved for a random classifier is C/N , where C is the number of core genes and N is the number of all genes. Moreover, the expected PR curve for such an algorithm is a horizontal line at precision level C/N across all recall levels, as seen in Additional file 5: Figs. S1–S6. Thus, performance of each classifier, as measured by its PR curve and its AP, should be compared against the (non-universal) baseline performance of a random classifier. In other words, precision-recall points above the baseline reflect the skill of a metric, over the random classifier, to rank genes in a way which enriches the top of a list with core genes.
Gene expression datasets
The normalized transcriptomic datasets used in this analysis were taken from the references presented in Table 4. The datasets were adjusted to account for possible technical and biological variations between samples by the authors of the studies that generated them. For the specific normalization applied to each dataset, we refer the reader to the references cited in Table 4. Before deriving dynamic features, transcript abundances were processed to remove unreliable data. For the M. musculus and S. cerevisiae RNAseq datasets, genes were removed that had less than 1 FPKM normalized transcript level in more than half of the measured time points and were not considered in any part of this analysis.
Authors of  produced the S. cerevisiae microarray dataset from S. cerevisiae cells that were synchronized via centrifugal elutriation. It is known that elutriation impacts the transcription of many genes and that a brief recovery period is needed after elutriation. The resulting transcript abundance dynamics early in the time series, which are not related to cell-cycle transcript abundance dynamics, can impact periodicity analyses . Therefore, prior to any analysis,  eliminated data determined to be associated with the elutriation recovery period. We adopted the same method of eliminating the first two time points from the S. cerevisiae microarray dataset.
In the S. cerevisiae mircoarray dataset and both A. thaliana datasets, some genes were associated with multiple probes, causing some genes to have more than one transcript abundance profile. The A. thaliana core gene, RVE8, was one such gene. Having two transcript abundance profiles for RVE8 resulted in inaccurate performance metrics. To remedy this issue, we applied a filtering step to the S. cerevisiae mircoarray dataset and both A. thaliana datasets after quantifying dynamic features using the methods in Table 3. For genes with multiple abundance profiles, we kept the profile with the highest average abundance, resulting in the elimination of 96 and 326 profiles from the S. cerevisiae mircoarray dataset and both A. thaliana datasets, respectively. All time series data can be found in Additional file 1—Gene Expression Data.
Curation of Core Regulatory Elements
In order to evaluate the ability of each method given in Table 3 to identify core TFs driving a periodic program of gene expression, we consider data derived from well-studied organisms for which there is significant experimental evidence of gene function. Core cell-cycle TFs in yeast are described as genes functioning in an autoregulatory transcriptional network that robustly maintains a large program of periodic gene expression [4,5,6, 8]. A list of yeast core cell-cycle TFs based on this definition was compiled in  for evaluating the transcriptonal oscillator underlying the yeast cell cycle. Therefore, the core TF list defined in  was used in this study as the ground truth for S. cerevisiae (Additional file 2—Core Genes). Similarly, core circadian clock TFs are described as genes functioning in an autoregulatory transcriptional feedback loop, maintaining circadian-like transcript abundances under constant light or dark conditions and are necessary components for generation and regulation of circadian rhythms [1, 55, 56]. The literature evidence supporting our labeling of plant and mammalian genes as core are listed in Additional file 2—Core Genes. Although the core networks are known to include non-TF regulatory elements that control functional activity, such as kinases and ubiquitin ligases [1, 56, 57], we limit our definition of core to TFs since these are more reliably annotated in the genomes we consider. This ensures our conclusions are conservative by not unfairly inflating the core list with known core post-transcriptional modifiers while not simultaneously including all non-core members of these gene categories.
Curation of transcription factors
In this study, we define a TF as a gene that has the ability for sequence-specific DNA binding alone or in a complex and is capable of activating and/or repressing gene expression. This definition excludes genes that are also known to affect gene expression, such as chromatin-related genes like chromatin remodeling factors, histone demethylases, and histone acetyltransferases. To ensure the lists of TFs are consistent across strains, we used curated TF databases that use the given TF definition. In particular, TFs used in this study (Additional file 3—Transcription Factors) were retrieved from Animal TF Database 3.0 , Plant TF Database 4.0 , and YEASTRACT  for M. musculus, A. thaliana, and S. cerevisiae, respectively. Each species list of TFs was inspected for presence of the respective species core regulatory elements. Upon inspection of the A. thaliana TF list, it was discovered that the core regulatory elements from the pseudo-response regulator (PRR) family were not present. Therefore, we added PRR5, PRR7, PRR9, and PRR1 (TOC1) to A. thaliana list of TFs, which are known as core regulatory elements of the plant circadian clock [59,60,61].
