HGT-ID: an efficient and sensitive workflow to detect human-viral insertion sites using next-generation sequencing data

  • 1,
  • 1,
  • 1,
  • 2,
  • 3,
  • 2,
  • 2,
  • 4,
  • 4, 5,
  • 1 and
  • 1Email author
Contributed equally
BMC Bioinformatics201819:271

https://doi.org/10.1186/s12859-018-2260-9

  • Received: 25 January 2018
  • Accepted: 25 June 2018
  • Published:

Abstract

Background

Transfer of genetic material from microbes or viruses into the host genome is known as horizontal gene transfer (HGT). The integration of viruses into the human genome is associated with multiple cancers, and these can now be detected using next-generation sequencing methods such as whole genome sequencing and RNA-sequencing.

Results

We designed a novel computational workflow, HGT-ID, to identify the integration of viruses into the human genome using the sequencing data. The HGT-ID workflow primarily follows a four-step procedure: i) pre-processing of unaligned reads, ii) virus detection using subtraction approach, iii) identification of virus integration site using discordant and soft-clipped reads and iv) HGT candidates prioritization through a scoring function. Annotation and visualization of the events, as well as primer design for experimental validation, are also provided in the final report. We evaluated the tool performance with the well-understood cervical cancer samples. The HGT-ID workflow accurately detected known human papillomavirus (HPV) integration sites with high sensitivity and specificity compared to previous HGT methods. We applied HGT-ID to The Cancer Genome Atlas (TCGA) whole-genome sequencing data (WGS) from liver tumor-normal pairs. Multiple hepatitis B virus (HBV) integration sites were identified in TCGA liver samples and confirmed by HGT-ID using the RNA-Seq data from the matched liver pairs. This shows the applicability of the method in both the data types and cross-validation of the HGT events in liver samples. We also processed 220 breast tumor WGS data through the workflow; however, there were no HGT events detected in those samples.

Conclusions

HGT-ID is a novel computational workflow to detect the integration of viruses in the human genome using the sequencing data. It is fast and accurate with functions such as prioritization, annotation, visualization and primer design for future validation of HGTs. The HGT-ID workflow is released under the MIT License and available at http://kalarikrlab.org/Software/HGT-ID.html.

Keywords

  • Horizontal gene transfer
  • Viral integration
  • Next-generation sequencing
  • Whole-genome sequencing
  • RNA-Seq – Cancer

Background

Horizontal gene transfer (HGT), or the transfer of genes between organisms in a manner other than traditional reproduction, was first described in 1928 when Frederick Griffith converted nonvirulent Streptococcus pneumoniae cells into infectious cells by exposing them to an extract made from virulent but dead S. pneumoniae cells [1]. Recently, scientists have begun to question whether HGT from microbes and viruses could play a role in the development of cancer [2, 3]. With the most recent estimate, nearly two million cases of cancer—roughly 18% of the global cancer burden—were thought to be attributable to infectious origins [4, 5]. Although most known carcinogenic pathogens in humans are believed to work by establishing persistent inflammation [6], some cancer-associated viruses integrate into the genome [79]. These integrations could potentially disrupt the genome like that of transposable elements [3]. For example, hepatitis B virus (HBV) integration is observed in more than 85% of hepatocellular carcinomas (HCCs), and copy-number variation significantly increases at HBV breakpoint locations, suggesting that integration of the virus induces chromosomal instability [10]. Also, recurrent integration events are associated with up-regulation of cancer-related genes, and having three or more HBV integrations is associated with reduced patient survival [10]. Similarly, various studies have reported integration of the human papillomavirus (HPV) in 80 to 100% of cervical cancers [1113]; here, too, integration is associated with reduced survival [11], presumably because it disrupts coding regions important in the regulation of viral genes [14]. Merkel cell polyomavirus integration is found in 80 to 100% of Merkel cell carcinomas, a rare and aggressive form of skin cancer [15, 16]. Here, it is thought that truncation of the viral T-antigen protein complex, caused by integration, results in increased cell proliferation, leading to cancer [17]. Finally, in areas of Africa in which Burkitt’s lymphoma is endemic, Epstein-Barr virus (EBV) infection is found in nearly 100% of cases, and one hypothesis is that viral integration into the host genome contributes to the translocation involving the MYC oncogene that is responsible for this disease [18, 19].

Increasingly, researchers have been interrogating RNA-Seq data to determine whether the expression of viral sequences is associated with other types of cancer as well. Two recent studies have attempted to identify viral signatures in RNA sequencing data from many different types of cancers [20, 21]. These studies found that although HPV, HBV, and EBV signatures were associated with various types of cancer, including those mentioned above, no viral signatures were identified for common cancers such as breast, ovarian, and prostate cancer. Also, another study of 58 breast cancer transcriptomes found no significant viral transcription [22]. Notably, however, none of these findings exclude the presence of non-transcribed viral DNA in other common types of cancers. Thus, it is important to develop methods of interrogating both RNA-Seq and whole genome sequencing (WGS) data for potential viral insertion sites.

Existing methods for identifying viral integration sites are based on the subtraction approach, which removes mapped human reads and focuses on unmapped reads in the aligned bam files. For example, the VirusSeq software [23] was one of the first methods to identify potential viral integration events in RNA-Seq data based on subtraction analysis. VirusSeq was later outperformed by ViralFusionSeq [24], VirusFinder [25], and VirusFinder2 [26]. Among the above methods, VirusFinder2 is considered to have the best performance, achieved by applying the VERSE algorithm to customize the viral and host genomes in order to improve mapping rates [26]. Despite the resource-intensive reassembly and remapping of the reads, the sensitivity of VirusFinder2 is less than ideal, possibly due to the stringent hard thresholds chosen in the VERSE algorithm. Recently, the BATVI software [27] applied a k-mer aligner to achieve fast and accurate detection of viral integrations. However, we observed the drawback that most of the above algorithms use ad hoc read depths as cutoffs to select the candidate events. Hence, we designed a novel computational workflow, HGT-ID, to identify the integration of viruses into the human genome using sequencing data; the HGT-ID workflow utilizes a scoring function to select and prioritize the HGT candidates to achieve high sensitivity and specificity together with high efficiency. We compared our algorithm with VirusFinder2 and BATVI with a simulation dataset. The algorithm was also applied to multiple cancer datasets [10, 2830] and was proved to have high sensitivity and specificity in detecting the HGT candidates compared to the existing software. For the convenience of downstream analysis, our HGT-ID software provides an integrated HTML report that includes prioritization of the candidate HGT events, visualization of the events and primers designed for future experimental validation.

Implementation

HGT-ID follows a four-step procedure that includes the preprocessing of a previously aligned BAM file to the human genome, the detection of viral species with unmapped reads, identification of the viral integration sites as HGT candidates, and finally the priority score assignment by a scoring function (Fig. 1).

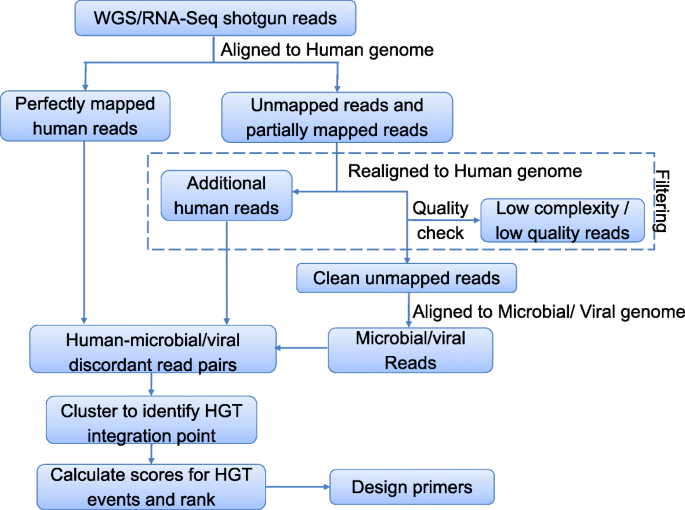

Fig. 1
Fig. 1

Overview of the HGT-ID workflow

Preprocessing

As input, HGT-ID requires paired-end next-generation sequencing (NGS) data in the standard BAM file format generated by any aligner using the human genome reference. Unmapped reads from the BAM file are extracted and then remapped to the human reference genome (hg19) using BWA-mem [31] to remove any additional human reads. Both mapped human and unmapped paired-end reads are filtered from further analysis. Only partially mapped read pairs, with one of the reads mapped to the human genome are collected as potential integrated viral reads for future HGT detection.

Viral reads alignment

For the viral detection, we use the RefSeq Viral genome database [32] as the reference, which covers 6009 known species (ftp://ftp.ncbi.nih.gov/refseq/release/viral, as of March 2015) and is a reasonable collection of representative consensus sequences for different strains. Potential viral reads from the preprocessing step above are then aligned to the RefSeq viral reference genome using the BWA-mem software. After the viral alignment, read pairs with both ends mapped to viral species only are filtered. As direct evidence of viral integration, reads with one end mapped to the viral genome and other end assigned to the human genome are retained for further analysis. In order to remove low complexity sequence that is common in viral sequences and might affect the alignment, we calculate the sequence linguistic complexity (LC) score [33] of each read mapped to the viral genome. The recommended default threshold is 0.8, which is the upper range of LC scores of the low complexity and simple sequence of length 50-150 bp in the RepeatMasker [34]. Reads with LC scores < 0.8 are removed to improve both accuracy and efficiency. Low quality reads with mapping quality scores (MAPQ) below 20 are also removed, which ensures the mapping correctness with a p-value less than 0.01 for each kept read. The remaining discordant read pairs are considered as confident supporting reads for the viral integration step. Although we have set the default to recommended values, all the parameters listed in this section are customizable through the configuration files by the user.

Viral integration site detection

The viral integration sites are identified in a two-step process. First, for the discordant read pairs, HGT-ID clusters the human reads by their genomic location. The clusters then expand to both upstream and downstream directions recursively (default 500 bp, which is slightly larger than the size of the library fragments) until no more human reads from discordant read pairs can be recruited. For each cluster, a putative breakpoint is then estimated by taking the average of the start points of all reads in the cluster. The same procedure is also applied to the virus side to obtain a putative viral genomic breakpoint (Fig. 2a).
Fig. 2
Fig. 2

Diagram of HGT event and break point identification. a The searching starts with clustered discordant read pairs. Reads that fall within a search window of twice of the library size around the cluster are extracted. b If soft-clipped reads are available, an exact integration site can be inferred. c If only discordant read pairs are available, only an approximate integration site can be inferred

In the second step, HGT-ID scans for soft-clipped human reads around the putative breakpoint. The search window is centered at the breakpoint, spanning both upstream and downstream regions to match the size of the library fragments. Before each soft-clip read can be recruited into the read cluster, the soft clipped section is compared with the viral genome to remove spurious soft-clipped reads that do not belong to the virus. Among the cleaned reads, if there are soft-clipped reads that span through the breakpoint, a precise integration site can be inferred for the human side (Fig. 2b). Otherwise, the middle point of the clustered discordant read pairs is obtained as the approximate integration site (Fig. 2c). Similarly, on the viral side, the integration sites can be obtained by the same procedure described above.

HGT candidate score function

The goal of HGT-ID is to identify high confident HGT events that are associated with high genomic instability. High confident HGT events tend to have high read coverage that supports the event against the background. On the other hand, false positive HGT events are indicative of a relatively low number of supporting reads that might occur due to random chimeric integration of fragments during sequencing [35]. Thus, the HGT-ID algorithm ranks the candidate events by applying a scoring function that compares the HGT supporting reads to the local background.

To estimate the local expected background for a given candidate event, first, the local coverage Nlocal is counted by including all the reads falling in a window that is centered at the breakpoint and spanning both upstream and downstream for the library fragment length. The local probability of a human read to randomly integrate with viral reads can be roughly estimated as PH = mH/Nlocal, where mH is the number of human reads that are either split or spanning through the breakpoints. Similarly, for the integrated viral reads, we can calculate PV = mV/Nlocal, where mV is the number of viral reads that are either split or spanning through the breakpoints. Then, the probability of supporting coverage generated by a random integration of human and viral reads should be proportional to the product of PH and PV. The expected number of random discordant reads countbg can then be estimated as:
$$ {count}_{bg}={P}_H\ast {P}_V\ast {N}_{local}={m}_H\ast {m}_V/{N}_{local} $$
The supporting coverage of the given candidate event (countsp) is calculated as the sum of discordant read pairs (countD), soft-clipped reads identified in human (countsch) and viral (countscv) bam files respectively, i.e.,
$$ {count}_{sp}={count}_D+{count}_{sch}+{count}_{scv} $$
And the prioritizing score of the given candidate events can be calculated as
$$ score={count}_{sp}-{count}_{bg} $$

If the score is negative for a given candidate event, HGT-ID will still report it, but the event should be taken as false positive.

Primers design for experimental validation

The HGT candidates can be typically validated by polymerase chain reaction (PCR) experiments. The HGT-ID workflow thus provides a primers design function, which designs oligonucleotide primers that flank the detected viral integration sites (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html) using Primer3 [36]. The best primer candidates are chosen by optimizing primer length, melting temperature, and binding tendencies in addition to product length. Only the top-scoring primer pair from each side of the viral integration site is returned to the user. These four primers make two PCR products, which can be used to validate the human boundaries of the viral integration site; they are intended to be utilized in a standard PCR experiment to confirm findings from the HGT-ID workflow. If the viral sequence integrated into the human genome is short enough (< 5 kb), the user can use the forward primer for the first product and the reverse primer for the second product to amplify the entire integration event.

Visualization and report

For each sample processed through the workflow, the method provides a comprehensive report in HTML with annotation, visualization and customer primer design for experimental validation (a sample report is provided in the website http://kalarikrlab.org/Software/HGT-ID.html). Beyond the details of each candidate event and the designed primers, the report also gives circos plots to visualize the location and coverage of each event in both human genome and viral genome.

Generation of simulated data

We used a simulator program provided by the ViralFusionSeq [24] package (simulate-viralfusion.pl) to generate a simulated FASTA file. In the simulated genome, the human chromosomes 1–4 (hg19) were randomly infected by HPV strain (HPV18 9,626,069). We used the option as “--virus-block-len 400 –lowvirus 75 --high-virus 100”. The resulting simulated genome contained 249 HGT integration sites, based on the simulation report. Next, we generated 40× coverage whole genome sequencing simulated data with a 300 bp library fragments size and 101 bp read length using the Wgsim simulator [37] with default parameters. Specifically, we generated 20 million paired-end reads from the simulated genome with the options “-N 10000000 -1 101 -2 101”. It should be noted that Wgsim is able to simulate genomes with SNPs and insertion/deletion (INDEL) polymorphisms, and simulate reads with uniform substitution sequencing errors [37]. From these simulated WGS data, we generated additional sequencing datasets by downsampling to 75% (30X), 50% (20X), 25% (10X), 10% (4X) and 5% (2X) of the original data, respectively.

Sequencing datasets used to validate HGT-ID

To test and validate the performance of HGT-ID workflow, we have applied the HGT-ID algorithm to several publicly available NGS datasets, including both WGS data and RNA-Seq (Table 1).
Table 1

Sample sets that were used to validate the performance of HGT-ID

Sample Set

Possible Virus

Data type

No. of Samples

Ref

1. Cervical cell lines and cervical carcinoma

Human papillomavirus

WGS

4 WGS

[28]

2. Hepatocellular carcinoma

Hepatitis B virus

WGS

13 WGS

[10]

3. TCGA Breast invasive carcinoma

NA

WGS

220 WGS

[29]

4. Hepatocellular carcinoma

Hepatitis B virus

WGS + RNA-Seq

7 WGS + 7 RNA-Seq

https://cancergenome.nih.gov/

Results

HGT event detection in simulated data

We compared the performance of HGT-ID, BATVI, and VirusFinder2 with the simulated data. In this comparison, if an integration site falls within the distance of the library fragment size (which was 300 bp in this simulation data) from the actual inserted site, it was counted as true positive.

Table 2 provides the performance comparison of HGT-ID, BATVI, and VirusFinder2 with the simulated data at different sequence depth coverage. HGT-ID demonstrated the highest sensitivity among all three algorithms. HGT-ID detected all of the true positives (TP) in the datasets with coverage of 4X or more, and it was still highly sensitive at the very low coverage of 2X. BATVI demonstrated both lower sensitivity and lower specificity than did HGT-ID in the datasets with coverage of more than 4X. VirusFinder2 demonstrated the lowest false positive (FP) rate in the simulation data; however, it had the lowest sensitivity, which also dropped substantially with coverage of 4X or less.
Table 2

Performance comparison of HGT-ID, BATVI and VirusFinder2

Coverage

Simulated data N = 249

HGT-ID

BATVI

VirusFinder2

TP

FP

TP

FP

TP

FP

40

249

16

244

52

234

3

30

249

16

244

40

234

1

20

249

14

246

24

220

4

10

249

8

246

11

206

2

4

249

6

230

6

121

1

2

237

20

190

2

40

2

From the performance evaluation in Table 2, we recommend using at least 4X coverage to ensure optimal performance of HGT-ID. Figure 3 illustrates the ROC of HGT-ID across different coverages, which also confirmed the optimal usage of 4X and above. ROC curves (Fig. 3) as well as the distribution of scores (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html) of HGT events indicated that the optimal cutoff scores across different coverages was 0. It is noted that the performance evaluations of HGT-ID were based on this cutoff if not otherwise stated.
Fig. 3
Fig. 3

ROC curve of the simulation data with different coverages of HGT-ID. Different color lines showed different coverages. The false positive ratio (FPR) was calculated as the ratio of the number of false positives and the number of total identified HGT events. The true positive rate (TPR) was calculated as the ratio of the number of true positives and the number of total positives. The coverages were down-sampled from 40X to 30X, 20X, 10X, 4X and 2X, respectively

Different color lines illustrate different coverages. The false positive ratio (FPR) was calculated as the ratio of the number of false positives and the number of total identified HGT events. The true positive rate (TPR) was calculated as the ratio of the number of true positives and the number of total positives. The coverages were down-sampled from 40× to 30X, 20X, 10X, 4X and 2X, respectively.

HPV detection in WGS data from cervical carcinoma samples and cell lines

We applied the HGT-ID workflow to a publicly available WGS dataset (SRA180295) with at least 30× coverage containing four HPV-positive samples: two HPV-positive cell lines (SiHa and HeLa) and two cervical carcinomas (T4931 and T6050) [28] (Table 3). Hu and co-authors generated WGS data for the four HPV samples and identified integration sites with experimental validation. They subsequently validated the integration sites with Sanger sequencing. Using the default parameters, HGT-ID detected the same 11 integration sites identified in the original publication (Table 3) with 1~ 3 bp difference because of the approximation of the algorithm. All 11 identified integration sites were either in the intron or the intergenic region. Some integration breakpoints that we detected in the human genome would be approximated close but not identical to the experimentally validated breakpoints due to the lack of soft-clip reads to refine the precise location in the two-step procedure we used to identify integration sites (see Methods for details). To compare HGT-ID’s performance with a similar viral integration site detection program, we also processed the same data with VirusFinder 2.0, using the default parameters. VirusFinder 2.0 was able to only detect 6 of the 11 integration sites identified in the original article. All detected integration events were scored high by HGT-ID except one in the T4931 cell line, due to less discordant supporting reads. As an example, the final HTML report generated by HGT-ID with details for the HeLa cell lines can be found in the website (http://kalarikrlab.org/Software/HGT-ID.html).
Table 3

All 11 viral integration sites identified in whole genome sequencing data from two HPV-positive cell lines (SiHa and HeLa) and two cervical carcinomas (T4931 and T6050) using HGT-ID

Sample ID (coverage)

Affected Gene

Function of integration site

Integrated Position

Score

Reported and validateda

Identified by VirusFinder 2.0

HELA (40x)

CCAT1

intron

chr8 128,230,630

1273.7

yes

yes

CCAT1

upstream

chr8 128,233,368

121.2

yes

no

CCAT1

upstream

chr8 128,234,256

180.3

yes

no

CCAT1

upstream

chr8 128,241,549

235.7

yes

yes

SIHA (37×)

KLF12

downstream

chr13 74,087,563

158.0

yes

yes

KLF12

downstream

chr13 73,788,864

136.4

yes

yes

T4931 (41×)

GLI2

intron

chr2 121,670,164

2.4

yes

yes

GLI2

intron

chr2 121,687,141

213.4

yes

no

GLI2

intron

chr2 121,688,179

48.9

yes

no

T6050 (42×)

KLF12

downstream

chr13 74,230,820

305.1

yes

no

KLF12

downstream

chr13 74,231,436

342.2

yes

yes

aReported and validated in the original paper [28]

As shown in Table 3, the HGT events in HELA cervical cancer cell lines were observed in the upstream region of the long non-coding RNA CCAT1. A recent study indicated that CCAT1 might promote proliferation and inhibit apoptosis of cervical cancer cells by activating the Wnt/β-catenin pathway [38]. The HGT-ID workflow also identified an HGT candidate downstream of KLF12, a tumor suppressor gene [39, 40], in both the SIHA cervical cancer cell line and a tumor sample. HGT-ID also identified another target gene GLI2 that is important in the Hedgehog pathway and is known to be critical in tumorigenesis [41].

HBV detection in liver cancer samples

Dataset I

We tested the performance of HGT-ID by applying the algorithm to 13 HBV-positive HCC samples [10] with default settings and requiring at least two discordant read pairs as direct evidence. In total, we detected 83 viral integration sites, of which 67 events had a prioritization score larger than or equal to 10.

We compared our results with the original paper, which provided experimental validation for 22 randomly selected viral integration sites from 13 tumor samples. HGT successfully identified 18 of these 22 experimentally identified viral integration sites, with all 18 scoring 10 or higher (Table 4, http://kalarikrlab.org/Software/HGT-ID.html). The four missing events have no discordant human-viral read pairs, resulting in their being filtered out from our candidate events. Further investigation of the missing events revealed that these four events consisted of very short viral insertions (~ 60 bp) that were smaller than the read length (90 bp). Thus, there were no complete viral reads to form a discordant pair to pass the minimal evidence required for an HGT candidate event in HGT-ID.
Table 4

Validation of the integration sites in HPV data

Sample ID and coverage

Affected genes

Function of integration site

Integration breakpoints in the human genome

Integration breakpoints in HBV virus

Score

Identified by HGT-ID?

145 T (37×)

CCNE1

intron

chr19: 30303492

1053

87.2

yes

CCNE1

intron

chr19: 30303498

1819

87.2

yes

177 T (43×)

SENP5

intron

chr3: 196625752*

1827*

no

180 N (121×)

FN1

intron

chr2: 216280279

1822

11.9

yes

186 T (36×)

KMT2B

exon

chr19: 36214005

2448

206.2

yes

KMT2B

exon

chr19: 36214017

1605

206.2

yes

198 T (34×)

TERT

intron

chr5: 1269387

821

137.5

yes

TERT

intron

chr5: 1269405

1950

137.5

yes

26 T (66×)

DUX4

intron

chr18: 107920*

670*

no

200 T (32×)

CCNE1

exon

chr19: 30315003

1798

51.4

yes

CCNE1

downstream

chr19: 30315365

316

222.751

yes

268 T (34×)

CCNE1

upstream

chr19: 30298787

1931

155.2

yes

TERT

intron

chr5: 1291758

3175

134.3

yes

TERT

intron

chr5: 1292403

354

134.3

yes

43 T (33×)

SENP5

intron

chr3: 196625710*

1910*

no

46 T (32×)

TERT

upstream

chr5: 1295367

751

34.4

yes

70 T (114×)

KMT2B

exon

chr19: 36212331

1931

1015.6

yes

KMT2B

exon

chr19: 36212311

227

1015.6

yes

71 T (32×)

SENP5

intron

chr3: 196625776*

417*

no

KMT2B

intron

chr19: 36213141

1884

10

yes

KMT2B

intron

chr19: 36213136

619

10

yes

95 T (35×)

KMT2B

exon

chr19: 36212564

2240

27.3

yes

Eighteen of 22 previously experimentally validated viral integration sites identified in sequencing data from 13 HBV-positive hepatocellular carcinoma samples using the HGT-ID algorithm. Integration breakpoints of the four missing events (noted with *) were obtained from the original publication [10]

To further validate the specificity of HGT-ID, we downloaded five samples (106 T, 117 N, 126 N, 203 T, and 73 T) from the same data set, which contained false positive HGT events that the original publication identified as candidates but failed to validate. HGT-ID did not pick up any negative events reported in these five samples. While this did not indicate that all other candidate events identified by HGT-ID were true positives due to the limited validation available, HGT-ID had exhibited great performance in accuracy. Overall HGT-ID accurately identified and confirmed 23/27 events (85.2%). On the contrary, VirusFinder 2.0 identified only 16 of 22 (72.7%) [26]. Once again, HGT-ID showed a higher sensitivity, though specificity could not be calculated because of the lack of validation data. In-depth investigation of the four events missed by the HGT-ID workflow determined that the candidates did not meet the minimum requirement of 2 read pairs; hence they likely did not meet the detection criteria.

Data set II

To check the performance of HGT-ID in both DNA and RNA sequencing data, we processed paired WGS (100 bp PE) and RNA-Seq samples (50 bp PE) from seven TCGA hepatocellular carcinoma (HCC) samples that were originally contributed by the Mayo Clinic. The summary of NGS reads for WGS and RNA-Seq platforms for these seven tumor-normal pairs are described in the website (http://kalarikrlab.org/Software/HGT-ID.html). The HGT algorithm was applied to all of the samples with the default settings, and integration events with a score > 10 were reported for both DNA and RNA samples.

Using WGS tumor data, we identified Hepatitis B virus (HBV) integration events in six out of seven TCGA HCC tumors (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html). In addition, HGT-ID workflow identified zero HGT events and a total of 42 HGT candidates in liver normal and tumor samples, respectively. Investigating RNA-Seq data from the same seven TCGA liver samples, the HGT-ID workflow, identified eight HGT candidates in tumors and six HGT events in normal adjacent samples. Comparison of the HGT sites from WGS and RNA-Seq data has identified an overlap of six events in TCGA liver tumors (Table 5). Details of the 62 HGT events detected in the seven samples are listed the website (http://kalarikrlab.org/Software/HGT-ID.html).
Table 5

Viral HGT events detected by HGT-ID algorithm between paired TCGA HCC tumor and normal samples via WGS and RNA-Seq datasets

Sample ID

WGS-T

WGS-N

RNA-T

RNA-N

Common HGT

TCGA-BW-A5NP

11

0

2

NA

0

TCGA-CC-5262

3

0

2

NA

2

TCGA-CC-A1HT

5

0

2

NA

2

TCGA-DD-A1EH

0

0

0

2

NA

TCGA-DD-A1EI

2

0

1

2

1

TCGA-DD-A1EL

17

0

1

2

1

TCGA-G3-A3CK

4

0

0

NA

0

T stands for primary solid tumor and N for matched solid normal tissue. Only 3 of the 7patients had RNA-Seq data for matched normal tissue. The “Common HGT” column contains the number of events that were identified in both WGS and RNA-Seq for the primary tumor (T)

Application of the HGT-ID workflow to the two HCC data sets has identified several HGT integration sites of HBV in liver cancer samples [10]. The affected genes included TERT, which plays a significant role in cancer cell immortality, and the mutation in its promoter region which is one of the most frequent alterations in HCC [42, 43]. Other genes like CCNE1, SENP5, FN1, KMT2B, and DUX4 were alsoidentified by HGT-ID; these genes were previously reported to be associated with tumorigenesis or cancer invasion [4449].

Viral integration detection in WGS data from breast cancer samples

The HGT-ID algorithm was applied to WGS data from 220 breast cancer samples collected by The Cancer Genome Atlas (TCGA) (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html). No exogenous viral integration events were detected in these samples. Our results are consistent with the results reported in previous studies [20, 21] and consistent with our findings using RNA-Seq data.

Software performance evaluation

We compared the computational performance of our workflow with VirusFinder2 (VERSE algorithm). Using the HPV dataset as an example, HGT-ID used on average 14% of the time required by VirusFinder2 with VERSE when running on the same machine with default settings (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html). As an example, for the HELA cell line sample, HGT-ID used only 4.3 h while VirusFinder2 with VERSE used 23.4 h. BATVI was not able to finish processing any of the four cervical cell line dataset in our system. Further, we compared the running time on the smaller simulation datasets for all three algorithms (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html). HGT-ID demonstrated the fastest processing on the simulation datasets with highest coverage. The fast and accurate identification of HGT events by the HGT-ID workflow is primarily helpful in elucidating the effect of viral gene horizontal transfer on tumorigenesis and other diseases.

Discussion

In this study, we present the HGT-ID workflow, which detects the viral integration sites in the human genome. The HGT-ID workflow is comprehensive and fully automated from the initial pre-processing step to the viral integration site detection, prioritization, and downstream visualization as well as primer design for validation. This workflow enables unbiased detection of viral integration events against the RefSeq viral database [32] without knowing the species in advance. Unlike VirusFinder2 and BAVTI [26, 27], HGT-ID reports both the viral names and the integration sites from multiple viral species/strains simultaneously, which will be convenient for co-infection analysis.

We have shown both higher sensitivity and specificity than the recent BATVI software. We also demonstrated better sensitivity than VirusFinder2 with comparable specificity across different coverage depths in both the simulation data set and the cancer data sets. Unlike other algorithms that directly use read counts as the cut-off threshold, HGT-ID calculates a score for each candidate HGT event making use of both supporting reads and background reads. The scores are used to rank the candidate HGT events. The higher the score, the more confident the HGT event tends to be. We suggest an empirical cutoff score of 10 for use with cancer data sets. By default, HGT-ID will output all candidate HGT events, ranked in order of decreasing score.

We applied the HGT-ID workflow to publicly available large cancer cohorts, such as TCGA, to study HCC and breast cancer. We have shown the applicability of the tool in HCC samples where we have both WGS and RNA-Seq data sets available. We have surveyed the breast cancer data set using our workflow and did not find any evidence of HGTs. Among all of the events detected by HGT-ID in this report, we found about ~ 50% of events occured in highly repetitive regions masked by RepeatMasker [34], like microsatellite, long terminal repeat (LTR), short interspersed elements (SINE) and Alu elements. In general, these regions are known to be related to genome instability and cancer development. It should be noted that in the simulation study, most of our small number of false positives (~ 5% of total reported events) were from such regions. As a precaution to users, we currently annotate the results if the candidate event is located in a RepeatMasker region (please refer to the sample output at the software download page).

We compared the computational performance of our workflow with VirusFinder2 (VERSE algorithm). VERSE intends to capture the consensus sequence to cover possible mutation in the virus by performing de-novo assembly. However, executing the VirusFinder2 with the VERSE algorithm is very time-consuming. Using the HPV dataset as an example, HGT-ID used on average only 14% of the time required by VirusFinder2 with VERSE when running on the same machine with default settings (a sample report together with sample results are provided in the website http://kalarikrlab.org/Software/HGT-ID.html). In addition, for the HELA cell line sample, HGT-ID used only 4.3 h while VirusFinder2 with VERSE used 23.4 h. To study other cancers or diseases with WGS or RNA-Seq data, the researchers can easily download the workflow and process the data through the HGT-ID to detect additional HGT candidates. The user manual and workflow are available to download. The fast and accurate identification of HGT events by the HGT-ID workflow is primarily helpful in elucidating the effect of viral gene horizontal transfer on tumorigenesis and other diseases.

As limited by the design of the algorithm, which requires discordant read pairs to start clustering, HGT-ID can only be applied to paired-end sequencing reads. HGT-ID applies a subtraction strategy to focus on unmapped reads that don’t belong to the human genome. Viral species are identified by aligning against the RefSeq viral genome database; thus, novel viral species will not be detected. We recommend updating the viral reference genome database to the latest NCBI RefSeq version before running HGT-ID workflow. Viral genomes are known for high mutation rates, which might prevent some of the sequences from being mapped to the reference viral genome. This problem can be partially solvedd by adjusting the aligner parameter to tune it to a more sensitive mode.

HGT-ID workflow was implemented in Perl and Bash programming language and has been tested on various Linux platforms. It depends on several third-party tools, including SAMtools [50], BedTools [51], in addition to the BWA-mem as mentioned earlier [30]. HGT-ID provides visualization of the detected integration sites using the RCircos [52] method. All of these tools are publicly available and are also packaged as part of the HGT-ID package. The software package together with an example is available at http://kalarikrlab.org/Software/HGT-ID.html.

Conclusion

HGT-ID is a novel computational workflow to detect the integration of viruses in the human genome using the sequencing data. It is fast and accurate with functions such as prioritization, annotation, visualization and primer design for future validation of HGTs. The pipeline is now applied in several research and clinical projects at the Mayo Clinic for cancers that are associated withviruses. In the future, we plan to extend the application to detect bacterial HGT as well.

Availability and requirements

  • Project name: HGT-ID

  • Project homepage: http://kalarikrlab.org/Software/HGT-ID.html

  • Operating system(s): Linux or VM

  • Programming language: PERL, JAVA, R and BASH

  • Other requirements: none

  • License: Open Source (MIT license)

  • Any restrictions to use by non-academics: none

Notes

Abbreviations

EBV:

Epstein-Barr virus

HBV:

Hepatitis B virus

HCC:

Hepatocellular carcinomas

HGT:

Horizontal gene transfer

HPV:

Human papillomavirus

NGS:

Next-generation sequencing

PE:

Paired-end

ROC:

Receiver operating characteristic curve

TCGA:

The Cancer Genome Atlas

WGS:

Whole-genome sequencing

Declarations

Acknowledgements

KRK is funded in part by the Mayo Clinic Breast Specialized Program of Research Excellence (SPORE) (P50CA116201) Career Enhancement Award, NIGMS U54GM114838, the Mayo Clinic Center for Individualized Medicine, and the Division of Biomedical Statistics and Informatics at the Mayo Clinic. We would like to acknowledge Judy Gilbert for editing and proof-reading the manuscript.

Funding

This work is supported by the Mayo Clinic Center for Individualized Medicine. KRK is supported by Mayo Clinic Breast Specialized Program of Research Excellence (SPORE) (P50CA116201) Career Enhancement Award, the Mayo Clinic Center for Individualized Medicine and by the Division of Biomedical Statistics and Informatics at the Mayo Clinic.

Authors’ contributions

KRK, JAK, NC, and HN conceived of the project, KRK, SB, XT, DO, NC, LRR, HN, JCB, LW, MPG, and JAK designed the project, SB, XT and DO implemented the software and performed analysis, KRK, SB, XT, DO, NC, LRR, HN, JCB, LW, MPG, and JAK provides feedback on the software, KRK, SB, XT and DO wrote the manuscript. All authors read and approved the final manuscript.

Ethics approval and consent to participate

Not applicable.

Consent for publication

Not applicable.

Competing interests

The authors declare they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Division of Biomedical Statistics and Informatics, Department of Health Sciences Research, Mayo Clinic, Rochester, MN, USA
(2)
Department of Surgery, Mayo Clinic, Rochester, MN, USA
(3)
Division of Gastroenterology and Hepatology, Department of Internal Medicine, Mayo Clinic, Rochester, MN, USA
(4)
Department of Molecular Pharmacology and Experimental Therapeutics, Mayo Clinic, Rochester, MN, USA
(5)
Department of Medical Oncology, Mayo Clinic, Rochester, MN, USA

References

  1. Griffith F. The significance of pneumococcal types. J Hyg. 1928;27(2):113–59.View ArticlePubMedGoogle Scholar
  2. Riley DR, Sieber KB, Robinson KM, White JR, Ganesan A, Nourbakhsh S, Dunning Hotopp JC. Bacteria-human somatic cell lateral gene transfer is enriched in cancer samples. PLoS Comput Biol. 2013;9(6):e1003107.View ArticlePubMedPubMed CentralGoogle Scholar
  3. Robinson K, Hotopp JD. Mobile elements and viral integrations prompt considerations for bacterial DNA integration as a novel carcinogen. Cancer Lett. 2014;352(2):137–44.View ArticlePubMedPubMed CentralGoogle Scholar
  4. Parkin D. The global health burden of infection-associated cancers in the year 2002. Int J Cancer. 2006;118:3030–44.View ArticlePubMedGoogle Scholar
  5. Morissette G, Flamand L. Herpesviruses and chromosomal integration. J Virol. 2010;84(23):12100–9.View ArticlePubMedPubMed CentralGoogle Scholar
  6. Read S, Douglas M. Virus induced inflammation and cancer development. Cancer Lett. 2014;345:174–81.View ArticlePubMedGoogle Scholar
  7. Shibata D, Weiss LM. Epstein-Barr virus-associated gastric adenocarcinoma. Am J Pathol. 1992;140(4):769–74.PubMedPubMed CentralGoogle Scholar
  8. Fahraeus R, Fu HL, Ernberg I, Finke J, Rowe M, Klein G, Falk K, Nilsson E, Yadav M, Busson P, et al. Expression of Epstein-Barr virus-encoded proteins in nasopharyngeal carcinoma. Int J Cancer. 1988;42(3):329–38.View ArticlePubMedGoogle Scholar
  9. McLaughlin-Drubin ME, Munger K. Viruses associated with human cancer. Biochim Biophys Acta. 2008;1782(3):127–50.View ArticlePubMedGoogle Scholar
  10. Sung W, Zheng H, Li S, Chen R, Liu X, Li Y, Lee N, Lee W, Ariyaratne P, Tennakoon C, et al. Genome-wide survey of recurrent HBV integration in hepatocellular carcinoma. Nat Genet. 2012;44(7):765–9.View ArticlePubMedGoogle Scholar
  11. Das P, Thomas A, Mahantshetty U, Shrivastava S, Deodhar K, Mulherkar R. HPV genotyping and site of viral integration in cervical cancers in Indian women. PLoS One. 2012;7(7):e41012.View ArticlePubMedPubMed CentralGoogle Scholar
  12. Corden S, Sant-Cassia L, Easton A, Morris A. The integration of HPV-18 DNA in cervical carcinoma. J Clin Pathol. 1999;52:275–82.Google Scholar
  13. Melsheimer P, Vinokurova S, Wentzensen N, Bastert G, Doeberitz MK. DNA aneuploidy and integration of human papillomavirus type 16 E6/E7 oncogenes in intraepithelial neoplasia and invasive squamous cell carcinoma of the cervix uteri. Clin Canc Res. 2004;10:3059–63.View ArticleGoogle Scholar
  14. Tsakogiannis D, Gortsilas P, Kyriakopoulou Z, Ruether I, Dimitriou T, Orfanoudakis G, Markoulatos P. Sites of disruption within E1 and E2 genes of HPV15 and association with cervical dysplasia. J Med Virol. 2015;87:1973–80.View ArticlePubMedGoogle Scholar
  15. Sastre-Garau X, Peter M, Avril M, Laude H, Couturier J, Rozenberg F, Almeida A, Boitier F, Carlotti A, Couturaud B, et al. Merkel cell carcinoma of the skin: pathological and molecular evidence for a causative role of MCV in oncogenesis. J Pathol. 2009;218:48–56.View ArticlePubMedGoogle Scholar
  16. Feng H, Shuda M, Chang Y, Moore P. Clonal integration of a polyomavirus in human Merkel cell carcinoma. Science. 2008;319(5866):1096–100.View ArticlePubMedPubMed CentralGoogle Scholar
  17. Li J, Wang X, Diaz J, Tsang S, Buck C, You J. Merkel cell polyomavirus large T antigen disrupts host genomic integrity and inhibits cellular proliferation. J Virol. 2013;87(16):9173–88.View ArticlePubMedPubMed CentralGoogle Scholar
  18. Bornkamm G. Epstein-Barr virus and the pathogenesis of Burkitt's lymphoma: more questions than answers. Int J Cancer. 2009;124:1745–55.View ArticlePubMedGoogle Scholar
  19. Hau PM, Tsao SW. Epstein-Barr virus hijacks DNA damage response transducers to orchestrate its life cycle. Viruses. 2017;9(11):341.Google Scholar
  20. Khoury J, Tannir N, Williams M, Xhen Y, Yao H, Zhang J, Thompson E, Network T, Meric-Bernstam F, Medeiros L, et al. Landscape of DNA virus associations across human malignant cancers: analysis of 3,775 cases using RNA-Seq. J Virol. 2013;87(16):8916–26.View ArticlePubMedPubMed CentralGoogle Scholar
  21. Tang K, Alaei-Mahabadi B, Samuelsson T, Lindh M, Larsson E. The landscape of viral expression and host gene fusion and adaptation in human cancer. Nature Comm. 2013;4:2513.View ArticleGoogle Scholar
  22. Fimereli D, Gacquer D, Fumgalli D, Salgado R, Rothé F, Larsimont D, Sotiriou C, Detours V. No significant viral transcription detected in whole breast cancer transcriptomes. BMC Cancer. 2015;15:147.View ArticlePubMedPubMed CentralGoogle Scholar
  23. Chen Y, Yao H, Thompson EJ, Tannir NM, Weinstein JN, Su X. VirusSeq: software to identify viruses and their integration sites using next-generation sequencing of human cancer tissue. Bioinformatics. 2013;29(2):266–7.View ArticlePubMedGoogle Scholar
  24. Li JW, Wan R, Yu CS, Co NN, Wong N, Chan TF. ViralFusionSeq: accurately discover viral integration events and reconstruct fusion transcripts at single-base resolution. Bioinformatics. 2013;29(5):649–51.View ArticlePubMedPubMed CentralGoogle Scholar
  25. Wang Q, Jia P, Zhao Z. VirusFinder: software for efficient and accurate detection of viruses and their integration sites in host genomes through next generation sequencing data. PLoS One. 2013;8(5):e64465.View ArticlePubMedPubMed CentralGoogle Scholar
  26. Wang Q, Jia P, Zhao Z. VERSE: a novel approach to detect virus integration in host genomes through reference genome customization. Genome Med. 2015;7(1):2.View ArticlePubMedPubMed CentralGoogle Scholar
  27. Tennakoon C, Sung WK. BATVI: fast, sensitive and accurate detection of virus integrations. BMC Bioinformatics. 2017;18(Suppl 3):71.View ArticlePubMedPubMed CentralGoogle Scholar
  28. Hu Z, Zhu D, Wang W, Li W, Jia W, Zeng X, Ding W, Yu L, Wang X, Wang L, et al. Genome-wide profiling of HPV integration in cervical cancer identifies clustered genomic hot spots and a potential microhomology-mediated integration mechanism. Nat Genet. 2015;47(2):158–63.View ArticlePubMedGoogle Scholar
  29. The Cancer Genome Atlas Network. Comprehensive molecular portraits of human breast tumours. Nature. 2012;490(7418):61–70.View ArticlePubMed CentralGoogle Scholar
  30. The Cancer Genome Atlas Network: Comprehensive and Integrative Genomic Characterization of Hepatocellular Carcinoma. Cell 2017, 169(7):1327-1341.e1323.Google Scholar
  31. Li H. Aligning sequence reads, clone sequences and assembly contigs with BWA-MEM. ArXiv e-prints 2013.Google Scholar
  32. Pruitt K BG, Tatusova T, et al. The Reference Sequence (RefSeq) Database. In: The NCBI handbook [Internet] Bethesda (MD): National Library of Medicine (US), National Center for Biotechnology Information 2002.Google Scholar
  33. Gabrielian A, Bolshoy A. Sequence complexity and DNA curvature. Comput Chem. 1999;23(3–4):263–74.View ArticlePubMedGoogle Scholar
  34. Smit AFA, Hubley,R, Green P. RepeatMasker Open-3.0; 1996-2010. [http://www.repeatmasker.org/].
  35. Quail MA, Kozarewa I, Smith F, Scally A, Stephens PJ, Durbin R, Swerdlow H, Turner DJ. A large genome center's improvements to the Illumina sequencing system. Nat Methods. 2008;5(12):1005–10.View ArticlePubMedPubMed CentralGoogle Scholar
  36. Untergasser A, Cutcutache I, Koressaar T, Ye J, Faircloth B, Reem M, Rozen S. Primer3--new capabilities and interfaces. Nucleic Acids Res. 2012;40(15):e115.View ArticlePubMedPubMed CentralGoogle Scholar
  37. Li H, Wgsim. 2011. [https://github.com/lh3/wgsim].
  38. Zhang J, Gao Y. CCAT-1 promotes proliferation and inhibits apoptosis of cervical cancer cells via the Wnt signaling pathway. Oncotarget. 2017;8(40):68059–70.PubMedPubMed CentralGoogle Scholar
  39. Nakamura Y, Migita T, Hosoda F, Okada N, Gotoh M, Arai Y, Fukushima M, Ohki M, Miyata S, Takeuchi K, et al. Kruppel-like factor 12 plays a significant role in poorly differentiated gastric cancer progression. Int J Cancer. 2009;125(8):1859–67.View ArticlePubMedGoogle Scholar
  40. Godin-Heymann N, Brabetz S, Murillo MM, Saponaro M, Santos CR, Lobley A, East P, Chakravarty P, Matthews N, Kelly G, et al. Tumour-suppression function of KLF12 through regulation of anoikis. Oncogene. 2016;35(25):3324–34.View ArticlePubMedGoogle Scholar
  41. Xuan YH, Jung HS, Choi YL, Shin YK, Kim HJ, Kim KH, Kim WJ, Lee YJ, Kim SH. Enhanced expression of hedgehog signaling molecules in squamous cell carcinoma of uterine cervix and its precursor lesions. Mod Pathol. 2006;19(8):1139–47.View ArticlePubMedGoogle Scholar
  42. Nault JC, Zucman-Rossi J. TERT promoter mutations in primary liver tumors. Clin Res Hepatol Gastroenterol. 2016;40(1):9–14.View ArticlePubMedGoogle Scholar
  43. Quaas A, Oldopp T, Tharun L, Klingenfeld C, Krech T, Sauter G, Grob TJ. Frequency of TERT promoter mutations in primary tumors of the liver. Virchows Arch. 2014;465(6):673–7.View ArticlePubMedGoogle Scholar
  44. Caldon CE, Musgrove EA. Distinct and redundant functions of cyclin E1 and cyclin E2 in development and cancer. Cell Div. 2010;5:2.View ArticlePubMedPubMed CentralGoogle Scholar
  45. Cashman R, Cohen H, Ben-Hamo R, Zilberberg A, Efroni S. SENP5 mediates breast cancer invasion via a TGFbetaRI SUMOylation cascade. Oncotarget. 2014;5(4):1071–82.View ArticlePubMedPubMed CentralGoogle Scholar
  46. Soikkeli J, Podlasz P, Yin M, Nummela P, Jahkola T, Virolainen S, Krogerus L, Heikkila P, von Smitten K, Saksela O, et al. Metastatic outgrowth encompasses COL-I, FN1, and POSTN up-regulation and assembly to fibrillar networks regulating cell adhesion, migration, and growth. Am J Pathol. 2010;177(1):387–403.View ArticlePubMedPubMed CentralGoogle Scholar
  47. Rao RC, Dou Y. Hijacked in cancer: the KMT2 (MLL) family of methyltransferases. Nat Rev Cancer. 2015;15(6):334–46.View ArticlePubMedPubMed CentralGoogle Scholar
  48. Young JM, Whiddon JL, Yao Z, Kasinathan B, Snider L, Geng LN, Balog J, Tawil R, van der Maarel SM, Tapscott SJ. DUX4 binding to retroelements creates promoters that are active in FSHD muscle and testis. PLoS Genet. 2013;9(11):e1003947.View ArticlePubMedPubMed CentralGoogle Scholar
  49. Etemadmoghadam D, Weir BA, Au-Yeung G, Alsop K, Mitchell G, George J, Davis S, D'Andrea AD, Simpson K, Hahn WC, et al. Synthetic lethality between CCNE1 amplification and loss of BRCA1. Proc Natl Acad Sci U S A. 2013;110(48):19489–94.View ArticlePubMedPubMed CentralGoogle Scholar
  50. Li H, Handsaker B, Wysoker A, Fennell T, Ruan J, Homer N, Marth G, Abecasis G, Durbin R. 1000 genome project data processing subgroup: the sequence alignment/map (SAM) format and SAMtools. Bioinformatics. 2009;25:2078–9.View ArticlePubMedPubMed CentralGoogle Scholar
  51. Quinlan AR, Hall IM. BEDTools: a flexible suite of utilities for comparing genomic features. Bioinformatics. 2010;26(6):841–2.View ArticlePubMedPubMed CentralGoogle Scholar
  52. Zhang H, Meltzer P, Davis S. RCircos: an R package for Circos 2D track plots. BMC Bioinformatics. 2013;14:244.View ArticlePubMedPubMed CentralGoogle Scholar

Copyright

© The Author(s). 2018

Advertisement
