Data set: membrane proteins (TMPs)
We collected all primary structure files for alpha helical and beta barrel transmembrane proteins (TMP) from OPM [45] and mapped their PDB [6, 7] chain identifiers (PDB-id) to UniProtKB [46] through SIFTS [47, 48]. Toward this end, we discarded all chimeric chains, all models, and all chains for which OPM failed to map any transmembrane start or end position. This resulted in 2,053 and 206 sequence-unique PDB chains for alpha helical and beta barrel TMPs, respectively.
We used the ATOM coordinates inside the OPM files to assign the inside/outside orientation of sequence segments not within the membrane. We manually inspected inconsistent annotations (e.g., if both ends of a transmembrane segment had the same inside/outside orientation) and cross-referenced them with PDBTM [49,50,51], PDB, and UniProtKB. We then either corrected such inconsistent annotations or discarded the whole sequence. As OPM does not include signal peptide annotations, we compared our TMP data sets to the set used by SignalP 6.0 [52] and all sequences in UniProtKB/Swiss-Prot with experimentally annotated signal peptides using CD-HIT [53, 54]. For any matches with at least 95% global sequence identity (PIDE), we transferred the signal peptide annotation onto our TMPs. We removed all sequences with fewer than 50 residues to avoid noise from incorrect sequencing fragments, and all sequences with over 15,000 residues to save energy (lower computational costs).
Finally, we removed redundant sequences from the two TMP data sets by clustering them with MMseqs2 [55] to at most 20% local pairwise sequence identity (PIDE) with 40% minimum alignment coverage, i.e., no pair had more than 20% PIDE for any local alignment covering at least 40% of the shorter sequence. The final non-redundant TMP data sets contained 593 alpha helical TMPs and 65 beta barrel TMPs, respectively.
Data set: globular non-membrane proteins
We used the SignalP 6.0 (SP6) dataset for our globular proteins. As the SP6 dataset contained only the first 70 residues of each protein, we took the full sequences from UniProtKB/Swiss-Prot and transferred the signal peptide annotations. To remove any potential membrane proteins from this non-TMP data set, we compared it with CD-HIT [53, 54] against three other data sets: (1) our TMP data sets before redundancy reduction, (2) all protein sequences from UniProtKB/Swiss-Prot with any annotations of transmembrane segments, and (3) all proteins from UniProtKB/Swiss-Prot with any subcellular location annotations for membrane. We removed all proteins from our non-TMP data set with more than 60% global PIDE to any protein in sets 1–3. Again, we dropped all sequences with less than 50 or more than 15,000 residues and applied the same redundancy reduction as before (20% PIDE at 40% alignment coverage). The final non-redundant data set contained 5,859 globular, water-soluble non-TMP proteins; 698 of these have a signal peptide.
Additional redundancy reduction
One anonymous reviewer spotted homologs in our data set after the application of the above protocol. To address this problem, we performed another iteration of redundancy reduction for each of the three data sets using CD-HIT at 20% PIDE. In order to save energy (i.e., avoid retraining our model), we decided to remove clashes for the evaluation, i.e., if two proteins shared more than 20% PIDE, we removed both from the data set (as TMbed was trained on both in the cross-validation protocol). Thereby, this second iteration removed 235 proteins: 8 beta barrel TMPs, 22 alpha helical TMPs, and 205 globular, non-membrane proteins. Our final test data sets included 57 beta barrel TMPs, 571 alpha helical TMPs, and 5654 globular, non-membrane proteins.
Membrane re-entrant regions
Besides transmembrane segments that cross the entire membrane, there are also others, namely membrane segments that briefly enter and exit the membrane on the same side. These are referred to as re-entrant regions [56, 57]. Although rare, some methods explicitly predict them [17, 18, 22, 27, 58]. However, as OPM does not explicitly annotate such regions and since our data set already had a substantial class imbalance between beta barrel TMPs, alpha helical TMPs and, globular proteins, we decided not to predict re-entrant regions.
Embeddings
We generated embeddings with protein Language Models (pLMs) for our data sets using a transformer-based pLM ProtT5-XL-U50 (short: ProtT5) [34]. We discarded the decoder part of ProtT5, keeping only the encoder for increased efficiency (note: encoder embeddings are more informative [34]). The encoder model converts a protein sequence into an embedding matrix that represents each residue in the protein, i.e., each position in the sequence, by a 1024-dimensional vector containing global and local contextualized information. We converted the ProtT5 encoder from 32-bit to 16-bit floating-point format to reduce the memory footprint on the GPU. We took the pre-trained ProtT5 model as is without any further task-specific fine-tuning.
We chose ProtT5 over other embedding models, such as ESM-1b [36], based on our experience with the model and comparisons during previous projects [34, 38]. Furthermore, ProtT5 does not require splitting long sequences, which might remove valuable global context information, while ESM-1b can only handle sequences of up to 1022 residues.
Model architecture
Our TMbed model architecture contained three modules (Additional file 1: Fig. S1): a convolutional neural network (CNN) to generate per-residue predictions, a Gaussian smoothing filter, and a Viterbi decoder to find the best class label for each residue. We implemented the model in PyTorch [59].
Module 1: CNN
The first component of TMbed is a CNN with four layers (Additional file 1: Fig. S1). The first layer is a pointwise convolution, i.e., a convolution with kernel size of 1, which reduces the ProtT5 embeddings for each residue (position in the sequence) from 1024 to 64 dimensions. Next, the model applies layer normalization [60] along the sequence and feature dimensions, followed by a ReLU (Rectified Linear Unit) activation function to introduce non-linearity. The second and third layers consist of two parallel depthwise convolutions; both process the output of the first layer. As depthwise convolutions process each input dimension (feature) independently while considering consecutive residues, those two layers effectively generate sliding weighted sums for each dimension. The kernel sizes of the second and third layer are 9 and 21, respectively, corresponding to the average length of transmembrane beta strands and helices. As before, the model normalizes the output of both layers and applies the ReLU function. It then concatenates the output of all three layers, constructing a 192-dimensional feature vector for each residue (position in the sequence). The fourth layer is a pointwise convolution combining the outputs from the previous three layers and generates scores for each of the five classes: transmembrane beta strand (B), transmembrane helix (H), signal peptide (S), non-membrane inside (i), and non-membrane outside (o).
Module 2: Gaussian filter
This module smooths the output from the CNN for adjacent residues (sequence positions) to reduce noisy predictions. The filter allows flattening isolated single-residue peaks. For instance, peaks extending of only one to three residues for the classes B and H are often non-informative; similarly short peaks for class S are unlikely correct. The filter uses a Gaussian distribution with standard deviation of 1 and a kernel size of 7, i.e., its seven weights correspond to three standard deviation intervals to the left and right, as well as the central peak. A softmax function then converts the filtered class scores to a class probability distribution.
Module 3: Viterbi decoder
The Viterbi algorithm decodes the class probabilities and assigns a class label to each residue (position in the sequence; Additional file 1: Note S3, Fig. S2). The algorithm uses no trainable parameter; it scores transitions according to the predicted class probabilities. Its purpose is to enforce a simple grammar such that (1) signal peptides can only start at the N-terminus (first residue in protein), (2) signal peptides and transmembrane segments must be at least five residues long (a reasonable trade-off between filtering out false positives and still capturing weak signals), and (3) the prediction for the inside/outside orientation has to change after each transmembrane segment (to simulate crossing through the membrane). Unlike the Gaussian filter, we did not apply the Viterbi decoder during training. This simplified backpropagation and sped up training.
Training details
We performed a stratified five-fold nested cross-validation for model development (Additional file 1: Fig. S3). First, we separated our protein sequences into four groups: beta barrel TMPs, alpha helical TMPs with only a single helix, those with multiple helices, and non-membrane proteins. We further subdivided each group into proteins with and without signal peptides. Next, we randomly and evenly distributed all eight groups into five data sets. As all of our data sets were redundancy reduced, no two splits contained similar protein sequences for any of the classes. However, similarities between proteins of two different classes were allowed, not the least to provide more conservative performance estimates.
During development, we used four of the five splits to create the model and the fifth for testing (Additional file 1: Fig. S3). Of the first four splits, we used three to train the model and the fourth for validation (optimize hyperparameters). We repeated this 3–1 split three more times, each time using a different split for the validation set, and calculated the average performance for every hyperparameter configuration. Next, we trained a model with the best configuration on all four development splits and estimated its final performance on the independent test split. We performed this whole process a total of five times, each time using a different of the five splits as test data and the remaining four for the development data. This resulted in five final models; each trained, optimized, and tested on independent data sets.
We applied weight decay to all trained weights of the model and added a dropout layer right before the fourth convolutional layer, i.e., the output layer of the CNN. For every training sample (protein sequence), the dropout layer randomly sets 50% of the features to zero across the entire sequence, preventing the model from relying on only a specific subset of features for the prediction.
We trained all models for 15 epochs using the AdamW [61] optimizer and cross-entropy loss. We set the beta parameters to 0.9 and 0.999, used a batch size of 16 sequences, and applied exponential learning rate decay by multiplying the learning rate with a factor of 0.8 every epoch. The initial learning rate and weight decay values were part of the hyperparameters optimized during cross-validation (Additional file 1: Table S2).
The final TMbed model constitutes an ensemble over the five models obtained from the five outer cross-validation iterations (Additional file 1: Fig. S3), i.e., one for each training/test set combination. During runtime, each model generates its own class probabilities (CNN, plus Gaussian filter), which are then averaged and processed by the Viterbi decoder to generate the class labels.
Evaluation and other methods
We evaluated the test performance of TMbed on a per-protein level and on a per-segment level (Additional file 1: Note S1). For protein level statistics, we calculated recall and false positive rate (FPR). We computed those statistics for three protein classes: alpha helical TMPs, beta barrel TMPs, and globular proteins.
We distinguished correct and incorrect segment predictions using two constraints: (1) the observed and predicted segment must overlap such that the intersection of the two is at least half of their union, and (2) neither the start nor the end positions may deviate by more than five residues between the observed and predicted segment (Additional file 1: Fig. S4). All segments predicted meeting both these criteria were considered as “correctly predicted segments”, all others as “incorrectly predicted segments”. This allowed for a reasonable margin of error regarding the position of a predicted segment, while punishing any gaps introduced into a segment. For per-segment statistics, we calculated recall and precision. We also computed the percentage of proteins with the correct number of predicted segments (Qnum), the percentage of proteins for which all segments are correctly predicted (Qok), and the percentage of correctly predicted segments that also have the correct orientation within the membrane (Qtop). We considered only proteins that actually contain the corresponding type of segment when calculating per-segment statistics, e.g., only beta barrel TMPs for transmembrane beta strand segments.
We compared TMbed to other prediction methods for alpha helical and beta barrel TMPs (details in Additional file 1: Note S2): BetAware-Deep [15], BOCTOPUS2 [16], CCTOP [17, 18], DeepTMHMM [44], HMM-TM [19,20,21], OCTOPUS [22], Philius [23], PolyPhobius [24], PRED-TMBB2 [20, 21, 25], PROFtmb [3], SCAMPI2 [26], SPOCTOPUS [27], TMSEG [28], and TOPCONS2 [29]. We chose those methods based on their good prediction accuracy and public popularity. For methods predicting only either alpha helical or beta barrel TMPs, we considered the corresponding other type of TMPs as globular proteins for the per-protein statistics. In addition, we generated signal peptide predictions with SignalP 6.0 [52]. The performance of older TMH prediction methods could be triangulated based on previous comprehensive estimate of such methods [28, 62].
Unless stated otherwise, all reported performance values constitute the average performance over the five independent test sets during cross-validation (c.f. Training details) and their error margins reflect the 95% confidence interval (CI), i.e., 1.96 times the sample standard error over those five splits (Additional file 1: Tables S5, S6). We considered two values \(A\) and \(B\) statistically significantly different if they differ by more than their composite 95% confidence interval:
$$\left| {A - B} \right| > CI_{c} = \sqrt {CI_{A}^{2} + CI_{B}^{2} }$$
(1)
Additional out-of-distribution benchmark
In the most general sense, machine learning models learn and predict distributions. Most membrane data sets are small and created using the same resources, including OPM [45], PDBTM [49,50,51], and UniProtKB/Swiss-Prot [46] that often mix experimental annotations with sophisticated algorithms [50, 63,64,65] to determine the boundaries of transmembrane segments, e.g., by using the 3D structure. Given these constraints, we might expect data sets from different groups to render similar results. Analyzing the validity of this assumption, we included the data set assembled for the development of DeepTMHMM [44]. Three reasons made us chose this set as an alternative perspective: (1) it is recent, (2) it contains helical and beta barrel TMPs, and (3) the authors made their cross-validation predictions available, simplifying comparisons.
We created two distinct data sets from the DeepTMHMM data. First, we collected all proteins common to both data sets (TMbed and DeepTMHMM). We used those proteins to estimate how much the annotations within both data sets agree with each other. In total, there were 1788 proteins common to both data sets: 43 beta barrel TMPs, 184 alpha helical TMPs, 1,560 globular proteins, and one protein (MSPA_MYCS2; Porin MspA) which sits in the outer-membrane of Mycobacterium smegmatis [66]. We classified this as beta barrel TMP while DeepTMHMM listed it, most likely incorrectly, as a globular protein. The second data set that we created contained all proteins from the DeepTMHMM data set that were non-redundant to the training data of TMbed. We used PSI-BLAST [67] to find all significant (e-value < 10–4) local alignments with a 20% PIDE threshold and 40% alignment coverage to remove the redundant sequences. This second data set contained 667 proteins: 14 beta barrel TMPs, 86 alpha helical TMPs, and 567 globular proteins. We generated predictions with TMbed for those proteins and compared them to the cross-validation predictions for DeepTMHMM, as well as the best performing methods from our own benchmark (CCTOP [17, 18], TOPCONS2 [29], BOCTOPUS2 [16]); we used the DeepTMHMM data set annotations as ground truth.
Data set of new membrane proteins

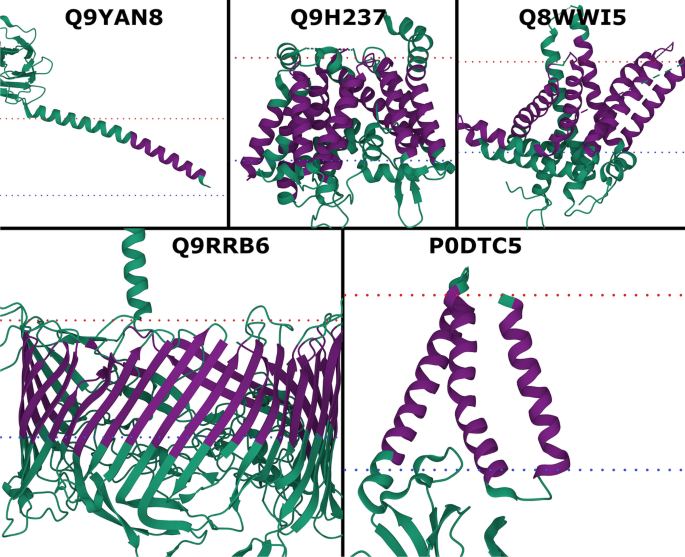

In order to perform a CASP-like performance evaluation, we gathered all PDB structures published since Feb 05, 2022, which is just after the data for our set and that of DeepTMHMM [44] have been collected. This comprised 1,511 PDB structures (more than 250 of which related to the SARS-CoV-2 protein P0DTD1) that we could map to 1,078 different UniProtKB sequences. We then used PSI-BLAST to remove all sequences similar to our data set or that of DeepTMHMM (e-value < 10–4, 20% PIDE at 40% coverage), which resulted in 333 proteins. Next, we predicted transmembrane segments within those proteins using TMbed and DeepTMHMM. For 38 proteins, either TMbed or DeepTMHMM predicted transmembrane segments. After removing any sequences shorter than 100 residues (i.e., fragments) and those in which the predicted segments were not within the resolved regions of the PDB structure, we were left with a set of 5 proteins: one beta barrel TMP and four alpha helical TMPs. Finally, we used the PPM [63,64,65] algorithm from OPM [45] to estimate the actual membrane boundaries.
