Improving RNASeq expression estimation by modeling isoform and exonspecific read sequencing rate
BMC Bioinformaticsvolume 16, Article number: 332 (2015)
Abstract
Background
The highthroughput sequencing technology, RNASeq, has been widely used to quantify gene and isoform expression in the study of transcriptome in recent years. Accurate expression measurement from the millions or billions of short generated reads is obstructed by difficulties. One is ambiguous mapping of reads to reference transcriptome caused by alternative splicing. This increases the uncertainty in estimating isoform expression. The other is nonuniformity of read distribution along the reference transcriptome due to positional, sequencing, mappability and other undiscovered sources of biases. This violates the uniform assumption of read distribution for many expression calculation approaches, such as the direct RPKM calculation and Poissonbased models. Many methods have been proposed to address these difficulties. Some approaches employ latent variable models to discover the underlying pattern of read sequencing. However, most of these methods make bias correction based on surrounding sequence contents and share the bias models by all genes. They therefore cannot estimate gene and isoformspecific biases as revealed by recent studies.
Results
We propose a latent variable model, NLDMseq, to estimate gene and isoform expression. Our method adopts latent variables to model the unknown isoforms, from which reads originate, and the underlying percentage of multiple spliced variants. The isoform and exonspecific read sequencing biases are modeled to account for the nonuniformity of read distribution, and are identified by utilizing the replicate information of multiple lanes of a single library run. We employ simulation and real data to verify the performance of our method in terms of accuracy in the calculation of gene and isoform expression. Results show that NLDMseq obtains competitive gene and isoform expression compared to popular alternatives. Finally, the proposed method is applied to the detection of differential expression (DE) to show its usefulness in the downstream analysis.
Conclusions
The proposed NLDMseq method provides an approach to accurately estimate gene and isoform expression from RNASeq data by modeling the isoform and exonspecific read sequencing biases. It makes use of a latent variable model to discover the hidden pattern of read sequencing. We have shown that it works well in both simulations and real datasets, and has competitive performance compared to popular methods. The method has been implemented as a freely available software which can be found at https://github.com/PUGEA/NLDMseq.
Background
RNASeq, based on highthroughput sequencing technology, is nowadays a commonly used method to study transcriptome. An RNASeq experiment typically produces millions or billions of short sequenced reads. By counting the reads aligned to a reference transcriptome, the expression of the related transcripts can be calculated [1]. As alternative splicing, where various protein isoforms are yielded due to the different exon constitutions for a gene, receives more and more interest in the research of biomedicine, RNASeq has been widely used to quantify gene and isoform expression.
As read counts are proportional to the mRNA fragment abundance of a gene, the reads per kilobase of transcript per million mapped reads (RPKM) has been commonly used to represent gene expression [2]. Due to the existence of alternative splicing, multiple isoforms can share exons of a gene (we use isoforms to represent splice variants hereafter for simplicity). Therefore, there are a large number of reads which cannot be uniquely aligned to the isoform they originate from. For this reason, reads mapped to the shared exon need to be deconvoluted before computing isoform expression. Inferring the mechanism of dispatching mapped reads to their origins is a difficulty in isoform expression calculation from RNASeq data. A number of approaches make use of the additive property of Poisson distribution to address this problem [3–5]. Given a transcriptome assembly, the sequencing rate for a read count can be factorized as a sum of contributions from all isoforms to which this read can be mapped. Another group of methods employ latent variable models to discover the unknown isoform expression [6–8]. By introducing discrete latent variables to representing isoforms each read originates from, the sequencing process of each individual read is modeled.
In addition to read mapping ambiguity, another difficulty of expression calculation from RNASeq data is the nonuniformity of read distribution along the reference genome and transcriptome due to positional, sequencing, mappability and other undiscovered sources of biases [9]. The nonuniform read distribution violates the assumption of the direct RPKM representation and many expression calculation approaches, such as Poissonbased models. In order to obtain accurate expression estimates, these biases have to be accounted in expression calculation. Consequently, many bias correction strategies have been proposed to relieve the influence of nonuniformity of read distribution [5, 9–13]. Most of these approaches estimates the overall biases based on surrounding sequence contents or empirical data, and bias models are mostly shared by all genes. For example, the commonly used method, Cufflinks [12, 14], used a variable length Markov model to learn sequencespecific and positional biases based on the surrounding sequences of all reads in a set of empirical data. This model was then shared for all genes to make bias correction. Therefore, if two reads have similar nucleotide constitution and similar relative positions along transcriptome reference, they would have the similar biases under this model assumption. A recent study found that the read distribution is isoformspecific and a Poissonbased model, Sequgio, is proposed to jointly estimate isoform expression and isoformspecific read sequencing bias [15].
In this paper, we propose a latent variable model, NLDMseq (normalized latent DirichletMultinomial model for RNASeq data), to estimate gene and isoform expression. Given known annotations, this model introduces latent variables to represent the unknown isoforms, from which reads originate, and the proportion of multiple spliced isoforms. The isoform and exonspecific read sequencing rates are modeled as parameters which can be estimated from data. We utilize the replicate information of multiple lanes for a single library to identify read sequencing rates. NLDMseq benefits from the latent variable model that would help to discover the hidden pattern of read sequencing. Another advantage of NLDMseq is that it models normalized read counts for each exon rather than each individual read as many latent variable models do [6–8]. Therefore, NLDMseq does not need to deal with the nucleotide constitution of each read, and thus achieves fast computation. We employ simulation and real data to verify the performance of our method in terms of accuracy in the calculation of gene and isoform expression.
Methods
Latent dirichletmultinomial model
It has been found by previous studies that there exist similarities among the patterns of count variation for many genes or isoforms among samples [10, 15]. There is therefore a need to model read distribution bias for each individual gene or isoform. To reach this goal, it would be ideal to model the sequencing rate for each individual read of a particular gene or isoform. However, this would bring tremendous computation in light of the huge amount of read data. Also, for many lowly expressed genes overfitting would be a problem with little data available. Considering computational efficiency of the model, we count read number for each exon in the transcriptome reference and take exon as the basic unit of data to model exonspecific read sequencing rate for each isoform. As long reads and pairedend reads become more and more popular in RNAseq protocal, we use fragment to represent any transcript sequence found in sample and are then interested in fragment number for each exon hereafter. We aim to model the stochastic mechanism in generating the “exon corpora” of RNAseq data for each gene.
Given a known annotation, assume there are E exons and K isoforms for a given gene. Let n _{ i } represent the number of fragments that fall in the ith exon, where 1≤i≤E. We also consider the exon junctions and treat them as individual exons in order to obtain more information of alternative splicing in the data. Let L represent the length of reads. We construct special junction exons by combining the sequence with length L−1 at the end of the exon ahead and the sequence with the same length at forepart of the next exon (see the example in Fig. 1). For pairedend data, we count the fragment between a pair of reads. If the fragment covers multiple exons, we consider the average length of fragments and add one to the fragment count of every exon allowed by it. Overlapping exons are divided into multiple exons to avoid the redundant fragment counting. To remove the bias of the length of exons in fragment counts, n _{ i } is normalized according to the exon length. In the following design of NLDMseq, we take n _{ i } as a quantity measuring the frequency of observing the ith exon in experimental data.
We denote e as an indicator vector with E entries, among which there is only a single entry with value 1 and all the others are zero. Thus, each vector represents an exon. For each observed exon e, we assume there is an associated latent variable t indicating the unknown isoform which generates this exon. The Kvector t has value one for the kth entry if the exon is generated by isoform k, and 0 for others. For the purpose of accommodating the random noise in fragment sequencing and fragments generated from undiscovered isoforms, we introduce an additional isoform which contains all exons of this gene. If the possibility of the generation for a particular exon from all known isoforms is considerably low, it may be assigned to this special isoform automatically. Figure 1 shows the construction of gene structure and fragment counting strategy of an example gene. A Kvector variable θ is used to denote the percentage of the K isoforms, where θ _{ i }>0 and \(\sum _{i}\theta _{i}=1\). We assume a Dirichlet prior on θ.
With the above assumptions and notations, we adopt the DirichletMultinomial Bayesian model as that in the latent Dirichlet allocation [16]. The data we consider here are a single library run on multiple lanes. The dataset for each gene is the normalized fragment counts {n _{ i }} for all included exons. We denote N as the total number of the observed exons, where \(N=\sum _{i} n_{i}\). The generative process of data {e _{ n }} (1≤n≤N) for each gene is assumed as follows,

1.
Generate θ _{ l } once for lane l, θ _{ l }∼Dirichlet(α).

2.
For lane l, generate t _{ ln }, t _{ ln }∼Multinomial(1,θ _{ l }).

3.
Generate exon e _{ ln } given t _{ ln }, \(e_{\textit {ln}}\sim \text {Multinomial}(1,\beta ^{t_{\textit {ln}}})\phantom {\dot {i}\!}\).
By repeating steps 2 and 3, all exon data can be generated for each lane. In our model, e is the observed data, θ and t are latent variables, and the Kvector α and the K×E matrix β are hyperparameters, where α _{ k }>0, \({\beta _{j}^{t}}>0\) and \(\sum _{j}{\beta _{j}^{t}}=1\). The vector β ^{t} is the kth row of β corresponding to isoform t. We can see that under our model assumption the parameter β ^{t} is isoformspecific and each entry indicates the average sequencing rate for an exon. For those exons which are not used in isoform t, the corresponding entries in β ^{t} are constrained to zero. Here, we consider to model the data for each individual lane in order to make use of this technical replicate information to have better estimation of the distribution of θ and the isoform and exonspecific read sequencing rate β. A graphical representation of our model is shown in Fig. 2 where the relations between all these variables can be found.
We notice that Sequgio proposed in [15] also modeled the isoformspecific read sequencing bias. Our model differs from Sequgio in the fact that Sequgio uses the simple Poisson distribution to model the generated reads and does not model the variability in the selection of isoform which generates each read. Also, we do not share the isoformspecific read sequencing rate β across samples as Sequgio in case that biological variation may violate the conserved read count distribution for some genes. Biological samples are therefore processed individually with our approach. We aim to provide accurate expression measurements at this stage and intend to handle the biological replicate noise in the downstream analysis (see the section of “Application to DE analysis”). NLDMseq is also distinct from other latent variable models, such as RSEM [6], MISO [7] and Bitseq [8], which explicitly modeled the generation process of each read by examining the the start sequencing position and nucleotide components of each read. These approaches either assume a uniform read distribution along isoform sequence [7] or need to deal with nucleotide constitution in order to correct the bias in read distribution [6, 8]. Consequently, this would increase the computation cost of models. In contrast, our method models the frequency of the existence of each exon and this is able to reduce the computation load of our model. Meanwhile, the isoform and exonspecific read sequencing rate is also obtained and this accounts for the nonuniformity of the primary read distribution.
Variational EM solution
Our purpose is to infer the hidden generative process which most likely produces the observed normalized exon counts {n _{ li }}. In this process we are interested in the posterior of θ, P(θ{e _{ ln }}) which indicates the underlying fraction of isoform abundances. Unfortunately, this distribution is intractable to compute when we apply Bayes’ rule. We employ the variational EM algorithm proposed in [16] to work out NLDMseq. Assuming the independence of {θ _{ l }} and {t _{ ln }}, the posterior of {θ _{ l }} and {t _{ ln }} can be approximated by a set of Dirichlet distributions with parameters {η _{ l }} and a set of multinomial distributions with parameters {λ _{ ln }}, respectively. Initially, we set unbiased values for the hyperparameters α and β, indicating that no preference is set for any isoform and exon. At the Estep, the variational parameters are updated as follows,
where < · > represents expectation and q denotes the variational distribution of θ _{ l }. We omit the variational parameters of q distribution for simplification. The Eqs. (1) and (2) are updated iteratively until convergence is obtained.
At the Mstep, the following function is maximized with respect to α and β,
where
The hyperparameter β can be worked out in a closed form as follows,
If isoform k includes exon j, β _{ kj } is updated using Eq. (5), otherwise it is confined to be zero. The hyperparameter α cannot be solved analytically and therefore can be worked using the efficient NewtonRaphson method which was used in [16]. The Estep and Mstep are repeated until a stable solution is achieved. Readers can refer to [16] for details of the variational EM algorithm.
Gene and isoform expression representation
Since p(θ _{ l }{e _{ ln }}) implies the percentage of multiple isoform abundance for each lane, we use the generative distribution p(θα) with the estimated α to represent the underlying fraction of isoform abundance. The expectation of θ _{ k } is
The fragments mapped to each exon are allocated to the corresponding isoforms according to the fraction in Eq. (6). Using the FPKM representation in [14], the expression of the kth isoform, f _{ k }, can be expressed as
where N _{ s } is the total number of fragments obtained for this sample. Gene expression can be represented by \(\sum _{k}f_{k}\). In order to obtain a level of measurement uncertainty for both isoform and gene expression, we draw M samples from the distribution p(θα) and calculate isoform and gene expression for each sample θ ^{m}, where 1≤m≤M. Thus, we have M estimates for each isoform and gene expression. Using these samples, we can obtain the variance of the estimated expression which can be propagated into downstream analysis to obtain improved results. For singleisoform genes, the expression is calculated directly using FPKM assuming the uniform distribution of the reads.
Software
We have implemented NLDMseq in a free Python/C tool, which is available from https://github.com/PUGEA/NLDMseq, for public use. Any aligner that can align the raw experimental reads to reference transcriptome can be used for the preprocess of RNAseq data for NLDMseq. We use Bowtie 2 [17] throughout this paper since it is sensitive to gaps and good at aligning long reads, and is used by many approaches, such as Bitseq [8] and MMSEQ [4]. After the alignment, our software can be used to calculate gene and isoform expression. Our software includes two parts. One is Python scripts which are used to expand gene models and obtain the fragment count for each exon from the alignment output file. The other is C codes, which solve the NLDMseq model and compute expression measurements. For simplicity of usage, the software can be called in a single run. For details of using our software, readers can refer to the documentation and examples on the software’s website.
Datasets
We use the wellstudied Microarray Quality Control (MAQC) dataset [18] to validate gene expression estimation from NLDMseq. Gene expression from highquality RNA samples is measured in MAQC project to assess the comparability across multiple platforms mainly including various microarray and nextgeneration sequencing technologies. Two RNA samples, the universal human reference (UHR) RNA and the human brain reference (HBR) RNA, from Illumina platform are selected in our work to verify our new method, including singleend data (SRA010153) and pairedend data (SRA012427). The SRA010153 data contains two samples, HBR and UHR, while the SRA012427 data contains a single sample UHR. Besides genes in the whole human genome measured by microarray and RNASeq, around one thousand genes have been measured by qRTPCR experiments. These genes can be used as gold standard to validate gene expression estimation obtained from other platforms. This dataset has been widely used as the benchmark to verify various analysis methods for microarray and RNASeq technologies [19–21]. Among the qRTPCR validated genes, we used the Ensembl annotation data (GRCh37/hg19) and obtained 740 matching multiisoform genes (see Additional file 5: Table S1). These genes are used to evaluate the performance of our approach at gene level. We further use the method in [20] to filter 198 differential expression (DE) genes and 81 nonDE multiisoform genes (see Additional file 2: Table S2) with high confidence according to qRTPCR measurements. Data of these 279 qRTPCR validated genes is used as a gold standard to evaluate the sensitivity and the specificity of our method applied to DE analysis.
A real study on molecular injury in response to tobacco smoke exposure and lung cancer pathogenesis (SELC) [22] is used to further evaluate the performance of our approach on gene expression calculation. This experiment involves four phenotypes, healthy never smokers (NS), current smokers (S), smokers with (C) and without (NC) lung cancer undergoing lung nodule resection surgery. RNAseq libraries were prepared and sequenced to obtain 22 million 75 nt pairedend reads for each sample by using the standard Illumina mRNAseq protocol. The study considered differential gene expression in the comparisons, S vs. NS and C vs. NC. The RNAseq measurements of eight genes were validated using qRTPCR data. We aligned the reads to Ensembl annotation (GRCh37/hg19) and found one of the eight validated genes, NFKB1A1, not be annotated. We therefore exclude this gene and use the obtained fold changes of the other seven genes in expression comparison.
We also use a publicly available human breast cancer (HBC) dataset [23] to verify the performance of NLDMseq on isoform expression estimation. This dataset includes two samples, human breast cancer cell line (MCF7) and normal cell line (HME). Four multiisoform genes (TRAP1, ZNF581, WISP2 and HIST1H2BD) were validated by qRTPCR experiments [24]. Each gene has two isoforms which have been interrogated for both cell lines. According the experiment results in [24], the regulations of these eight isoforms in the two samples and the regulations of the two isoforms for the same gene in the same sample can be calculated. We therefore obtain 16 qRTPCR validated regulations which can be used to verify the performance of various approaches on isoform expression calculation (see Additional file 7: Table S3).
We generated simulated data using our model based on the calculated parameters from the MAQC dataset. We select all 1,604 multiisoform genes and 12,064 isoforms of chromosome 1 from Ensembl human genome assembly GRCh37/hg19 and simulate two samples with singleend and pairedend data respectively. For the singleend data, we generate 3,673,804 singleend reads with seven lanes using parameters \(\hat {\beta }\) calculated from the singleend data for HBR sample. For the pairedend data we generate 125,126 reads with three lanes using parameters \(\hat {\beta }\) calculated from the pairedend data for UHR sample. For both cases, the values of parameters \(\hat {\alpha }\) are randomly generated. For each simulated read, we first sample θ _{ l } from \(\text {Dirichlet}(\hat {\alpha })\). Second, for each lane generate t _{ ln } from Multinomial(1,θ _{ l }). Next, given the generated t _{ ln } generate exon e _{ ln } from \(\text {Multinomial}(1,\beta ^{t_{\textit {ln}}})\phantom {\dot {i}\!}\). Finally, uniformly sample the starting position along exon e _{ ln } for a singleend read. To generate a pair of pairedend reads, we sample the length of the sequenced fragment from N(206,19.6) and then uniformly sample the starting position of this fragment along exon e _{ ln }. With the sampled fragment position and length, the paired reads for both ends can be simulated.
Results and discussion
We compare NLDMseq with other three popular alternatives, Cufflinks v2.2.0 [12], RSEM v1.2.9 [6] and MMSEQ v1.0.8 [4] for gene and isoform expression calculation. We use three real datasets and one simulated dataset for the validation of the performance of various methods. We also apply NLDMseq to find the DE genes and compare its performance with Cufflinks, RSEM and MMSEQ. Finally, we use an example dataset to compare the computation efficiency for the four approaches. The chart displaying the various study goals and the datasets used to accomplish each goal is shown in Table 1.
Application to real data
We evaluate the proposed approach, NLDMseq, on the estimation of gene and isoform expression in terms of accuracy using three real datasets and considering both singleend and pairedend data.
Estimated isoform and exonspecific read sequencing rate
One advantage of NLDMseq is that it is able to model the isoform and exonspecific read sequencing rate which is thought to be the main reason for the nonuniformity of read distribution in RNASeq data. Before evaluating the accuracy of expression calculation, we use a randomly selected example from the MAQC dataset as shown in Fig. 3 to demonstrate that the estimated isoform and exonspecific read sequencing rate is consistent with the observed fragment counts. In this example, gene ENSG00000168394 contains 5 isoforms (including the one for handling noise) and 37 exons (including 20 junction exons). Here we show the results from HBR sample in the SRA010153 data. In our model, the read sequencing rates for exon j of isoform k is represented by β _{ kj }. The subplots a ∼e in Fig. 3 show the estimated exonspecific β _{ kj } for each isoform. We can see that the sequencing rates for different exons of the same isoform are really different. From subplot f in Fig. 3 we can find the fraction of abundance for every isoform, α _{ k }. For each exon, we summarize the sequencing rates contributed from all isoforms, \(\sum _{k}\beta _{\textit {kj}}\alpha _{k}\), for each exon as shown in subplot g in Fig.3. We can see that the constitution of the overall sequencing rate is diverse across exons. The subplot h in Fig.3 shows the normalized fragment count for each exon with the contributions from multiple isoforms represented by the same colors to those in Fig.3 g. By comparing the distribution of sequencing rates in Fig.3 g and the distribution of fragment counts in Fig.3 h, we can observe the identical variation pattern. This demonstrates that the estimated parameters of our model, β _{ kj } and α _{ k }, are consistent with the observed data. In order to consider reads caused by noise or undiscovered isoforms, we include a special isoform which contains all exons of this gene. We observe that the fraction of this special isoform is as low as 9 %, which is not greater than the fraction of known isoforms in this example, showing that most sequenced fragments are useful and few are credited to noise and undiscovered isoforms.
Accuracy on gene expression estimation
We first use the wellstudied MAQC dataset to justify the accuracy of NLDMseq on gene expression estimation. Each sample in this dataset contains multiple lanes. NLDMseq processes multilane data automatically and obtain the intrinsic fraction of multiisoform abundance based on multilane information. We also apply Cufflinks, RSEM and MMSEQ to data coming from each individual lane and calculate the average gene expression for each sample. The Pearson correlation coefficients of gene expression estimation with the qRTPCR measurements for the 740 qRTPCR validated genes in the three samples are calculated as shown in Table 2. The higher the numbers, the better the performance of the methods. The related scatter plots can be found in Additional file 1: Figure S1. We can see that NLDMseq obtains the most consistent expression measurements compared with qRTPCR results for all the three comparison cases. Additional file 2: Figure S2, Additional file 3: Figure S3, Additional file 4: Figure S4 show the consistency of estimated gene expression from various methods. We find methods obtain fair consistent results generally except Cufflinks. The discrepancy between results from different approaches is mainly located for lowly expressed genes, showing the difficulty in estimating low expression.
We next use the real SELC data with qRTPCR validation to further verify the performance of NLDMseq on gene expression calculation. Table 3 shows the calculated logratio of each qRTPCR validated gene in one of the two comparisons, S vs. NS and C vs. NC. We compare the consistency of results from various methods with qRTPCR measurements, and calculate the absolute error rate (AER) as shown in the bracket after each calculated logratio. The lower the AER values, the better the performance of the methods. We find that all the four methods produce inconsistent direction of fold change between RNAseq and qRTPCR for gene SCGB1A1. The three approaches, Cufflinks, RSEM and NLDMseq, obtain relatively low AER, while MMSEQ obtains higher AER.
Accuracy on isoform expression estimation
We use the HBC dataset to justify the isoform expression obtained from NLDMseq and compare it with Cufflinks, RSEM and MMSEQ. We used the UCSC knownGene transcriptome annotation (NCBI36/hg18) for obtaining all the annotation information for the eight qRTPCR validated isoforms related to genes TRAP1, ZNF581, WISP2 and HIST1H2BD. We apply NLDMseq, Cufflinks, RSEM and MMSEQ to this dataset and calculate the expression of the eight qRTPCR validated isoforms. The logratios obtained from different methods for the 16 regulations of the eight qRTPCR validated isoforms are shown in Table 4. We consider eight regulations of the eight isoforms under two conditions and eight regulations of the two isoforms belonging to the same gene under the same condition. Details of each comparison can be found in Additional file 7: Table S3. It can be seen that NLDMseq obtains the most consistent results compared with qRTPCR for all the 16 comparison cases, while Cufflinks, RSEM and MMSEQ all produce 4 inconsistent results. NLDMseq also produces the lowest AER among all the approaches. This comparison shows the superiority of NLDMseq on the calculation of isoform expression.

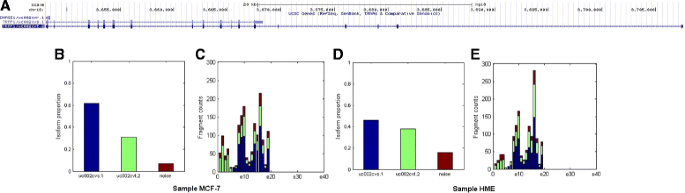

We find the regulations between isoforms of genes TRAP1 and HIST1H2BD under cell lines HME and MCF7 (rows 3,4,15 and 16 in Table 4) are incorrectly calculated by Cufflinks, RSEM and MMSEQ. In contrast, NLDMseq obtains consistent results for the two genes with qRTPCR measurements. This shows the difficulties in partitioning the mapping fragments into contributions from the multiple isoforms. Figures 4 and 5 show the isoform expression calculations for genes TRAP1 and HIST1H1BD, respectively. The expectation of the isoform percentage is obtained as shown in subplots b and d in Figs. 4 and 5. We can see that for gene TRAP1 the percentage of noise is 16 % and 7 % for cell lines HME and MCF7, respectively. For both cell lines, the percentage of isoform uc002cvs.1 is higher than that of isoform uc002cvt.2. We partition the mapping reads of each exon according to the obtained isoform percentage as shown in subplots c and e in Figs. 4 and 5. After normalization on the isoform length, the obtained expression of uc002cvt.2 is lower than that of uc002cvs.1 which is consistent with qRTPCR. Similarly, we can see from Fig. 5 that the expected percentage of noise for gene HIST1H1BD is as low as 1 % and the percentage of isoform uc003ngr.1 is lower than that of isoform uc003ngs.1. After separating the mapping fragments, the normalized isoform expression of uc003ngr.1 is thus lower than that of uc003ngs.1 showing consistency with qRTPCR results.
Simulation study
Considering that the real abundance for a large number of transcripts can not be available in reality, we use the generated simulation data to validate the consistency of NLDMseq under the data simulated with it in terms of accuracy in gene and isoform expression calculation. Figures 6 and 7 show the scatter plots and Pearson correlation coefficients of the gene and isoform expression estimation with the true expression values for the singleend and pairedend simulated data, respectively. We can see from these figures that the obtained correlations for isoform expression are significantly lower than those for gene expression, showing that estimation of isoform expression is more difficult than that of gene expression. It is not surprising that NLDMseq obtains the highest consistency with the ground truth for both data since the data is generated using our model and is therefore biased to it. In spite of this, the other three methods also present reasonable results. Cufflinks and RSEM obtain the similar accuracy to NLDMseq for singleend data, while NLDMseq shows outstanding superiority for pairedend data. We also notice that the performance of RSEM, MMSEQ and NLDMseq gets improved when pairedend data is used for gene expression calculation while that of Cufflinks does not. In addition, all the four approaches obtain more noise in the lower end of calculated isoform expression for pairedend data indicating that more concerns should be raised for data involved more junction fragments when isoform expression is of interest.
Application to DE analysis
The calculated gene and isoform expression from NLDMseq can be used in the downstream analysis of RNAseq, such as DE gene and isoform detection. We apply NLDMseq to MAQC dataset to show the usefulness of our method in DE analysis and compare it with the other alternatives. The 279 qRTPCR validated DE genes with high certainty are taken as the golden standard to verify DE analysis using our method. To reach this goal, we combine NLDMseq with PPLR [25] approach, which is a hierarchical Bayesian model previously applied to microarray analysis and has been implemented in the R package puma [26]. PPLR combines the biologically replicated expression measurements and considers measurement uncertainty associated with these estimates. This approach can be applied to the expression estimated from both microarray and RNAseq. As we introduced in the section of ‘Methods’, NLDMseq is able to produce a level of measurement uncertainty associated with expression estimate. We propagate this measurement uncertainty into PPLR to perform DE analysis. Details of the usage of PPLR can be found in the documentation of puma. Cufflinks, RSEM and MMSEQ are combined with the embedded DE analysis approaches, Cuffdiff [27], EBSeq [28], and MMDiff [29], respectively.
We use the receiver operating characteristic (ROC) curves to show the performance of various DE approaches. The higher the curve, the better performance of the examined method. Accordingly, a higher value of area under the ROC curve (AUC) indicates higher accuracy of the method. We plot the ROC curves for different DE approaches as shown in Fig. 8. We can see that NLDMseq combined with PPLR produces the competitive ROC curve compared to MMSEQ. NLDMseq and MMSEQ give the values of AUC of 0.9625 and 0.9659, respectively. In contrast, Cufflinks and RSEM present lower ROC curves and result in AUCs of 0.8793 and 0.8275, respectively. This example shows the competitive performance of our method in DE analysis.
Comparison on computation time
Finally, we use the data of NC phenotype in the SELC data to compare the computation efficiency of various approaches. This data contain 22 million pairedend reads. The expression computation time of the four methods are shown in Table 5. Since all methods use similar read alignment software, we exclude the running time for read alignment and compare only the running time for expression computation. Using parallel computing with four threads for all methods, Cufflinks is the most timeconsuming for processing this data. The running time of MMSEQ is close to that of RSEM. NLDMseq obtains the least running time showing the superior computation efficiency among the four methods.
Conclusion
In this contribution, we have presented a latent variable model, NLDMseq, to accurately estimate gene and isoform expression from RNASeq data given a known annotation. NLDMseq handles the two major difficulties in expression calculation in RNASeq data analysis, read mapping ambiguity and nonuniformity of read distribution, by adopting a latent model to discover the hidden pattern of read sequencing and modeling the isoform and exonspecific read sequencing rates. Unlike many latent variable models which simulate the sequencing of each individual read, NLDMseq models normalized read counts for each exon without dealing with nucleotide constitution of each read. This significantly reduces the computation load of the model. We have used the replicate information of multiple lanes for a single library run to achieve read sequencing rate for each isoformspecific exon which shows the particular sequencing bias for this exon. We have constructed junctionexons to deal with reads mapped to the region of exon junction. For accommodation of noise reads and reads mapped to undiscovered isoforms, we have considered a special isoform which contains all the exons of a gene. We have found that the fraction of this special isoform is usually lower than that of known isoforms indicating that most reads are useful in calculation of expression for known isoforms and there are few reads which are due to noise and undiscovered isoforms.
We have employed simulation and qRTPCR validated real data to verify the performance of our method in terms of accuracy in the calculation of gene and isoform expression. Results have shown that NLDMseq is comparable to and in some cases outperforms the other competing methods. We have also applied NLDMseq to DE analysis by combining a previously designed DE analysis method, PPLR, which has been successfully applied to microarray analysis. This DE analysis approach was tested on a wellstudied qRTPCR validated benchmark. Results have shown that our approach have presented competitive performance compared with other popular methods. We also used a dataset to examine the running time of our approach. The comparison results indicate that our approach is computationally efficient compared with the other alternatives.
One advantage of our method is that isoform and exonspecific sequencing rate can be estimated to account for different sequencing bias for each isoformspecific exon. However, we find the distribution of the observed read counts is overdispersed compared with the obtained sequencing rates as shown in subplots g and h in Fig. 3. To address this problem, a Dirichlet prior can be put over the sequencing rates for isoformspecific exons in the future work. We expect this DirichletMultinomial model of observed counts would further improve the performance of our model.
We have used an example of detecting DE genes to show the application of NLDMseq to DE analysis. As for the detection of differential alternative splicing, NLDMseq can also be combined with available DE analysis method, such as PPLR, to find DE isoforms by using the isoform expression calculated in Eq. (7). Moreover, by using the posterior distribution of the percentage of isoforms, {θ _{ l }}, obtained from the variational EM estimation, it is also possible to detect differential isoform usage, where multiple isoforms of a single gene are expressed, but at different proportions between two groups of samples. This also provides a possibility of identifying alternative splicing.
