CMIC: predicting DNA methylation inheritance of CpG islands with embedding vectors of variablelength kmers
BMC Bioinformatics volume 23, Article number: 371 (2022)
Abstract
Background
Epigenetic modifications established in mammalian gametes are largely reprogrammed during early development, however, are partly inherited by the embryo to support its development. In this study, we examine CpG island (CGI) sequences to predict whether a mouse blastocyst CGI inherits oocytederived DNA methylation from the maternal genome. Recurrent neural networks (RNNs), including that based on gated recurrent units (GRUs), have recently been employed for variablelength inputs in classification and regression analyses. One advantage of this strategy is the ability of RNNs to automatically learn latent features embedded in inputs by learning their model parameters. However, the available CGI dataset applied for the prediction of oocytederived DNA methylation inheritance are not large enough to train the neural networks.
Results
We propose a GRUbased model called CMIC (CGI Methylation Inheritance Classifier) to augment CGI sequence by converting it into variablelength kmers, where the length k is randomly selected from the range \(k_{\min }\) to \(k_{\max }\), N times, which were then used as neural network input. N was set to 1000 in the default setting. In addition, we proposed a new embedding vector generator for kmers called splitDNA2vec. The randomness of this procedure was higher than the previous work, dna2vec.
Conclusions
We found that CMIC can predict the inheritance of oocytederived DNA methylation at CGIs in the maternal genome of blastocysts with a high Fmeasure (0.93). We also show that the Fmeasure can be improved by increasing the parameter N, that is, the number of sequences of variablelength kmers derived from a single CGI sequence. This implies the effectiveness of augmenting input data by converting a DNA sequence to N sequences of variablelength kmers. This approach can be applied to different DNA sequence classification and regression analyses, particularly those involving a small amount of data.
Background
DNA methylation is an epigenetic modification that occurs primarily at CpG sites and regulates gene expression. Hence, DNA methylation significantly impacts various mammalian biological processes, including embryonic development, genomic imprinting, Xchromosome inactivation, repression of transposable elements, aging, and carcinogenesis. Global epigenetic reprogramming is an erasure process associated with remodeling of epigenetic modifications that occurs in primordial germ cells and early embryos, ensuring that a new developmental cycle begins in each generation [1]. A notable exception to global reprogramming in early embryos is genomic imprinting, in which differential DNA methylation established in parental gametes is transmitted to the zygote and regulates parentaloriginspecific gene expression [2]. However, recent studies have shown that ectopic methylation induced by environmental factors may also escape reprogramming and cause disease susceptibility in subsequent generations [3].
CpG islands (CGIs) are CpGdense regions in the genome that often overlap with gene promoters [4]. Approximately 16,000–22,000 CGIs have been identified within the mouse genome, most of which remain unmethylated throughout development. Alternatively, certain CGIs become methylated in specific tissues or are predisposed to methylation under specific conditions, such as cell culture and carcinogenesis. CGIs can also be methylated upon genomic imprinting and Xchromosome inactivation [4]. However, in all cases, regardless of methylation status, most CpG sites within a CGI behave similarly, and their methylation strongly downregulates associated genes [4].
We have previously studied how DNA methylation introduced at CGIs, including imprinting control regions, is transmitted from oocytes to embryos [5,6,7]. In mouse oocytes, approximately 1100 CGIs are methylated via transcriptioncoupled de novo methylation [8]. CGI methylation is then erased after fertilization by reprogramming; however, a subset (up to 15%) of CGIs, including the maternally methylated imprinting control regions, can remain methylated in blastocysts [8]. This CGI methylation inheritance is partly dependent on the sequencespecific methylatedDNAbinding protein, Zfp57, which recruits other proteins essential for methylation maintenance [9]. Therefore, we focused on determining whether CGI sequences contain sufficient information to predict methylation inheritance through fertilization and early development. Previous studies have reported methods to predict CGI methylation status, or their propensity for methylation, of various cell types and tissues based on the sequence and other features [10,11,12,13,14,15,16]. Notably, Zheng et al. reported a support vector machinebased models that achieved high specificity and accuracy involving histone modification data (methylation and acetylation) [15]. However, it is difficult to obtain highquality histone modification information from oocytes and blastocysts, due to the scarcity of samples and ethical issues (especially when involving humans).
Recurrent neural network (RNN)based approaches have advantages over the abovementioned methods for sequencebased methylation prediction. First, neural networks can automatically learn latent feature representations of input data without prior biological knowledge. In contrast, previous studies used decision trees, support vector machines, or logistic regression, which required previouslydesigned feature vectors as input. Second, RNNs take data of variable length as input, including sequences from CGIs of different sizes. RNNbased classifiers have been widely used in bioinformatics, for example in KEGRU, for the prediction of transcription factor binding sites [17], DNA sequence functions [18], and chromatin accessibility [19]. KEGRU divides DNA sequences into kmer sequences with specified length and stride and, considering each kmer as a word, converts them into pretrained embedding vectors using the word2vec algorithm [20]. It then constructs a bidirectional gated recurrent unit (BiGRU) neural network for classification. Although KEGRU is applicable to our experimental aim, one challenge remains. From a pool of CGIs that are methylated in oocytes, we selected those that could be evaluated in methylated or unmethylated form in the maternal genome of blastocysts using single nucleotide polymorphism (SNP) information. However, this process resulted in only 272 CGIs, which is not sufficient to train RNNs.
Hence, we designed CMIC (CGI Methylation Inheritance Classifier) as a new method of converting a CGI sequence into kmer sequences. A CGI sequence is partitioned into variablelength kmers such that neighboring kmers do not overlap, which is repeated N times. The variablelength kmer sequences share the methylation status of a CGI as a class label. Thus, we augmented the amount of input data given to the GRU network. Furthermore, the variablelength kmer sequences from the entire set of informative CGIs were also used to create pretrained embedding vectors using the word2vec algorithm, and this new embedding assignment method is called splitDNA2vec. The sequence of the embedding vectors is passed to a BiGRU layer to predict the DNA methylation status of the input sequence, which we designated as CGI methylation classification method CMIC.
We show that CMIC achieves a high Fmeasure of 0.93. We also discuss how the value of N affects the prediction results of the CMIC. Taken together, this work demonstrates that converting a CGI sequence into multiple variablelength kmer sequences is effective for predicting its DNA methylation status.
Methods

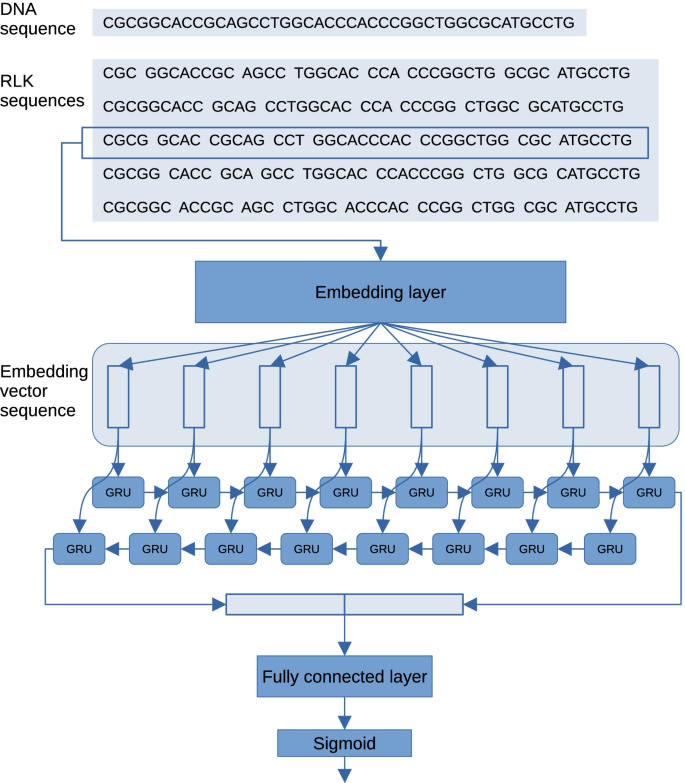

An outline of our proposed method CMIC is as follows (see Fig. 1). When CMIC takes a DNA sequence s as input, 2N variablelength kmer sequences are generated by splitting s and its reverse complement into kmers where such a length k is determined at random according to the discrete uniform distribution on an interval. Each variablelength kmer sequence is taken as the input to the BiGRU neural network of CMIC. The kmers of a given variablelength kmer sequence are converted to the corresponding embedding vector in the embedding layer. Next, the resulting sequence of embedding vectors is given to the BiGRU layer. The output to the input variablelength kmer sequence is interpreted as the probability of s being unmethylated.
Generating sequences of randomlength kmers from DNA sequences
In the first step of CMIC, an input DNA sequence s is split into nonoverlapping kmers with lengths randomly determined according to a discrete uniform distribution on the interval from a minimum to a maximum length, \(k_{\min }\) and \(k_{\max }\), respectively. This step is repeated N times for each s and its reverse complement. As a result, 2N variablelength kmer sequences are generated from the same s sequence. These sequences are referred to as cognate because the source DNA sequence is the same. These variablelength kmer sequences are used as inputs to the BiGRU neural network of CMIC. This process is a data augmentation method as the number of input instances is increased (see, for example, [21]).
Furthermore, such multiple cognate variablelength kmer sequences are alternative views of the original DNA sequence. Thus, multiple cognate variablelength kmer sequences are expected to make the trained neural network more robust.
Neural network architecture
We here describe the design of the BiGRU neural network of CMIC. As mentioned in the previous section, the input layer takes a variablelength kmer sequence as input. The second layer of the network is an embedding layer in which each kmer of the given sequence is converted to the corresponding real vectors of dimension D. We initialized the embedding vectors of the layer with the embedding vectors generated by our embedding vector generation method, splitDNA2vec, described in the subsequent subsection. The resulting embedding vector sequences are passed to the BiGRU layer, where they are processed in the forward and backward direction. The GRU at each time in each direction holds a hidden state represented by a Hdimensional vector. The last hidden states of the forward and backward directions are concatenated into a single vector. This vector is inputted into a fully connected layer followed by a sigmoid activation function. The output of the function is the total output of this network, and is interpreted as the probability of the input being unmethylated.
A training dataset is a pair of variablelength kmer sequence \(x_i\) and its methylation status \(y_i \in \{0,1\}\) for \(i = 1, \ldots , M\), where \(y_i = 1\) (0, resp.) indicates unmethylated (methylated, resp.). We denote the parameters of the neural network of CMIC by \({\mathbf {w}}\). Let \({\mathbf {y}} = (y_1, \ldots , y_M)\) and \(\hat{{\mathbf {y}}} = ({\hat{y}}_1, \ldots , {\hat{y}}_M)\) be the observed (true) and predicted methylation statuses of \(x_1, \ldots , x_M\). In the process of training the model, the model parameter \({\mathbf {w}}\) is optimized with the training dataset by minimizing the loss function
where \(\alpha\) is the weight decay hyperparameter, \(\Vert w\Vert _2\) is the \(L_2\) norm, and \(E(\hat{{\mathbf {y}}}, {\mathbf {y}} )\) is the crossentropy function, defined as
In addition to the embedding vector dimension D, GRU hidden vector dimension H, and weight decay rate \(\alpha\), there are several hyperparameters of the BiGRU aspect of CMIC used in the learning process namely, epoch, e, learning rate, r, batch size, b, and dropout rate, d. The dropout technique is applied in the BiGRU layer [22]. Their default values are given in Table 1. We train the network by Adaptive Moment Estimation (Adam) [23], a stochastic gradient descent optimization algorithm.
splitDNA2vec: generator of embedding vectors of randomlength kmers
Here, we formulate our new embedding vector creation method, called splitDNA2vec. The embedding vectors in the embedding layer of CMIC are initialized with the output of this method. First, variablelength kmer sequences are generated using the same procedure as in the first step described for CMIC with \(N=1000\) from all available CGIs, which are equivalent to training and test data. The generated variablelength kmer sequences are inputted into the word2vec algorithm with the continuous bagofwords (CBOW) model. The parameter of the word2vec algorithm is configured as follows. The context window size is set to 10. The minimal count of a word, i.e., the kmer, is \(c_{\min } = 1\). Namely, all occurrences of kmers are counted. The dimension of embedding vectors is set to \(D=20\).
This process of generating 2N variablelength kmer sequences from a DNA sequence is inspired by dna2vec [24] in which a given DNA sequence is repeatedly segmented into overlapping kmers, extracted from a sliding window of striding one, whose lengths are randomly chosen according to a discrete uniform distribution. The major difference between the dna2vec and our method, splitDNA2vec, is that our variablelength kmer sequences have higher randomness than those of dna2vec because the length and the start position of an extracted kmer are both random in our method, while only the length of kmers are randomized in dna2vec. Furthermore, splitDNA2vec generates N sequences of variablelength kmers from the same DNA sequence, though dna2vec generates only one sequence of variablelength kmers from a DNA sequence.
In place of splitDNA2vec, we also evaluated the case where the embedding layer is initialized with the dna2vec algorithm output. Furthermore, we considered a shuffled version of splitDNA2vec, denoted by splitDNA2vecsh, in which the mapping of kmers to embedding vectors made by splitDNA2vec is randomly shuffled. Finally, we examined how these embedding vector initialization methods affect performance of CMIC.
Gated recurrent unit
In this section, we explain the BiGRU neural network used in CMIC. The GRU was formulated by Cho et al. [25], and is similar to a long shortterm memory (LSTM) [26], but simpler as it does not use an output gate. We discuss performance of the CMIC variants with the standard RNN and LSTM architectures in the result section.
We here explain the architecture of GRU. The reset gate takes as input the input at time step t, \({\mathbf {x}}^t\), and the output (hidden) vector at time step \(t1\), \({\mathbf {h}}^{t1}\). This gate outputs a reset gate vector, \({\mathbf {r}}_t\), given as
where \({\mathbf {W}}_r\) and \({\mathbf {U}}_{r}\) are weight matrices for \({\mathbf {x}}^t\) and \({\mathbf {h}}^{t1}\), respectively, \({\mathbf {b}}_r\) is a bias, and \(\sigma\) is a sigmoid function. Similarly, the update gate outputs an update gate vector, \({\mathbf {z}}_t\), defined as
\({\mathbf {W}}_z\) and \({\mathbf {U}}_{z}\) are weight matrices for \({\mathbf {x}}^t\) and \({\mathbf {h}}^{t1}\), respectively, and \({\mathbf {b}}_z\) is a bias.
Using \({\mathbf {r}}^t\) as a regulator, GRU generates \(\tilde{{\mathbf {h}}}^t\) the candidate activation vector at time step t, calculated as
where \({\mathbf {W}}\) and \({\mathbf {U}}\) are weight matrices, \({\mathbf {b}}_h\) is a bias, and \(\odot\) is the Hadamard product. Note that \(tanh\) is the hyperbolic tangent function, whose range is \([1,1]\). Further, the reset gate vector \({\mathbf {r}}^t\) is used as a coefficient representing how much the output vector, \({\mathbf {h}}^{t1}\), should be forgotten to make the candidate activation vector, \(\tilde{{\mathbf {h}}}^t\).
The output vector at time step t, \({\mathbf {h}}^t\), is the affine combination of \({\mathbf {h}}^{t1}\) and \(\tilde{{\mathbf {h}}}^{t}\) with a ratio of \({\mathbf {z}}^t : ({\mathbf {1}}  {\mathbf {z}}^t )\); that is,
where \({\mathbf {1}}\) is the vector filled with ones of the same dimension as \({\mathbf {z}}^t\).
To enhance the predictability of CMIC, we use the BiGRU model, which is the GRU version of the BiRNN model [27]. Namely, it has forward and backward GRU networks, where an input is processed in the forward and backward directions, respectively, which we call BiGRU layer. The output of a BiGRU layer is formulated by merging the last hidden state vectors of two directions with an appropriate mode, like concatenation, summation, average, and multiplication. Concatenation is adopted in this work.
Materials
We use the data obtained by wholegenome bisulfite sequencing (WGBS) of mouse fully grown oocytes (FGOs) [6, 7, 28, 29] and blastocyst (GSE174311). The FGOs are obtained from the mouse strain C57BL/6J (Kyudo Co, Japan), and the blastocysts are derived from in vitro fertilization of C57BL/6J oocytes with JF1/Ms mouse (Genetic Resource Center, National Institute of Genetics, Japan) sperm. At the time of the experiments the mice were at least 10 weeks old. The locations of CGIs are based on the mm10 assembly of the mouse genome and obtained from the UCSC genome annotation database [30]. The WGBS reads of the FGO and blastocyst were mapped to the mouse genome using Bismark [31].
For allelicspecific methylation analysis of blastocysts, reads were mapped to an Nmasked genome sequence generated based on the published SNP data of JF1 [32]. Allelic reads were selected using SNPsplit [33].
Methylation status of CGIs
For each CGI, we count the number of WGBS reads covering a CpG site within the CGI and that of reads represented as methylated. We define the DNA methylation ratio of a CGI as the count for methylation to the whole count. If the whole read count of a CGI is less than the threshold T, it is not used in any further analysis. Then, a CGI is labeled M (methylated) if its methylation ratio is greater than or equal to a threshold \(\beta _{M}\), while it is labeled U (unmethylated) if its methylation ratio is lower than a threshold, \(\beta _{U}\). Table 2 shows the setting of these parameters for FGO and maternal genome of blastocyst. The distribution of methylation ratios in the maternal genome of mouse blastocysts of the CGIs that are methylated in FGOs is given in Additional file 1: Fig. S1.
Our target data is the methylation status, either M or U, of CGIs that belongs to class M in FGOs, in the maternal genome of blastocyst. These classes are respectively denoted as M2M (DNA methylation inheritance) and M2U (DNA methylation loss). The number of M2M CGIs is 182, and that of M2U CGIs is 90. Among them, there are 150 M2M CGIs and 60 M2U CGIs with lengths of at most 500 bp. These CGIs are suitable for learning models because longer sequences require much more time to train models. We use them in 3fold stratified crossvalidation.
Performance metrics
The output of CMIC to an input variablelength kmer sequence is the probability of the input being unmethylated. We determine the predicted class label as “unmethylated” if the probability is greater than 0.5 or “methylated” otherwise.
As a performance metrics, we use balanced accuracy, Fmeasure, MCC (Matthews correlation coefficient), and AUC. We calculate these performance metrics in 3fold stratified crossvalidation and show the average with the standard error.
Results
Finding the best pair of the lower and upper bounds of the variable length of extracted kmers
Recall that \(k_{\min }\) and \(k_{\max }\) are the lower and upper bounds of the variablelength kmers which a given DNA sequence are split into. We here find the best pair of \(k_{\min }\) and \(k_{\max }\) with the other default parameters. We set the search space of the pairs of \(k_{\min }\) and \(k_{\max }\) such that \(k_{\min } = 2, \ldots , 11\) and \(k_{\max } = 3, \ldots , 12\) such that \(k_{\max }  k_{\min } \ge 1\).
The Fmeasure based on a 3fold crossvalidation is summarized in the bar graph in Fig. 2 where bars are grouped by \(k_{\max }\). Results show that as \(k_{\max }\) increases, so too do the Fmeasure values with a small \(k_{\min }\) value of approximately 2, 3, and 4. Given that splitDNA2vec assigns the embedding vectors of such short and longer kmers simultaneously, these embedding vectors likely acted synergistically to characterize CGI sequences. Among them, \((k_{\min }, k_{\max }) = (4,12)\) achieved the highest Fmeasure, 0.93. This pair of values was used as the default in subsequent analyses. The balanced accuracy, MCC, and AUC graphs appear similar to that in Fig. 2 (Additional File 1: Figs. S2, S3, and S4).
Lastly, in the case of \(k_{\max }\) values greater than 12, considering that CMIC marked the highest Fmeasure with \(k_{\max } = 12\), we ran splitDNA2vec with \(k_{\max } = 13\); however, this process was incredibly time consuming, particularly in executing word2vec; Thus we have not examined this case in depth.
Evaluation of splitDNA2vec
We next analyzed the extent to which the embedding vectors, used in the embedding layer, affect prediction of the CGI methylation status. For this purpose, we considered three different methods for generating embedding vectors, as shown in Table 3. The first method was our default scheme, splitDNA2vec, the second method was splitDNA2vecsh, which randomly shuffles the mapping of kmers to embedding vectors made by splitDNA2vec, and the final method was dna2vec, which has been described above. Recall that dna2vec generates a sequence of variablelength kmers from a DNA sequence. Here we extended dna2vec which generates 1000 sequences of variablelength kmers from the same sequence. This extension is denoted by dna2vecN1000.
This embedding vector assignment to kmers is an unsupervised learning process. Thus, the DNA sequences of our dataset, including training, test, and long CGI datasets, were applied without their class labels. Note that each method generates \(N=1,000\) variablelength kmer sequences from an input CGI sequence, save for the original dna2vec.
We further formulated more specific embedding vector methods derived from each of the four methods described above, from the view point of whether the embedding vectors in the embedding layers are updated in the training process of the neural network part of CMIC, as in [34]. More specifically, these vectors were treated as variable weights of the network (V) or constant vectors (C). For splitDNA2vec, we denoted the two versions as splitDNA2vecV and splitDNA2vecC, and the remaining versions in the same way. Thus, we compared the resulting eight methods with the remaining parameters as default.
The Fmeasure on the test datasets of the eight different options explained above are shown in Fig. 3. This result has some interesting implications.
First, the best method was found to be splitDNA2vecV with an Fmeasure of 0.914, followed by splitDNA2vecC with an Fmeasure of 0.906. This implies that even if the embedding layer is freezed, CMIC can achieve samelevel performance due to the effectiveness of the embedding vectors constructed by the splitDNA2vec method. Moreover, the splitDNA2vecC method offers the advantage of not requiring further updates of the initial embedding vectors given by the splitDNA2vec method in the process of endtoend training of the CMIC neural network. Thus, we use splitDNA2vecC as the default setting in further analyses.
Second, we can see that dna2vecN1000C and dna2vecN1000V are superior to dna2vecC and dna2vecV, highlighting the benefit of generating multiple sequences of variablelength kmers from the same CGI sequences. The highest Fmeasure obtained was 0.40, given by dna2vecN1000C, which is significantly lower than the 0.91 of splitDNA2vec. Given that the primary difference between splitDNA2vec and dna2vecN1000 is the presence/absence of overlap between neighboring extracted kmers, this result implies that overlapping neighboring kmers have less information than nonoverlapping ones.
Third, in terms of the Fmeasure, dna2vecC and dna2vecV yielded worse results than the randomlyshuffled version of splitDNA2vec, splitDNA2vecshC and splitDNA2vecshV, respectively. The option “window” of word2vec, specifying the length of consecutive kmers used as an instance to train the word2vec model, was set to 10 in all eight methods for embedding vectors. A possible drawback of dna2vec is that the genomic region covered by a sliding window of size 10 is shorter than splitDNA2vec due to overlapping between neighboring kmers.
The graphs of balanced accuracy, MCC, and AUC are similar to Fig. 3 (given in Additional file 1: Figs. S5, S6, and S7).

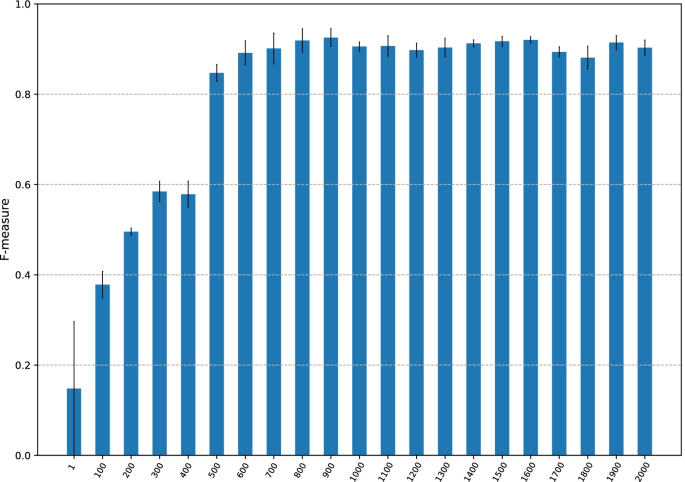

The number of variablelength kmer sequences strongly affects DNA methylation inheritance prediction
The total number of class M2U CGIs is 60, which may not be sufficient to adequately train CMIC. We then increased N, the number of sequences of variablelength kmers generated from an input CGI sequence, which are directly taken as input for the network. The result is shown in Fig. 4.
As N increases to 900, the Fmeasure gradually improved and attained an Fmeasure of 0.93 at \(N=900\). Subsequently, the curve plateaued. This result clearly indicates that multiple sequences of variablelength kmers should be used to train models.
The graphs of balanced accuracy, MCC, and AUC are similar to Fig. 4 (given in Additional file 1: Figs. S8, S9, and S10).
Predictability of the trained model for long CGIs
In this work, we limited the length of CGIs in training datasets to 500 bp as longer sequences cause the unfolded form of the CMIC neural network to be deeper and make the learning process more difficult. If a key feature for determining the methylation inheritance of a CGI was encoded in a relatively short region, the network trained with the short CGIs could learn the feature and accurately predict the methylation inheritance of CGIs longer than 500 bp with the same level predictability. We then examined the Fmeasure of the trained CMIC with the short sequences for the longer ones.
The length distribution of long M2M and M2U CGIs is given in Table 4. The Fmeasure of prediction on these sequences is given in Fig. 5.
The average Fmeasure for the CGI length intervals [501, 600], [601, 700], [701, 800], [701, 800], [801, 900], 1000 and more are 0.90, 0.89, 0.94, 0.96, 0.74, and 0.96, respectively. Recall that, to this point, the best Fmeasure with the default parameter values was 0.93. Unexpectedly, three intervals attained Fmeasure values higher than 0.93. This result implies that some genomic features for methylation inheritance are embedded within regions of 500 bp or shorter, and are shared by many long CGIs.
The graphs of balanced accuracy, MCC, and AUC are similar to Fig. 5 (given in Additional file 1: Figs. S11, S12, and S13).
Performance with different recurrent neural network architectures
Though the recurrent unit architecture adopted in CMIC is BiGRU in the default setting, there are other wellknown architectures, including the standard RNN unit [35] and LSTM unit [26]. We then consider the variants of CMIC, in which the BiGRU network is replaced with the BiRNN network and the bidirectional LSTM (BiLSTM) network. Furthermore, we considered their unidirectional version, denoted by GRU, RNN, and LSTM.
Their Fmeasures are shown in Fig. 6. First, BiGRU, GRU, BiLSTM, and LSTM have comparable Fmeasures, which are higher than those of BiRNN and RNN. Hence, the bidirectionality in the GRU and LSTM architectures is not necessary. This implies that the genomic features for DNA methylation status of CGIs can be learned in one direction. Meanwhile, RNN showed poor performance, however, the bidirectional version, BiRNN, compensated for the drawback of RNN to some extent.
The graphs of balanced accuracy, MCC, and AUC are similar to Fig. 6 (given in Additional file 1: Figs. S14, S15, and S16).
Performance of KEGRU
Among many neural networkbased classifiers for variablelength DNA sequences, the model most similar to CMIC is KEGRU [17] in which with a fixed k and a fixed stride, a single sequence of kmers is generated from a DNA sequence. Indeed, their scheme is essentially the same as dna2vec. This differs from CMIC, in which the generation of multiple sequences of variablelength kmers is performed by splitDNA2vec.
We then carried out comprehensive computational experiments of KEGRU with the hyperparameter values shown in Table 5. We extended the range of kmer lengths from the original lengths, 4, 5, 6, in [17] to \(2, \ldots , 12\). We also widened the strides range from \(2, \ldots , 5\) to \(1, \ldots , 5\). Lastly, the dimensions of embedding vectors, denoted by D, were changed from 50, 100, 150, 200 to 20 and 50. In [17], the cases where \(D = 50, 100, 150\), and 200 were compared, revealed relatively similar scores with those for \(D = 50, 100\), and 150. Thus, we adopted \(D=50\) in addition to our default value \(D=20\).
Fig. 7a, b presents the Fmeasure graphs for KEGRU with \(D=20\) and 50, respectively. Broadly speaking, the results are similar with the bars on the left axis showing Fmeasures of approximately 0.4, and those on the right, indicating approximately 0.2, some of which had large standard errors. A comparison of these results with those shown in Fig. 2 indicates the effectiveness of the multiple sequence generation of kmers of splitDNA2vec.
The graphs of balanced accuracy, MCC, and AUC are similar to Fig. 7 (given in Additional file 1: Figs. S17, S18, S19, S20, S21, and S22).
Characterizing embedding vectors of 12mers
When we generate a sequence of variablelength kmers from a CGI sequence using splitDNA2vec, the maximum length is set to be \(k_{\max } = 12\). However, for example, the work on chromatin accessibility [19] used 6mers, and KEGRU adopted \(k= 4, 5\), and 6 as mentioned above for [17]. The reason these relatively short kmers were selected was to avoid overfitting due to long kmers. However, a long kmer extracted from a training CGI sequence may never occur in any of the test CGI sequences, including the reverse complements. Hence, such a long kmer will be an obstacle to training the models.
However, extracted kmers are transformed into pretrained Ddimensional embedding vectors in CMIC. Even if the two long kmers differ, yet their substrings are similar or the same, the long kmers may be mapped into embedding vectors close to each other. If this hypothesis is realized within methylated CGIs and/or unmethylated CGIs, such long kmers can contribute to high predictability for CGI methylation inheritance.
To verify this hypothesis, we applied tDistributed Stochastic Neighbor Embedding (tSNE), which is an algorithm to map highdimensional data into a lowdimensional space based on the distance between data points [36], to the 12mers generated with the default parameter values of CMIC. Given that too many 12mers were derived from CGI sequences of length \(\le 500\), we removed the 12mers occurring in both of methylated and unmethylated CGI sequences as they can not discriminate CGI methylation inheritance. A total of 107,129 12mers remained. Their plot, generated by tSNE with the default perplexity 30, is shown in Fig. 8. Most unmethylated and methylated 12mers are respectively distributed into different regions according to their methylation inheritance. The plots with perplexity 10 and 50 show similar views (Additional file 1: Figs. S23 and S24). This implies that there are many 12mers with embedding vectors characteristic of methylation inheritance.
Predicting the methylation status of CGIs in human lymphocytes
In addition to our original DNA methylation inheritance prediction study aim, we also applied CMIC to the prediction of DNA methylation status of CGIs in human lymphocytes [37] used in Bock et al. [12], to evaluate the versatility of CMIC. The dataset contains 29 methylated and 103 unmethylated CGIs in chromosome 21. Given that this dataset is smaller than that comprising 60 M2U and 150 M2M CGIs, this study question is more challenging to CMIC.
As various attribute sets were tested, we selected one with the highest accuracy, 0.919, for this analysis. The attribute set is the combination of Class 1 (DNA sequence properties and patterns) and Class 2 (repeat frequency and distribution). They reported the total numbers of true positives (TPs), false negatives (FNs), true negatives (TNs), and false positives (FPs) over a 10fold stratified crossvalidation that was repeated 20 times (Table 2 in [12]). From this data we calculated balanced accuracy, Fmeasure, and MCC, shown in Table 6.
In the same way, we counted TPs, FNs, TNs, and FPs from the result on test datasets of 3fold stratified crossvalidation by CMIC, and gave the performance metrics in Table 6. As seen, CMIC marked 14% higher balanced accuracy and Fmeasure and 15 % higher MCC.
Note that Bock et al. designed a total of 1,184 sequencebased feature vectors and made predictions using support vector machines. Meanwhile, the key vectors of our method, which are embedding vectors of variablelength kmers and hidden vectors of the BiGRU layer, are automatically learned by specifying hyperparameters. This result indicates the superiority of CMIC.
Conclusion
In this paper, we addressed whether it is possible to predict if CGIs maintain oocytederived methylation in the maternal genome of blastocysts, based on their sequences, and proposed a method, CMIC, for this prediction. A critical issue that arose was an insufficient number of available CGIs to train the neural networks. Thus, we designed a random data augmentation approach in which an input single DNA sequence was converted to multiple sequences of embedding vectors of extracted variablelength kmers from the DNA sequence. Furthermore, such variablelength kmers sequences derived from our CGI datasets were taken as input to generate embedding vectors of the kmers. This new embedding vector generation method for DNA sequences was splitDNA2vec. These embedding vectors were used in the embedding layer of CMIC in the default setting. As a whole, CMIC takes an input CGI sequence, converts it to multiple variablelength kmer sequences, and further transforms each kmer to a specified embedding vector. A BiGRU network gives the probability of the input CGI inheriting the DNA methylation in the maternal genome of the blastocyst.
In this study, we found that splitDNA2vec works better than dna2vec for the methylation inheritance classification. Furthermore, we showed that the generation of numerous variablelength kmer sequences from a DNA sequence is effective in augmenting input data, because the partition of a DNA sequence to variablelength kmer sequences provides different representations of the original DNA sequences.
The design of the proposed method, CMIC, does not depend on DNA methylation. Thus, this method should be applicable to other DNA sequence classification problems including chromatin accessibility prediction [19].
Availability of data and materials
CMIC is available through the GitHub at https://github.com/maruyamalabdesign/CMIC under the GNU General Public License v3. The WGBS datasets of FGO (reprocessed for this study) and blastocyst (generated during this study) are available in the NCBI's Gene Expression Omnibus and the DDBJ Sequence Read Archive under accession numbers GSE112320, GSE174311, DRA000570, DRA005849 and DRA011758.
Abbreviations
 CGI:

CpG Island
 GRU:

Gated recurrent unit
 RNN:

Recurrent neural network
 LSTM:

Long shortterm memory
 FGO:

Fully grown oocyte
 WGBS:

Wholegenome bisulfite sequencing
References
Seisenberger S, Peat JR, Reik W. Conceptual links between DNA methylation reprogramming in the early embryo and primordial germ cells. Curr Opin Cell Biol. 2013;25:281–8.
Tucci V, Isles AR, Kelsey G, FergusonSmith AC, Tucci V, Bartolomei MS, Benvenisty N, Bourc’his D, Charalambous M, Dulac C, Feil R, Glaser J, Huelsmann L, John RM, McNamara GI, Moorwood K, Muscatelli F, Sasaki H, Strassmann BI, Vincenz C, Wilkins J, Isles AR, Kelsey G, FergusonSmith AC. Genomic imprinting and physiological processes in mammals. Cell. 2019;176:952–65.
Lacal I, Ventura R. Epigenetic inheritance: Concepts, mechanisms and perspectives. Front Mol Neurosci. 2018;11
Deaton AM, Bird A. CpG islands and the regulation of transcription. Gene Dev. 2011;25:1010–22.
Hirasawa R, Chiba H, Kaneda M, Tajima S, Li E, Jaenisch R, Sasaki H. Maternal and zygotic Dnmt1 are necessary and sufficient for the maintenance of DNA methylation imprints during preimplantation development. Gene Dev. 2008;22:1607–16.
Maenohara S, Unoki M, Toh H, Ohishi H, Sharif J, Koseki H, Sasaki H. Role of UHRF1 in de novo DNA methylation in oocytes and maintenance methylation in preimplantation embryos. PLoS Genet. 2017;13: e1007042.
Au Yeung WK, Brind Amour J, Hatano Y, Yamagata K, Feil R, Lorincz MC, Tachibana M, Shinkai Y, Sasaki H. Histone H3K9 methyltransferase G9a in oocytes is essential for preimplantation development but dispensable for CG methylation protection. Cell Rep. 2019;27:282–93.
Smallwood SA, Tomizawa SI, Krueger F, Ruf N, Carli N, SegondsPichon A, Sato S, Hata K, Andrews SR, Kelsey G. Dynamic CpG island methylation landscape in oocytes and preimplantation embryos. Nat Genet. 2011;43:811–4.
Strogantsev R, Krueger F, Yamazawa K, Shi H, Gould P, GoldmanRoberts M, McEwen K, Sun B, Pedersen R, FergusonSmith AC. Allelespecific binding of ZFP57 in the epigenetic regulation of imprinted and nonimprinted monoallelic expression. Genome Biol. 2015;16:112.
Feltus FA, Lee EK, Costello JF, Plass C, Vertino PM. Predicting aberrant CpG island methylation. Proc Natl Acad Sci USA. 2003;100:12253–8.
Feltus FA, Lee EK, Costello JF, Plass C, Vertino PM. DNA motifs associated with aberrant CpG island methylation. Genomics. 2006;87:572–9.
Bock C, Paulsen M, Tierling S, Mikeska T, Lengauer T, Walter J. CpG Island methylation in human lymphocytes is highly correlated with DNA sequence, repeats, and predicted DNA structure. PLoS Genet. 2006;2: e26.
Fang F, Fan S, Zhang X, Zhang MQ. Predicting methylation status of CpG islands in the human brain. Bioinformatics. 2006;22:2204–9.
Yang Y, Nephew K, Kim S. A novel KMer mixture logistic regression for methylation susceptibility modeling of CpG dinucleotides in human gene promoters. BMC Bioinform. 2012;13:S15.
Zheng H, Wu H, Li J, Jiang SW. CpGIMethPred: computational model for predicting methylation status of CpG islands in human genome. BMC Med Genomics. 2013;6(Suppl 1):S13.
Yalcin D, Otu HH. An unbiased predictive model to detect DNA methylation propensity of CpG Islands in the human genome. Curr Bioinform. 2021;16:179–96.
Shen Z, Bao W, Huang DS. Recurrent neural network for predicting transcription factor binding sites. Sci Rep. 2018;8:1–10.
Quang D, Xie X. DanQ: a hybrid convolutional and recurrent deep neural network for quantifying the function of DNA sequences. Nucleic Acids Res. 2016;44: e107.
Min X, Zeng W, Chen N, Chen T, Jiang R. Chromatin accessibility prediction via convolutional long shortterm memory networks with \(k\)mer embedding. Bioinformatics. 2017;33:i92–101.
Chowdhury GG. Natural language processing. Annu Rev Inform Sci. 2003;37:51–89.
Chen S, Dobriban E, Lee JH. A grouptheoretic framework for data augmentation. J Mach Learn Res. 2020;21(245):1–71.
Srivastava N, Hinton G, Krizhevsky A, Sutskever I, Salakhutdinov R. Dropout: a simple way to prevent neural networks from overfitting. J Mach Learn Res. 2014;15:1929–58.
Kingma DP, Ba J. Adam. A method for stochastic optimization. Preprint arXiv:1412.6980. 2014.
Ng P. dna2vec: Consistent vector representations of variablelength kmers. 2017.
Cho K, Van Merriënboer B, Bahdanau D, Bengio Y. On the properties of neural machine translation: Encoderdecoder approaches. Preprint arXiv:1409.1259. 2014.
Hochreiter S, Schmidhuber J. Long shortterm memory. Neural Comput. 1997;9:1735–80.
Schuster M, Paliwal KK. Bidirectional recurrent neural networks. IEEE T Signal Proces. 1997;45:2673–81.
Shirane K, Toh H, Kobayashi H, Miura F, Chiba H, Ito T, Kono T, Sasaki H. Mouse oocyte methylomes at base resolution reveal genomewide accumulation of nonCpG methylation and role of DNA methyltransferases. PLoS Genet. 2013;9: e1003439.
Kibe K, Shirane K, Ohishi H, Uemura S, Toh H, Sasaki H. The DNMT3A PWWP domain is essential for the normal DNA methylation landscape in mouse somatic cells and oocytes. PLoS Genet. 2021;17: e1009570.
Karolchik D, Baertsch R, Diekhans M, Furey TS, Hinrichs A, Lu Y, Roskin KM, Schwartz M, Sugnet CW, Thomas DJ, et al. The UCSC genome browser database. Nucleic Acids Res. 2003;31:51–4.
Krueger F, Andrews SR. Bismark: a flexible aligner and methylation caller for bisulfiteseq applications. Bioinformatics. 2011;27:1571–2.
Takada T, Ebata T, Noguchi H, Keane TM, Adams DJ, Narita T, Shin T, Fujisawa H, Toyoda A, Abe K, et al. The ancestor of extant Japanese fancy mice contributed to the mosaic genomes of classical inbred strains. Genome Res. 2013;23:1329–38.
Krueger F, Andrews SR. SNPsplit: Allelespecific splitting of alignments between genomes with known SNP genotypes. F1000Research. 2016;5:1479.
Shen Z, Bao W, Huang DS. Recurrent neural network for predicting transcription factor binding sites. Sci Rep. 2018;8:15270.
Rumelhart DE, Hinton GE, Williams RJ. Learning internal representations by error propagation. Technical report, California Univ San Diego La Jolla Inst for Cognitive Science. 1985.
van der Maaten L, Hinton G. Visualizing data using tSNE. J Mach Learn Res. 2008;9:2579–605.
Yamada Y, Watanabe H, Miura F, Soejima H, Uchiyama M, Iwasaka T, Mukai T, Sakaki Y, Ito T. A comprehensive analysis of allelic methylation status of CpG islands on human chromosome 21q. Genome Res. 2004;14(2):24766. https://doi.org/10.1101/gr.1351604.
Acknowledgements
We would like to thank Ryo Shimizu (Kyushu University) for technical assistance.
Funding
This work was supported by KAKENHI Grant (JP18H05214) to H.S. and O.M. and KAKENHI Grant (JP21H03544) to O.M.
Author information
Authors and Affiliations
Contributions
OM and YL formulated the mathematical model and wrote the initial draft of this article. YL wrote the majority of the first version of the code of the method and run computations. OM and HN coded the revised version of the method and OM carried out computational experiments with the code. HT and WKAY preprocessed the input data. OM, YL, WKAY, and HS performed the data analysis. OM, WKAY, and HS conceptualized and supervised the project and wrote the final version of the manuscript. All authors read and approved the final manuscript.
Corresponding authors
Ethics declarations
Ethics approval and consent to participate
All animal experiments were performed under the ethical guidelines of Kyushu University, and the protocols were approved by the Institutional Animal Care and Use Committee. All mice used in this study were euthanized by carbon dioxide asphyxiation. This study is reported in accordance with ARRIVE guidelines.
Competing interests
The authors declare that they have no competing interests.
Consent for publication
Not applicable.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Supplementary Information
Additional file 1. Fig. S1.
Distribution of methylation ratios in the maternal genome of mouse blastocyst of the CGIs that are methylated in FGOs. The lower bound of class M (methylated) for FGOs is set to β_{M} = 0.8 as shown in Table. 2. Fig. S2. Balanced accuracy of CMIC with different pairs of k_{min} and k_{max}. The search space of the pairs of k_{min} and k_{max} are set to be k_{min} = 2, . . . , 11 and k_{max} = 3, . . . , 12 with k_{max} − k_{min} ≥ 1. The bars are grouped by k_{max}. Fig. S3. MCC of CMIC with different pairs of k_{min} and k_{max}. The search space of the pairs of k_{min} and k_{max} are set to be k_{min} = 2, ..., 11 and k_{max} = 3, ..., 12 with k_{max} − k_{min} ≥ 1. The bars are grouped by k_{max}. Fig. S4. AUC of CMIC with different pairs of k_{min} and k_{max}. The search space of the pairs of k_{min} and k_{max} are set to be k_{min} = 2, ..., 11 and k_{max} = 3, ..., 12 with k_{max} − k_{min} ≥ 1. The bars are grouped by k_{max}. Fig. S5. Balanced accuracy with different schemes for embedding vectors shown in Table 3. The xaxis represents the eight methods to be compared: splitDNA2vecC, splitDNA2vecV, splitDNA2vecshC, splitDNA2vecshV, dna2vecC, dna2vecV, dna2vecN1000C, and dna2vecN1000V. The yaxis shows the Fmeasure on test datasets. Fig. S6. MCC with different schemes for embedding vectors shown in Table 3. The xaxis represents the eight methods to be compared: splitDNA2vecC, splitDNA2vecV, splitDNA2vecshC, splitDNA2vecshV, dna2vecC, dna2vecV, dna2vecN1000C, and dna2vecN1000V. The yaxis shows the Fmeasure on test datasets. Fig. S7. AUC with different schemes for embedding vectors shown in Table 3. The xaxis represents the eight methods to be compared: splitDNA2vecC, splitDNA2vecV, splitDNA2vecshC, splitDNA2vecshV, dna2vecC, dna2vecV, dna2vecN1000C, and dna2vecN1000V. The yaxis shows the Fmeasure on test datasets. Fig. S8. Balanced accuracy of CMIC with different numbers of variablelength kmer sequences generated from an input CGI sequence, N. The xaxis represents values of N. The yaxis shows the Fmeasure with N. Fig. S9. MCC of CMIC with different numbers of variablelength kmer sequences generated from an input CGI sequence, N. The xaxis represents values of N. The yaxis shows the Fmeasure with N. Fig. S10. AUC of CMIC with different numbers of variablelength kmer sequences generated from an input CGI sequence, N. The xaxis represents values of N. The yaxis shows the Fmeasure with N. Fig. S11. Balanced accuracy of CMIC trained with short CGIs for long CGIs. The xaxis indicates the range of CGI sequence lengths. The yaxis indicates the Fmeasure. Fig. S12. MCC of CMIC trained with short CGIs for long CGIs. The xaxis indicates the range of CGI sequence lengths. The yaxis indicates the Fmeasure. Fig. S13. AUC of CMIC trained with short CGIs for long CGIs. The xaxis indicates the range of CGI sequence lengths. The yaxis indicates the Fmeasure. Fig. S14. Balanced accuracy of CMIC with alternative recurrent units, RNN, BiRNN, GRU, BiGRU, LSTM, and BiLSTM. Fig. S15. MCC of CMIC with alternative recurrent units, RNN, BiRNN, GRU, BiGRU, LSTM, and BiLSTM. Fig. S16. AUC of CMIC with alternative recurrent units, RNN, BiRNN, GRU, BiGRU, LSTM, and BiLSTM. Fig. S17. Balanced accuracy of KEGRU with various lengths of kmers and strides. The vector size is set to 20. The xaxis represents a pair of k and stride. Fig. S18. MCC of KEGRU with various lengths of kmers and strides. The vector size is set to 20. The xaxis represents a pair of k and stride. Fig. S19. AUC of KEGRU with various lengths of kmers and strides. The vector size is set to 20. The xaxis represents a pair of k and stride. Fig. S20. Balanced accuracy of KEGRU with various lengths of kmers and strides. The vector size is set to 50. The xaxis represents a pair of k and stride. Fig. S21. MCC of KEGRU with various lengths of kmers and strides. The vector size is set to 50. The xaxis represents a pair of k and stride. Fig. S22. AUC of KEGRU with various lengths of kmers and strides. The vector size is set to 50. The xaxis represents a pair of k and stride. Fig. S23. Plot generated by tSNE with perplexity 10. Fig. S24. Plot generated by tSNE with perplexity 50.
